Understanding and Resolving the Pandas “TypeError: no numeric data to plot” Error

When working with data visualization in Python, particularly using the powerful Pandas library in conjunction with plotting backends, developers occasionally encounter a highly specific and frustrating runtime error. This error, typically presented as a TypeError or ValueError, manifests with the message:

TypeError: no numeric data to plot

This error message is deceptively simple but points directly to a fundamental mismatch between the expected input and the actual content of your DataFrame. The underlying issue is that the method being called—usually a visualization function like .plot()—requires columns that contain true numerical values (such as integers or floats) to generate meaningful graphical output. If the columns you select are stored as strings (Pandas data type: object), the plotting function cannot interpret them as coordinates, leading immediately to this failure.

Understanding the source of this problem is the first step toward resolution. In many data analysis workflows, data is imported from external sources like CSV or Excel files. During this import process, Pandas may incorrectly infer the data type of a column, especially if the column contains only numbers but is quoted (e.g., "5" instead of 5). Consequently, what appears visually to be a column of scores, weights, or measurements is internally treated as text. This comprehensive guide will walk through how to diagnose, understand, and definitively fix the TypeError: no numeric data to plot by ensuring your data adheres to the required numerical format.

Understanding Data Type Mismatch in Plotting

The core functionality of any plotting library depends on the ability to map data points onto a continuous or discrete axis system. This mapping is only possible if the data itself is quantifiable—that is, if it represents measurable numeric data. When Pandas attempts to execute a plotting command on a DataFrame, it performs an implicit check to identify columns suitable for visualization. If this check fails to find any columns labeled internally as int, float, or other related numeric categories (like float64), the system raises the TypeError because it literally has “no numeric data to plot.”

A common misconception arises because Python’s dynamic typing allows variables to hold different kinds of data, but Pandas, being built on NumPy arrays, requires consistency within a column. When reading data, Pandas defaults to the object data type for any column where it cannot definitively assign a numerical type, or where it detects mixed data types (e.g., strings and numbers combined). Since object type is primarily used for strings, plotting functions treat these columns as non-quantifiable text, even if every entry looks like a number.

To prevent this error, it is essential for the data analyst to explicitly manage and verify the data types after loading the dataset. Relying solely on Pandas’ automatic type inference can lead to unexpected failures, particularly in data cleaning and visualization stages. By proactively inspecting and coercing the data types, we ensure that the visualization tools receive the necessary numerical input they require to render charts and graphs successfully.

How to Reproduce the Error with Sample Data

To illustrate this common issue, let us construct a simple Pandas DataFrame. Although we intend for the points, rebounds, and blocks columns to be numerical scores, they are deliberately initialized here using strings (indicated by the quotes around the values). This mimics the scenario where data is loaded from a poorly formatted text file or a database where numerical fields were mistakenly saved as text fields.

Observe the following Python code block, which creates our sample dataset representing athletic statistics:

import pandas as pd

#create DataFrame
df = pd.DataFrame({'team': ['A', 'A', 'B', 'B', 'B'],
                   'points': ['5', '7', '7', '9', '12'],
                   'rebounds': ['11', '8', '10', '6', '6'],
                   'blocks': ['4', '7', '7', '6', '5']})

#view DataFrame
df

	team	points	rebounds blocks
0	A	5	11	 4
1	A	7	8	 7
2	B	7	10	 7
3	B	9	6	 6
4	B	12	6	 5

Visually inspecting the output confirms that the values in the statistical columns appear to be integers. However, when we attempt to utilize the built-in .plot() method for creating a line graph—a function that inherently requires quantifiable axes—the error surfaces immediately. We are trying to plot the progression of these three variables across the index, assuming they are suitable for numerical representation.

Executing the plotting command on the selected columns results in the expected failure, clearly demonstrating that the internal representation of the data is hindering the visualization process:

#attempt to create line plot for points, rebounds, and blocks
df[['points', 'rebounds', 'blocks']].plot()

ValueError: no numeric data to plot

The system cannot proceed because, despite our intentions, none of the selected columns—points, rebounds, and blocks—are recognized as numerical types. They are fundamentally stored as strings, which plotting functions cannot use to define a continuous axis. This leads us directly to the necessary diagnostic step: inspecting the official data types as Pandas sees them.

Diagnosing the Problem: Inspecting Column Data Types

The single most important step in resolving data type-related errors in Pandas is to use the .dtypes attribute. This attribute returns a Series detailing the assigned data type for every column in the DataFrame, revealing exactly how Pandas is interpreting the underlying data arrays. This diagnostic step confirms our suspicion that the numerical-looking columns are actually stored as text.

When we apply the .dtypes attribute to our current DataFrame, df, we receive the following output:

#display data type of each column in DataFrame
df.dtypes

team        object
points      object
rebounds    object
blocks      object
dtype: object

The key takeaway from this diagnostic report is the repeated appearance of object next to the columns we intended to plot. In Pandas, object is typically the default data type assigned to strings or mixed-type columns. Since strings are not suitable for calculating slopes, ranges, or axis limits, the plotting routine correctly identifies the lack of numeric data and halts execution with the TypeError. This clearly verifies that the data needs conversion before any numerical operation, including plotting, can take place.

Once the diagnosis confirms the object type, the solution becomes clear: we must explicitly instruct Pandas to treat these columns as true numbers. This process, known as type coercion, transforms the underlying data storage mechanism from handling arbitrary strings to handling standardized numerical values (either integers or floating-point numbers), thereby satisfying the requirement of the visualization functions.

The Solution: Explicit Type Conversion using .astype()

The fix involves converting the problematic columns from the object data type to a recognized numerical type, such as int or float. The most straightforward way to achieve this in Pandas is by utilizing the powerful .astype() method. This method allows us to specify a target data type for a column or a series of columns, forcing the conversion. If the data within the column cannot be converted (e.g., if there were actual non-numeric characters like “N/A” mixed in), this method would typically raise a ValueError, providing an additional layer of data quality control.

In our specific case, we will convert the points, rebounds, and blocks columns to float type. Choosing float (floating-point numbers) is often a safer default than int (integers) because it accommodates potential future non-integer values (e.g., averages or calculated scores). We must apply this conversion sequentially to each column that needs fixing, overwriting the existing string columns with the newly converted numerical columns:

#convert points, rebounds, and blocks columns to numeric
df['points']=df['points'].astype(float)
df['rebounds']=df['rebounds'].astype(float)
df['blocks']=df['blocks'].astype(float)

After executing these type conversion commands, the underlying structure of the df DataFrame has fundamentally changed, replacing the string representation of the numbers with their true numerical equivalents. This crucial step prepares the data for any downstream numerical analysis or visualization tasks, including the plotting operation that previously failed. The subsequent section demonstrates how this modification resolves the original TypeError and successfully generates the line plot.

Verification and Successful Plotting

With the columns correctly converted to the float64 numerical type, we can now confidently re-execute the plotting command. Since the selected columns now satisfy the requirement for numeric data, the .plot() method is able to successfully process the data, define the necessary axes, and render the visualization.

Executing the plotting function now yields the desired graphical output without any error messages:

#create line plot for points, rebounds, and blocks
df[['points', 'rebounds', 'blocks']].plot()

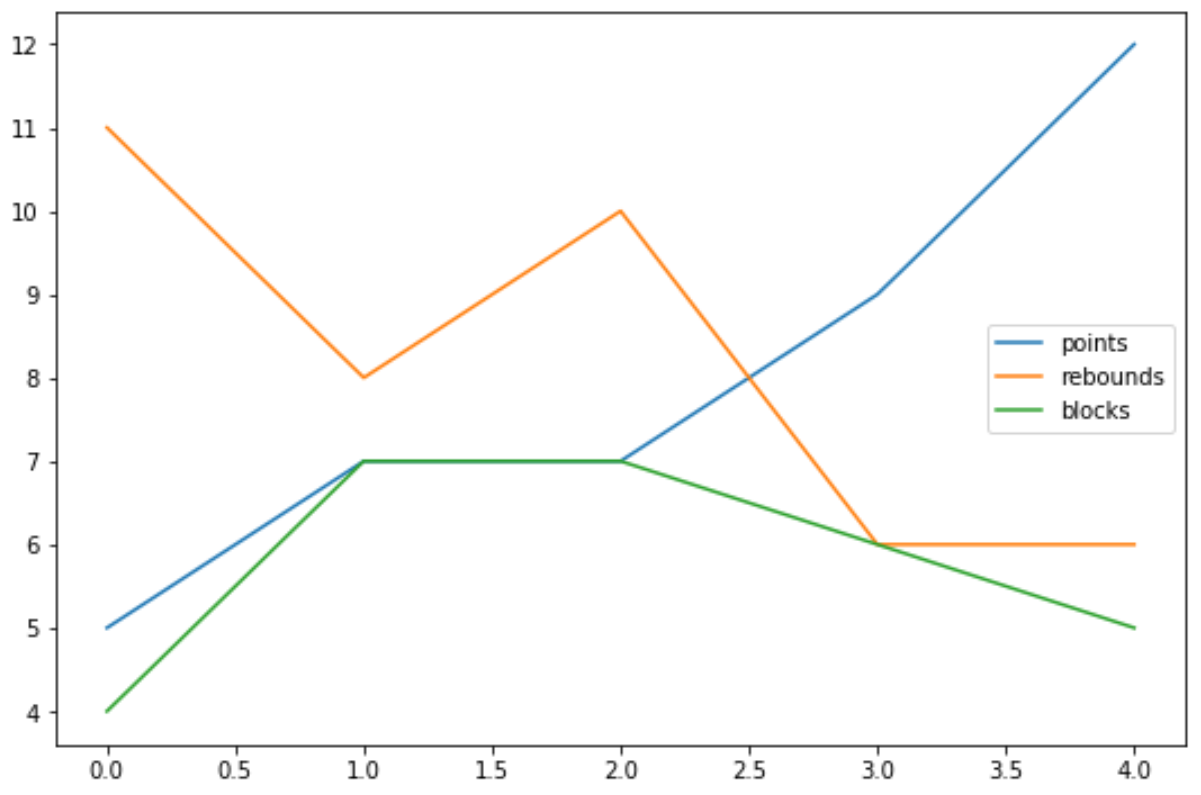

The result is a successfully generated line plot, illustrating the variation in points, rebounds, and blocks across the five data points. This confirms the efficacy of the .astype() conversion in resolving the initial TypeError.

To finalize the verification, we should re-examine the data types using the .dtypes attribute one last time. This ensures that the type conversion was persistent and that the DataFrame is now correctly structured for all future numerical operations. The output now clearly shows the updated numerical types for the relevant columns:

#display data type of each column in DataFrame
df.dtypes

team         object
points      float64
rebounds    float64
blocks      float64
dtype: object

The successful conversion of points, rebounds, and blocks to float64 confirms that the data is now interpreted as numerical, making it fully compatible with Pandas plotting functions. This systematic approach—diagnosing the type with .dtypes and coercing the type with .astype()—is the standard practice for resolving this specific and common plotting error in data analysis.

Additional Resources for Data Cleaning

While .astype() is effective when the data is clean (i.e., when all values are valid numbers stored as strings), more complex scenarios might require advanced cleaning techniques. For instance, if a column contains genuine non-numeric entries (like missing value placeholders such as ‘?’, ‘NaN’, or ‘Unknown’), using .astype(float) would raise an error. In such cases, the Pandas function pd.to_numeric() is often preferred because it offers an errors='coerce' argument, which automatically converts invalid parsing to NaN (Not a Number), allowing the analyst to clean or impute the missing values separately.

The following tutorials explain how to fix other common errors and enhance data processing efficiency in Python and Pandas:

• Handling Missing Data: Techniques for dealing with NaN values created during coerced conversions.
• Optimizing Data Types: How to choose the most memory-efficient data type (e.g., using int8 instead of default int64) for large datasets.
• Introduction to Matplotlib: Understanding the underlying plotting library often used by Pandas.
