Fix in Python: no handles with labels found to put in legend

When specializing in data visualization within the Python ecosystem, the Matplotlib library stands out as the fundamental tool for creating static, animated, and interactive plots. Despite its power and ubiquity, users frequently encounter a specific, cryptic warning message that can halt progress and confuse beginners:

No handles with labels found to put in legend.

This warning is a clear signal from Matplotlib that while you have explicitly requested a legend for your plot, the underlying graphical elements—or “handles”—that are supposed to populate this legend lack the necessary descriptive text, known as “labels.” Resolving this issue efficiently is crucial for ensuring that your visualizations are not only technically correct but also fully informative and comprehensible to your audience. This guide will thoroughly explore the core causes of this warning and provide definitive, practical solutions using clean code examples.

Deconstructing the Matplotlib Legend Mechanism

A legend serves as the interpretative key for any complex plot, enabling viewers to accurately map visual elements (like line colors, marker shapes, or bar segments) back to the data categories they represent. For the legend to function automatically, the Matplotlib framework requires two components for every item included in the key: a graphical element, referred to as a handle, and the descriptive text associated with it, known as a label.

When the system issues the “No handles with labels found to put in legend” warning, it signifies a disconnect: the plt.legend() function executed, but it could not locate any existing handles that had been assigned a non-empty label. This scenario often confuses users because the plot itself may display perfectly fine; however, the lack of a functional legend severely hinders the clarity and utility of the visualization. Essentially, the warning alerts you that the internal logic you intended for the legend creation was incomplete or improperly sequenced.

Understanding the relationship between handles and labels is paramount. A handle is created every time a plotting function, such as plt.plot() or `plt.bar()`, is called. The label is an optional string argument passed to that function. If you call plt.legend() without providing these labels during the creation of the handles, the system finds the handles but has no textual information to include, resulting in the error and an empty legend box.

Identifying the Root Causes of the Warning

The “No handles with labels found to put in legend” warning message is consistently triggered by one of two fundamental errors in plotting methodology. Both are related to the failure to correctly associate descriptive text with the graphical components that have been drawn. Recognizing which scenario applies to your code is the quickest way to implement the necessary fix.

The first and arguably most frequent cause is simply forgetting to pass the label argument when calling the plotting function. Without this explicit assignment of a name to the data series, Matplotlib cannot automatically determine what text should appear in the legend for that specific line or set of points. The presence of the handle is confirmed, but the required label is missing, thus preventing the legend population.

The second primary cause relates to the sequential nature of command processing in the pyplot interface. If the call to plt.legend() occurs *before* the plot elements themselves (the handles) have been defined via commands like plt.plot(), the system searches an empty canvas. Even if you define the handles and their labels later in the script, the premature call finds nothing to reference, leading to the warning. We will now examine practical examples of both scenarios and demonstrate the required corrections.

Scenario 1: Resolving Missing Labels in Plotting Functions

The most common scenario leading to this warning is the omission of the label argument during the creation of plot elements. The function plt.legend() is designed to automatically collect these labels and the corresponding handles to build the legend. If a line or series is drawn without a label, Matplotlib has no descriptive text to pair with the visual element, triggering the error.

Consider the following Python code snippet, which uses pandas to manage data and attempts to plot three separate series. Note the absence of the label keyword argument within the plt.plot() calls:

import matplotlib.pyplot as plt
import pandas as pd

#define data values
df = pd.DataFrame({'x': [18, 22, 19, 14, 14, 11, 20, 28],
                   'y': [5, 7, 7, 9, 12, 9, 9, 4],
                   'z': [11, 8, 10, 6, 6, 5, 9, 12]})

#add multiple lines to matplotlib plot
plt.plot(df['x'], color='green')
plt.plot(df['y'], color='blue')
plt.plot(df['z'], color='purple')

#attempt to add legend to plot
plt.legend()

No handles with labels found to put in legend.

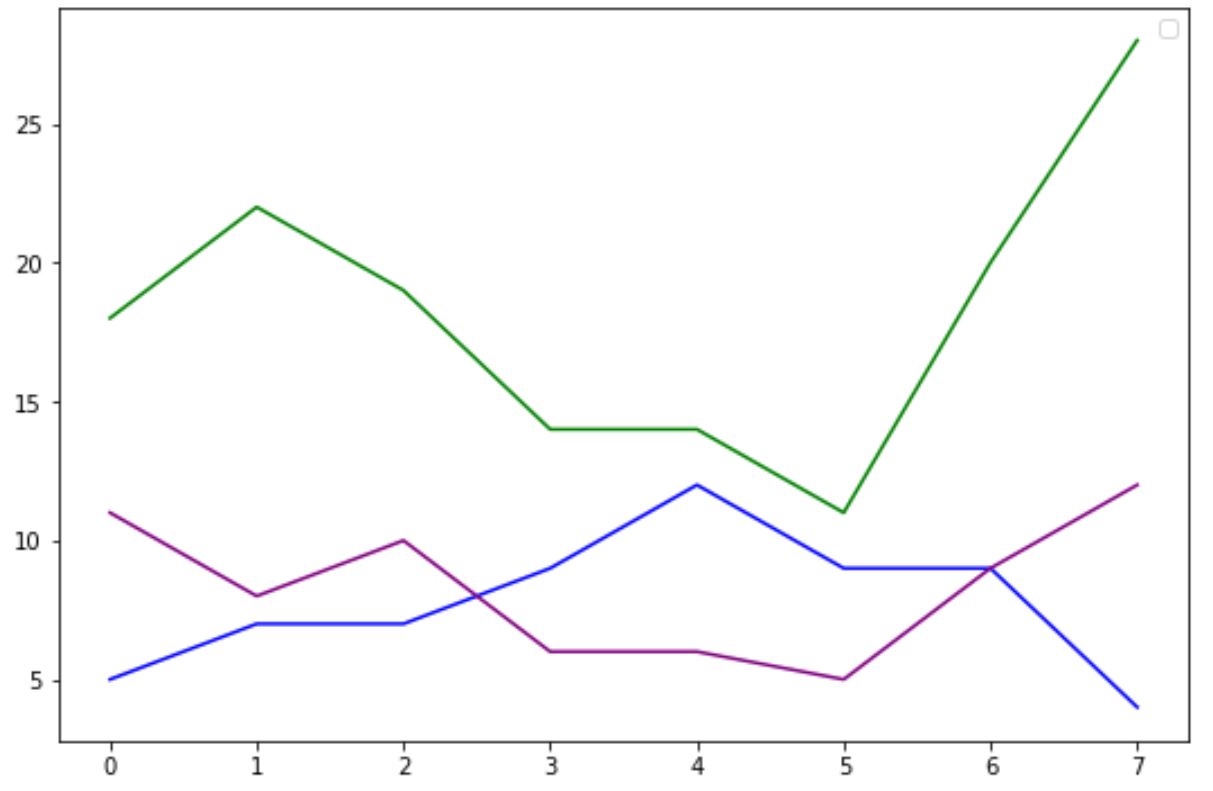

As demonstrated above, the lines are successfully drawn, but the console displays the warning, and the resulting visualization lacks the necessary key. To rectify this, the solution is immediate and simple: for every data series intended to be included in the key, a descriptive string must be passed using the label argument. This modification explicitly tells plt.legend() what text to associate with each plot handle. The corrected code snippet below integrates this essential fix:

import matplotlib.pyplot as plt
import pandas as pd

#define data values
df = pd.DataFrame({'x': [18, 22, 19, 14, 14, 11, 20, 28],
                   'y': [5, 7, 7, 9, 12, 9, 9, 4],
                   'z': [11, 8, 10, 6, 6, 5, 9, 12]})

#add multiple lines to matplotlib plot
plt.plot(df['x'], label='x', color='green')
plt.plot(df['y'], label='y', color='blue')
plt.plot(df['z'], label='z', color='purple')

#attempt to add legend to plot
plt.legend()

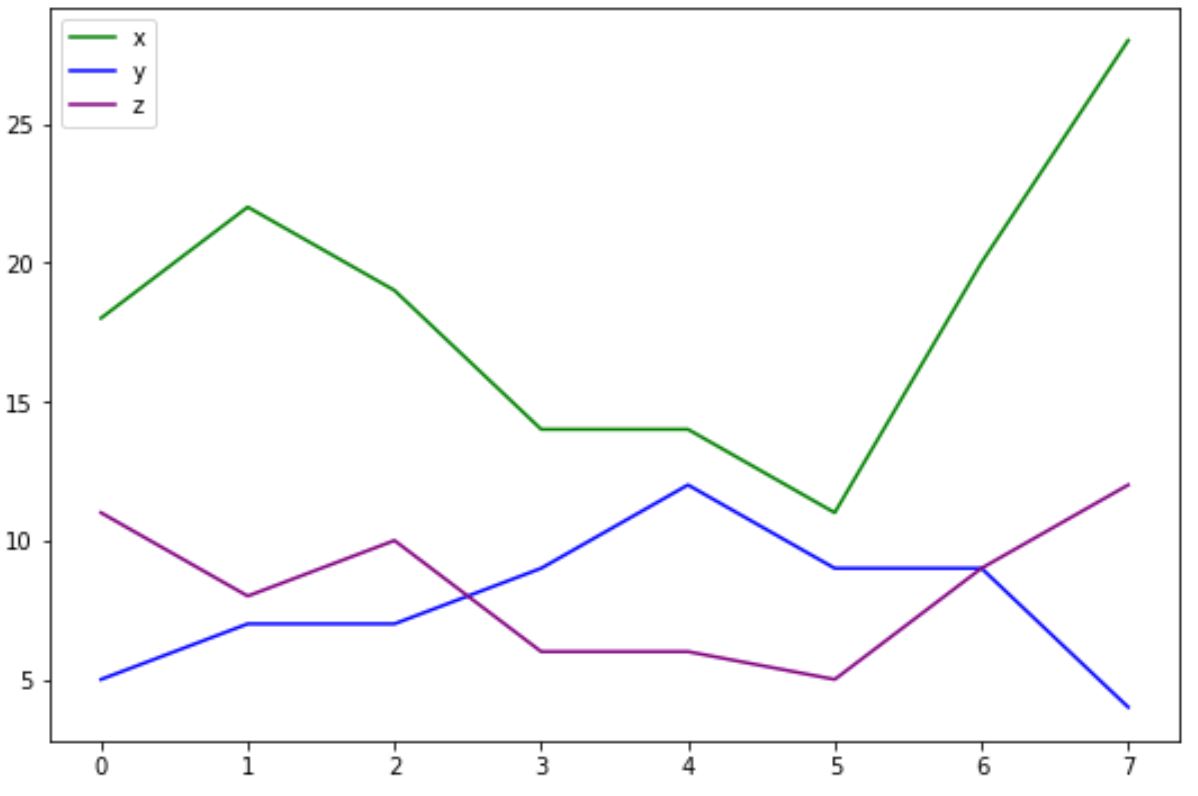

With the label argument now correctly assigned to each plotted line, the subsequent call to plt.legend() successfully identifies all handles and retrieves their corresponding labels. The result is a comprehensive and professionally rendered legend, eliminating the warning message entirely. This step is indispensable for creating high-quality, self-explanatory charts.

Scenario 2: Correcting the Premature `plt.legend()` Call

The second major cause of the “No handles with labels found to put in legend” warning involves the order in which functions are executed within your matplotlib.pyplot script. The pyplot state machine operates linearly, meaning that when you call plt.legend(), it immediately scans the current figure for existing plot elements (handles) that possess labels. If this function is executed *before* any plotting commands have created these elements, it will find zero handles, regardless of whether those elements are defined just a few lines later.

Observe the following erroneous code example where the function to generate the legend is called prematurely, preceding the actual plotting functions. Even though the subsequent plt.plot() commands correctly include the necessary labels, the error persists because the legend was requested too early:

import matplotlib.pyplot as plt
import pandas as pd

#define data values
df = pd.DataFrame({'x': [18, 22, 19, 14, 14, 11, 20, 28],
                   'y': [5, 7, 7, 9, 12, 9, 9, 4],
                   'z': [11, 8, 10, 6, 6, 5, 9, 12]})

#attempt to add legend to plot
plt.legend()

#add multiple lines to matplotlib plot
plt.plot(df['x'], label='x', color='green')
plt.plot(df['y'], label='y', color='blue')
plt.plot(df['z'], label='z', color='purple')

No handles with labels found to put in legend.

To resolve this sequencing error, the rule is absolute: the function responsible for generating the legend must be called *after* all the visual elements it is intended to describe have been fully defined. This ensures that when the system looks for “handles with labels,” they are already present in the current figure state. The corrected script below simply moves the plt.legend() call to the end, demonstrating the proper execution flow:

import matplotlib.pyplot as plt
import pandas as pd

#define data values
df = pd.DataFrame({'x': [18, 22, 19, 14, 14, 11, 20, 28],
                   'y': [5, 7, 7, 9, 12, 9, 9, 4],
                   'z': [11, 8, 10, 6, 6, 5, 9, 12]})

#add multiple lines to matplotlib plot
plt.plot(df['x'], label='x', color='green')
plt.plot(df['y'], label='y', color='blue')
plt.plot(df['z'], label='z', color='purple')

#attempt to add legend to plot
plt.legend()

By correcting the execution order, the legend is successfully rendered on the plot, providing clear identification for each line without generating any warnings. This reinforces the necessity of understanding the sequential execution model inherent in the pyplot interface.

Guiding Principles for Robust Matplotlib Plotting

To consistently produce clean code and avoid the “No handles with labels found to put in legend” warning, developers should incorporate a few standard best practices into their data visualization workflow. These principles ensure logical consistency between the graphical elements and their descriptive keys.

• Mandatory Labeling: Always assign a descriptive label argument to every data series you intend to include in the legend. This is done directly within the plotting function, whether it is plt.plot(), `plt.scatter()`, or `plt.hist()`.

• Sequential Placement of `plt.legend()`: Ensure that the call to plt.legend() is positioned in your script only *after* all the relevant plot components have been defined and drawn onto the axes. Placing this call at the end of the plotting logic guarantees that the function executes when the handles and their corresponding labels are fully registered in the figure’s state.

By consistently adhering to these two fundamental steps—providing explicit labels and respecting the execution flow—you can dramatically improve the reliability of your visualization code. This professional approach not only eliminates irritating console warnings but also ensures that your generated charts are clear, unambiguous, and effectively communicate complex data insights to any stakeholder.
