Understanding and Resolving the “Cannot add ggproto objects together” Error in R’s ggplot2

Decoding the “Cannot add ggproto objects together” Error

When utilizing the powerful statistical programming language R for sophisticated data analysis and graphic generation, developers invariably rely on the industry-standard ggplot2 package. This package, foundational to modern data visualization, occasionally presents a cryptic hurdle: the error message Cannot add ggproto objects together. This issue is highly common among new and intermediate users attempting to construct complex multi-layered plots.

Error: Cannot add ggproto objects together.
       Did you forget to add this object to a ggplot object?

At first glance, this error appears to point toward an internal incompatibility, but its root cause is almost always a simple structural oversight within the plotting code itself. The key to understanding the error lies in the term ggproto, which refers to the internal system ggproto uses to define the fundamental building blocks of a plot—such as geoms, scales, and stats. These components are designed to be immutable objects that must be sequentially layered onto a base plot object using a specific method of function chaining.

This detailed guide will dissect the architecture of ggplot2 syntax and provide a definitive methodology for resolving this structural oversight, which almost universally involves the omission of the required chaining operator: the plus sign (+). Understanding this mechanism is crucial for ensuring a seamless and error-free visualization workflow.

The Foundational Concept: Layering and the Grammar of Graphics

The design philosophy driving ggplot2 is derived from Leland Wilkinson’s seminal work, the Grammar of Graphics. This paradigm dictates that plots are not merely functions to be called but rather compositions built incrementally by adding distinct components or “layers.” This layered approach provides unparalleled flexibility and control over every visual element of the graphic.

Constructing a plot in this framework typically involves three mandatory phases, each representing a distinct structural layer:

1. Initialization: Starting the process with the ggplot() function. This step defines the primary data source and establishes the default aesthetic mapping (specifying which variables map to the x and y axes, for example).
2. Geometry Definition: Adding a geometry layer (e.g., geom_point(), geom_bar(), or geom_line()). This layer determines the visual form the data will take on the canvas.
3. Customization: Applying additional elements such as scales, coordinates, titles, and themes to refine the plot’s appearance and readability.

The crucial technical detail is that for the R interpreter to recognize that these stages belong to a single, continuous plot definition, each subsequent layer must be explicitly joined to the previous one. This union is achieved exclusively through the use of the + operator.

Anatomy of the Error: Why the Chaining Mechanism Fails

The error message Cannot add ggproto objects together is a direct symptom of the R interpreter misinterpreting the sequence of commands. Unlike some programming environments where line breaks do not terminate an expression until a specific closing character (like a semicolon or parenthesis) is found, R generally treats each line as a complete, executable expression.

In the context of ggplot2, the + sign is designated as a non-terminal operator. When R encounters the + operator at the end of a line, it understands that the expression initiated by ggplot() is incomplete and expects the next line to contain the continuation—another ggproto object to be added to the plot.

If the + is omitted, the base ggplot() function call is immediately executed and returns a finalized, self-contained plot object (which might be empty). The next line of code, typically starting with a geometry function like geom_line(), is then interpreted as an attempt to execute a new, independent expression. When the script tries to combine this new geometry object with the already finalized base plot object without the necessary chaining operator, the interpreter rejects the operation, triggering the “Cannot add ggproto objects together” error because the objects are being treated as incompatible standalone entities rather than layers in a cohesive structure.

Practical Demonstration: Reproducing the Syntax Failure

To clearly illustrate the error state, we will first set up a simple scenario involving synthetic business data. We begin by creating a standard data frame in R that tracks sales and customer counts over a ten-day period. This structured data is perfectly suited for a comparative multi-line chart visualization.

#create data frame
df <- data.frame(day = c(1, 2, 3, 4, 5, 6, 7, 8, 9, 10),
                 sales = c(8, 8, 7, 6, 7, 8, 9, 12, 14, 18),
                 customers = c(4, 6, 6, 4, 6, 7, 8, 9, 12, 13))

#view data frame
df

   day sales customers
1    1     8         4
2    2     8         6
3    3     7         6
4    4     6         4
5    5     7         6
6    6     8         7
7    7     9         8
8    8    12         9
9    9    14        12
10  10    18        13

Our objective is to generate a dual line chart using ggplot2 to compare the daily trends of sales versus customers. We will intentionally introduce the structural error by omitting the crucial chaining operator (+) after the base plot definition.

library(ggplot2)

#attempt to create plot with two lines (MISSING + SIGN)
ggplot(df, aes(x = day))
  geom_line(aes(y = sales, color = 'sales')) +
  geom_line(aes(y = customers, color = 'customers'))

Error: Cannot add ggproto objects together.
       Did you forget to add this object to a ggplot object?

As predicted, the script immediately halts execution following the ggplot(df, aes(x = day)) command. Because the first subsequent layer, geom_line, lacked the required preceding + operator on the previous line, R treated the base plot initialization as complete. The interpreter then tried to execute the geometry layer independently and subsequently combine it, failing due to the missing function chaining mechanism inherent to ggproto object management.

The Definitive Fix: Implementing the Plus Operator (+)

The resolution to the “Cannot add ggproto objects together” error is remarkably straightforward, requiring only the insertion of the plus sign (+) at the precise point where the expression was prematurely terminated. This simple addition instructs the R interpreter that the initial plot definition is ongoing and that the subsequent lines contain objects that must be layered upon the existing structure.

By strategically placing the + operator at the end of the line containing the ggplot(df, aes(x = day)) function call, we successfully link the base plot definition to the first geometry layer. Furthermore, the + must be used to chain all subsequent layers, ensuring the entire plot construction is treated as a single, continuous expression.

library(ggplot2)

#create plot with two lines (CORRECT SYNTAX)
ggplot(df, aes(x = day)) +
  geom_line(aes(y = sales, color = 'sales')) +
  geom_line(aes(y = customers, color = 'customers'))

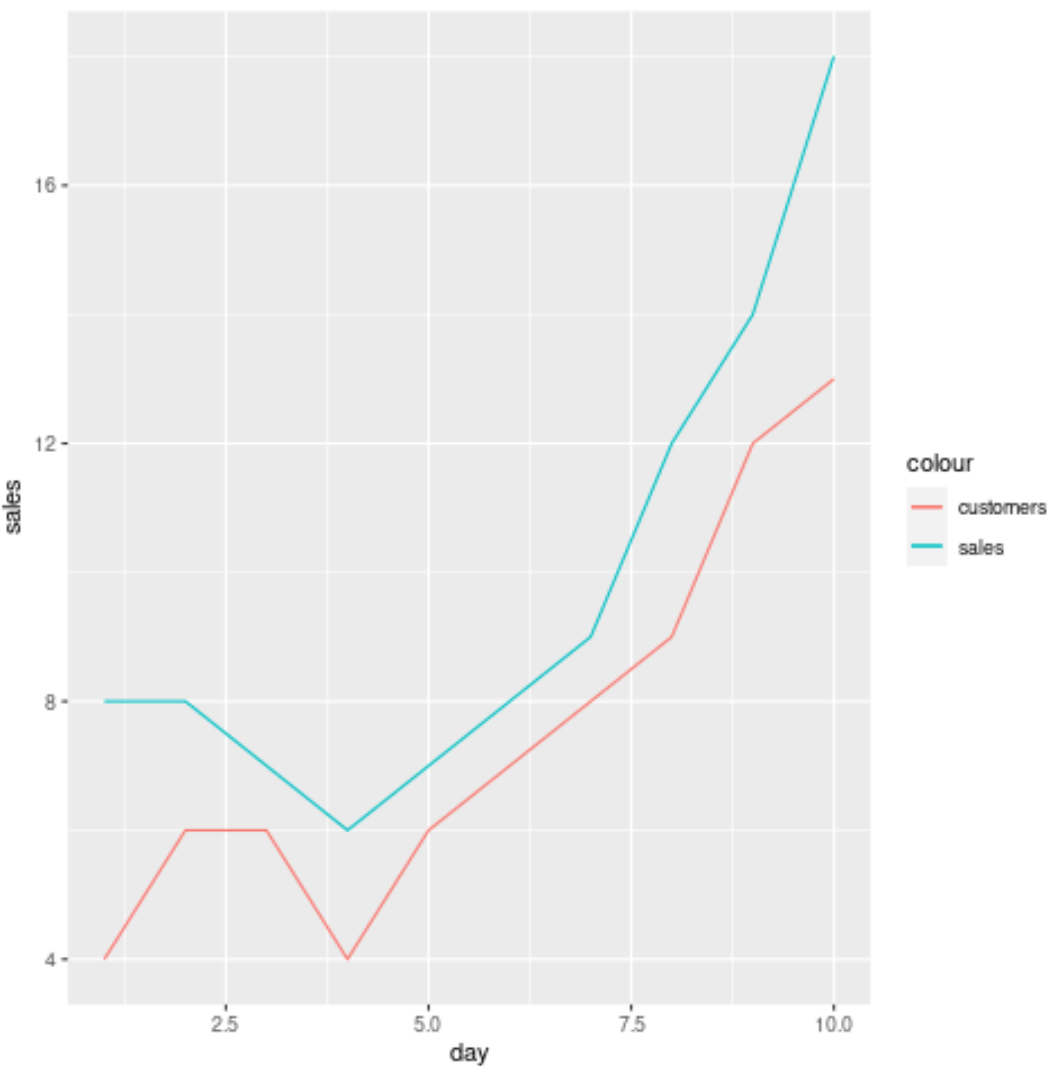

The visual output confirms the successful generation of the plot, validating that the corrected syntax resolved the error. The essential takeaway for all ggplot2 users is that the + sign must always be positioned at the end of the line that precedes the layer being added. This ensures proper function chaining and maintains the integrity of the layered plot structure.

Mastering ggplot2: Best Practices for Seamless Plot Construction

To permanently avoid the pitfalls of the “Cannot add ggproto objects together” error and maintain clean, readable code, adopting a few standard best practices is strongly recommended. These habits reinforce the understanding of ggplot2‘s sequential, layered nature.

• Mandatory Plus Sign Placement: Treat the + operator as the required line terminator for any partial plot definition. Every line that contributes to the plot—except for the very last one—must end with the plus sign. This explicitly signals continuation to the interpreter.
• Prioritize Readability with Indentation: Employ consistent indentation for all subsequent layers (e.g., geom_line(), scale_color_manual(), labs()). Visual indentation immediately clarifies the layered structure and makes it easier to spot an omitted + sign at the end of the preceding line.
• Establish the Foundation First: Always begin the plot construction by establishing the core framework using ggplot(data = df, aes(x = x_var, y = y_var)). This ensures the foundational plot object is properly initialized and ready to accept geometry and customization layers.
• Check Parentheses and Brackets: Although less common, ensure that all parentheses and brackets are closed on the correct line. If a parenthesis is inadvertently left open, R may incorrectly attempt to span the expression across lines, leading to unexpected behavior or syntax errors that can mimic structural problems.

By consistently applying these principles, users can effectively harness the full capabilities of ggplot2, creating complex, multi-layered statistical graphics reliably and efficiently, without encountering object combination errors.
