Learning to Resolve ggplot2 Scale Errors in R: A Practical Guide

Decoding the “Object of Type Function” Error in ggplot2

Data visualization stands as a cornerstone of modern data analysis, providing critical insights that raw numbers often conceal. The R programming language, particularly when paired with the highly versatile ggplot2 package, offers developers and analysts exceptional tools for crafting sophisticated and informative graphics. Despite the immense power of these tools, users—regardless of experience level—may occasionally encounter cryptic error messages that halt their progress. One of the most frequently encountered issues when setting up plot aesthetics is the error message: “Don’t know how to automatically pick scale for object of type function.” This message signals a fundamental mismatch between the input expected by ggplot2 and the input actually provided by the user.

This comprehensive guide is engineered to fully demystify this specific R error. Fundamentally, this issue arises when a user mistakenly provides the name of an existing, built-in function (such as mean, sum, or range) to the core aesthetic mapping argument, aes(), instead of referencing a valid column name within their data frame. We will meticulously examine the underlying cause of this name collision problem, provide clear examples of its manifestation, and deliver a simple, actionable solution that will ensure your data visualization workflow remains efficient and error-free.

Mastering this particular debugging challenge involves understanding how R resolves names in its environment and how ggplot2 uses non-standard evaluation (NSE) to interpret the arguments passed to the aes() function. By the end of this tutorial, you will possess the knowledge necessary not only to fix this error immediately but also to implement naming conventions that prevent it from recurring in future projects.

The Mechanics of ggplot2 Scales and Aesthetics

To fully appreciate the error message, it is essential to review how ggplot2 processes information. The package operates on the principle of the grammar of graphics, where a plot is constructed by layering components, the most crucial being the aesthetic mappings. The aes() function defines how data variables are translated into visual properties, such as position (x and y), color, size, and shape.

The core task of ggplot2 is selecting the appropriate “scale” for each aesthetic. A scale is the mechanism that translates the data values of a variable into a visual range. For instance, if you map a numeric column, ggplot2 typically assigns a continuous scale (like a linear axis). If you map a factor or character column, it selects a discrete scale. The error arises because ggplot2 expects a data object—a vector of values—when defining a mapping, but instead receives a non-data object: a function definition.

When the engine encounters a function, it cannot determine the data type, range, or cardinality required to establish a meaningful visual scale. This leads directly to the primary error statement, which is often followed by a default assumption:

Don't know how to automatically pick scale for object of type function.
  Defaulting to continuous.

The highly misleading second line, “Defaulting to continuous,” is ggplot2’s internal attempt to recover and proceed with plot generation. Because it cannot infer the type of the function, it falls back to the most common numerical scale. This usually results in an empty plot, an incorrect plot, or a plot that visualizes the function itself in a meaningless way, making the output useless even if the code executes without immediately crashing the session.

Pinpointing the Cause: Name Collisions in R’s Environment

The root cause of the “object of type function” error lies in a fundamental behavior of the R language: how it searches for objects by name. R uses an environment system where names are resolved through a specific hierarchy, beginning with the global environment and progressing through the packages attached to the session. Many statistical commands are built directly into R as default functions, including mean(), min(), max(), sum(), and sd(). These functions are always readily available.

The collision occurs when a user creates a column in their data frame that shares the exact same name (or a name differing only by case sensitivity) as a pre-existing, commonly used R function. When ggplot2‘s non-standard evaluation evaluates the arguments within aes(), it often first attempts to find an object by that name in the global environment, which includes the definitions of all loaded functions. If it finds the function before it explicitly searches for a column in the provided data frame, the function is mistakenly passed as the aesthetic mapping, causing the error.

A particularly common scenario is mistyping a column named Mean (capital M) as mean (lowercase M) in the aes() call. Since R is strictly case sensitive, mean refers specifically to the built-in mean() function, not the data column Mean. This seemingly minor typo has major consequences because the engine resolves the name to the wrong type of object. This behavior underscores the vital need for meticulous adherence to naming conventions, especially when dealing with data columns that might share names with common R functions.

Demonstrating the Error Through a Practical Example

To solidify our understanding, let us walk through a typical scenario where this error is generated. Imagine we are analyzing athletic performance data and have aggregated statistics for different teams. Our objective is to generate a bar plot using ggplot2 to visualize the average points scored by each team, with the column containing these averages explicitly named Mean.

First, we establish the sample data frame in R. Notice the column name Mean, capitalized precisely to represent the average value:

#create data frame
df <- data.frame(Team=c('A', 'B', 'C', 'D'),
                 Mean=c(12, 22, 30, 31))

#view data frame
df

  Team Mean
1    A   12
2    B   22
3    C   30
4    D   31

Next, we attempt to construct the bar plot, intending to map Team to the x-axis and the numeric column Mean to the y-axis. Crucially, we introduce the common mistake by typing mean (lowercase) for the y aesthetic, inadvertently referencing the built-in mean() function instead of the Mean data column. The use of geom_bar(stat='identity') instructs ggplot2 to plot the raw y-values we provide, which is necessary for visualizing pre-calculated averages.

library(ggplot2)

#attempt to create bar plot (ERROR GENERATED HERE)
ggplot(df, aes(Team, mean)) +
  geom_bar(stat='identity')

Don't know how to automatically pick scale for object of type function.
  Defaulting to continuous.

As predicted, the execution results in the specific error message, confirming that the R engine found the function mean and passed it to the aesthetic mapping rather than the intended variable Mean. This practical demonstration highlights the severity of case sensitivity in R and the potential for ambiguity when variable names overlap with core function names.

The Precise Solution: Correcting Variable Case Sensitivity

Fortunately, the resolution to the “object of type function” error is straightforward, relying entirely on the principle of case sensitivity in R. To fix the issue, one must simply ensure that the variable name specified within the aes() argument exactly matches the column name in the source data frame, paying strict attention to capitalization.

In our specific example, the column storing the average scores is named Mean (uppercase ‘M’). By correcting the aesthetic mapping argument from the erroneous mean to the precise Mean, we explicitly instruct ggplot2 to look up the variable within the provided data frame context, effectively bypassing the global environment’s definition of the built-in mean() function.

Review the corrected code block below. Notice the change in capitalization within the aes() call:

library(ggplot2)

#create bar plot (CORRECTED CODE)
ggplot(df, aes(Team, Mean)) +
  geom_bar(stat='identity')

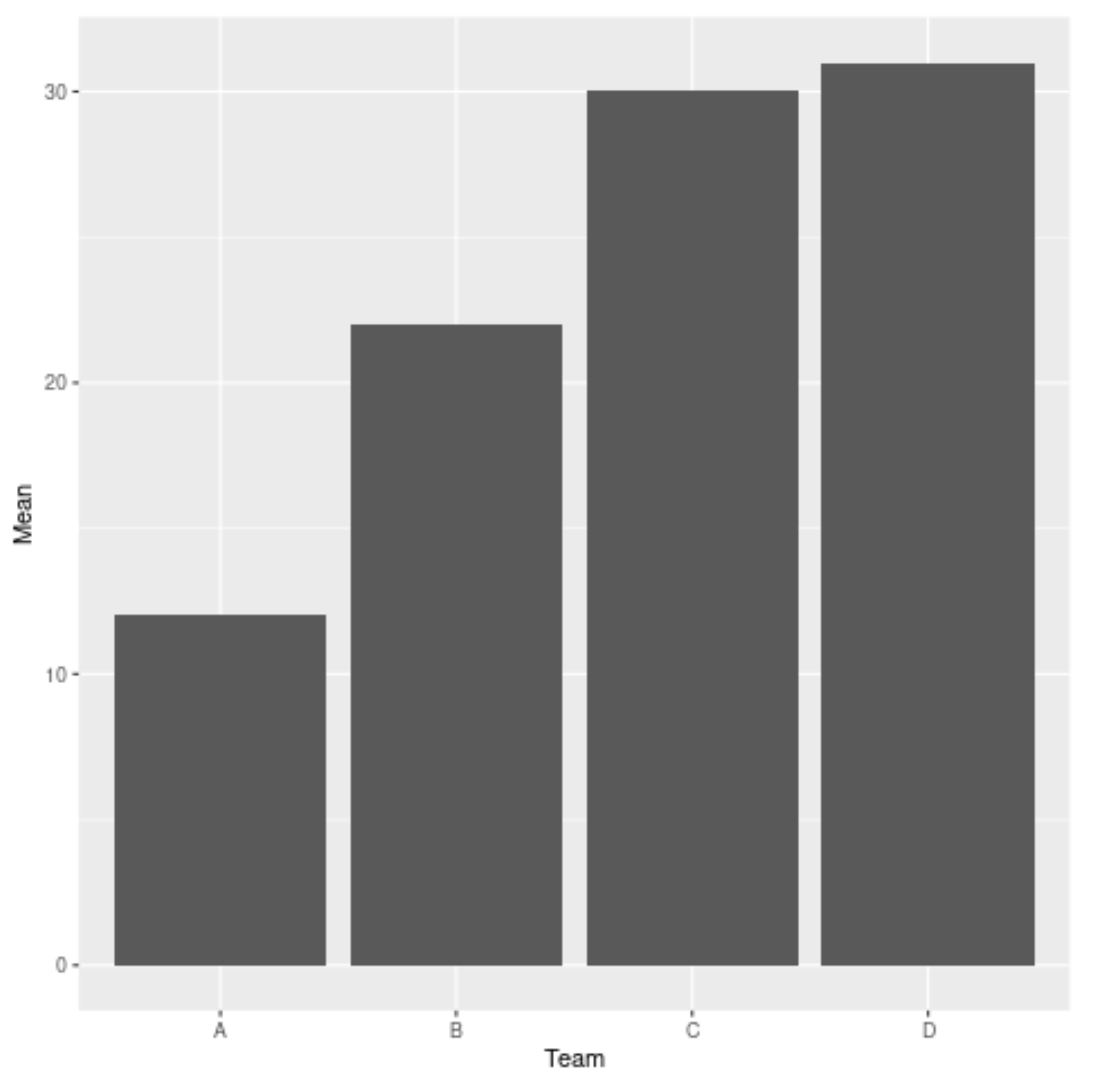

Executing this corrected code yields the desired bar plot successfully, without any trace of the previous error. This confirms that the ambiguity was resolved by providing the exact case-sensitive name of the data variable. The resulting visualization is a clear, accurate representation of the team data, demonstrating the vital role of precision in R coding.

Best Practices for Robust R and ggplot2 Coding

While fixing an error is necessary, preventing it entirely is the mark of an experienced coder. Avoiding the “object of type function” error and similar conflicts requires adopting robust and consistent coding practices, especially when dealing with ggplot2‘s aesthetic mappings. Implementing these guidelines will significantly reduce time spent debugging and improve the readability of your code.

The following recommendations focus on variable naming, data inspection, and general coding hygiene within the R environment:

• Strict Adherence to Case Sensitivity: Internalize the fact that R differentiates between uppercase and lowercase letters. Always double-check the capitalization of your column names, particularly when passing them to aes(). Even if you use an IDE with auto-completion, manually verify the case.
• Proactive Name Conflict Avoidance: Develop a standard practice of avoiding column names in your data frames that are identical to common, built-in functions (e.g., mean, sd, log, c, T, F). If you must store the mean value, rename the variable to something unambiguous like avg_score or team_mean.
• Employ Descriptive and Clear Naming Conventions: Choose variable names that clearly articulate their content and origin. Using names like total_sales_usd is far superior to sum or sales, as it eliminates ambiguity and improves collaboration. Consider using standard conventions such as snake_case (e.g., variable_name) for consistency.
• Regular Data Structure Inspection: Prior to plotting, make it a habit to inspect the structure and column names of your data frame using diagnostic functions. The dplyr package’s glimpse() function, names(), or the base function str() are excellent tools for confirming the exact spelling and data type of every variable.

Conclusion: Mastering R’s Case-Sensitive Environment

The error message “Don’t know how to automatically pick scale for object of type function” is an important diagnostic signal in R programming. It serves as a reminder that the environment prioritizes the definitions of built-in functions over similarly named columns in a data frame, especially within the context of ggplot2‘s aesthetic mappings. While initially confusing, the solution is rooted in the meticulous application of case sensitivity.

By ensuring that the name provided to the aes() function precisely matches the column name in your data—and adopting coding standards that minimize name collisions with core functions—you can eliminate this common pitfall. This level of precision is not merely a matter of syntax but a core requirement for reliable data analysis in R. With this enhanced understanding, your ggplot2 visualizations will proceed smoothly, allowing you to focus on the interpretation and communication of your data.
