Fix in R: error: `mapping` must be created by `aes()`

Data visualization is a cornerstone of modern statistical analysis, and the R programming language, particularly through the powerful ggplot2 package, makes creating complex plots straightforward. However, developers and analysts often encounter specific syntax errors that halt progress. One such common issue is the error message:

Error: `mapping` must be created by `aes()`

This error typically arises when attempting to define the visual characteristics of a plot without correctly specifying that the definition utilizes the aesthetic mapping argument. Understanding the underlying structure of ggplot2 is essential to resolving this issue swiftly.

Understanding the Context: The ggplot2 Framework

The ggplot2 package is built upon the foundational principles of the Grammar of Graphics, which dictates that plots are constructed by mapping data variables to aesthetic attributes. Every plot requires at least two fundamental components: the data to be visualized and the aesthetic mappings that define how those data points translate into visual elements.

The ggplot() function initiates the plot, establishing the global context, while geometry functions (like geom_point() or geom_boxplot()) add layers to visualize the data. The link between the data and the visual properties is managed by the aes() function, short for aesthetic mapping.

When constructing a plot, R needs explicit instructions. The aes() function is used to declare which variable should map to the x-axis, the y-axis, color, size, or shape. Failure to properly introduce this mapping to the geometry layer results in the aforementioned error, as R cannot implicitly assign the aes() output to the necessary mapping parameter.

Dissecting the Error: `mapping` must be created by `aes()`

The message Error: mapping must be created by aes() is highly specific. It states that the argument defining the aesthetics—whether local or global—must be explicitly labeled as mapping if it is not being passed to the primary ggplot() function. This error most frequently occurs when users attempt to pass both the data frame and the aesthetic mappings directly into a geometry function, such as geom_boxplot(), without the necessary keyword.

In ggplot2, geometry functions can accept numerous optional arguments, including data, mapping, stat, position, and various visual parameters (like color or size). If you provide the aes() output without the prefix mapping=, R interprets the unnamed argument as a general positional parameter, usually expecting another data frame or a fixed visual attribute, leading to confusion and the resulting error.

To avoid this, we must ensure that when the aes() function is called within a geometry layer, it is correctly labeled so R knows it is receiving the aesthetic rules for that specific layer.

Detailed Example: Reproducing the Error

To illustrate the problem, consider a scenario where we want to create a simple boxplot for the variable ‘x1’ using a defined data frame, df. We load the necessary library and define our dataset.

The following code snippet demonstrates the common mistake of omitting the mapping= argument when attempting to define aesthetics locally within the geometry function.

library(ggplot2)

#create data
df <- data.frame(y=c(2, 3, 3, 4, 5, 5, 6, 7, 8, 8, 9, 10, 16, 19, 28),
                 x1=c(1, 2, 2, 3, 5, 6, 8, 8, 9, 9, 10, 11, 12, 15, 15),
                 x2=c(8, 7, 7, 6, 6, 4, 3, 5, 4, 6, 5, 4, 3, 2, 2))

#attempt to create boxplot for 'x1' variable (INCORRECT SYNTAX)
ggplot() +
  geom_boxplot(df, aes(x=x1))

Error: `mapping` must be created by `aes()`

In this example, we provide the data frame df first, followed immediately by the aesthetic mapping aes(x=x1). Because we did not explicitly label the second argument as mapping=aes(x=x1), R assumes the second positional argument should be a default value or parameter, resulting in the critical failure. We must correct the syntax to clearly communicate our intent.

Solution Method 1: Explicitly Using the `mapping` Argument

The first reliable method to resolve this error is to explicitly use the keyword mapping immediately before the aes() function call within the geometry layer. This clarifies to R that the subsequent aesthetic definitions are indeed the variable mappings for that specific geometry.

This approach is useful when you want to define specific aesthetics for one geometry layer that are different from the global aesthetics defined in ggplot(), or when you choose to define the data frame locally within the geometry function itself.

By defining the argument as mapping=aes(x=x1), we correctly structure the function call, providing the data frame df and then explicitly defining its aesthetic rules for the boxplot.

library(ggplot2)

#create data
df <- data.frame(y=c(2, 3, 3, 4, 5, 5, 6, 7, 8, 8, 9, 10, 16, 19, 28),
                 x1=c(1, 2, 2, 3, 5, 6, 8, 8, 9, 9, 10, 11, 12, 15, 15),
                 x2=c(8, 7, 7, 6, 6, 4, 3, 5, 4, 6, 5, 4, 3, 2, 2))

#create boxplot for 'x1' variable (CORRECT SYNTAX - Method 1)
ggplot() +
  geom_boxplot(df, mapping=aes(x=x1))

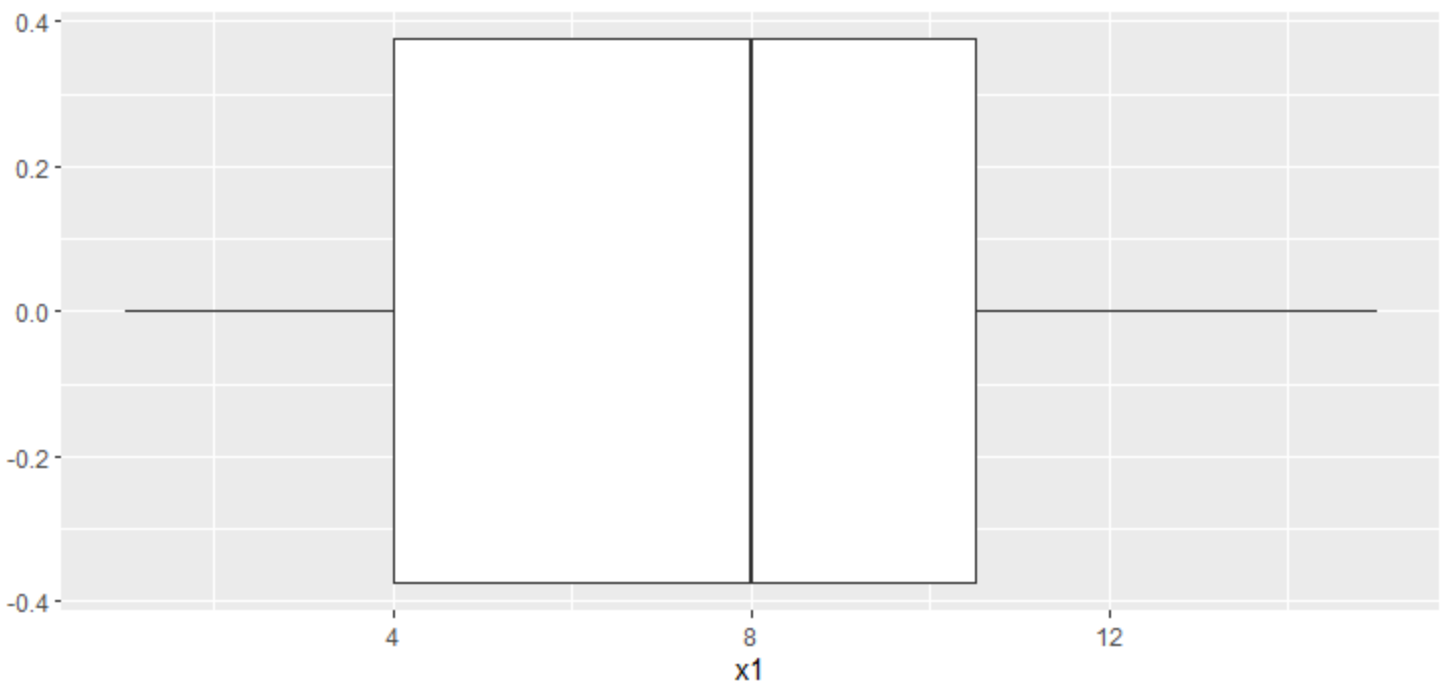

Executing the corrected code successfully renders the plot, demonstrating that the explicit use of the mapping argument resolved the syntax ambiguity.

Since we explicitly used the mapping syntax, the function call was unambiguous, and we successfully avoided the error.

Solution Method 2: Defining Aesthetics Globally in ggplot()

The second, and often preferred, method aligns more closely with standard R plotting conventions. Instead of defining the data and aesthetics within each geometry function, we define them globally within the initial ggplot() function call.

When the data frame and the aes() mappings are provided to ggplot(), they become the default settings for all subsequent geometry layers added to the plot. This approach simplifies the code for subsequent layers, as they automatically inherit the data and aesthetic mappings unless explicitly overridden.

In this structure, the data frame df is passed as the first argument to ggplot(), and the aesthetic mapping aes(x=x1) is passed as the second. The geom_boxplot() function then only needs to be called without any arguments, as it inherits the necessary information globally.

library(ggplot2)

#create data
df <- data.frame(y=c(2, 3, 3, 4, 5, 5, 6, 7, 8, 8, 9, 10, 16, 19, 28),
                 x1=c(1, 2, 2, 3, 5, 6, 8, 8, 9, 9, 10, 11, 12, 15, 15),
                 x2=c(8, 7, 7, 6, 6, 4, 3, 5, 4, 6, 5, 4, 3, 2, 2))

#create boxplot for 'x1' variable (CORRECT SYNTAX - Method 2)
ggplot(df, aes(x=x1)) +
  geom_boxplot()

This method is highly readable and generally recommended for plots where the data and core aesthetics remain consistent across multiple layers (e.g., adding geom_point() or geom_jitter() later).

We successfully create the boxplot and avoid any errors because the aes() argument was used within the ggplot() function, establishing the required mapping globally.

Why These Solutions Work: Scope of Aesthetics

The distinction between the two solutions lies in the scope of the aesthetic mapping.

• Global Scope (Method 2): When aes() is used in ggplot(data, aes(...)), the mappings are applied globally to every subsequent geometry layer. This is efficient when all layers use the same variables (e.g., x is always ‘x1’, y is always ‘y’).

• Local Scope (Method 1): When aes() is used in geom_boxplot(data, mapping=aes(...)), the mappings are applied only to that specific layer. This is necessary when adding layers that rely on different data sources or different variable mappings (e.g., plotting a line of best fit over a scatterplot, where the line uses a different smoothing algorithm).

In both cases, the fix involves satisfying the requirement that the aesthetic definition must be clearly identified as the mapping argument. When defined globally in ggplot(), the positional argument is implicitly recognized as the mapping. When defined locally in a geom_* function, the argument must be explicitly named mapping= to prevent R from misinterpreting the aes() output as simple data or another fixed parameter.

Additional Resources

For further documentation on handling common R and data visualization issues, consult the official documentation for ggplot2.
