Understanding the R Error: “‘height’ must be a vector or a matrix

When diving into the world of R for analytical tasks, especially data visualization, programmers often encounter cryptic error messages that interrupt their workflow. One particularly common and perplexing error for newcomers is: 'height' must be a vector or a matrix. This message is not merely a bug; it represents a fundamental mismatch between the expected input structure of a core plotting function and the data structure provided by the user.

Error in barplot.default(df) : 'height' must be a vector or a matrix

This error typically surfaces when attempting to utilize the powerful built-in barplot() function. Instead of supplying the required numerical sequence—a vector or a matrix of values—the user inadvertently passes an entire data frame. Since the function is explicitly designed to calculate bar heights from a singular, unambiguous set of numerical data, it rejects the complex tabular structure of the data frame. Resolving this issue efficiently hinges upon understanding R’s strict typing requirements for graphical functions.

This detailed guide serves as a comprehensive resource, walking you through the precise mechanism behind this error, how to reliably reproduce it, and most importantly, how to apply the correct syntax to ensure successful bar plot generation. By clarifying the required data structure, we aim to equip you with the knowledge necessary to leverage the barplot() function effectively, turning a frustrating roadblock into a solid foundation for robust data plotting in R.

Understanding the Data Requirements of barplot()

To appreciate why the ‘height’ error occurs, we must first examine the core design philosophy of R’s base plotting system. The barplot() function, a staple component of R’s base graphics package, is designed to be highly specific about its primary input, which is defined by the height argument. This argument dictates the magnitude, or vertical extent, of every bar displayed in the resulting chart. It is imperative that the data provided here be purely quantitative and structured in a format the function can immediately interpret.

The official documentation mandates that height must be either a vector or a matrix. A vector is the simplest case, representing a one-dimensional array of numerical values. If you provide a vector like c(5, 10, 15), R generates three separate bars corresponding precisely to those values. Conversely, a matrix is utilized when creating grouped or stacked bar charts, where the two dimensions (rows and columns) allow for the visualization of multiple categories or groups simultaneously. In both instances, the data is fundamentally numerical and structured for direct plotting.

The confusion often arises because users typically store their data in a data frame. While a data frame appears tabular, it is fundamentally different from a matrix in that it can contain heterogeneous data types (e.g., character strings, factors, and numbers) across different columns. When the entire data frame is passed to barplot(), R cannot arbitrarily select which column of values should represent the bar heights, leading to the strict type-checking failure and the generation of the ‘height’ error. This rigidity ensures that the function operates only on explicit numerical data subsets.

Reproducing the Error: A Practical Demonstration

Achieving mastery over any programming language requires not just knowing the solution, but understanding how to reliably trigger and diagnose the errors. To solidify our understanding of the 'height' must be a vector or a matrix error, we will meticulously replicate the scenario using a simple, representative dataset. This step-by-step example will clarify why the input structure fails when plotting.

We begin by constructing a sample data frame, which is the standard method for organizing analytical data in R. This data frame, which we will name df, tracks the scores of various players. It consists of two essential columns: player (character data) and points (numerical data). This structure accurately reflects the kind of input data users frequently attempt to visualize.

#create data frame
df <- data.frame(player=c('A', 'B', 'C', 'D', 'E'),
                 points=c(17, 12, 8, 9, 25))

#view data frame
df

  player points
1      A     17
2      B     12
3      C      8
4      D      9
5      E     25

The error arises when we attempt to plot this entire df object directly. By calling barplot(df), we are providing a complex object containing both character and numeric data, violating the function’s strict requirement for a simple numerical vector or a matrix. Observing the resulting output confirms the diagnosis.

#attempt to create bar plot
barplot(df)

Error in barplot.default(df) : 'height' must be a vector or a matrix

This result definitively confirms that the barplot() function cannot proceed without explicit instruction regarding which numerical values within the data frame should be used to define the bar heights. The error message serves as R’s way of requesting a more focused and appropriately structured data input.

Diagnosing the Core Issue: Data Type and Structure Mismatch

The fundamental cause of the 'height' must be a vector or a matrix error is rooted in the object-oriented nature of R and its strict handling of data types for base graphical functions. While an data frame is structurally similar to a table, it is not interchangeable with a matrix or a vector in the context of the barplot() function. Understanding this hierarchical difference is crucial for effective data analysis in R.

In R, a data frame is technically a list of equal-length vectors. Each column within the data frame is, by itself, a distinct vector. For instance, in our df example, the df$player column is a character vector, and the df$points column is a numeric vector. The barplot() function specifically needs the numerical vector to fulfill the height argument.

When the entire df object is passed, the function receives a collection of potentially mixed-type data structures. Since the purpose of the height argument is singular—to provide numerical dimensions—the function throws an error because it cannot automatically discern which of the bundled vectors (columns) should be used for plotting the bar heights. This strict adherence to input types is a critical feature of R’s base graphics, designed to prevent ambiguous or nonsensical plot generation, thereby reinforcing the programmer’s need to explicitly define their data subset.

The Correct Solution: Explicitly Specifying the Vector

The resolution to the 'height' must be a vector or a matrix error is remarkably straightforward once the underlying data structure requirement is clear. Instead of passing the entire data frame, the user must explicitly extract and provide the specific numerical column that contains the values designated for the bar heights. This targeted approach ensures that the barplot() function receives the required vector input.

In R, the standard method for selecting a single column from a data frame is by using the $ operator. For our running example, the points scores are stored in the df$points column. By employing the syntax df$points, we isolate this numerical sequence, transforming the complex data frame input into the simple, unambiguous vector that the barplot() function expects for its height argument. This is the pivotal step in fixing the error.

Applying this corrected approach yields a perfectly valid bar chart, as demonstrated in the following code. The function now successfully interprets the data, assigning each numerical value in the vector to the height of a corresponding bar.

#create bar plot to visualize values in points column
barplot(df$points)

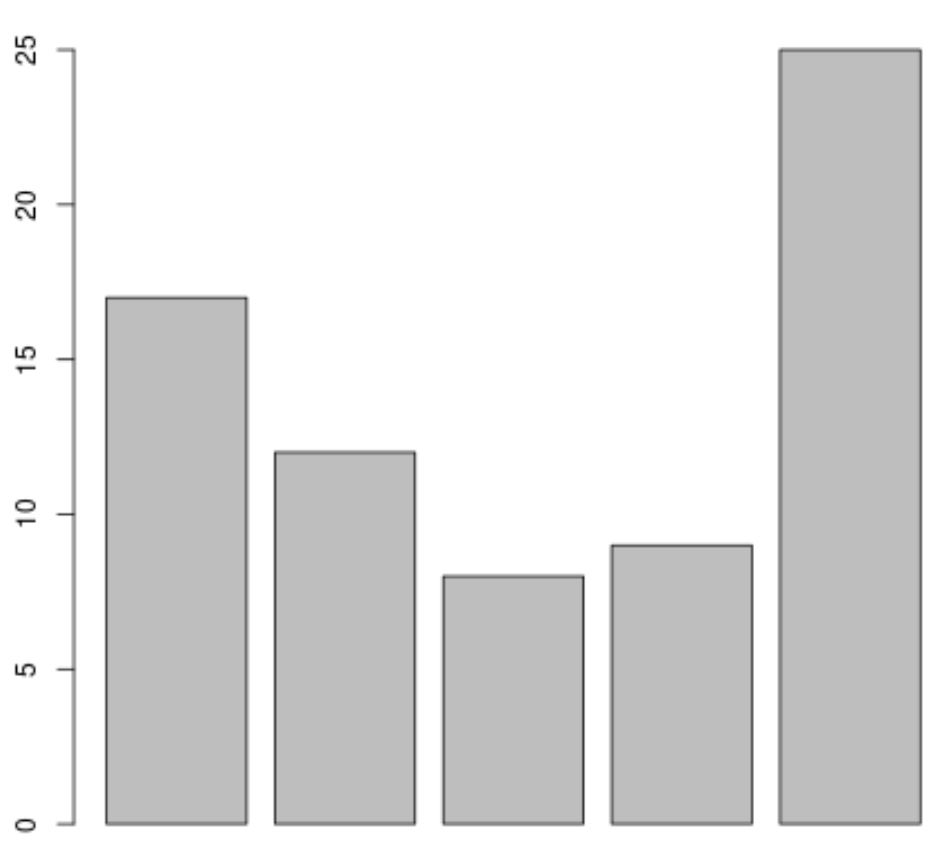

As evident from the output image, the error is completely resolved. The barplot() function has executed successfully, generating a plot based on the heights derived exclusively from the df$points vector. This small change in the input argument completely satisfies the function’s requirements.

Enhancing Readability with Labels and Customization

While fixing the input error allows the plot to render, a simple, unadorned bar chart often lacks the context required for professional data visualization. To transform the basic plot into an informative graphical asset, it is essential to add descriptive axis labels and meaningful names for each bar. The barplot() function provides dedicated arguments for these enhancements.

To assign names to the individual bars, we utilize the names.arg argument. By setting names.arg = df$player, we extract the character vector containing the player names and map them directly to the corresponding bars on the x-axis. Furthermore, we use the xlab and ylab arguments to clearly annotate the horizontal and vertical axes, respectively. This inclusion of metadata ensures that the viewer can instantly grasp what the dimensions of the chart represent.

Implementing these arguments significantly improves the aesthetic quality and the interpretability of the graph. The following code snippet demonstrates how to integrate these elements, moving beyond simple error resolution to effective graphical communication.

#create bar plot with labels
barplot(df$points, names.arg=df$player, xlab='Player', ylab='Points')

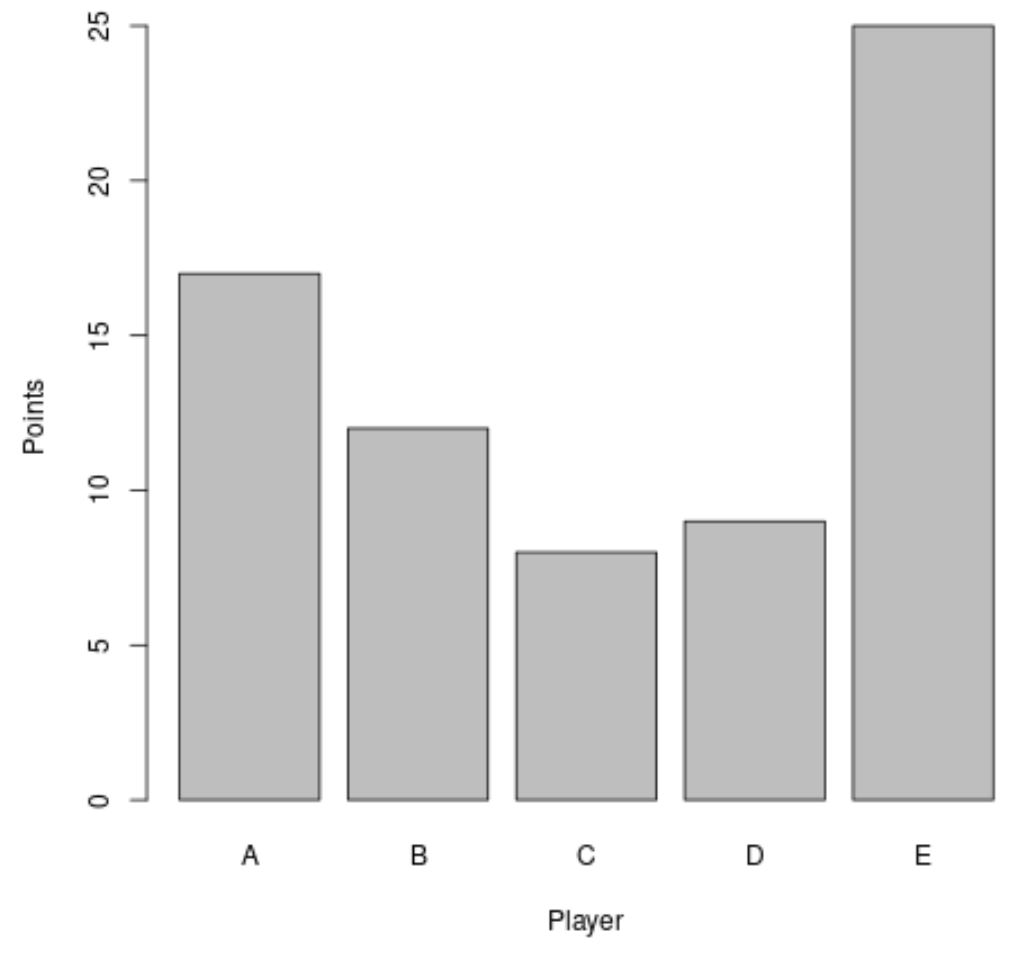

The final visualized result now clearly links each bar’s height (points scored) to the specific player, providing a professional and easily digestible summary of the data. Additional arguments, such as main for the plot title and col for color customization, offer further avenues for tailoring the visualization to specific reporting needs, transforming raw data into clear insights.

Further Resources and Best Practices in R Programming

Overcoming the 'height' must be a vector or a matrix error is an excellent stepping stone toward mastering R. Success in generating statistical graphics hinges on consistently providing functions with the expected data types and structures. Always verify that your inputs align precisely with the function’s requirements, rather than assuming it can intelligently handle complex structures like an entire data frame.

While the base barplot() function is highly useful, the R ecosystem offers advanced alternatives. For those seeking greater control over aesthetics and a more systematic approach to plotting, the ggplot2 package, based on the grammar of graphics, is highly recommended. Although ggplot2 utilizes a different set of functions and arguments, the core principle remains consistent: data must be correctly mapped to specific aesthetic elements, such as bar height or color.

Finally, maintaining proficiency in data science requires continuous learning and diligent reference checking. We highly encourage regular consultation of the official R documentation. Detailed function descriptions, argument requirements, and illustrative examples found there are invaluable tools that can help preemptively resolve many common programming and visualization errors, ensuring a smoother and more productive analytical journey.

For those interested in exploring more solutions to common R errors and enhancing their skills, consider reviewing the following tutorials:

These resources can further assist you in navigating the complexities of R programming and data analysis effectively.
