Understanding and Resolving the “Invalid Graphics State” Error in R

Data scientists and analysts relying on the R programming environment for complex data visualization often encounter unexpected technical challenges. Among these, the “invalid graphics state” error is particularly disruptive, halting the plotting process without clear guidance. This specific error typically presents itself in the console as follows:

Error in .Call.graphics(C_palette2, .Call(C_palette2, NULL)) :
  invalid graphics state

The appearance of “invalid graphics state” signifies a critical internal conflict within R’s graphical subsystem. This conflict prevents the proper rendering of new charts or visualizations. While the error message is highly technical and initially cryptic, it fundamentally indicates a breakdown in how R manages its plotting devices and associated graphical parameters. Successfully troubleshooting this issue requires a systematic understanding of R’s graphics handling mechanism and the common scenarios that lead to its corruption.

Deconstructing the “Invalid Graphics State” Error

The occurrence of the “invalid graphics state” error in R explicitly notifies the user that the software’s internal configuration for managing visual output has become unstable, inconsistent, or corrupted. Essential to R’s plotting process is the concept of a ‘graphics state.’ This state is a dynamic collection of parameters—including active plotting device settings, color palettes, line styles, and dimension specifications—that must be valid and ready before any visual output can be generated. When this state is compromised, R loses its ability to correctly allocate resources or interpret instructions for drawing, thereby failing to produce the requested plot.

This problem is frequently observed in dynamic coding environments, especially when users switch rapidly between different types of visualizations or execute complex plotting loops within a single RStudio session. The complexity arises because the error often lacks a direct line to a specific syntax mistake in the user’s code; rather, it reflects a persistent environmental issue. Consequently, the error message can severely interrupt the analytical workflow, necessitating immediate and effective resolution strategies. By focusing on environmental resets rather than code debugging, users can typically achieve rapid resolution.

Addressing the “invalid graphics state” is paramount for maintaining workflow productivity. Despite the intimidating nature of the error message, the practical solutions available are generally straightforward. These methods range from simple command executions that clear the current drawing canvas to more involved techniques centered around package integrity and session management. This guide is specifically designed to provide clear, actionable steps that demystify the error and empower users to quickly regain control over their data visualization tasks.

Identifying the Primary Triggers of Graphics State Corruption

To efficiently resolve the “invalid graphics state” error, one must first pinpoint the underlying cause. This error almost always stems from a conflict related to how R manages graphical devices or package dependencies. Understanding these common triggers ensures that the most appropriate troubleshooting method is selected, saving time and effort during analysis.

A significant factor contributing to this issue is the simultaneous utilization of heterogeneous plotting systems within the same session. Specifically, conflicts frequently emerge when a user attempts to mix functions from Base R graphics (such as plot() or hist()) with advanced visualization tools like the ggplot2 library. These two visualization paradigms operate using fundamentally different mechanisms for device management and parameter setting. When both systems attempt to control the graphical output concurrently, their internal states can clash, leading R to report an “invalid graphics state” because it cannot reconcile the conflicting instructions for the new plot rendering.

Another prevalent cause is the critical issue of version incompatibility between R packages and the core R environment. The R ecosystem and its packages, including essential libraries like ggplot2, undergo continuous updates. An older package version may lack compatibility with a newer R installation, or vice versa. These version mismatches are notorious for introducing unexpected behavioral failures, particularly in resource-intensive operations such as graphics processing. When core functions or dependencies are altered, an outdated package may attempt to call non-existent or modified routines, resulting in a corrupted graphics environment. Such scenarios often mandate immediate package updates or reinstallation to align with the current R version.

Finally, the error can originate from residual or corrupted graphical settings left over from previous, perhaps improperly terminated, plotting operations. If a plot window is closed unexpectedly, or if an error terminates the generation process prematurely, the active graphics device might remain in an unstable or non-functional graphics state. This lingering instability prevents R from initializing a new device cleanly, effectively blocking subsequent attempts to create new visualizations. In these cases, a hard reset of the graphics device is usually required to clear the corrupted internal memory and allow plotting to resume.

Practical Demonstration: When Graphics Fail

To fully appreciate the impact of the “invalid graphics state” error, it is helpful to visualize the scenario where it manifests. Consider a typical data analysis task involving the generation of a scatterplot using the powerful ggplot2 package and the readily available mtcars dataset inherent to the R environment. The code snippet for this visualization is structurally sound and commonly used:

library(ggplot2)

#attempt to create scatterplot
ggplot(mtcars, aes(x=mpg, y=hp)) +
  geom_point()

Despite the flawless syntax and adherence to standard ggplot2 methodology, executing this code in a corrupted environment results in the frustrating “invalid graphics state” error instead of the expected scatterplot. This abrupt termination of the plotting pipeline emphasizes that the failure is not due to a programming mistake but rather an environmental instability or conflict within the session’s memory.

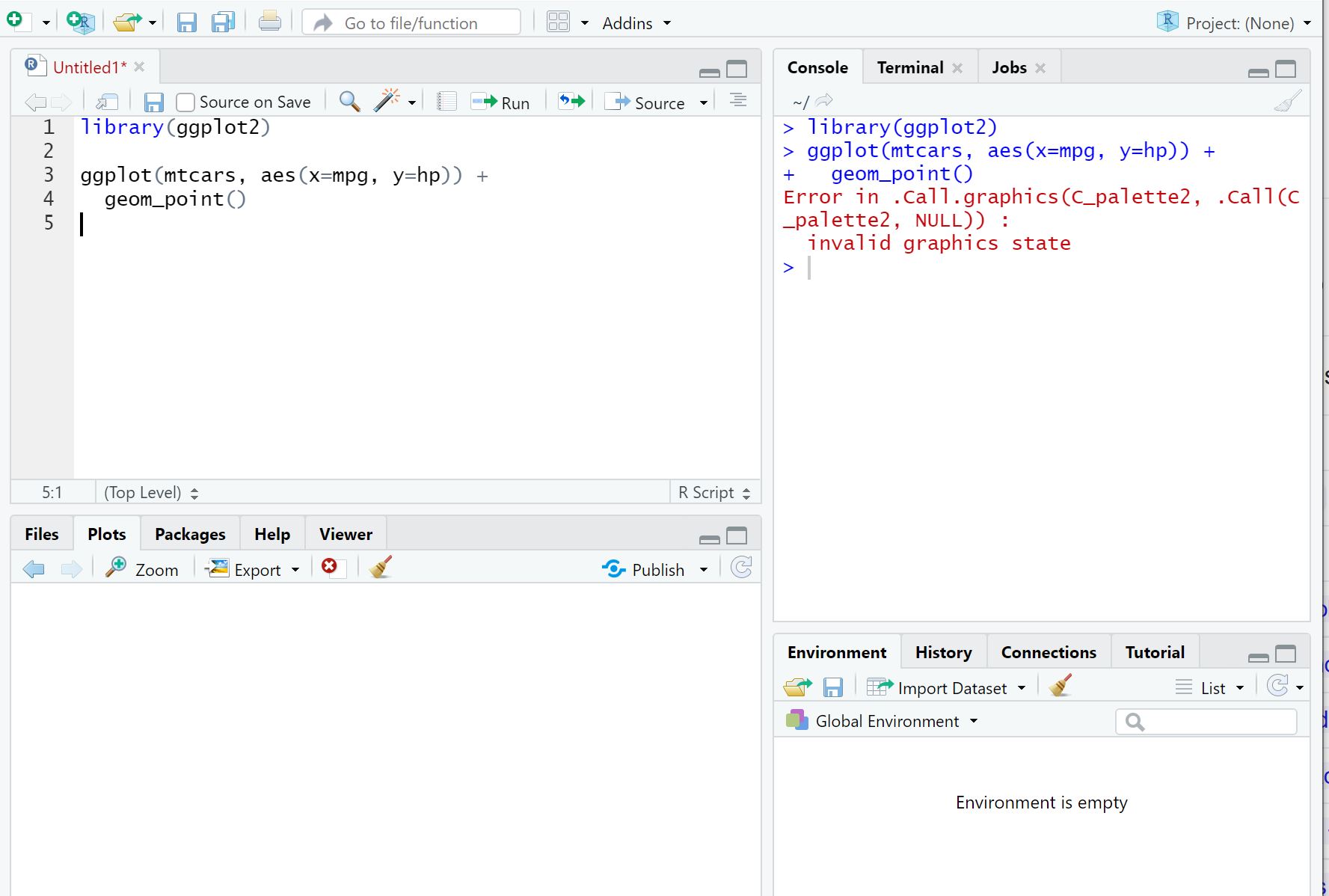

The visual evidence of this failure is often restricted to the console output, confirming the error while the plot panel remains blank. The following image captures precisely this outcome, showing the error message dominating the console where the visualization should have appeared. Without immediate solutions, the user is left unable to proceed with any graphical analysis. The following sections provide three progressive and highly reliable methods guaranteed to troubleshoot and resolve this persistent graphics state issue, allowing for the successful generation of visualizations.

Solution 1: Resetting Graphics Devices with dev.off()

When encountering the “invalid graphics state” error, the most direct and often successful intervention is the utilization of the dev.off() function. This command is specifically designed to manage R’s graphical output destinations. In R, every plot is rendered onto a dedicated ‘graphics device,’ which might be a display window, an external file (e.g., JPEG, PDF), or an internal buffer. The root cause of the error is frequently a device that was left open, corrupted, or unstable after a previous plotting operation, thus blocking any subsequent attempts to initialize a new plot.

The fundamental purpose of dev.off() is to explicitly shut down the currently active plotting device. By executing this function, the internal graphics state associated with that device is cleared, and all related resources are released. If the user has inadvertently opened multiple graphics devices, repeated calls to dev.off() will close them sequentially, typically starting with the most recently activated device. This systematic closure process effectively purges the graphics environment, often resolving the underlying conflict that triggered the “invalid graphics state” error.

To employ this rapid fix, simply input the following command into your R console and execute it:

dev.off()

Once the graphics environment has been reset by dev.off(), the user should immediately attempt to rerun the original plotting code. In the majority of cases involving transient device corruption, this simple yet powerful step allows R to successfully initialize a clean graphics device and render the visualization without further resistance. This makes dev.off() the mandatory first line of defense in troubleshooting graphics state issues.

Solution 2: Comprehensive Session Restart in RStudio

If the targeted device closure achieved through dev.off() fails to eliminate the “invalid graphics state” error, the problem likely resides deeper within the session’s configuration or memory structure. In such instances, the recommended next step is to initiate a complete restart of the RStudio session. This action provides a far more sweeping reset than simply closing graphics devices, addressing potential conflicts in package dependencies or corrupted global variables.

Restarting the RStudio session is an invaluable troubleshooting technique because it systematically clears the environment. This process involves purging the global workspace, unloading all currently attached packages and libraries, and resetting any active connections or background processes that might be consuming or mismanaging resources. This comprehensive clearing is highly effective for resolving issues stemming from memory corruption, subtle conflicts between packages loaded in a specific order, or persistent session-level graphical parameters that are difficult to manually identify or reset. By providing a genuinely clean execution slate, a session restart eliminates numerous potential sources of the “invalid graphics state” error.

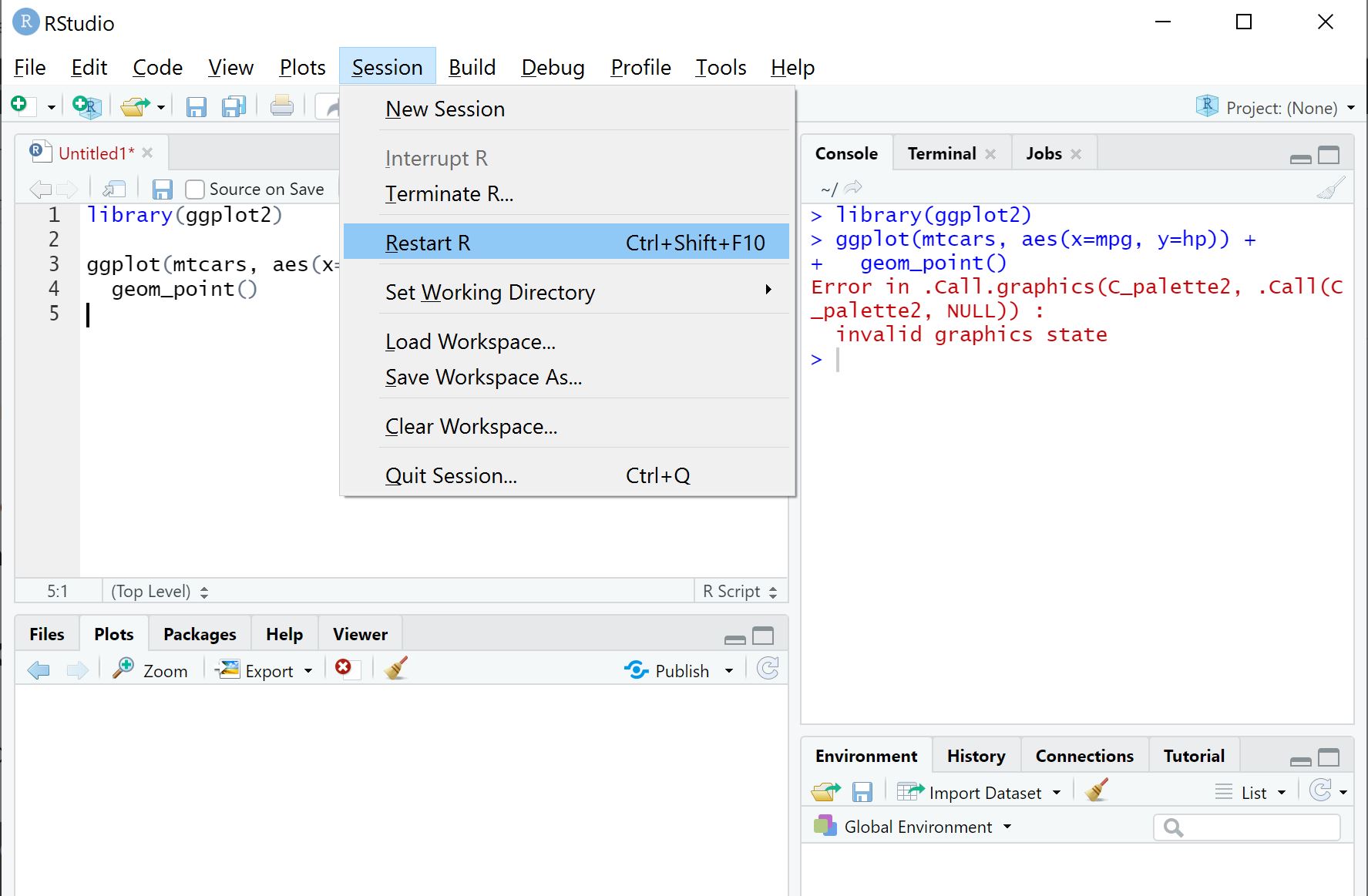

To execute this solution, users can easily access the functionality directly within the RStudio integrated development environment (IDE). Simply navigate to the “Session” dropdown menu and select the “Restart R” option. This action initiates a complete refresh of the core R session without requiring the user to close and reopen the entire RStudio application. The location of this crucial command is illustrated below:

Following the session restart, it is essential to remember that all libraries must be reloaded and all necessary scripts must be rerun from the beginning. In many instances, especially when complex package interactions are involved, this thorough environmental reset proves to be the definitive solution, allowing the user to proceed seamlessly with their graphical analysis. This method serves as a robust solution for a wide variety of transient R environment issues, extending beyond mere graphics state problems.

Solution 3: Ensuring Package Integrity by Reinstallation

When the previously mentioned methods—clearing graphics devices and restarting the session—do not successfully resolve the “invalid graphics state” error, attention must shift to the integrity and compatibility of the key visualization packages. In a high percentage of persistent cases, the issue lies with a corrupted, incomplete, or severely outdated installation of a core library, most often ggplot2. In these scenarios, a full, clean reinstallation of the problematic package is the only viable path forward to ensure structural soundness and version alignment.

Package corruption can be triggered by various external factors, including interrupted network connections during download, file system errors on the local machine, or conflicts arising from manual intervention or partial updates. Furthermore, the incompatibility arising from an outdated ggplot2 version trying to interact with a newer core R version is a frequent source of functional errors, particularly those affecting specialized areas like graphics rendering. Reinstallation guarantees that all package components and their dependencies are freshly downloaded from the official CRAN repositories, resolving integrity issues and ensuring that the most stable, compatible version is utilized.

The process begins by systematically removing the existing, potentially corrupted, installation of ggplot2. This critical step prevents any lingering or faulty files from interfering with the new installation. Execute the following command in your R console to proceed with uninstallation:

#uninstall ggplot2
remove.packages("ggplot2")

Following the removal, immediately install the latest stable version of the package. This ensures that the newly downloaded files are compatible with your existing R installation and that all required dependencies are automatically satisfied. Use this command for installation:

#install ggplot2
install.packages("ggplot2")

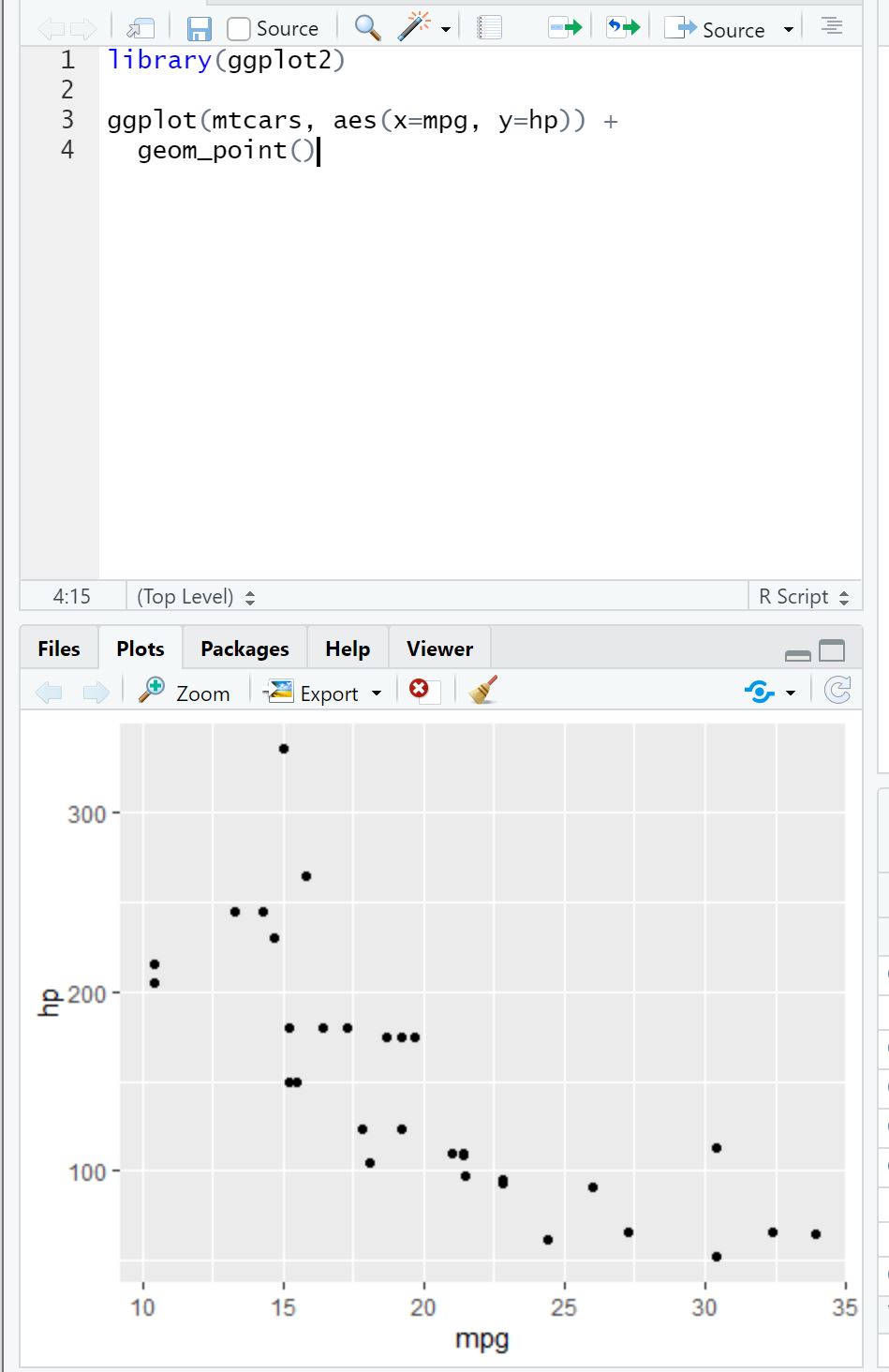

To finalize the process, it is strongly recommended to perform one last restart of your RStudio session. This guarantees that the operating system loads the newly installed package files into a completely fresh environment. Upon attempting to run the plotting code again, the user should observe a successful outcome, as depicted in the image below, confirming that the package integrity issue has been definitively resolved.

This comprehensive method addresses the deep-seated root causes related to package configuration, providing a reliable fix for the most stubborn occurrences of the “invalid graphics state” error.

Conclusion and Strategies for Proactive Graphics Management

While the “invalid graphics state” error in R can initially appear complex and frustrating, it is a well-documented technical issue with a clear hierarchy of solutions. Effective troubleshooting hinges on understanding that the error is typically environmental—caused by device conflicts, version incompatibility, or lingering settings—rather than a mistake in the plotting code itself. The three progressive methods outlined provide a reliable path to resolution, moving from targeted device clearance to comprehensive environmental and package resets.

The sequence of troubleshooting should always begin with the simplest solution: using dev.off() to close any potentially corrupted active graphics devices. If this initial step fails to yield results, escalating to a full restart of the RStudio session provides the necessary clean slate by clearing the global environment and all loaded packages. For the most persistent or recurring errors, especially those linked to package functionality, the complete reinstallation of visualization libraries like ggplot2 remains the definitive fix.

To minimize the future occurrence of the “invalid graphics state” error and enhance the overall stability of your data visualization workflow, adopting certain best practices is highly advisable. Users should ensure they regularly update both their core R installation and all active packages to maintain compatibility. Furthermore, strive to avoid haphazardly mixing Base R and ggplot2 plotting calls unnecessarily within a single, continuous script or session, as this is a known source of graphical conflict. Finally, cultivate the habit of explicitly shutting down graphics devices using dev.off() when completing a plotting task or before initiating a new, complex visualization project.

Mastering the ability to quickly diagnose and resolve these technical hurdles is a crucial skill for any proficient R user. By implementing these solutions and maintaining proactive management of the graphics environment, analysts can ensure a smoother, more reliable, and uninterrupted experience for all their critical data visualization and exploration needs.
