Fix R Error: Discrete value supplied to continuous scale

As data scientists and analysts leverage the powerful visualization capabilities of the ggplot2 library in the R programming environment, they inevitably encounter challenges related to data type management. One of the most frequently reported and fundamentally confusing errors relates to how ggplot2 attempts to map variables to visual scales:

Error: Discrete value supplied to continuous scale

This error signals a critical mismatch: the plotting function requires a measurable, numerical range (a continuous scale) but has instead received input treated by R as categorical, textual, or countable data (a discrete value). Since the architecture of ggplot2 relies on the strict mapping of data types to aesthetic properties, this conflict immediately prevents the visualization from rendering correctly.

This comprehensive guide delves into the essential differences between continuous and discrete data scales, illustrates how to reliably reproduce this common data hygiene issue, and, most importantly, provides the definitive steps required to resolve the error through explicit data type conversion.

Deconstructing the “Discrete value supplied to continuous scale” Error

The root cause of this error lies in a fundamental misunderstanding of how the ggplot2 engine interprets variables intended for axis mapping. When a developer explicitly calls for a function designed for measurement, such as scale_y_continuous(), the visualization package assumes that the underlying data can take any value within a defined span and is therefore suitable for mathematical operations and interpolation.

If the variable mapped to this axis is internally stored as a character variable or a factor—which R inherently treats as a set of non-numeric, discrete values—the plotting engine cannot calculate smooth intervals, set meaningful numerical boundaries, or create an appropriate axis gradient. This inability to perform expected scaling operations results in the immediate failure reported by the error message.

To ensure successful visualization, data practitioners must meticulously verify that the internal R data type (e.g., character, factor, numeric) perfectly aligns with the required aesthetic scale function being applied (e.g., continuous, discrete, color, size). Failing to do so is the single greatest cause of this specific runtime error.

Distinguishing Between Continuous and Discrete Data Scales

Effective data visualization hinges on correctly categorizing variables into the two primary types used for aesthetic mapping: continuous and discrete. Understanding and applying this distinction is non-negotiable for anyone using declarative plotting systems like ggplot2.

A Continuous scale is reserved for variables that represent quantities that can be measured, often represented by real numbers. These variables—such as height, temperature, financial metrics, or precise time measurements—can theoretically take on an infinite number of values within a given range. When plotting these, ggplot2 generates a smooth axis line and calculates labels and ticks based on calculated intervals. Functions like scale_x_continuous() or scale_y_continuous() are strictly designed to operate on numeric variables (or integers), as these types support the mathematical operations necessary for scaling.

Conversely, a Discrete scale is intended for categorical or qualitative data. These variables possess a limited, countable set of distinct categories, such as product names, country identifiers, or textual labels. For discrete data, ggplot2 does not attempt interpolation; instead, it draws distinct ticks, bands, or legend keys corresponding to each unique category. If a variable is truly categorical, even if coded numerically (e.g., 1 for “Male,” 2 for “Female”), the correct approach is to use functions such as scale_y_discrete() or convert the variable to a factor.

The error message “Discrete value supplied to continuous scale” is, therefore, an explicit confirmation that the developer attempted to map data recognized as distinct groups or labels to a function designed exclusively for smooth, measurable, numerical data.

Demonstrating the Error Scenario in R

To fully appreciate the mechanism that triggers this error, it is helpful to simulate a scenario where a variable that appears numerical is mistakenly defined as a character variable in R. This often occurs during common data ingestion processes where spreadsheet imports fail to correctly assign data types.

We begin by constructing a simple data frame. Note the deliberate use of single quotes ('1', '2', etc.) for the values in the y column. This syntax forces R to interpret these values as text strings rather than numerical quantities, regardless of their visual appearance:

#Create data frame where 'y' is explicitly defined as a character variable.
df = data.frame(x = 1:12,
                y = rep(c('1', '2', '3', '4'), times=3))

#View the resulting data frame structure
df

    x y
1   1 1
2   2 2
3   3 3
4   4 4
5   5 1
6   6 2
7   7 3
8   8 4
9   9 1
10 10 2
11 11 3
12 12 4

Next, we attempt to generate a scatterplot using this data frame. Crucially, we use the scale_y_continuous() function, instructing ggplot2 to treat the y variable as a measurable quantity and explicitly setting its limits from 0 to 10:

library(ggplot2)

#Attempt to create scatterplot with a custom continuous y-axis scale
ggplot(df, aes(x, y)) +
  geom_point() +
  scale_y_continuous(limits = c(0, 10))

Error: Discrete value supplied to continuous scale

The operation fails because the y variable, despite appearing to hold simple digits, is stored internally as a set of discrete value labels. The scale_y_continuous() function, designed to handle interpolation and numerical range setting, crashes upon realizing it cannot perform mathematical calculations on non-numeric text data, thus confirming the data type mismatch.

Diagnosing the Root Cause: The Data Type Mismatch

Whenever a scaling error occurs within the ggplot2 framework, the essential first step in the debugging process is always to verify the exact data type of the variable mapped to the problematic aesthetic. Ignoring this step leads to unnecessary attempts at graphical manipulation.

In R, the fundamental tool for verifying an object’s type is the class() function. Applying this function to our potentially problematic y variable immediately exposes the source of the conflict:

#Check the class of the y variable
class(df$y)

[1] "character"

The output "character" confirms that R is treating df$y as a sequence of text strings. This is a discrete value, which is inherently incompatible with the continuous scale function we utilized. This definitive data type mismatch is the singular cause of the reported error.

It is vital to understand that R, by default, does not automatically coerce character strings containing only numbers into a numeric variable. If the data is imported or defined as a string, it remains a string until explicit conversion is performed. Therefore, data cleaning routines must include mandatory type conversion to ensure that visualization and statistical packages process the data as measurable quantities rather than simple categorical labels.

The Definitive Solution: Explicit Data Type Conversion

The only reliable and permanent fix for the “Discrete value supplied to continuous scale” error is to perform an explicit conversion of the problematic variable from its current discrete type (typically character or factor) into a suitable continuous type (numeric or integer) prior to invoking any ggplot2 scaling functions.

We achieve this using R’s built-in type coercion functions, specifically as.numeric(). This function attempts to transform the textual strings into their numerical counterparts. If the conversion is successful (meaning the strings contain only digits), the variable’s class is updated. If the strings contain non-numeric characters, R typically converts them to NA (Not Available), but for our clean data, the process is straightforward and safe.

The corrected code block below first performs the critical data conversion on the y column and then successfully generates the required scatterplot:

library(ggplot2)

#Convert y variable from character to numeric
df$y <- as.numeric(df$y)

#Create scatterplot with custom continuous y-axis scale
ggplot(df, aes(x, y)) +
  geom_point() +
  scale_y_continuous(limits = c(0, 10))

Upon execution, the visualization is rendered without error. This successful outcome confirms that the y variable is now correctly recognized as a measurable quantity, fully compatible with the scale_y_continuous() function and the requirements of the continuous scale.

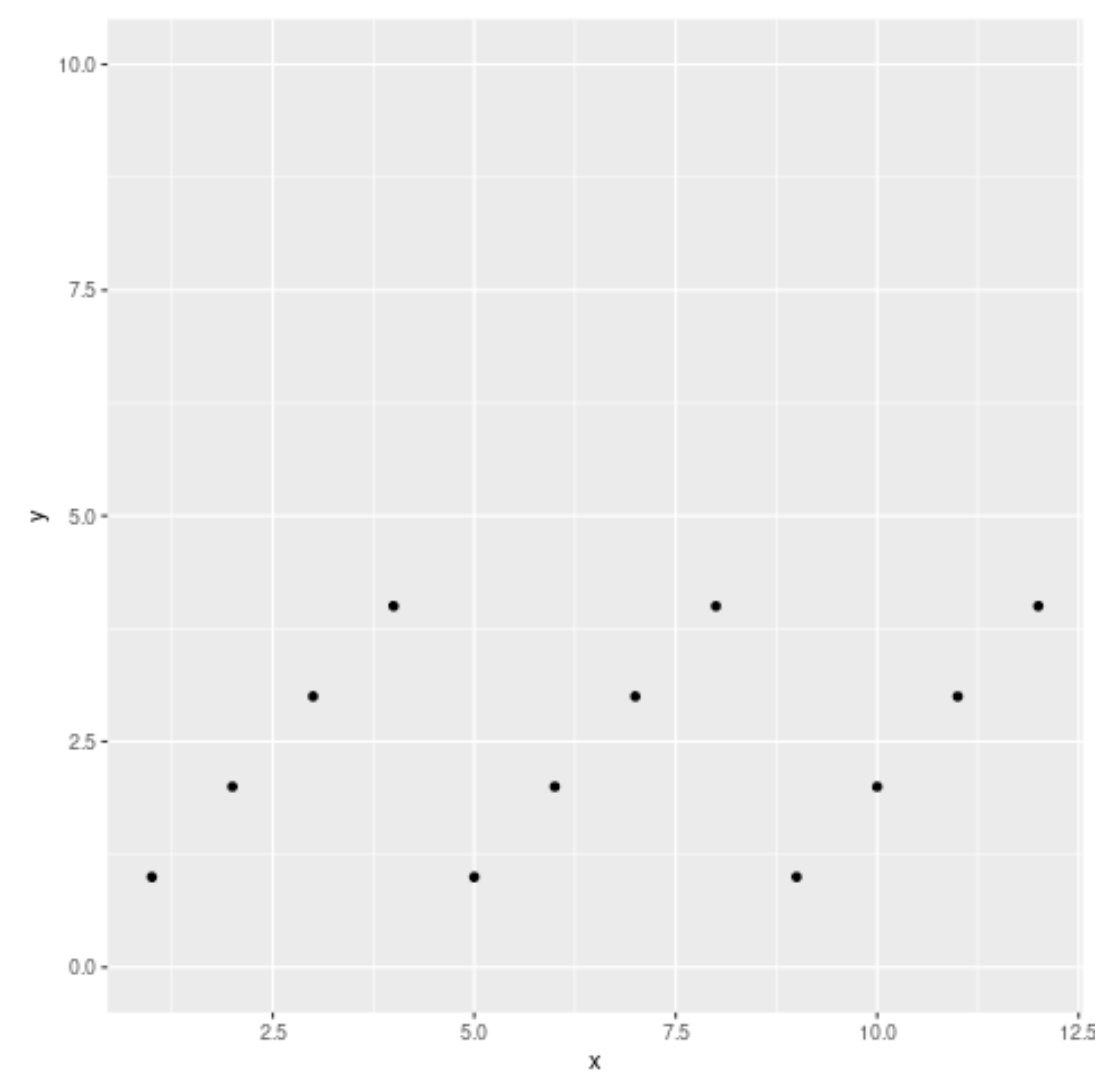

The image above illustrates the result of the corrected code. The error is eliminated because the scaling function is now operating on a proper numeric variable, which is the necessary prerequisite for any continuous axis mapping.

Best Practices for Robust Data Preparation in R

While debugging is necessary, preventing this specific scaling error should be the ultimate goal. Adopting meticulous data preparation practices will significantly enhance the reliability of R scripts, especially when dealing with data imported from external systems like databases or flat files, where numerical columns are frequently misclassified as character strings.

Key strategies for establishing robust data visualization workflows include:

• Initial Data Inspection and Verification: After loading any data set, make it standard practice to immediately use inspection functions like str(data_frame) or class(data_frame$column). This verifies the data types of all columns intended for mathematical or aesthetic mapping, allowing early detection of a character/numeric misclassification.

• Explicit and Early Conversion: Do not rely on R to implicitly guess your variable types. Utilize functions such as as.numeric(), as.integer(), or as.factor() early in the data cleaning pipeline to define data types unambiguously before they reach the visualization stage.

• Choosing the Appropriate Scale: If a variable intrinsically represents non-measurable categories (e.g., “Region A,” “Region B”), even if those categories are temporarily coded as digits (e.g., 1, 2), they must be treated as factors. In such cases, use scale_y_discrete() or convert the variable to a factor rather than attempting to force a continuous scale.

• Adherence to Tidy Data Principles: Structured data, where every variable is a column and every observation is a row, minimizes ambiguity for all statistical and plotting functions. Maintaining this structure simplifies debugging and ensures that variable types are consistently managed.

By prioritizing data preparation and ensuring that variable classes align precisely with the requirements of the ggplot2 scaling functions, developers can preempt common runtime errors and consistently generate high-quality, reliable data visualizations.
