Conditional Formatting with Yes/No in Google Sheets: A Step-by-Step Tutorial

Welcome to this comprehensive guide dedicated to maximizing Google Sheets‘ potential for data visualization. While default formatting provides basic structure, the application of conditional formatting is essential for transforming raw data into actionable insights. Specifically, applying custom rules to simple, binary states—like “Yes” and “No”—significantly enhances data readability, enabling stakeholders to perform an immediate visual assessment of critical information.

This tutorial delves into the advanced functionality offered by the custom formula within the conditional formatting feature. Leveraging a custom formula grants users granular control, allowing them to define precise styling, such as specific background colors, based on the exact textual content found within a range of selected cells. We will navigate a detailed, practical implementation scenario to ensure you can confidently deploy this robust formatting technique in your own spreadsheets.

The Role of Conditional Formatting in Data Visualization

Conditional formatting serves as an indispensable mechanism in modern data analysis, providing the ability to automatically impose predefined styles—including specific colors, font weights, or borders—on cells that satisfy specific criteria. This capability is particularly transformative when managing boolean or binary data, such as affirmative (“Yes”) or negative (“No”) indicators. By applying these conditional rules, raw numerical or textual data is instantly converted into highly structured, visually digestible information, which is paramount for effective dashboards, dynamic status trackers, and efficient navigation of large datasets.

While Google Sheets offers straightforward options like “text is exactly” or “value is greater than,” advanced scenarios—such as referencing adjacent cells or executing complex logical tests—mandate the use of the Custom formula is feature. This powerful setting allows users to embed a standard spreadsheet formula that must resolve to either a TRUE or FALSE outcome. If the formula evaluates to TRUE for a cell within the designated range, the specified format is applied; conversely, if it evaluates to FALSE, the formatting is disregarded. A deep comprehension of this underlying logical principle is fundamental to achieving mastery over sophisticated data visualization techniques in any spreadsheet application.

The core objective of this specific exercise is to establish a robust system where a cell’s background color instantaneously communicates its internal status. For example, we aim to consistently associate the “Yes” status with a positive indicator color, such as green, and the “No” status with a cautionary or neutral indicator, such as red. This immediate visual feedback dramatically streamlines the analytical process. Furthermore, this technique proves invaluable in environments where the underlying dataset is dynamically updated, as the conditional formatting rules automatically refresh and adjust without requiring manual intervention.

Implementing Dual-Status Logic Using the Custom Formula Feature

The effectiveness of the custom formula hinges on its relative referencing capability. It evaluates the condition based on the top-left cell of the user-defined range and then seamlessly applies that identical logical structure to every subsequent cell within the selection. For binary text evaluation, the core requirement is a straightforward equality test. If we intend to format data within column B, the formula must accurately reference the initial cell, conventionally B2, and test its content against the specific target string, such as ="Yes".

To achieve two distinct visual formats—for instance, green for “Yes” and red for “No”—it is absolutely essential to define two separate, non-overlapping formatting rules. These rules must be individually configured and managed within the Conditional format rules sidebar interface. The primary rule addresses the affirmative condition, specifying the exact format (e.g., a green background and potentially bold text) to be applied upon a TRUE evaluation. A subsequent, secondary rule must then be established to explicitly handle the negative condition, ensuring that this alternative status is assigned its own unique and contrasting visual identifier.

This dual-rule methodology guarantees superior clarity and control over the final visualization. Although some users might consider employing a single negation-based rule (e.g., format B2 if not equal to “Yes”), establishing two explicit, positive condition rules offers greater precision. This approach effectively mitigates the risk of unintended formatting being applied to cells that are blank, contain typos, or include unexpected textual entries. By rigorously defining both the “Yes” and “No” states, we construct a resilient formatting scheme that reliably communicates the intended binary status.

Step-by-Step Guide: Configuring the Affirmative (“Yes”) Rule

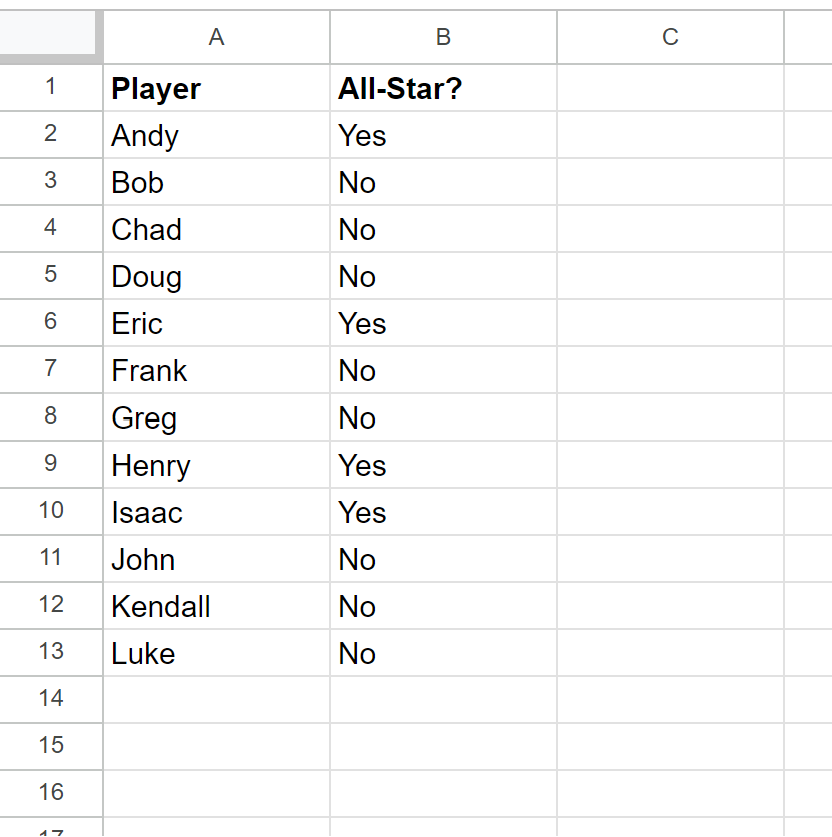

To provide a clear demonstration of this methodology, let us utilize a hypothetical scenario: a sports dataset tracking professional player achievements. Specifically, we focus on the “All-Star” column, which uses binary values to indicate whether a player has achieved All-Star status during their career. The initial data structure appears as follows:

Our initial task is to apply a visually distinct bright green background exclusively to every cell within the All-Star column that explicitly contains the value “Yes”. This implementation requires strict adherence to a precise sequence of steps within the Google Sheets user interface. The essential first step is the precise selection of the target range; in this specific example, the range is B2:B13, encompassing all the data points that require conditional evaluation.

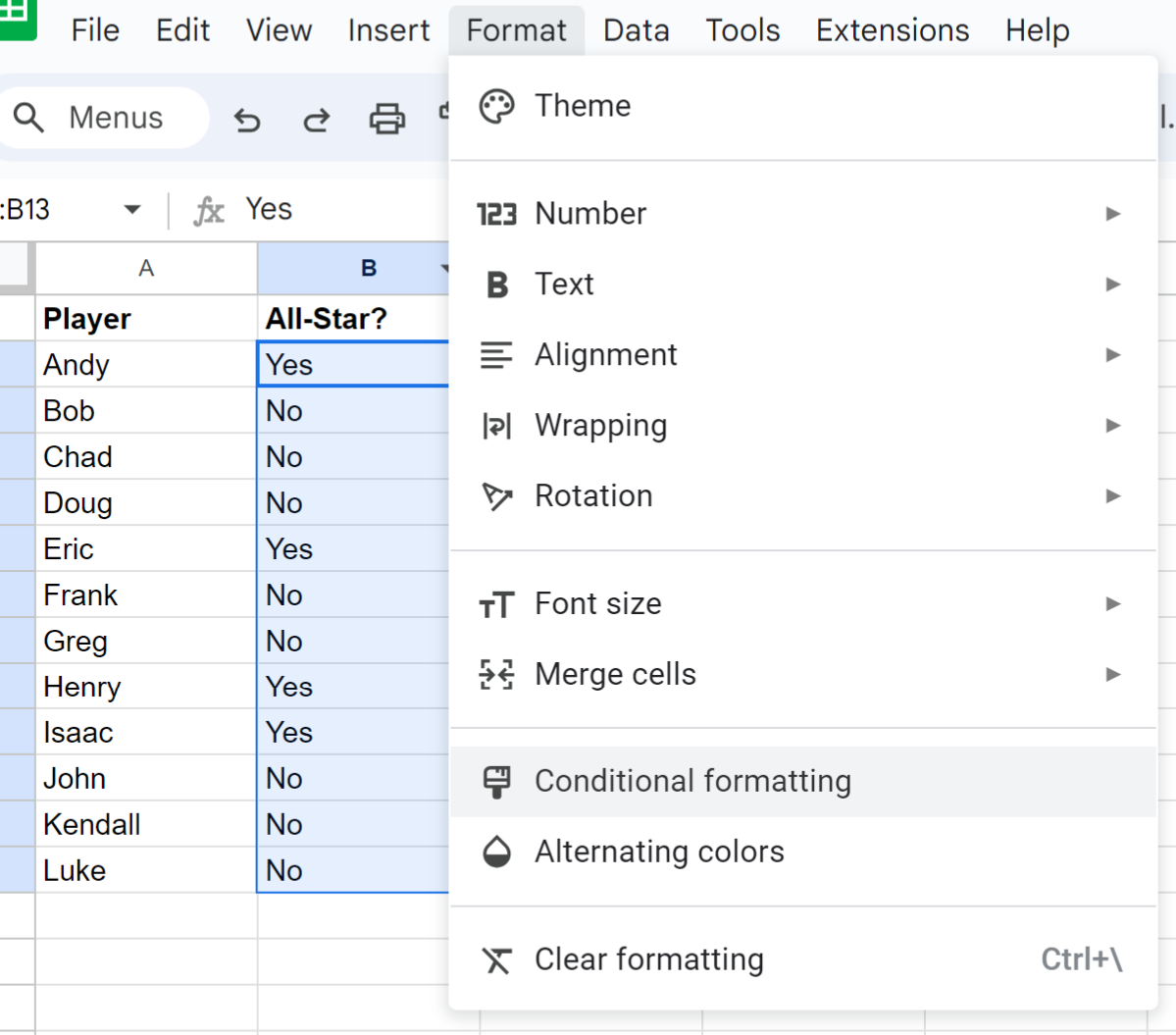

After the target data range is correctly highlighted, navigate to the main application menu and select the Format tab, followed by clicking Conditional formatting. This action initiates the opening of the dedicated configuration panel on the right-hand side of the screen. This panel is the central hub for defining both the scope and the specific logical criteria of our formatting rule. Our initial setup must involve switching the rule type from a simple predefined condition to the more powerful custom formula option, readying the system for our text-based logical test.

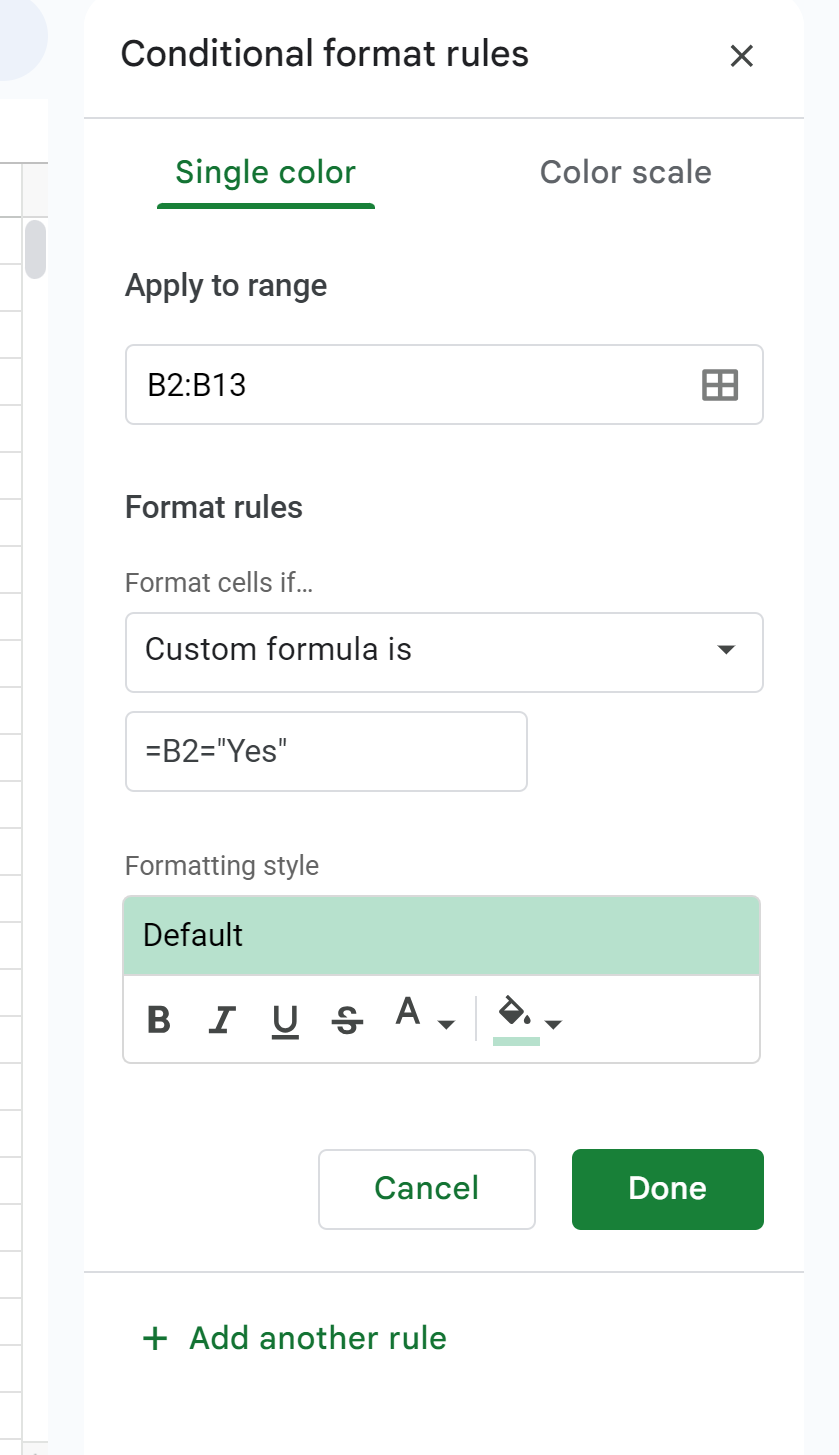

Within the Conditional format rules panel, locate the Format cells if dropdown menu, scroll through the options, and select Custom formula is. This selection unlocks the input field necessary for defining our logical expression. For the affirmative “Yes” condition, we must input the following formula, ensuring it references the first cell of our previously selected range (B2):

=B2="Yes"

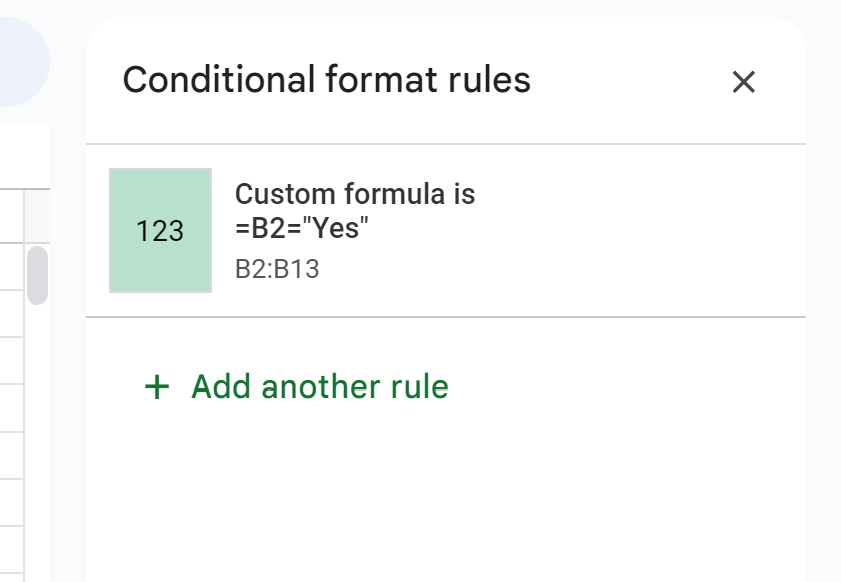

The system interprets this formula as a test for exact equality between the content of cell B2 and the text string “Yes”. Crucially, because the rule is applied across the range B2:B13, Google Sheets automatically adjusts this formula using relative referencing for every subsequent cell (e.g., checking B3=”Yes”, B4=”Yes”, and so forth). Following the input of the formula, proceed to select a vibrant green fill color from the formatting options provided below. Once the color selection and configuration are complete, click Done to successfully finalize the creation of the first rule.

Explicitly Defining the Negative (“No”) Condition

With the affirmative “Yes” rule successfully implemented, the next crucial requirement is the creation of the corresponding rule for “No” values. This rule will utilize a contrasting color, specifically red, to clearly signify a negative status or unmet criterion. It is vital to internalize that conditional formatting systems operate on explicit definitions; they do not automatically infer the logical opposite of a previously defined rule. Therefore, the negative condition must be meticulously and separately established as its own distinct entity.

Initiating the configuration for the secondary rule begins by clicking the Add another rule button, conveniently located at the base of the Conditional format rules sidebar. A prerequisite for consistency is ensuring that the applied range for this new rule remains identical to the first—in our example, the range must be confirmed as B2:B13. Maintaining the same range guarantees that both the positive and negative rules are evaluated across the identical set of data points, preventing visual gaps or inconsistencies.

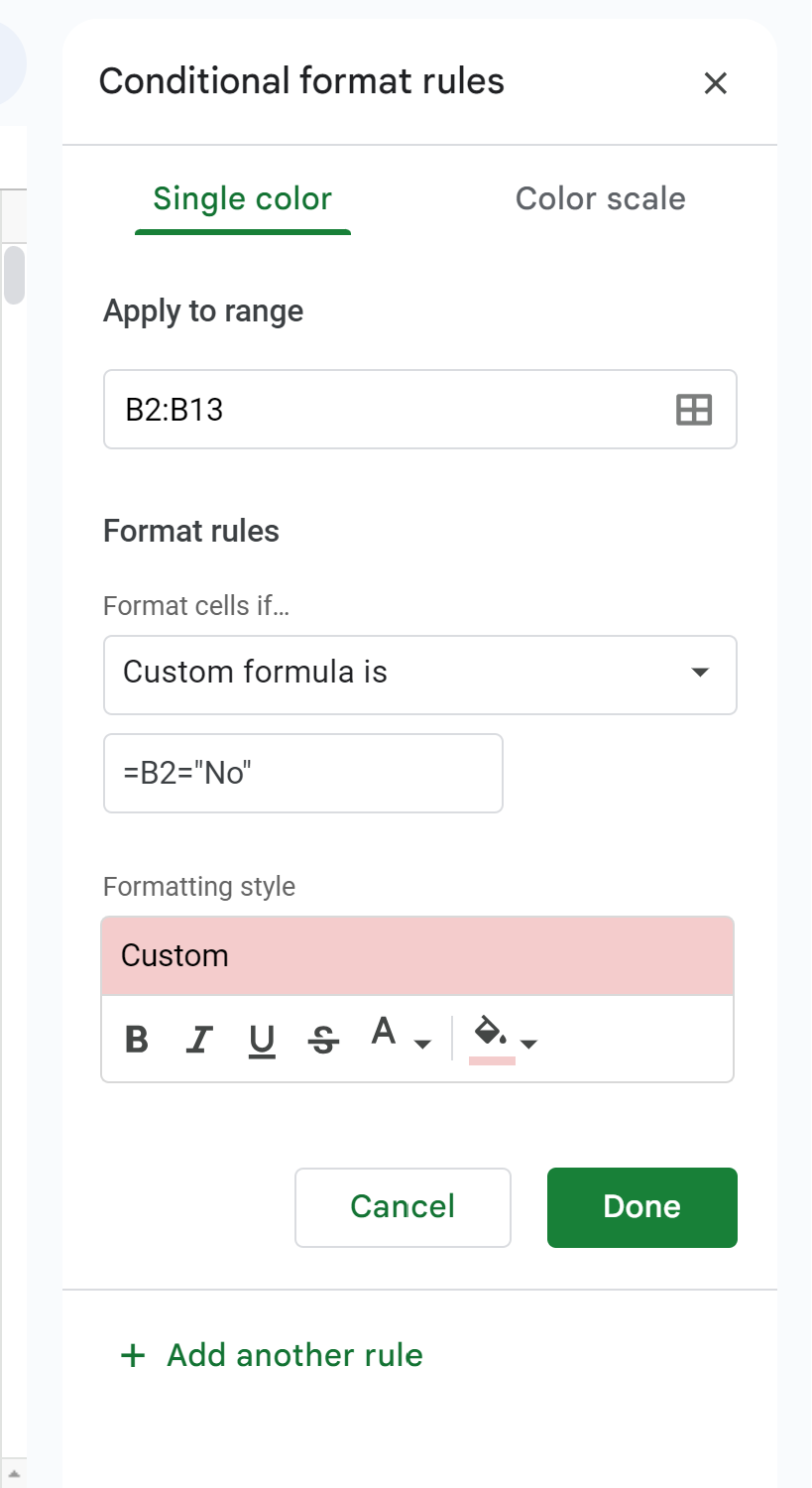

Following the setup protocol, select the Format cells if dropdown menu and once again choose Custom formula is. This time, the formula’s purpose is to test specifically for the alternative textual value, “No”. The structure of the formula remains consistent with the previous step, centering on the equality test against the initial cell B2:

=B2="No"

Upon successfully inputting and confirming the formula, navigate to the formatting options and select a clear, unmistakable red background color. This deliberate visual contrast immediately distinguishes players who have not attained All-Star status from those who have. Once both the formula syntax and the desired formatting are confirmed, click Done. This finalizes a complete, dual-status conditional formatting framework designed specifically for robust binary data representation.

Reviewing the Final Output and Exclusivity

Once the Conditional format rules configuration panel is dismissed, the spreadsheet executes the defined logic immediately. The visual transformation should be instantaneous, providing a striking confirmation of the effectiveness of leveraging the custom formula for managing binary data classifications.

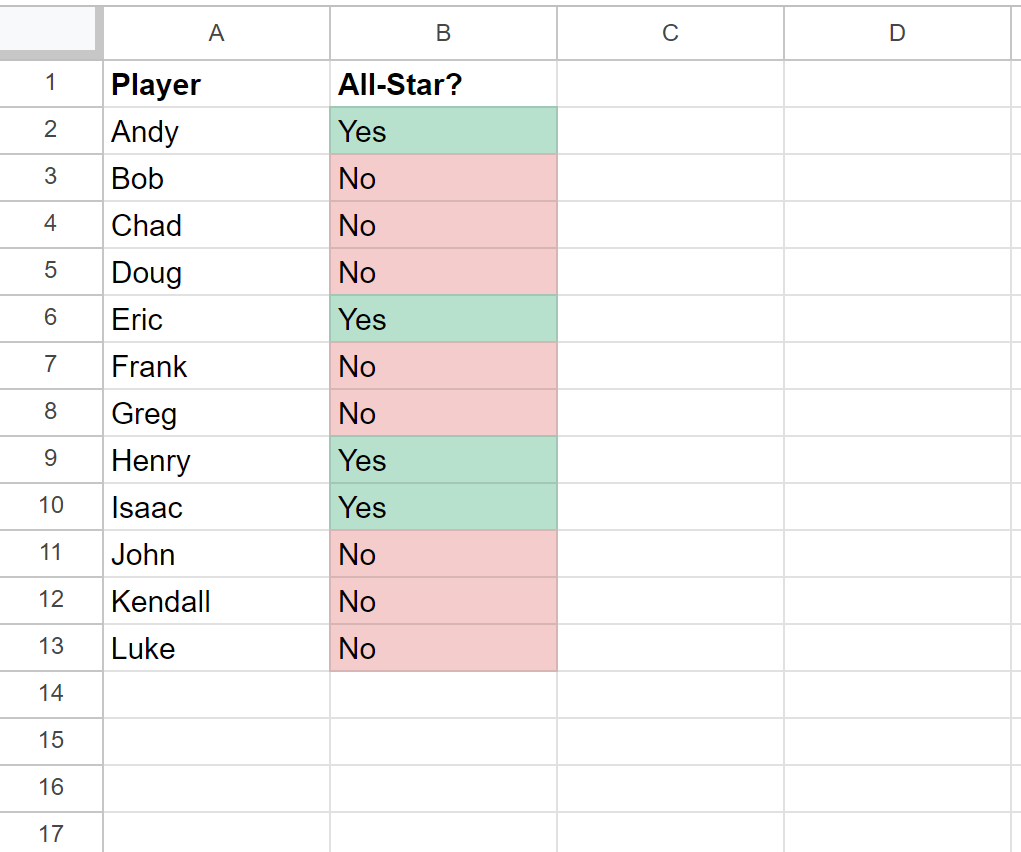

A review of the final display confirms the intended outcome across the applied range of B2:B13:

• Every cell in the All-Star column containing the exact value “Yes” is now prominently displayed with the bright green background, immediately signaling a positive status.
• In direct contrast, every cell containing the value “No” is highlighted with the red background, clearly denoting the negative status.

A critical characteristic of this implementation is its inherent exclusivity. If any cell within the All-Star column were to contain content other than the two explicitly defined values (e.g., “TBD,” “Pending,” or if the cell was completely blank), it would remain unaffected, retaining the spreadsheet’s default formatting. This rigorous specificity ensures that visual emphasis is applied only to data strictly matching the established binary conditions, thereby preventing potential misinterpretation stemming from data entry inconsistencies or incomplete records. This level of precise control is arguably the most significant advantage of utilizing the Custom formula is approach over the limitations of simpler, built-in conditional formatting options.

Advanced Use Cases and Essential Troubleshooting

Although this guide concentrated on basic, case-sensitive text matching, the mastery of the Custom formula is functionality serves as a springboard for implementing significantly more complex data processing scenarios. A primary enhancement involves making the formatting rules immune to capitalization errors. This can be achieved by integrating functions such as LOWER(B2)="yes" into the custom formula. This minor but powerful modification ensures that the cell is formatted correctly whether the user inputs “Yes,” “yes,” or “YES,” drastically improving the robustness of the formatting against common variations in user input.

It is essential to recognize that all conditional formatting rules are managed based on a strict hierarchy. When multiple rules are defined for the same cell range, the rule positioned highest in the list (the one defined first) will always take precedence if its criteria are met. For instance, if a cell satisfies the conditions of both Rule 1 (Green for “Yes”) and Rule 2 (Red for any text containing the letter ‘o’), Google Sheets will apply the formatting associated with Rule 1. Since our “Yes” and “No” rules are inherently mutually exclusive, rule order does not affect the outcome here; however, understanding this principle is critical when dealing with overlapping or conflicting criteria, such as formatting based on both text and numerical ranges.

Should any issues arise during implementation, the initial and most crucial troubleshooting step is the verification of the formula syntax. Always confirm that the relative cell reference (e.g., B2) accurately corresponds to the top-left cell of the designated applied range, and ensure that any static text strings being evaluated are correctly enclosed within double quotes (e.g., "Yes"). Secondly, examine the rule hierarchy within the conditional formatting sidebar to confirm that a higher-precedence rule is not unintentionally overriding your intended binary formatting scheme. By addressing these technical nuances, you ensure the long-term maintenance of clean, visually optimized, and highly functional spreadsheets.
