Google Sheets Tutorial: Using Checkboxes to Dynamically Change Cell Color

In the realm of modern data management, the capability to construct highly responsive and interactive spreadsheets is absolutely paramount. Enhancing data interpretation and optimizing workflow efficiency relies heavily on integrating visual cues that respond instantaneously to user inputs. A particularly powerful technique for achieving this interactivity in Google Sheets involves the dynamic modification of cell colors, triggered by the simple state change of a checkbox. This methodology transforms static data tables into intuitive, self-updating dashboards where essential information is highlighted automatically. This sophisticated automation is fundamentally enabled by applying a strategic custom formula within the powerful framework of Conditional Formatting.

This comprehensive, expert-level guide offers a meticulous walkthrough of implementing this highly sought-after feature. We will demonstrate precisely how a singular click on a checkbox can instantly activate a predefined color change across any number of associated spreadsheet cells. To ensure you gain a deep understanding, we will meticulously break down the required custom formula, clarify the underlying logic governing cell referencing—including absolute and relative references—and illustrate several practical, real-world applications. By the end of this tutorial, you will possess the essential knowledge required to elevate your spreadsheets from basic data repositories into visually responsive, highly functional, and dynamic data tools.

Mastering Conditional Formatting Rules in Google Sheets

Conditional Formatting (CF) stands as an indispensable tool within the Google Sheets environment. Its primary function is to automate the application of specific formatting styles—such as background colors, customized font treatments, or defined borders—to cells when their contents meet predefined criteria. Crucially, CF rules continuously evaluate the data, eliminating the need for manual updates and ensuring that visual styling remains perfectly consistent and accurate even as the underlying data changes or evolves. This automated capacity is absolutely vital for efficient data oversight, enabling users to quickly identify high-priority operational items, flag financial outliers in complex reports, or draw immediate and focused attention to critical data points.

The true versatility of conditional formatting originates from its diverse and powerful array of available rule types. While straightforward options allow for formatting based on simple criteria, such as numerical ranges or the presence of specific text strings, the custom formula option provides users with the highest possible level of control and complexity. This specialized feature permits the implementation of standard spreadsheet formulas that can reference cells outside the target range, employ sophisticated logical functions, and define highly dynamic conditions that are not restricted to the value of the cell being formatted. This enables cross-referencing and advanced logic essential for responsive designs.

Effectively harnessing the power provided by the custom formula is the foundational key to executing sophisticated and responsive visual logic within your spreadsheet. For instance, a custom formula can be deployed to color-code an entire row in a project tracker based solely on the value contained within a separate status cell, or to highlight tasks scheduled for completion within the next seven days. Most relevant to this tutorial, it allows you to instantly change the visual appearance of a row item the moment an associated checkbox confirms its completion. Mastering the construction and deployment of custom formulas represents a critical leap forward in elevating your overall data management and visualization proficiency.

The Role of Checkboxes as Logical Triggers

Checkboxes are deceptively simple yet profoundly effective interactive components within the Google Sheets environment. They provide a clear, unambiguous mechanism for representing binary states, such as ‘completed vs. pending,’ ‘selected vs. unselected,’ or ‘yes vs. no.’ This inherent visual clarity significantly enhances data entry speed and drastically minimizes the errors commonly associated with manual text input, where users might inconsistently enter values like “Done,” “Finished,” or “Pending.”

Crucially, the inherent, standardized output value of a checkbox positions it as the ideal trigger for complex conditional rules. When a user marks (checks) a checkbox, the cell instantly adopts the logical value TRUE. Conversely, if the checkbox remains unmarked (unchecked), the cell assumes the value FALSE. This fundamental Boolean property is the cornerstone of our technique, as it allows the checkbox’s status to be directly, mathematically, and effortlessly evaluated by any custom formula used within Conditional Formatting rules.

Integrating these interactive checkboxes into diverse professional workflows can dramatically streamline operations, proving invaluable in applications ranging from managing detailed audit checklists to tracking seminar attendance or supervising complex project tasks. When these elements are strategically paired with conditional formatting capabilities, they deliver immediate and actionable visual feedback. This synergy transforms what would otherwise be a static list into a living, responsive interface that dynamically adapts in real-time based on user interaction, significantly boosting efficiency and oversight.

Step-by-Step Implementation: Linking Checkbox State to Cell Color

To fully grasp and implement this dynamic formatting technique, we will walk through a highly practical and common scenario. Imagine we are managing a simple dataset containing a list of student names. In an adjacent column, we have placed a checkbox designated to indicate whether the student has successfully passed a critical final examination. Our precise objective is to use automation to highlight the student’s name in a positive color, such as green, immediately upon checking their corresponding “Passed Exam” checkbox.

Setting Up Your Data Structure

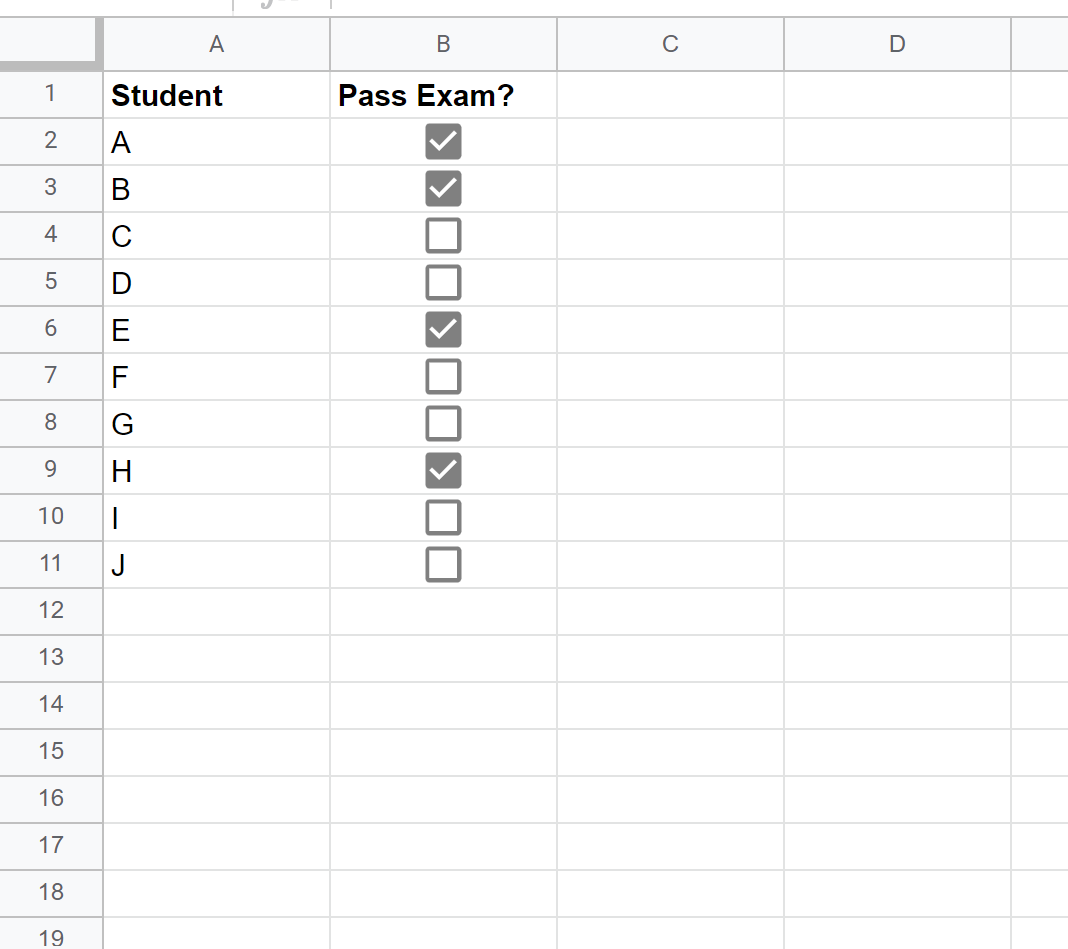

The preparatory phase necessitates a clean and logical organization of your spreadsheet data. Following our example structure, Column A will strictly contain the list of student names, while Column B is explicitly designated for the interactive checkboxes, which represent the “Passed Exam” status. This deliberate structural separation is key: it ensures that the visual formatting applied to the range of names in Column A is controlled exclusively by the logical condition established in the adjacent Column B.

As depicted in this configuration, our objective is to apply the intended visual formatting, specifically the background color change, to the range containing the student names (e.g., cells A2 through A11). Crucially, the activation criteria for this conditional rule will be entirely driven by the state of the corresponding checkboxes found in Column B.

Initiating the Conditional Formatting Panel

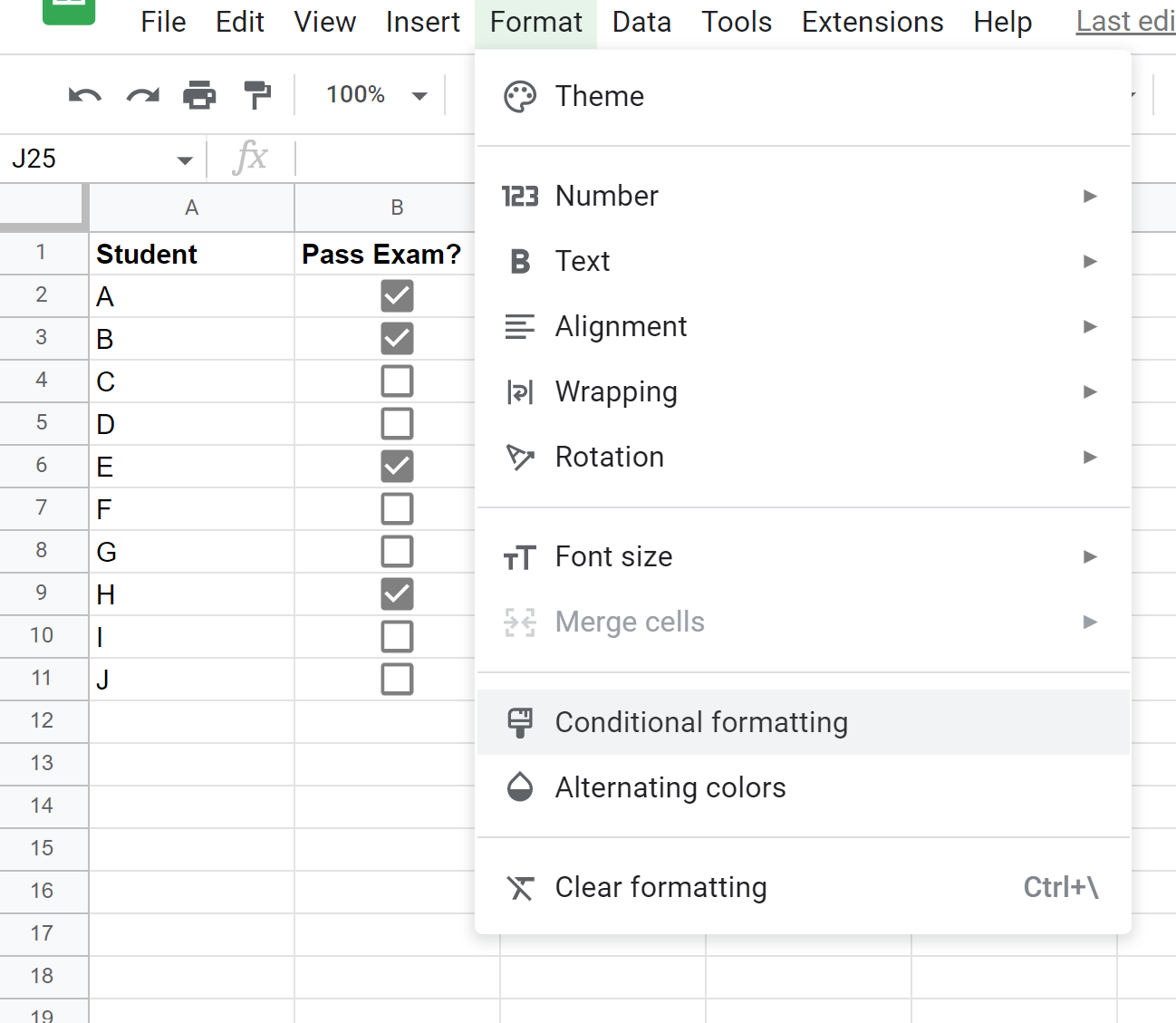

The next critical procedure involves accessing the controls for Conditional Formatting. Initiate this process by precisely selecting the entire range of cells targeted for formatting—in our specific example, this means selecting the student names spanning from A2:A11. Once this range is correctly selected, proceed to the Format menu tab within Google Sheets and then click the Conditional Formatting option.

Executing this command will instantly open the “Conditional format rules” sidebar, typically located on the right side of your interface. This dedicated sidebar functions as the central control center for defining, editing, and managing all the visual formatting rules applied throughout your spreadsheet.

Constructing the Custom Formula

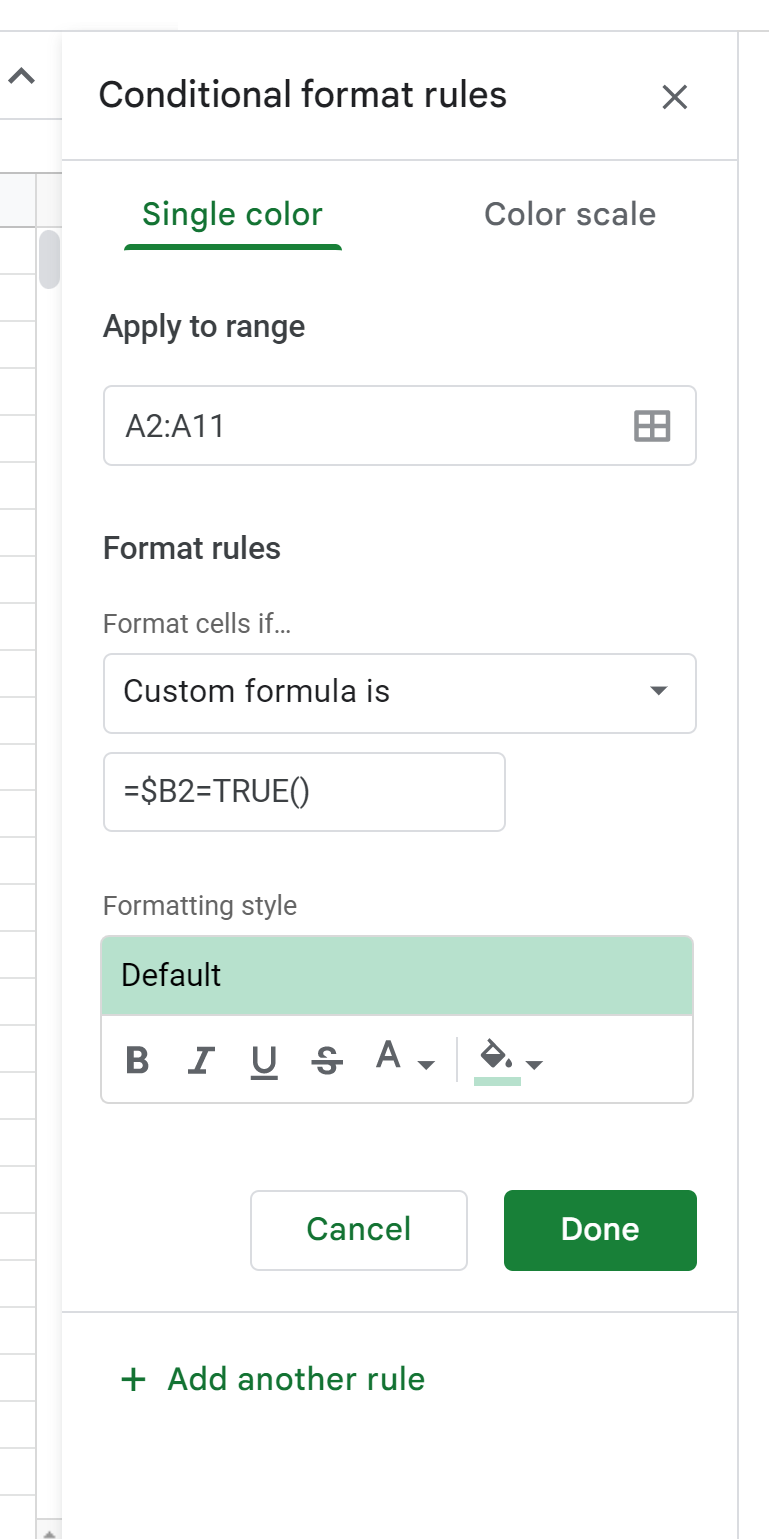

Within the “Conditional format rules” panel, first verify that the Apply to range setting accurately reflects A2:A11, confirming that the formatting is precisely targeted at the student names column. Next, navigate to the Format rules section and click the dropdown menu labeled Format cells if…. Scroll through the options and select Custom formula is. This crucial selection activates the dedicated input box where you must enter the logical expression governing the color change. Input the following formula exactly as presented below:

=$B2=TRUE()

The final step in the configuration process is to choose your desired formatting style. Since this formula is designed to highlight successful outcomes, we select a green background fill color for our passing students. Once the formula is entered and the formatting properties are defined, click the Done button. The rule will be immediately applied, allowing you to observe the dynamic results in real-time.

Deconstructing the Custom Formula: `=$B2=TRUE()`

To successfully replicate, troubleshoot, and adapt this powerful technique to different contexts, it is absolutely essential to thoroughly understand the technical components underlying the custom formula: =$B2=TRUE(). This concise formula is engineered to leverage specific cell referencing methods—namely, absolute and relative referencing—to guarantee that the rule evaluates correctly and consistently across every single cell within the extensive applied range.

• $B2: This specific reference points to the cell in Column B, starting with the first data row, row 2, which holds the initial checkbox in our range. The inclusion of the dollar sign ($) placed before the column letter (B) is a critical component, designating this as an absolute reference for the column. This absolute status is mandatory: as the conditional formatting rule processes the applied range cell by cell (A2, then A3, A4, and so forth), it must consistently check only Column B for the logical status. By freezing the column reference, we prevent the rule from incorrectly shifting horizontally. Conversely, the row number (2) remains a relative reference, which correctly allows the system to check B3 when formatting A3, B4 when formatting A4, and maintain row-specific accuracy.

• =TRUE(): This segment of the expression executes a comparison, checking if the value held within the absolutely referenced cell ($B2) is equivalent to the logical value TRUE. As previously established, a checked checkbox is inherently interpreted by the system as mathematically equivalent to TRUE. Therefore, this comparison guarantees that the specified formatting style is only applied when the corresponding checkbox in Column B is physically marked. While the parentheses surrounding TRUE are technically optional in this context, they are often included for stylistic clarity, though the formula functions identically without them (i.e., =$B2=TRUE).

In summary, this precisely structured formula effectively instructs the conditional formatting system to apply the defined style—in our case, the green background—to the cells containing student names in Column A, exclusively when the corresponding cell in Column B yields the TRUE value generated by a marked checkbox. This elegant and precise logical structure is the foundation that enables the dynamic, instant, and row-specific visual color changes across the entire range.

Observing Dynamic Results and Advanced Applications

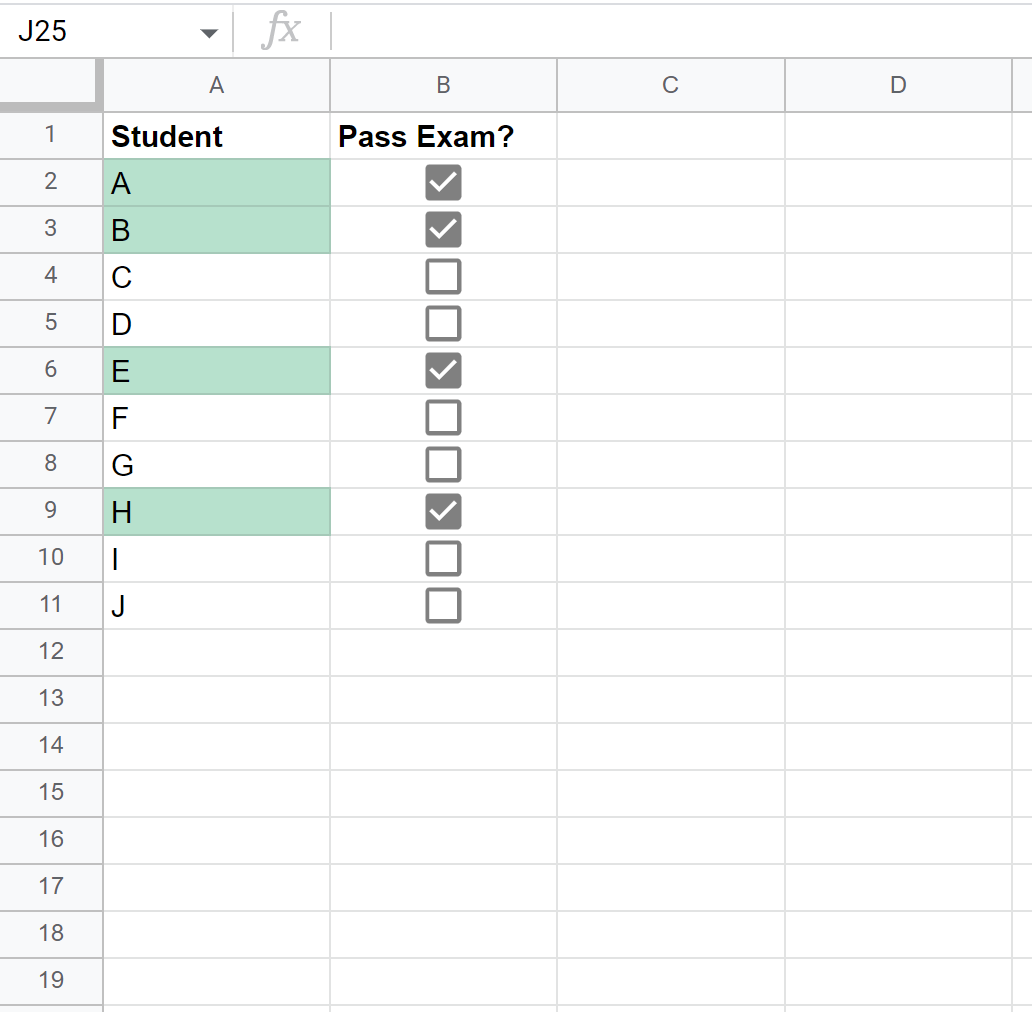

Upon the successful and correct application of the conditional formatting rule, the newly acquired dynamic capabilities of your spreadsheet will become immediately evident. Any cell within Column A that corresponds to a checked checkbox in the adjacent Column B will be instantly highlighted with the chosen green background color, providing seamless and immediate visual confirmation of the student’s passing status. This real-time feedback loop significantly enhances data validation.

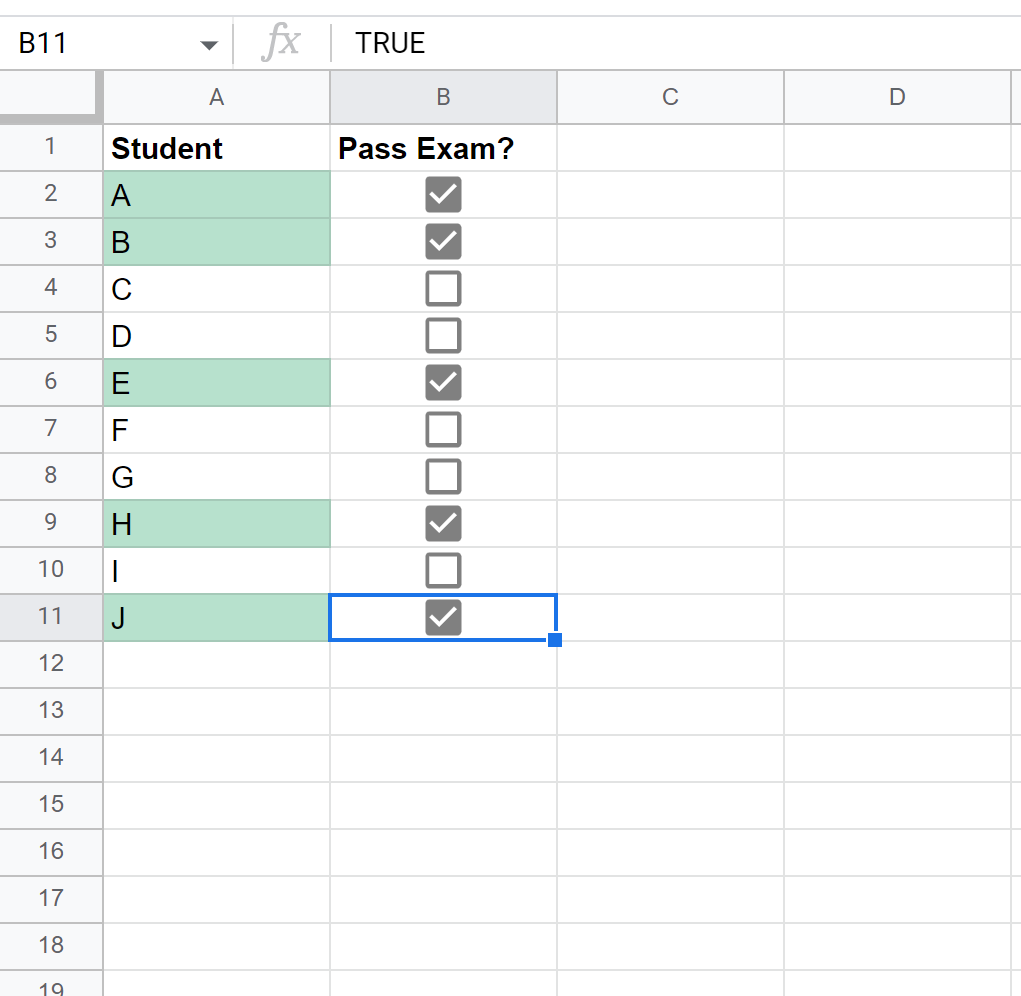

The greatest benefit and true efficiency of this configuration stem from its absolute real-time responsiveness. Should you interact with the data—for instance, by checking the box situated next to “Student J”—the name “Student J” in Column A will instantaneously adopt the green background without requiring any further manual input or refresh actions. This immediate visual feedback mechanism is invaluable for efficient data validation, review, and maintaining situational awareness within large datasets.

The practical applications for this dynamic linking methodology are broad and highly extensive across many fields. In environments like project management, checking a “Milestone Achieved” box can trigger the highlighting of the corresponding project name or summary. Similarly, for detailed inventory tracking, selecting an “Out of Stock” checkbox could instantly change the product name and associated details to red, signaling an urgent need for replenishment. Furthermore, this technique is effortlessly adaptable to format entire rows of data. This is achieved by simply extending the Apply to range (e.g., A2:Z11) while crucially maintaining the custom formula’s specific absolute reference to the checkbox column (e.g., =$B2=TRUE()). This synergy between interactive input elements and sophisticated visual formatting significantly enhances organizational capacity and dramatically improves data comprehension.

Troubleshooting and Essential Considerations

Although the process of implementing checkbox-driven conditional formatting is generally straightforward, a solid understanding of a few core concepts is necessary to prevent common implementation errors. Always recall the fundamental spreadsheet logic: a checked checkbox is systemically equivalent to the logical value TRUE, while an unchecked box yields FALSE. This distinction is powerful for inverse highlighting; for instance, if your custom formula were intentionally written as =$B2=FALSE(), the rule would logically highlight the associated row precisely when the checkbox is unmarked, a configuration that is highly useful for visually flagging pending or incomplete tasks.

Review these crucial troubleshooting points to ensure successful and reliable implementation:

• Range Selection Accuracy: It is crucial to always double-check that the Apply to range precisely corresponds to the cells you intend to format. If you decide to format an entire row (e.g., A2:Z11), remember that the custom formula itself must still reference only the column containing the logical trigger (e.g., =$B2=TRUE()).

• Formula Syntax Precision: Be meticulous with syntax. Even small typographical errors in the custom formula, such as forgetting the initial equals sign, using commas instead of semicolons, or inputting an incorrect cell reference, will invariably prevent the conditional rule from executing or evaluating the data correctly.

• The Mandatory Absolute Column Reference: The explicit use of the dollar sign ($) preceding the column letter (e.g., $B2) is not optional; it is absolutely critical for establishing an absolute reference. Failure to include the $ will cause the column reference to shift relatively as the rule attempts to evaluate cells down the rows, leading to unpredictable, scattered, and entirely incorrect formatting results.

• Rule Type Selection: Ensure that when defining your rule in the Conditional Formatting panel, you explicitly choose the “Custom formula is” option from the dropdown menu. Selecting any of the other predefined options will not allow the system to correctly interpret the custom formula string you provide.

By rigorously adhering to these crucial structural and logical considerations—particularly concerning cell referencing and range selection—you can ensure that your powerful checkbox-driven conditional formatting systems remain robust, reliable, and perfectly functional across all your future data sets, regardless of their complexity or size.

Further Enhancements and Resources

The successful implementation of dynamic cell coloring based on a checkbox state provides a powerful fundamental skill. This capability serves as the key that unlocks the broader, more complex potential of conditional formatting within Google Sheets. Having mastered this foundation, you are now fully equipped to expand upon this knowledge and design even more sophisticated and visually integrated data reporting systems.

We strongly encourage users to begin experimenting with layered and tiered formatting rules. For instance, you could apply a strikethrough text effect to completed tasks using the checkbox rule detailed here, and subsequently introduce a secondary, higher-priority rule designed to highlight overdue tasks in critical red based on a calculation involving a separate date column. When designing sheets where multiple conflicting rules might apply to the same cell, it is vital to remember the order of precedence: the rule listed highest within the “Conditional format rules” sidebar will always take priority and execute its formatting first.

To ensure continuous development and mastery of advanced spreadsheet features, we recommend consistently consulting the official Google Sheets documentation. These authoritative resources provide comprehensive, detailed guidance on implementing complex formulas, leveraging powerful array functions, and employing specialized data visualization techniques, all of which are essential for maximizing your productivity and creating truly insightful and effective data representations.
