Learning to Adjust Histogram Bin Sizes in Google Sheets

The histogram is one of the most fundamental tools in data visualization and statistical analysis. It serves as a powerful graphical representation designed to illustrate the underlying data distribution of a continuous quantitative variable. Unlike simple bar charts, a histogram organizes the entire range of data into contiguous intervals, commonly referred to as “bins” or “buckets,” and then plots the frequency count of how many data points fall within each specific interval. This structure makes it indispensable for quickly assessing the shape, identifying potential outliers, measuring the spread (variance), and determining the central tendency of any given dataset.

However, the effectiveness of a histogram hinges critically on the appropriate selection of interval widths—that is, defining the number of bins. If the bins are too wide (too few bins), crucial details and subtle peaks in the data’s structure can be masked, leading to an oversimplified interpretation. Conversely, if the bins are too narrow (too many bins), the visualization can become noisy and fragmented, making it difficult to discern underlying patterns. Therefore, mastering the art of customizing the bins is essential for generating visualizations that are both statistically accurate and highly interpretable.

This comprehensive tutorial is designed to guide you through the precise mechanisms of creating and, most importantly, modifying the bin configuration for a histogram using Google Sheets. We will focus specifically on how to access the chart customization tools to adjust the bucket size, ensuring your analysis accurately reflects the nuances present in your raw data and effectively communicates your statistical findings to any audience.

Step 1: Structuring and Preparing the Source Data

The foundation of any successful statistical visualization is well-organized source data. Before we can generate a reliable histogram, we must ensure our input dataset is correctly formatted within the spreadsheet environment of Google Sheets. Histograms are specifically designed for continuous or ordinal numerical data; categorical data requires different visualization methods, such as bar charts or pie charts.

For the purposes of this demonstration, we will utilize a simple, small-scale numerical dataset. This sample data, representing a single quantitative variable (e.g., scores, measurements, or reaction times), will allow us to clearly illustrate the steps involved in generating and customizing the visualization without the complexity of a massive spreadsheet. We highly recommend mirroring this data setup exactly to ensure the subsequent steps and resulting charts align perfectly with the examples provided.

Please input the following sequence of numerical values into a single, contiguous column in your Google Sheets spreadsheet. Begin entering the data starting from cell A2 downwards. This specific column represents the variable whose distribution we intend to explore graphically. Ensure no cells within the selected range are empty or contain non-numeric text, as this can interfere with the charting mechanism.

Step 2: Initiating the Histogram Generation Process

Once the raw data is meticulously prepared in the spreadsheet, the subsequent step involves leveraging the robust built-in charting functionalities available within Google Sheets. The process of inserting a chart is intuitive, but selecting the correct chart type is paramount to ensure the resulting graph is indeed a statistical histogram and not merely a frequency bar chart.

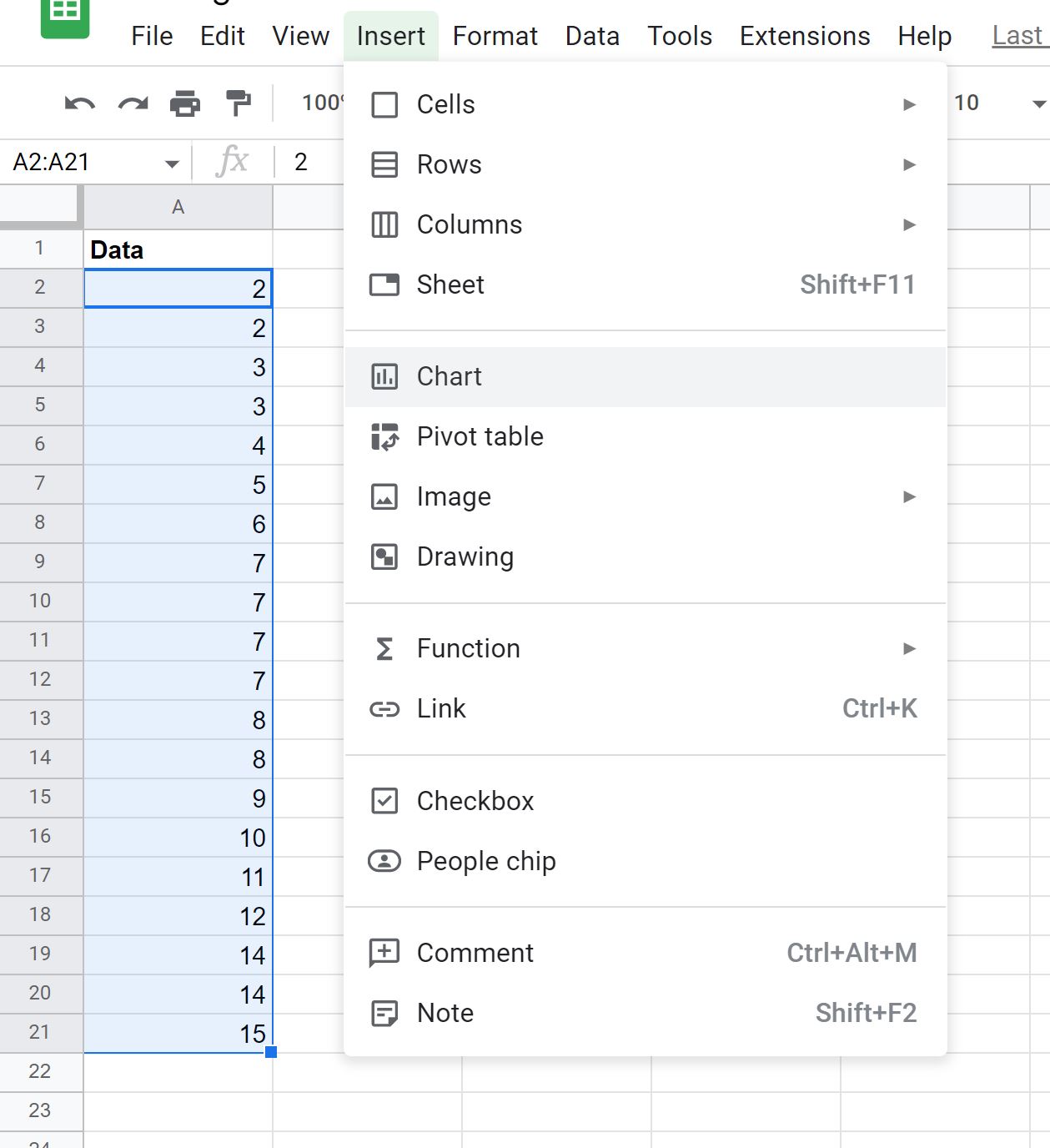

1. The first critical action is to meticulously select the entire data range you wish to analyze. In the context of our running example, this range covers cells A2 through A21. Accurate selection is vital, as this range defines the complete domain of the data for which the distribution will be calculated.
2. Next, navigate your cursor to the main menu bar located at the top of the interface and click on the Insert tab. This action reveals a comprehensive dropdown menu containing various options for adding elements to your sheet.
3. From the revealed dropdown options, select Chart. Executing this command automatically triggers the opening of the dedicated Chart editor panel, which appears docked on the right side of your screen, ready for configuration.

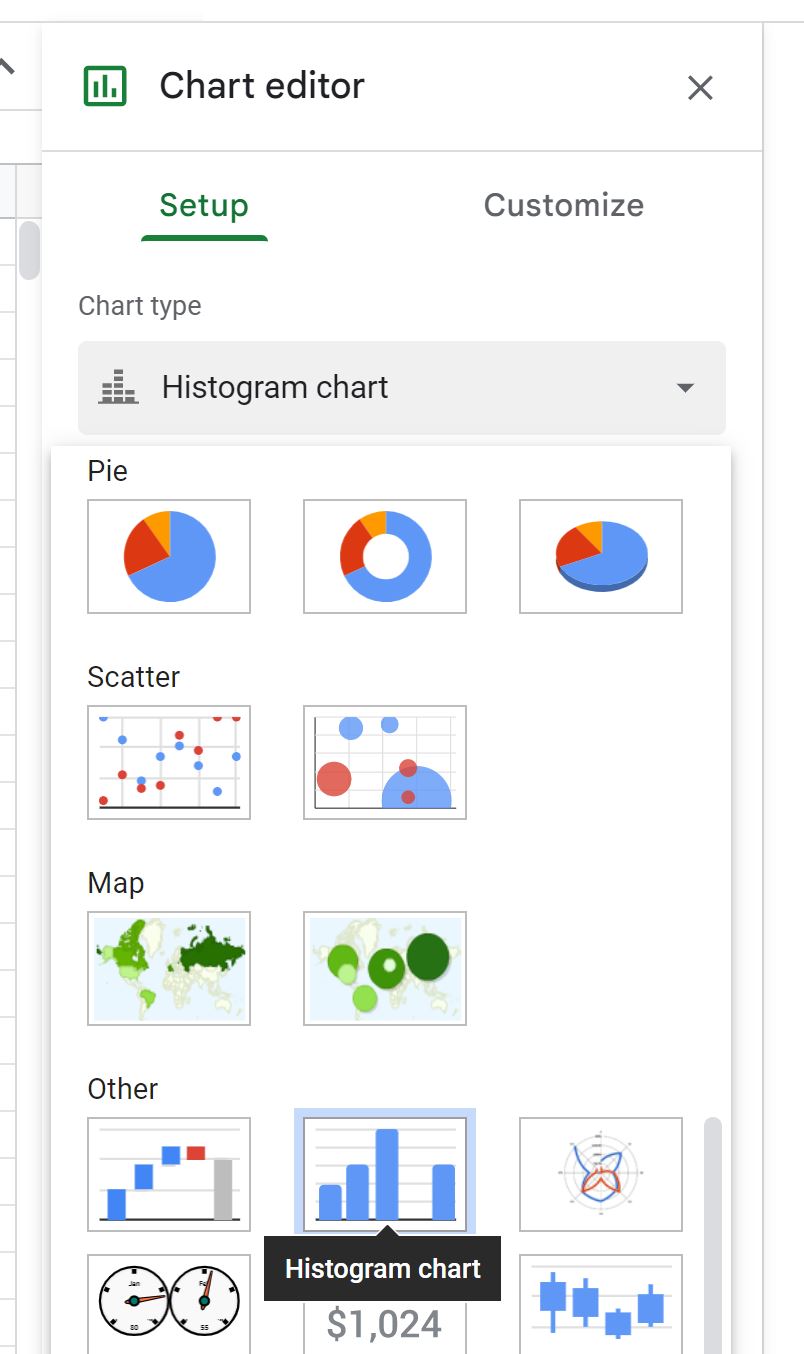

Upon opening the Chart editor, Google Sheets attempts to intelligently guess the most appropriate visualization type based on the selected data. Often, the default suggestion might be a bar chart, a line graph, or a scatter plot. Since our objective is to visualize data distribution, we must manually override this default setting. Locate the dropdown arrow positioned under the Chart type setting within the editor panel.

Click this arrow to display the full catalog of available chart options. Scroll down through the list until you find the dedicated section for distributional charts and explicitly select the Histogram chart option. This immediate transformation converts your raw data into a preliminary histogram, calculated using Google Sheets’ internal, automated settings for bin allocation.

The resulting initial visualization, derived from the software’s default heuristic calculation, provides a reasonable, albeit generalized, overview of the data’s distribution. However, to truly unlock the insights hidden within the data, we must move beyond these automatic settings and engage in the critical step of customization. The default setting aims for a balance, but rarely achieves the optimal granularity required for detailed analytical work.

Step 3: Customizing the Granularity by Adjusting the Bucket Size

The default histogram generated by Google Sheets serves as a mere baseline. Achieving an optimal data visualization necessitates fine-tuning the structure, primarily by adjusting the number of bins, or the “bucket size.” This adjustment dictates the width of the intervals used to group the data, thereby controlling the level of detail presented in the chart. A poorly chosen bucket size can lead to misleading conclusions or obscure important features like multimodality or skewness.

To begin the customization process, ensure the Chart editor panel remains active and visible on the right side of your screen. This panel is organized into two primary tabs: Setup (which we used in Step 2) and Customize. We will now shift our focus entirely to the latter tab to gain manual control over the chart’s appearance and statistical parameters.

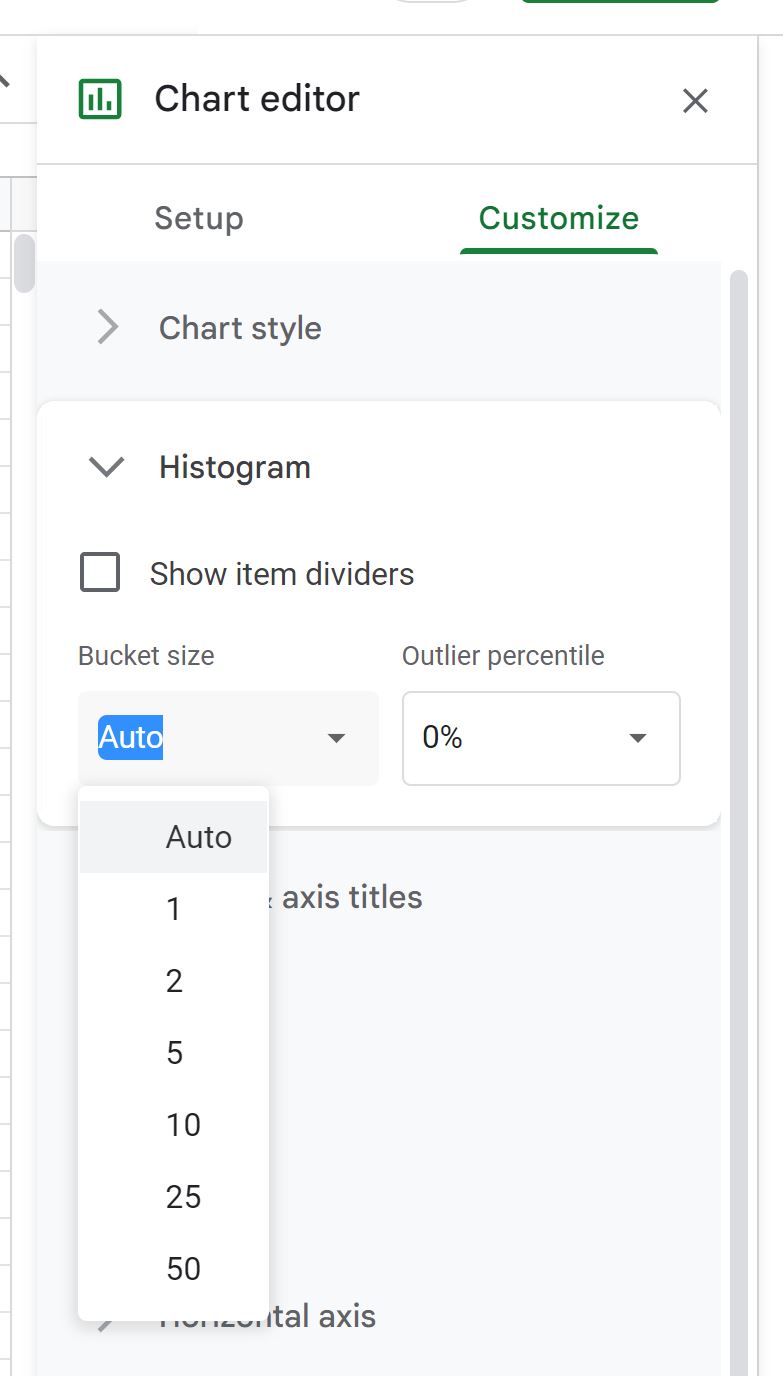

1. Within the Chart editor, click the Customize tab. This section manages all aesthetic and structural options, including titles, colors, axes, and, crucially, the histogram parameters.
2. Look for and click the dropdown arrow associated with the Histogram section to expand the specific configuration settings relevant to this chart type.
3. Here, you will find the critical setting labeled Bucket size. Clicking the associated dropdown arrow reveals several options: ‘Auto’ (the default setting), a list of predefined numerical bucket sizes (e.g., 1, 2, 5, 10), and the ‘Custom’ option, which allows for precise numerical input.

Step 4: Analyzing the Impact of Specific Bucket Sizes

To fully appreciate the influence of this setting, let us systematically explore how different selections for the bucket size fundamentally alter the visual representation of the underlying data distribution. The goal is always to find the sweet spot where the chart is detailed enough to show structure but aggregated enough to avoid noise.

Consider, for instance, selecting a relatively small bucket size of 2 from the dropdown menu. The moment this selection is made, the histogram dynamically recalculates and updates. With a bucket size of 2, each vertical bar (or bin) now represents a narrow interval spanning two units of the original variable. This results in a highly granular view, suitable for smaller datasets or when specific clustering is suspected.

• For example, the first bin might cover data points that are greater than or equal to 2 but strictly less than 4. The height of this bar indicates the count of values falling into this tight range within the dataset.
• The subsequent bin would logically represent values greater than or equal to 4 but less than 6. This pattern continues across the entire spectrum of the data, offering a high-resolution insight into the local fluctuations of the frequency distribution.

Conversely, let us choose a significantly larger bucket size, such as 10. This dramatic increase immediately reduces the total number of bins displayed. The resulting histogram presents a much broader, highly aggregated view. Each bar now compresses a wide range of values, effectively smoothing out any minor peaks or valleys that were visible with the smaller bucket size.

Using a large bucket size, such as 10, is particularly beneficial when dealing with extremely large datasets where minor variations are deemed unimportant, or when the primary goal is to quickly identify the overall dominant trend, modality (unimodal, bimodal, etc.), and general shape of the distribution. This method sacrifices detail for clarity of macro-structure.

Step 5: Statistical Guidelines for Optimal Bin Selection

The decision regarding the optimal number of bins or bucket size is inherently a trade-off between detail (low aggregation) and interpretability (high aggregation). There is no universally correct number; the ideal setting is highly dependent on the sample size and the specific characteristics of the data being analyzed. Statistical theory provides several rules of thumb, though Google Sheets typically uses a proprietary algorithm for its ‘Auto’ setting. Understanding these guidelines, however, informs better manual choices.

As a general principle in data visualization, you must balance two competing risks: the risk of blurring key features (oversmoothing, caused by too few bins) and the risk of generating a noisy, difficult-to-read chart that suggests structure where none exists (undersmoothing, caused by too many bins). Effective analysis requires iterative experimentation, viewing the histogram at several different levels of granularity before settling on the most representative view.

When manually adjusting the bucket size, keep the following structural impacts in mind:

• Increasing the bucket size (Wider Intervals): This action significantly decreases the total number of bins visible in the chart. The resulting bars will be wider and fewer, providing a highly generalized, smooth perspective of the data. This is useful for identifying the underlying pattern in highly varied data or very large datasets where fine detail is noise.
• Decreasing the bucket size (Narrower Intervals): Conversely, reducing the bucket size increases the total number of bins. The bars become narrower and more numerous, offering highly granular insight. This approach helps in spotting subtle peaks, minor gaps, or evidence of multimodality that might otherwise be hidden by aggregation.

By consciously and thoughtfully modifying the number of bins, you assert complete control over your data visualization process, enabling you to construct histograms that are statistically robust, exceptionally informative, and optimally tailored to convey specific insights to your target audience.
