Google Sheets: Chart Data from Multiple Sheets

In modern business intelligence and data analysis, the requirement to visualize and compare metrics derived from diverse sources is incredibly common. Fortunately, Google Sheets, a powerful and accessible cloud-based spreadsheet application, offers a highly efficient method for consolidating and charting data that is spread across multiple sheets within a single workbook. This pivotal capability is essential for generating comprehensive reports, allowing analysts to derive holistic insights, such as evaluating regional sales performance or tracking sequential project phases in one unified view.

This detailed tutorial is designed to walk you through the precise steps required to construct a dynamic chart that seamlessly integrates datasets from several locations. We will focus specifically on how to harness the features of the Chart editor panel to introduce multiple data Series, culminating in a clear, consolidated visual representation of otherwise disparate information. By following our practical, step-by-step example, you will acquire mastery over this fundamental data visualization technique, significantly enhancing your reporting capabilities.

Organizing Source Data for Effective Comparison

Before initiating the chart creation process, the foundational requirement is the meticulous organization of your source data across the individual sheets. For the purpose of this practical demonstration, we will establish two distinct datasets. These datasets will represent comparative sales figures for an identical list of products, but originating from two separate retail locations, demonstrating a typical use case for comparative charting.

First, begin by accurately inputting the sales data corresponding to Store A into Sheet1 of your Google Sheets workbook. It is imperative that this data is structured logically, utilizing two columns: one for the specific product names (the categories) and the adjacent column for their corresponding sales volumes (the values). This dual-column structure ensures clarity and correct identification by the charting function.

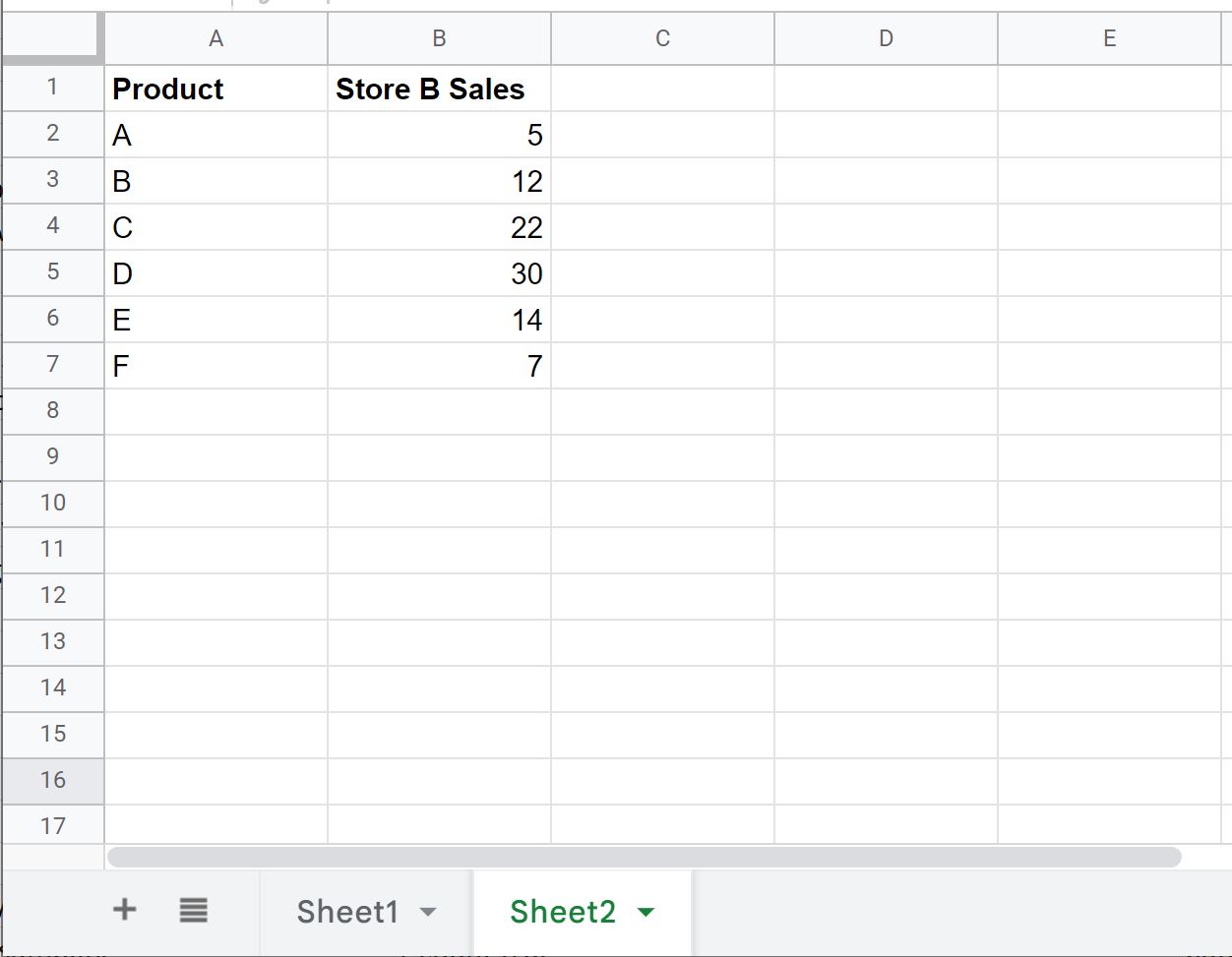

Next, navigate to Sheet2 within the exact same workbook environment. Here, you must input the sales data specifically for Store B. A critical requirement for accurate multi-sheet comparison is that this second dataset must precisely mirror the product list and order established in Sheet1. Maintaining this parallel structure ensures that when the data is combined, the comparative points align correctly, allowing for a direct and meaningful visual analysis.

Establishing the Foundational Chart

Once your sales data is meticulously prepared and structured across the separate sheets, the subsequent step involves generating the base chart using the data from the first sheet. This initial visualization will serve as the structural framework onto which we will later merge the additional datasets.

To initiate this process, return to Sheet1. You must precisely select the data range A2:B7. This selection must encompass the labels (product names) and the numerical values (sales figures) for Store A. After the correct range is highlighted, locate and click the Insert tab positioned in the main Google Sheets menu ribbon, and then select the Chart option from the resulting dropdown menu.

Upon insertion, the dedicated Chart editor configuration panel will automatically appear on the right side of your screen. Within the Setup tab of this panel, navigate to the Chart type setting. For comparative analysis of discrete categories, the Column chart is typically the most appropriate choice, offering clear visual separation between categories. Ensure this type is selected before proceeding.

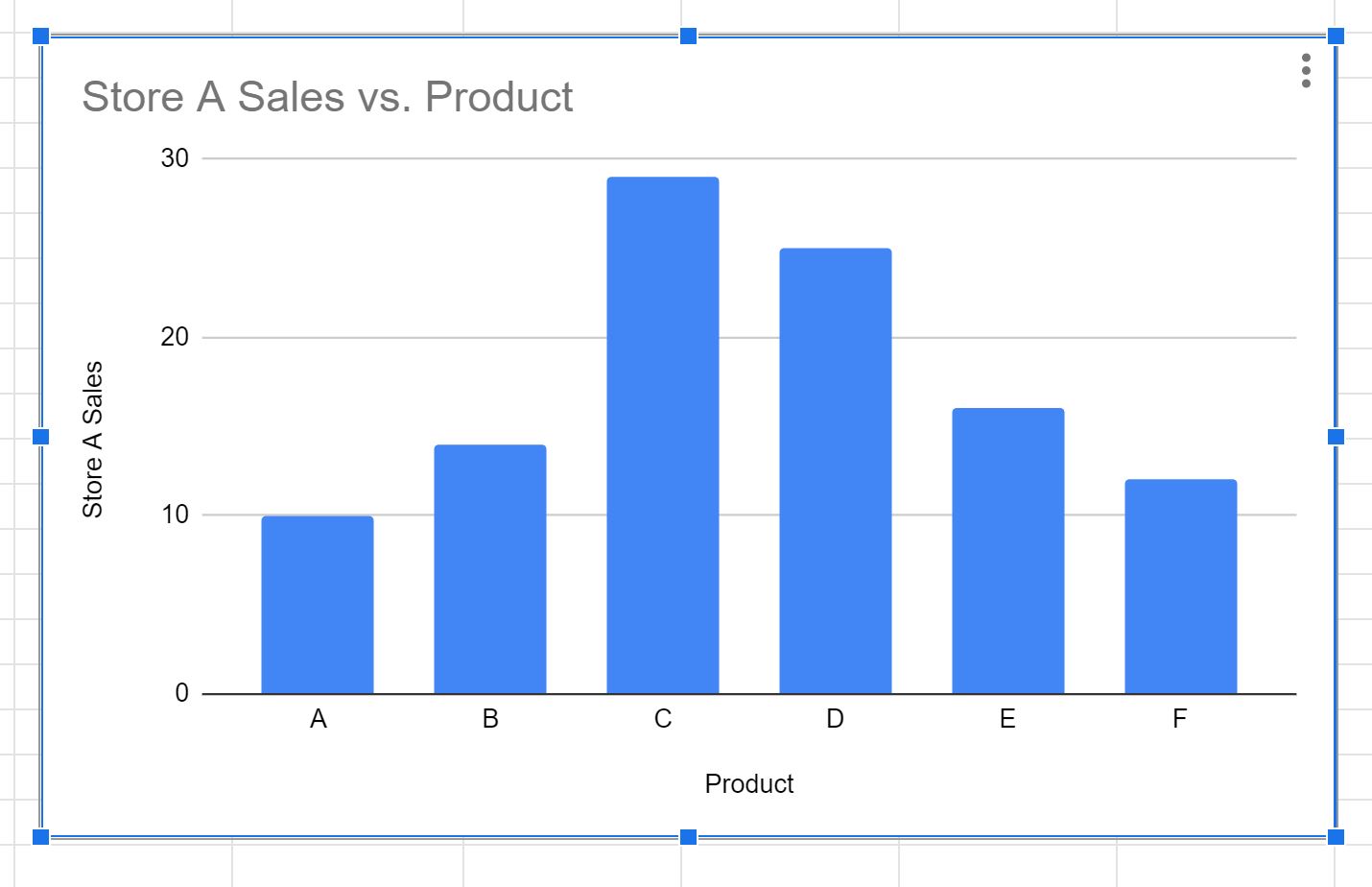

At this stage, Google Sheets will instantly render a preliminary Column chart, visually representing the sales performance for each product exclusively using the data from Sheet1 (Store A). This initial chart establishes the primary axis labels and provides the first data Series, setting the stage for the powerful integration of the second data source.

Seamlessly Integrating Multiple Data Series

The true utility of this technique lies in its ability to combine diverse data streams into a single, comprehensive visualization. To successfully incorporate the sales figures from Sheet2 (Store B) into our currently existing chart, we must leverage the advanced functionality provided within the Chart editor panel.

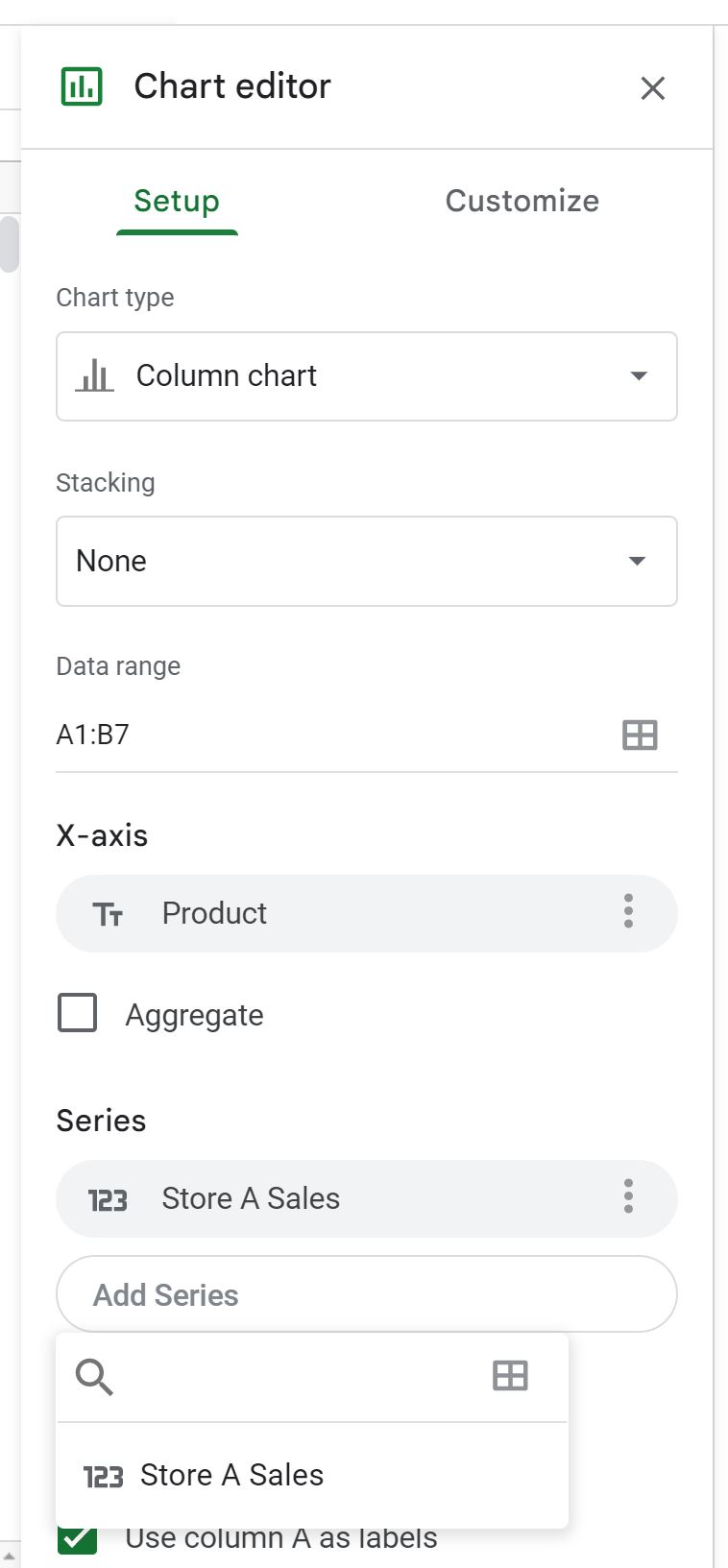

With the Chart editor remaining open, ensure that the Setup tab is active. Locate and select the crucial Add Series button. This action generates a new, empty data slot within the chart configuration. Next, click the small, distinct grid icon that materializes adjacent to the newly created Series field. This icon is the gateway to selecting a specific data range from any sheet contained within the active workbook.

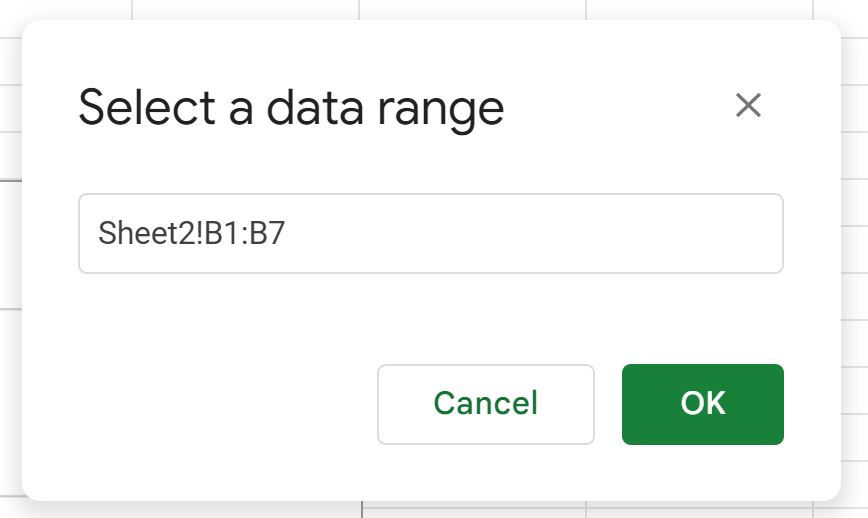

A “Select a data range” dialog box will subsequently appear, prompting you to specify the exact coordinates of your secondary data source. It is essential to input or select the full reference: Sheet2!B2:B7. This input explicitly directs the chart to retrieve the sales figures (column B) for Store B from Sheet2, ensuring that it aligns with the category labels established in Sheet1. After verifying the accuracy of this external range notation, click OK to confirm the selection.

Immediately upon confirmation, Google Sheets executes the integration, updating your chart instantaneously. The chart will now display two distinct sets of bars clustered together for each product category, providing an immediate and powerful visual mechanism for direct comparison between the two retail locations.

Analyzing and Interpreting the Consolidated View

With both data Series successfully mapped onto your single chart, you are now equipped to perform rapid comparative analysis. The visualization is constructed to clearly differentiate the performance metrics originating from each source, allowing for swift identification of trends and anomalies.

In the context of our running example, the blue bars consistently and clearly illustrate the sales volume metrics for each product originating from Store A (data sourced from Sheet1). Conversely, the corresponding red bars represent the identical product categories but display the sales figures derived from Store B (data sourced from Sheet2). This deliberate color-coding provides an intuitive means of comparative analysis, allowing stakeholders to quickly assess relative performance.

A consolidated Column chart of this nature is an exceptionally valuable analytical tool. It allows management to pinpoint products that demonstrate superior performance in one store versus another, highlighting areas of operational strength. Furthermore, it efficiently identifies products that may be underperforming across both locations, thereby signaling where targeted interventions or marketing efforts might be most necessary. This unified view transforms raw data into actionable insights.

Best Practices and Advanced Scaling for Multi-Sheet Charts

When undertaking the task of charting data sourced from multiple sheets, especially when the goal is comparative analysis, maintaining absolute consistency in data organization is not merely recommended—it is critical. The success of this technique relies heavily on the assumption that the structure of your datasets across all participating sheets is precisely parallel. This means that all corresponding categories, labels, and axis values (e.g., product names or dates) must appear in the exact same order and relative range positions on every sheet to ensure accurate alignment within the chart.

While this tutorial focused on integrating data from two sheets, the underlying methodology is engineered for high scalability. The sophisticated Chart editor in Google Sheets permits the addition of numerous data Series. This flexibility allows you to integrate data from an extensive number of sources, limited only by your analytical requirements and the practical need for the resulting chart to remain readable and uncluttered. To incorporate additional sheets, simply repeat the “Add Series” process for each supplementary data range you wish to include.

It is always a best practice to thoroughly review and refine your chart after introducing each new data Series. Ensure that the resulting visualization maintains clarity and effectively communicates the intended insights without overwhelming the viewer. Proper customization—including clear titles, axis labels, and descriptive legends—all accessible within the Chart editor—can dramatically enhance both the aesthetic quality and the analytical value of your final visualization.
