Learning Google Sheets: How to Use Conditional Formatting with Checkboxes

Harnessing Dynamic Visuals: Conditional Formatting with Checkboxes

In modern data management, the capability to instantly visualize data status is paramount. Google Sheets provides an exceptionally robust toolset for enhancing data readability, with conditional formatting being a cornerstone feature. This function allows users to automatically apply visual styles—such as specific colors, text properties, or borders—when cell content meets predefined logical criteria. When this powerful automation is paired with the interactive simplicity of checkboxes, a static dataset is immediately transformed into a dynamic and highly responsive dashboard.

This synergy enables the creation of intuitive spreadsheets where changes in status are signaled instantly by visual cues. Imagine tracking project milestones or managing inventory; by simply clicking a checkbox, you can trigger a change in the background color of an entire task row or highlight a critical data point. This automation is invaluable for tasks requiring swift data interpretation, as it significantly reduces manual effort and minimizes the potential for human error inherent in tracking status updates manually.

This comprehensive guide will detail the precise methodology for implementing conditional formatting based on the state of a checkbox within Google Sheets. We will focus specifically on using the Custom formula is option, demonstrating how to craft a logical expression that references the checkbox’s value to control formatting across a selected range. By following our practical, step-by-step example, you will gain the expertise required to apply this advanced technique to any of your data tracking projects.

The Boolean Foundation: How Checkboxes Work

Before setting up the formatting rules, it is essential to grasp the fundamental mechanism of checkboxes in Google Sheets. Unlike standard text or numerical inputs, a checkbox represents a binary state, characterized by the Boolean data type. This means the cell containing the checkbox can only hold one of two values: TRUE or FALSE.

Specifically, when a checkbox is visually checked, its underlying cell value is registered as TRUE. Conversely, when the box is unchecked, the value is automatically set to FALSE. This inherent binary nature makes the checkbox an ideal control element for conditional formatting, as conditional rules are fundamentally logical expressions that must resolve to either TRUE (apply formatting) or FALSE (do not apply formatting).

The process of inserting a checkbox is quick and intuitive: simply select the desired cell or range, navigate to the Insert menu, and choose Checkbox. Once embedded, these simple interactive elements become powerful triggers, capable of driving complex visual changes across your spreadsheet, including the precise conditional techniques we are about to explore using a custom formula.

Practical Application: Tracking Team Status

To demonstrate this concept effectively, let us use a common tracking scenario: monitoring the performance status of teams, specifically whether they have “Made Playoffs.” This setup mirrors real-world applications in project management, inventory tracking, or academic grading, where a binary status (completed/incomplete, approved/rejected) is required.

Our objective is clear: we want the names of the teams that have successfully qualified for the playoffs to be visually highlighted. This visual emphasis will be automatically applied to the corresponding cells in the “Team” column whenever the linked checkbox in the “Made Playoffs” column is checked. This dynamic highlighting provides an immediate, glanceable overview of the qualifying teams, improving data accessibility dramatically.

The initial dataset below illustrates the structure, featuring team names in column A and the interactive checkboxes in column B, designated for tracking playoff qualification:

Notice that even though some checkboxes are checked, the team names are not yet formatted. The following steps will detail how to establish the link between the checkbox state and the team name’s visual formatting, ensuring that changes in column B are instantly reflected in column A.

Step-by-Step Guide: Implementing the Custom Formula Rule

The process of setting up this dynamic formatting requires careful definition of the target cells, the rule location, and the specific logical custom formula.

Selecting the Target Range

The first critical action is defining the scope of the formatting application. Since we intend to highlight the team names, we must select the entire range containing these names. In this example, the target cells are A2:A11. By making this selection, we instruct Google Sheets exactly where the visual formatting should be applied once the rule evaluates to TRUE.

Accessing the Conditional Formatting Panel

With the target range (A2:A11) highlighted, navigate to the Format tab in the main menu bar. Select Conditional formatting from the dropdown menu. This action opens the dedicated “Conditional format rules” panel on the right side of your screen, which serves as the control center for defining all formatting conditions.

Within this panel, various criteria are available for formatting cells. However, for linking formatting directly to the binary state of a checkbox, the most powerful and flexible option is utilizing a custom formula.

Defining the Custom Formula: =B2=TRUE

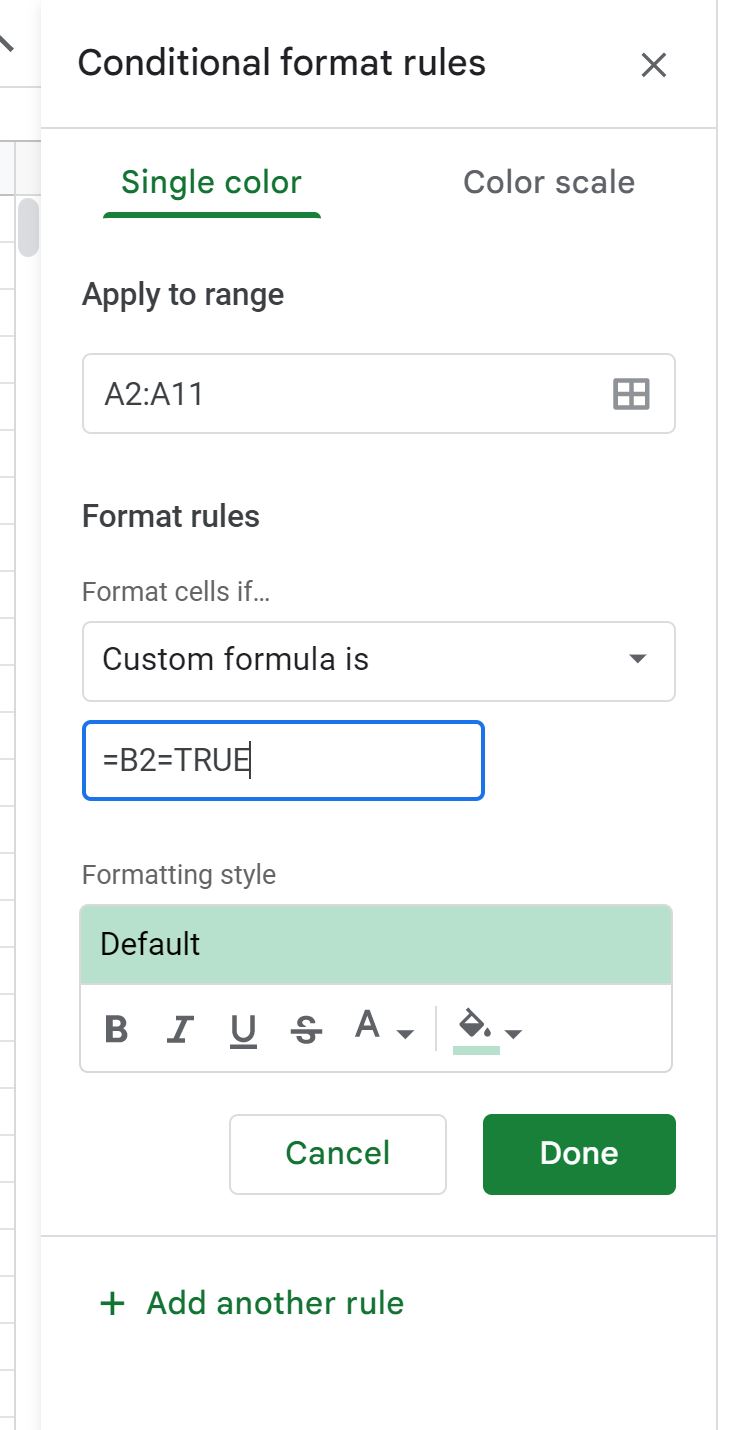

In the “Conditional format rules” panel, locate and expand the Format cells if menu. Scroll down and select the option labeled Custom formula is. This selection prepares the system to accept a logical equation that must be satisfied for the formatting to be applied.

In the subsequent input field, type the following custom formula exactly as shown:

=B2=TRUE

This succinct formula is the core driver of our conditional formatting rule. It is crucial to understand its mechanics:

• The initial equal sign (=) designates the input as a formula that requires calculation.
• B2 references the first cell in the corresponding column containing the checkbox. Crucially, because we are applying this rule to the multi-cell range A2:A11, Google Sheets automatically adjusts this row reference. When evaluating cell A3, the formula implicitly checks cell B3; for A4, it checks B4, and so forth.
• =TRUE dictates that the formula returns TRUE only when the value of the referenced cell (B2, B3, etc.) is equal to the Boolean value TRUE—which happens when the checkbox is checked.

After inputting the formula, you can select the desired visual output in the “Formatting style” section. While Google Sheets often defaults to a light green fill, you have complete artistic control over the final appearance. Once satisfied with both the formula and the style, click Done to activate the rule.

Validating Results and Exploring Customization

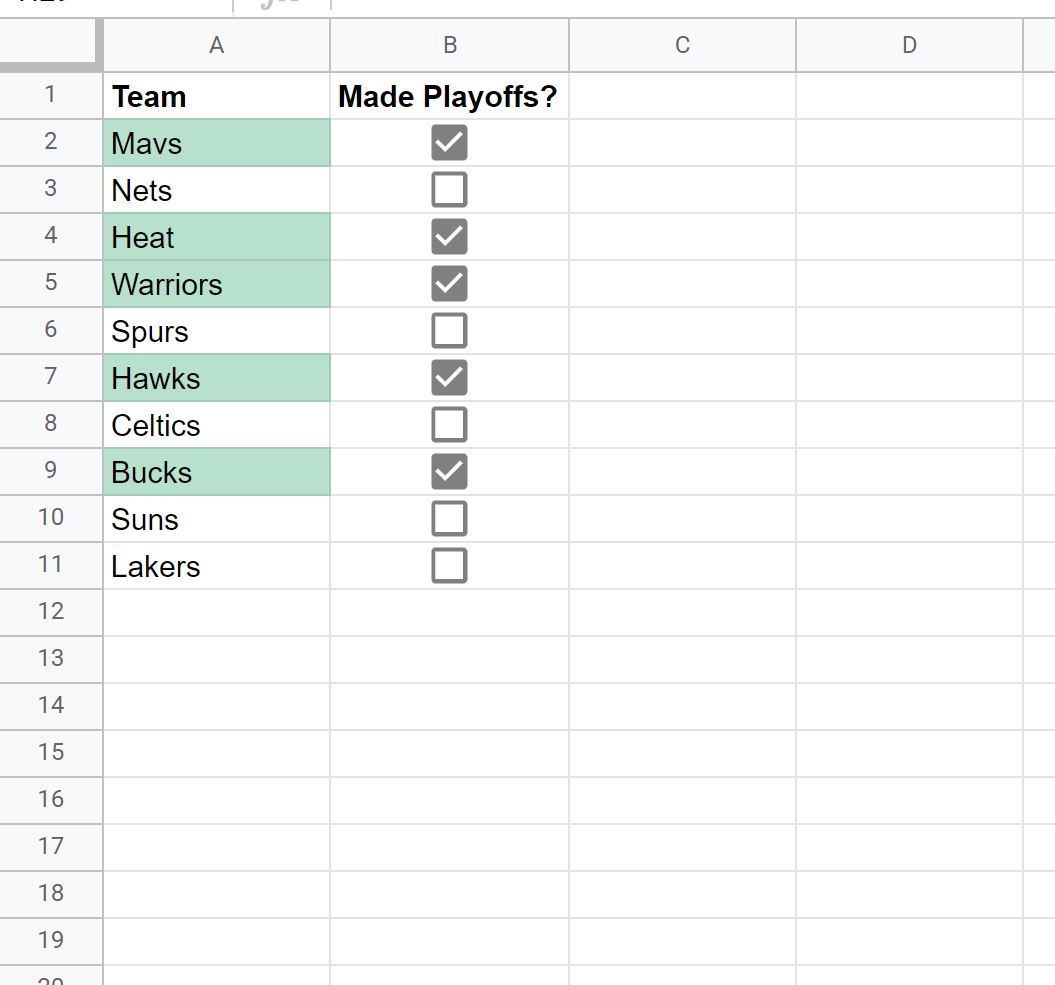

Immediately upon clicking Done, the effects of the new conditional formatting rule will become visible. Any team name in the Team column (A2:A11) that corresponds to a checked checkbox in the Made Playoffs column (B2:B11) will now display the chosen highlight. This instant visual feedback serves as confirmation that the custom formula is functioning correctly, dynamically reacting to the user input.

As shown in the updated spreadsheet, only the teams associated with a checked status now feature the distinct background color. This dynamic behavior is the central benefit of this technique, ensuring that the spreadsheet remains accurate and visually reflective of the current data status without any manual styling required. This greatly enhances efficiency in data monitoring and communication.

Furthermore, the “Formatting style” panel offers extensive flexibility beyond the default color scheme. Users can customize visual attributes extensively: applying a custom background color, changing the text color, utilizing bold or italics for emphasis, or adding cell borders. This level of customization ensures that the visual output of the conditional formatting rule perfectly aligns with organizational branding standards or specific data visualization needs.

Advanced Customization and Formula Variations

The power of custom formulas allows for significant expansion beyond simply highlighting checked boxes. If the requirement was to highlight tasks that are *incomplete* (i.e., when the checkbox is unchecked), the logical expression is easily modified. The formula would simply be changed to =B2=FALSE. This variation is highly useful for flagging pending items, unresolved issues, or any other condition tied to the FALSE state.

For more robust data tracking, it is often desirable to highlight the entire row, not just a single cell. This is achieved by adjusting both the applied range and the formula structure. To format the entire row (e.g., A2:Z11), you must make the column reference in the custom formula absolute by preceding it with a dollar sign ($). The formula then becomes =$B2=TRUE. The absolute column reference ensures that every cell in the selected row range refers back to the status of the checkbox in column B, regardless of which column the formatting is applied to.

As a best practice in maintaining complex Google Sheets, always structure your conditional formatting rules logically. Regularly testing and reviewing your custom formulas is essential to ensure they continue to function correctly as your dataset evolves. This proactive maintenance ensures the integrity and reliability of your automated visual tracking system.

Conclusion: Mastering Dynamic Spreadsheet Management

The integration of conditional formatting with checkboxes in Google Sheets represents a high-level technique for creating truly dynamic and visually intuitive spreadsheets. By leveraging the inherent Boolean output of the checkbox and implementing precise custom formulas, users can transform raw data tables into interactive visual experiences.

This method provides an efficient, automated solution for status tracking, progress monitoring, and highlighting mission-critical information with minimal manual intervention. The flexibility in customizing formatting styles further empowers users to produce highly polished and effective data visualizations. Mastering this specific skill set is a significant step toward achieving advanced spreadsheet proficiency and streamlining complex data management workflows.

Additional Resources

For those seeking to further explore the depths of Google Sheets functionalities and other advanced conditional formatting techniques, we recommend consulting the official Google Docs Help center, which provides detailed documentation and guides on formula syntax and spreadsheet optimization.
