A Comprehensive Guide to Creating Clustered Stacked Bar Charts in Google Sheets

A clustered stacked bar chart represents one of the most sophisticated and highly informative types of bar chart available for multi-dimensional data analysis. This specialized visualization strategically merges two powerful data grouping techniques: clustering and stacking. By combining these methods, analysts can move beyond simple categorical comparisons, simultaneously examining both primary categorical breakdowns and the proportional relationships that define them across multiple dimensions. It is an indispensable technique in the field of data visualization, particularly when dealing with complex datasets that require the illustration of hierarchical groupings.

The primary utility of this chart structure lies in its capacity to visualize quantifiable values organized across several major groups (the clusters) while clearly illustrating the constituent parts or proportions that form the totals (the stacks). For instance, imagine analyzing sales performance: you might cluster the data by different years and then stack the sales figures within each cluster by product line or retail location. This dual structure provides immediate comparative insights between main categories (clusters) and offers a granular understanding of the internal composition of those categories (stacks). This level of detail is critical for effective business intelligence and strategic decision-making.

This comprehensive tutorial provides a rigorous, step-by-step methodology for constructing this advanced visualization entirely within Google Sheets. We will take raw, multi-variable sales data and transform it into a visually compelling and functionally powerful graphic. The process involves manipulating the native charting tools to achieve the required clustered and stacked effect, a technique that is not immediately intuitive in the standard Sheets interface. By following this guide, you will master the necessary data preparation and chart customizations required to replicate the following fully customized visualization:

Step 1: Structuring the Dataset for Hierarchical Grouping

The successful creation of any complex visualization hinges entirely on a properly structured dataset. For a clustered stacked bar chart in Google Sheets, the data must be specifically arranged to explicitly define the variables responsible for clustering, the variables defining the stacking series, and the quantifiable metrics being measured. This arrangement is often referred to as a “long-format” data structure.

In our example, we are analyzing product sales. The dataset is engineered to track the sales of specific fruit products (Apple, Banana, Orange, which will be the stacking variables) across different retail stores (the secondary clustering variable) over distinct years (the primary clustering variable). Before initializing the chart, we must ensure that our spreadsheet contains all necessary components organized in a consistent manner:

• Column A (Year): The primary categorical variable that defines the largest visual clusters.
• Column B (Store): The secondary categorical variable that defines the individual stacked columns within each cluster.
• Columns C, D, E (Products): The numerical series that will be stacked proportionally within each column.

This specific arrangement, where each row represents a unique combination of year and store and the subsequent columns hold the quantitative metrics, is essential. It allows Google Sheets to correctly interpret the series grouping required for the cluster effect. Accuracy in this initial setup is paramount, as structural errors here will render the resulting visualization inaccurate or impossible to generate.

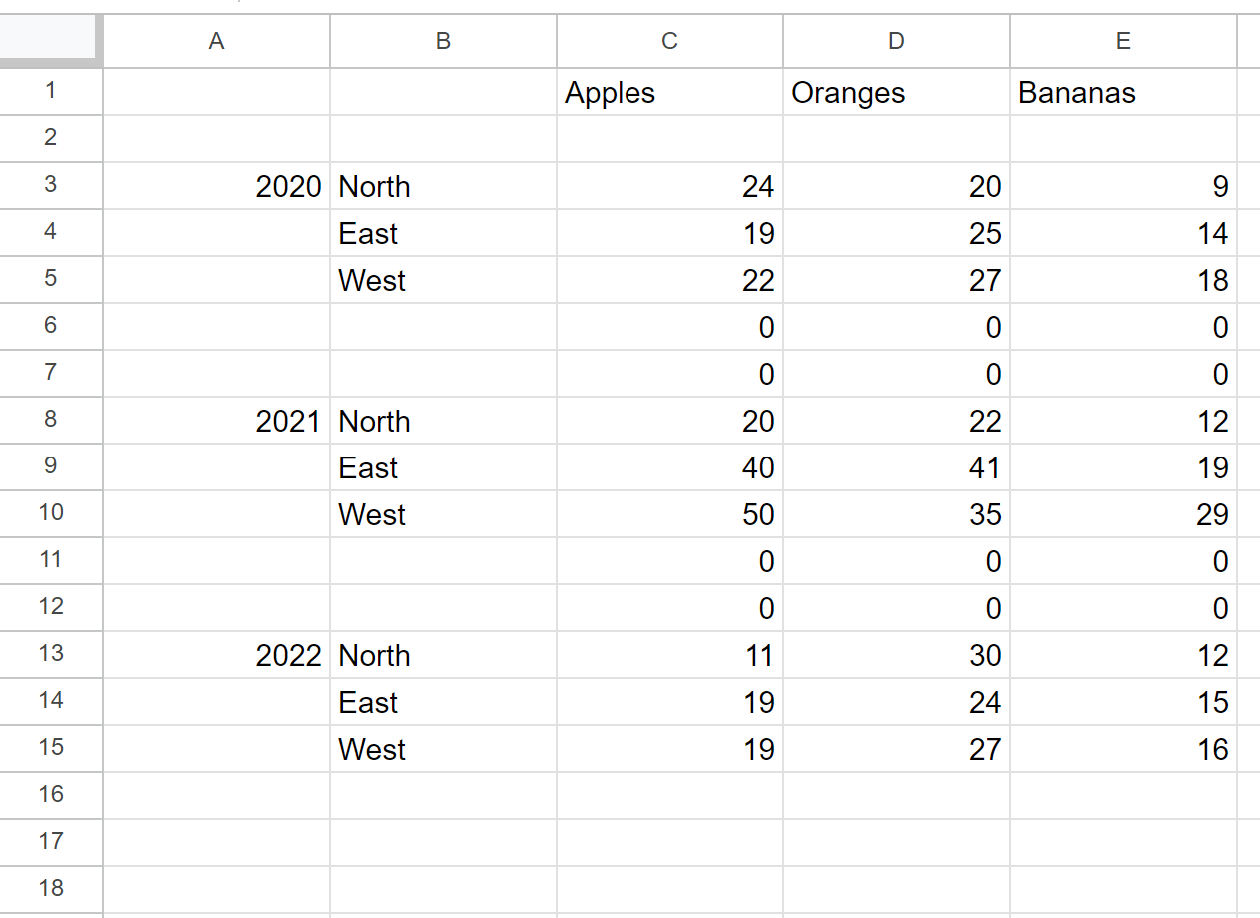

Please enter the following detailed dataset into your Google Sheets document. Observe how the combination of Year (Column A) and Store (Column B) creates the composite grouping required for the cluster effect, while the product columns (C, D, E) define the internal stacking structure:

Step 2: Inserting the Chart and Selecting the Stacked Type

Once the source data is meticulously prepared, the next phase involves initiating the chart creation process. Crucially, when constructing a clustered stacked chart, we do not select the entire dataset immediately. Instead, we must first select only the numerical series data. This initial focus ensures that Google Sheets correctly identifies which values are to be plotted and stacked before we define the complex categorical axis structure.

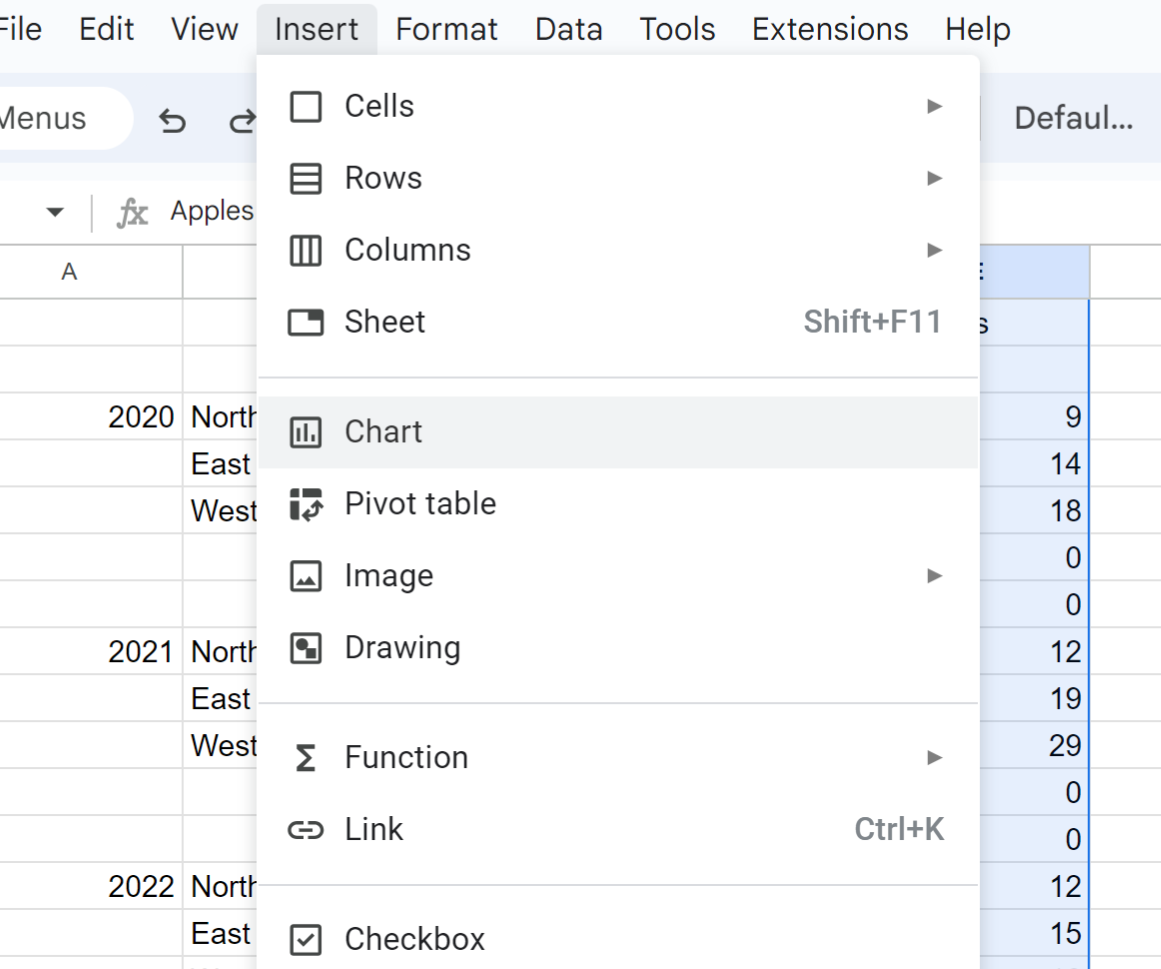

To execute this, highlight the cell data range spanning from C1 to E16. This selection includes the header row for the products (Apple, Banana, Orange) and all corresponding sales data points. By deliberately excluding the Year and Store columns (A and B) at this stage, we instruct the software to treat these three product columns as distinct data series that must be stacked proportionally upon one another. After the selection is complete, navigate to the top ribbon, click the Insert tab, and then choose Chart from the dropdown menu.

Clicking Chart automatically opens the Chart editor panel on the right side of the screen, generating a default chart based on your selected range. Since the default chart type is rarely correct for complex visualizations, we must immediately adjust this setting. In the Chart editor, under the Setup tab, locate the “Chart type” dropdown. Scroll down and select the Stacked column chart option. It is important to note that although our goal is a bar chart (horizontal orientation), the ‘column’ designation in Google Sheets refers to the vertical orientation necessary for the subsequent steps where we will define the hierarchical X-axis.

This selection ensures that the sales figures for all three products are displayed proportionally within the same vertical column. The chart now utilizes the numerical data from C1:E16 but still lacks categorical clarity. The horizontal X-axis currently uses generic row numbers or placeholder labels because we omitted the descriptive columns (A and B) initially. The chart accurately stacks the data series but has not yet been instructed on how to properly cluster them based on the distinct years and store locations. Your visual output should now resemble this standard stacked column chart, awaiting the crucial axis customizations:

Step 3: Implementing Hierarchical Grouping via the X-Axis

The transition from a simple stacked chart to a clustered stacked chart is fundamentally achieved through the precise definition of the horizontal X-axis. To create the desired clustering effect—where data columns from the same year are visually grouped together—we must utilize a hierarchical structure for the axis, incorporating both the Store and Year columns that were previously excluded. This process requires focused attention within the Chart editor‘s Setup tab.

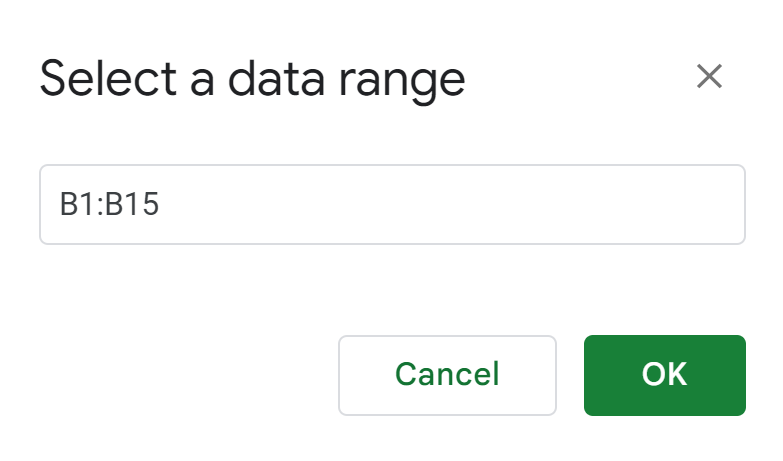

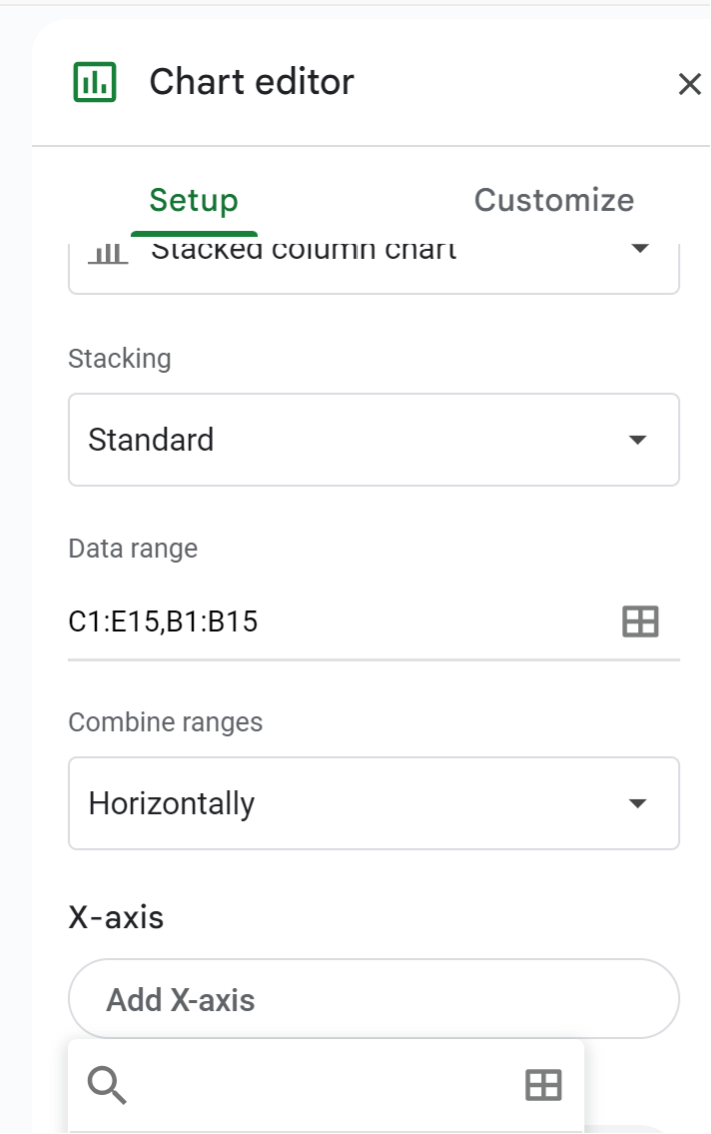

First, we define the primary categorical variable. Scroll down to the X-axis configuration section in the Setup tab and click Add X-axis. Since we want the data primarily grouped by the individual store location, we will select the column containing the store names (Column B). Click the grid icon next to the input field and specify the data range as B1:B15. After clicking OK, the chart updates, and the horizontal axis now displays the names of the stores as the primary differentiator for each stacked column.

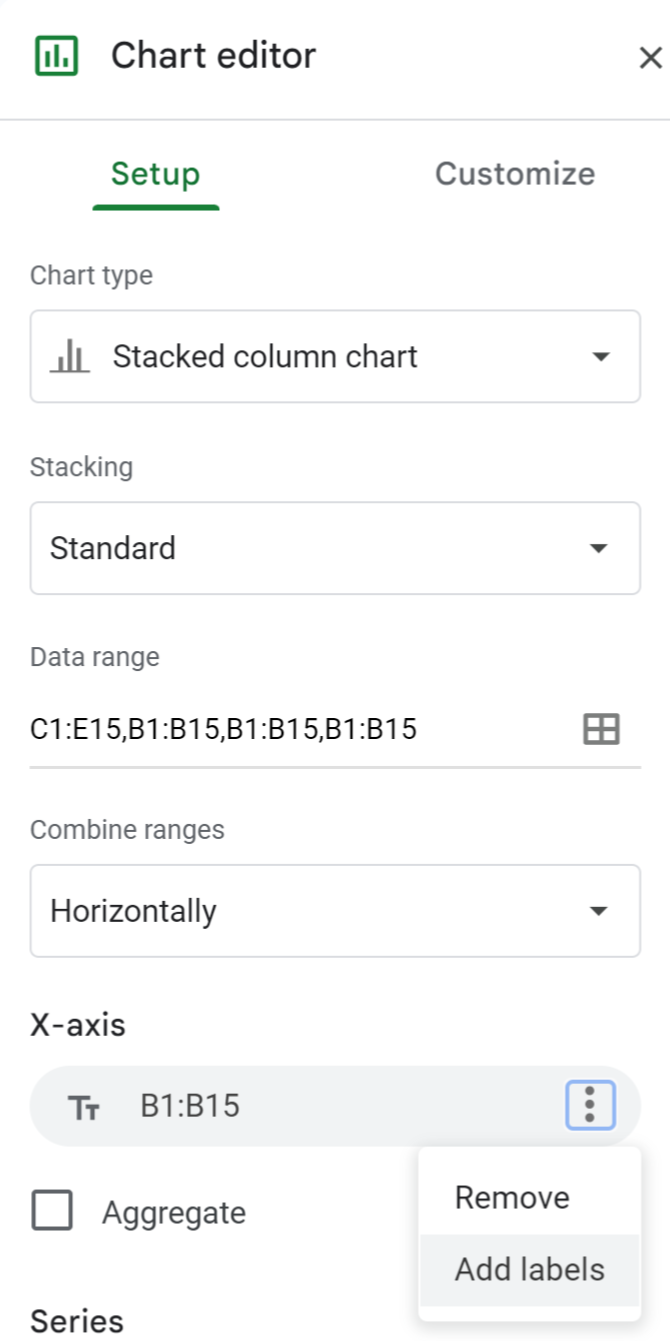

Next, we introduce the crucial clustering variable (the Year). This is done by adding a secondary layer of labels to the existing primary X-axis definition. Locate the newly created X-axis entry (B1:B15) in the Setup tab. Click the three vertical dots located adjacent to the range entry, and a context menu will appear. Select the option labeled Add labels. This functionality is specifically designed to overlay a higher-level categorical variable, which groups the primary X-axis entries together and creates the visual cluster effect.

In the subsequent input window for defining the labels, specify the range containing the years. Type A1:A15 as the necessary data range and then click OK. By assigning the Year column (A1:A15) as the grouping labels for the Store column (B1:B15), Google Sheets now logically organizes the stacked columns into distinct groups based on the year. This action successfully completes the clustered component of the chart, showcasing the power of hierarchical data layering in visualization.

The chart will immediately reflect this change, displaying the years beneath the relevant store names and physically grouping the columns corresponding to the same year together. This structure is essential for rapid visual comparison of total sales performance across different time periods (the cluster) while maintaining the proportional breakdown of sales composition (the stack).

Step 4: Enhancing Readability and Interpreting the Results

With the core structural components—the clustering and stacking—firmly established, the final stage involves applying essential aesthetic adjustments to maximize readability and ensure the chart effectively communicates its intended message. Professional chart design requires clear titles and logical positioning of elements like the legend. All these customizations are managed within the Customize tab of the Chart editor.

Begin by navigating to the “Chart & axis titles” section within the Customize tab. Add a descriptive and informative title, such as “Product Sales Clustered by Year and Stacked by Store.” A well-defined title instantly informs the audience of the chart’s purpose, scope, and variables. Additionally, optimize the chart layout by adjusting the legend. Under the “Legend” section, it is generally recommended to move the legend from its default right position to the bottom of the chart. Positioning the legend at the bottom maximizes the plotting area, allowing the core data bars to occupy more space and improving the viewer’s ability to clearly differentiate between the stacked categories (Apple, Banana, Orange).

Beyond these critical changes, analysts are encouraged to explore other formatting options. Adjusting font sizes, standardizing numerical formatting on the vertical axis, or changing the color palette can align the visualization with organizational branding or highlight specific comparative data points. However, the core functional components are now complete. After these final aesthetic refinements, the clustered stacked bar chart is ready for comprehensive analysis.

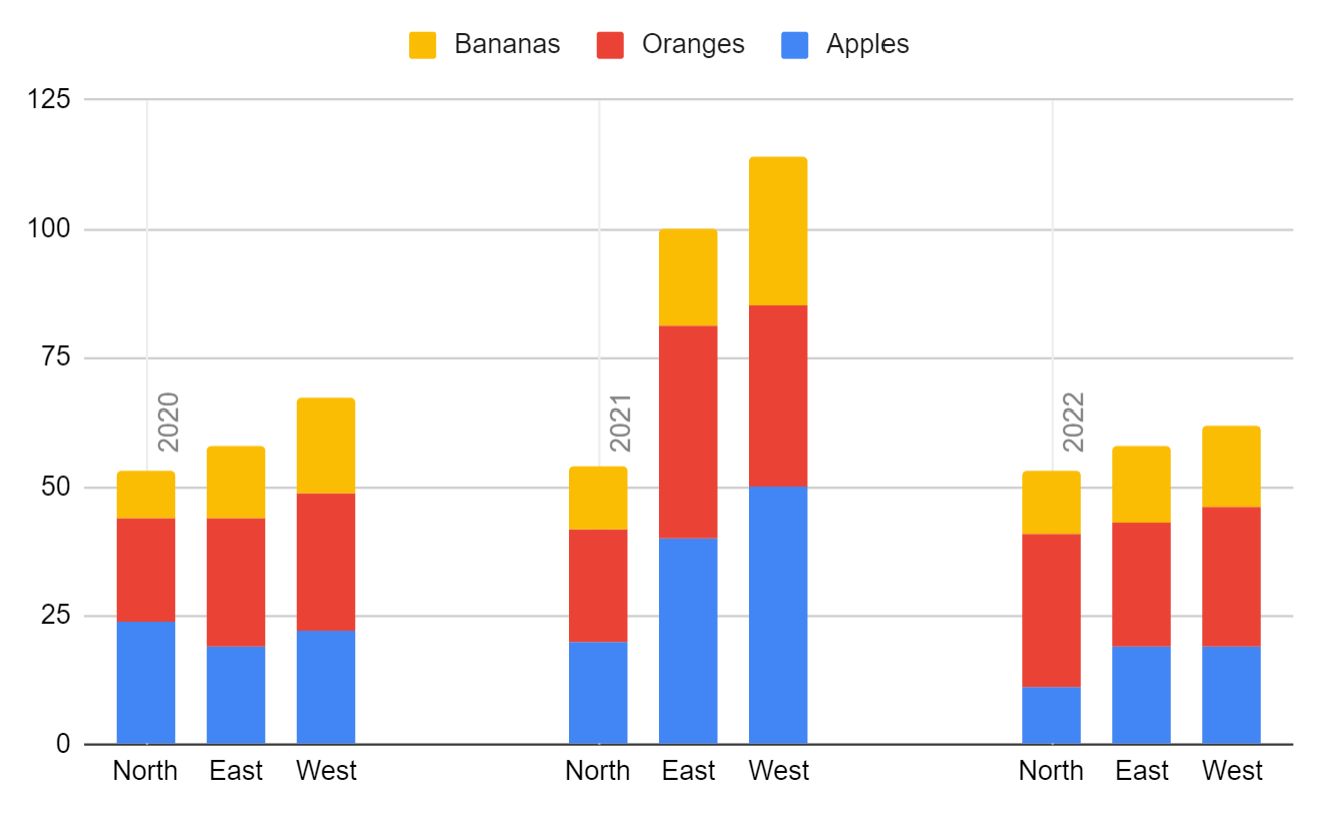

The resulting visualization provides immediate, powerful insights that a standard bar chart cannot replicate. We can now see how total sales at each store are successfully clustered by year, enabling a rapid comparison of total annual performance between 2022 and 2023 for the same location. Simultaneously, the specific fruit categories are stacked within each column, providing a clear proportional breakdown of which product contributed most to that store’s total sales during that specific year. This combined, multi-dimensional approach confirms the clustered stacked bar chart as an invaluable tool for advanced data analysis and storytelling in Google Sheets.
