Learning to Create Multi-Series Scatterplots in Google Sheets

Mastering Multi-Series Scatterplots in Google Sheets

In the realm of advanced data analysis, the ability to visualize relationships between two continuous variables across distinct categorical groups is paramount. Analysts frequently encounter scenarios where they must generate a sophisticated scatterplot that simultaneously displays multiple data series. This type of visualization is essential because it allows for immediate, direct comparison of trends and variances between different groups within a single, cohesive chart, yielding far richer insights than fragmented or separate plots. The resulting visual narrative, similar to the illustrative chart provided below, is indispensable when working with complex, grouped datasets, offering clarity on how underlying relationships shift based on the segmenting factor.

Although the prospect of creating multi-series charts might initially appear technically challenging, the functionality within Google Sheets simplifies this task considerably. The platform’s robust support for complex array formulas and integrated charting capabilities makes advanced visualization accessible. The foundational requirement for success, however, lies in rigorous and strategic data preparation. This involves the careful application of conditional logic to segment the raw data effectively, transforming a simple table into a structured matrix ready for plotting. By following the meticulous data formatting strategy detailed in this tutorial, you can swiftly convert raw, grouped data into a compelling visual asset, mastering an advanced technique crucial for detailed reporting and exploratory data analysis.

Step 1: Structuring and Validating the Foundational Dataset

The initial and most critical phase of this process is accurately inputting and organizing your source data within the spreadsheet environment. For demonstration purposes, we will employ a practical dataset tracking key performance indicators for professional basketball players. This dataset measures two primary metrics—Assists and Points—but segments these observations across various Teams. This structure is deliberately chosen to allow us to examine how the correlation between performance metrics (Points, the dependent variable) and effort metrics (Assists, the independent variable) fluctuates across different organizational groups (Teams, the grouping variable).

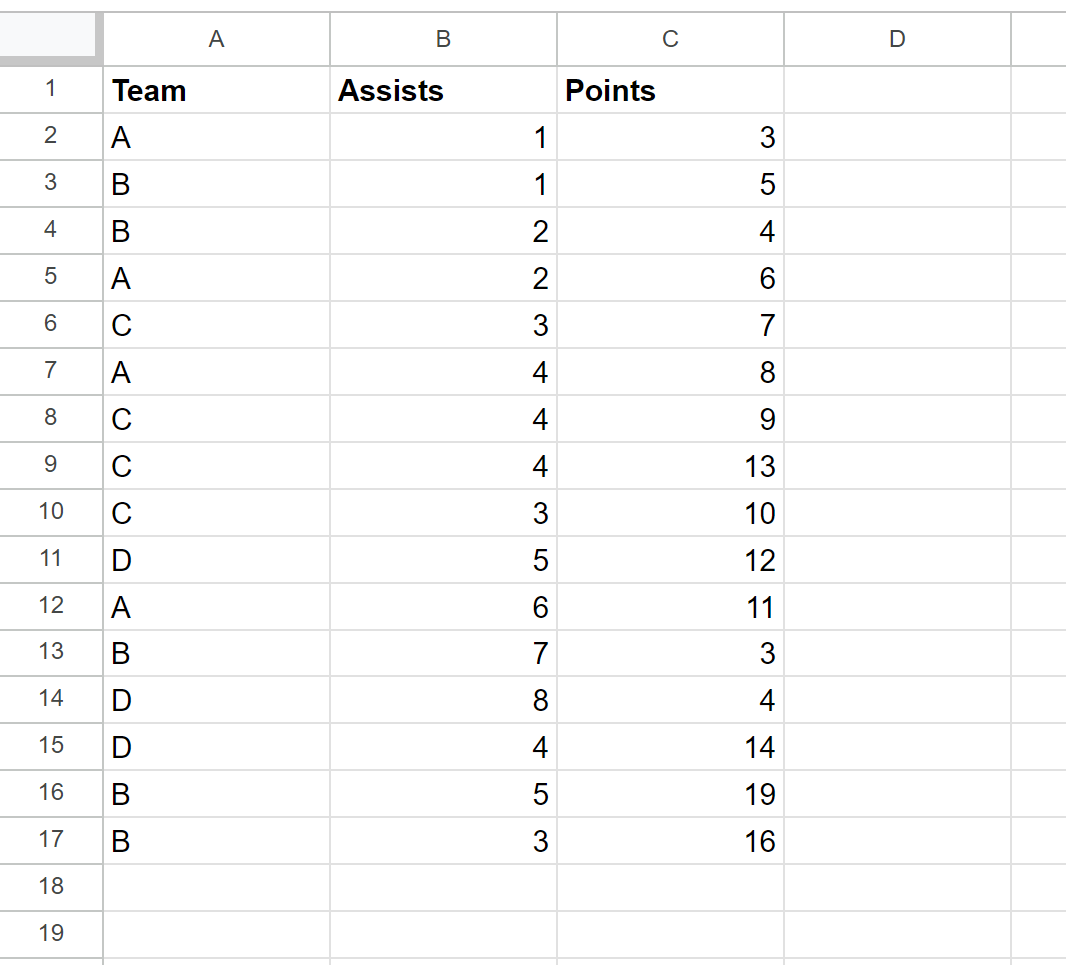

It is imperative that your data adhere to a logical, three-column format: one column dedicated to the grouping variable (Team), one for the independent variable (X-axis data, Assists), and one for the dependent variable (Y-axis data, Points). This foundational dataset, which serves as the input for our subsequent manipulation steps, must be meticulously checked for accuracy and consistency before proceeding. The raw data appears as follows:

A crucial aspect of this step is ensuring the integrity and consistency of the grouping column. Any variations in spelling, capitalization, or extra spaces within the ‘Team’ column entries will lead to the failure of the subsequent data transformation formulas. For example, “Team A” must be spelled identically across all rows intended for that group. Verifying the clean entry of all numerical values is also essential, as data inconsistencies at this stage will compromise the integrity of the final multi-series visualization and lead to inaccurate conclusions.

Step 2: Implementing Conditional Data Pivoting for Series Segmentation

To successfully generate a multi-series scatterplot in Google Sheets, the data must be restructured from its long, three-column format into a wide, pivoted arrangement. This transformation requires that the original ‘Points’ column data be segregated so that each unique team occupies its own dedicated column. This specific structure is necessary because the charting function interprets every column following the first (X-axis) column as a unique data series, assigning it a separate color and legend entry.

The transformation begins by extracting all unique team names from the ‘Team’ column (Column A). These unique identifiers must be placed into a new row, starting conventionally in cell E1 and extending horizontally (e.g., E1, F1, G1, H1). These new cells will function as the headers for our newly formatted Y-axis data columns. The core of this transformation is the deployment of a powerful conditional formula, utilizing the IF function in conjunction with the crucial NA() error marker.

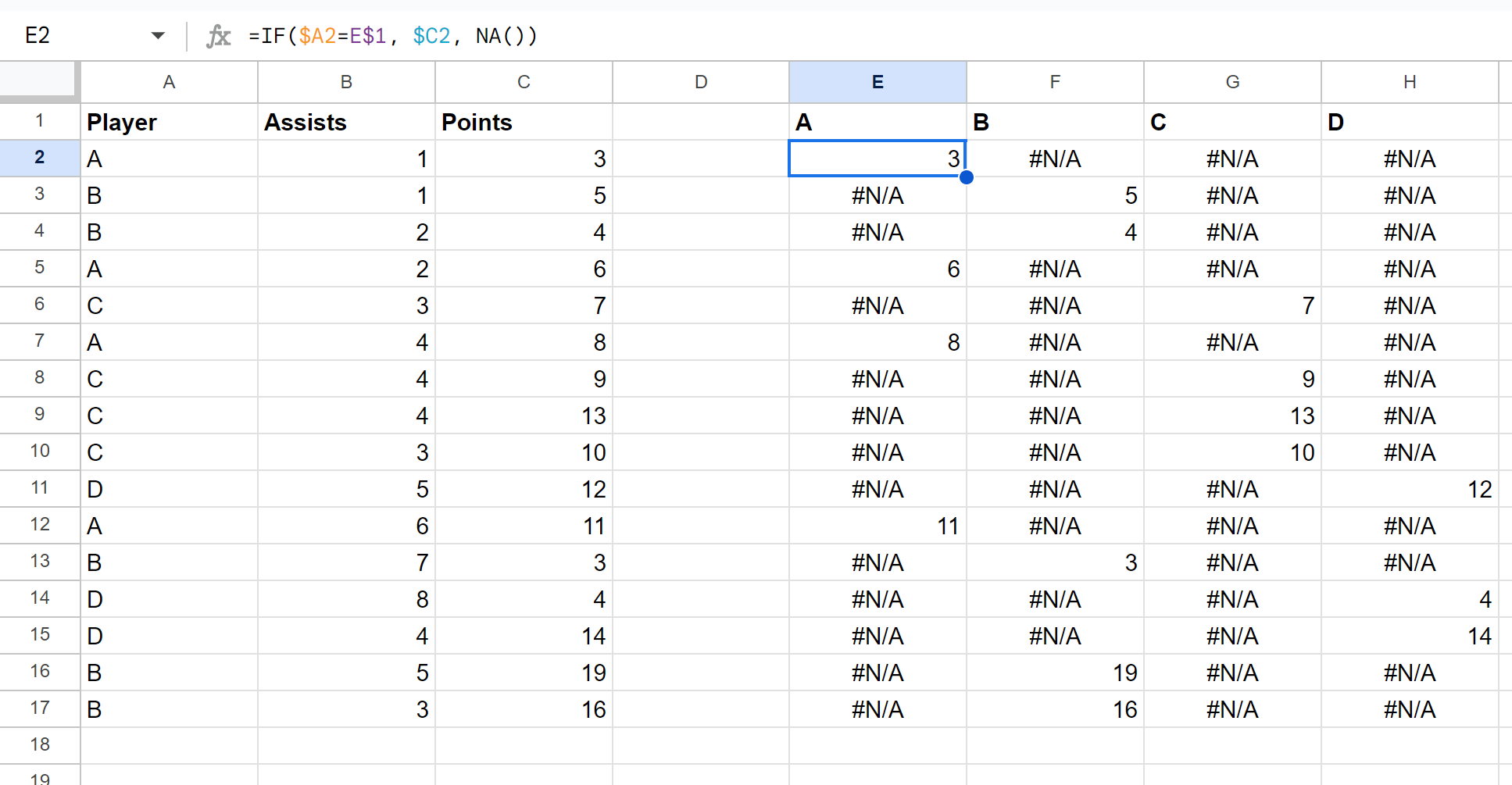

In cell E2, enter the following formula. This formula executes a conditional check: it determines if the team name in the current row of the source data (Column A) precisely matches the team name serving as the column header (Row 1). If the condition is satisfied (a match is found), the formula retrieves the corresponding ‘Points’ value from Column C. Conversely, if there is no match, the formula returns the NA() function. The use of NA() is absolutely vital here; it serves as a signal to the Google Sheets charting engine to treat that cell as a missing value, thereby preventing it from being plotted or connected by lines, effectively creating clean, segmented data series for each team. Note the careful use of absolute and relative references (`$A2` locks the column, `E$1` locks the row, and `$C2` locks the column) to allow for correct dragging.

=IF($A2=E$1, $C2, NA())

Once the formula is correctly entered into E2, use the small square fill handle to drag the formula horizontally across the row until it covers all team columns (e.g., reaching cell H2). Next, drag this entire row of formulas downward, applying it to all rows corresponding to the original dataset (e.g., down to cell H17). This automated process successfully constructs the required matrix, dynamically separating the points data into discrete columns for each team, preparing the data for the sophisticated visualization step.

Step 3: Consolidating the X-Axis Variable

Following the complex pivoting operation, the final preparatory step involves positioning the X-axis data correctly to form a unified, contiguous data block. For a multi-series scatterplot, all distinct Y-series must share a single, common X-axis variable. In our specific case, the ‘Assists’ metric serves as this common independent variable. This variable must be placed immediately adjacent to the first of the newly created Y-axis series columns.

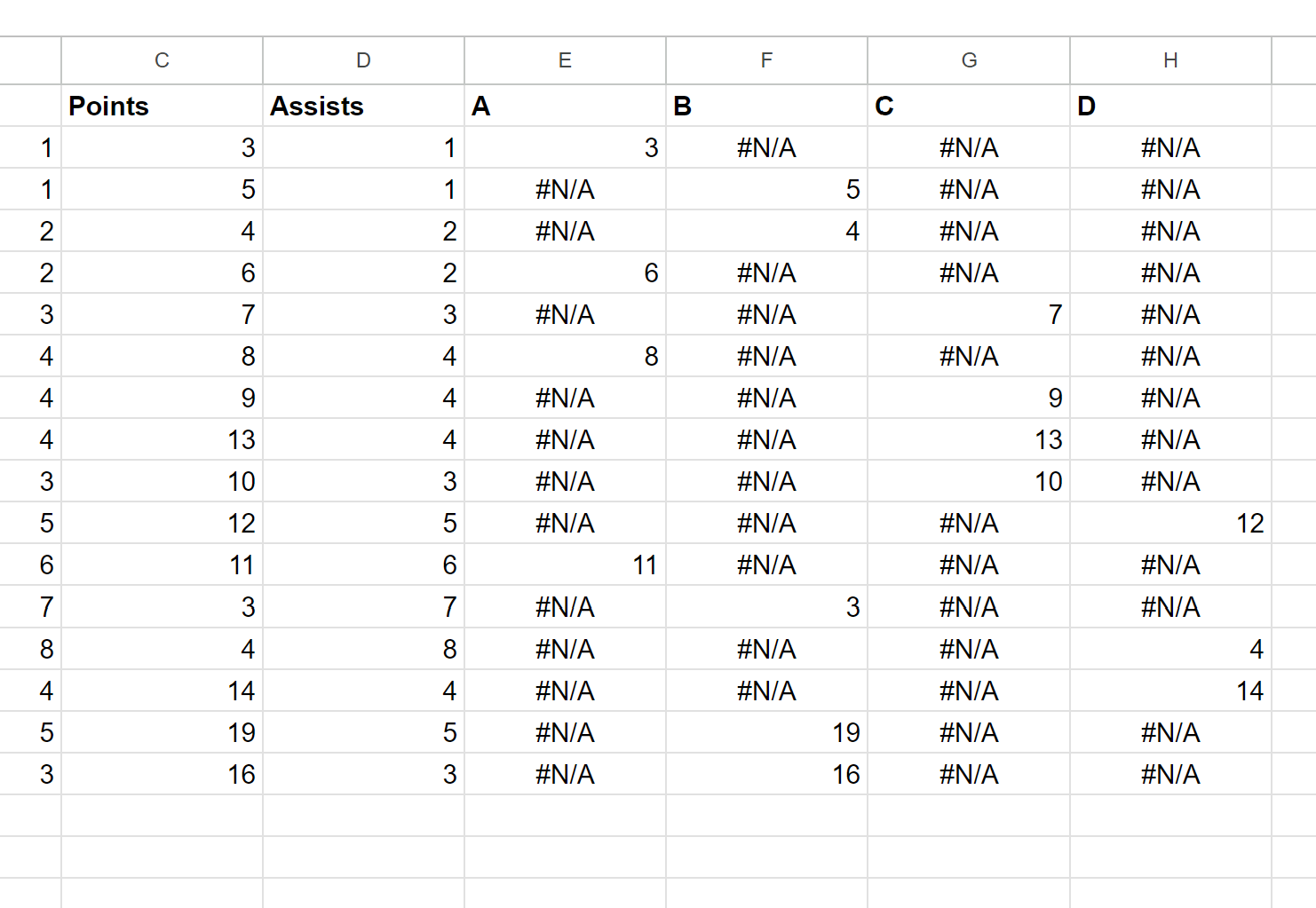

To achieve this necessary adjacency, copy all the values from the original ‘Assists’ column (Column B) and paste them precisely into Column D. This strategic placement ensures that the resulting plotting range is a cohesive block of data spanning from Column D through H. In this final layout, Column D acts as the authoritative master X-variable (Assists) for every subsequent team series (Columns E, F, G, and H). This final, structured arrangement is the definitive instruction set that the Google Sheets chart editor uses to map variables accurately, ensuring that the visualization correctly plots the relationship for each team against the same X-axis scale.

Step 4: Generating the Visualization and Series Recognition

With the data meticulously prepared and structured in the required format (Columns D through H), the process of generating the visualization is now straightforward. First, select the entire range of the newly formatted data, ensuring the selection includes the headers (e.g., D1:H17). Next, navigate to the ‘Insert’ menu and select the ‘Chart’ option. This action will initiate the process and open the Chart editor panel, which provides comprehensive tools for configuration and customization.

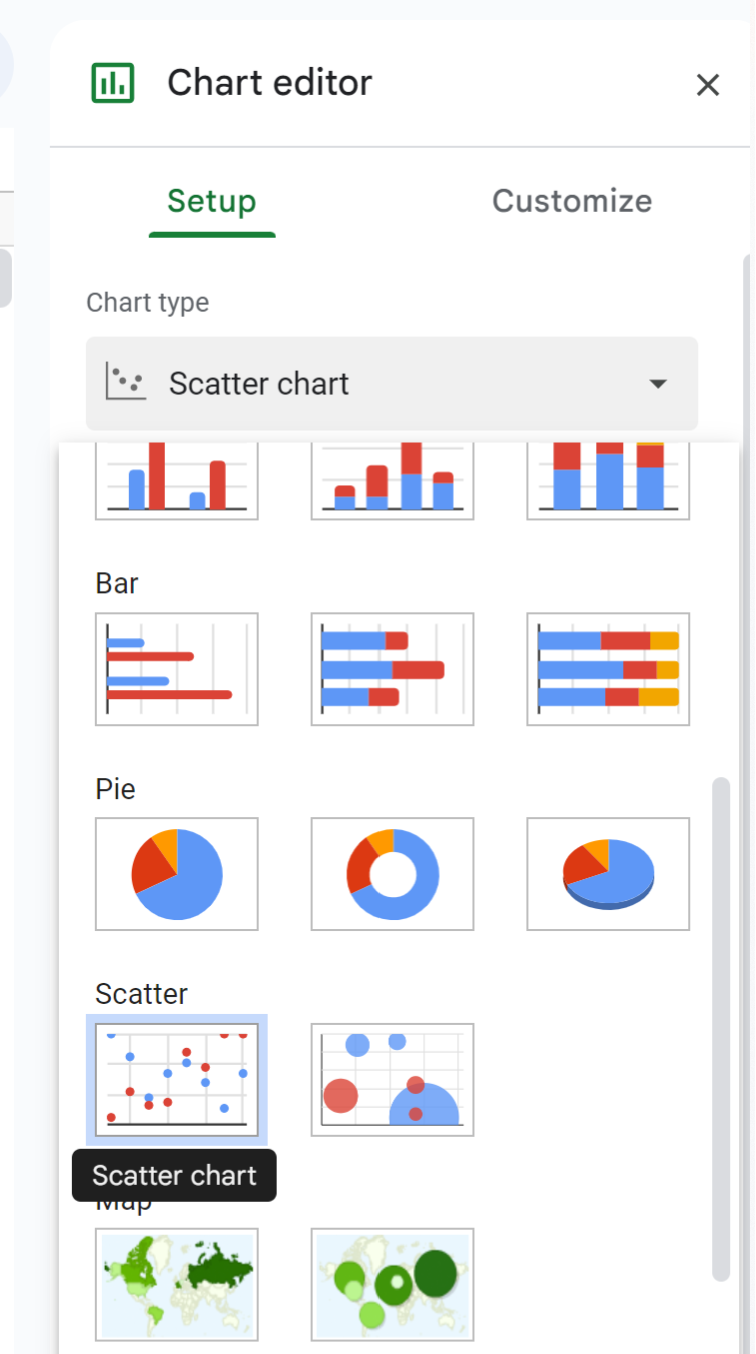

Within the Chart editor, confirm that the chosen visualization type is a Scatter chart. Due to the preceding data preparation steps, Google Sheets automatically identifies the structure: it recognizes the first column selected (Assists in Column D) as the single X-variable and interprets every subsequent column (Points for Team A, Team B, etc., in Columns E, F, G, H) as a separate Y-variable. Crucially, the system automatically assigns a unique series, color, and legend entry to each of these subsequent columns. This immediate recognition confirms the success of the data pivoting strategy.

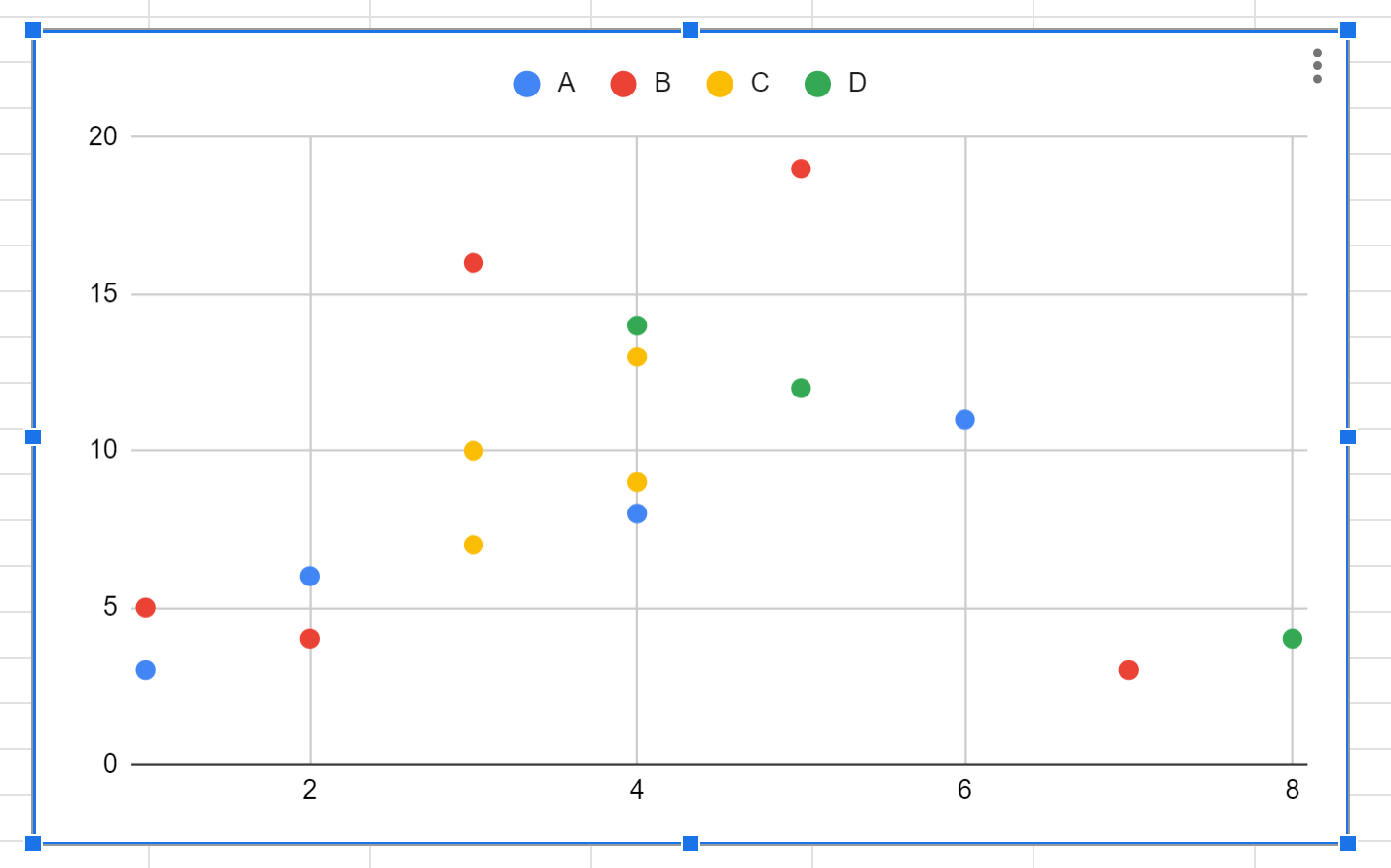

Upon final selection, the initial scatterplot visualization will render instantly. It will successfully display the distinct performance metrics for each team, where each plotted point represents an individual player observation. The color coding serves as the immediate visual differentiator, distinguishing the series based on the team membership that was defined during the strategic data reformatting stage. The absence of unwanted connections between data points is the clear visual confirmation that the use of the NA() function technique was correctly implemented, ensuring clean, segregated plotting.

Step 5: Refining the Visualization for Professional Interpretation

While the technical generation of the multi-series plot marks a significant achievement, the final step involves meticulous refinement to meet professional standards of data presentation. To maximize the readability, analytical utility, and accurate interpretation of the data, leveraging the customization options within the Chart editor is essential. This includes adding clear, descriptive titles and ensuring all axes are properly labeled.

An effective chart must include a clear, descriptive title (e.g., “Player Performance: Assists vs. Points Stratified by Team”) and informative labels for both the X-axis (Assists) and the Y-axis (Points). These components are non-negotiable elements that elevate a raw plot into an effective communication tool. Beyond basic labeling, the Chart editor offers robust advanced customization features. Analysts can adjust the size and shape of the data points, modify the specific colors assigned to each team series for better contrast, or incorporate statistical components such as trendlines or error bars. These enhancements further augment the analytical value of the data visualization, allowing stakeholders to easily identify group-specific trends or outliers.

The final, polished output achieves clear differentiation between the data series, providing immediate visual confirmation of how the fundamental relationship between player assists and points varies significantly across the different basketball teams. This enables decision-makers and stakeholders to draw informed conclusions quickly and accurately regarding team performance and player contribution dynamics.

Additional Techniques for Spreadsheet Mastery

Mastering the creation of complex, multi-series charts in Google Sheets, particularly through conditional pivoting, unlocks extensive possibilities for advanced data reporting and analysis. The specific techniques utilized in this guide—namely, the strategic combination of conditional logic using the IF function and the series segmentation capability offered by the NA() error marker—represent highly transferable skills. These methods are applicable to a wide array of other complex visualization challenges and data segmentation requirements encountered within various spreadsheet software environments.
