Constraining Formula Outputs: Setting Minimum and Maximum Values in Google Sheets

The Necessity of Constrained Formula Results in Data Analysis

In practical data analysis, particularly when working within spreadsheet environments like Google Sheets, it is often critical to ensure that the outputs of your calculations adhere to specific business rules or logical boundaries. These boundaries prevent results from exceeding certain thresholds or falling below necessary minimums. Learning how to effectively constrain the values returned by a formula is a fundamental skill for advanced users. This technique is invaluable for scenarios such as calculating commissions that are capped, establishing minimum inventory levels, or standardizing grades within a predetermined range. Fortunately, Google Sheets provides straightforward methods utilizing the standard MAX and MIN functions to achieve this precise control over numerical outcomes.

The following expert techniques allow you to set rigid limits on both the minimum and maximum values that can be generated by complex calculations within your spreadsheet cells. By mastering the strategic use of these functions, you can build more robust, predictable, and rule-compliant data models, ensuring that your results never stray outside the defined acceptable parameters.

Method 1: Ensuring a Minimum Threshold (Using the MAX Function)

To establish a minimum return value—meaning the formula output can never be lower than a specific number—we paradoxically employ the MAX function. The logic behind this approach is simple yet powerful: the MAX function compares two or more values and returns the largest one. If we compare our desired minimum threshold against the result of our primary calculation, the function will automatically select the larger of the two. This guarantees that if the calculation falls below the minimum limit, the limit itself is returned instead.

Consider a scenario where a financial bonus must be at least 300, regardless of the underlying sales figures. We can use the MAX function to compare the absolute required minimum (300) against the variable calculation (the SUM of sales). The structure for setting the minimum value is as follows, assuming the calculation is the sum of cells B2 through D2:

=MAX(300,(SUM(B2:D2)))

This particular formula first calculates the sum of values within the specified range B2:D2. Crucially, the external MAX(300, …) wrapper dictates that if the calculated sum is less than 300, the MAX function will disregard the lower sum and instead return the threshold value of 300. If the sum is greater than 300, the sum itself is returned, as it is the maximum of the two inputs.

Method 2: Enforcing a Maximum Limit (Using the MIN Function)

Conversely, to set a maximum permissible return value—ensuring the output never exceeds a specified cap—we utilize the MIN function. The MIN function operates by comparing multiple values and returning the smallest one. By comparing our desired maximum limit against the result of our primary calculation, the function guarantees that any result surpassing the limit will be immediately reduced to the ceiling value.

Imagine a grading system where the total score awarded for a specific project cannot exceed 300 points, even if a student theoretically earns extra credit. Using the MIN function ensures the resulting score is capped at this maximum threshold. Here is the structure for setting the maximum value, again using the sum of cells B2 through D2 as the base calculation:

=MIN(300,(SUM(B2:D2)))

This powerful formula calculates the sum of the input range B2:D2. However, the outer MIN(300, …) structure ensures that if the calculated sum is greater than 300, the MIN function returns 300 instead. If the sum is less than 300, the sum itself is returned, as it is the minimum of the two compared values. This technique is frequently used in financial modeling and regulatory reporting where adherence to hard upper limits is mandatory.

Method 3: Defining a Safe Range (Nesting MIN and MAX)

In many real-world applications, it is necessary to impose both a minimum floor and a maximum ceiling on a calculation simultaneously. This creates a “safe operating range” where all results must fall. To accomplish this, we combine the principles from the previous two methods by nesting the MAX function within the MIN function. This compound approach first ensures the minimum threshold is met, and then ensures the resulting value (which is now guaranteed to be above the minimum) does not exceed the maximum threshold.

When nesting, the inner function should always be MAX (setting the floor), and the outer function should be MIN (setting the ceiling). For instance, if we require the result to be between 280 (minimum) and 305 (maximum), the structure looks like this:

=MIN(305,MAX(280,SUM(B2:D2)))

In execution, this formula initiates by calculating the SUM of the range B2:D2. The inner MAX(280, SUM(…)) operation ensures that the result is at least 280. The outer MIN(305, …) then takes this intermediate result and ensures it does not exceed 305. If the sum is less than 280, the result defaults to the minimum limit of 280. If the sum is greater than 305, the result defaults to the upper limit of 305. If the sum falls perfectly between 280 and 305, the sum itself is returned. This hierarchical application provides complete control over the final output range.

Practical Application: Working with Example Data

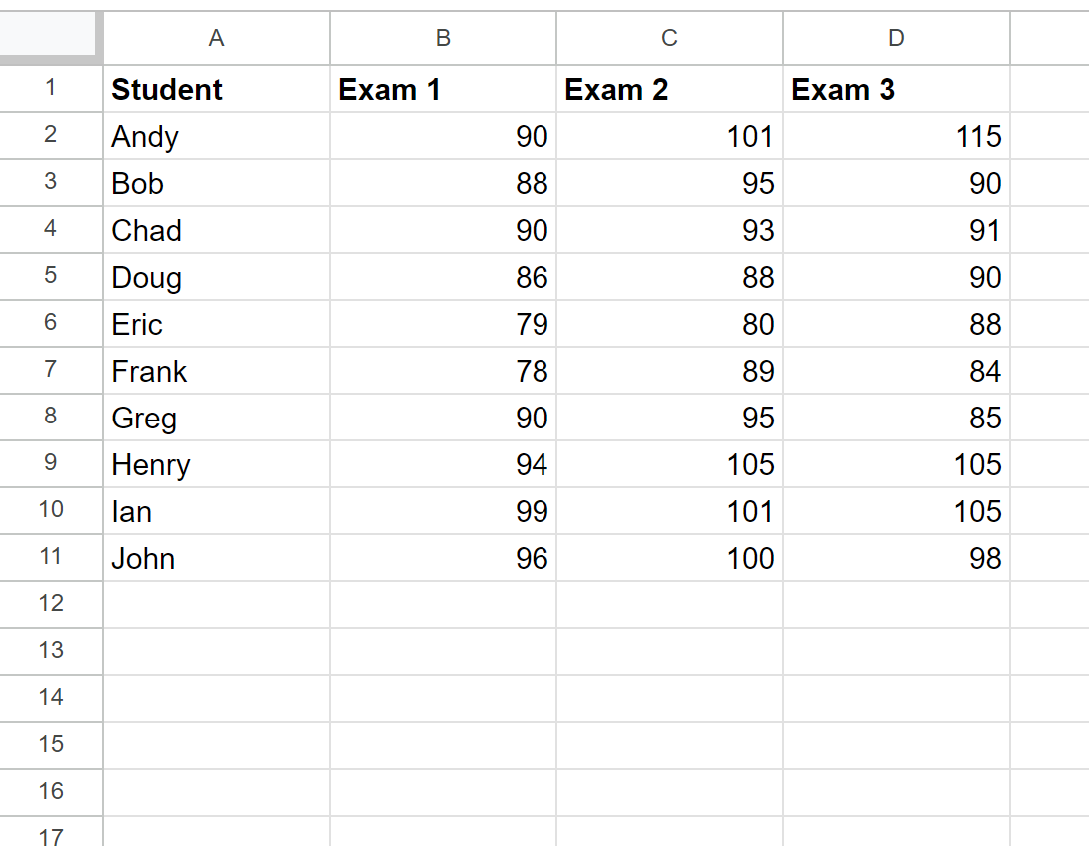

To illustrate these constraints, we will utilize a sample dataset in Google Sheets that records the exam scores received by various students across three different tests. We aim to calculate the total score for each student while applying the specific constraints outlined in the methods above.

Example 1: Setting a Minimum Total Score

Let us assume a policy requires that every student receives a total score of at least 300, even if their cumulative performance across the three exams (columns B, C, and D) is lower. This might be used to ensure a minimum passing grade or to apply an initial bonus score. Our objective is to calculate the sum of exam scores for each student while setting the absolute minimum return value at 300.

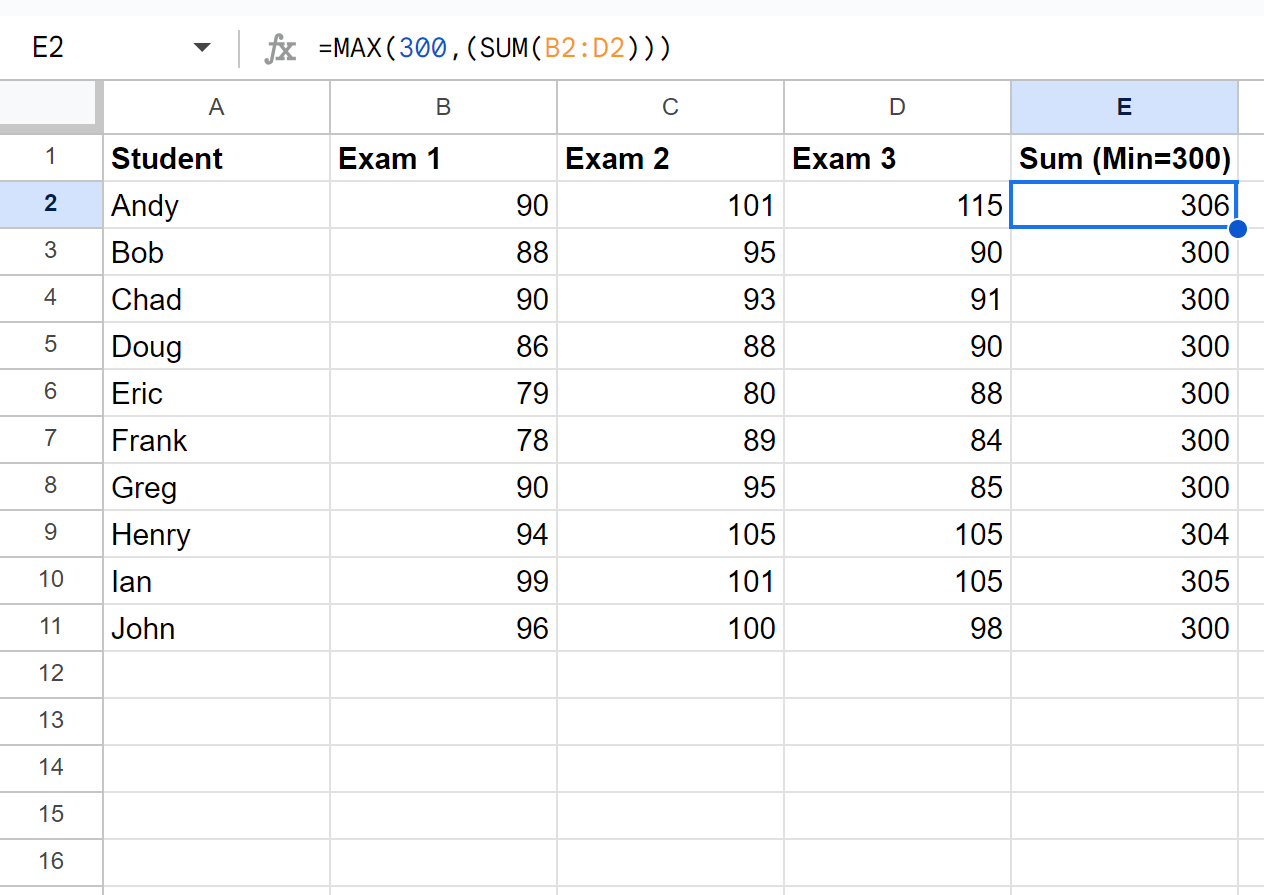

We begin by entering the appropriate MAX function formula into cell E2, which corresponds to the first student’s constrained total:

=MAX(300,(SUM(B2:D2)))

After inputting the formula into E2, we can propagate this calculation down the entire column E by clicking and dragging the fill handle. This action applies the formula dynamically to the subsequent rows (E3, E4, etc.), adjusting the row references accordingly (e.g., B3:D3, B4:D4). The resulting column clearly shows that any raw sum below 300 is automatically elevated to 300, while sums above this threshold remain unchanged.

As visible in the output, the formula successfully implements the floor constraint. For example, the student whose raw total was 270 (B3:D3) now shows a constrained total of 300, fulfilling the minimum requirement.

Example 2: Setting a Maximum Total Score

Now, let’s reverse the requirement. Suppose the institution dictates that the maximum total score a student can achieve is 300. This scenario is common in standardized testing or systems where maximum points are strictly enforced, preventing any extra credit or exceptionally high raw scores from skewing the aggregated data. We must calculate the sum of exam scores for each student but ensure the maximum return value is capped at 300.

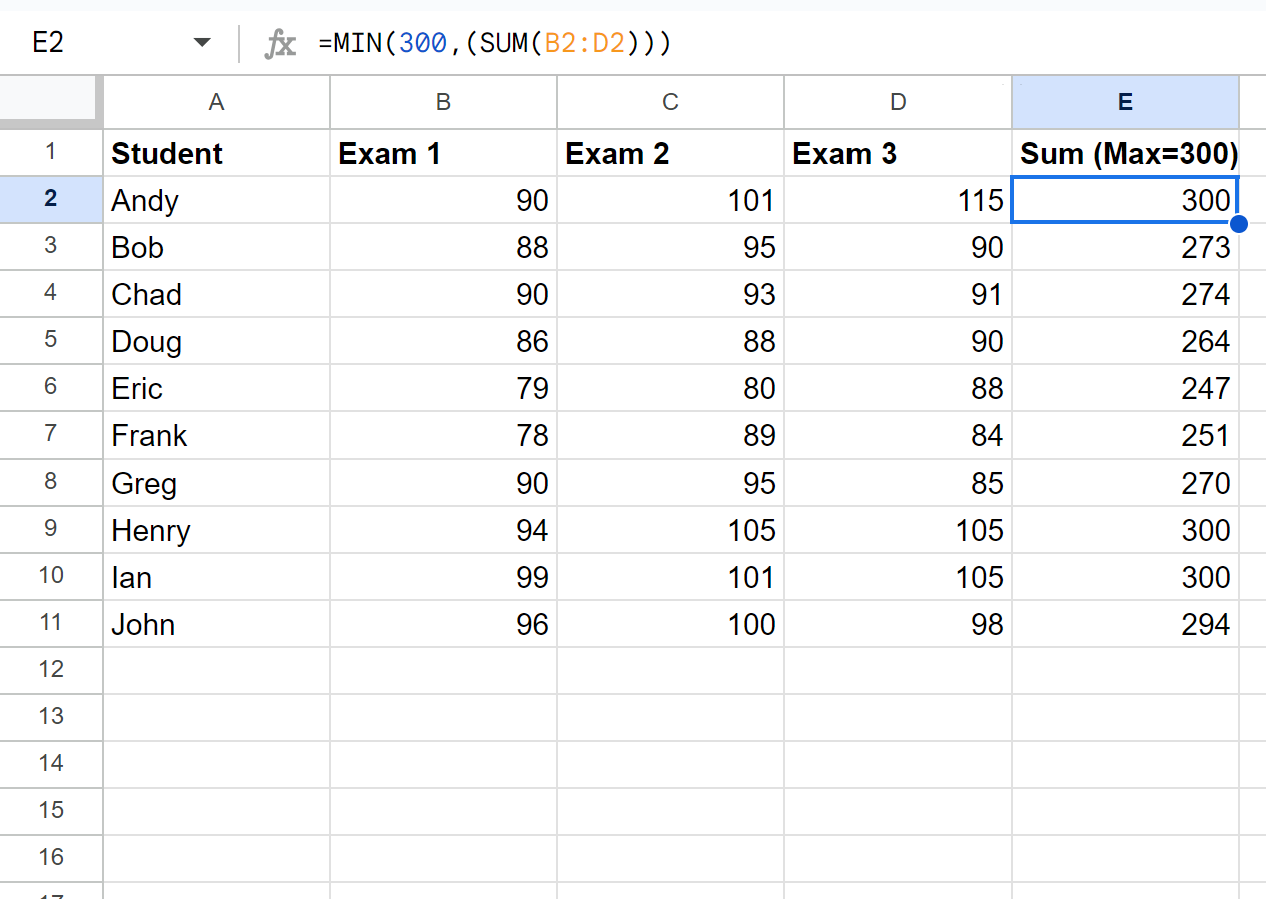

We implement the MIN function structure into cell E2:

=MIN(300,(SUM(B2:D2)))

By dragging this formula down column E, we apply the maximum constraint across all students. The inherent logic of the MIN function ensures that the calculated total score will either be the student’s raw score (if 300 or less) or the hard cap of 300 (if the raw score exceeds the limit).

In this result set, observe that students whose raw sums were, for instance, 315 or 320, now display a final score of 300, confirming the successful application of the upper limit constraint.

Example 3: Setting Both Minimum and Maximum Constraints

Finally, we address the scenario requiring a controlled range. We want the total scores to be bounded, with a minimum value set at 280 and a maximum value set at 305. This dual constraint is ideal for normalization purposes, ensuring that scores are neither too low nor excessively high.

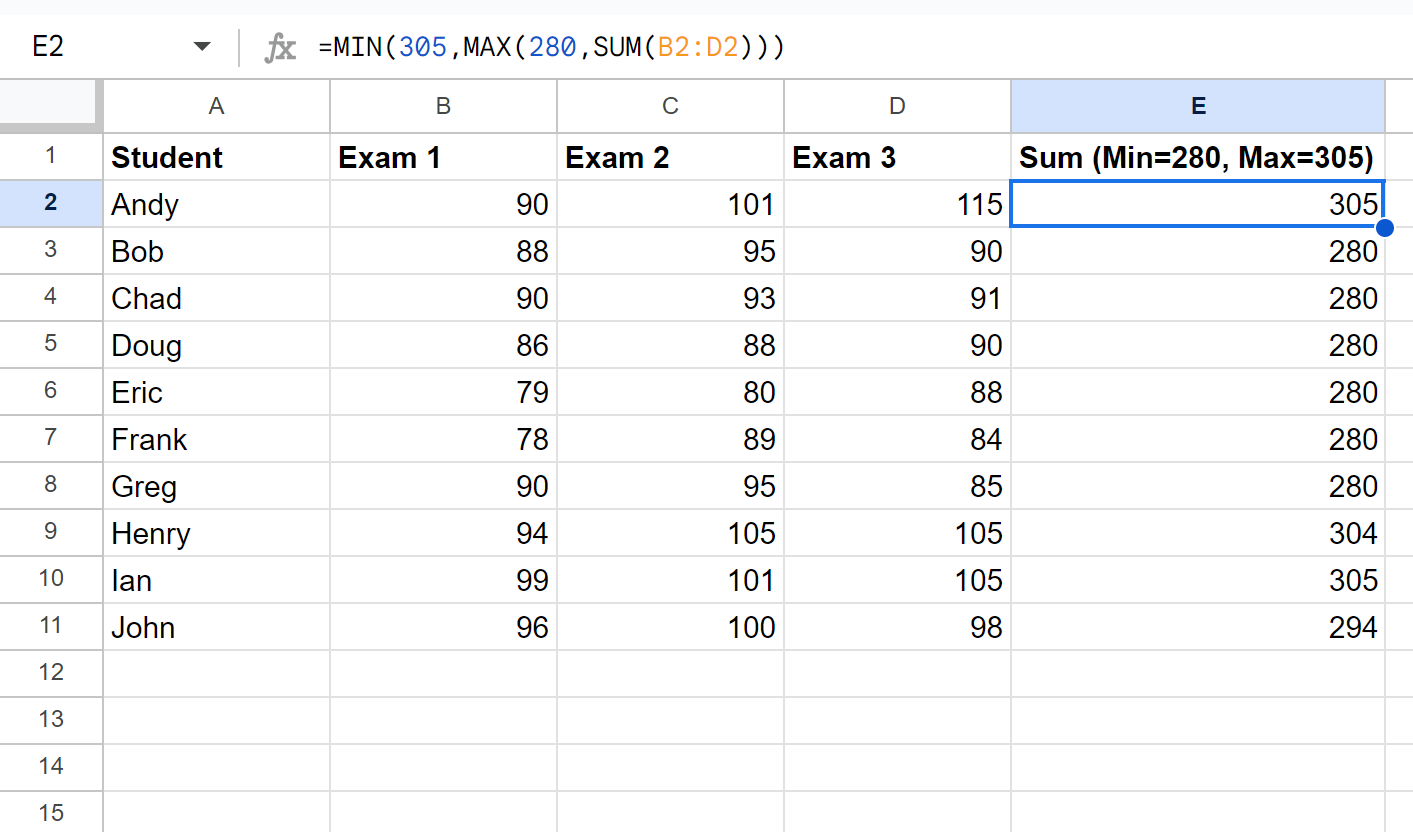

We utilize the nested formula incorporating both the MIN function and the MAX function into cell E2:

=MIN(305,MAX(280,SUM(B2:D2)))

By implementing this comprehensive formula and dragging it down column E, the system evaluates the raw sum against both boundaries. The internal MAX(280, …) ensures the floor, and the external MIN(305, …) ensures the ceiling.

The formula either returns the raw sum of exam scores (if it falls between 280 and 305) or defaults to the boundary value (280 or 305) if the raw sum is outside of these established limits. This nesting technique is the most versatile method for precise data regulation in Google Sheets.

Additional Resources for Spreadsheet Mastery

Understanding how to manipulate the output of core functions like MAX and MIN is crucial for effective data management. For those looking to expand their skills further in spreadsheet automation and constraint implementation, the following tutorials explain how to perform other common and advanced tasks in Google Sheets:

• Using the SUM function effectively with conditional statements.
• Implementing advanced data validation rules to prevent incorrect input.
• Techniques for dynamic range referencing using functions like OFFSET and INDIRECT.
