Learning to Sort Bar Charts in Google Sheets: A Step-by-Step Guide

The Necessity of Sorting Bar Charts in Google Sheets

Visualization is a cornerstone of effective data analysis, and the bar chart remains one of the most fundamental tools for comparing discrete categories. However, when presenting sales figures, regional performance, or survey results, simply displaying the bars in the arbitrary order they were entered into the spreadsheet often obscures meaningful insights. When categories are numerous, a visual comparison becomes cumbersome unless the data is structured logically. This is where the practice of data sorting becomes indispensable. By arranging bars either from the smallest value to the largest (ascending) or vice versa (descending), we immediately bring structure and hierarchy to the chart, allowing stakeholders to grasp the key takeaways—which region performed best, or which product lagged—at a single glance. Without proper sorting, a bar chart can quickly devolve into visual noise, defeating the very purpose of creating the visualization in the first place.

Fortunately, modern spreadsheet applications like Google Sheets provide powerful built-in functions that streamline this process, eliminating the need for manual rearrangement of data. The challenge in spreadsheet charting is that the chart itself dynamically reflects the underlying data structure. To change the order of the visual elements (the bars), we must first manipulate the source data that feeds the chart. This tutorial will explore the precise methodology required to achieve this dynamic sorting using the sophisticated functions available within the Google Sheets environment, ensuring that your visualizations are not only accurate but also maximally informative and aesthetically pleasing. We will focus specifically on utilizing the powerful built-in function designed for rearrangement.

Achieving dynamic sorting in charts requires more than just manually moving rows; it requires generating a new, sorted dataset derived from the original source. This approach is highly flexible, meaning that if the source data changes, the sorted dataset and, consequently, the bar chart, will update automatically without manual intervention. This efficiency is critical in environments where data is constantly fluctuating and reports must be generated frequently. We will begin by establishing a baseline dataset, creating an initial, unsorted chart, and then systematically introducing the mechanism for sorting both upward and downward based on quantifiable metrics.

Setting Up the Data and Initial Visualization in Google Sheets

Before we can apply any sorting logic, we must first establish the foundational data structure that we intend to visualize. For the purpose of this detailed example, we will construct a simple but illustrative dataset representing sales performance across various geographic regions. Imagine a company tracking its total sales figures for six distinct operational areas. This data will typically be structured in two columns: the first identifying the categorical variable (Region Name) and the second detailing the numerical metric (Total Sales). This structure is crucial because the sorting function will rely on the index of the numerical column to determine the order of rearrangement.

Let’s establish the sample data. In a new Google Sheets tab, we input the following structure, starting typically in cell A1 or A2. This initial configuration defines the relationship between the categorical labels and their corresponding values.

Once the data is correctly input, the next logical step is to create the initial, unsorted bar chart. This serves as our control visualization, demonstrating the default behavior of Google Sheets charting, which is to plot data in the exact sequence it appears in the spreadsheet. To generate this chart, highlight the entire cell range containing both the labels and the values (in this case, typically A2:B7, excluding the headers if they are in row 1). Navigate to the Insert tab located in the top ribbon, and then select Chart. Google Sheets will automatically attempt to identify the best chart type, which often defaults to a column or bar chart when dealing with category vs. value data.

The resultant chart will display the sales data, where the order of the bars—East, West, Central, etc.—directly mirrors the input sequence. While functional, this visualization fails to highlight performance extremes instantly. Observing this initial output confirms that without explicit sorting instructions, the visual hierarchy is determined solely by data entry order, as shown in the image below:

The Power of the SORT Function in Data Manipulation

The core mechanism for achieving dynamic chart sorting in Google Sheets is the highly versatile SORT function. This function is specifically designed to sort the rows of a specified range based on the values in one or more key columns, returning the sorted data as a new array. Understanding its syntax is paramount to successful implementation for visualization purposes. The SORT function requires three fundamental arguments to operate correctly, though it can accept more complex parameters for multi-column sorting.

The general syntax of the function is: =SORT(range, sort_column, is_ascending).

Let us break down the critical arguments required:

• range: This is the range of data you wish to sort. In our example, this is the entire dataset encompassing both regions and sales values, A2:B7. It is essential to include all columns that you want to appear in the final, sorted output.
• sort_column: This argument specifies the index number of the column within the selected range (not the spreadsheet column letter) by which the sorting should occur. Since we want to sort based on the numerical sales figures, and sales are in the second column of our A2:B7 range, the argument here must be 2.
• is_ascending: This crucial Boolean argument determines the direction of the sort. It accepts either TRUE or FALSE. Setting it to TRUE results in an ascending sort (smallest to largest), while setting it to FALSE results in a descending sort (largest to smallest).

By leveraging this function, we do not overwrite the original data; instead, we generate a mirror copy of the data in a new location, organized according to our specific requirements. This practice of generating derived data is foundational to maintaining data integrity and enabling complex analyses without risking corruption of the primary source material. We will now apply this function to generate the sorted datasets required for our chart visualizations.

Step-by-Step Guide: Sorting Bars in Ascending Order

To organize our bar chart such that the regions with the lowest sales appear first, progressing up to the highest sales, we must instruct the SORT function to arrange the data in ascending order. We choose an empty area of the sheet—for instance, starting in cell D2—to place the output of the function. This location will become the new source range for our ascendingly sorted chart.

The formula required to achieve this ascending sort is as follows:

=SORT(A2:B7, 2, TRUE)

Upon entering this formula into cell D2, the sorted dataset will automatically populate the range D2:E7. The argument 2 confirms that the sorting logic is applied to the sales column, and the Boolean argument TRUE dictates that the sorting proceeds from the smallest value to the largest value. This immediate transformation of the data provides the necessary structured input for our visualization.

With the new, sorted dataset now available in columns D and E, we proceed to create the final chart. Highlight the cell range D2:E7, navigate once again to the Insert tab, and select Chart. The resulting visualization will now distinctly show the bars organized from the minimum sales volume up to the maximum sales volume. This structure is particularly effective when analyzing areas requiring immediate attention or improvement, as the lowest performers are prominently displayed at one end of the axis.

Implementing a Descending Sort for Maximum Impact

In many business contexts, the primary objective of a visualization is to highlight the highest performers or the most significant categories. To achieve this immediate emphasis, we often need to present the data in descending order, placing the largest values at the top or front of the visual display. Fortunately, switching the sorting direction is an extremely minor modification to the existing SORT formula, requiring only the alteration of the final Boolean argument.

To create a descendingly sorted dataset, we will place the modified formula, again starting in cell D2 (assuming we clear the previous formula output or use a different location). The critical difference is replacing TRUE with FALSE in the third argument. This small change tells the SORT function to reverse its standard order, arranging the rows from the largest numerical value down to the smallest.

The formula for descending sort is:

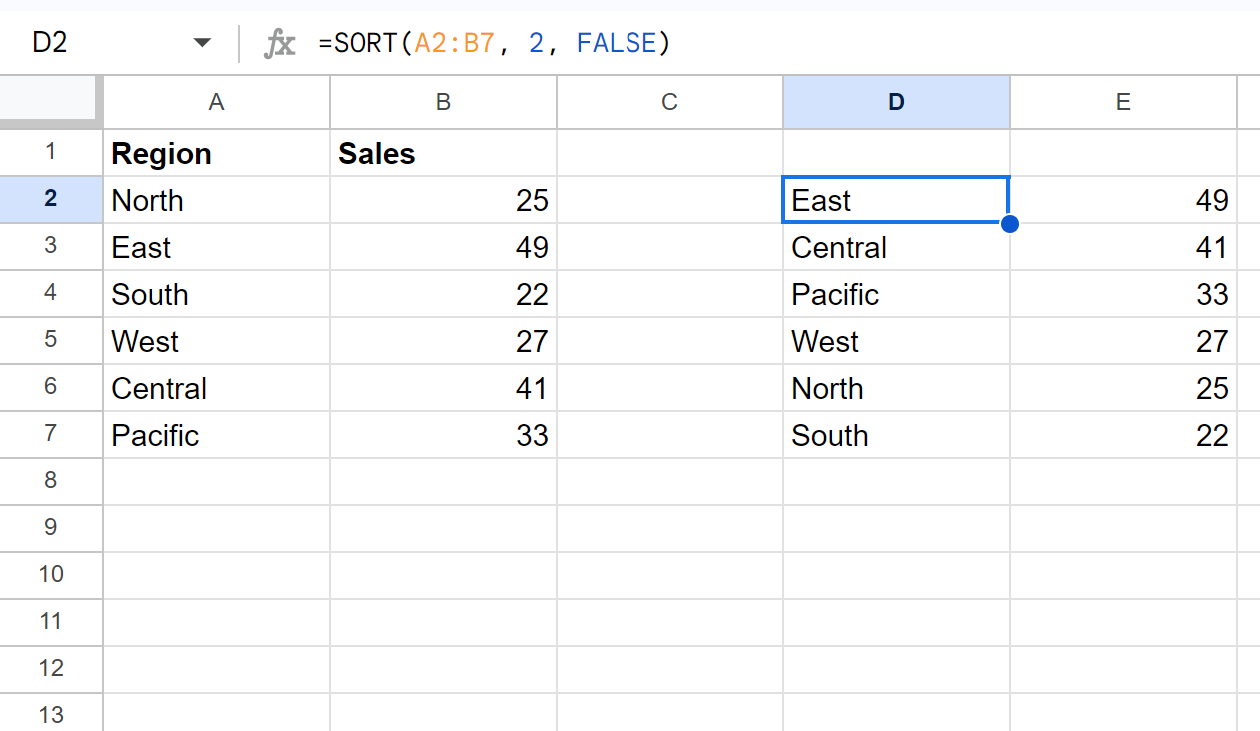

=SORT(A2:B7, 2, FALSE)

Executing this formula populates the new range (D2:E7) with the data sorted by sales, now arranged from the highest sales region down to the lowest. This sorted dataset is ideally suited for creating a chart focused on recognizing top performance, providing immediate visual feedback on the leaders within the established metrics.

Visualizing the Descending Sorted Data

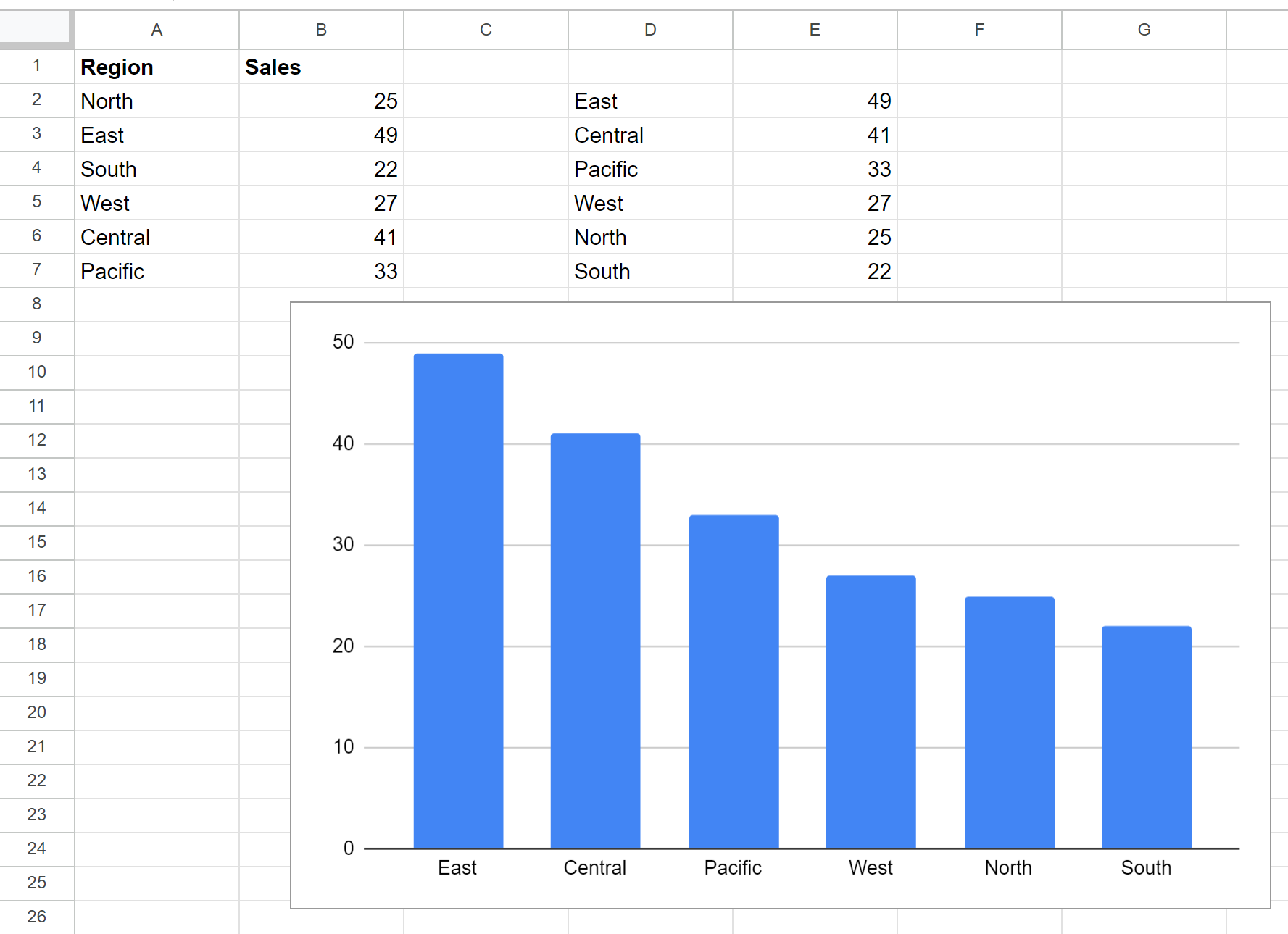

With the descending dataset successfully generated, the final step involves charting this new range to produce the desired visualization. As before, select the newly sorted data range, D2:E7, and use the Insert > Chart sequence. The resulting bar chart will clearly display the regional sales figures organized from the region with the greatest sales volume to the region with the lowest. This descending layout is often the preferred method for executive summaries and performance reviews, as it immediately highlights success stories.

The distinction between the ascending and descending visualizations underscores the critical importance of the is_ascending argument in the SORT function.

• If is_ascending is set to TRUE, the data is ordered from smallest to largest (Ascending Order).
• If is_ascending is set to FALSE, the data is ordered from largest to smallest (Descending Order).

By mastering this simple Boolean switch, users gain complete control over the visual hierarchy of their bar charts in Google Sheets, ensuring that the chart effectively communicates the intended message, whether it is identifying areas of strength or areas needing strategic intervention. The resulting chart demonstrating the descending sort is visually compelling and highly effective for highlighting top performers:

Understanding the SORT Function Parameters in Depth

A deeper understanding of the arguments within the SORT function is essential for anyone who intends to use Google Sheets for complex data handling beyond simple examples. While we focused on sorting by a single column (index 2, the sales column), the function’s capabilities extend to much more intricate sorting criteria. The primary argument, the range (A2:B7), must be contiguous and include all data points you wish to output. Importantly, the SORT function is an array formula, meaning that the output spills over into adjacent cells automatically, requiring only one cell (D2 in our example) to contain the entire function.

The sort_column argument is perhaps the most frequent source of confusion. It is crucial to remember that this number refers to the column’s position *within the defined range*, not its absolute column letter in the spreadsheet. For instance, if our data started in column C and spanned C through E, and we wished to sort by the data in column E, the sort_column index would be 3, as E is the third column in the C:E range. This relative indexing allows the function to be highly portable and reusable across different datasets. Furthermore, the SORT function can accept multiple sort columns, allowing for tie-breaking rules—if two regions had identical sales, we could specify a second column (e.g., Region Name) to break the tie alphabetically.

Finally, the Boolean argument is_ascending (TRUE/FALSE) controls the direction. While TRUE yields ascending order (A-Z, 0-9), FALSE yields descending order (Z-A, 9-0). This argument is mandatory for the SORT function to execute correctly. Utilizing these parameters effectively ensures not only that your bar charts are visually sorted but that the underlying data structure is dynamically maintained, reflecting real-time changes in your source data without requiring manual recalculation or rearrangement of rows.

Conclusion and Further Resources

Mastering the technique of dynamically sorting bar charts in Google Sheets using the powerful built-in functions is a critical skill for producing professional and insightful data visualizations. By leveraging the SORT function, analysts can swiftly transform raw, unordered data into a structured hierarchy, enabling clearer comparisons and more effective communication of key performance indicators or trends. Whether the requirement is to highlight the best performers (descending sort) or identify areas needing improvement (ascending sort), the methodology remains consistent: generate a new, sorted dataset and chart that derivative range.

The process outlined emphasizes the best practice of creating a separate, calculated dataset for visualization purposes, thereby protecting the integrity and original structure of the source data. This approach is scalable and ensures that your charts update automatically as sales figures or other metrics evolve over time. For more complex sorting needs involving multiple criteria or specific conditions, users are encouraged to explore the full capabilities of the SORT function and related array formulas within the Google Sheets documentation.

For detailed technical specifications and advanced uses, the complete documentation for the SORT function in Google Sheets is available from the official source.
