Learning to Use VLOOKUP in Google Sheets for Range Lookups

The VLOOKUP function in Google Sheets is widely recognized for its capability to search for and retrieve data based on exact matches. However, its true analytical power emerges when utilizing the approximate match feature. By setting the optional fourth argument, range_lookup, to TRUE, we unlock the ability to accurately categorize a value that inherently falls within a predefined range or tier. This technique is indispensable for complex business logic, such as implementing tiered pricing structures, calculating dynamic sales commissions, or assigning academic grades, where the specific lookup value may not exist in the data table but must correspond to a specific boundary or bracket.

Understanding the mechanism of the approximate match is crucial for effective implementation. When VLOOKUP is configured with TRUE, it does not look for an identical entry; instead, it performs a highly efficient search to find the largest value in the lookup column that is less than or equal to the specified lookup_value. This subtle yet critical distinction transforms the function from a simple retrieval tool into a dynamic range analysis mechanism. This article will thoroughly explore how to master this technique, ensuring accuracy and reliability when performing calculations that rely on defining numerical tiers within your spreadsheet data.

Mastering Approximate Matches in VLOOKUP

While most users rely on VLOOKUP for precise data retrieval—achieved by setting the fourth argument to FALSE or 0 for an exact match—its functionality is significantly extended when the optional fourth argument, range_lookup, is set to TRUE (or omitted, as TRUE is the default setting). Choosing TRUE instructs the function to engage in a highly optimized binary search algorithm across the first column of your specified table array. This approach is exceptionally efficient for large datasets but imposes a strict, non-negotiable requirement on the data structure: the first column of the lookup array must be sorted in strict ascending order.

The core logic of the approximate match handles scenarios where an exact match is impossible. When the function cannot find an identical entry, it systematically searches backward, identifying the largest value in the first column that does not exceed the provided lookup_value. For instance, if you are searching for the number 75 in a column containing the lower boundaries 0, 50, and 100, VLOOKUP will successfully locate the number 50. It chooses 50 because it is the largest boundary value that is still less than or equal to 75. Subsequently, the function returns the corresponding data from the column index you specify. This underlying principle is what permits robust range-based lookups, as the values in the lookup column effectively define the starting points or minimum thresholds of various tiers.

It is paramount to recognize the behavioral differences between TRUE and FALSE matching. If you utilize FALSE and the precise value is absent, VLOOKUP predictably returns an error (#N/A). Conversely, using TRUE virtually guarantees a result (provided the lookup value is greater than or equal to the lowest value in the lookup column), offering a resilient solution for data classification problems. However, this robustness comes with a vulnerability: if the data is incorrectly sorted when using TRUE, the function will almost certainly return a logically incorrect value without signaling an error, making data integrity checks essential for reliable range lookups in Google Sheets.

Deconstructing the VLOOKUP Syntax for Range Lookups

To successfully execute a range lookup, we must first attain complete mastery of the structure and requirements of the VLOOKUP function. While the structure is seemingly simple, each parameter plays a critical, nuanced role, particularly when approximate matching is involved. The foundational syntax remains:

VLOOKUP (lookup_value, table_array, col_index_num, [range_lookup])

Let us detail the precise purpose and requirement of each argument within the context of dynamic range analysis:

• lookup_value: This mandatory parameter represents the specific numeric data point you are attempting to categorize or find the corresponding value for (e.g., a student’s test score or an employee’s total annual revenue).
• table_array: This defines the entire block of cells where the lookup data resides. Critically, the first column of this array must contain the lower boundaries of your defined ranges (e.g., the minimum score required for a B grade). This column must be meticulously sorted in ascending order for the approximate match logic to function correctly.
• col_index_num: This mandatory integer specifies the column number within the table_array that holds the result you wish to retrieve (e.g., the letter grade, the tax rate, or the bonus percentage). The count always begins with the first column of the table_array being 1.
• range_lookup: This is the optional argument that determines the match type. Setting this explicitly to TRUE (or 1) activates the approximate match feature necessary for range-based lookups. Setting it to FALSE (or 0) demands an exact match, which is inappropriate for tiered analysis.

By explicitly setting the range_lookup argument to TRUE, we signal to Google Sheets that the objective is not to find a single, identical match, but rather to identify the appropriate tier or bracket that the lookup_value successfully enters. This robust structure is foundational for implementing dynamic, tier-based calculations across extensive datasets.

Practical Application: Setting Up the Tiered Dataset

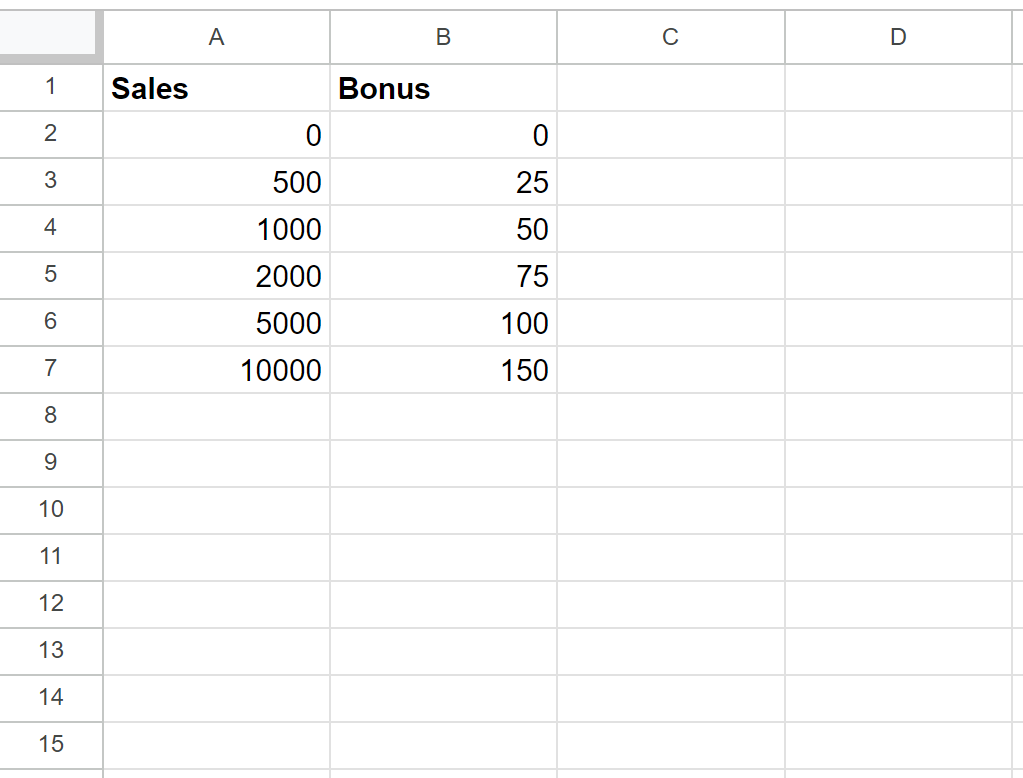

To provide a clear demonstration of the practical utility of VLOOKUP with an approximate match, consider a common business scenario: allocating employee bonuses based on tiered sales performance. Suppose we have established a dataset within Google Sheets that maps minimum sales achievement figures to corresponding bonus amounts, thereby establishing clear performance brackets:

This reference table defines the essential lower limit for entry into each respective bonus tier. It is absolutely crucial that the data in the “Sales” column (Column A) is correctly sorted from the least amount (0) to the greatest amount (5000). The interpretation of this structure defines the following logic:

• If an employee achieves sales starting from 0 up to (but not including) 500, they are allocated $0.
• If an employee achieves sales starting from 500 up to (but not including) 1,000, they earn $25.
• If an employee achieves sales starting from 1,000 up to (but not including) 2,000, they earn $50.
• This tiered logic continues until the highest level, where sales of 5,000 or more yield a maximum $200 bonus.

This meticulously structured dataset effectively serves as our table_array. If we were to utilize an exact match (FALSE), we would only successfully retrieve results for employees who achieved exactly 0, 500, 1000, 2000, 3500, or 5000 sales, rendering the function ineffective for the vast majority of sales figures. The approximate match feature is specifically engineered to handle the numerical gaps between these defined starting points, ensuring that every achieved sales figure, regardless of its specificity, is correctly assigned to the appropriate bonus tier.

Executing the Approximate Match Formula

We now proceed to apply the VLOOKUP function to calculate the bonus corresponding to a specific sales figure. Assume we wish to look up the sales value of 870, which is currently stored in cell E1, and retrieve the corresponding bonus from our established bonus structure table (A2:B7). Since 870 does not exist explicitly as a starting boundary in the sales column, the precise application of the approximate match is mandatory.

We enter the following formula into the target cell, E2, to execute the range lookup:

=VLOOKUP(E1, A2:B7, 2, TRUE)

In this construction, the parameters are utilized as follows:

• E1 is defined as the lookup_value, referencing the 870 sales figure.
• A2:B7 is the table_array, encompassing our entire bonus structure dataset.
• 2 is the col_index_num, directing the function to retrieve the result from the second column (the Bonus amount).
• TRUE explicitly instructs the function to perform an approximate match, enabling the range query.

The resulting calculation successfully determines the correct bonus amount. The following screenshot visually illustrates the formula in action, yielding the expected result of $25:

This implementation clearly demonstrates the power and efficiency of using TRUE for sophisticated range queries. The formula rapidly identifies the correct tier without necessitating the use of complex nested IF statements or other unwieldy conditional logic, showcasing the utility of the approximate match feature in dynamic reporting and analysis.

The Critical Role of Ascending Data Sorting

In the preceding scenario, the lookup_value was 870. Since 870 did not explicitly appear as a starting point in the Sales column, the VLOOKUP function leveraged its approximate matching capability. It systematically searched down the Sales column (Column A) until it isolated the largest boundary value that was still less than or equal to 870. The search successfully identified the value of 500.

Once 500 was confirmed as the correct lower boundary for the tier, the function proceeded to the specified column index (column 2, the Bonus column) and returned the corresponding value, which was 25. This process accurately and swiftly classifies 870 sales within the $25 bonus tier, which strictly covers all sales figures from 500 up to the tier below 1,000. This logic hinges entirely on the function’s ability to find the preceding threshold.

It is paramount to reiterate and emphasize the mandatory prerequisite for accurate approximate matching: the first column of the table_array must be sorted in strict ascending order. The internal mechanism of the approximate match relies on a highly optimized binary search algorithm. If the data is unsorted, this algorithm breaks down completely, causing VLOOKUP to return incorrect or entirely unpredictable results without generating a standard error message. This critical lack of an explicit error makes data sorting the single most vital step in ensuring the integrity and reliability of all your range lookups in Google Sheets. Always verify the sort order of the range boundaries before deploying the formula across any large dataset.

Key Caveats and Modern Alternatives

While the approximate match feature is highly effective for processing tiered data, users must adhere to specific best practices to successfully navigate common implementation pitfalls. Firstly, you must ensure that your lowest possible lookup_value has a corresponding entry in the first row of your lookup table. For example, in our bonus structure, if an employee could potentially have 0 sales, the table must absolutely start at 0. If the lookup table began at 500 and an employee’s sales figure was 300, VLOOKUP would return the #N/A error because 300 is less than the smallest value available in the defined range.

Secondly, although using TRUE is the traditional and robust method for range lookups, modern spreadsheet applications, including Google Sheets, now offer more flexible and powerful alternatives. Functions such as XLOOKUP, utilizing its advanced match modes, or a combination of INDEX and MATCH using the ‘less than’ match type (-1), often eliminate the strict requirement for ascending sorting or offer greater flexibility in lookup column placement. While these newer alternatives provide enhanced functionality, mastering the VLOOKUP method with TRUE remains a fundamental skill, particularly when handling legacy spreadsheets or working within environments that require simple, universally understood formulas.

Finally, always confirm that the range_lookup argument is explicitly included as TRUE (or 1), even though it is the default setting. Explicitly stating the argument improves the formula’s readability, clarifies the intent to perform a range search, and prevents potential logical errors should the spreadsheet environment or function defaults ever be modified. Consistent and intentional use of this argument guarantees that the function’s objective—to find the value that falls between a range—is always clear and executed correctly.
