Learning to Group Data by Age Range in Excel: A Step-by-Step Guide

The Necessity of Data Grouping for Effective Analysis

In the expansive realm of data analysis, professionals are constantly faced with the challenge of managing and interpreting continuous numerical variables, such as age, income, or time. When examining raw, granular data points, it often proves exceptionally difficult to isolate meaningful trends or discern overarching patterns that are crucial for strategic decision-making. This fundamental difficulty mandates the requirement to segment or group data based on specific, predefined ranges or intervals.

This process, often referred to as data binning, involves transforming a continuous numerical variable into a manageable categorical variable. This transformation is pivotal for generating summaries that are both digestible and actionable. For example, instead of attempting to analyze the scores of every individual age from 18 to 65 separately, grouping these individuals into defined cohorts (e.g., 20-29, 30-39) enables streamlined comparisons and significantly simplifies the interpretation of performance metrics across different demographic segments. This structured approach moves the focus from individual outliers to collective segment behavior.

Fortunately, Microsoft Excel provides a powerful and surprisingly intuitive mechanism to accomplish this task: utilizing the sophisticated grouping functionality embedded directly within the Pivot table feature. This technique not only organizes the raw data efficiently but also instantaneously calculates aggregate statistics—such as sums, averages, or counts—for each newly defined age cohort. This immediate aggregation provides immediate, insightful clarity into the distribution and overall performance metrics of the population under study, circumventing the need for complex formulas or external tools.

The following comprehensive example will systematically demonstrate how to leverage this built-in Excel capability. We will transform a simple list of individual ages into a summarized Pivot table that groups basketball players based on predefined age intervals, culminating in a clear, comparative visual summary similar to the one illustrated below:

Setting Up the Initial Data and Pivot Table Structure

To fully grasp the mechanics of age grouping, we must establish a practical foundation using a relevant statistical dataset. Imagine we possess detailed data compiled on a group of professional basketball players, recording their exact age and the total points scored throughout a recent season. This foundational data allows us to conduct a preliminary investigation into the potential relationship between a player’s age and their scoring productivity.

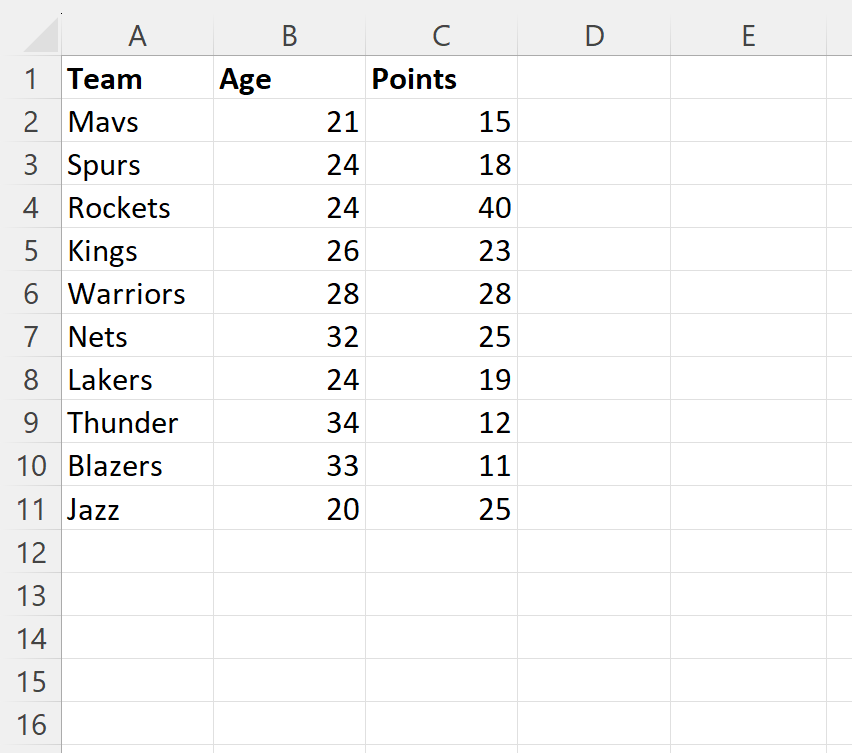

Our initial, raw dataset is structured with three essential columns: Player identification, Age (the continuous variable we intend to group), and Points scored (the metric we wish to aggregate). The primary analytical objective here is to determine the collective scoring output for players contained within specific, five-year age brackets. This structure enables a direct comparison of the overall productivity between younger athletes and their more veteran counterparts. The initial layout of the source data is presented below, ready for transformation:

For the purposes of this demonstration, we aim to calculate the aggregated sum of points scored across three distinct and crucial age categories. These target groups are specifically chosen to provide a high-level overview of performance across key developmental and career stages:

• 20-24 years old
• 25-29 years old
• 30-34 years old

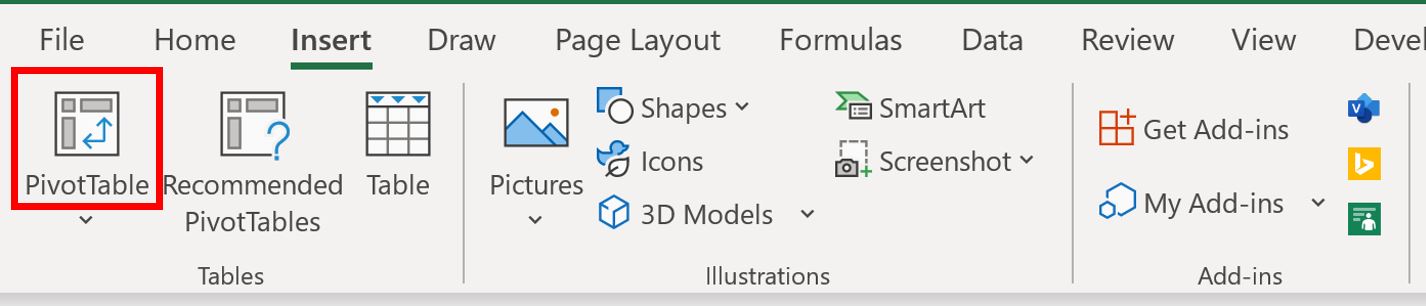

The crucial first procedural step involves the creation of the Pivot table itself. To begin, highlight the entire source data range, which in this context spans cells A1 through C11. Once the data selection is confirmed, navigate to the Insert tab located on the top ribbon interface of Excel. Within this tab, locate and click the dedicated PivotTable icon. This action launches the configuration wizard necessary to define the initial parameters of the table.

Configuring Pivot Table Fields for Numerical Grouping

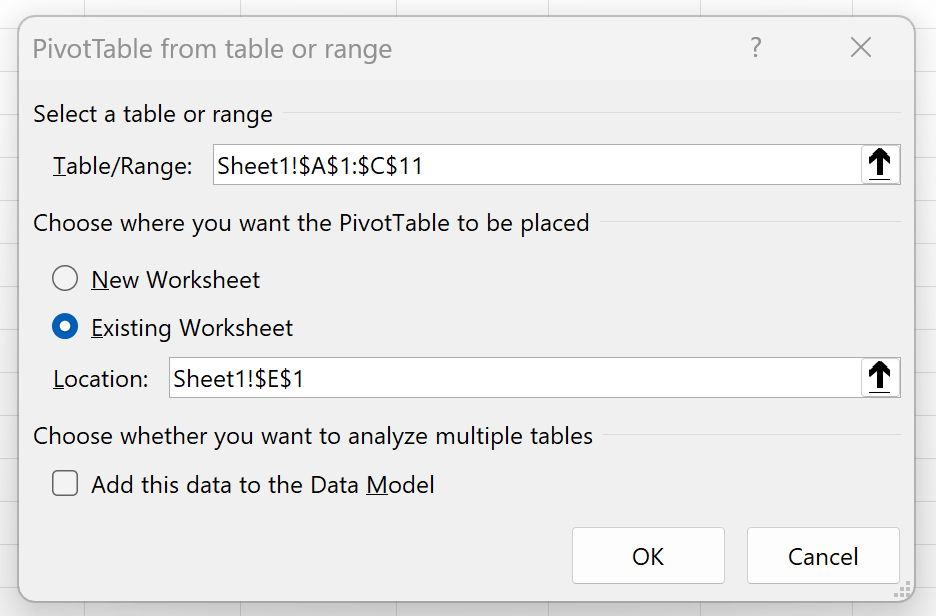

Immediately after clicking the PivotTable icon, a configuration dialog box will prompt the user to specify the placement of the resulting report. For optimal workflow and immediate visibility alongside the source data, we select the option to place the pivot table within the Existing Worksheet. We define cell E1 as the top-left corner destination for the report. Clicking OK confirms this selection and generates a blank pivot table canvas, which is now prepared for the strategic placement of the analytical fields.

With the canvas successfully established, our attention must shift to the PivotTable Fields pane, which typically appears docked on the right side of the screen. To structure the table for age-based aggregation, the following mandatory fields must be dragged into their respective areas:

1. The Age field must be dragged into the Rows box. This action establishes Age as the primary variable that will be grouped and used as the vertical axis of the final report.
2. The Points field must be dragged into the Values box. By default, Excel correctly defaults this field to calculate the Sum of Points, which perfectly aligns with our objective of aggregating total performance metrics per age bracket.

This initial field placement results in a preliminary Pivot table that lists every unique age present in the statistical dataset individually. Adjacent to each age, the corresponding sum of points scored by players of that exact age is displayed. This critical intermediary step serves to confirm that the source data has been correctly mapped and aggregated before the final grouping procedure is executed.

The resulting preliminary pivot table will clearly display the raw, ungrouped sums, confirming that individual data points are correctly linked to their totals:

Executing the Group Function for Defining Age Bins

The true power of the Pivot table for advanced data analysis is unlocked through its robust ability to quickly consolidate categories. To transform the current list of individual age entries into meaningful, manageable age ranges, we must activate the specific numerical Group function. This step is the most critical technical maneuver in the entire process, defining the structure of our final reporting cohorts.

To initiate the grouping dialog box, simply right-click directly on any numeric value within the first column of the pivot table—this is the column currently containing the individual Age entries. From the context menu that appears, select the dedicated Group option. This command instantly signals Excel that the user intends to define customized intervals for the selected numerical data, opening the necessary configuration window.

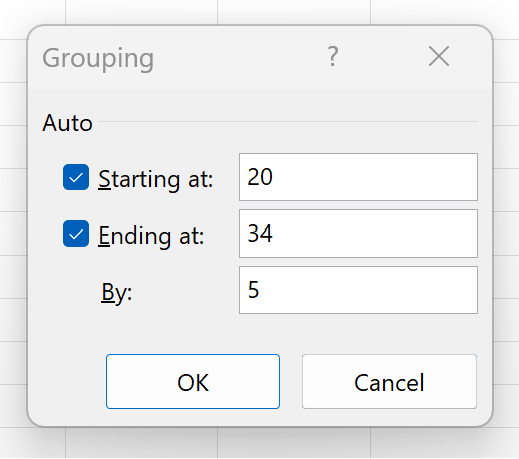

The subsequent Grouping window prompts the user to precisely define the parameters for the desired bins. This dialog requires the input of three specific values related to the extent and granularity of the data grouping:

1. Starting at: This defines the absolute lowest numerical boundary for the very first group. Based on our statistical dataset and target cohorts, we manually input the value 20.
2. Ending at: This sets the highest numerical boundary for the final group to be included in the analysis. In this scenario, the highest age we wish to analyze in a grouped format is 34.
3. By: This determines the interval size or the precise width of each bin. Since our objective is to create five-year age groups (20-24, 25-29, 30-34), we input the value 5.

It is paramount to verify that the “Starting at” and “Ending at” values comprehensively encompass all relevant data points within the source. While Excel often auto-populates these fields based on the minimum and maximum values found in the source statistical dataset, they should always be manually adjusted to align perfectly with specific analytical requirements or reporting standards. For this demonstration, we confirm 20 for Starting at, 34 for Ending at, and 5 for By:

Once these parameters are correctly established and the OK button is pressed, Excel instantaneously applies the grouping logic. The individual age entries in the first column of the pivot table are automatically replaced by the newly defined age ranges, resulting in a clean, highly summarized view of the data distribution.

Interpreting the Grouped Results and Deriving Insights

The transformation delivered by the grouping function is both instantaneous and profoundly impactful. The age values in the first column are now successfully consolidated into the specified five-year age ranges, and the corresponding “Sum of Points” values are meticulously re-calculated to reflect the aggregate score for all players falling within that precise bracket. This final, grouped Pivot table represents the desired output for our quantitative data analysis:

By reviewing this summarized Pivot table, we can immediately extract meaningful and comparative conclusions regarding scoring performance across the different age demographics. This structured presentation facilitates rapid comparative analysis and insight generation:

• The combined sum of points scored by players between the ages of 20 and 24 is calculated to be 117. This cohort demonstrates the highest aggregated scoring output within our sample.
• The sum of points scored by players falling into the middle 25-29 age bracket is 51.
• Finally, the sum of points scored by players in the oldest group, between the ages of 30 and 34, is 48.

These definitive results offer a profound insight into the statistical dataset, strongly suggesting that, for this particular group of athletes, the youngest cohort (20-24) contributes the vast majority of the total score. This high-level summary is substantially more useful for strategic decision-making—such as roster optimization, performance assessment, or resource allocation—than reviewing the raw, ungrouped scores for each individual age, which would obscure these macro-level trends.

Advanced Considerations and Alternative Summary Metrics

While this specific example focused on calculating the sum of points, it is critical to recognize the expansive versatility inherent in the Pivot table environment. The fundamental grouping methodology remains entirely consistent regardless of the summary metric chosen, allowing analysts to seamlessly switch metrics based on their specific analytical needs. The Values field can be easily modified to calculate alternative statistics, thereby providing a much richer, multi-dimensional perspective on the data distribution.

For instance, instead of relying solely on the sum, an analyst might choose to calculate alternative metrics to better understand the cohort behavior:

• Average: Determining the mean points scored per player within each age group, which provides a robust measure of central tendency and relative efficiency.
• Count: Calculating the total number of players within each age group, useful for accurately gauging the size, representation, and statistical significance of each cohort.
• Maximum/Minimum: Identifying the single highest or lowest individual score achieved within each defined age range, useful for spotting extreme performance metrics.

To change the summary metric, the user simply needs to right-click on the values column in the Pivot table, select Value Field Settings, and then choose the desired aggregation function (e.g., Average, Count, Max). This flexibility ensures that the age grouping functionality is broadly applicable across virtually all quantitative data analysis tasks performed in Excel.

Furthermore, the interval size chosen using the By parameter (which was 5 in our example) can be finely adjusted to generate different levels of granularity. A smaller interval (e.g., 2 years) will offer a highly detailed, localized view of the data, whereas a larger interval (e.g., 10 years) provides a broader, more generalized summary. The selection of the optimal interval size is entirely dependent on the dispersion characteristics of the source data and the specific, overarching questions the data analysis is designed to address.

Conclusion and Further Resources

The necessary step of grouping continuous numerical data, particularly demographic variables like age, is often mandatory for achieving meaningful data analysis and generating impactful visualizations. The integrated Group function housed within Excel’s powerful Pivot table feature provides an intuitive, robust, and highly efficient mechanism for executing this essential data transformation.

By diligently following the outlined procedural steps—from the initial setup of the raw statistical dataset to the precise definition of the grouping parameters—users can quickly and reliably convert granular individual information into structured, insightful cohorts. This transformation ultimately enables superior data interpretation, streamlined reporting, and more accurate comparative analysis across segments.

The mastery of this specific Excel technique is exceptionally invaluable for anyone involved in statistical reporting, demographic studies, market segmentation, or performance evaluation where continuous variables such as age, income, or time durations need to be consistently categorized into predefined bins for clarity and comparison.
