Learning to Hide Axes in Matplotlib: A Step-by-Step Guide

When developing sophisticated data visualizations using the Matplotlib library in Python, data scientists frequently encounter scenarios where the standard scaling elements—specifically the axis lines, ticks, and labels—must be removed or suppressed. This necessity arises when creating highly specialized plots, such as complex embeddings, heatmaps designed for annotation, or visualizations intended for immediate integration into larger graphical interfaces where context is provided externally. Removing the axes shifts the visual focus entirely onto the data points and patterns themselves, enhancing the aesthetic appeal and reducing visual clutter.

This comprehensive guide is tailored for developers and analysts seeking precise control over plot components. We will meticulously break down the various techniques available within the pyplot module of Matplotlib for generating clean, axis-free plots. Our discussion will cover the foundational syntax used to target specific components, demonstrate practical step-by-step examples for concealing individual axes, and introduce a powerful shortcut for stripping away all contextual framing instantly. Mastering these methods ensures your visualizations are perfectly optimized for their intended use case.

The Fundamental Syntax for Hiding Axes

To exert granular control over the visibility of plot elements—including the ticks, labels, and the surrounding spine—we must interact directly with the plot’s underlying Axes object. This object represents the drawing area of the plot. The initial and most critical step involves retrieving the current Axes instance. In Matplotlib, this is typically accomplished using the plt.gca() function, which stands for “Get Current Axes.” Once retrieved, this object grants access to specific methods for modifying the X and Y dimensions.

The core function utilized for toggling component visibility is set_visible(). This method accepts a simple boolean parameter: passing False instructs the rendering engine of Matplotlib to completely suppress the drawing of the specified axis components, including all related tick marks and labels. Conversely, passing True ensures they are displayed. This mechanism provides precise programmatic control over the appearance of the plot’s scale indicators.

The standard syntax below outlines the necessary steps to acquire the Axes object and subsequently target and hide both the X-axis and the Y-axis simultaneously using their respective getter methods and the visibility toggle. This serves as the blueprint for the more specific examples that follow, focusing on eliminating clutter from the visualization frame.

import matplotlib.pyplot as plt

#get current axes
ax = plt.gca()

#hide x-axis
ax.get_xaxis().set_visible(False)

#hide y-axis
ax.get_yaxis().set_visible(False)

For the purposes of clear demonstration, the following sections apply this methodology within the context of generating a basic two-dimensional scatterplot, allowing us to observe the immediate visual impact of axis removal.

Example 1: Concealing the X-Axis Only

There are specific analytical situations where maintaining the vertical scale (Y-axis) is essential for interpreting magnitude, but the horizontal scale (X-axis) is either purely relative, categorical, or simply irrelevant to the key message of the visualization. In such cases, selectively hiding only the X-axis provides an optimal balance between clarity and necessary context. This process involves retrieving the specific X-axis object using ax.get_xaxis() and subsequently invoking set_visible(False) solely upon that object.

This approach is particularly valuable when plotting data where sequential order matters, but the absolute numerical value of the index or category on the horizontal plane does not need to be explicitly labeled. By removing the horizontal clutter, the viewer’s attention is immediately drawn to the vertical fluctuations in the data.

The Python script below illustrates how to generate a standard data visualization—a two-dimensional scatterplot—and then ensure that the horizontal axis, encompassing its major and minor tick marks, labels, and spine, is entirely suppressed from the final rendered output. Notice how the Y-axis remains fully intact, providing the vertical scaling reference.

import matplotlib.pyplot as plt

#define data
x = [3, 4, 4, 6, 7, 8, 8, 12]
y = [11, 12, 12, 14, 17, 15, 14, 19]

#create scatterplot
plt.scatter(x, y)

#get current axes
ax = plt.gca()

#hide x-axis
ax.get_xaxis().set_visible(False)

Example 2: Concealing the Y-Axis Only

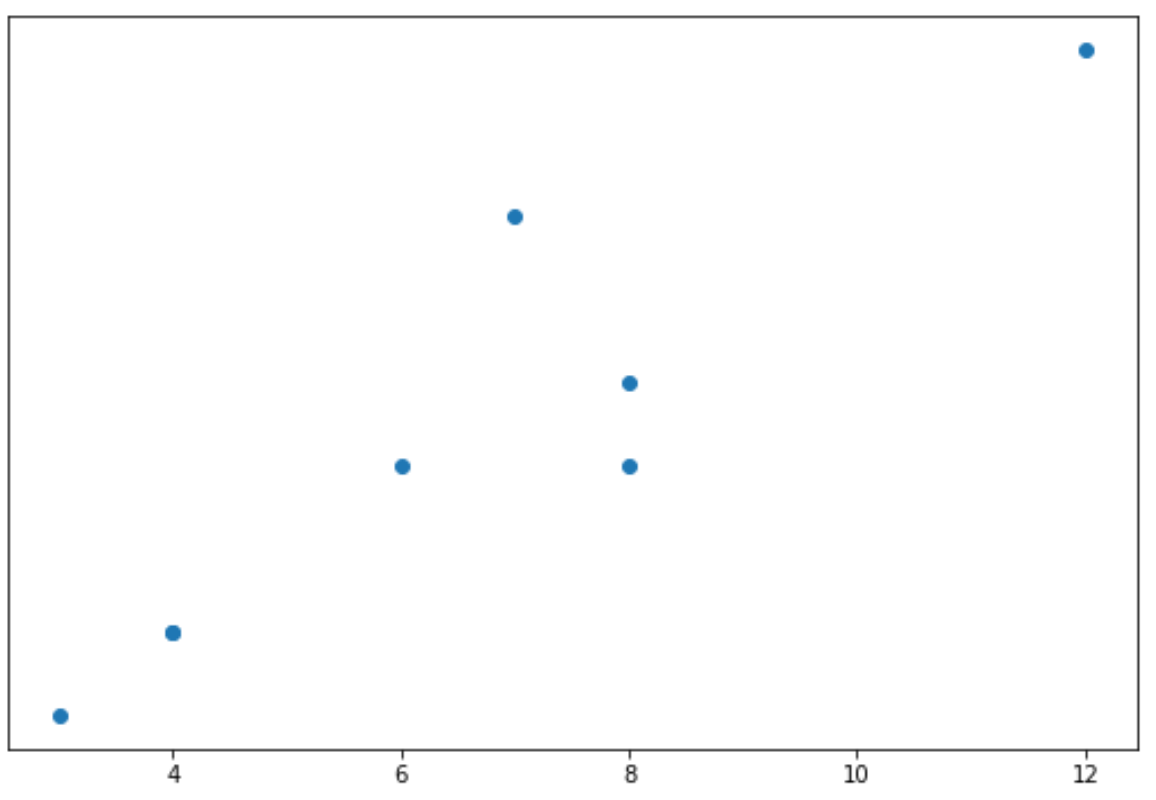

The inverse requirement often arises, particularly in visualizations like time-series graphs or certain distribution plots, where the horizontal progression (X-axis) is paramount, but the absolute magnitude represented by the vertical scale (Y-axis) is less critical or is provided through direct annotation on the data points themselves. In these scenarios, we must retain the X-axis information while systematically removing the vertical scaling components.

Achieving this requires focusing the visibility manipulation specifically on the Y-axis object. We simply substitute the get_xaxis() method used previously with get_yaxis(), ensuring that set_visible(False) is applied correctly to the vertical dimension. This method effectively cleans up the left and right sides of the plot area without sacrificing the primary directional context.

The following code snippet demonstrates this modification. By running this script, the generated scatterplot will maintain its horizontal context, allowing the viewer to track progression along the X-axis, while the vertical axis ticks and labels are completely suppressed, leading to a cleaner, horizontally-focused visualization.

import matplotlib.pyplot as plt

#define data
x = [3, 4, 4, 6, 7, 8, 8, 12]
y = [11, 12, 12, 14, 17, 15, 14, 19]

#create scatterplot
plt.scatter(x, y)

#get current axes
ax = plt.gca()

#hide y-axis
ax.get_yaxis().set_visible(False)

Example 3: Hiding Both X and Y Axes

To achieve the most minimalist aesthetic possible, or when preparing a visualization for integration into a highly annotated or contextualized composite figure, removing both the horizontal and vertical Axes is necessary. This approach eliminates all tick marks, labels, and scaling information, leaving only the raw data points rendered within the plot area. This is often the preferred choice for displaying spatial clusters, data density maps, or visualizations where the relative position of elements is the primary focus, rather than their absolute coordinates.

The implementation requires combining the techniques demonstrated in the previous two examples. We must apply the set_visible(False) method sequentially to both the X-axis object and the Y-axis object within the same script block. Although slightly more verbose than the shortcut method (discussed next), this dual-application method still retains control over other potential plot components, such as the plot frame or boundary box, which may be desired for structural reasons.

The complete script below demonstrates this dual removal process using our standard dataset. Observe the resulting output image, which presents the data points within an unframed container, offering a truly clean slate for subsequent annotation or embedding. This result is particularly effective when visualizing relative distributions in a scatterplot.

import matplotlib.pyplot as plt

#define data
x = [3, 4, 4, 6, 7, 8, 8, 12]
y = [11, 12, 12, 14, 17, 15, 14, 19]

#create scatterplot
plt.scatter(x, y)

#get current axes
ax = plt.gca()

#hide x-axis
ax.get_xaxis().set_visible(False)

#hide y-axis
ax.get_yaxis().set_visible(False)

Example 4: Quick Removal of Axes and Borders (The ‘Off’ Switch)

While utilizing methods like get_xaxis().set_visible(False) provides fine-grained control over individual Axes components, Matplotlib also offers a highly efficient, high-level function designed for rapid, complete removal of all standard contextual elements. This function is plt.axis('off'), and it acts as a powerful shortcut for achieving a pure, data-only visualization.

The primary advantage of plt.axis('off') is its conciseness and speed. In a single line of code, it strips away the axes, all associated tick marks and labels, and importantly, the entire surrounding plot frame or border (the spine). This makes it the ideal command for visualizations that are intended to be saved as image files or embedded directly into documents without any reliance on external scaling references or framing.

The script below applies this powerful command immediately after the data is plotted. Contrast the brevity of this solution with the multiple lines required in Example 3. This function is the fastest and simplest way to generate a totally minimalist graphical output using the Matplotlib library when absolute framing removal is the goal.

import matplotlib.pyplot as plt

#define data
x = [3, 4, 4, 6, 7, 8, 8, 12]
y = [11, 12, 12, 14, 17, 15, 14, 19]

#create scatterplot
plt.scatter(x, y)

#get current axes
ax = plt.gca()

#hide axes and borders
plt.axis('off')

Summary of Techniques for Axis Control

The choice of method for removing axes in Matplotlib should be dictated by the required level of control and the specific visual goals of the project. For developers who need the flexibility to selectively hide one axis while retaining the plot frame or the other axis, the object-oriented approach utilizing get_xaxis() or get_yaxis() followed by set_visible(False) is highly recommended. This allows for nuanced control over the visualization’s presentation.

Conversely, when the objective is rapid visualization generation and the creation of a completely unframed plot—perhaps for use as a mask, texture, or embedded graphic—the simple plt.axis('off') command offers unparalleled brevity and efficiency. This function ensures that no contextual elements interfere with the visual data display.

Understanding these distinctions is crucial for effective data presentation. Here is a concise recap of the core strategies for manipulating Axes visibility:

• The current drawing area, the Axes object, must first be accessed using plt.gca() before any visibility modifications can be applied.

• To control the X or Y axis independently, use the axis-specific getter methods (get_xaxis() or get_yaxis()) and set the visibility attribute to False.

• For a swift, comprehensive removal of all axes, ticks, labels, and the surrounding plot border, employ the high-level shortcut plt.axis('off').

Additional Resources and Further Reading

For more advanced topics on configuring, styling, and customizing Matplotlib visualizations, including detailed documentation on controlling spines, ticks, and layouts, we highly recommend consulting the official Matplotlib documentation. These resources provide in-depth information necessary for creating publication-quality graphics.

We encourage readers to experiment with these techniques to determine which method best serves their specific data visualization needs.
