Highlight Cells in VBA (With Examples)

Elevating Data Visualization: Mastering Cell Highlighting with VBA

In the intensive environment of data management and financial modeling within Microsoft Excel, the ability to instantly draw a user’s eye to critical data points is paramount for effective analysis. Highlighting cells is not merely an aesthetic choice; it is a fundamental tool used for identifying outliers, monitoring key performance indicators, tracking specific phases of a project, or simply improving the overall readability and comprehension of complex spreadsheets. While Excel provides robust native functionality, such as Conditional Formatting, these built-in tools often fall short when dealing with highly specific, automated, or criteria-driven scenarios that require deep programmatic control.

For developers and advanced users seeking ultimate flexibility and automation, VBA (Visual Basic for Applications) is the indispensable solution. VBA allows you to bypass the limitations of the standard user interface, granting you the power to manipulate cell properties, including their background color, based on virtually any logical criteria. By integrating highlighting into your custom code, you can ensure that your spreadsheets are not only functional but also visually dynamic and self-updating.

This comprehensive tutorial is designed to guide you through the process of harnessing VBA to programmatically manage cell formatting. We will meticulously examine three core methods, progressing from the simplest technique—targeting the single selected cell—to highly sophisticated conditional looping across vast data ranges. Each method is supported by clear explanations and practical, ready-to-implement macro examples. By the end of this guide, you will possess the knowledge to significantly enhance your data visualization skills and streamline complex reporting processes in Excel.

Method 1: Applying Color to the Active Cell

One of the most straightforward and frequently required highlighting tasks involves focusing on the cell currently selected by the user. This approach is essential when providing immediate visual confirmation or feedback following a user action, such as data entry or button clicks within a dashboard. The ActiveCell object in VBA acts as a direct reference to the single, currently focused cell within the active worksheet, regardless of its position or contents.

To change the appearance of the ActiveCell, we must access its properties related to formatting. This is achieved by manipulating the Interior property, which controls the background fill of the cell. Specifically, the Interior.Color sub-property allows you to specify the exact color you wish to apply. For ease of use and standardization, VBA offers predefined color constants, such as vbYellow, eliminating the need to look up or manually define RGB color codes for common shades.

The following macro demonstrates this technique. When executed, the code instantly modifies the background of the cell currently holding the cursor, applying a noticeable visual distinction. This simple technique forms the foundation for more complex programmatic formatting and is crucial for creating intuitive user interactions within your Excel applications.

Sub HighlightActiveCell()
ActiveCell.Interior.Color = vbYellow
End Sub

Method 2: Formatting a Fixed Range of Cells

In many reporting or data processing tasks, the requirement is to highlight an entire contiguous section of the worksheet, rather than just a single cell. This block of cells is known as a Range. Highlighting a specific Range is particularly useful for visually segmenting datasets, marking input areas, or emphasizing the output of a calculation that resides in a known location. This method offers programmatic precision, ensuring that the desired area is formatted consistently every time the macro is run, regardless of the user’s current selection.

To manipulate a collection of cells, VBA relies on the powerful Range object. You define this object using standard Excel A1 notation (e.g., “A1”, “C2:D15”, or even named ranges). Once the target Range has been successfully referenced, the process for applying the highlight remains consistent with Method 1: you access the Interior property and set its Color sub-property. The key distinction here is that the formatting is applied simultaneously to every cell contained within the specified boundary.

The following macro illustrates how to target and highlight a predetermined block of cells—in this case, the Range B2:B10—using a yellow background. This technique is highly efficient for applying uniform visual emphasis to fixed tables or columns, thereby improving the clarity and professional presentation of your spreadsheet data.

Sub HighlightRange()
Range("B2:B10").Interior.Color = vbYellow
End Sub

Method 3: Conditional Highlighting Based on Dynamic Criteria

The true power of programmatic formatting is realized when we move beyond static references and implement dynamic highlighting based on the actual content of the cells. This method is fundamental for sophisticated data analysis, allowing you to instantly visualize which data points satisfy specific business rules, performance thresholds, or validation requirements. Unlike Excel’s native Conditional Formatting, a VBA solution gives you complete control over complex conditions and formatting interactions across multiple sheets or workbooks.

To achieve this level of intelligence, we rely on iterative looping structures. The For Each…Next loop is utilized to systematically visit every single cell within a defined Range. Inside this loop, a decision structure, typically an If…Then…End If statement, evaluates whether the cell’s value or properties meet the specified criteria. Only if the condition evaluates to true is the cell’s Interior.Color modified. This granular, cell-by-cell evaluation is what makes this technique so flexible and powerful for complex data sets.

The following macro provides a practical example of conditional highlighting. It iterates through cells in the Range B2:B10, applying a yellow highlight exclusively to those cells whose numerical value exceeds 20. This ability to automatically flag data based on numerical or textual conditions is indispensable for tasks like identifying inventory shortages, high expense items, or successful sales leads, transforming raw data into instantly actionable visual information.

Sub HighlightRangeBasedOnCriteria()

  Dim rng As Range

  For Each rng In Range("B2:B10")

      If rng.Value > 20 Then
        rng.Interior.Color = vbYellow
      End If

  Next rng

End Sub

Practical Demonstrations with a Sample Dataset

To transition these theoretical concepts into concrete, functional skills, we will now apply each of the three VBA methods using a consistent, easily replicable dataset. These practical steps will clarify the implementation process and provide visual evidence of the expected results when integrating these macros into your own Excel environment.

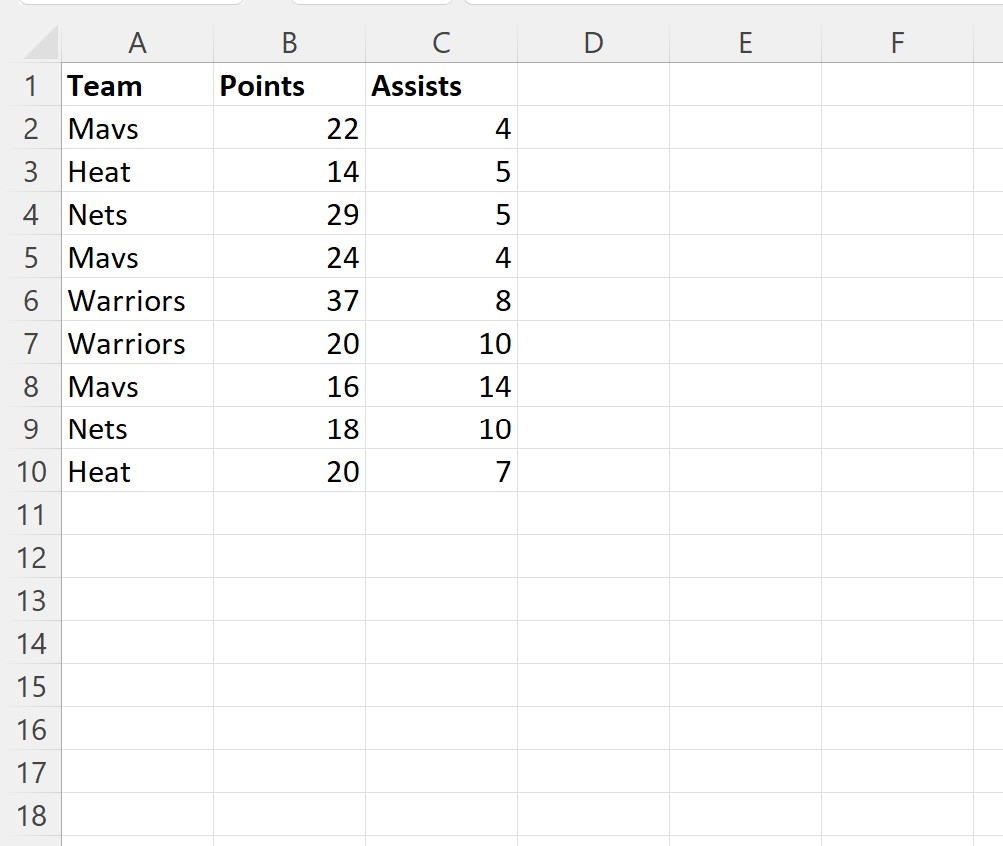

For all subsequent examples, we will use the following standard dataset. It contains a column of numerical values, which is necessary for testing both the specific range highlighting and the conditional criteria analysis. Please ensure you have a similar structure in your practice workbook to follow along accurately.

Example 1: Highlighting the Active Cell in Practice

For this initial test, assume that a user has clicked on cell B3, making it the currently selected cell. Our objective is to execute the first macro to confirm that it successfully targets and highlights only this specific, active location. This scenario simulates providing immediate, context-aware visual feedback to the user.

First, select cell B3 in your worksheet. Then, execute the following macro, which leverages the ActiveCell object to apply the yellow fill color.

Sub HighlightActiveCell()
ActiveCell.Interior.Color = vbYellow
End Sub

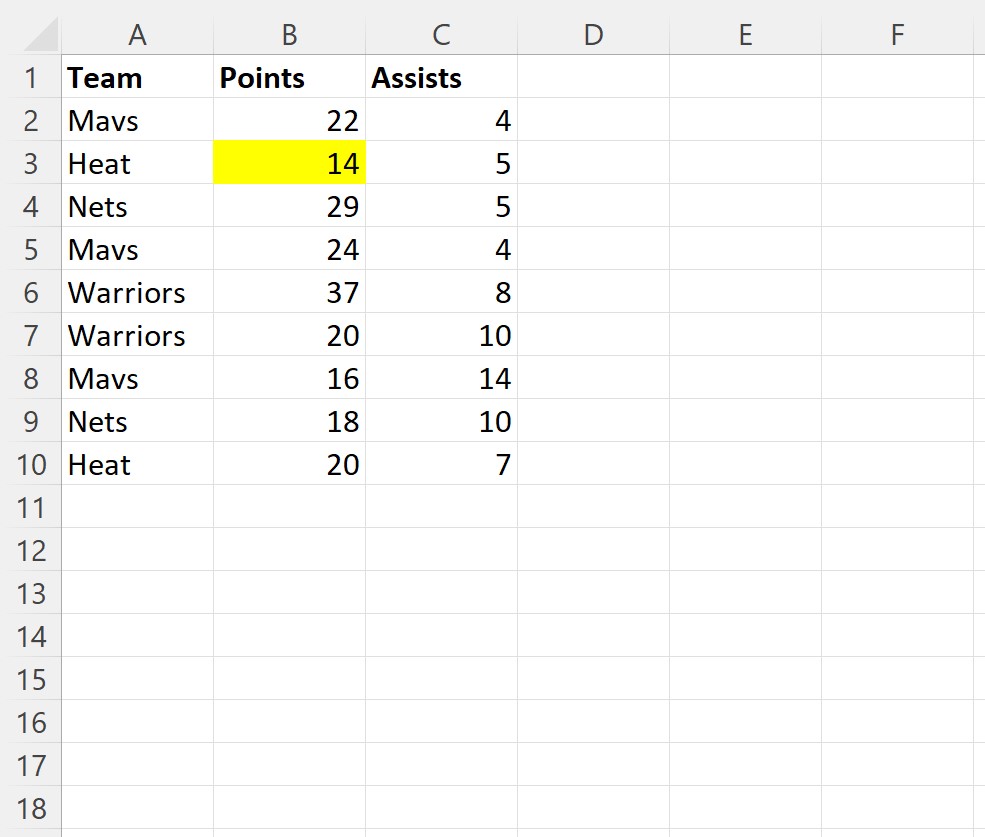

The resulting output confirms that the ActiveCell method operates with precision, coloring only cell B3 while leaving the remainder of the dataset untouched. This is the simplest form of programmatic highlighting and is essential for direct user interaction scripting.

Example 2: Highlighting a Specific Range in Practice

Our second demonstration focuses on applying a uniform highlight across a defined block of data. We will target the entire numerical column from B2 to B10. This is beneficial for visually separating a data column from surrounding information or preparing a specific output section for printing. Importantly, this macro executes independently of which cell is currently selected.

Ensure the following macro code is available in your VBA module. Execute the routine to apply the formatting to the predefined Range.

Sub HighlightRange()
Range("B2:B10").Interior.Color = vbYellow
End Sub

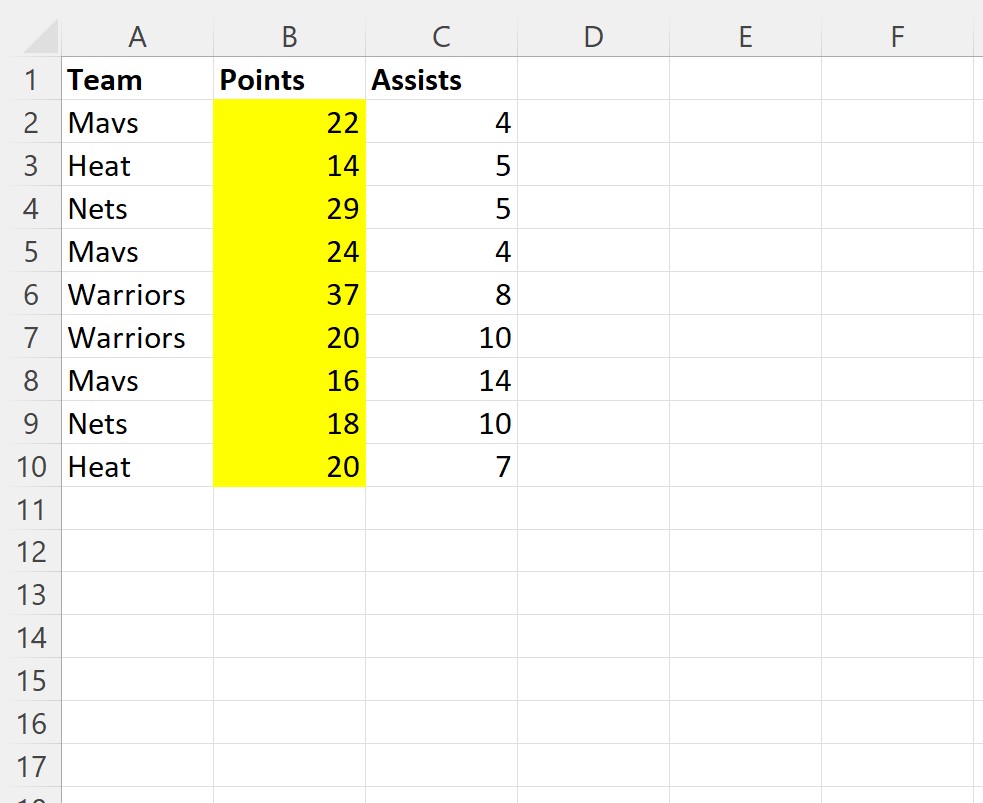

As shown in the image below, every cell from B2 through B10 receives the yellow highlight. This confirms the efficiency of using the Range object to apply bulk formatting to a fixed block of data, offering a quick method for visual data segmentation.

Example 3: Conditional Highlighting in Practice

The final and most powerful demonstration involves conditional logic. Our goal is to highlight only those values within the Range B2:B10 that are numerically greater than 20. This is the methodology you would use to flag performance metrics, identify anomalies, or visualize data spikes.

Execute the following conditional macro. This routine utilizes the For Each…Next loop and the If…Then…End If statement to evaluate each cell individually before applying the formatting.

Sub HighlightRangeBasedOnCriteria()

  Dim rng As Range

  For Each rng In Range("B2:B10")

      If rng.Value > 20 Then
        rng.Interior.Color = vbYellow
      End If

  Next rng

End Sub

The resulting image clearly shows the selective application of color. Only the cells containing the numbers 25, 30, and 35 (which are greater than 20) have been highlighted. The remaining cells, including those equal to 20, are unchanged. This precision illustrates the analytical capability of conditional highlighting using VBA.

Advanced Considerations and Best Practices

While the fundamental methods covered provide a solid foundation, developing professional-grade macros requires addressing advanced topics like performance optimization and format management. A critical best practice is ensuring that old highlights are removed before new ones are applied. Accumulated formatting can quickly lead to confusing visual clutter. To clear previous fills, you can set the target cell or Range’s Interior.Color property to the constant value `xlNone`. This ensures that every time your highlighting routine runs, the slate is wiped clean, providing the user with fresh, accurate visual cues.

When dealing with large worksheets or extensive conditional highlighting loops, performance can become a significant bottleneck. Repeatedly updating the screen as the macro executes dramatically slows down execution speed. To mitigate this, expert VBA developers temporarily disable screen updating and event handling at the beginning of the code using `Application.ScreenUpdating = False` and `Application.EnableEvents = False`. These properties should always be reset to `True` just before the macro finishes, ensuring a smooth and rapid execution experience, even for complex, automated formatting jobs.

Furthermore, integrating robust error handling and user flexibility enhances the quality of your code. Instead of hardcoding the ranges or criteria, consider using features like the Range object’s `InputBox` method to dynamically prompt the user to select the area they wish to format. For stability, always wrap your critical code segments within an error trap using `On Error GoTo ErrorHandler`. This ensures that if an unexpected issue arises (such as a user canceling an input prompt or selecting an invalid range), the application gracefully exits the macro without crashing, and crucial settings like `ScreenUpdating` are restored.

Conclusion and Further Exploration

We have systematically demonstrated the three core methodologies for highlighting cells using VBA: targeting the ActiveCell, applying formatting to a static Range, and implementing powerful conditional criteria using iteration and logic structures. You are now equipped with the knowledge to leverage the Interior.Color property, master the For Each…Next loop, and utilize If…Then…End If statements to control the visual flow of your data.

The capacity to programmatically manage cell visualization is a cornerstone of advanced Excel development. By automating these visual distinctions, you are not just making your spreadsheets look better; you are making them fundamentally more intuitive, easier for users to interpret, and highly effective at conveying time-sensitive or critical information. We strongly encourage you to take these foundational macros and adapt them: try different color constants (like `vbGreen` or `vbRed`), change the comparison operators (e.g., less than, equals), and integrate them into larger reporting procedures.

Mastering these VBA techniques will substantially improve your current data workflows and unlock the potential for creating highly specialized, automated solutions that go far beyond standard Excel functionality. Continuous practice and experimentation are key to becoming proficient in this indispensable programming environment.
