Learn How to Highlight the Highest Value in Google Sheets

Introduction to Highlighting Extreme Data in Google Sheets

In the demanding field of data analysis, the ability to effectively visualize and interpret key metrics within a spreadsheet is indispensable. Whether you are tracking sales performance, analyzing scientific results, or monitoring competitive scores, quickly identifying outliers and peak values—such as the single highest figure in a specific range—is paramount for drawing swift and accurate conclusions. Static data tables often obscure these crucial insights, necessitating dynamic visual aids to bring attention to critical information.

Google Sheets provides a sophisticated suite of tools to address this challenge, primarily through its powerful Conditional formatting capability. By leveraging conditional formatting combined with a custom formula, users can establish dynamic rules that automatically apply specific visual styles to cells based on complex criteria, rather than simple fixed values. This technique transforms raw data into an insightful, interactive report.

This comprehensive guide is designed to walk you through the precise methodology required to highlight the absolute highest value within a chosen column or data range in Google Sheets. We will meticulously examine the underlying technical logic, explain the function components necessary for dynamic calculations, and provide practical steps for implementation. Mastering this skill not only aids in immediate data interpretation but also establishes a foundational understanding for tackling more complex data visualization and reporting tasks within the Google Sheets ecosystem.

The Core Mechanism: Understanding the MAX Function

Before we delve into the setup of the conditional formatting rule, it is essential to establish a firm understanding of the MAX function. The MAX function is a fundamental statistical component in Google Sheets, specifically engineered to calculate and return the largest numerical value present within a designated dataset or range of cells. Its syntax is remarkably simple and intuitive: =MAX(value1, [value2, ...]). For practical spreadsheet application, this usually translates to referencing an entire range, such as =MAX(A1:A100).

For example, if you are analyzing the monthly revenue figures spanning cells C5 through C35, executing the formula =MAX(C5:C35) immediately isolates the highest revenue figure achieved during that period. The versatility of the MAX function lies in its capacity to seamlessly process various inputs, including discrete numbers, individual cell references, or large, continuous ranges. This function is not just a calculation tool; it becomes the standard against which every cell in our conditional formatting range is dynamically compared.

The crucial power of the MAX function, particularly in the context of automated highlighting, is its innate dynamic ability. Unlike a manually identified highest number, the MAX function automatically recalculates the maximum value the moment any number within the defined range changes. This automatic recalculation is what ensures that our conditional formatting rule remains perpetually effective and accurate, eliminating the need for constant manual updates. By building our highlighting logic around this dynamic function, we guarantee that the visual emphasis always points to the true maximum value, regardless of underlying data volatility.

Step-by-Step Implementation: Highlighting the Highest Value

To solidify this concept, let us work through a concrete, practical scenario. Suppose we are managing a spreadsheet that tracks performance metrics—specifically, ‘Points’—for several different entries. Our primary goal is to visually accentuate the entry that achieved the maximum number of points, thereby immediately identifying the top performer.

We will use the following sample dataset as our working model. Our focus will be on the values contained within the ‘Points’ column:

Our specific objective is to apply a visual highlight to the cell containing the highest score within the Points column (Column B). Carefully execute the following steps to implement this dynamic highlighting solution:

1. Define and Select Your Data Range: The initial and most critical step is to accurately select the cells to which the conditional formatting rule must be applied. In the context of our example, this selection encompasses the numeric values in the Points column, specifically the range B2:B11. This action tells Google Sheets exactly which cells must be evaluated against the logic of your forthcoming custom rule.

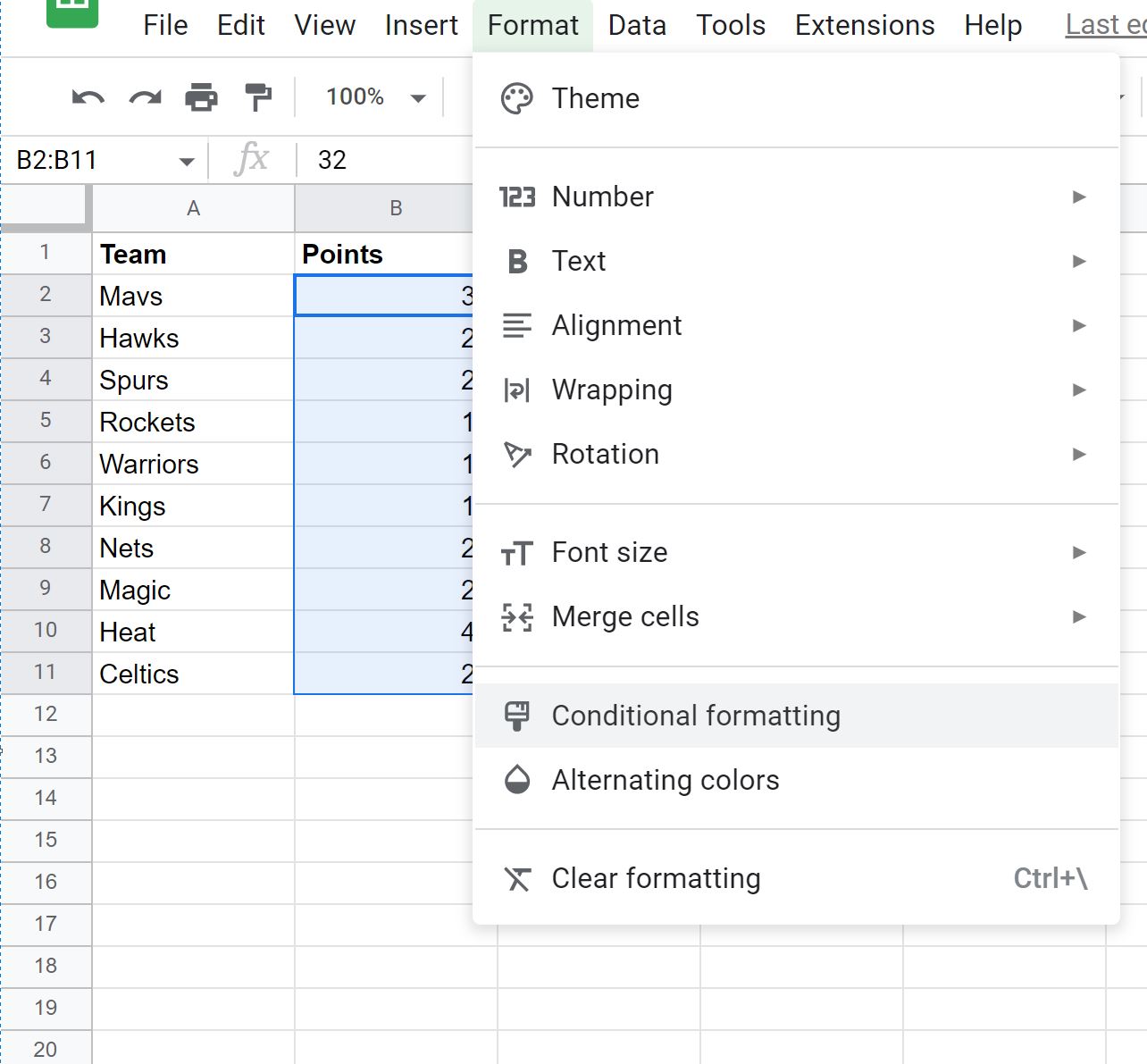

2. Access the Conditional Formatting Menu: Once the range is selected, navigate to the main menu bar at the top of the Google Sheets interface. Click on the Format tab, and from the resulting dropdown menu, select the option labeled Conditional formatting. This action will prompt the opening of the dedicated Conditional format rules panel, which typically appears docked on the right side of your screen.

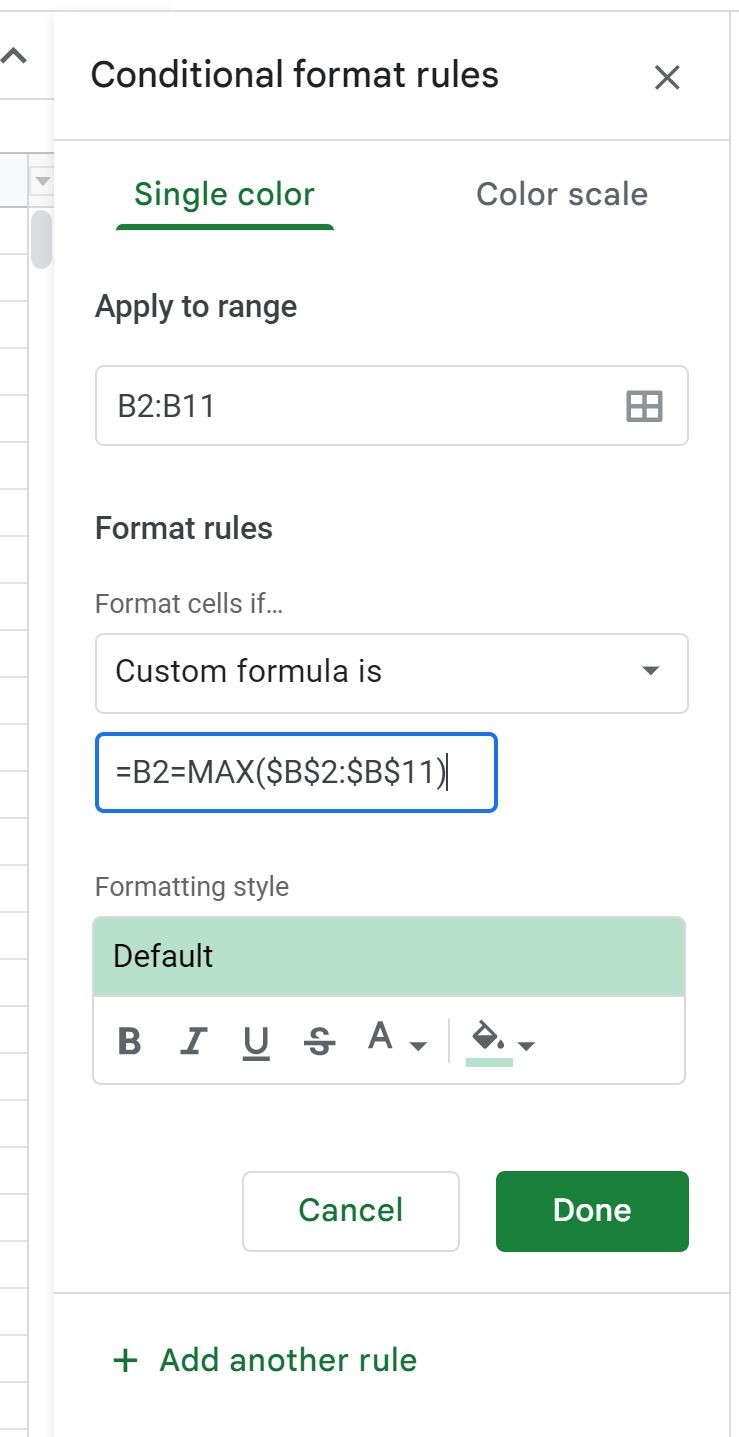

3. Initiate the Custom Formula Rule: Within the Conditional format rules panel, locate the section dedicated to defining “Format rules.” Click on the Format cells if dropdown menu. Scroll down through the extensive list of predefined conditions until you find and select the option Custom formula is. Selecting this option will reveal a dedicated input field, allowing you to manually enter your specific, logical comparison formula.

4. Enter the Exact Formula: In the newly provided input field, precisely enter the following custom formula:

   =B2=MAX($B$2:$B$11)

   This formula constitutes the intellectual core of our conditional formatting rule. A detailed breakdown of the components, specifically the use of absolute and relative references, will be provided in the subsequent section to ensure complete understanding.

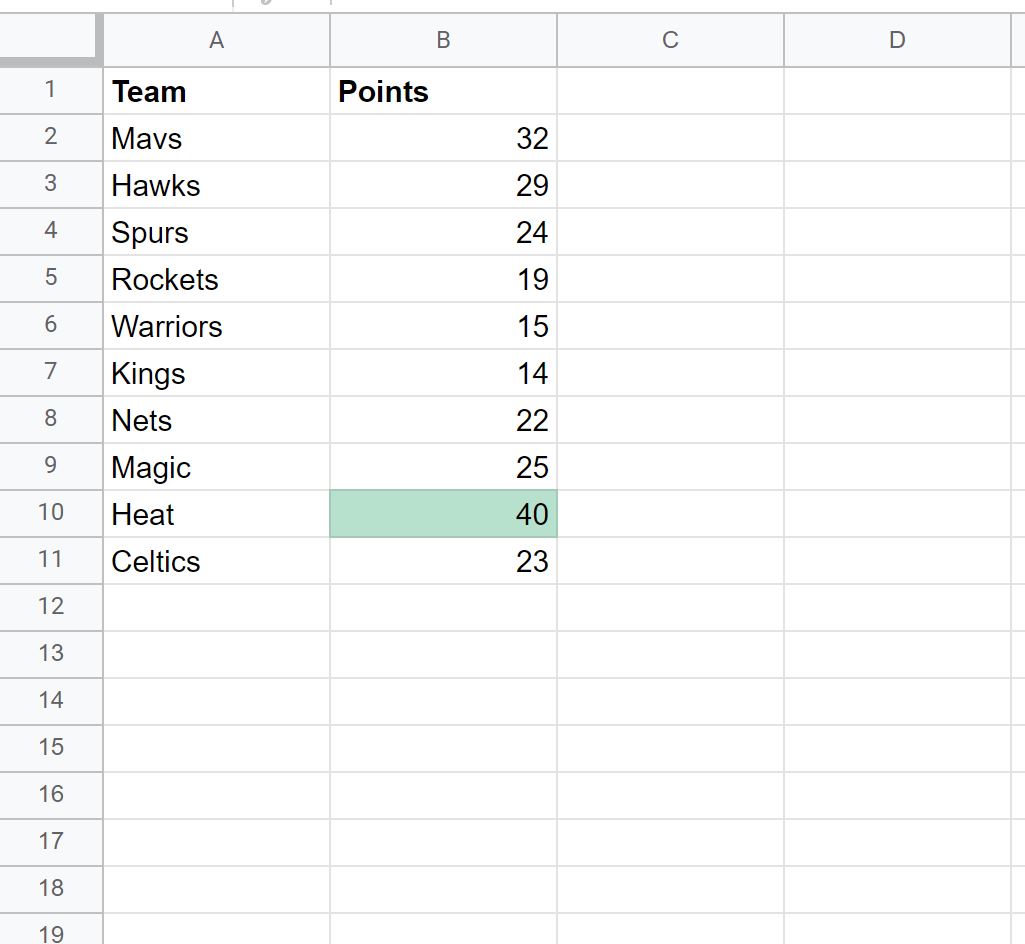

5. Finalize Formatting and Observe Results: After successfully entering the formula, review the Formatting style options. You can use the default light green fill or customize it to any color and style that suits your report. Once satisfied, click the Done button at the bottom of the panel. The cell containing the highest numerical value in the Points column will instantly be highlighted, providing immediate visual feedback on the top performance metric.



Dissecting the Custom Formula: `=B2=MAX($B$2:$B$11)`

To fully grasp the elegance and efficiency of this conditional formatting rule, we must analyze the structure of the custom formula: =B2=MAX($B$2:$B$11). This expression functions as a Boolean expression, meaning it is designed to yield one of only two possible logical outcomes: TRUE or FALSE. The conditional formatting rule is activated—i.e., the cell is highlighted—only when the evaluation of this formula returns TRUE for that specific cell.

The success of this formula hinges entirely on the careful and intentional mixing of reference types: relative and absolute. Understanding how Google Sheets iterates through the selected range (B2:B11) while maintaining a fixed comparison point is key to unlocking advanced custom formatting rules.

• B2 (Relative Reference): This reference is deliberately left without dollar signs, making it a relative reference. When you instruct Google Sheets to apply this formula across the range B2:B11, the system dynamically adjusts this reference for every cell it checks. For cell B2, the check is B2=MAX(...); for cell B3, the check becomes B3=MAX(...); and this pattern continues sequentially down to B11. This dynamic shifting allows a single, concise rule to be applied individually to every cell in the target range.

• MAX($B$2:$B$11) (Absolute Reference): The use of dollar signs ($) preceding both the column letter and the row number transforms this into an absolute reference. This is critically important for consistency. Regardless of whether Google Sheets is currently evaluating cell B2, B7, or B11, the MAX function is instructed to always calculate the maximum value from the *entire fixed range* B2:B11. If the dollar signs were omitted, the MAX range would also shift relatively, calculating the maximum of a shrinking or moving set of cells, thereby generating erroneous highlighting.

• The Comparison Operator (The Second =): This equality sign serves as the logical operator. It performs the core comparison, asking a simple question for each cell: “Is the value of the current cell (e.g., B7) exactly equal to the single highest value identified by the absolute MAX function (the maximum value across B2:B11)?” If the values match, the comparison returns TRUE, and the formatting is applied. If they do not match, the result is FALSE, and the cell remains unformatted.

In summary, the custom formula efficiently iterates through the selected cells, comparing each cell’s value against a fixed, pre-calculated highest value for the entire range. This mechanism ensures that only the cell or cells that perfectly match the absolute maximum are visually prioritized.

Customizing Your Conditional Formatting Style

While Google Sheets defaults to a subtle light green background for new conditional formatting rules, relying solely on this default style may not offer the necessary visual impact, especially in complex reports. The Conditional format rules panel provides a robust set of options that enable comprehensive customization of the appearance of your highlighted cells, ensuring that the visual cues align perfectly with your document’s design principles and analytical needs.

Effective visual communication requires contrast and clarity. By carefully selecting colors and font treatments, you can dramatically increase the readability of your dataset, ensuring that the critical highest value immediately captures the viewer’s attention without being visually disruptive. Consistency in the use of formatting—for instance, always using a specific shade of gold for maximum values—can significantly enhance the professional look and intuitive nature of your data presentation.

Within the dedicated Formatting style section of the panel, you have granular control over several aesthetic elements:

• Fill color: This allows you to choose any custom color for the cell’s background, which is typically the most immediate and impactful visual change.

• Text color: Change the color of the text within the highlighted cell. This is often necessary to ensure high contrast against a dark fill color.

• Font styles: Apply standard text styles such as bold (highly recommended for emphasis), italic, or underline styles to further differentiate the highest value from the rest of the dataset.

• Borders: Modifying or adding a distinctive border around the cell can provide an additional layer of separation, making the highlighted metric stand out with greater definition.

Experimentation is key; strive to find a formatting combination that is highly visible, yet harmonious with the overall design of your spreadsheet. Well-designed conditional formatting significantly enhances data comprehension and contributes positively to better analytical decision-making.

Handling Ties, Edge Cases, and Key Considerations

When deploying the custom formula =B2=MAX($B$2:$B$11), it is vital to understand how the rule manages scenarios where multiple entries share the maximum value—a common occurrence in competitive or performance-based datasets. If, for example, two different entries in your selected range both achieve the score of 100 (the absolute maximum), the formula will correctly evaluate to TRUE for both of those cells. Consequently, Google Sheets will apply the chosen conditional formatting style to all cells that contain this shared peak value. This behavior is typically desired, as it accurately represents every instance of top performance or the highest recorded data point, ensuring no top metric is overlooked.

Beyond managing ties, robust conditional formatting requires consideration of data type compatibility. It must be noted that the MAX function is fundamentally designed to process and compare only numerical values. Text strings, dates (unless stored as numerical serial values), or completely empty cells within your specified range will be completely ignored during the calculation of the maximum value. Therefore, if your range contains mixed data types, only the purely numerical figures will influence the MAX result, and non-numeric cells will not be highlighted.

For long-term utility, analysts should also consider the implications of dynamic data ranges. If your spreadsheet is a living document where data is frequently added or removed, relying on a fixed range (like B2:B11) may quickly lead to outdated rules. To ensure resilience, you might opt to define a much larger range than currently necessary (e.g., B2:B1000) or utilize advanced features like named ranges, which can sometimes be set up to dynamically expand. Periodically reviewing and updating the range defined in your conditional formatting rule is a necessary maintenance task for preserving the accuracy of your visual insights.

• Managing Rules: The Conditional format rules panel serves as the central hub for rule management. To make modifications, such as changing the formatting style or adjusting the range, simply click on the existing rule. To permanently deactivate the highlight, click the trash can icon next to the rule to delete it entirely.

• Performance: While custom formulas are powerful, using excessively complex formulas or applying rules to enormous datasets can occasionally impact spreadsheet performance. Keep rules simple and target the smallest necessary range for optimal efficiency.

Expanding Capabilities: Beyond the Basic MAX Function

The methodology employed for highlighting the highest value represents a foundational application of Google Sheets’ conditional formatting combined with custom formulas. This core understanding of mixing relative and absolute references with calculation functions serves as a potent template that can be quickly adapted and extended to solve a vast array of other complex data visualization challenges beyond merely identifying the maximum.

Mastering the use of custom formulas within conditional formatting effectively transforms static spreadsheets into highly interactive and dynamic analytical dashboards. By applying similar logical structures, you can programmatically instruct Google Sheets to draw attention to any data point that meets specialized criteria, facilitating quicker detection of trends, anomalies, and critical performance indicators. This enhanced control over visual presentation significantly accelerates the insight generation process.

The foundational principles learned here can be immediately applied to generate numerous other targeted highlighting solutions. For instance, you could rapidly adjust the formula structure to achieve the following related visualizations:

• Highlight the Lowest Value: Simply substitute the MAX function with the MIN function (e.g., =B2=MIN($B$2:$B$11)).

• Highlight Top N Values: Use functions like LARGE to identify the top three, five, or ten values (e.g., to highlight the top three: =B2>=LARGE($B$2:$B$11, 3)).

• Highlight Values Above/Below Average: Utilize the AVERAGE function to gauge overall performance (e.g., =B2>AVERAGE($B$2:$B$11)).

• Highlight Cells Based on Text Content: Employ text functions such as FIND or SEARCH to identify cells containing specific keywords or phrases.

By continually exploring the extensive library of functions available in Google Sheets and integrating them with the conditional formatting rules engine, you can continuously refine and enhance your data manipulation and visualization skills, turning complex data into clear, actionable insights.
