Learning to Highlight the Minimum Value in Excel: A Tutorial

Highlighting specific data points is indispensable for effective data analysis and transparent reporting, especially when leveraging powerful spreadsheet software like Microsoft Excel. The ability to instantly visualize the lowest or highest values within a large dataset provides immediate, actionable insights into performance bottlenecks, critical thresholds, or minimum operational requirements. To achieve this level of dynamic visualization, analysts rely heavily on Conditional Formatting, a robust feature that automatically applies specific formatting rules based on the content or value of a cell.

This tutorial provides a detailed, step-by-step guide on how to configure Conditional Formatting using a custom formula. This method is superior to simple built-in presets because it allows users to precisely pinpoint and highlight the single lowest value across a defined range. Mastering this custom formula approach is essential for anyone seeking to advance their data visualization capabilities within the Excel environment.

The central mechanism involves defining a New Rule within the Conditional Formatting menu, which is conveniently located under the Home tab of the Excel ribbon interface. This new rule utilizes a logical test that combines dynamic cell references with the highly effective MIN function to accurately identify the minimum numerical entry present in the selected data range. The following sections will walk you through setting up the data and implementing this crucial formula.

Preparing Your Dataset and Defining the Scope

Before any formatting rules can be applied, it is critical to properly establish and understand the dataset intended for analysis. For this practical demonstration, we will utilize a sample dataset that tracks the performance metrics of several basketball players. This dataset comprises player names and their total points scored over a season. Our primary goal is to quickly identify the player(s) who achieved the fewest points, thereby highlighting the minimum numerical value within the designated Points column.

Assume your Excel worksheet contains the following standard structure, typically originating from cell A1:

• Column A: Player Name
• Column B: Points Scored

For the purpose of our analysis, the numerical data range—the column containing the scores we wish to analyze—spans from cell B2 down to B13. This precise range holds the numerical values against which the conditional formatting rule will be applied and tested. Correctly identifying and referencing this range is paramount, as it directly dictates the construction of the formula, specifically governing the necessary use of Absolute Reference.

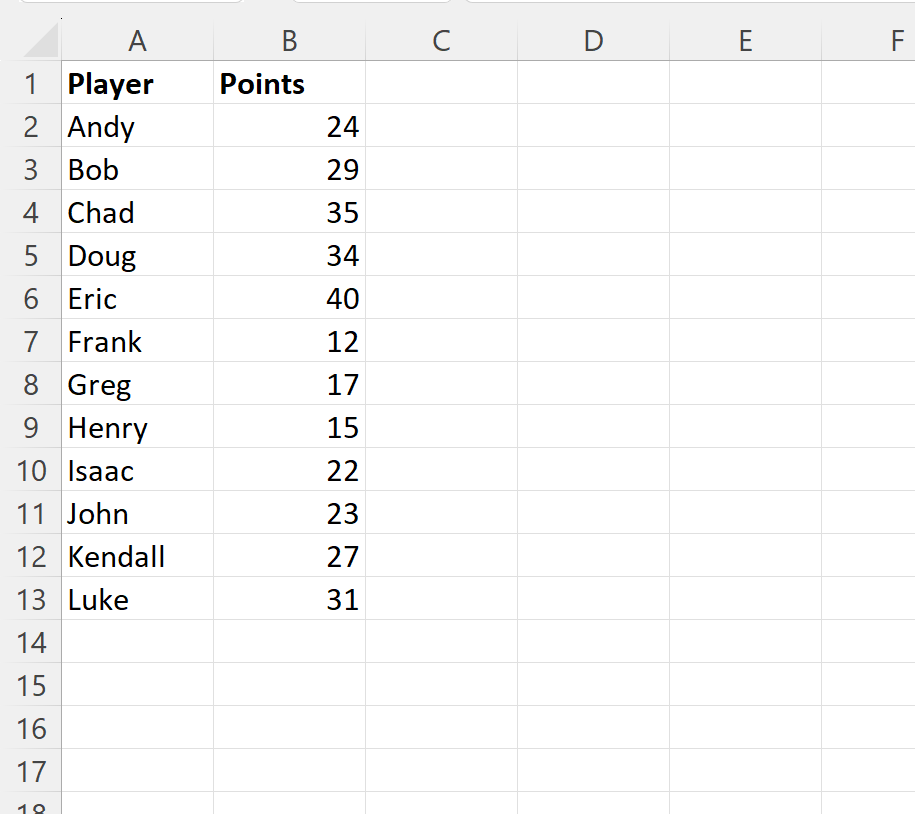

A preliminary review of the initial data ensures that all numerical entries are correctly formatted and prepared for analytical testing. The illustration below represents our starting point, showing the raw data before any visualization rules have been applied. Our specific objective remains clear: to visually emphasize the cell containing the lowest score within the designated Points column (B2:B13). This automated visual cue significantly reduces the time required for manual scanning or sorting, especially in massive datasets.

Executing the Conditional Formatting Rule

The application process begins by rigorously selecting the target range to which the conditional formatting rule will be assigned. It is absolutely essential to highlight the entire relevant range (B2:B13) before proceeding to the rule definition. This initial selection determines the foundational Relative Reference (B2) that Excel uses to iterate the formula across every other cell within the selection.

1. Select the Target Range: Carefully highlight all the cells in the Points column that require analysis. For this specific example, the range to select is B2:B13.

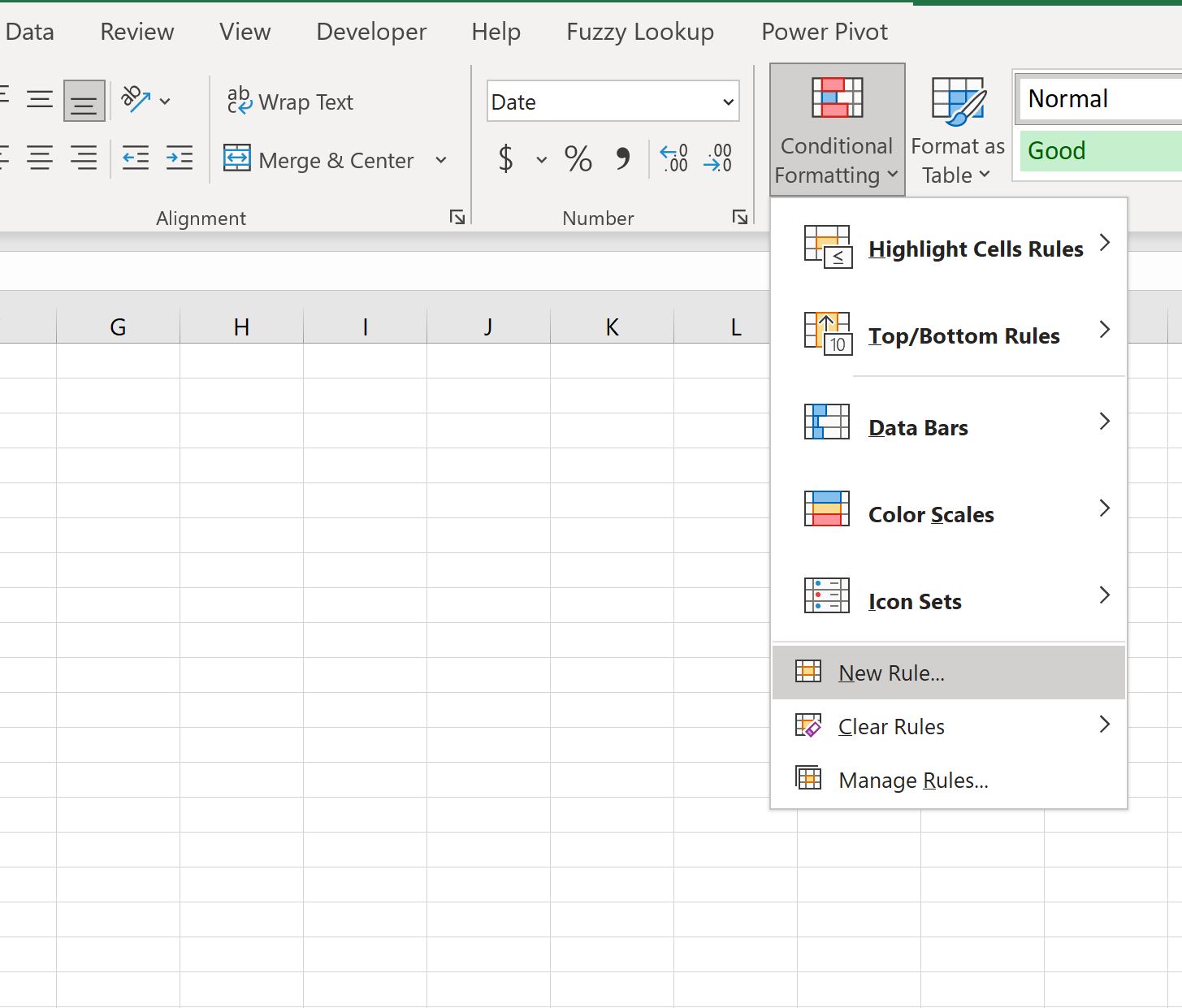

2. Access Conditional Formatting: Navigate to the Home tab located on the Excel ribbon interface. Within the Styles grouping, click on the Conditional Formatting dropdown menu.
3. Create a New Rule: From the displayed options, select New Rule…. This action immediately invokes the “New Formatting Rule” dialog box, which grants access to the advanced customization features necessary for formula-based rules.

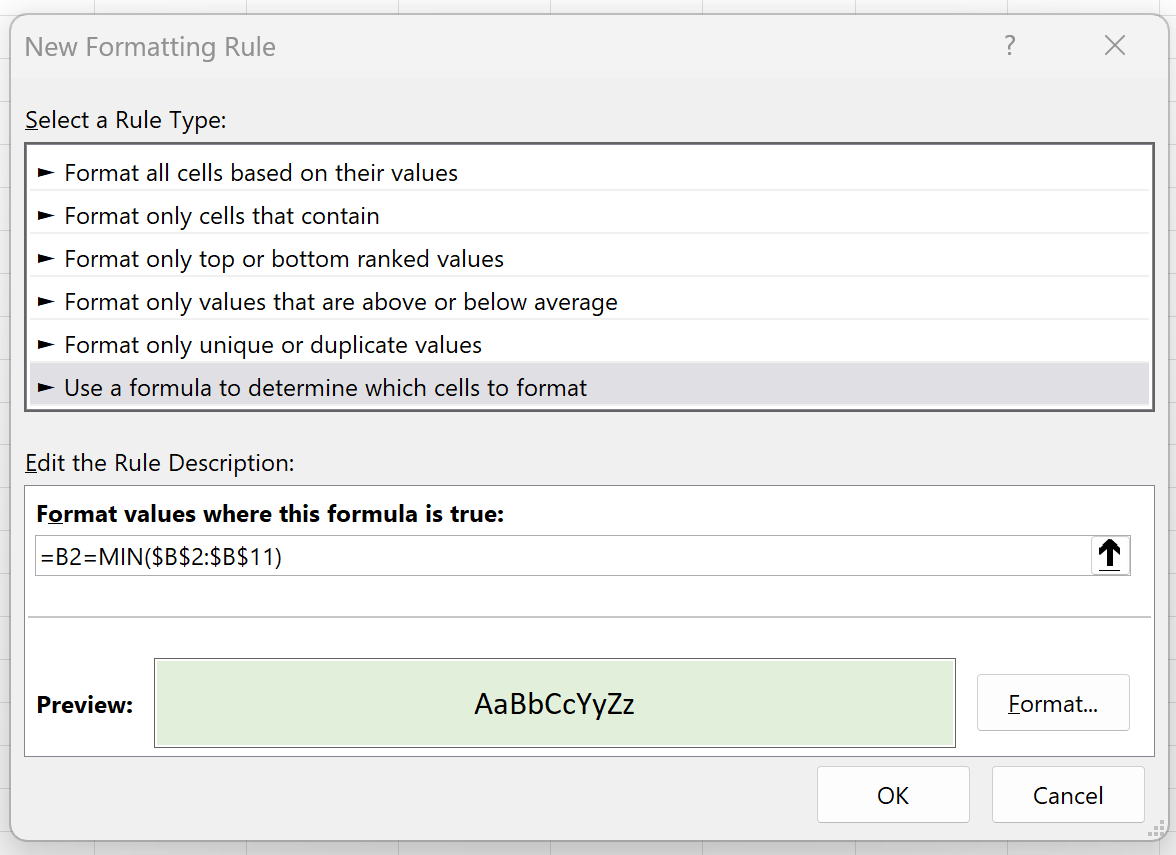

The subsequent steps require defining the appropriate rule type and meticulously constructing the logical formula that will govern the highlighting criteria. In the “New Formatting Rule” window, you must choose the option that permits direct formula input. Select the option labeled Use a formula to determine which cells to format. This selection unlocks the precise flexibility required to compare each individual cell’s value against the calculated minimum value of the entire fixed range.

In the formula input box, you must type the following expression with absolute precision: =B2=MIN($B$2:$B$13). Note the use of both relative (B2) and absolute ($B$2:$B$13) references. Once the formula has been entered, click the Format button to select the preferred visual style—such as a specific background color or font change—for the cell(s) that satisfy the condition.

Understanding Relative and Absolute Cell References

The efficacy of this sophisticated technique relies entirely upon a profound understanding of the formula: =B2=MIN($B$2:$B$13). To truly achieve mastery over formula-based Conditional Formatting, it is essential to dissect the two core components of this expression and understand their interaction. The formula functions as a fundamental logical test: it evaluates whether the value contained in the current cell (starting with B2) is mathematically equal to the smallest value identified anywhere within the fixed range ($B$2:$B$13). If this test returns TRUE, the chosen formatting style is executed; otherwise, if FALSE, the formatting is ignored.

The first component, B2, represents the Relative Reference. Because we diligently selected the range B2:B13 and initiated the formula using B2 as the comparison point, Excel intelligently adjusts this reference as it iterates the rule through every cell in the selection. For instance, when Excel evaluates cell B5, the formula dynamically becomes =B5=MIN(...). This use of relative referencing is crucial as it guarantees that every single cell is individually compared against the established minimum benchmark for the entire range.

The second part, MIN($B$2:$B$13), incorporates the powerful MIN function to calculate the absolute smallest numerical value within the entirety of the specified range. The dollar signs ($) prefixing both the column and row references ($B$2:$B$13) denote Absolute Reference. This absolute fixation is critically important; it ensures that the minimum value is consistently calculated over the entire, fixed range, irrespective of which individual cell Excel is currently testing. Failure to use the dollar signs would result in the range shifting as the rule is applied down the column, inevitably leading to incorrect and unreliable highlighting results.

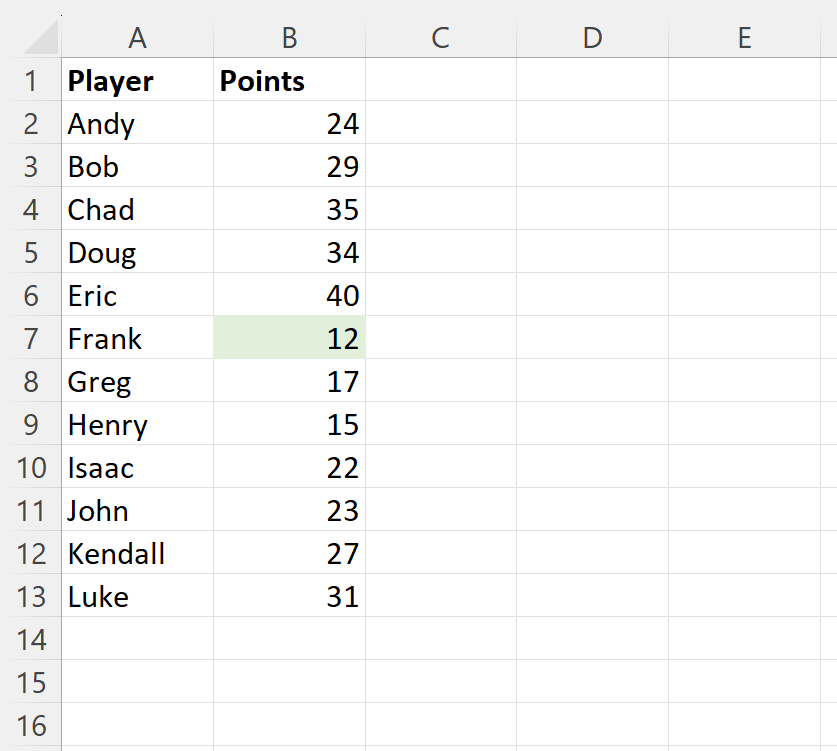

Once the formula is correctly input and the desired formatting (such as a light green cell fill) has been selected and confirmed by pressing OK, the rule is applied instantly across the dataset. The immediate outcome is a clear visual confirmation, instantly drawing attention to the lowest score(s) within the data.

Handling Ties and Customizing Visual Output

While the standard application of this conditional formatting rule works flawlessly when there is a unique minimum value, users must be aware of certain nuances and customization opportunities to maximize the utility of this advanced technique. Understanding these potential edge cases is paramount for achieving professional-level Excel proficiency.

One essential edge case to consider involves numerical ties. If two or more cells within the selected range happen to share the same lowest numerical value, the logical formula =B2=MIN($B$2:$B$13) will evaluate to TRUE for every single cell that matches the calculated minimum. The result is that all cells containing the lowest value will be highlighted simultaneously. This behavior is typically the desired outcome, as it offers a comprehensive visual representation of all minimum performance metrics, preventing the arbitrary selection of only the first occurrence.

Beyond handling ties, users possess extensive control over the aesthetic outcome of the formatting. Although this example utilized a simple light green fill color, the Format button grants access to a vast array of sophisticated formatting options, enabling high levels of visual distinction:

• Font Modifications: Options include altering the text color, applying bold emphasis (e.g., Minimum Score), or italicizing the number for subtle distinction.
• Border Treatments: Adding a distinct, highly visible border around the cell to ensure maximum attention.
• Fill Customization: Choosing highly contrasting colors, intricate patterns, or gradients to clearly denote critical low values.

By meticulously selecting a format that provides strong contrast against the surrounding data and the default text color, the minimum value can be rendered instantly recognizable. This significantly enhances data readability and contributes positively to overall dashboard design. Always choose a fill color that complements, rather than clashes with, the font color for optimal clarity and professionalism.

Best Practices and Alternative Methods

The formula-based approach detailed here for highlighting the lowest value is recognized as highly robust and flexible, but it is not the sole method available within Excel. For simpler datasets or scenarios where complex, iterative logic is not strictly necessary, users may explore the built-in Conditional Formatting presets.

For example, under the main Conditional Formatting menu, selecting Top/Bottom Rules provides an option labeled “Bottom 10 Items.” By merely adjusting the setting within this dialogue box to “Bottom 1 Item,” one can achieve an effect similar to the custom formula, bypassing the need to write the expression manually. However, the custom formula method is generally the preferred standard for advanced users because it offers precise and granular control over the cell range references (specifically the guaranteed use of Absolute Reference) and ensures consistency, especially in complex workbooks where multiple conditional rules might interact or conflict.

To ensure reliable and professional results, always adhere to these critical best practices when implementing any conditional formatting rule:

1. Define the Range First: Always select the entirety of the target cells before opening the New Rule dialog box.
2. Use Absolute References for the MIN Range: Ensure the range defined within the MIN function is fixed using dollar signs (e.g., $B$2:$B$13) to prevent shifting.
3. Use Relative References for the Comparison Cell: Ensure the first cell reference (e.g., B2) remains relative so that the rule can correctly apply and test every subsequent cell within the selection individually.
