Understanding Cook’s Distance: A Guide to Identifying Influential Data Points in Regression Analysis

In the demanding world of statistical modeling, especially within regression analysis, maintaining the integrity and reliability of the model is absolutely critical. It is a well-known risk that a single data point can exert disproportionate influence on the estimated model coefficients, potentially leading to inaccurate or misleading conclusions. To combat this issue, data scientists rely on a powerful diagnostic measure known as Cook’s distance, often symbolized as D_i. This measure is specifically designed to identify influential data points—observations that, if removed, would significantly alter the parameters of the linear regression model. Mastering the understanding and application of Cook’s distance is an indispensable skill for analysts committed to producing robust and trustworthy model interpretations.

Deconstructing the Cook’s Distance Formula

The methodology used to calculate Cook’s distance elegantly combines two fundamental concepts central to regression diagnostics: the residual and the leverage. Fundamentally, this metric quantifies the overall effect that deleting the i^th observation has on the entire set of predicted response values (the fitted values) generated by the model. When the impact is large, the point is flagged as influential. The formal mathematical expression that defines Cook’s distance is provided below:

D_i = (r_i² / p*MSE) * (h_ii / (1-h_ii)²)

While the formula may initially appear dense, its structure logically reflects the dual nature of influence. The statistic successfully integrates information regarding how far a point lies vertically from the established regression line (the residual component) and how far that same point is situated from the central mass of the independent variable data (the leverage component). Crucially, a large Cook’s distance is typically only achieved when an observation possesses both a substantial residual (meaning it is an outlier in the Y direction) and high leverage (meaning it is an outlier in the X direction).

The essential components used in the calculation of this formula are precisely defined as follows:

• r_i is the i^th residual, which represents the vertical difference between the actual observed value and the value predicted by the current model.
• p is the total number of estimated model coefficients, which necessarily includes the intercept term, within the regression analysis structure.
• MSE is the Mean Squared Error (MSE), which serves as the statistical estimate for the variance of the underlying error terms in the model.
• h_ii is the i^th leverage value, which directly quantifies how distant the independent variable values for that specific observation are from the mean of all independent variable values.

In practical terms, Cook’s Distance performs one supremely important function: it provides a quantitative measure of how significantly all the fitted values across the entire model change when the specific i^th data point is hypothetically removed and the model is re-estimated. Fortunately for modern data practitioners, nearly all contemporary statistical software packages have integrated the automatic computation of this metric, effectively eliminating the need for laborious manual calculation in routine data analysis.

Interpreting Cook’s Distance Thresholds

The resulting magnitude of the Cook’s Distance value (D_i) is directly proportional to the severity of that observation’s influence on the model. A data point that yields a high Cook’s Distance clearly indicates that its inclusion exerts a powerful pull on the calculated slope and intercept of the regression line. When analysts move to interpret these numerical values, they often rely on well-established rules of thumb to efficiently flag potentially problematic observations that require immediate review.

One of the most frequently cited general rules, particularly relevant for larger datasets, proposes that any data point registering a Cook’s Distance exceeding the ratio 4/n (where n represents the total number of observations in the dataset) should be provisionally considered an influential outlier. However, it is vital to recognize that this standard is not an immutable, rigid cutoff. Other highly experienced statisticians often advocate for using a threshold value of 1.0, a standard that is frequently preferred when working with smaller, more delicate datasets. Regardless of which specific threshold is employed, the fundamental purpose of this diagnostic tool remains consistent: to quickly and accurately identify points that necessitate intensive, case-by-case scrutiny.

It is absolutely crucial to understand that while Cook’s Distance is used to identify influential data points, it does not constitute an automatic mandate for deletion. Simply because an observation is flagged as influential does not automatically mean it should be removed from the predictive model. The subsequent, and most critical, step involves careful professional investigation. Analysts should first confirm whether the data point is the result of a simple error, such as incorrect recording or transcription (a data entry error). If the value is confirmed to be accurate, it might represent a genuinely unusual, yet statistically valid, finding that could hold significant, novel insights for the scientific or business domain under investigation. Deleting valid, though influential, data points without due cause can significantly compromise the generality and lead to severely biased model estimation.

Practical Calculation and Visualization in R

Implementing the calculation and visualization of Cook’s Distance within standard statistical software like R is highly streamlined, enabling data analysts to rapidly assess influence across datasets of any size. The following sequence of R code steps demonstrates the necessary procedures to calculate and subsequently visualize Cook’s Distance using a straightforward linear modeling example.

To begin, we must prepare the R environment by loading the essential libraries required for this analysis. We will utilize the widely adopted ggplot2 package, which is necessary for generating high-quality, sophisticated data visualizations, and the gridExtra package, which allows us to effectively arrange and display multiple plots side by side for direct comparison.

library(ggplot2)
library(gridExtra)

Next, we define two distinct data frames to experimentally illustrate the profound impact that influential points can have on a model. The first dataset is intentionally constructed to contain no significant outliers, while the second dataset is deliberately structured to include two major, influential outliers. This explicit side-by-side comparison serves to vividly demonstrate how such influential points can drastically distort the calculated parameters of the regression line.

#create data frame with no outliers
no_outliers <- data.frame(x = c(1, 2, 2, 3, 4, 5, 7, 3, 2, 12, 11, 15, 14, 17, 22),
                          y = c(22, 23, 24, 23, 19, 34, 35, 36, 36, 34, 32, 38, 41,
                                42, 44))

#create data frame with two outliers
outliers <- data.frame(x = c(1, 2, 2, 3, 4, 5, 7, 3, 2, 12, 11, 15, 14, 17, 22),
                       y = c(190, 23, 24, 23, 19, 34, 35, 36, 36, 34, 32, 38, 41,
                             42, 180))

The subsequent step involves generating a clear scatterplot visualization for both prepared datasets. This graphical representation offers an immediate, intuitive understanding of the adverse visual effect that the two extreme outliers exert on the overall fit of the linear model.

#create scatterplot for data frame with no outliers
no_outliers_plot <- ggplot(data = no_outliers, aes(x = x, y = y)) +
  geom_point() +
  geom_smooth(method = lm) +
  ylim(0, 200) +
  ggtitle("No Outliers")

#create scatterplot for data frame with outliers
outliers_plot <- ggplot(data = outliers, aes(x = x, y = y)) +
  geom_point() +
  geom_smooth(method = lm) +
  ylim(0, 200) +
  ggtitle("With Outliers")

#plot the two scatterplots side by side
gridExtra::grid.arrange(no_outliers_plot, outliers_plot, ncol=2)

The resulting side-by-side visualization compellingly demonstrates the significant negative influence the outliers have. In the second plot, the regression line is visibly distorted, being pulled dramatically away from the dense cluster of the majority data points, thereby illustrating the severe bias introduced by these influential observations.

Formal Identification using Cook’s Distance Plot

To move beyond visual assessment and formally identify the influential observations within the second, outlier-containing dataset, we must calculate the specific Cook’s Distance statistic for every single data point. Once computed, these distances are typically displayed graphically in a specialized plot, often including a standard horizontal line representing the 4/n cutoff threshold. This visualization provides a clear and objective assessment of which points significantly exceed the acceptable influence limits.

#fit the linear regression model to the dataset with outliers
model <- lm(y ~ x, data = outliers)

#find Cook's distance for each observation in the dataset
cooksD <- cooks.distance(model)

# Plot Cook's Distance with a horizontal line at 4/n to see which observations
#exceed this thresdhold
n <- nrow(outliers)
plot(cooksD, main = "Cooks Distance for Influential Obs")
abline(h = 4/n, lty = 2, col = "steelblue") # add cutoff line

Observing the resulting Cook’s Distance plot, it is immediately evident that the first and the last observations in the dataset—the two points intentionally inserted as outliers—dramatically exceed the calculated 4/n threshold, which is visually marked by the dashed blue line. Based on this formal diagnostic evidence, we can definitively identify these two observations as highly influential data points that are exerting a profound and negative impact on the estimated parameters of the regression model.

Strategic Management of Influential Observations

Once highly influential points have been rigorously identified using metrics like Cook’s Distance, a critical subsequent step for the analyst is to assess the potential performance gain achieved when these points are excluded from the model training process. If, following a thorough investigation into potential data entry errors or unique circumstances, the analyst determines that removal is the most appropriate course of action to improve model reliability, the R environment provides straightforward commands to subset the data and establish a cleaner, more representative dataset.

To practically implement a removal strategy, we can execute the following R code block. This code filters the original dataset, eliminating any observations whose calculated Cook’s Distance value exceeds the standard 4/n threshold:

#identify influential points
influential_obs <- as.numeric(names(cooksD)[(cooksD > (4/n))])

#define new data frame with influential points removed
outliers_removed <- outliers[-influential_obs, ]

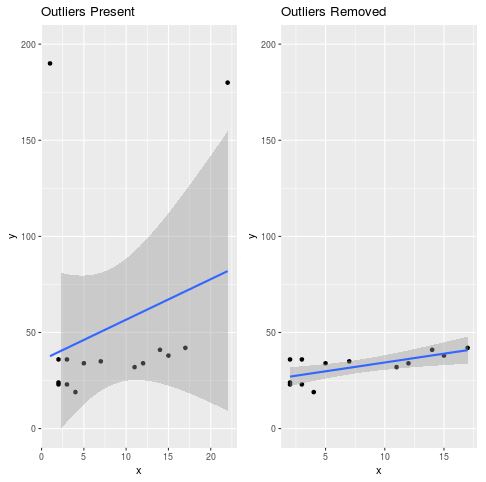

To graphically demonstrate the significant improvement achieved by strategically managing these influential data points, we can create a final comparison visualization. The first scatterplot displays the regression line fitted with the detrimental points still included, and the second plot clearly displays the dramatically improved regression line fitted after those two influential observations have been successfully removed.

#create scatterplot with outliers present
outliers_present <- ggplot(data = outliers, aes(x = x, y = y)) +
  geom_point() +
  geom_smooth(method = lm) +
  ylim(0, 200) +
  ggtitle("Outliers Present")

#create scatterplot with outliers removed
outliers_removed <- ggplot(data = outliers_removed, aes(x = x, y = y)) +
  geom_point() +
  geom_smooth(method = lm) +
  ylim(0, 200) +
  ggtitle("Outliers Removed")

#plot both scatterplots side by side
gridExtra::grid.arrange(outliers_present, outliers_removed, ncol = 2)

The resulting visual comparison provides emphatic confirmation that the regression line now aligns much more accurately with the main body of the data once the two influential points are excluded. This practical demonstration solidifies the immense utility of Cook’s Distance as an essential tool for enhancing model accuracy, improving predictive performance, and ensuring overall statistical reliability.

Summary of Best Practices and Ethical Considerations

Cook’s Distance remains an exceptionally valuable and indispensable diagnostic tool for data analysts seeking to verify and ensure the structural stability of their regression models. While the underlying mathematical principles are complex, modern statistical software packages universally feature the robust, built-in capability to compute this crucial metric efficiently for every observation within a given dataset.

The most important conceptual takeaway regarding this metric is that Cook’s Distance serves purely as a method to identify influential points; it explicitly does not provide automatic instructions regarding the appropriate action to take. Identifying highly influential observations is merely the foundational first stage in a comprehensive and ethical analytical review process.

When dealing with observations confirmed to be highly influential, analysts typically consider several strategic options, which must be chosen based on domain knowledge and the confirmed validity of the data point:

• Removal: The points are removed entirely from the dataset, particularly if they are definitively confirmed to be measurement errors or transcription errors.
• Imputation: These points may be replaced using sophisticated statistical imputation methods, such as substituting them with the mean or median of the variable.
• Retention and Notation: The points are retained within the final model, but the analyst must make a careful and explicit note about their presence, their calculated influence, and their potential distorting impact when formally reporting the regression results. This is often necessary if the influential points represent valid, though statistically extreme, observations that are integral to the real-world population being studied.
