Learning Matplotlib: Mastering Figure Size for Effective Data Visualization

The Importance of Figure Sizing in Matplotlib

When generating high-quality visualizations, the proper scale and dimension of the output are paramount for ensuring both clarity and professional presentation. The widely adopted Python library, Matplotlib, offers robust mechanisms for precisely controlling the dimensions of generated graphics, which are formally referred to as figures. Adjusting the figure size is a fundamental practice that allows data scientists and analysts to tailor the visual representation of complex datasets for various output mediums, ranging from detailed, high-resolution paper publications to optimized interactive dashboard displays.

In the context of Matplotlib, the entire visualization’s size is governed by the figure object. This object functions as the main container, housing all subsidiary elements such as axes, titles, legends, and labels. By default, figures are often rendered at a standard size that might prove inadequate for visualizations dealing with high data density or complex structural requirements. Consequently, mastering dimensional control is essential for preventing crowded or misleading visuals that fail to convey the intended message.

Fortunately, Matplotlib provides two primary, highly effective methods for managing these dimensions: specifying the size for a single, isolated plot instance or configuring a global default size that applies consistently to all subsequent plots generated within a specific session. This comprehensive guide will detail the practical implementation of both techniques, focusing specifically on the core functions and configuration parameters available within the pyplot module. Understanding these controls is foundational to producing aesthetically pleasing and highly informative data graphics.

Matplotlib’s Default Dimensions and the Role of rcParams

Before implementing custom sizing, it is vital to establish a baseline understanding of Matplotlib’s default configuration. By default, the dimensions (width, height) of a new figure are typically set to (6.4, 4.8). It is crucial to note that these units are measured in standard inches. While this standard size serves as a general-purpose dimension, it frequently falls short of providing the necessary resolution or appropriate aspect ratio required when charting detailed information or preparing plots for specific, constrained output formats.

These default settings are centrally managed and stored within Matplotlib’s global configuration dictionary, which is conveniently accessible via the rcParams object. The rcParams system allows users to inspect, modify, and reset virtually every default property associated with a plot, including line styles, font sizes, and of course, figure dimensions. Understanding where these defaults reside allows users to make accurate, informed decisions about scaling up or down based on their precise visualization requirements.

Method 1: Local Control using the plt.figure() Function

The most accessible and most frequently utilized approach for customizing the dimensions of a plot involves leveraging the figure() function provided within the Matplotlib pyplot module. This function accepts a mandatory keyword argument, figsize, which expects a tuple of two floating-point numbers representing the desired (width, height), measured strictly in inches. This method grants precise, localized control over one specific visualization instance without causing any modification to the environment’s persistent global configuration.

To effectively increase or decrease the size of an individual plot, the plt.figure() call must be executed before any subsequent commands that generate axes or plot data are run. Placing this call first ensures that the container is correctly sized before content is placed inside. The following syntax snippet demonstrates how to define a customized figure size, setting the dimensions to a compact (3, 3) inches:

import matplotlib.pyplot as plt

# Define figure size in (width, height) for a single plot instance
plt.figure(figsize=(3,3))

This technique is optimal for scenarios where a scripting session involves creating multiple, diverse plots, but only a select few require tailored sizing. By using plt.figure(figsize=...), the overall flexibility of the workflow is maintained, preventing unintended scaling effects across all other generated outputs.

Demonstration: Increasing Size of a Single Matplotlib Plot

Let us examine a practical scenario. When we generate a simple line plot using the default Matplotlib settings, the resultant image often appears compact, reflecting the default (6.4, 4.8) dimensions:

import matplotlib.pyplot as plt

# Define x and y data points
x = [1, 6, 10]
y = [5, 13, 27]

# Create plot using default figure settings
plt.plot(x, y)
plt.show()

If our goal is to create a visually taller figure—perhaps to better highlight vertical trends or to provide ample space for extensive axis labels—we can explicitly redefine the dimensions. We achieve this by utilizing the figsize parameter within the plt.figure() function call.

The revised code block below sets the figure size to (5, 8). This results in a figure that measures 5 inches wide and 8 inches tall. This significant adjustment fundamentally alters the visual aspect ratio and the overall impact of the visualization, immediately providing more vertical space for the data presentation:

import matplotlib.pyplot as plt

# Define custom plot size: 5 inches wide, 8 inches tall
plt.figure(figsize=(5,8))

# Define x and y data points
x = [1, 6, 10]
y = [5, 13, 27]

# Create plot
plt.plot(x, y)
plt.show()

Method 2: Ensuring Global Consistency with plt.rcParams

In scenarios involving high-volume data analysis—such as working within an interactive environment like a Jupyter Notebook, or generating dozens of related plots that must all adhere to a uniform visual standard—repeatedly specifying plt.figure(figsize=...) for every single chart becomes inefficient and redundant. The preferred, more elegant solution for session-wide customization is to modify Matplotlib’s global configuration parameters via the plt.rcParams dictionary.

The plt.rcParams dictionary serves as the central repository for all default styling and size settings in Matplotlib. By assigning a new list or tuple to the specific key 'figure.figsize', we effectively establish a new default size that will automatically persist and apply to every subsequent figure generated during the current Python session. This powerful mechanism is crucial for maintaining visual consistency across large analytical projects.

The following syntax demonstrates how to define a global figure size. Here, we set the new default dimensions to [10, 7] inches (width, height). All plots created from this point forward will adopt these dimensions unless explicitly overridden by a local plt.figure() call:

import matplotlib.pyplot as plt

# Define figure size in (width, height) globally for all plots
plt.rcParams['figure.figsize'] = [10, 7]

Demonstration: Applying Global Dimensions to Multiple Plots

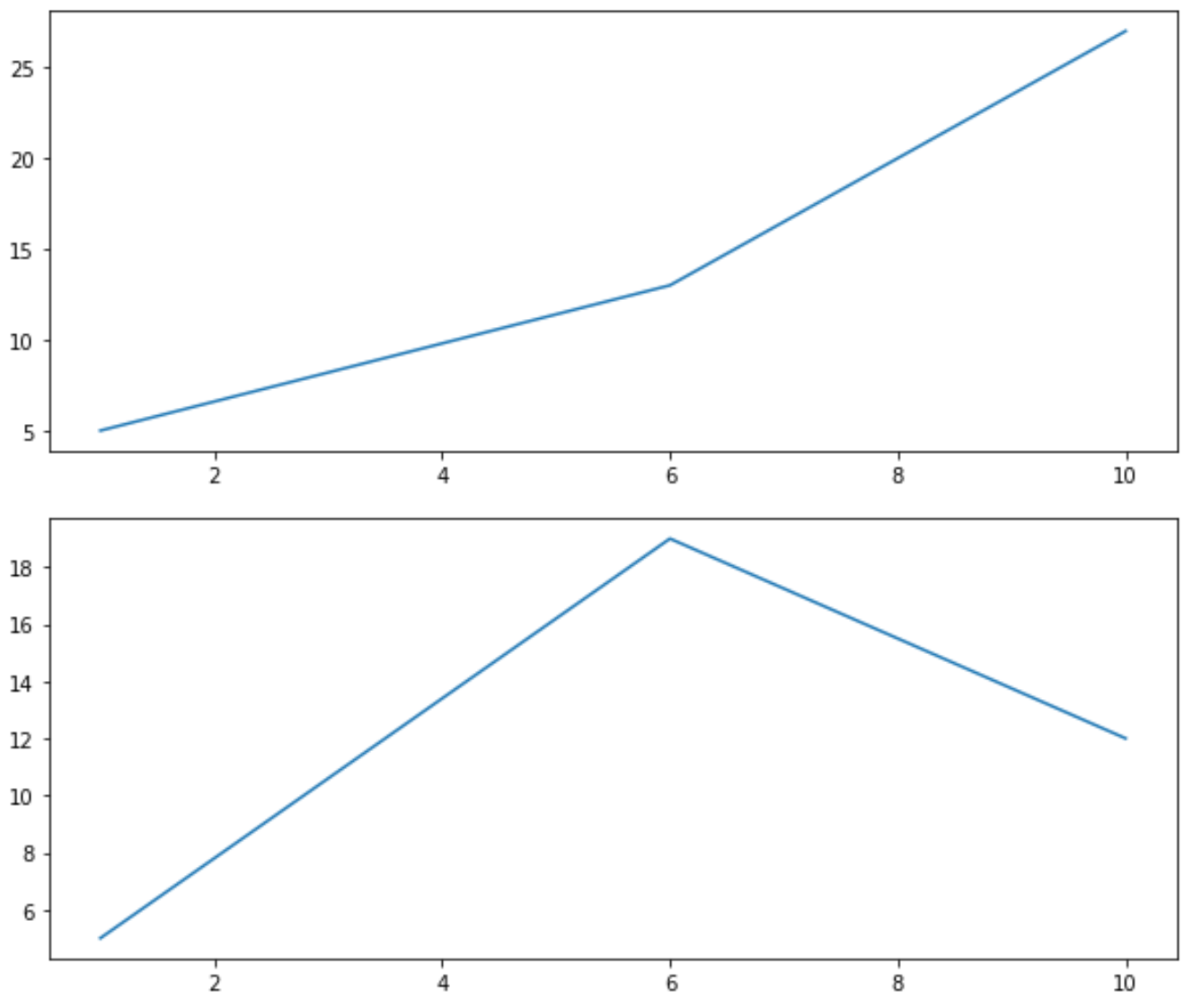

This example highlights the efficiency of setting a global dimension using plt.rcParams. We configure the global size to be 10 inches wide and 4 inches high—a typical layout for horizontally oriented data. Subsequently, we generate two entirely distinct plots without needing to specify figsize for either one.

Crucially, both plots automatically inherit the configuration established by rcParams. The result is a consistent, wider layout that standardizes the appearance of all generated graphics, simplifying the preparation of reports or presentations where visual uniformity is key.

import matplotlib.pyplot as plt

# Set global plot size: 10 inches wide, 4 inches high
plt.rcParams['figure.figsize'] = [10, 4]

# Define first dataset
x = [1, 6, 10]
y = [5, 13, 27]

# Create first plot (inherits global size)
plt.plot(x, y)
plt.show()

# Define second dataset
x2 = [1, 6, 10]
y2 = [5, 19, 12]

# Create second plot (inherits global size)
plt.plot(x2, y2)
plt.show()

Advanced Considerations: Size, DPI, and Output Resolution

While increasing the figure size via figsize is technically straightforward, determining the optimal dimensions requires a deeper understanding of the interplay between size, the output medium, and resolution. Simply enlarging the figure size in inches without considering the corresponding Dots Per Inch (DPI) setting can lead to undesirable effects, such as excessive empty space, blurry lines, or pixelated text upon saving.

The figure size (measured in inches) works in direct conjunction with the figure’s DPI setting. Matplotlib typically defaults to a DPI of 100. The total pixel resolution of your exported image is mathematically calculated using the formula: (Width in inches * DPI, Height in inches * DPI). For example, a figure defined as figsize=(10, 4) combined with the default DPI of 100 yields an image resolution of 1000 pixels by 400 pixels.

For producing high-quality output, particularly for scholarly journals or professional print media, a much higher DPI is often mandatory (e.g., 300 DPI). If you export a figure defined as figsize=(6, 4) at 300 DPI, the effective pixel size becomes 1800×1200. This dramatically higher pixel count ensures much sharper lines, cleaner text rendering, and a superior overall graphic quality compared to the standard 100 DPI setting. Therefore, when striving for maximum clarity, it is essential to consider adjusting both the figsize and the output DPI (often managed through the dpi argument in the plt.savefig() function).

When planning sophisticated data visualizations, incorporate these best practices:

• Aspect Ratio Alignment: Always strive to match the plot’s aspect ratio to the characteristics of the data being visualized. Wide plots (high width, low height) are inherently superior for displaying trends in time series data, whereas square or near-square proportions are usually better suited for scatter plots or histograms where both the X and Y axes carry equal importance.
• Text Scaling and Legibility: Ensure that as the figure size increases, the relative sizing of titles, axis labels, and tick marks remains completely legible. Matplotlib often scales text sizes relative to the overall figure size; if a figure is made excessively large, the text elements might appear disproportionately small unless font sizes are also explicitly adjusted in the rcParams.
• Output Medium Optimization: For digital display on the web, the standard rcParams defaults are generally acceptable, though custom sizing can enhance aesthetic appeal and readability. However, for physical print output, always prioritize high dpi settings in combination with an appropriate figsize that aligns with the target physical dimensions, such as the column width of the publication.

Summary of Figure Sizing Strategies

Effective control over the size and dimensions of figures in the pyplot module is a non-negotiable step toward creating compelling, accurate, and visually impactful data visualizations. The decision regarding whether to employ plt.figure(figsize=...) or to configure global defaults using plt.rcParams should be dictated entirely by the scope and required consistency of your current project or analytical session.

Utilize the plt.figure() method when your primary need is localized, temporary control over a small number of specific plots. This method allows those plots to momentarily deviate from the session’s standard configuration while ensuring that the global environment and subsequent plots remain unaffected.

Conversely, adopt plt.rcParams when the objective is to achieve session-wide consistency. By modifying the global settings, you guarantee that every plot generated across your detailed analysis shares a uniform visual size and structure, which significantly streamlines the workflow when producing a substantial batch of standardized graphics.

Further Exploration and Resources

To dive deeper into advanced customization techniques beyond simple figure sizing—including detailed adjustments to plot styles, color palettes, and font properties—referencing the official Matplotlib documentation is highly recommended.

• Official Matplotlib Documentation: Provides the definitive, comprehensive guides and API references for mastering all aspects of figure properties and graphical rendering.

• Matplotlib Customization Tutorial: Offers step-by-step instructions on utilizing the powerful rcParams system to modify virtually every configurable element within a Matplotlib plot.
