Learning Interpolation Techniques to Fill Missing Data in Excel

In the expansive world of data analysis, encountering a dataset replete with gaps or missing observations is a frequent challenge. Effectively managing these missing values is paramount for maintaining data integrity, ensuring the reliability of subsequent calculations, and generating accurate predictive models.

A highly effective and mathematically sound strategy for estimating these unknown points is interpolation. Interpolation involves using mathematical techniques to estimate a missing data point based on the known, surrounding values. Microsoft Excel offers an exceptionally practical and efficient solution for this task: the Fill Series function.

This comprehensive technical guide provides a detailed walkthrough on leveraging Excel’s built-in capabilities to intelligently fill data gaps, whether your underlying data exhibits a predictable linear trend or follows a more dynamic, compound growth pattern.

The Necessity of Data Interpolation

Before proceeding to the technical execution, it is essential to establish why interpolation is a superior method compared to simply deleting incomplete records or arbitrarily inserting zero values or simple averages. Missing data can introduce significant bias, severely complicating essential processes such as time-series analysis, sophisticated graphing, and the calculation of meaningful summary statistics. By utilizing interpolation, we make the crucial assumption that the unknown values adhere to the underlying pattern or trend established by the surrounding, known data points.

Excel’s specialized Fill Series feature is engineered to handle sequential data efficiently. It can accurately estimate missing values based on mathematically defined relationships, specifically the Linear and Growth options. This methodology is significantly more robust than manual entry or relying on simple arithmetic means, as it actively preserves the mathematical fidelity of the entire sequence.

Accessing this powerful functionality is straightforward. The primary pathway is situated within the Editing group located on the Home tab of the Excel ribbon. Although it is often overlooked, the Fill Series utility is indispensable for rigorously cleaning and structuring diverse types of sequential data.

The subsequent sections of this tutorial will detail two practical scenarios, demonstrating precisely how to apply the Fill Series function to effectively address gaps in data exhibiting different intrinsic trends.

Configuring the Excel Fill Series Function

The Fill Series tool is fundamentally designed for versatility, capable of handling numerous sequential data types. When the function is initiated via the dialog box, the user must precisely define several critical parameters to guide the calculation process:

• Series in: This parameter dictates the direction of the calculation, specifying whether the fill operation should be applied horizontally across Rows or vertically down Columns.
• Type: This is the most crucial setting, defining the mathematical relationship between successive data points. Key types include Linear (additive constant), Growth (multiplicative constant), Date, and the standard AutoFill.
• Step value: This defines the constant increment or ratio used to calculate the next value in the sequence. It is particularly vital for explicitly defining Linear and Date series when a boundary condition is not used.
• Stop value: This optional parameter defines a numerical limit at which the series calculation must automatically cease.

For the specific task of interpolating missing values, the procedure requires the selection of a data range that strategically encompasses the known starting value, all intervening missing cells, and the known ending value. This established boundary condition is essential, as it provides Excel with the necessary constraints to automatically calculate the precise step value or growth factor required to smoothly transition between the two known endpoints.

Selecting the mathematically correct Type is non-negotiable. Applying an incorrect classification—for instance, using a linear calculation on data that is demonstrably exhibiting exponential growth—will invariably produce statistically inaccurate and profoundly misleading interpolated values. We will now proceed to meticulously explore the practical application of both the Linear and Growth methodologies.

Example 1: Interpolating Data Following a Steady Linear Trend

A linear trend describes a scenario where data points increase or decrease by a constant, absolute amount (the step value) across each interval or sequence step. This represents the most straightforward and frequently encountered form of interpolation.

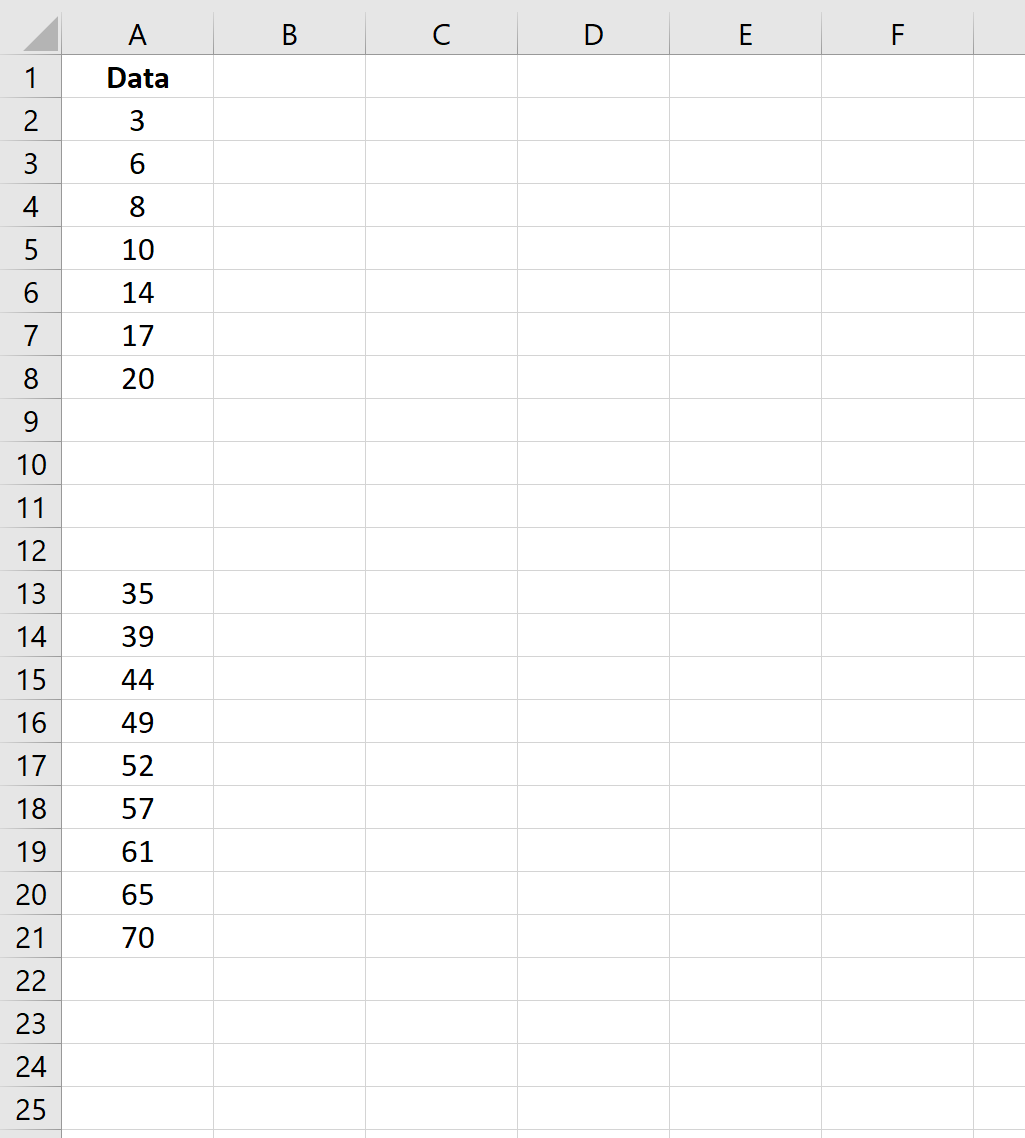

Consider the following incomplete dataset where four consecutive observations are missing between the known start and end points:

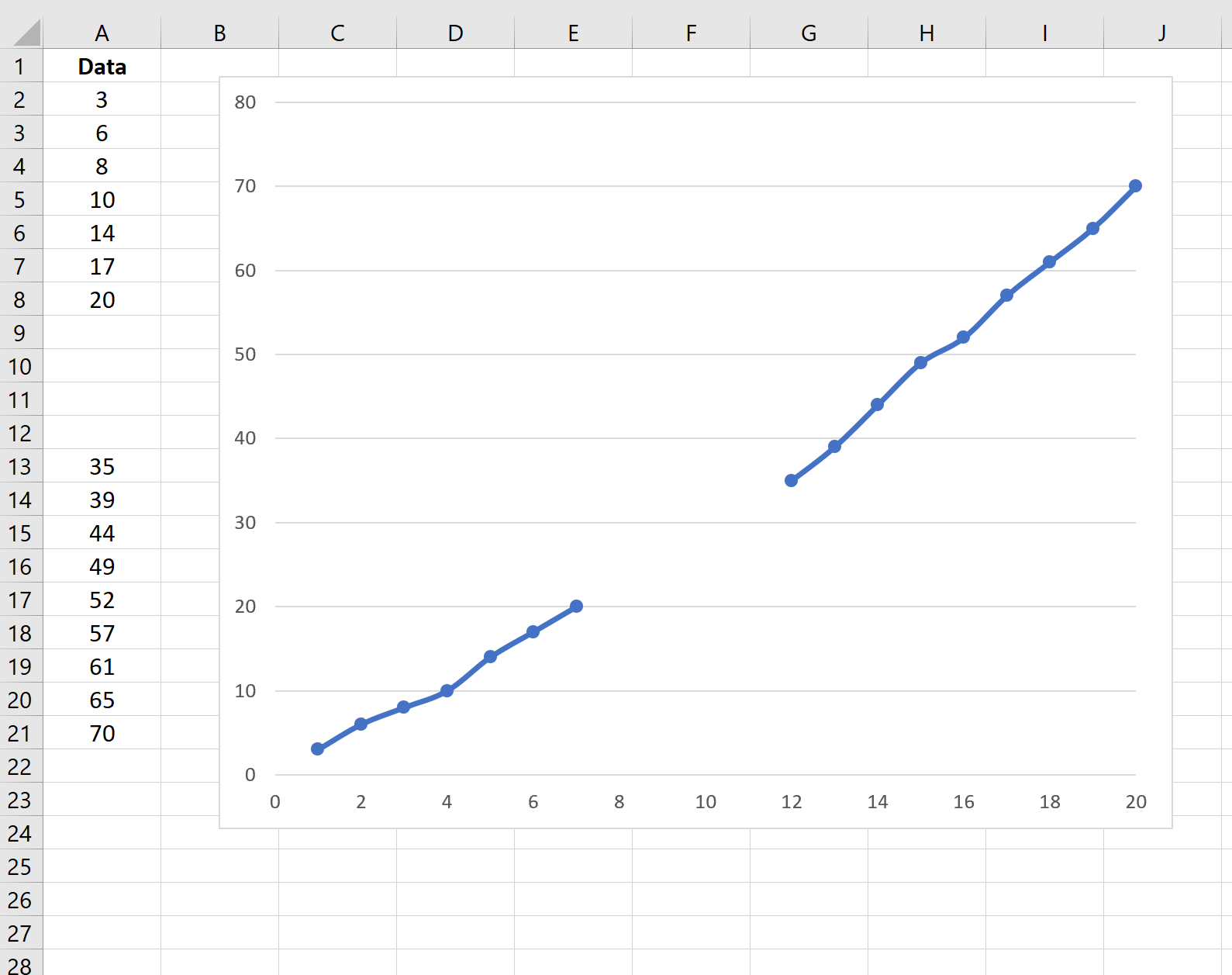

A rapid visual confirmation is always recommended. If we plot the existing anchor points (20 and 35), the relationship between the independent variable (Index) and the dependent variable (Value) strongly suggests linearity. This means the transition from 20 to 35 should be achieved through a series of equal, additive increments.

Step-by-Step Linear Interpolation

Follow these precise steps to apply linear interpolation using the boundary conditions:

1. Select the Range: Highlight the entire range of cells that requires filling. Crucially, your selection must encompass the known starting value (20) and the known ending value (35). In this specific example, highlight cells B2 through B7.

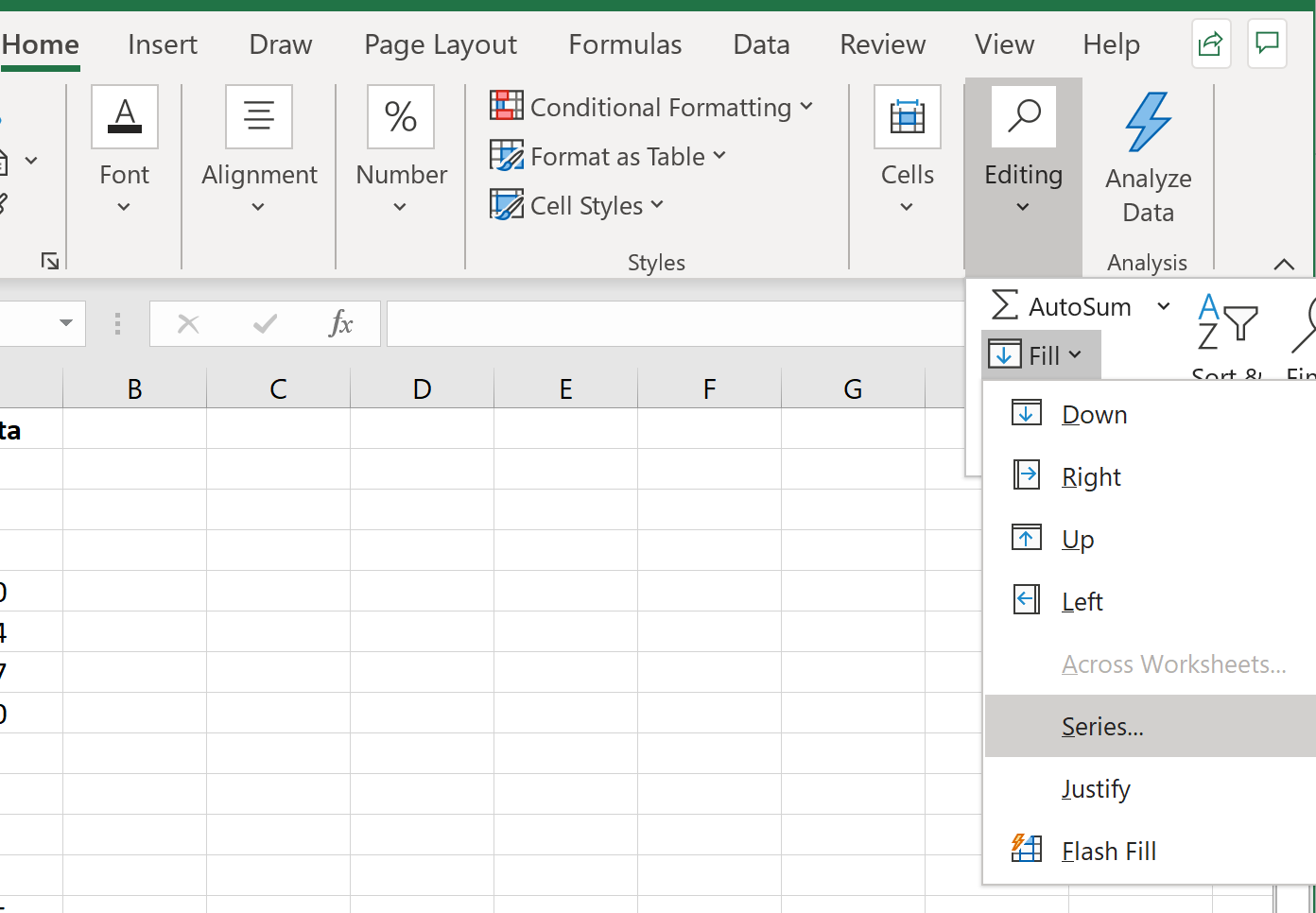

2. Access the Function: Navigate to the Excel ribbon and click the sequence: Home > Editing > Fill > Series.
3. Configure the Series Dialog: Within the resulting Series dialog box, ensure the following settings are correctly applied:
   • Series in: Columns (assuming your data is oriented vertically).
   • Type: Select the Linear option.

By selecting Linear and defining the start and end boundaries, Excel automatically calculates the required constant step value necessary to seamlessly bridge the gap between the start (20) and the end (35) across the four missing observations. It is important to note that you are relieved of the burden of manually calculating and entering the step value; Excel derives this factor directly from the selected range’s boundary conditions.

The Mathematical Basis of Linear Interpolation

When the Linear type is chosen, Excel executes a straightforward internal calculation to determine the constant additive step value. This calculation ensures that the total numerical difference between the known start and end points is distributed precisely and equally across the required number of steps.

The core formula Excel uses to derive the step value is:

Step = (End Value – Start Value) / (Number of Missing Observations + 1)

This formula accurately accounts for the total number of intervals (or steps) required, which is mathematically defined as one greater than the number of missing cells, ensuring that the final calculated step lands precisely on the known end value.

Applying this formula to Example 1 yields the following numerical solution:

• Start Value = 20
• End Value = 35
• Number of Missing Observations = 4 (cells B3, B4, B5, B6)

Calculation: Step = (35 – 20) / (4 + 1) = 15 / 5 = 3.

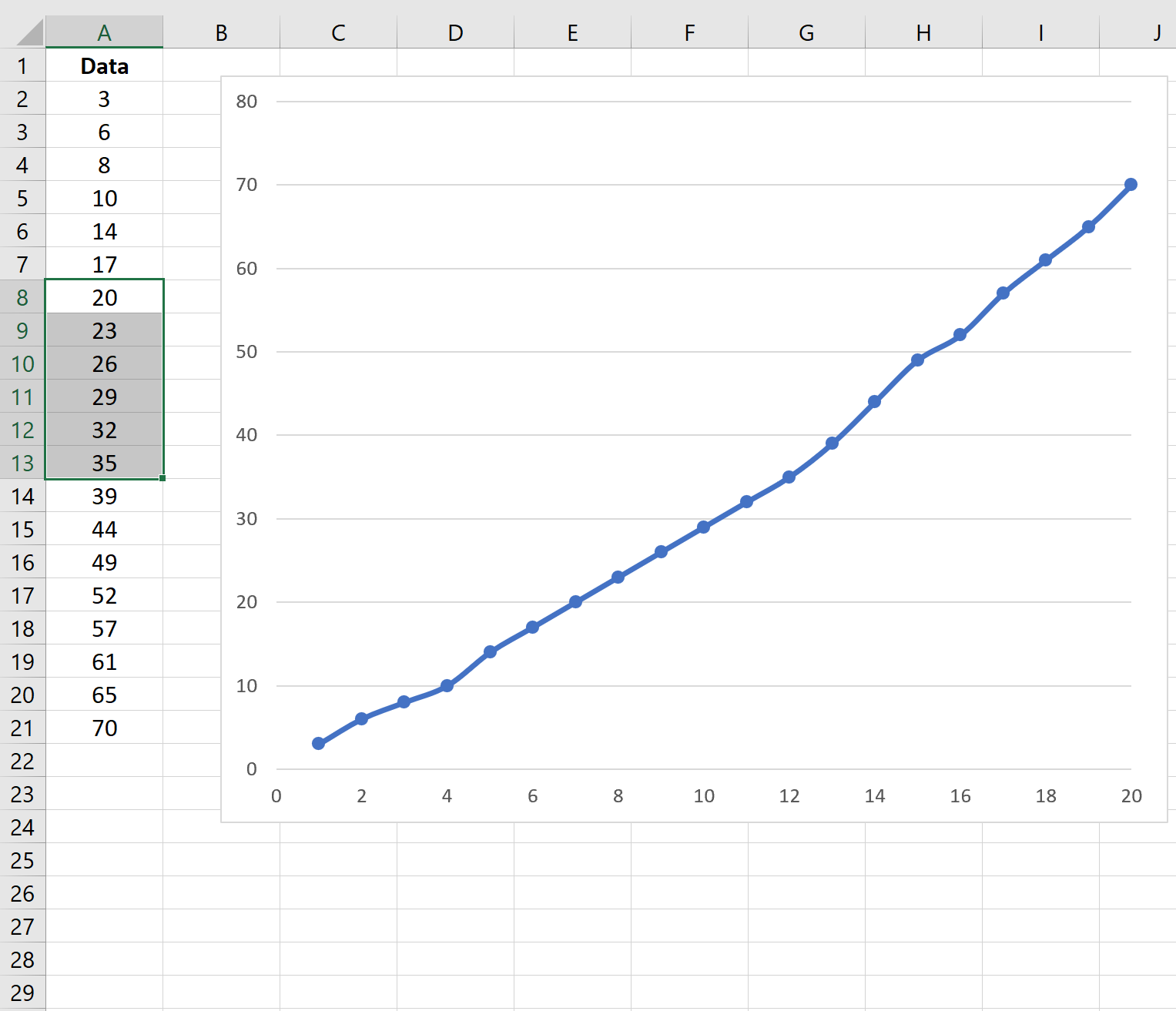

Upon clicking OK, Excel populates the intermediate cells by iteratively adding 3 to the preceding value (20, 23, 26, 29, 32, 35). The resultant data perfectly aligns the interpolated points with the expected linear trajectory:

This technique provides a mathematically robust and reliable methodology for filling data gaps within any dataset that clearly exhibits a steady linear progression.

Example 2: Interpolating Data Following a Growth Trend

It is important to recognize that not all data adheres to a simple linear progression. Many real-world phenomena, including compound interest, population dynamics, and biological reproduction rates, demonstrate exponential growth. In such cases, values increase by a constant multiplicative factor (or ratio), rather than a constant additive amount. This type of sequence is formally known as a geometric progression.

To accurately model and interpolate this type of sequence, we must utilize the Growth option within the Fill Series function, leveraging its capability to calculate a geometric ratio.

Consider a second dataset where the known boundary values (5 and 80) suggest a rapid acceleration, which is highly indicative of a compounding or growth pattern:

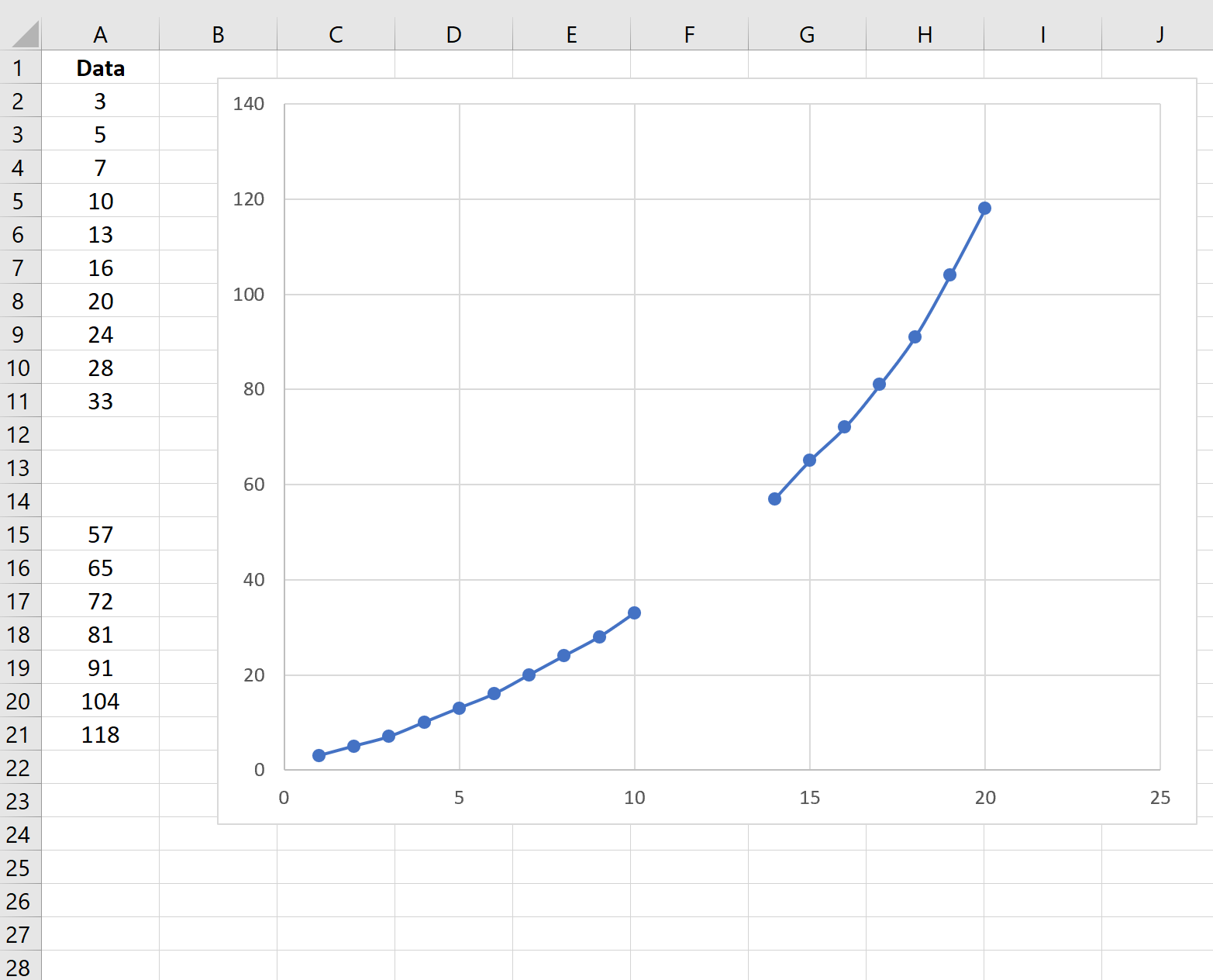

A visual assessment of this data pattern reveals a clear upward curve. This visual evidence confirms the requirement for an exponential or Growth model to perform accurate interpolation across the intervening missing points:

Step-by-Step Growth Interpolation

The procedure for growth interpolation is largely similar to the linear method, with one crucial type change:

1. Select the Range: Highlight the entire necessary range, encompassing the starting value (5), the four missing cells, and the ending value (80).
2. Access the Function: Navigate through the Excel menu: Home > Editing > Fill > Series.

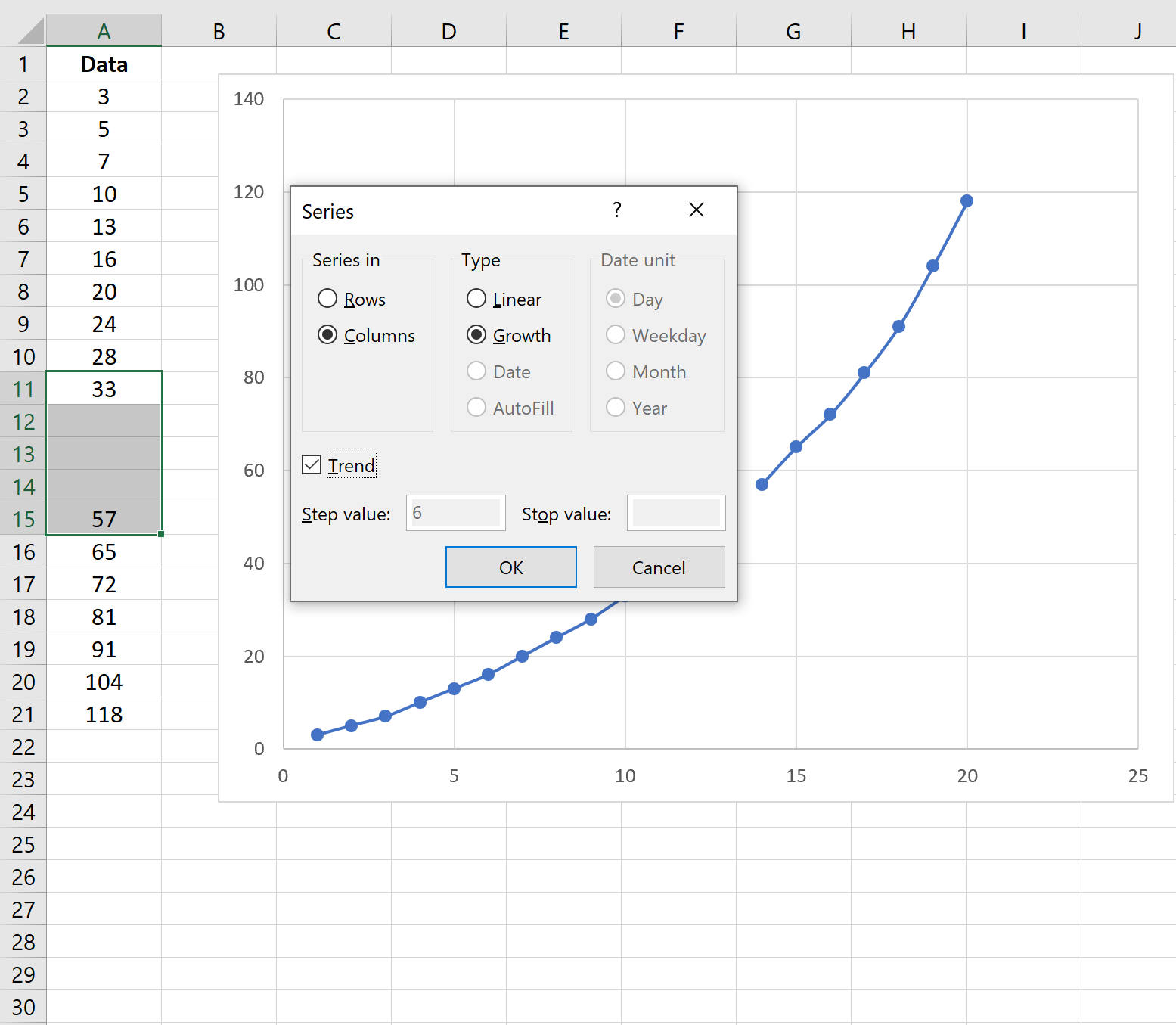

3. Configure the Series Dialog: Set the parameters as follows:
   • Series in: Columns.
   • Type: Select Growth.
   • Trend Checkbox: It is critically important to check the box next to Trend. This instructs Excel to use the geometric progression model based on the range boundaries.

By selecting the Growth type, Excel is directed to internally calculate a constant geometric ratio (multiplier). This ratio must be applied sequentially to transition from the initial value (5) to the final value (80) over the five required steps. When the Trend box is checked, Excel correctly identifies and applies this constant growth factor across the selected range.

Calculating the Geometric Growth Factor

For accurate growth interpolation, Excel calculates the geometric ratio ($r$). If $V_n$ is the end value, $V_0$ is the start value, and $N$ is the number of steps (which equals the number of missing observations plus one), the formula Excel solves internally is:

$$V_n = V_0 times r^N$$

In the context of Example 2: $80 = 5 times r^5$. Solving for $r$ requires calculating the fifth root of the ratio (80/5), meaning $r = sqrt[5]{(16)}$. The calculated growth factor $r$ is approximately 1.741.

Excel subsequently fills the series by multiplying the preceding cell’s value by this constant growth factor (1.741) at each step. Given that the calculated intermediate values are non-integer, Excel will display the resulting decimal precision.

Once the OK button is clicked, Excel applies the derived growth factor, resulting in a smooth, exponentially increasing fill:

The resulting interpolated sequence (5, 8.71, 15.17, 26.42, 45.99, 80) precisely adheres to the expected geometric progression, thereby successfully bridging the data gap while rigorously maintaining the integrity of the underlying growth trend.

Conclusion: Strategic Use of Interpolation for Data Quality

The Fill Series function within Microsoft Excel stands as an invaluable, yet often underutilized, resource for substantially improving data quality and ensuring datasets are adequately prepared for rigorous subsequent data analysis. By efficiently providing both Linear and Growth options, this tool empowers users to execute sophisticated interpolation methods without the necessity of employing complex custom formulas or acquiring specialized statistical software.

A critical best practice is to always visually inspect your data—preferably using a standard line chart, as demonstrated throughout this guide—before committing to the fill operation. Ensuring that the chosen series type (Linear or Growth) accurately and logically reflects the intrinsic pattern of the underlying data is the definitive key to generating reliable and statistically sound interpolated results that perfectly harmonize with the overall trend of your dataset.
