Understanding Interpolation and Extrapolation: A Guide to Predicting Values Inside and Outside Data Ranges

In the realm of statistics and data analysis, two terms are frequently used, often leading to confusion among students and practitioners: interpolation and extrapolation. While both are methods of prediction based on existing data, the fundamental difference lies in where the predicted value falls relative to the range of observed data points. Understanding this distinction is critical for accurately interpreting models and assessing the reliability of forecasts.

Simply put, these concepts describe whether we are estimating a value within the known boundaries of our dataset or venturing outside those boundaries. While interpolation is generally considered a safe and reliable predictive tool, extrapolation carries inherent risks that must be carefully evaluated based on the context and underlying assumptions of the model.

Defining the Core Concepts

The core definitions of these two statistical concepts are straightforward, yet their implications for modeling are profound. Interpolation is the process of estimating a value that lies *inside* the discrete set of known data points. If you have observations recorded between time T1 and T10, interpolating means estimating a value at T5. This method assumes that the relationship or pattern observed between the endpoints holds true for the intermediate values, which is often a robust assumption, particularly when the data exhibits a stable trend.

Conversely, extrapolation involves predicting values that fall *outside* the range of the original observations. Using the previous example, extrapolating would mean predicting a value at T12 or T0. When we extrapolate, we are fundamentally assuming that the pattern, trend, or statistical relationship established within the observed data continues unchanged into unobserved territory. It is this crucial assumption of sustained consistency beyond the boundaries of our empirical evidence that introduces significant statistical risk.

Both interpolation and extrapolation are essential techniques in fields ranging from engineering and physics to finance and economics, allowing analysts to fill gaps in knowledge or forecast future outcomes. However, the reliability of the output is heavily dependent on the chosen method and the characteristics of the underlying data distribution.

Visualizing the Difference: A Statistical Example

To solidify the distinction between these two processes, consider a basic dataset where we observe a relationship between two variables, X and Y.

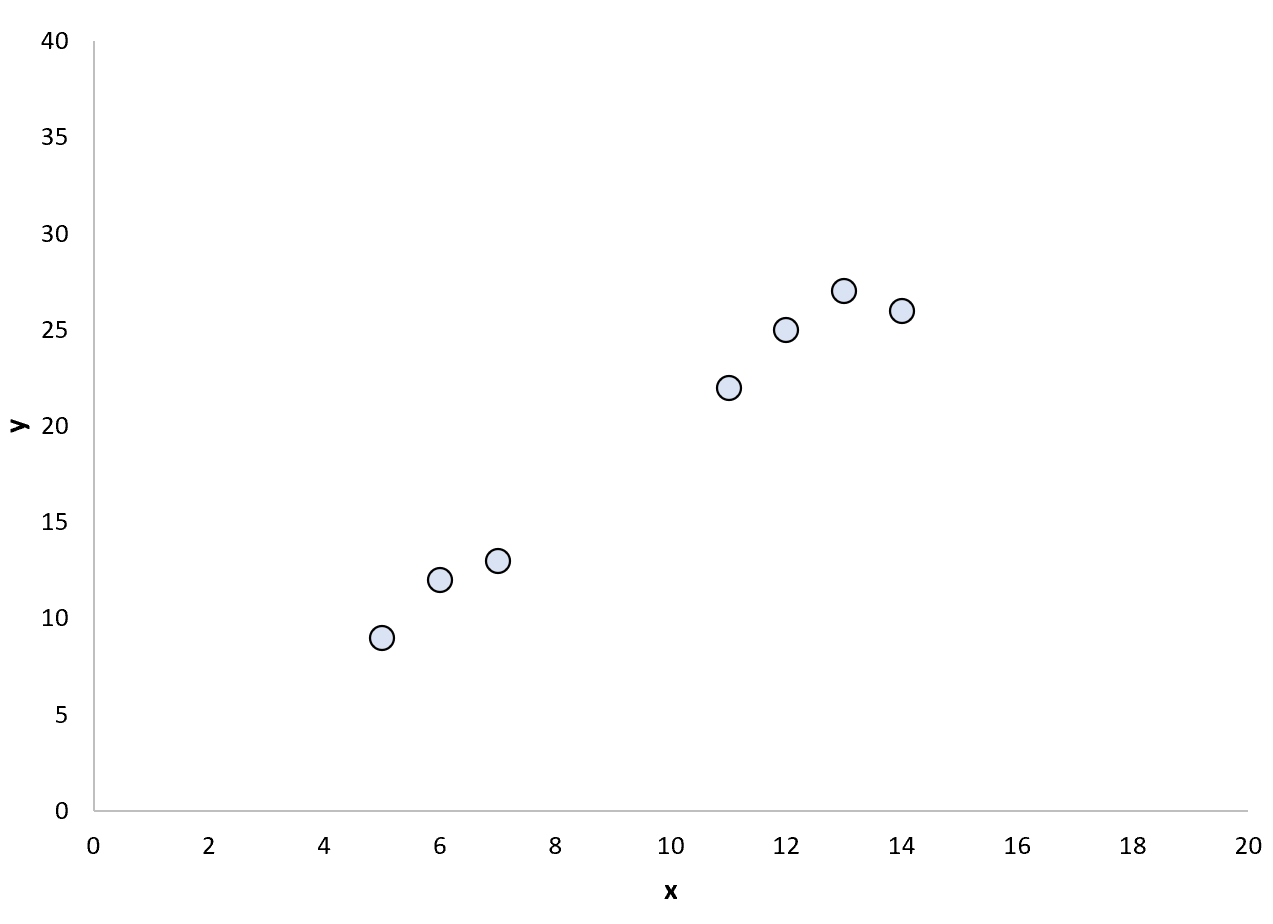

Suppose we collect the following initial data:

Once we have these data points, we might decide to fit a statistical model—such as a regression model—to mathematically capture the relationship between X and Y. This model serves as the mechanism for generating predictions.

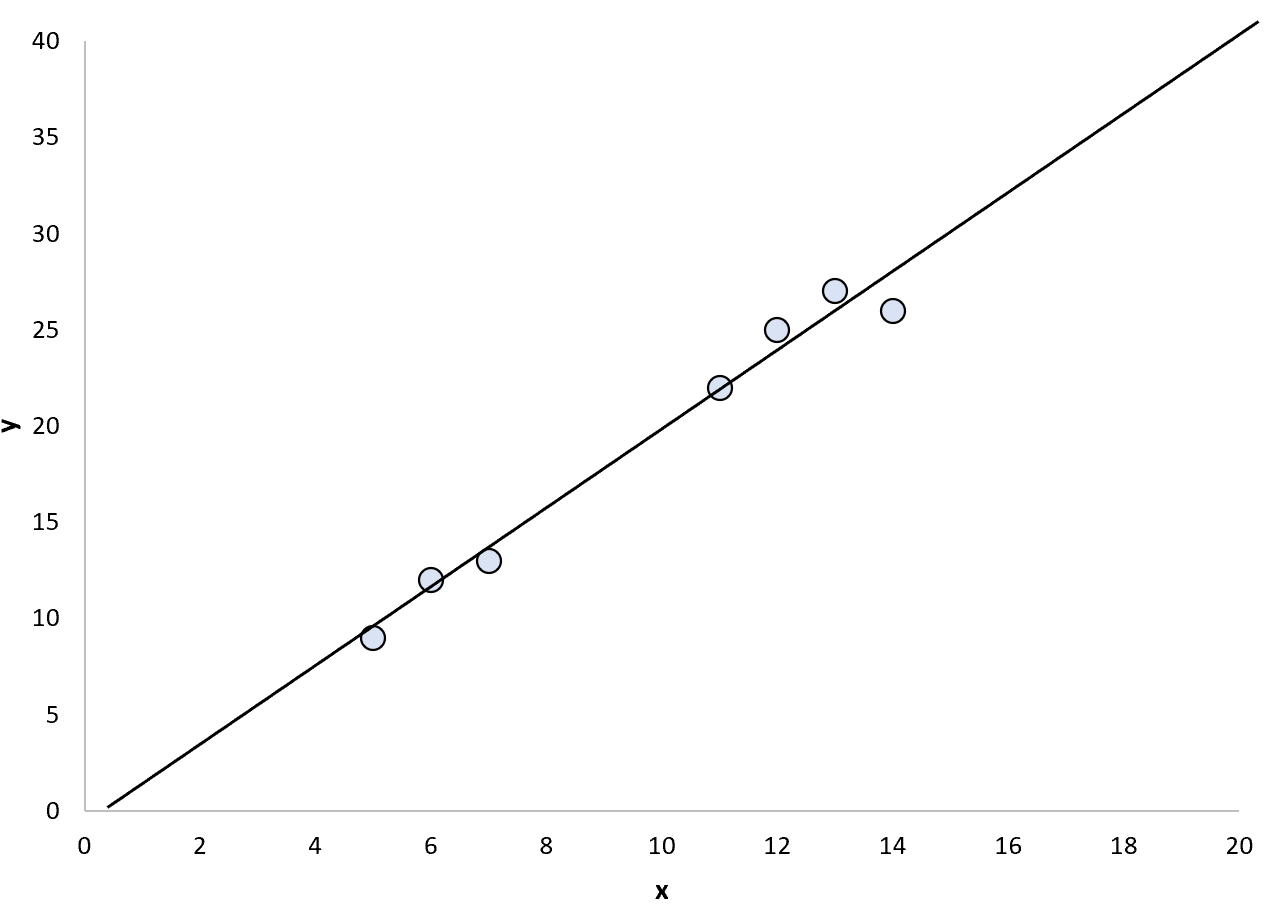

The fitted model attempts to minimize the distance between the line and the observed points:

We can then use this fitted regression equation to predict values for Y based on new values of X. When we predict Y for an X value that falls within the original range of our data (e.g., estimating Y when X is 4, assuming our data ranges from X=1 to X=10), this is defined as interpolation. Conversely, when we attempt to predict Y for an X value that falls outside the boundaries of our original dataset (e.g., estimating Y when X is 12), we are engaging in extrapolation.

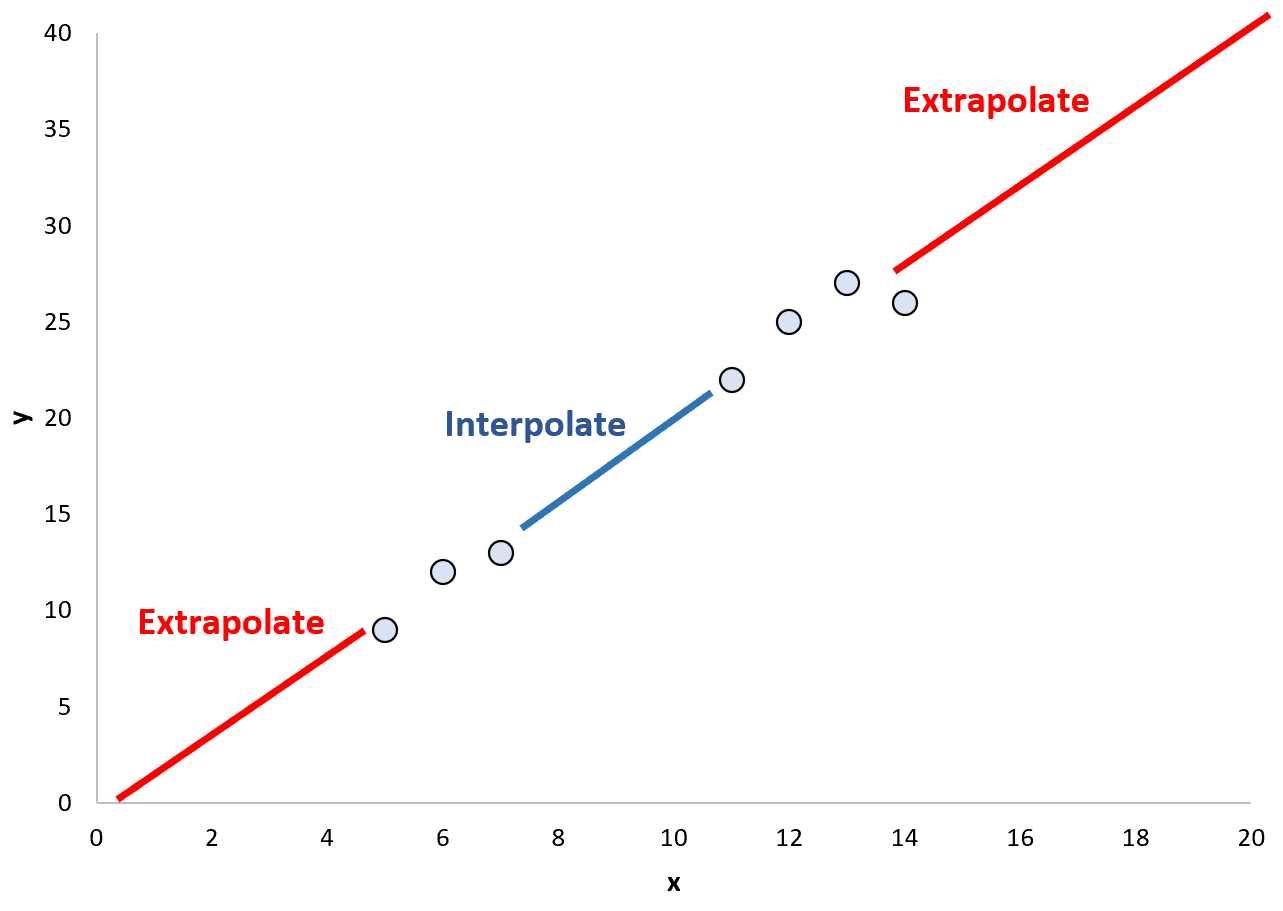

The following visual representation clearly isolates both predictive actions:

The Fundamental Risk of Extrapolation

While interpolation is usually a dependable approach because it relies on the observed behaviors bracketed by real data, extrapolation is inherently more perilous. The primary danger stems from the implicit assumption of continuity: when we extrapolate, we are presuming that the mathematical pattern or functional form established within the current data range persists indefinitely outside of it.

In many real-world scenarios, however, relationships are not perfectly linear or consistent across vast ranges of input variables. Physical, economic, or biological systems often encounter boundary conditions, saturation points, or phase transitions that cause the underlying pattern to shift dramatically once a certain threshold is crossed. For instance, a relationship that appears linear in a narrow observed range might actually be exponential, logarithmic, or subject to diminishing returns when observed over a larger scale.

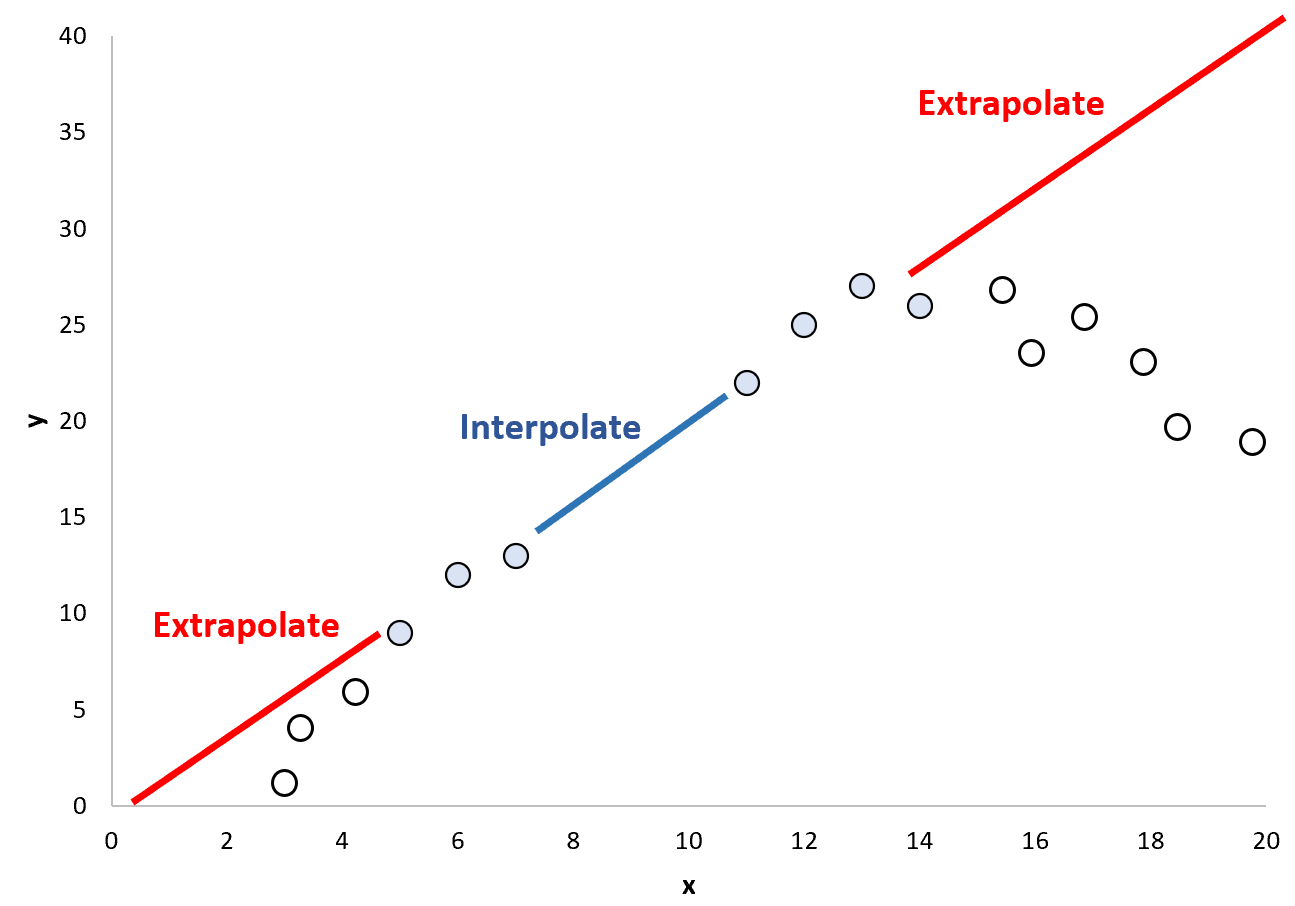

If the true relationship deviates sharply just beyond the observed data, our extrapolated prediction will be highly inaccurate, as illustrated below:

This visual confirms the critical lesson: relying on extrapolation to predict values far outside the training range of the model increases the likelihood of a significant error between the predicted value and the actual, unknown value. Therefore, analysts must exercise extreme caution, especially when the magnitude of the extrapolation distance is large. Minor extrapolations slightly beyond the data boundary are often acceptable, but the confidence interval around the prediction widens rapidly as we move further away from the known data cloud.

Statistical Validity and Boundary Conditions

The validity of any statistical prediction hinges on how well the model reflects reality, and this is most often challenged when performing extrapolation. When a simple linear regression model is fitted, it assumes a fixed, constant slope. If this assumption fails outside the observed range, the extrapolated results lose their statistical grounding.

We must consider the theoretical maximums and minimums of the variables involved. For example, if we are modeling the speed of a chemical reaction as a function of temperature, we know that the temperature cannot exceed certain physical limits before the system breaks down or changes phase completely. If our model training data only covers a small temperature range, extrapolating far beyond that range ignores these boundary conditions, leading to nonsensical or impossible predictions.

Therefore, statistical rigor dictates that models should ideally only be used to predict outcomes within the range of the data used for calibration. If extrapolation is unavoidable, the analyst must acknowledge that the prediction is based on a structural assumption (that the model holds true) rather than empirical evidence, and the resulting prediction should be treated with a much higher degree of uncertainty. This uncertainty should always be quantified, perhaps through wider prediction intervals, to communicate the risk accurately to stakeholders.

When Extrapolation is Justified: Case Studies

Determining whether extrapolation is a reasonable approach often requires specialized knowledge that goes beyond pure statistical mechanics. This is where domain-specific expertise becomes paramount, ensuring that statistical modeling aligns with real-world constraints and behaviors.

Consider a marketing department that fits a regression model correlating advertising spend (predictor variable) with total revenue (response variable). In many stable business environments, management might assume that a small, incremental increase in advertising spend will generally lead to a predictable, slightly increased return in revenue.

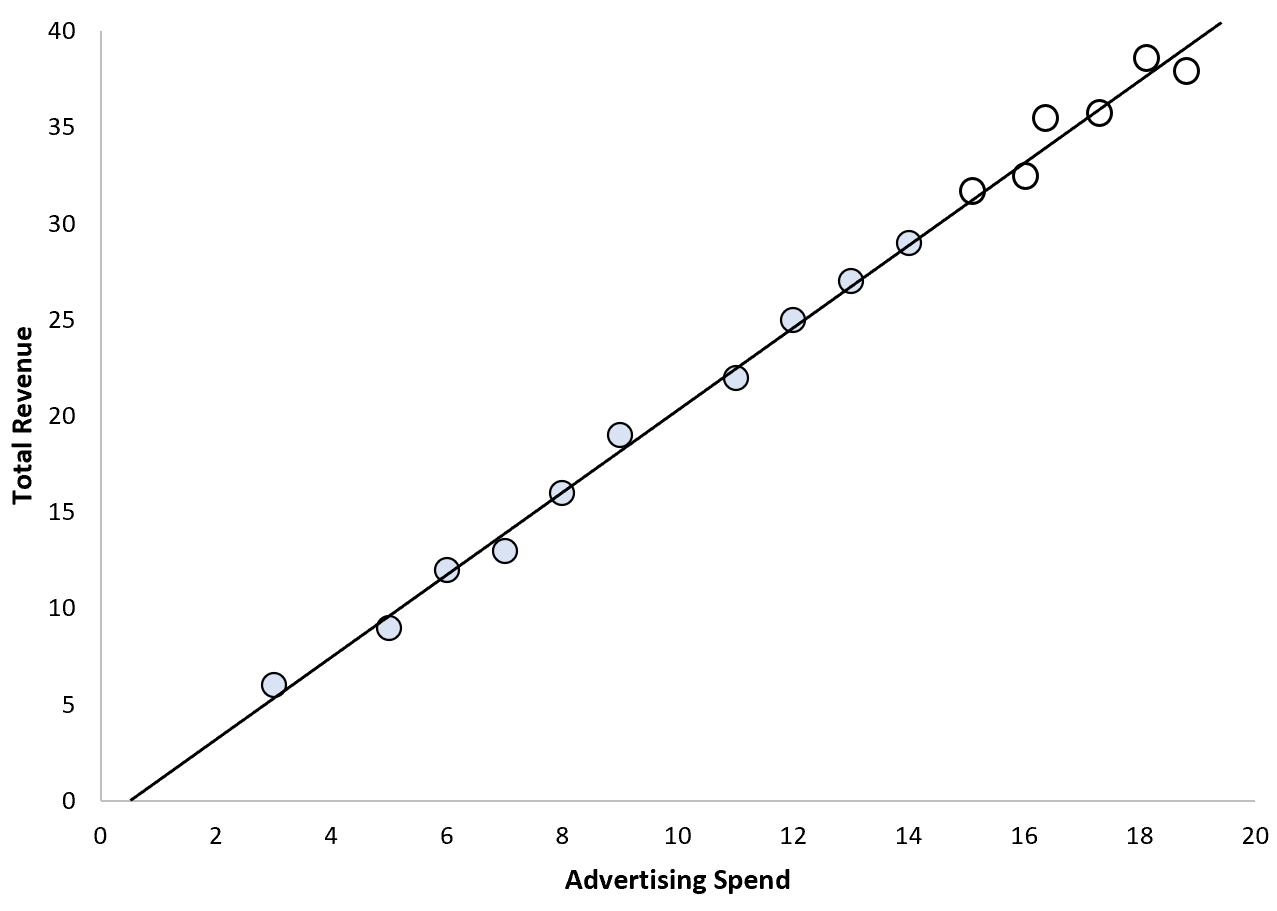

In this context, provided the extrapolation is minor and doesn’t push the spending into unrealistic extremes (where market saturation or logistical constraints would kick in), the assumption of a steady pattern may hold:

In this economic scenario, there might be high confidence in short-term extrapolated values because the underlying system (market response to advertising) is often modeled linearly within reasonable boundaries.

Now, contrast this with a biological scenario. A biologist studies plant growth as a function of fertilizer application. She fits a linear model based on her experimental data. However, she knows intuitively that plants have an inherent maximum height; adding fertilizer indefinitely will not cause exponential growth. At some point, the plant will reach biological limits, or excessive fertilizer will become toxic, causing growth to plateau or decline.

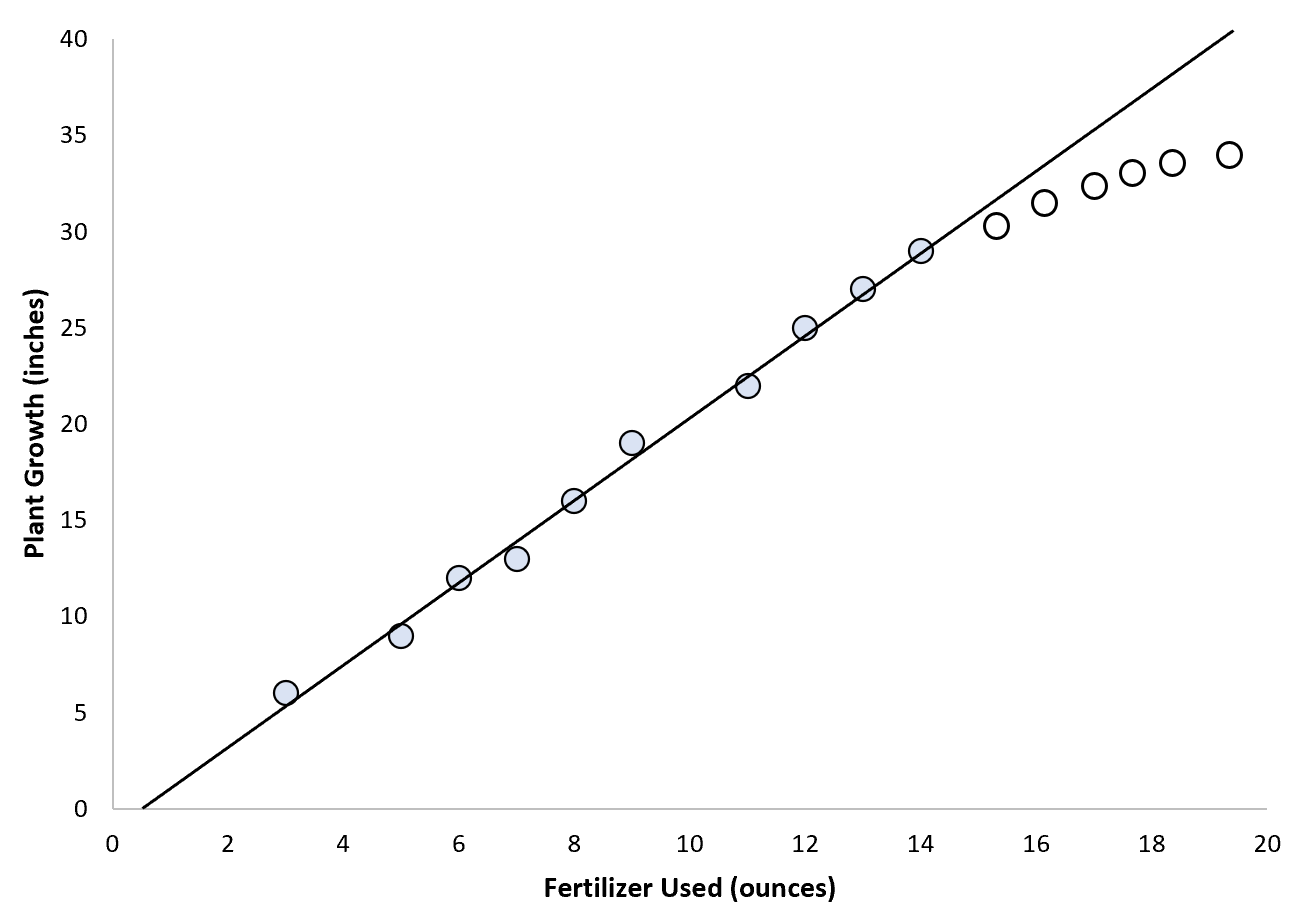

If she attempts to extrapolate based purely on the linear model fitted to the low-to-mid range data, the predictions will quickly become biologically impossible:

In this scenario, confidence in extrapolation is severely limited by biological boundary conditions. The takeaway is clear: while interpolation is generally safe because it stays within the known evidence, extrapolation requires careful assessment against the theoretical limits and observed patterns of the system being modeled. There is always a significant potential danger that the pattern within the range of fitted values does not persist outside of that range.

Additional Resources

For readers interested in deepening their understanding of these concepts and related statistical modeling techniques, the following resources are highly recommended:

• Understanding the mathematical basis of linear and nonlinear regression models.

• Exploring methods for quantifying prediction intervals in forecasting.

• Studying different types of interpolation (e.g., polynomial, spline) and their limitations.
