Learning How to Interpret Curved Residual Plots in Regression Analysis

The Indispensable Role of Residual Plots in Statistical Modeling

In the complex landscape of regression analysis, residual plots stand out as essential diagnostic tools. These visualizations are critical for assessing the validity and appropriateness of a chosen statistical model by illustrating the discrepancies, known as residuals, between the observed data points and the values predicted by the model. Analyzing these plots allows statisticians to confirm key model assumptions, such as the constant variance of errors (homoscedasticity) and the independence of observations.

The primary goal when reviewing any residual plot is to confirm that the errors are purely random. This ideal state is visually represented by points that are randomly scattered, forming a cloud centered horizontally around the zero line. When this condition is met, it signifies that the regression model has successfully captured all systematic patterns within the data, leaving only unpredictable noise. Any deviation from this pattern—any structure or trend—is a red flag indicating a potential flaw in the model’s design.

Among the various problematic patterns, a distinct curved shape is arguably the most serious indicator of fundamental model misspecification. This curvature strongly suggests that the functional form chosen for the relationship between the independent and dependent variables is inadequate. Specifically, if the true relationship is non-linear but a linear model is applied, the uncaptured non-linearity will manifest as a systematic curve in the residuals.

Identifying Model Failure: The Significance of a Curved Pattern

The core purpose of a regression model is to accurately describe the mathematical relationship connecting variables. When a model fails to account for systematic variations in the dataset, these unmodeled relationships are pushed into the error term, making them visible in the residual plot. Thus, scrutinizing this plot is not a mere procedural step; it is vital for guaranteeing the statistical validity and reliability of all subsequent inferences and predictions.

A healthy residual plot should display no discernible structure, with data points distributed symmetrically above and below the horizontal zero axis. This homogeneity ensures that the model’s core assumptions are met. Conversely, deviations like a “fanning out” pattern (heteroscedasticity), or a distinct parabolic curve, signal severe violations of these foundational assumptions.

The observation of a curvilinear or “curved” arrangement of the residuals is a powerful diagnostic signal. It overwhelmingly suggests that the underlying relationship is not linear, even if the analyst attempted to fit a linear regression model. Ignoring this visual evidence leads directly to biased parameter estimates, resulting in predictions that are systematically incorrect across different ranges of the predictor variable.

Specifically, a curved pattern means the original regression model formula is fundamentally misspecified. For example, if the actual relationship follows a quadratic trend (a parabola), but the model uses a simple straight line, the differences between the straight line and the curve (the residuals) will inevitably map out the shape of the curve itself. This type of misspecification often occurs when the effect of the independent variable changes direction—such as increasing up to a peak and then decreasing.

Case Study Introduction: Data Collection and Initial Visualization

To illustrate the interpretation and correction of a curved residual plot, let us examine a practical example. We gathered data from eleven employees regarding their weekly work hours and their corresponding self-reported happiness levels (measured on a scale of 0 to 100). The objective is to understand how changes in work hours relate to perceived happiness.

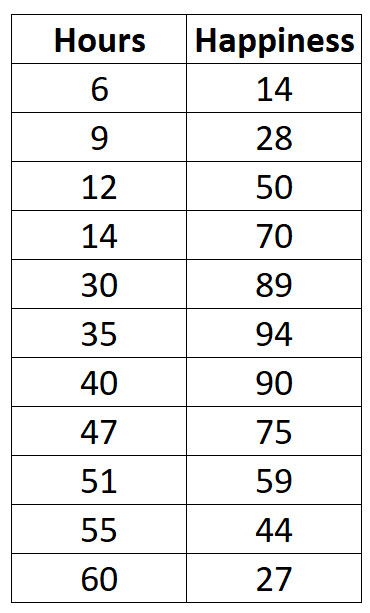

The raw data collected for this small study is presented in the table below, allowing us to see the paired observations for both variables:

As a critical first step in any robust statistical analysis, we must generate a scatter plot comparing ‘hours worked’ (predictor) against ‘happiness level’ (response). Visualizing the data provides immediate, invaluable insights into the nature and shape of the underlying relationship, often revealing patterns that are impossible to detect in raw tabular data.

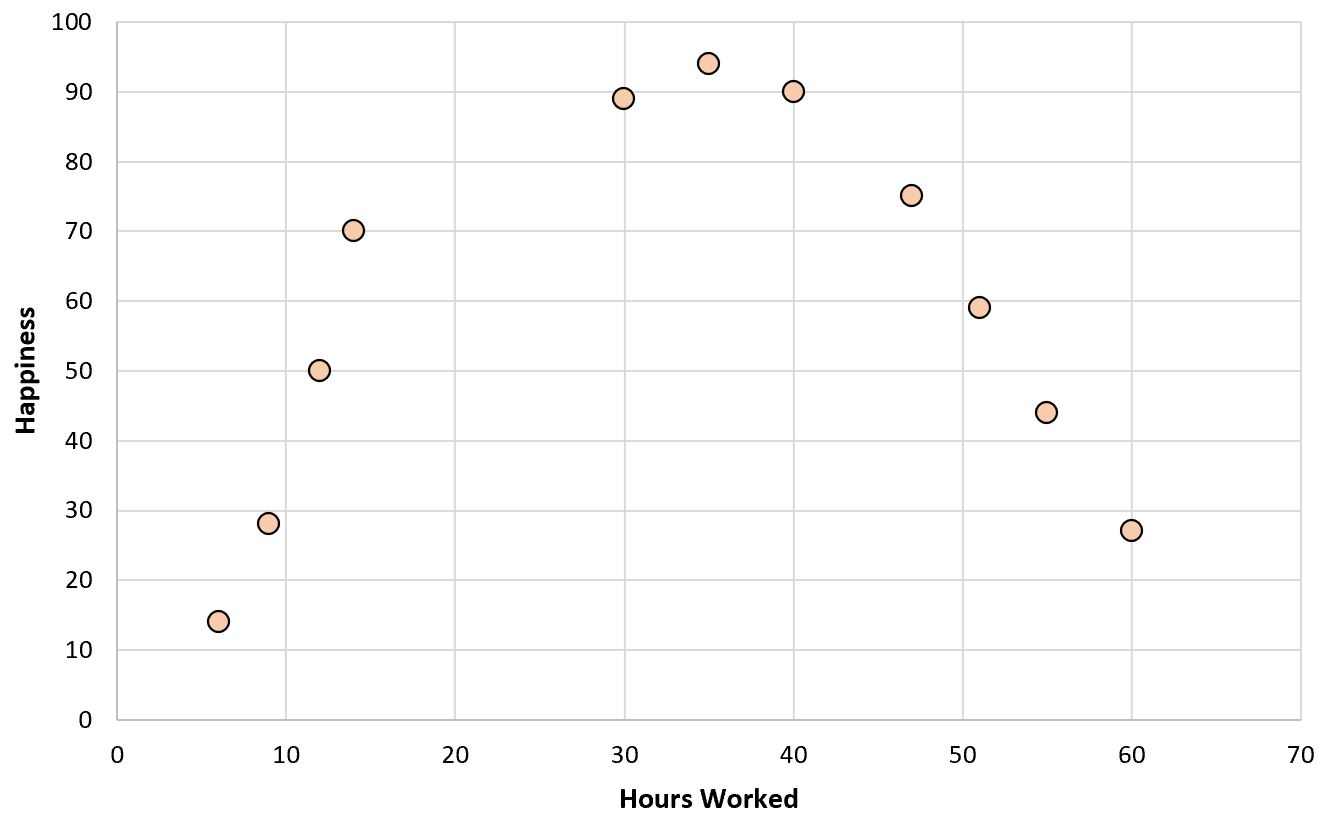

The scatter plot generated from our sample data is displayed here:

The visual representation clearly demonstrates that the relationship between work hours and happiness is not linear. Instead, it exhibits a distinct, inverted U-shaped quadratic trend. This suggests that happiness increases as work hours rise, but only up to an optimal point, after which excessive work hours cause happiness levels to decline. This initial visualization is essential, as it guides us away from inappropriate simple models and toward a more complex, accurate model structure.

Diagnostic Failure: Fitting a Simple Linear Regression

Despite the compelling visual evidence from the scatter plot suggesting non-linearity, we will proceed by fitting a standard simple linear regression model. This deliberate exercise serves to powerfully illustrate how the residual plot functions as the ultimate diagnostic tool for detecting model misspecification when the initial functional form is incorrect.

The following R code provides the steps necessary to fit the linear model, calculate the residuals, and generate the corresponding diagnostic plot. The code creates a dataframe, fits the linear model predicting happiness based only on hours, and plots the residuals against the fitted values.

#create dataframe
df <- data.frame(hours=c(6, 9, 12, 14, 30, 35, 40, 47, 51, 55, 60),
                 happiness=c(14, 28, 50, 70, 89, 94, 90, 75, 59, 44, 27))
#fit linear regression model
linear_model <- lm(happiness ~ hours, data=df)

#get list of residuals
res <- resid(linear_model)

#produce residual vs. fitted plot
plot(fitted(linear_model), res, xlab='Fitted Values', ylab='Residuals')

#add a horizontal line at 0
abline(0,0)

The resulting residual plot generated by the inappropriate linear model is shown below:

In this diagnostic plot, the horizontal axis represents the fitted values (the model’s predictions), and the vertical axis displays the residuals (the errors). The presence of a clear, pronounced curved pattern in the distribution of the points is unmistakable. This strong curvature is definitive proof that the linear regression model is fundamentally inadequate for this data, systematically failing to capture the true, non-linear relationship between work hours and happiness.

Model Correction: Implementing a Quadratic Regression Approach

Given the undeniable curved pattern identified in the initial residual plot and corroborated by the scatter plot visualization, the necessary corrective action is to employ a non-linear modeling approach. Since the pattern resembles an inverted U-shape, a quadratic regression model is the most appropriate solution. This model type allows the regression line to bend, accommodating the observed curvature by incorporating a squared term of the independent variable into the equation.

The following R code demonstrates how to fit the corrected quadratic regression model and generate its new diagnostic plot. The key technical modification involves creating a new predictor variable, hours2, which is the square of the original hours variable. This term allows the model to fit a polynomial curve rather than a straight line.

#create dataframe
df <- data.frame(hours=c(6, 9, 12, 14, 30, 35, 40, 47, 51, 55, 60),
                 happiness=c(14, 28, 50, 70, 89, 94, 90, 75, 59, 44, 27))
#define quadratic term to use in model
df$hours2 <- df$hours^2

#fit quadratic regression model
quadratic_model <- lm(happiness ~ hours + hours2, data=df)

#get list of residuals
res <- resid(quadratic_model)

#produce residual vs. fitted plot
plot(fitted(quadratic_model), res, xlab='Fitted Values', ylab='Residuals')

#add a horizontal line at 0
abline(0,0)

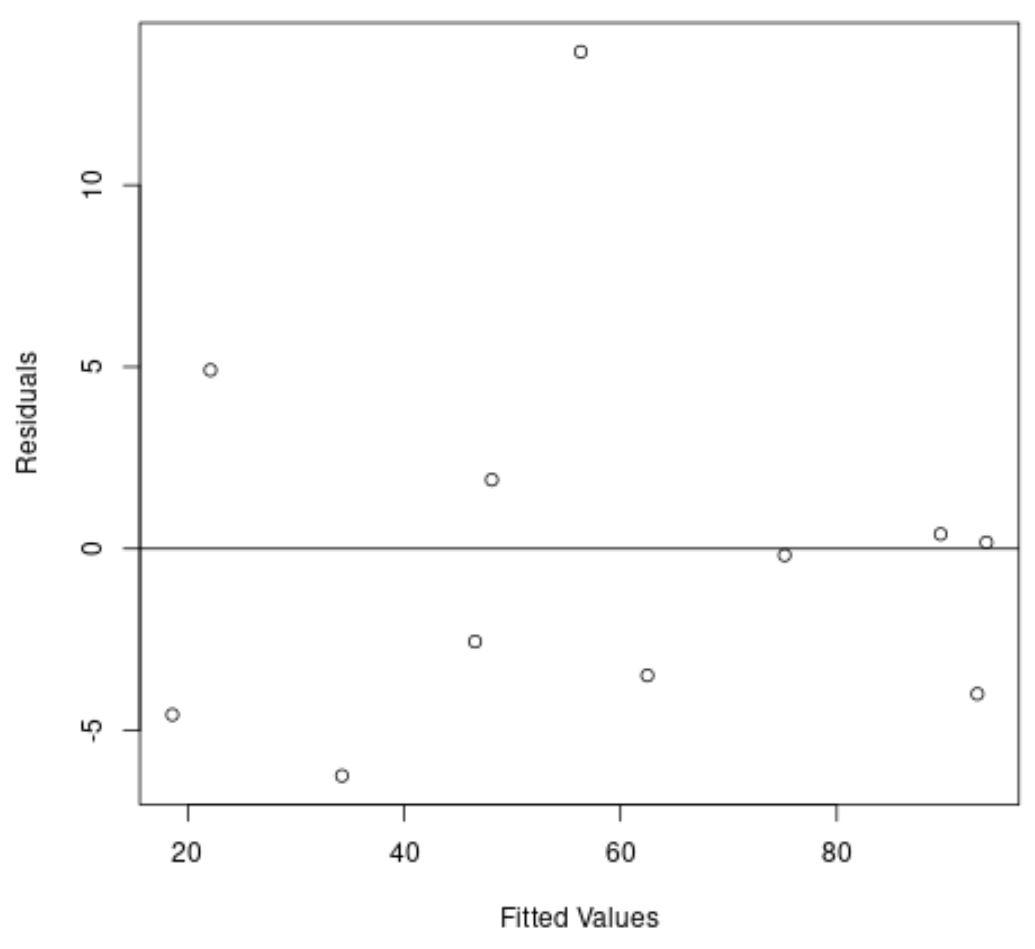

The residual plot resulting from the corrected quadratic regression model is presented below:

A visual comparison of this plot with the previous one reveals a dramatic and successful transformation. The horizontal axis still shows the fitted values, and the vertical axis shows the residuals. Crucially, the residuals are now truly randomly scattered around the zero line, exhibiting no systematic pattern, trend, or discernible curve.

This successful outcome confirms that the quadratic regression model provides a statistically sound and accurate representation of the data. The lack of structure in the residuals validates our hypothesis that the underlying relationship between work hours and happiness levels follows a non-linear, quadratic path.

Conclusion: Mastery Through Residual Analysis

The interpretation of residual plots remains an absolutely foundational skill for any analyst working with regression models. We have demonstrated that a distinct curved pattern serves as a critical, non-negotiable indicator of model misspecification. In such cases, attempting to force a linear regression model onto data that naturally follows a non-linear path, such as a quadratic trend, will yield biased results.

By successfully recognizing the curvilinear pattern and adjusting the model structure—in this case, by incorporating a squared term—we transformed a flawed model into a highly accurate and valid representation of the data. This process underscores the power of diagnostic visualization in statistical practice. Analysts must always prioritize scrutinizing their residuals; they hold the most reliable clues regarding the true nature of the data and the overall effectiveness of the chosen statistical tool.
