Understanding Chi-Square Tests for Categorical Data Analysis in SPSS

Introduction: Understanding the Power of the Chi-Square Test

The Chi-Square Test of Independence stands as a foundational non-parametric statistical tool widely employed across diverse fields, including the social sciences, medical research, and market analysis. Its primary purpose is to rigorously assess whether a statistically significant relationship or association exists between two or more categorical variables. This test is indispensable when researchers are working with nominal or ordinal data, where observations are classified into distinct categories rather than measured along a continuous numerical scale. The theoretical backbone of the test involves a critical comparison: contrasting the observed frequencies (the actual counts derived directly from the sample data) against the expected frequencies, which represent the theoretical counts one would anticipate if the variables were perfectly independent of one another.

Grasping the methodology for interpreting the results of this powerful test is absolutely crucial for researchers aiming to make evidence-based, informed decisions. While the underlying calculation can be performed manually, advanced statistical software, notably SPSS Statistics, efficiently automates the entire process. SPSS generates clear, concise output tables that encapsulate the necessary key statistics required for formal hypothesis testing. Our focus must be on systematically navigating this output to correctly identify the test statistic itself, the degrees of freedom (df), and the associated P-value, allowing us to draw valid and reliable conclusions regarding the relationship between the variables under study.

This comprehensive guide provides a detailed walkthrough using a practical SPSS application. We will meticulously illustrate the step-by-step procedure for running the test and, most importantly, establish a robust framework for interpreting the resulting tables. This framework will enable you to definitively determine if the observed association between your categorical variables is statistically significant.

Preparing Data in SPSS: An Example of Gender and Political Preference

To effectively demonstrate the practical application of the Chi-Square Test of Independence, let us consider a common research scenario. A political scientist seeks to explore whether an individual’s declared gender is associated with their preferred political party affiliation. Both factors—gender and party preference—are discrete, categorical variables, making the Chi-Square test the most appropriate analytical method for this investigation.

For this illustrative example, data was collected using a simple random sample comprising 50 registered voters. Each participant was classified according to their declared gender (e.g., Male, Female) and their chosen political affiliation (e.g., Democrat, Republican, Independent). The overarching goal of the analysis is to determine if the distribution of political party preference varies significantly depending on the respondent’s gender.

Before any statistical analysis can begin, the data must be properly structured and entered into SPSS Statistics. The image below provides a visual illustration of how the raw data should appear within the SPSS Data View, where every row represents a single registered voter and the columns correspond to the respective categorical variables:

Step-by-Step Execution of the Chi-Square Test in SPSS

Once the categorical data has been accurately input and variables have been defined within SPSS, executing the Chi-Square Test of Independence is a streamlined process. This procedure involves navigating the descriptive statistics menu to generate the necessary cross-tabulation table and simultaneously requesting the specific Chi-Square calculations that form the basis of the test.

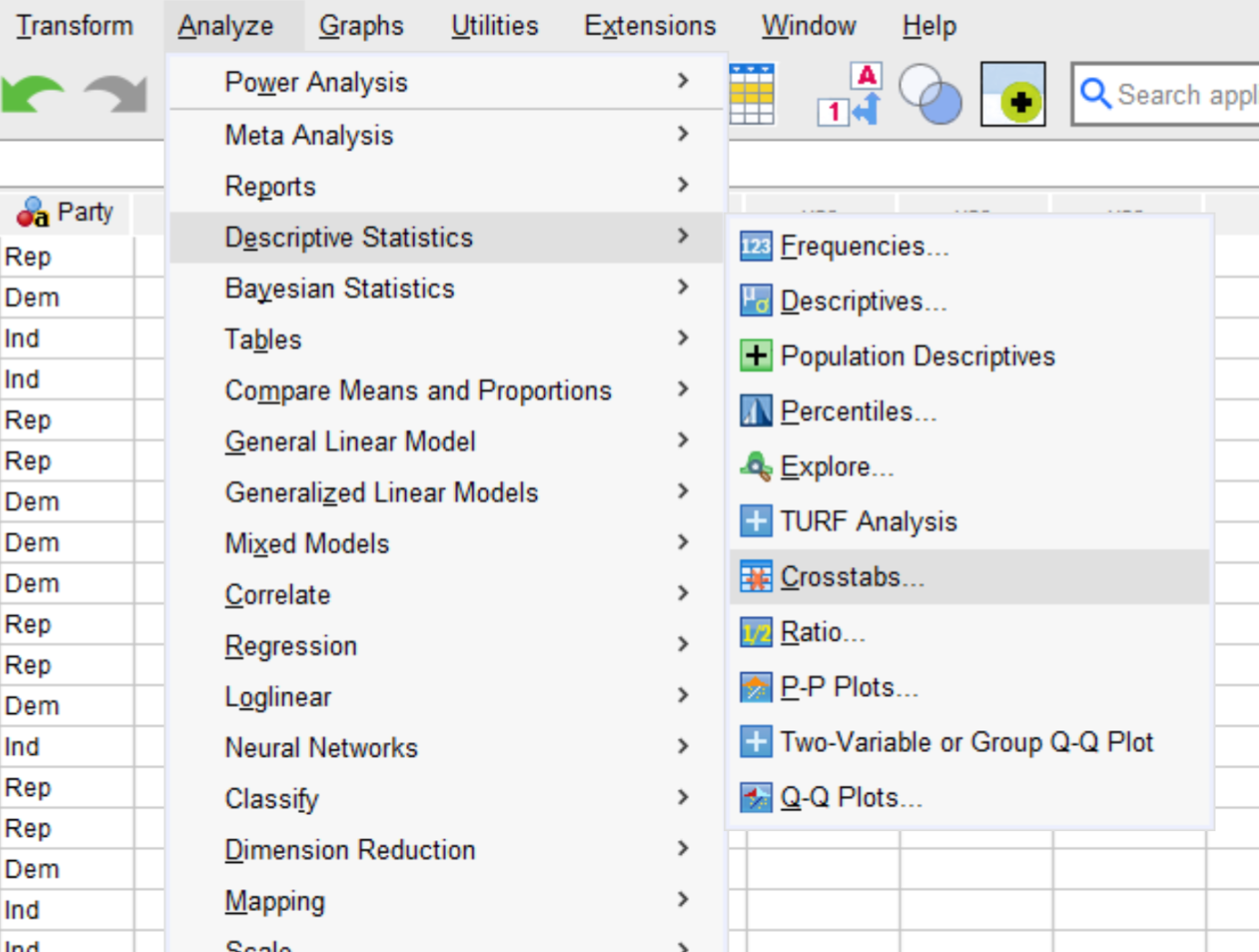

The process initiates from the main menu bar of SPSS. The user must first click the Analyze tab, subsequently select Descriptive Statistics, and finally click on Crosstabs. This crucial sequence of actions opens the primary dialog box required for configuring the cross-tabulation and commencing the formal independence test.

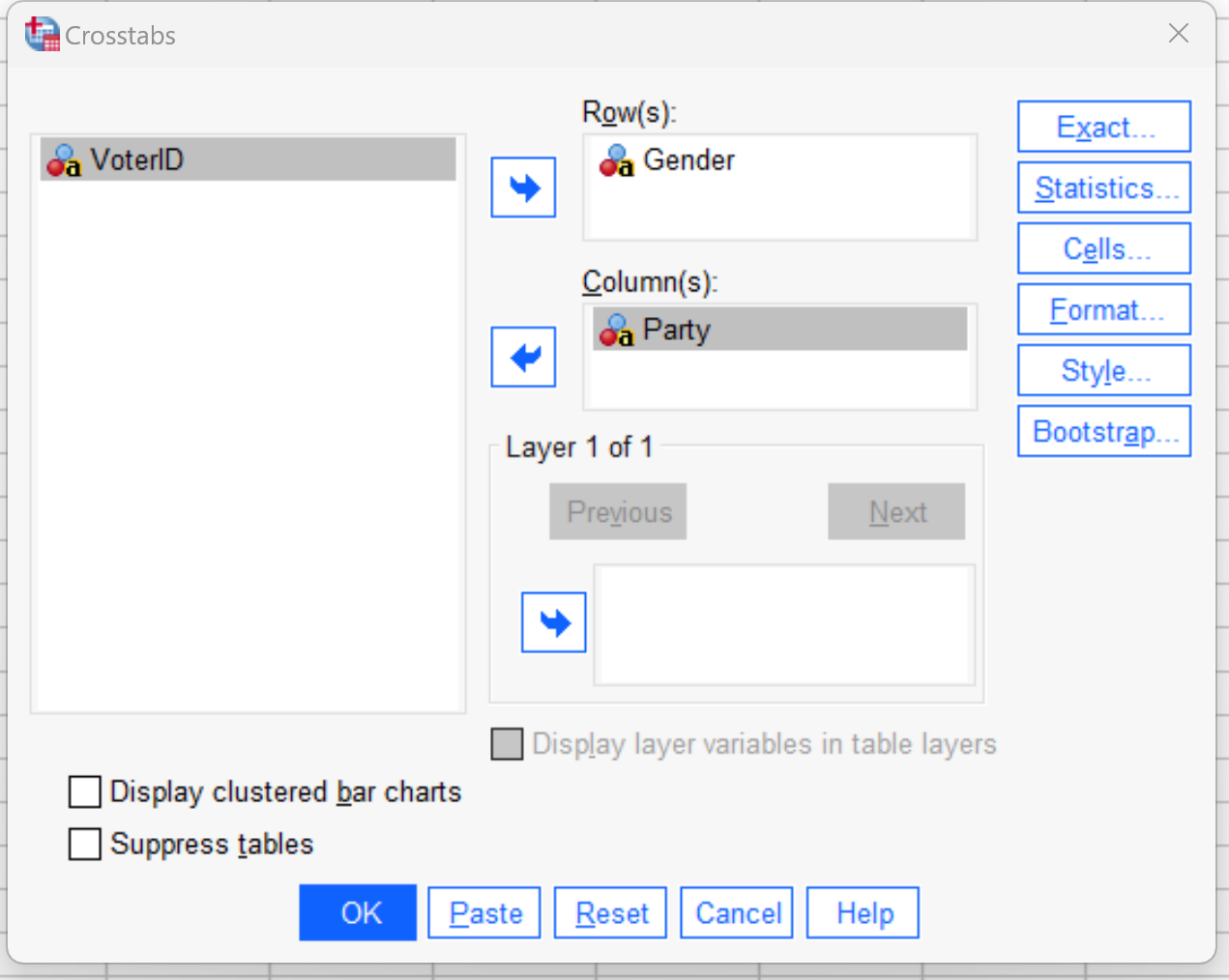

Within the subsequent Crosstabs dialog window, the two variables must be correctly assigned to their respective roles. Although the mathematical outcome of the Chi-Square test remains unchanged regardless of placement, conventional practice dictates placing the potential independent variable into the Rows panel and the dependent variable into the Columns panel. Following our example, the Gender variable should be dragged into the Rows panel, and the Party variable should be moved to the Columns panel. This organizational setup determines the final orientation and structure of the resulting contingency table presented in the output viewer.

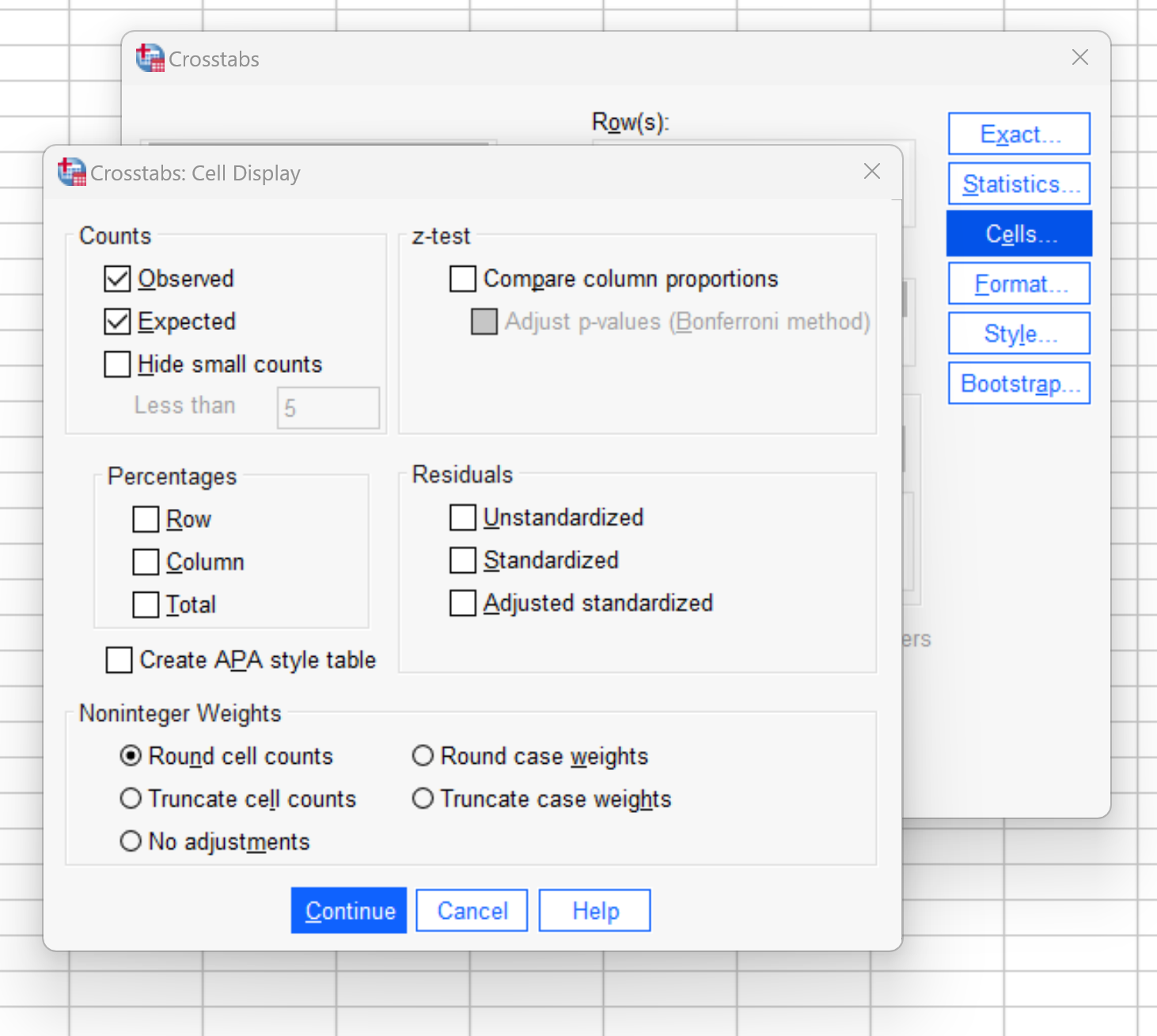

The next critical step is specifying which counts should be displayed within the output table, as this information is vital for both manual inspection and detailed interpretation. Click the Cells button to open the Cell Display dialog box. Inside this box, it is essential to ensure that the check boxes adjacent to both Observed and Expected are selected. Displaying the observed counts reveals the actual empirical distribution of the data, while the expected counts—the hypothetical distribution assuming perfect independence—are fundamental for understanding the mechanical calculation of the Chi-Square test statistic. Once these options are selected, click Continue.

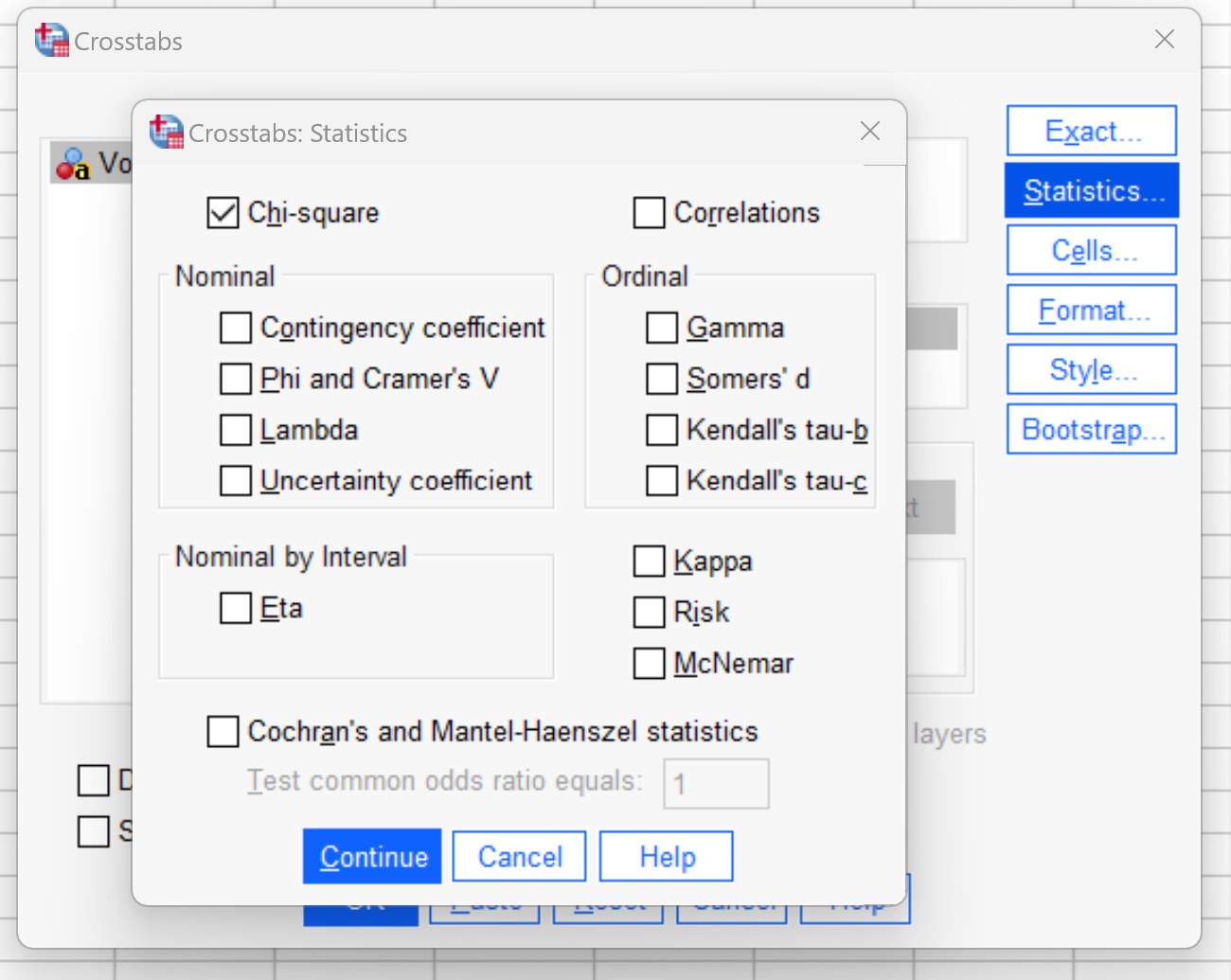

Finally, to instruct SPSS to compute the necessary test statistic, click the Statistics button. In the Statistics dialog box that appears, you must check the box next to Chi-square. This ensures that the primary output table containing the calculated Chi-Square value, the degrees of freedom, and the crucial asymptotic significance (P-value) is generated. After confirming this selection, click Continue, and then click OK in the main Crosstabs dialog box to execute the analysis and produce the complete statistical output.

Detailed Interpretation of the SPSS Output Tables

The SPSS Output Viewer organizes the analysis results into several distinct tables, each providing a necessary component for a comprehensive interpretation of the Chi-Square test. For our purposes, we will focus on reviewing the three primary sections: the Case Processing Summary, the Crosstabulation, and the Chi-Square Tests table.

Case Processing Summary: Data Validation

The initial table, the Case Processing Summary, functions as an essential quality control check for the input data. It clearly displays the total number of observations that were included in the analysis and, critically, indicates how many cases were excluded, typically due to missing data for one or both variables. In our specific example, the table confirms that there are 50 valid observations (representing 100% of the sample) and 0 missing observations. If a substantial percentage of data were missing, it would raise serious concerns regarding the representativeness of the remaining sample and the ultimate reliability of the test results; fortunately, our current analysis is free from this complication.

Crosstabulation: Observed vs. Expected Frequencies

The Crosstabulation table is the core descriptive component of the output, displaying the raw frequencies for every combination (cell) of the two variables, Gender and Political Party Preference. Within each cell, you will find two crucial figures: the observed count (the actual number of people in the sample) and the expected count. The expected count represents the frequency that would theoretically exist if the two variables were perfectly independent of each other in the population. The magnitude of the Chi-Square test statistic is directly driven by the differences—or discrepancies—between these observed and expected counts. The test essentially calculates the sum of the squared differences between these two sets of counts across all cells, weighted relative to the expected count.

By visually inspecting this table, researchers can quickly pinpoint where the largest deviations occur, providing preliminary insight into the nature of any potential relationship. For example, if the observed count for the cell “Female, Democrat” significantly exceeds its corresponding expected count, it suggests that, within this sample, females are disproportionately more likely to affiliate with the Democratic party compared to the overall sample distribution.

Chi-Square Tests: The Hypothesis Testing Statistics

This table, labeled Chi-Square Tests, is arguably the most critical output, as it contains the specific test statistic and the associated P-value required to formally test the hypothesis. Under the row labeled “Pearson Chi-Square,” we locate the calculated Chi-Square test statistic, which is 1.118, and the corresponding asymptotic significance (the two-sided P-value), which is .572. The table also clearly specifies the degrees of freedom (df), calculated by the formula (Number of Rows – 1) * (Number of Columns – 1). While the degrees of freedom are essential for determining the critical value, the P-value usually provides a more direct path to the final decision.

Drawing Statistical Conclusions and Reporting Findings

Interpreting the final results of the Chi-Square test involves a formal process: articulating the statistical hypotheses and comparing the calculated P-value to a predetermined significance level ($alpha$), which is conventionally set at 0.05.

The hypotheses for this Test of Independence are formally structured as follows:

• H₀ (Null Hypothesis): The two variables are independent. (In our example: Gender and political party preference are independent; there is no statistically significant association between them.)
• H_A (Alternative Hypothesis): The two variables are not independent, meaning they are associated. (In our example: Gender and political party preference are associated.)

The decision rule applied to the P-value is straightforward:

1. If the P-value is less than or equal to the significance level ($alpha=0.05$), we reject the null hypothesis ($H_0$).
2. If the P-value is greater than 0.05, we fail to reject the null hypothesis.

In this specific analysis, the two-sided P-value derived from the SPSS output is .572. Since 0.572 is substantially greater than the conventional alpha level of 0.05, we must conclude that we fail to reject the null hypothesis.

This statistical conclusion signifies that, based on the data collected from our sample of 50 registered voters, there is insufficient statistical evidence to confidently assert that a significant association exists between gender and political party preference. In practical terms, the distribution of party preference among males is similar enough to the distribution among females that the small differences observed in our sample can reasonably be attributed to natural random sampling variation. When formally reporting these findings, it is mandatory to state the Chi-Square statistic, the degrees of freedom, and the P-value clearly: $chi^2(2) = 1.118, p = 0.572$.
