Understanding Residual Standard Error (RSE) in Statistical Modeling

The rigorous evaluation of a statistical model’s performance is absolutely crucial for sound data analysis and decision-making. Among the numerous diagnostic metrics available, the residual standard error (RSE)—often interchangeably called the standard error of the regression—serves as the fundamental metric for quantifying a model’s predictive accuracy. It provides a measure of the average distance that the observed data points deviate from the fitted regression model. Essentially, the RSE offers a robust, quantifiable assessment of how well a specific statistical relationship has been captured by the model.

For analysts utilizing linear modeling techniques, grasping the RSE is paramount. Unlike metrics such as R-squared, which focus solely on the proportion of variance explained, the RSE is expressed in the original units of the response variable. This characteristic makes the RSE highly intuitive: it directly translates the model’s error back into a meaningful, real-world context. For instance, if predicting income, the RSE is measured in currency units. A smaller RSE signals a tighter fit, meaning the model’s predictions are, on average, closer to the actual observed values, thereby demonstrating higher predictive utility.

Technically speaking, the RSE is mathematically derived from the residuals, which represent the vertical differences between the actual observed outcomes and the outcomes predicted by the model. By summarizing the spread and distribution of these residuals, the RSE provides a single, reliable measure of the typical magnitude of error the model is expected to produce during prediction. Therefore, the RSE is, in essence, the standard deviation of the unexplained variation after the regression line has been fitted.

The Mathematical Foundation: Calculation and Derivation

To fully appreciate the statistical power and robustness of the RSE, a brief examination of its mathematical derivation is helpful. The calculation formally defines the concept of measuring the spread of the residuals around the fitted regression line. The process involves aggregating the deviations by summing the squared residuals, calculating the average variance, and finally taking the square root. This methodology is fundamentally analogous to calculating the standard deviation for any set of data points, but crucially incorporates a correction for the model complexity.

The formal calculation for the residual standard error is expressed by the following equation, which is derived from the Mean Squared Error (MSE) adjusted for model parameters:

Residual standard error = √Σ(y – ŷ)²/df

where the terms represent the following statistical components:

• y: Represents the observed value of the response variable in the dataset.
• ŷ: Represents the predicted value (y-hat) generated by the regression model for that specific observation.
• df: Stands for the degrees of freedom, which is calculated as the total number of observations (n) minus the total number of parameters estimated by the model (k, including the intercept).

The use of the degrees of freedom (df) in the denominator is critical because it provides an unbiased estimate of the error variance. By dividing by the degrees of freedom rather than the total number of observations (n), the RSE accounts for the fact that some degrees of freedom were “consumed” in the process of estimating the model coefficients. This adjustment ensures that the error measure remains appropriate and reliable regardless of the number of predictors included in the statistical model, thus preventing an artificially optimistic assessment of the fit.

Visualizing the Fit: Interpreting the Magnitude of RSE

The numeric magnitude of the residual standard error correlates directly with the visual scatter of the data points around the established line of best fit. This visual interpretation is arguably the most immediate way to assess the practical accuracy and predictive utility of the model. Generally, the smaller the RSE value, the more tightly clustered the data points are, signifying a superior fit between the regression model and the underlying dataset. Conversely, a higher residual standard error indicates a poor fit and greater dispersion of the observed data.

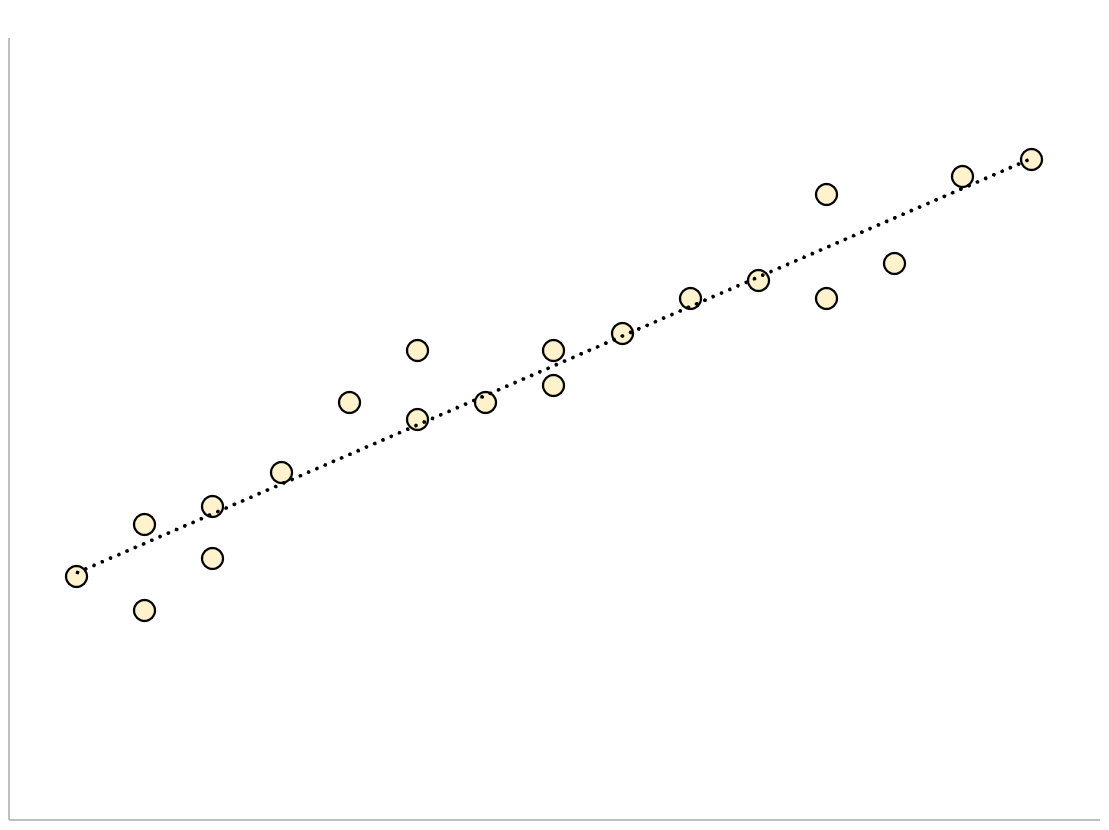

Consider a regression model demonstrating a small residual standard error. In this scenario, the data points will be closely packed around the fitted regression line, showing a clear, strong linear trend:

The resulting residuals—the distances between the observed values and the predicted values—will be uniformly small. Consequently, the calculated residual standard error will also be small. This outcome is highly desirable as it suggests high predictive accuracy, confirming that the model has successfully captured the majority of the systematic variance present in the data.

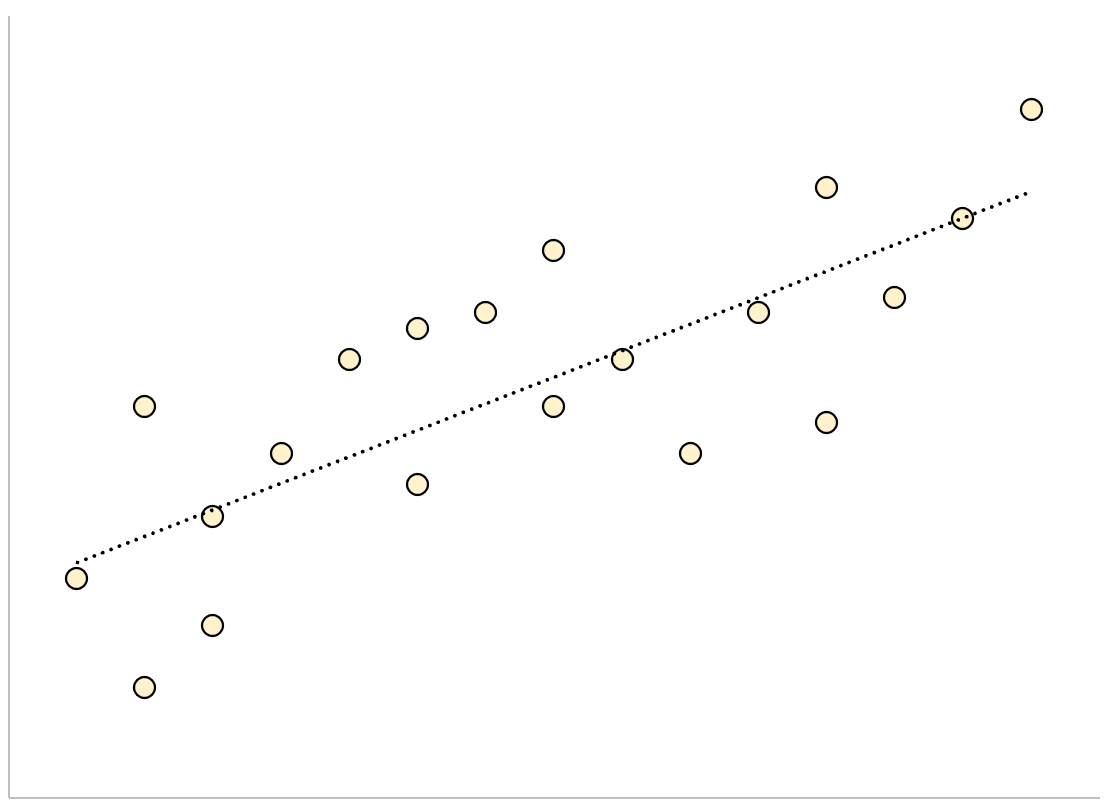

In contrast, a regression model that yields a large residual standard error will feature data points that are widely and loosely scattered around the fitted regression line, indicating substantial noise or unaccounted variance:

In this situation, the residuals of the model will be significantly larger in magnitude. A large RSE value signals that the model’s predictions are unreliable, and the average error associated with those predictions is substantial. This often suggests that critical predictors may be missing or that a linear relationship is inappropriate for the underlying data structure.

Practical Application: Calculating RSE in R

To solidify the understanding of RSE, it is helpful to illustrate its calculation and location within standard statistical output using the popular statistical programming language, R. We will utilize the built-in mtcars dataset, a common tool for demonstrating multiple linear regression analysis. Our objective is to predict a car’s miles per gallon (mpg) using two predictors: engine displacement (disp) and horsepower (hp).

This analysis requires fitting a multiple linear regression model, which is formally defined by the equation:

mpg = β₀ + β₁(displacement) + β₂(horsepower)

The following code snippet demonstrates the necessary steps to load the dataset, fit this specific regression model using the lm() function, and subsequently retrieve the comprehensive model summary in R, which contains the RSE:

#load built-in mtcars dataset
data(mtcars)

#fit regression model
model <- lm(mpg~disp+hp, data=mtcars)

#view model summary
summary(model)

Call:
lm(formula = mpg ~ disp + hp, data = mtcars)

Residuals:
    Min      1Q  Median      3Q     Max
-4.7945 -2.3036 -0.8246  1.8582  6.9363

Coefficients:
             Estimate Std. Error t value Pr(>|t|)
(Intercept) 30.735904   1.331566  23.083  < 2e-16 ***
disp        -0.030346   0.007405  -4.098 0.000306 ***
hp          -0.024840   0.013385  -1.856 0.073679 .
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 3.127 on 29 degrees of freedom
Multiple R-squared:  0.7482,	Adjusted R-squared:  0.7309
F-statistic: 43.09 on 2 and 29 DF,  p-value: 2.062e-09

As highlighted near the bottom of the output, conveniently labeled alongside the corresponding degrees of freedom, the calculated residual standard error for this specific regression model is 3.127. This numeric result forms the basis for all subsequent contextual interpretation and model evaluation.

Contextual Interpretation and Model Comparison

The derived RSE value of 3.127 is reported in the same units as our response variable, which is miles per gallon (mpg). This direct, unit-based measurement is precisely what makes the RSE such an invaluable tool for applied analysis and communication. It allows analysts to quantify the expected error in terms that are immediately understandable to stakeholders.

In this specific example, an RSE of 3.127 tells us that the regression model predicts the mpg of cars with an average prediction error (or standard deviation of the residuals) of approximately 3.127 mpg. Practically, if a car’s true mpg is 20, the model’s prediction for that car is likely to fall within the range of 20 ± 3.127, assuming that the residuals satisfy the normality assumption required for standard statistical inference.

When interpreting the RSE, context is a key consideration. An RSE of 3.127 might represent an excellent fit if the average mpg in the dataset is only 15, as the error is relatively small compared to the mean. However, if the average mpg were 50, an error of 3.127 might be viewed as less impressive, suggesting significant room for improvement. Therefore, the RSE must always be evaluated relative to the typical magnitude and total range of the response variable to determine if the error size is acceptable for the specific application.

The residual standard error is also highly effective for comparing the goodness of fit across different regression models, provided they use the exact same dataset and predict the same outcome variable. Since RSE is expressed in the response variable’s units, it serves as an objective, easily comparable measure of predictive precision. When comparing two models, the decision rule is clear: the model with the lower RSE is almost always preferred, as it signifies superior fit and greater predictive accuracy. For instance, if Model 1 has an RSE of 3.127 and Model 2 has an RSE of 5.657, Model 1 is the better choice because its predictions are, on average, closer to the observed values.

Limitations and Diagnostic Considerations

While the residual standard error is an indispensable metric of precision, analysts must be acutely aware of its limitations. The RSE is most reliable and interpretable when the fundamental assumptions of linear regression are satisfied, particularly the assumption of homoscedasticity (constant variance of residuals) and the normality of residuals. If the spread of residuals changes significantly across the range of predicted values—a condition known as heteroscedasticity—the RSE might fail to accurately represent the average error across the entire model domain.

It is essential to remember that RSE is solely a measure of precision, not systematic bias. A model could potentially exhibit a small RSE while still suffering from systematic bias—for example, if it consistently over-predicts low values and consistently under-predicts high values. This bias would not necessarily inflate the RSE but would severely compromise the model’s validity. Consequently, the RSE should never be reviewed in isolation. It must be assessed in conjunction with residual plots and other crucial diagnostic statistics, such as R-squared, Adjusted R-squared, and the F-statistic, to gain a holistic view of the model’s health, validity, and overall explanatory power.

In summary, the residual standard error remains the most straightforward and contextually interpretable measure of a linear model’s predictive accuracy. By quantifying the typical distance between observed and predicted values in real-world units, the RSE empowers analysts to effectively judge the quality of their statistical fits, compare alternative model specifications objectively, and confidently communicate the expected margin of error to non-technical stakeholders.
