Simple Linear Regression: An Introduction to Modeling Relationships Between Two Variables

Understanding the Core Principles of Simple Linear Regression

Simple linear regression (SLR) is one of the most foundational statistical methods used to model the linear relationship between two continuous variables. Its primary purpose is to quantify how a change in one variable affects the other, allowing us to make predictions or draw inferences about the underlying process. Crucially, this technique assumes that the relationship is linear, meaning that the output variable changes consistently and proportionally for every unit change observed in the input variable.

In this modeling framework, we differentiate between the two variables based on their role. The input variable, conventionally denoted as x, is the predictor variable (or independent variable). Its values are utilized to forecast or explain the corresponding values of the other variable. Conversely, the output variable, y, is known as the response variable (or dependent variable), representing the outcome or phenomenon we are attempting to model. Establishing which variable is the cause (predictor) and which is the effect (response) is the essential first step in building and interpreting any successful linear regression model.

To make this concept tangible, let us consider a classic dataset involving physical attributes. Suppose we collect data points for seven individuals, recording both their weight and their height. Our immediate goal is to determine if and how strongly weight can predict height.

Given our hypothesis that increased body mass (weight) is associated with greater stature (height), we designate weight as the predictor variable (x) and height as the response variable (y). The application of linear regression will allow us to move beyond mere observation and precisely measure the direction and magnitude of the relationship between these two characteristics within our sample.

Visualizing Data Relationships Using a Scatterplot

Before commencing any complex mathematical modeling, the standard practice in data analysis is to visualize the raw data. By plotting our paired variables—weight (x) and height (y)—on a scatterplot, we gain immediate insight into the distribution, the presence of outliers, and, most importantly, whether a linear trend appears plausible. This visualization is essential for confirming that the assumption of linearity is reasonable for our specific dataset.

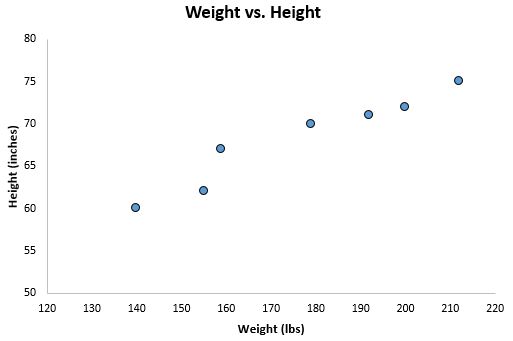

In our example, positioning weight on the horizontal (x) axis and height on the vertical (y) axis clearly illustrates the positioning of the seven observed data points:

The resulting scatterplot strongly suggests a positive correlation: as the weight values increase, the corresponding height values generally increase as well. While this visual confirmation is helpful, it remains qualitative. To effectively predict height based on weight or to precisely measure the strength of this relationship, we require a quantitative, mathematical tool. This is where the core calculation of simple linear regression comes into play.

Defining the Least Squares Regression Line Equation

The central objective of linear regression is to find the single straight line that best summarizes the trend observed in the scatterplot. This optimal line is formally known as the least squares regression line. The term ‘least squares’ refers to the mathematical process used to derive it: the method minimizes the sum of the squared vertical deviations (known as residuals) between every observed data point and the proposed line. By minimizing these squared errors, we ensure the line provides the most accurate and balanced representation of the overall trend.

The universal formula that defines this line of best fit is represented by a straightforward linear equation:

ŷ = b₀ + b₁x

Each component of this equation holds vital statistical meaning. ŷ represents the predicted value of the response variable (y), the outcome we are forecasting. b₀ is the y-intercept, which is the predicted value of y when the predictor variable x equals zero. Most critically, b₁ is the regression coefficient (the slope), quantifying the precise average change in ŷ associated with a one-unit increase in x. Finally, x is the specific value of the predictor variable we use for estimation. Calculating the precise values of b₀ and b₁ is typically executed using specialized statistical software packages (like R, Python, or SPSS) for efficiency and accuracy.

Related Resource: 4 Examples of Using Linear Regression in Real Life

Calculating and Visualizing the Best Fit Line

To determine the specific parameters for our weight and height dataset, we input the seven pairs of observations into a statistical tool. Whether using a simple Linear Regression Calculator or a sophisticated software environment, the process yields the optimized values for the intercept (b₀) and the slope (b₁).

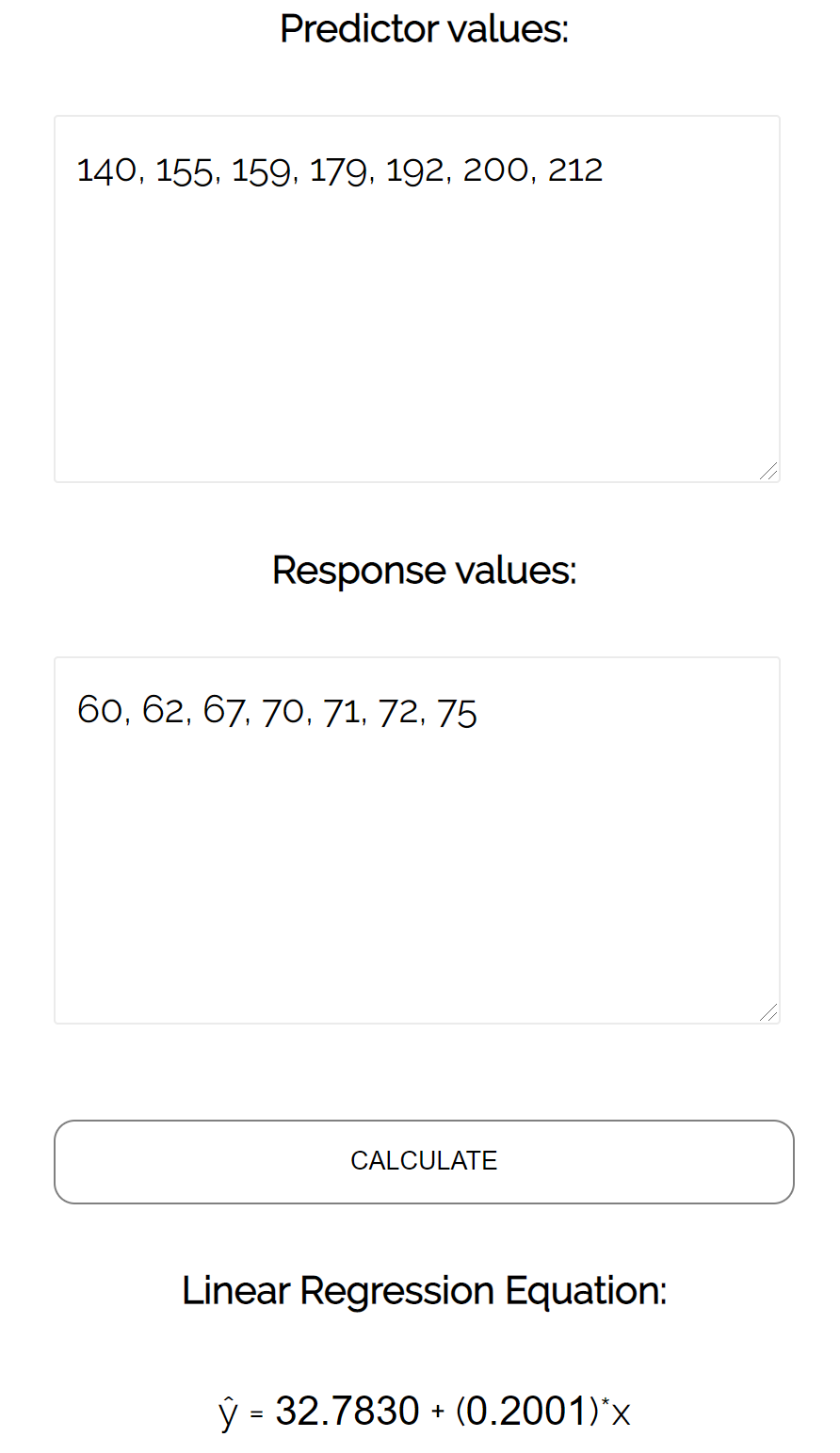

The resulting output identifies the calculated components of the least squares regression line based on the data points provided:

With the coefficients determined, our specific equation for predicting height (y) based on weight (x) is:

ŷ = 32.7830 + 0.2001x

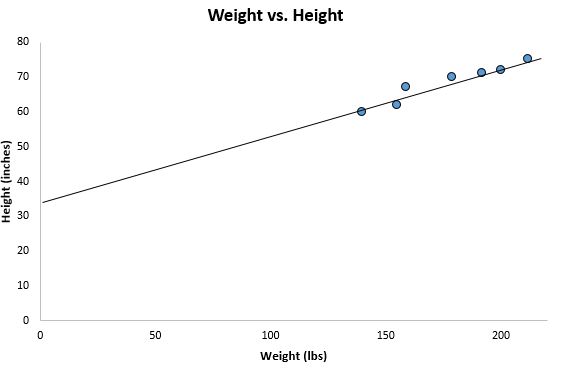

When we plot this mathematically derived line onto the original scatterplot, we can visually confirm its accuracy. The line is optimally positioned to slice through the center of the data cluster, providing a clear visual confirmation that it minimizes the squared distances to all points simultaneously, thereby achieving the “best fit.”

Interpreting the Regression Coefficients (b₀ and b₁)

The true analytical value of the regression model is unlocked through the careful interpretation of its two coefficients, b₀ and b₁. These values transform the equation (ŷ = 32.7830 + 0.2001x) into concrete, meaningful insights regarding the relationship between weight (x) and height (y).

First, consider the y-intercept, b₀ = 32.7830. Statistically, this is the predicted height (y) when the weight (x) is exactly zero. In many real-world scenarios, such as this one, interpreting the intercept literally is nonsensical; a person cannot weigh zero pounds. Therefore, we must recognize that b₀ primarily serves as a mathematical constant necessary to position the line correctly on the coordinate plane, rather than providing a practical prediction for the extremes of the data.

Second, the regression coefficient, b₁ = 0.2001, is the most crucial statistic. This slope quantifies the rate of change, indicating that for every one-unit increase in the predictor variable (weight), the response variable (height) is expected to change by b₁ units. Specifically, our model suggests that a one-pound increase in weight is associated with a predicted 0.2001-inch increase in height. Since this coefficient is positive, it confirms the positive correlation observed visually: as people get heavier, they are predicted to be taller.

Using the Regression Line for Prediction

Once the least squares regression line has been established and its coefficients interpreted, its most practical application is forecasting. The equation allows us to predict the likely value of the response variable (height) for any new, unobserved value of the predictor variable (weight), provided that the new value falls within the range of our original data.

For instance, if we encounter a new individual and want to estimate their height based on a recorded weight of 170 pounds, we substitute x = 170 into our derived equation:

ŷ = 32.7830 + 0.2001(170) = 66.8 inches

Similarly, if we wish to predict the height of a person weighing 150 pounds, the calculation is just as straightforward:

ŷ = 32.7830 + 0.2001(150) = 62.798 inches

Caution Regarding Extrapolation: A critical rule in statistical prediction is to avoid extrapolation. This means we should only use input values (x) that are within the range observed in the original training data (in our case, 140 lbs to 212 lbs). Applying the linear equation far outside this range—for example, predicting the height of a 50 lb child or a 350 lb adult—is highly unreliable. The linear relationship modeled here is only guaranteed to hold true within the observed data limits.

Assessing Model Fit: The Coefficient of Determination (R²)

While the regression line provides the mechanism for prediction, we need a metric to quantify the reliability of that line—how well does the model truly fit the observed data? This metric is the coefficient of determination, denoted as R². This value is fundamental for assessing the overall quality of the linear model.

The R² value represents the proportion of the total variation observed in the response variable (y) that is successfully explained by the predictor variable (x) through the regression model. R² always falls between 0 and 1 (or 0% and 100%). An R² close to 0 suggests the model explains very little of the variability, implying a weak fit. Conversely, an R² approaching 1 indicates a near-perfect fit, where the predictor variable accounts for almost all the fluctuation in the response variable.

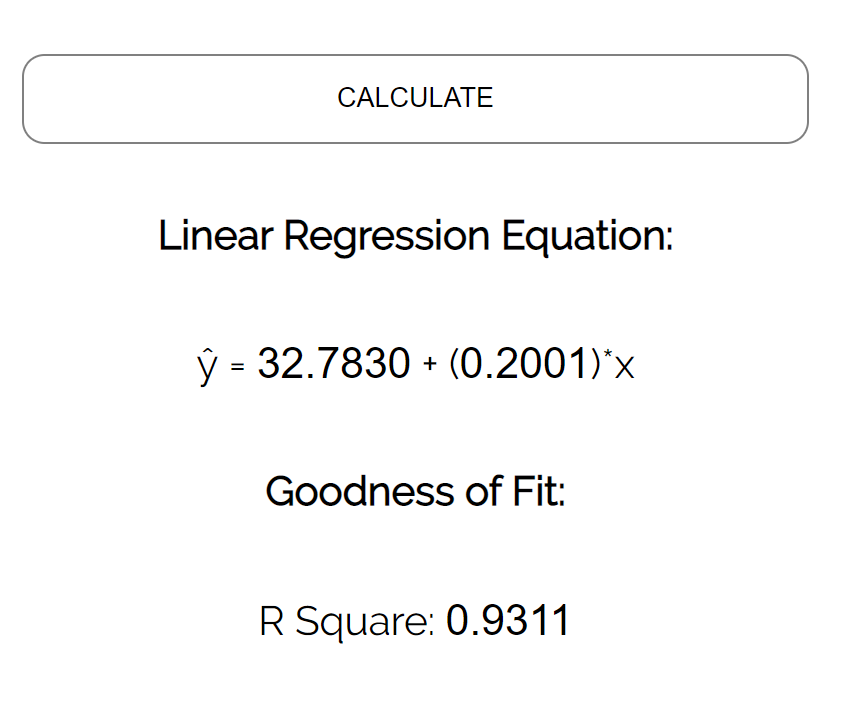

We examine the output from our calculation for the weight-height model to find our R² value:

Our calculated R² is 0.9311. This outstanding result means that 93.11% of the observed variability in height among the individuals in our sample can be statistically explained by the corresponding variations in their weight. This high coefficient confirms that weight is an exceptionally strong predictor of height within the scope of this particular dataset.

Fundamental Assumptions of Linear Regression

For the statistical inferences derived from a linear regression model—including confidence intervals and hypothesis tests—to be valid and reliable, the model must satisfy a set of critical assumptions regarding the residuals (the errors, or the vertical distances between the data points and the regression line). If these prerequisites are violated, the resulting conclusions may be fundamentally compromised.

The four core assumptions are:

•
  1. Linear Relationship: The relationship between the independent variable (x) and the dependent variable (y) must be fundamentally linear. If the true underlying pattern is quadratic or exponential, simple linear regression will provide an inaccurate fit.

•
  2. Independence of Residuals: The errors associated with one observation must not be systematically related to the errors of any other observation. This is especially important in time series or spatial data, where data points close together might exhibit correlated errors.

•
  3. Homoscedasticity: This technical term means that the variance (spread) of the residuals must remain constant across all predicted values of x. Visually, the scatter of the data points around the regression line should look uniform, forming a parallel band rather than a cone shape.

•
  4. Normality of Residuals: The distribution of the errors must approximate a normal distribution. While the Central Limit Theorem often mitigates minor violations, testing for normality is essential, particularly when dealing with small sample sizes or when calculating precise confidence intervals.


Effective statistical modeling requires analysts to diagnose these potential violations through various plotting and testing methods and apply appropriate corrective measures when necessary to ensure robust results.

For a detailed explanation of how to verify these assumptions, diagnose violations, and implement solutions, please refer to this dedicated post.
