Understanding Outliers and Their Effect on the Interquartile Range (IQR)

Understanding Measures of Variability in Statistics

When conducting any form of data analysis, the primary objective is to gain a comprehensive understanding of the dataset’s characteristics. While fundamental metrics like the mean and median (measures of central tendency) indicate the center point, they fail to describe the internal consistency or spread of the data. This crucial characteristic—the degree to which data values are scattered around the center—is scientifically termed variability or dispersion. Grasping variability is essential: two populations might share an identical average, yet their practical implications can diverge vastly. For example, a business prefers consistent output (low variability) over erratic performance (high variability), even if the overall average remains stable.

Historically, statisticians have relied on classical measures of dispersion, including the range, standard deviation, and variance. These tools provide a clear numerical summary of how individual data points deviate from the mean. However, because their calculation involves every single observation in the dataset, they are inherently susceptible to skewing by extreme values, which we commonly define as outliers. In real-world datasets, where measurement errors or naturally rare events occur, this sensitivity can lead to a severely distorted representation of the data’s typical spread.

This inherent flaw in mean-based metrics leads us directly to the focus of this discussion: the Interquartile Range (IQR). The IQR serves as a robust alternative, designed specifically to quantify the spread of the central 50% of the dataset. By focusing only on the middle half, the IQR successfully sidesteps the undue influence exerted by the most extreme values located in the upper and lower tails of the distribution. Calculated simply as the difference between the third quartile (Q3) and the first quartile (Q1), the IQR is prized for its resistance to outliers, making it the preferred measure of dispersion for skewed or non-parametric data.

Defining the Interquartile Range (IQR) and Quartiles

The structure of the IQR relies entirely on the concept of quartiles. Quartiles are specific data points that divide a meticulously rank-ordered dataset into four segments, each containing 25% of the observations. Once the data is sorted from minimum to maximum, three key points emerge: Q1, Q2, and Q3. These three markers form the foundation of the standard five-number summary (Minimum, Q1, Median, Q3, Maximum), a summary frequently utilized when generating a box plot for visual data exploration.

The markers are defined by their percentile rank. Q1, the first quartile, corresponds to the 25th percentile, meaning one-quarter of the data values fall below this point. Conversely, Q3, the third quartile, represents the 75th percentile, signifying that 75% of the values are smaller than or equal to it. The middle marker, Q2, is mathematically equivalent to the median of the entire dataset, splitting the data precisely in half (the 50th percentile). The IQR is then calculated using the straightforward formula: IQR = Q3 – Q1. This result isolates the range that encompasses the middle 50% of all observations, giving a clear picture of the typical spread without being skewed by extreme data points.

The profound benefit of using quartiles stems from their nature as positional statistics. Their value depends solely on their location within the ordered list, not on the raw numerical magnitude of the scores at the extremes. Imagine a dataset where Q3 is 80. If the highest score (which sits above Q3) is dramatically increased—say, from 100 to 1,000,000—the position of the 75th percentile marker (Q3) remains stable. This is because the change affects only the magnitude of the extreme tail, not the boundary of the central 75% of the data. This inherent stability ensures that the IQR offers a consistently reliable measure of central variability, regardless of extreme contamination.

Step-by-Step Calculation of the Interquartile Range

Accurately determining the Interquartile Range requires strict adherence to a systematic calculation process, starting with the critical step of ordering the data. To clearly illustrate this methodology, we will use a sample dataset consisting of 20 unsorted exam scores (N=20).

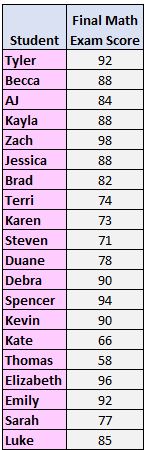

The visual representation of the raw data is provided below:

The calculation proceeds through four distinct and necessary stages:

1. Step 1: Sort the Data. Since quartiles are positional measures, the data must first be arranged in ascending order (smallest to largest). The sorted list of 20 scores is: 58, 66, 71, 73, 74, 77, 78, 82, 84, 85, 88, 88, 88, 90, 90, 92, 92, 94, 96, 98.
2. Step 2: Locate the Median (Q2). With an even sample size (N=20), the median lies between the 10th score (85) and the 11th score (88). We calculate the median (Q2) as the average of these two central points: (85 + 88) / 2 = 86.5. This median effectively divides the full dataset into a lower half (scores 1–10) and an upper half (scores 11–20).
3. Step 3: Identify Q1 and Q3. The first quartile (Q1) is the median of the lower half (N=10), found by averaging the 5th (74) and 6th (77) values: Q1 = (74 + 77) / 2 = 75.5. The third quartile (Q3) is the median of the upper half (N=10), found by averaging the 5th value in that half (90) and the 6th value (92): Q3 = (90 + 92) / 2 = 91.
4. Step 4: Compute the IQR. Applying the defining formula, IQR = Q3 – Q1, we determine the spread of the central 50% of the scores: IQR = 91 – 75.5 = 15.5.

The resulting IQR of 15.5 signifies that the middle half of the exam scores spans a reliable range of 15.5 points. This metric provides a robust, outlier-resistant quantification of the typical performance dispersion within the student population.

The Concept of Outliers in Data Analysis

Formally, an outlier is defined as an observation point situated at an abnormal distance from the vast majority of other values within a sample. The sources of outliers are diverse: they might be artifacts of poor data collection (measurement or entry errors), or they may represent genuine but extremely rare events inherent to the population under study. Regardless of their origin, the identification and appropriate handling of these extreme values constitute a critical phase in effective data cleaning and statistical modeling, as their undue influence can severely skew the results of many conventional analytical techniques.

The destructive effect of outliers is most pronounced on statistics that incorporate every data point, especially those involving squared deviations. The mean, for instance, exhibits low resistance; a single, distant score can pull the perceived center of the distribution dramatically toward itself. Likewise, the calculation of variance and standard deviation involves squaring the distance of each observation from the mean. If a data point is far away (an outlier), its squared distance contributes exponentially to the total sum of squares, thereby hugely inflating the calculated variability. This vulnerability is precisely why these classical metrics are labeled as non-robust measures.

Paradoxically, the IQR, a measure of spread, is also the foundation of the most common objective method for outlier detection. Statisticians use the “Tukey fences” rule, classifying an observation as a potential outlier if it falls outside the interval defined by Q1 – 1.5 * IQR or Q3 + 1.5 * IQR. Since the IQR itself is highly stable and distribution-based, the fences it creates are equally reliable, providing a robust criterion for flagging problematic data points even when the distribution is highly non-normal or skewed.

The Robustness of the IQR Against Extreme Values

The crucial theoretical difference separating the Interquartile Range from classical measures like the standard deviation is its inherent resistance to outliers. This robustness is the primary justification for using the IQR when data quality is questionable or when the underlying distribution is highly skewed. The fundamental principle driving this stability is rooted in the IQR’s definition: it is designed specifically to ignore the extreme 50% of the observations—the upper and lower tails where outliers inevitably reside.

The calculation of the IQR relies solely on the values marking the 25th percentile (Q1) and the 75th percentile (Q3). This means the lowest 25% and the highest 25% of the data are entirely excluded from influencing the magnitude of the IQR. Consequently, an outlier, regardless of its astronomical numerical value, cannot shift the position of Q1 or Q3 unless its presence causes a positional change in the ordered list significant enough to move the percentile markers themselves—a situation typically confined to extremely small datasets or highly concentrated data points.

To illustrate this stability, consider a dataset where the current maximum value is 100. If we artificially replace this score with an extreme outlier of 1,000,000, the range immediately becomes meaningless, inflating dramatically. However, assuming 100 was already positioned above Q3, increasing its magnitude to 1,000,000 does nothing to the actual value of Q3, which remains the boundary for the lower 75% of the data. This mechanism of insulation ensures that the IQR delivers a measure of spread that accurately reflects the variability typical of the majority of the observations, reinforcing its status as an invaluable tool in descriptive statistics.

Comparative Analysis: IQR vs. Mean-Based Dispersion

To move beyond theoretical explanations, we present an empirical comparison that starkly demonstrates the resilience of the IQR. We analyze two similar datasets: Dataset A, which is clean, and Dataset B, which includes a single, extreme outlier. We first calculate the dispersion metrics for the baseline data (N=8):

[1, 4, 8, 11, 13, 17, 17, 20]

Dataset A (N=8) exhibits the following measures of spread:

• Interquartile Range (IQR): 11.0
• Range: 19
• Standard Deviation (SD): 6.26
• Variance: 39.23

Next, we introduce the outlier 150 into the dataset, increasing the sample size to N=9:

[1, 4, 8, 11, 13, 17, 17, 20, 150]

Dataset B (N=9) now yields these dramatically altered dispersion metrics:

• Interquartile Range (IQR): 12.5
• Range: 149
• Standard Deviation (SD): 43.96
• Variance: 1,932.84

The comparison is compelling proof of the vulnerability of non-robust statistics. The Range, relying solely on the maximum value, jumps from 19 to 149—an increase of nearly 700%. Even more severely impacted is the Variance, which explodes by over 4,800%, and the Standard Deviation, which increases by approximately 600%. These drastic numerical shifts demonstrate conclusively that mean-based measures become highly misleading when describing the typical spread in the presence of an outlier.

In stark contrast, the Interquartile Range experiences only a marginal change, moving from 11.0 to 12.5 (a change of approximately 14%). This minimal fluctuation confirms that the extreme magnitude of the new data point has negligible impact on the integrity of the middle 50% of the distribution. The small observed change is primarily positional, resulting from the shift in the exact percentile calculation due to the increased sample size (N=9), rather than being influenced by the magnitude of the extreme score itself. This analysis validates the IQR as the superior, robust statistic for measuring internal data variability when extreme values are present.

Conclusion: Strategic Use of the Interquartile Range

Selecting the appropriate measure of dispersion is a pivotal step in any statistical analysis, dictated by the data’s distributional properties and the presence of potential anomalies. While the standard deviation remains the gold standard for parametric testing and data that conforms to a normal distribution, the Interquartile Range emerges as the decisively superior choice in environments characterized by heavy skewness, inherent outliers, or when the analytical goal is strictly to understand the concentration of the central mass of observations.

The core strength of the IQR lies in its ability to isolate and quantify the spread of the data’s central tendency, delivering a measure of dispersion that is fundamentally immune to the disruptive noise emanating from extreme values in the dataset’s tails. This inherent stability makes the IQR an exceptionally reliable metric for foundational descriptive statistics and exploratory data analysis (EDA). Furthermore, it forms the indispensable central component when constructing visual tools like box plots.

In summary, when precision is paramount and your analysis requires a measure of spread that accurately reflects the variability of the majority of the population—remaining steadfast in the face of statistical noise or genuine rare events—the Interquartile Range stands out as the most robust and trustworthy tool. It provides a clear, foundational understanding of data concentration, definitively illustrating that not all metrics of variability possess equal utility when robustness against outliers is the overriding concern.

Further Reading:

To deepen your mastery of data robustness and distributional analysis, we encourage exploring advanced resources on non-parametric statistical methods and comprehensive techniques in exploratory data analysis (EDA).
