Learning to Label Scatterplot Data Points in R: A Comprehensive Guide

Visualizing relationships between continuous variables through a scatterplot is a fundamental and often indispensable step in exploratory statistical analysis. While scatterplots excel at revealing overall trends, correlations, and clusters, they frequently fall short when the analyst needs to highlight specific observations, influential points, or potential outliers that drive the pattern. This comprehensive tutorial is designed to equip you with the expertise necessary to effectively label individual data points on a scatterplot using two distinct and powerful R environments: the traditional, built-in functionality of Base R and the modern, flexible capabilities provided by the renowned ggplot2 package. By mastering both approaches, you gain crucial flexibility for any data visualization task, ensuring your graphics are both informative and visually precise.

The Critical Role of Annotations in Data Visualization

In the realm of data communication, clarity is not merely a preference—it is a necessity. A scatterplot successfully visualizes the joint distribution of two variables, but its effectiveness multiplies exponentially when key data points are explicitly identified. Labeling allows analysts and stakeholders to instantly connect abstract visual markers back to concrete identifiers (such as case names, dates, or observation IDs) within the dataset. This immediate identification is critical when reviewing smaller datasets, investigating influential high-leverage points, or presenting findings where specific examples underpin the overall narrative being conveyed.

Without proper annotation, an outlier appears only as an anomaly; with a label, it becomes a documented case that requires further qualitative or quantitative investigation. This process transforms a purely descriptive visualization into a powerful analytical tool capable of driving deeper insights. Given the varied contexts in which R is used—from rapid prototyping to generating publication-quality graphics—understanding multiple robust labeling methodologies is essential for maximizing the informativeness of any graphical output and maintaining high standards of data integrity.

We will delve into two distinct methodologies for achieving this essential annotation task. The first utilizes Base R’s traditional graphics system, which is universally available upon R installation and is excellent for quick, simple plots. The second method leverages the sophisticated framework of the ggplot2 package, which adheres to the declarative grammar of graphics and offers advanced solutions for aesthetic mapping, ensuring superior control over label placement and visual hierarchy for complex visualizations. Understanding the strengths and weaknesses of both approaches provides a complete toolkit for addressing diverse visualization challenges effectively.

Methodology 1: Labeling Scatterplot Points Using Base R Graphics

The native Base R graphics system manages plotting and annotation through separate, sequential function calls. To integrate textual identifiers onto an existing scatterplot generated by the plot() function, we rely primarily on the specialized R function, text(). This function is specifically designed to place specified character strings at designated coordinates within the current graphical device. It is the cornerstone of custom, point-level annotation within the traditional R environment and requires direct input of coordinates and labels.

To use text() effectively, the user must provide precise arguments defining the exact location and content of the label. The fundamental syntax structure of the function is clearly defined, requiring coordinate vectors and a character vector containing the desired text strings:

text(x, y, labels, ...)

The essential parameters mandate the placement and content mapping:

• x: Specifies the horizontal coordinate (x-axis position) for the label placement.
• y: Specifies the vertical coordinate (y-axis position) for the label placement.
• labels: This is the character vector containing the actual text strings corresponding sequentially to the data points defined by the x and y coordinates.

Crucially, when annotating multiple observations, it is mandatory that the vectors supplied to the x, y, and labels arguments possess identical lengths. This ensures a precise, one-to-one correspondence between the spatial location of the plotted point and its textual annotation. Furthermore, the text() function supports various optional arguments (represented by the ellipsis, ...) that allow for meticulous aesthetic control, including adjustments to font size (cex), color (col), and label rotational angle, thereby facilitating highly customized visualization outputs without relying on external packages.

Practical Application in Base R: Addressing Specific Observations

To illustrate the practical utility of the text() function, we begin by generating a minimal data.frame and rendering a basic scatterplot. We will then demonstrate two common labeling requirements: identifying a singular, specific point (such as a high-impact outlier) and systematically labeling the entire set of observations. The flexibility of Base R allows direct index referencing for targeted annotation, offering great control over individual elements.

The following R code snippet details how to isolate and label only the third observation in our sample dataset. A vital technique for enhancing readability, particularly in dense plots, is employing a slight vertical or horizontal offset when calling text(). In this example, subtracting a small value (like 1 unit) from the y-coordinate ensures the label does not directly obscure the primary plotted point marker, which is a key principle of effective data visualization design focused on minimizing overlap.

#create data
df <- data.frame(x=c(1, 2, 3, 4, 5, 6),
                 y=c(7, 9, 14, 19, 12, 15),
                 z=c('A', 'B', 'C', 'D', 'E', 'F'))

#create scatterplot
plot(df$x, df$y)

#add label to third point in dataset (using index [3])
text(df$x[3], df$y[3]-1, labels=df$z[3])

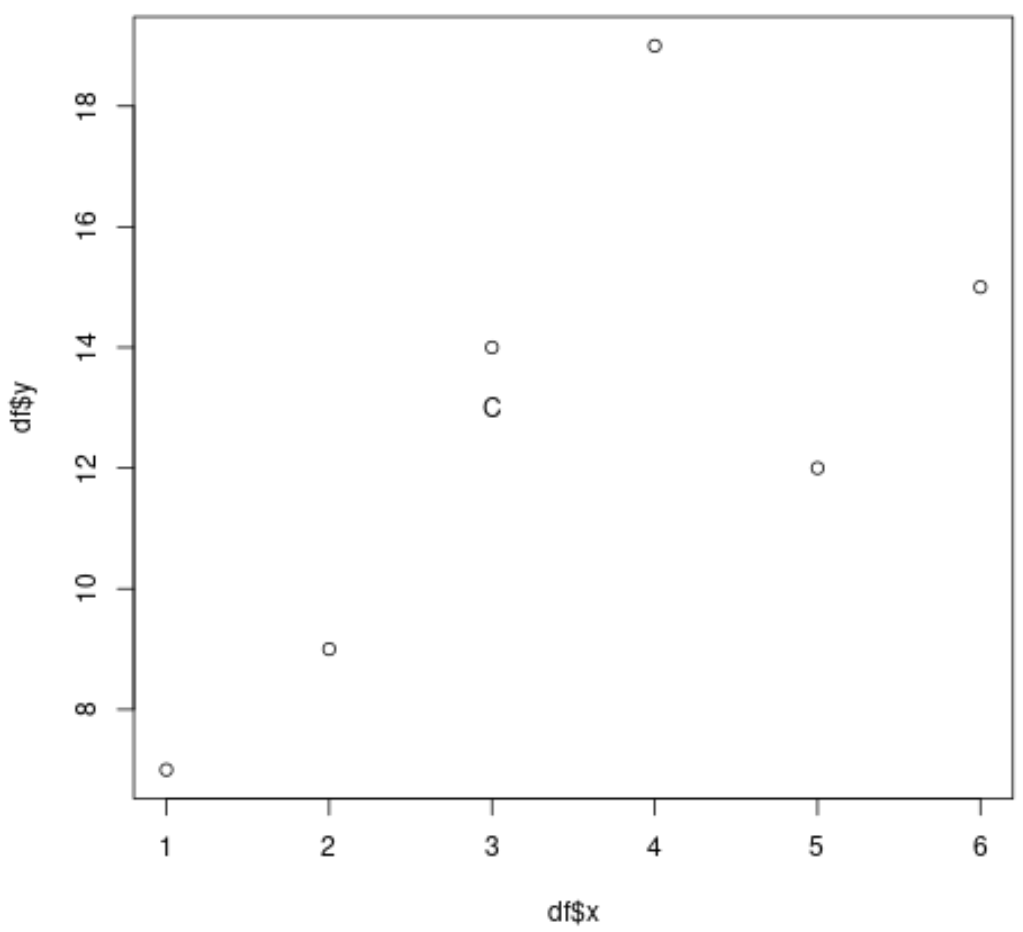

The resultant plot clearly highlights observation ‘C’ with precision. This technique of indexing and applying a manual offset demonstrates the fine-grained control available within Base R for making precise, localized annotation adjustments without relying on complex automatic layout systems.

Conversely, if the analytical goal requires identifying every single point on the scatterplot, the process is streamlined: we pass the complete vectors (columns) for x, y, and the labels to the text() function without subsetting. While this bulk approach is straightforward for datasets with limited points, analysts must remain vigilant regarding potential label overlap in denser visualizations. The code below executes this full-set labeling, retaining the critical slight y-offset for optimal visibility across all points:

#create data
df <- data.frame(x=c(1, 2, 3, 4, 5, 6),
                 y=c(7, 9, 14, 19, 12, 15),
                 z=c('A', 'B', 'C', 'D', 'E', 'F'))

#create scatterplot
plot(df$x, df$y)

#add labels to every point
text(df$x, df$y-1, labels=df$z)

As clearly illustrated in the image generated by this code, every data point is now accompanied by its corresponding identifier, ensuring that the viewer can instantaneously relate the visual marker to the underlying observation metadata, thus enhancing the plot’s explanatory power.

Advanced Labeling Techniques with ggplot2: Leveraging the Grammar of Graphics

While Base R provides highly functional plotting capabilities suitable for rapid graphical exploration, the ggplot2 package offers a dramatically more structured, layered, and visually sophisticated method for constructing complex graphics. Rooted in the theoretical framework known as the grammar of graphics, ggplot2 handles textual annotations through specific geometric objects (geoms) or dedicated annotation functions that are applied as layers upon the initial plot scaffolding, allowing for a declarative approach to visualization.

For static annotations—labels whose coordinates and content are manually defined and not derived directly from the dataset columns—the annotate() function is the preferred tool. It is ideal for placing fixed labels or highlighting a single point when its exact location is known beforehand. Conversely, when the text content is contained within a column of the data.frame, the geom_text() layer is utilized. This geom requires mapping the label column (e.g., our ‘z’ variable) to the label aesthetic within the plot definition, thereby linking data values directly to visual elements in a standardized manner.

To showcase single-point labeling using ggplot2, we employ the annotate() function, specifying geom = 'text'. This method demands explicit definition of the x and y coordinates alongside the exact label content. This is a highly efficient approach for singling out a specific data point without the need for complex data filtering or subsetting operations prior to visualization creation.

#load ggplot2
library(ggplot2)

#create data
df <- data.frame(x=c(1, 2, 3, 4, 5, 6),
                 y=c(7, 9, 14, 19, 12, 15),
                 z=c('A', 'B', 'C', 'D', 'E', 'F'))

#create scatterplot with a label on the third point in dataset
ggplot(df, aes(x,y)) +
  geom_point() +
  annotate('text', x = 3, y = 13.5, label = 'C')

In the above code block, we manually specified x = 3 and set y = 13.5. The offset (from the actual y-coordinate of 14) is deliberate, ensuring the label ‘C’ is positioned optimally near the point marker, a careful adjustment vital for maintaining clarity and preventing the label from overlapping the underlying marker.

Optimizing Readability: Utilizing ggrepel for Collision Avoidance

A significant challenge arises when attempting to label all points simultaneously in a dense scatterplot using the standard geom_text() layer in ggplot2: label overlap, often referred to as overplotting. When labels collide, the visualization loses its readability and analytical value, necessitating advanced techniques. For professional-grade data visualization where the integrity and clarity of every annotation are paramount, the specialized, community-developed package ggrepel provides a sophisticated, automatic solution to this pervasive problem.

The ggrepel package introduces tailored geoms, most notably geom_text_repel() and geom_label_repel(). These functions intelligently calculate and adjust the positioning of text labels to actively minimize or entirely eliminate overlap, both among the labels themselves and between the labels and the data points. This repositioning is managed algorithmically using a repulsion force, often utilizing short connecting segments or arrows to clearly link the displaced label back to its original data coordinate, preserving the association.

To dynamically label all points while avoiding the common pitfalls of overplotting, the workflow involves loading the ggrepel library and substituting geom_text() with the enhanced geom_text_repel() function. We then simply map the identifier column (our ‘z’ variable) to the label aesthetic, allowing the package to manage the complex layout optimization automatically, significantly reducing the manual effort required for clear annotation.

#load ggplot2 & ggrepel for easy annotations
library(ggplot2)
library(ggrepel)

#create data
df <- data.frame(x=c(1, 2, 3, 4, 5, 6),
                 y=c(7, 9, 14, 19, 12, 15),
                 z=c('A', 'B', 'C', 'D', 'E', 'F'))

#create scatterplot with a label on every point
ggplot(df, aes(x,y)) +
  geom_point() +
  geom_text_repel(aes(label = z))

The resulting visualization clearly demonstrates the power of geom_text_repel(): the spacing is managed automatically and efficiently, yielding a clean, highly professional, and fully readable plot, even in scenarios where the points are tightly clustered. This technique represents the current professional standard for comprehensive data point annotation in the R ecosystem for generating publication-ready graphics.

Comparative Summary and Best Practices for R Visualization

The choice between using Base R and the ggplot2 package for labeling scatterplot points should be guided by the project’s requirements for speed, complexity, and aesthetic quality. For quick, exploratory data analysis where only a few points need manual identification, Base R’s text() function remains a fast and effective tool, provided the analyst takes care to manually implement small coordinate offsets to ensure readability.

However, when the goal shifts to producing publication-quality graphics or when the dataset is large and requires comprehensive labeling, the structure and capabilities of ggplot2 are superior. The inherent layering system facilitates complex customization, and, most importantly, the integration of collision-avoidance algorithms via the ggrepel package completely solves the pervasive problem of label overlap, which is nearly unavoidable in dense plots using standard methods. Using geom_text_repel() should be the default choice for comprehensive labeling in professional contexts.

Mastering both of these distinct methodologies ensures that your data visualizations are robust, informative, and analytically sound. Always adhere to best practices: prioritize readability by implementing coordinate offsets in Base R, or leverage the automated repulsion algorithms in ggplot2. By connecting visual markers directly to meaningful identifiers, you transform raw data coordinates into compelling and useful evidence for decision-making and clear communication.
