Understanding Normal Distribution: A Step-by-Step Guide to Creating Bell Curves in Excel

The term “bell curve” is universally recognized as the visual representation of the normal distribution, which stands as the cornerstone of statistical theory and practice. This distinctive, symmetrical profile is essential for modeling countless natural and human phenomena, ranging from biometric measurements like heights and weights to complex systems such as measurement errors and financial market volatility. Its characteristic shape, defined by the clustering of the vast majority of data points around the central average, is precisely what gives it the familiar bell-like appearance, signifying that extreme values are rare.

This comprehensive, step-by-step tutorial will guide you through the precise methodology required to generate a statistically accurate and fully dynamic bell curve visualization using Microsoft Excel. We will utilize Excel’s powerful built-in functions to calculate and plot the Probability Density Function (PDF) of the normal distribution. This process hinges on defining two crucial parameters: the measure of central tendency (the mean) and the measure of data dispersion (the standard deviation). Furthermore, to streamline your work, we offer a complimentary, downloadable template designed to simplify the implementation of this powerful statistical tool.

Example: Constructing the Dynamic Bell Curve in Excel

Creating a statistically sound bell curve visualization requires meticulous preparation of the underlying data structure before the plotting stage. The key to developing a truly dynamic and reusable graph lies in establishing dedicated reference cells for the core statistical parameters. Following this initial setup, we must generate a sufficiently dense range of input values (the x-axis points) and calculate their corresponding probability values (the y-axis points). Adhering strictly to these precise steps will ensure the successful construction of your curve.

The initial foundation of any normal distribution analysis involves defining the two fundamental parameters that completely dictate the curve’s position and shape: the mean ($mu$) and the standard deviation ($sigma$). The mean is critical as it anchors the curve’s center point, while the standard deviation governs the degree of spread or variability, determining whether the bell is tall and narrow or short and wide.

Step 1: Define the Mean and Standard Deviation Parameters.

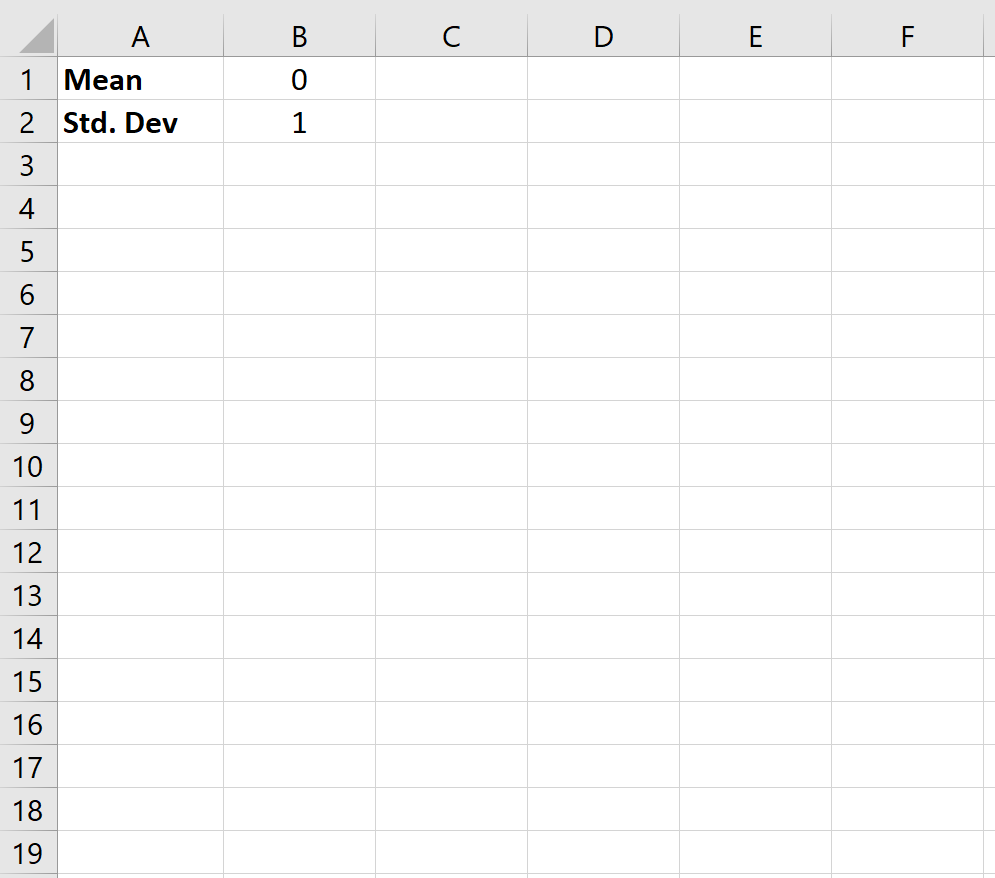

Begin by allocating specific, clearly labeled cells in your spreadsheet for the mean and the standard deviation values. For illustration purposes, we will set the mean to 50 and the standard deviation to 5. These cells are designed to function as dynamic inputs for the entire model. By utilizing these cells as references throughout your calculations, the resulting bell curve visualization will automatically update its shape and position whenever these core values are modified, ensuring that your statistical tool is flexible and reusable across various datasets.

Generating the X-Axis Range for Smooth Plotting

To accurately plot a smooth, continuous-looking curve, it is essential to generate a large number of data points that span the effective statistical range of the distribution. Theoretically, a normal distribution extends infinitely in both directions, but practically, the vast majority of data (approximately 99.7%) falls within three standard deviations of the mean. For optimal statistical coverage and to ensure a visually complete graph that captures the extreme tails, the industry standard is to plot the range from negative four standard deviations up to positive four standard deviations.

Step 2: Create a Range of Z-scores (Standardized Units) from -4.0 to +4.0.

In statistical analysis, the deviation of an observation from the mean, measured in units of standard deviation, is known as the Z-score. We must establish a column, labeled “Z-score,” that systematically increments from -4.0 up to +4.0. Using small, consistent increments, such as 0.1, provides enough density for a smooth visual result. While using smaller increments (e.g., 0.01) would theoretically yield an even smoother line, it often unnecessarily increases computational load for general visualization purposes. The comprehensive range of -4 to +4 ensures that virtually the entire theoretical probability distribution is captured and displayed.

. . .

It is crucial to ensure that your list of Z-scores extends completely from the starting point of -4.0 all the way up to the end point of +4.0. This detailed range of standardized scores forms the fundamental input scale for the subsequent calculations. These calculations will transform the standardized Z-scores back into the specific raw data values relevant to your distribution, based on the defined mean and standard deviation from Step 1. The resulting high density of points is critical for producing a line graph that accurately represents the smooth, continuous nature of the normal probability curve.

Calculating the Raw Data Values and Probability Density

Once the standardized Z-scores have been meticulously defined, the next necessary steps involve calculating two corresponding columns: the raw data values (the actual values that will populate the graph’s x-axis) and the probability density values (the height of the curve, which constitutes the y-axis). These two calculated series of data form the essential core required for plotting the bell curve in Excel.

Step 3: Calculate the Raw Data Values for the Graph’s X-Axis.

The raw data value ($X$) corresponding to a given Z-score is derived using the transformation formula for standardization: $X = mu + Zsigma$. In your Excel spreadsheet, this calculation involves multiplying the Z-score value by the cell containing the standard deviation (which must be referenced absolutely) and then adding the value from the cell containing the mean (also referenced absolutely). This vital step successfully converts the standardized deviation units back into the context of your specific data set, translating values from abstract Z-scores back into meaningful raw scores, such as test results or measurement lengths.

Step 4: Determine the Probability Density Function (PDF) Values (Y-Axis).

The height of the bell curve at any specific point—that is, the probability density—is calculated using the normal distribution’s PDF formula. Fortunately, Excel provides a highly efficient, dedicated function for this purpose: the NORM.DIST function. This function requires four specific arguments: the X value (calculated in Step 3), the mean, the standard deviation, and a logical value indicating whether to calculate the cumulative distribution. Since our goal is to calculate the density (the height of the curve) and not the area under the curve (cumulative probability), the final argument must be set to FALSE.

The resulting formula structure will be =NORM.DIST(X_Value, Mean_Cell, StDev_Cell, FALSE). It is absolutely essential to ensure that the references to the Mean and Standard Deviation input cells employ absolute references (e.g., $B$2 and $B$3). This practice prevents the references from shifting when the formula is copied down the entire column. These PDF values represent the critical y-axis coordinates for your bell curve plot.

Preparing and Plotting the Visualization

Once you have successfully calculated both the X-values (Raw Data Values) and the Y-values (PDF), the next logical phase is to prepare and execute the visualization. While Excel can generate a preliminary chart automatically, customizing the axis labels is a critical step for producing a clean, professional output that effectively communicates the statistical distribution without visual clutter.

Step 5: Create Custom X-Axis Plot Labels for Integer Marks Only.

Although we calculated data points using a fine increment (every 0.1), displaying a label for every single point on the x-axis would inevitably lead to a cluttered and illegible graph. To significantly enhance readability, we must engineer a specialized label column that only displays the raw data value when the corresponding Z-score is an integer. This ensures that key statistical markers—such as the center (Z=0) and the standard deviation boundary marks (Z=±1, ±2, ±3, ±4)—are clearly and cleanly visible. This selective labeling is achieved most efficiently by implementing an IF function that checks if the Z-score column contains an integer value, displaying the raw data value if true, and intentionally remaining blank if false.

The initial action for graphing involves selecting the primary data series that will determine the height of the curve. Highlight the entire range of calculated values within the PDF column, which was generated in Step 4. This specific column contains all the necessary Y-coordinates corresponding to the probability density at every defined data point.

Next, proceed to the Insert tab located on the Excel ribbon. Locate the Charts group and select the option for Insert Line or Area Chart. From the available options, choose the simplest plot type, typically designated as a simple 2-D Line chart.

Upon selecting the line chart, a preliminary bell curve will immediately render on your sheet. However, a critical observation must be made: the x-axis currently displays arbitrary sequential numbers (e.g., 1, 2, 3…) instead of the true raw data values we calculated in Step 3. This is Excel’s default behavior when a single data series is plotted. To create a statistically meaningful visualization, we must correct this mapping in the final customization step, ensuring the axis accurately reflects the distribution’s true scale.

Finalizing the Graph: Axis Customization and Dynamic Testing

The ultimate stage of development involves accurately linking the newly generated curve to the appropriate horizontal axis labels, utilizing the custom label column that was meticulously generated in Step 5. This essential customization transforms the simple line plot into a powerful, statistically meaningful visualization ready for interpretation.

Step 7: Modify the Horizontal Axis Labels to Match Raw Data.

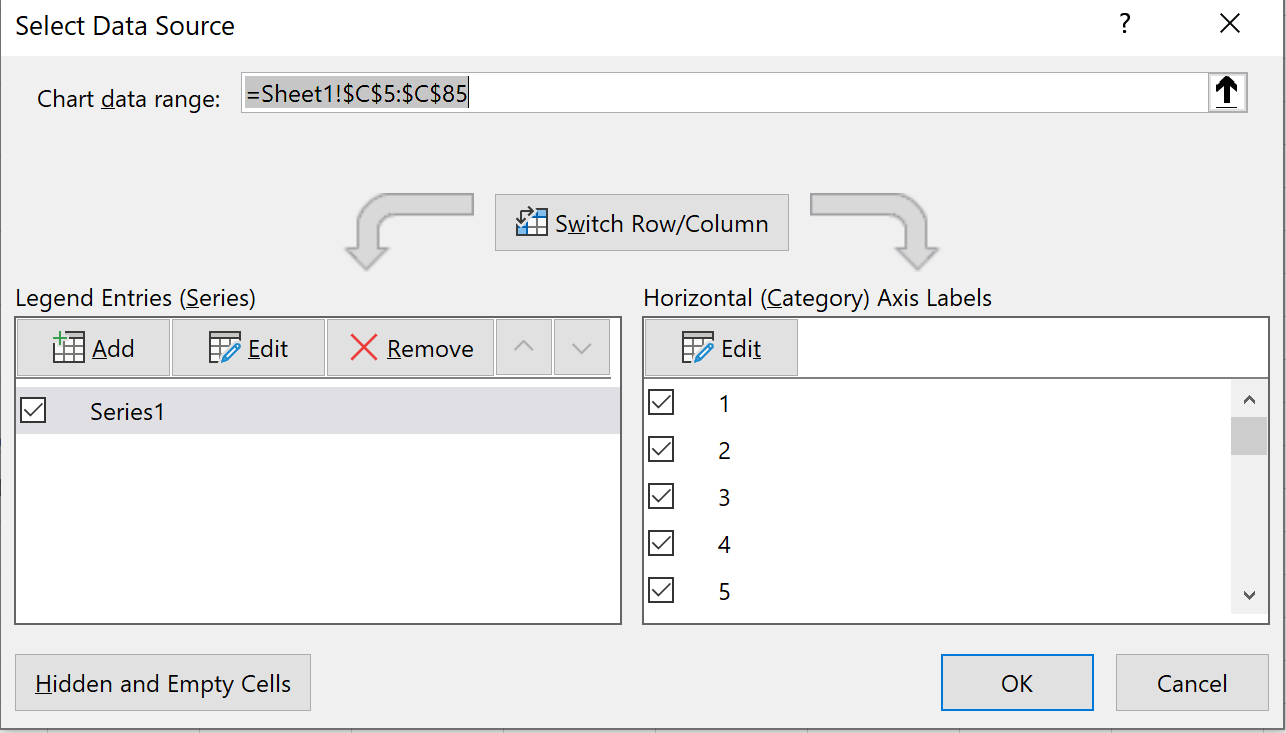

To rectify the incorrect x-axis labeling, right-click anywhere on the body of the newly created chart and select the Select Data option from the context menu. A dialog box titled “Select Data Source” will subsequently appear. Within the section designated for Horizontal Axis Labels (which Excel often labels as “Category (X) Axis Labels”), click the Edit button.

You will be immediately prompted to select the precise range of cells that contain your desired x-axis labels. Select the entire range of cells from the custom X-Axis Labels column (the results of Step 5). In the context of our specific template setup, this corresponds to cell range D5:D85. Once this range is highlighted and confirmed, click OK to finalize the data source selection and close the dialog box.

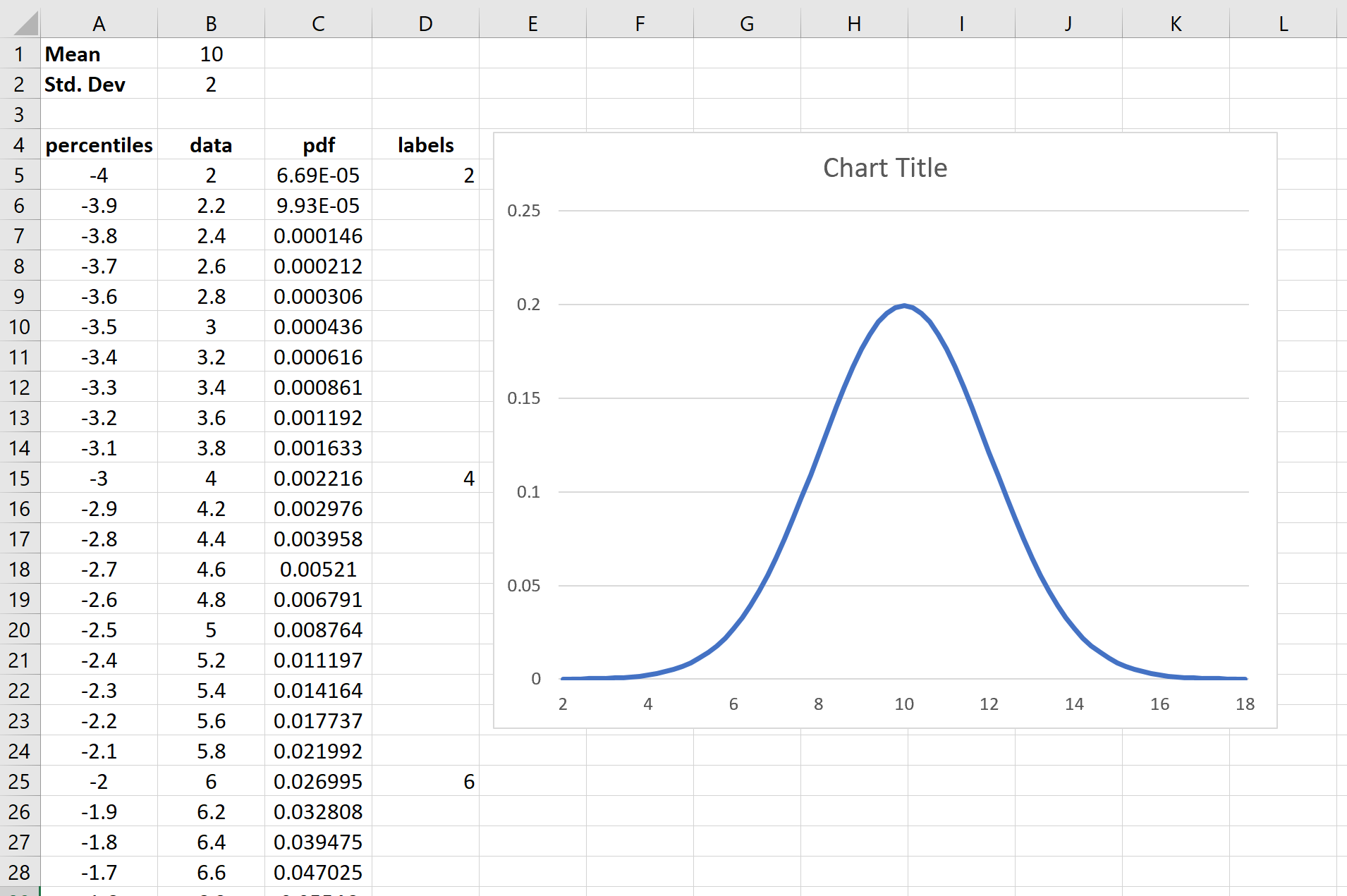

The horizontal axis labels will instantly update, now correctly displaying only the integer marks derived from your custom label column. This finalized, refined chart accurately displays the normal distribution curve for your defined mean and standard deviation, resulting in a clean and statistically sound visualization that is ready for presentation.

A significant and powerful advantage of implementing this structured calculation approach is the inherent dynamic nature of the resulting graph. Since all data calculations (Steps 3 and 4) are linked via absolute references to the central Mean and Standard Deviation cells (Step 1), the bell curve will automatically recalculate, redraw, and adjust its shape and position the instant you change these primary input parameters. For instance, observe the immediate transformation when we modify the parameters to a mean of 10 and a standard deviation of 2. The curve instantly shifts its center to 10 and becomes notably narrower, accurately reflecting the reduced variability in the simulated data.

Once the statistical integrity and dynamic functionality are confirmed, you have full creative license to modify the chart’s aesthetic elements. Consider adding a clear, descriptive chart title, accurately labeling the axes (e.g., “Data Value” for X and “Probability Density” for Y), changing the line color, or incorporating subtle gridlines to ensure the final visualization is as impactful and easy for any audience to interpret as possible.

Downloadable Template for Instant Use

To significantly expedite the process and guarantee computational accuracy, you are encouraged to utilize the exact spreadsheet structure detailed throughout this tutorial. Feel free to download this free Excel template, which comes pre-loaded with all the necessary formulas, data setups, and conditional formatting required to instantly generate a dynamic bell curve. Simply input your desired mean and standard deviation values into the specified cells to begin visualizing your normal distribution immediately.
