Make a Scatterplot From a Pandas DataFrame

Visualizing Data Relationships with Scatterplots

Effective data visualization stands as a cornerstone of modern data science, transforming raw numerical information into actionable insights. Among the most crucial graphical tools available to analysts is the scatterplot, which provides an immediate and intuitive way to explore the correlation, clustering, and distribution between two quantitative variables. In the Python ecosystem, nearly all serious data manipulation and preparation work hinges on the structure provided by the Pandas DataFrame.

The challenge often lies in translating this structured data efficiently into a meaningful visual format. A scatterplot is particularly effective for initial data screening, making it integral to the process of Exploratory Data Analysis (EDA). By plotting variables against each other, anomalies, trends, and potential linear or non-linear relationships become immediately apparent, guiding subsequent statistical modeling efforts.

This comprehensive guide details the practical steps required to generate robust scatterplots directly from your Pandas DataFrame. We will examine the two prevailing methods used by Python experts, contrasting their underlying mechanics and determining when each approach is optimally suited for a specific visualization goal. Understanding these distinctions is key to developing efficient and highly customized data workflows.

The Two Dominant Visualization Pathways in Python

When visualizing data stored within a Pandas DataFrame, analysts primarily choose between utilizing a high-level wrapper or interacting directly with the core plotting library. Both methods are foundational to Python visualization and offer distinct benefits regarding ease of use versus depth of customization.

The first pathway leverages the built-in convenience features of Pandas itself, which provides a simplified plotting API. This method abstracts away much of the boilerplate code required by lower-level libraries, making it incredibly fast for generating standard, publication-ready graphics. It is the preferred choice when the focus is on rapid iteration and quick inspection of data distributions.

Conversely, the second pathway requires direct engagement with Matplotlib, the foundational plotting library for Python. While this necessitates a slightly steeper learning curve and more explicit function calls, it grants the user unparalleled control over every element of the figure—from axis ticks and labels to multi-panel layouts. Choosing the right method depends critically on whether speed (Pandas) or ultimate control (Matplotlib) is the priority.

1. Use pandas.DataFrame.plot.scatter: This utilizes the high-level plotting interface built directly into the Pandas library, which serves as a wrapper around Matplotlib. This is ideal for quick, default visualizations and efficient data exploration.
2. Use matplotlib.pyplot.scatter: This method relies on the core, foundational plotting capabilities of Matplotlib. It is essential when maximum control over aesthetic elements, figure structure, and complex overlays is required, enabling deep customization beyond the Pandas defaults.

The following sections will detail the syntax and practical application of each method, ensuring a clear understanding of their respective strengths.

Method 1: Streamlined Visualization via Pandas .plot.scatter

The most straightforward and widely adopted technique for creating a scatterplot involves calling the dedicated plotting functions directly on the Pandas DataFrame object. This inherent capability is managed by the high-level plotting API that Pandas exposes, acting as an intelligent layer over the complexities of Matplotlib.

This method drastically simplifies the coding effort required. Analysts only need to import the Pandas library and then specify the column names intended for the horizontal (x) and vertical (y) axes. The visualization engine handles the data extraction, scaling, and rendering automatically. This simplicity makes it a core component of initial Exploratory Data Analysis (EDA) workflows, where rapid visual feedback is critical.

The basic syntax is designed to be concise and immediately readable, clearly indicating the data source (df) and the desired plot type (.plot.scatter):

import pandas as pd

df.plot.scatter(x = 'x_column_name', y = 'y_columnn_name')

Note that this approach returns a Matplotlib AxesSubplot object, demonstrating the library’s underlying dependency while maintaining a clean, Pandas-centric entry point.

Implementation Deep Dive: The Pandas Approach

To fully illustrate the efficiency of this method, let us walk through a complete, runnable example. This demonstration includes the necessary steps for initializing a sample Pandas DataFrame containing sample numerical data, followed by the single function call required to generate the scatterplot. Notice how the plotting operation is seamlessly chained directly onto the DataFrame variable, df.

import pandas as pd

# Create a sample DataFrame with 'x' and 'y' columns
df = pd.DataFrame({'x': [1, 3, 3, 4, 5, 7, 9, 12, 13, 15],
                   'y': [5, 7, 9, 7, 6, 12, 14, 18, 15, 22]})

# Create the scatterplot using the built-in function
df.plot.scatter(x='x', y='y')

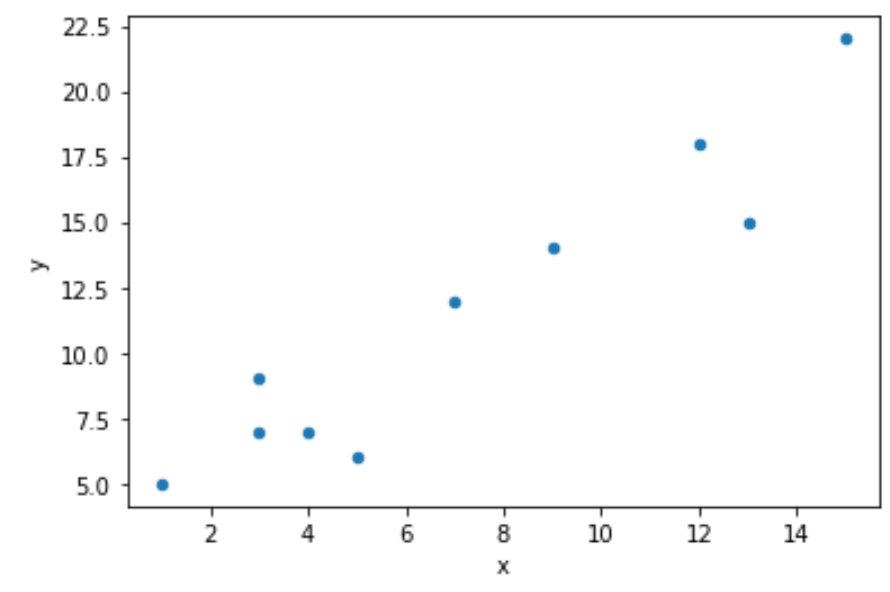

The execution of this succinct code block immediately produces a visualization that maps the corresponding values of ‘x’ against ‘y’, providing the default aesthetic settings applied by the Pandas wrapper:

While the default output is functional, customization is straightforward. The high-level plotting API accepts many keyword arguments that are passed down directly to the underlying Matplotlib functions. For instance, to enhance the visual clarity and impact of the plot, we can easily modify the size and color of the markers using the s (size) and c (color) arguments:

df.plot.scatter(x='x', y='y', s=60, c='green')

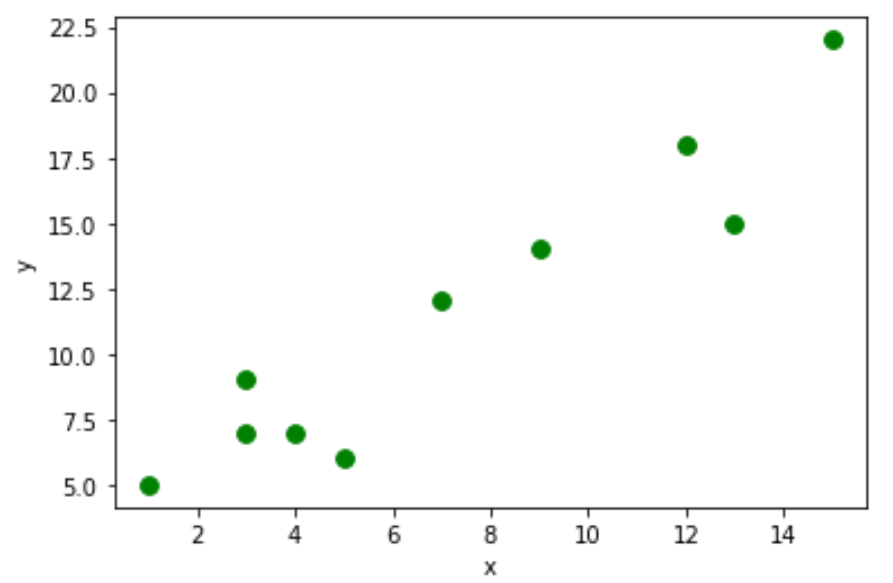

This minor adjustment results in a significantly more tailored visual representation, confirming that the Pandas method strikes an excellent balance between simplicity and effective visual customization:

Method 2: Achieving Granular Control with Matplotlib

Although the Pandas plotting API is excellent for speed and standard plots, projects requiring sophisticated layouts, intricate styling, or integration into larger multi-figure dashboards necessitate the direct power of Matplotlib. By importing matplotlib.pyplot, data scientists gain access to the fundamental tools needed for complete mastery over the visualization process.

Working directly with Matplotlib means that the analyst takes full responsibility for setting up the figure, managing the axes, and explicitly drawing the data points. While this requires more lines of code, the payoff is total control. This approach is essential when performing complex tasks such as adding specific annotations, combining multiple plot types (e.g., a scatterplot overlaid with a regression line), or managing figure resolution for high-quality publication.

Unlike the Pandas method where you reference column names, the Matplotlib approach requires passing the data columns themselves as NumPy arrays (which is how Pandas stores its numerical data internally). We extract the x and y data series from the DataFrame and feed them directly into the plt.scatter() function. This separation of data preparation and visualization execution is a hallmark of the Matplotlib design philosophy.

The core syntax for implementing a scatterplot using the explicit Matplotlib function is structured as follows:

import matplotlib.pyplot as plt

plt.scatter(df.x, df.y)

Implementation Deep Dive: The Matplotlib Approach

To demonstrate the direct application of Matplotlib, we will use the same sample data structure defined previously. Crucially, this workflow requires importing both the Pandas library (for data handling) and matplotlib.pyplot (for visualization execution). This combination is standard practice in Python data analysis pipelines.

import pandas as pd
import matplotlib.pyplot as plt

# Create the sample DataFrame
df = pd.DataFrame({'x': [1, 3, 3, 4, 5, 7, 9, 12, 13, 15],
                   'y': [5, 7, 9, 7, 6, 12, 14, 18, 15, 22]})

# Create the scatterplot using Matplotlib's scatter function
plt.scatter(df.x, df.y)

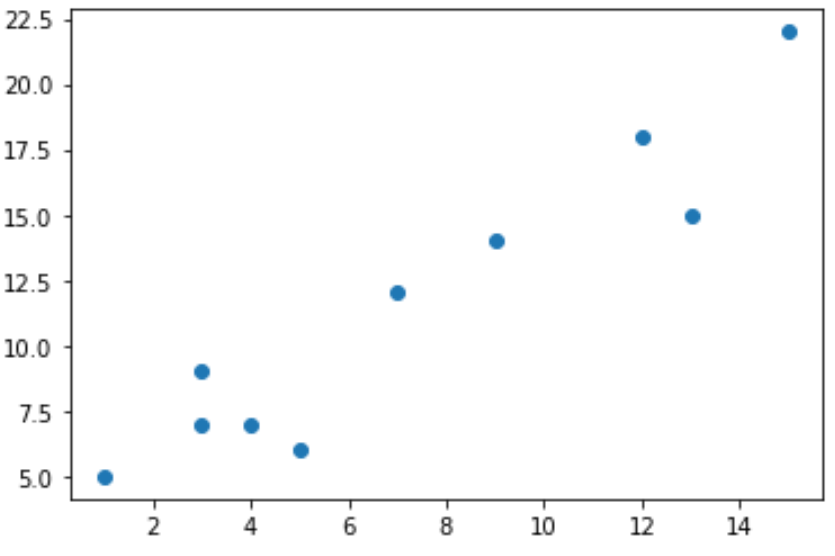

Executing this code produces a default scatterplot visually identical to the initial Pandas output, confirming that the underlying rendering engine is consistent:

The key advantage here is the immediate access to the full suite of Matplotlib customization parameters. As with the Pandas method, parameters like size (s) and color (c) are passed directly to the plt.scatter function. However, using this method allows for complex operations, such as setting global figure styles or integrating the plot into a specific subplot array (using plt.subplot() or plt.figure()), which are cumbersome or impossible using the simple Pandas wrapper.

plt.scatter(df.x, df.y, s=60, c='purple')

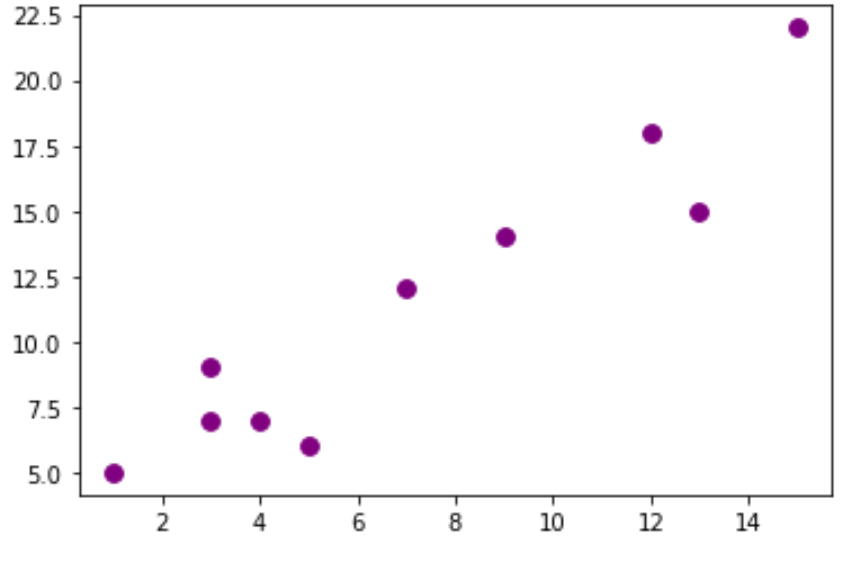

Applying these custom parameters yields the updated visualization, demonstrating the equivalent capability for basic aesthetic changes while retaining the potential for future advanced manipulation:

Choosing the Right Tool for Your Data Task

Both visualization methods—the high-level Pandas wrapper and the explicit Matplotlib function—are indispensable tools for data visualization specialists. The decision between them hinges almost entirely on the specific requirements of the analytical task at hand, balancing the need for speed against the demand for aesthetic precision.

For initial data exploration, prototyping, or when generating quick reports where default settings are acceptable, the Pandas .plot.scatter() method is superior. It minimizes code complexity and relies on the convenient, object-oriented plotting API built into the DataFrame structure. This is often the first step in any robust Exploratory Data Analysis (EDA) project.

Conversely, the Matplotlib plt.scatter() method is essential for production environments or research papers where absolute control over the visual output is mandatory. If you need to manipulate aspect ratios, add intricate legends, use custom color maps, or build complex composite figures (such as those containing multiple subplots or specialized annotations), the direct Matplotlib approach provides the necessary flexibility.

• Pandas .plot.scatter(): Recommended for rapid prototyping, quick visualizations during EDA, and scenarios where minimal code is prioritized over deep customization.
• Matplotlib plt.scatter(): Necessary for detailed figure configuration, integrating the plot into complex multi-figure layouts, and achieving publication-quality graphics with specific aesthetic requirements.

Mastering both techniques ensures versatility, allowing you to quickly and effectively visualize bivariate relationships regardless of whether you are running a casual analysis in a Jupyter notebook or finalizing a professional report. We encourage continued exploration of these powerful Python libraries to maximize your data visualization capabilities.
