Understanding the Mann-Whitney U Test: A Guide to Critical Values and Statistical Analysis

Introduction to the Mann-Whitney U Test

The Mann-Whitney U test, frequently recognized by its alternative title, the Wilcoxon rank-sum test, is an indispensable statistical procedure within the domain of non-parametric statistics. This highly versatile methodology is explicitly designed to determine whether two independent sets of samples are likely to have been drawn from identical population distributions. By facilitating this comparison, researchers gain the ability to establish whether a statistically significant difference exists between the two populations under scrutiny. Crucially, the Mann-Whitney U test provides a powerful alternative to the parametric t-test because it does not require stringent assumptions regarding the underlying data structure, such as the prerequisite of normality or the homogeneity of variances. This makes it an exceptionally robust choice when analyzing data that is ordinal in nature, or when population distributions are unknown or significantly skewed. The core mechanism involves pooling all observations, ranking them collectively, and then comparing the sum of the ranks for each sample, effectively simplifying complex distributional comparisons into a measurable rank-based metric. Understanding the theoretical foundation and mechanical operation of this test is paramount for conducting rigorous data analysis across diverse fields, including behavioral science, clinical medicine, and environmental studies.

When executing the Mann-Whitney U test, the primary investigative goal is the assessment of the null hypothesis ($H_0$), which formally asserts that the central tendencies (typically the medians) of the two populations are equivalent. The decision to reject or retain this hypothesis hinges entirely on the calculated U statistic. Should this calculated value fall outside the defined acceptable range—a boundary established by the critical values—we are empowered to reject the null hypothesis. This rejection signifies that the observed differences between the two groups are highly improbable to have occurred merely due to random chance. The enduring strength of the Mann-Whitney U test is rooted in its notable resilience to the influence of outliers and its minimal demands concerning data distribution parameters. This makes it a preferred and reliable substitute for parametric methods, especially when the required assumptions for those tests are demonstrably violated. Researchers must judiciously select this test when working with smaller sample sizes or when the measurement scale is not strictly ratio or interval, thereby ensuring that the resulting statistical inferences are congruent with the inherent characteristics of the collected data.

Before one proceeds to the actual calculation and testing phase, it is essential to grasp that the critical values detailed in the subsequent tables are specifically derived for use in two-tailed hypothesis tests across various standard levels of significance. These tabulated critical values serve as definitive thresholds, delineating the boundaries of the rejection region for the computed U statistic. A thorough comprehension of the methodology used to construct these tables and the correct utilization procedures is absolutely critical for drawing accurate statistical interpretations. We offer these tables as an exhaustive and authoritative reference designed to significantly streamline the final stage of hypothesis testing once the U statistic has been successfully determined. We strongly encourage all users to not only become proficient in reading and referencing these tables but also to internalize the underlying theoretical principles that govern the sampling distribution of the U statistic.

Understanding the Role of Critical Values and Alpha

In the rigorous framework of statistical hypothesis testing, the concept of critical values occupies a central position in the decision-making process. A critical value is formally defined as a specific threshold derived directly from the sampling distribution of the chosen test statistic, which, in this context, is the U statistic. This critical threshold serves to partition the distribution into two distinct areas: the non-rejection region and the rejection region. For the Mann-Whitney U test, which is generally considered a lower-tailed test, if the computed U statistic is less than or equal to the critical value ($U_{calc} le U_{crit}$), the outcome is classified as statistically significant. This outcome necessitates the rejection of the null hypothesis. Conversely, if the calculated U value surpasses the critical value ($U_{calc} > U_{crit}$), the observed data is deemed insufficiently compelling to warrant the rejection of the null hypothesis at the specified level of significance.

The ultimate decision to reject or to fail to reject the null hypothesis is inextricably linked to the chosen alpha level, commonly represented by the Greek letter $alpha$. The alpha level, also universally known as the level of significance, quantifies the maximum acceptable probability of committing a Type I error—the costly statistical mistake of erroneously rejecting a true null hypothesis. Standardized and commonly employed alpha levels include 0.05, 0.01, and, less frequently, 0.10. For instance, an alpha level set at 0.05 implies that the researcher accepts a 5% risk of concluding that a genuine difference exists between the populations when, in reality, no such difference is present. The specialized tables presented further below meticulously correlate specific sample sizes ($n_1$ and $n_2$) with their corresponding critical U values, tailored precisely for these predetermined alpha levels. The consistent utilization of these tabulated critical values guarantees standardized, objective, and accurate decision criteria across all statistical analyses where the Mann-Whitney U test is employed.

It is absolutely imperative to recognize that the overall reliability and integrity of the statistical conclusion are dependent upon selecting the appropriate alpha level well in advance of initiating data collection and analysis. A more conservative alpha level, such as 0.01, demands substantially stronger empirical evidence to justify rejecting the null hypothesis. While this minimizes the risk of a Type I error (false positive), it simultaneously increases the potential risk of a Type II error (failing to detect a real effect). Conversely, a more liberal alpha level, such as 0.10, makes it considerably easier to attain statistical significance but carries a greater risk of generating a false positive conclusion. Researchers must carefully weigh the practical consequences associated with both error types based on the specific context of their study, whether they are conducting highly sensitive medical trials or broader exploratory social science inquiries. The diligent and accurate application of the provided critical value tables ensures precise alignment between the researcher’s chosen significance threshold and the final statistical conclusion derived from the data.

Navigating One-Tailed vs. Two-Tailed Hypotheses

The critical choice between utilizing a one-tailed (directional) test and a two-tailed (non-directional) test is fundamentally dictated by the specific formulation of the research hypothesis. A two-tailed test is the appropriate methodology when the researcher’s interest lies solely in ascertaining whether the two groups exhibit any difference whatsoever, without making any prior prediction about the direction of that difference (i.e., whether Population A’s median is higher or lower than Population B’s median). In this scenario, the total rejection region is distributed equally and symmetrically across both the lower and upper tails of the sampling distribution, hence the nomenclature “two-tailed.” The vast majority of standardized statistical tables, including the comprehensive resources provided here, furnish critical values that are specifically calibrated for this non-directional testing approach, representing the default standard in statistical practice.

The following tables meticulously provide critical values necessary for conducting two-tailed Mann-Whitney U tests for the standard range of alpha levels. These critical figures constitute the authoritative reference points essential for precisely determining statistical significance when the underlying research hypothesis lacks a specified direction. To effectively utilize these resources, researchers must first identify the corresponding sample sizes of their two groups, $n_1$ and $n_2$. By locating the intersection of these two values, the corresponding critical U value ($U_{crit}$) is obtained. If the calculated U statistic from the researcher’s data is found to be less than or equal to this critical value, the difference observed between the two sample distributions is confidently declared significant at the chosen alpha level. This robust, standardized approach is universally recommended unless compelling theoretical or substantial empirical evidence explicitly mandates the prediction of a specific directional difference.

Conversely, a one-tailed test is utilized exclusively when the research hypothesis predicts a precise, specific direction for the difference (e.g., hypothesizing that the median score of Group A will be significantly higher than that of Group B). While specialized, dedicated one-tailed Mann-Whitney U tables do exist, a widely accepted and practical procedure allows for the efficient use of the standard two-tailed tables for directional testing. For researchers conducting one-tailed tests, the standard procedure is to double the desired value of alpha and subsequently consult the appropriate two-tailed table. For example, if a researcher intends to test a directional hypothesis at an alpha level of 0.05, they must reference the two-tailed table corresponding to $alpha = 0.10$. This adaptive technique is statistically sound because, in a one-tailed test, the entirety of the rejection region is concentrated within a single tail, which mathematically corresponds to half the significance level used in a two-tailed distribution where the region is split. This flexibility makes the provided two-tailed tables incredibly versatile for both directional and non-directional statistical testing scenarios.

Critical Values for Alpha = 0.01 (Two-Tailed)

The significance level set at $alpha = 0.01$ is typically reserved for research contexts where minimizing the probability of a Type I error (a false positive finding) is of paramount importance. This highly stringent level indicates that the researcher is only willing to tolerate a maximum of a 1% chance of erroneously rejecting a true null hypothesis. Consequently, when interpreting results derived at this stringent level, the researcher requires an exceptionally compelling and substantial disparity between the two sample distributions before the result can be confidently declared statistically significant. The critical values provided in the corresponding table below accurately reflect this high standard; they are consistently lower than the values found at higher alpha levels, meaning that the observed U statistic must be smaller (i.e., more extreme) to successfully fall within the defined rejection region.

The following table presents the precise critical values required to execute a two-tailed Mann-Whitney U test under the strict condition that the probability of error is rigorously restricted to one percent. To ensure the correct application of this table, the user must first identify the sample sizes of their two independent groups, denoted as $n_1$ and $n_2$. Locate the intersection point corresponding to these two values. The numerical value found at this intersection is the critical U value ($U_{crit}$). If your calculated U statistic is found to be less than or equal to $U_{crit}$, you are authorized to confidently reject the null hypothesis at the highly demanding $alpha = 0.01$ level. This elevated level of statistical confidence is routinely mandated in high-stakes environments such as clinical drug trials, rigorous scientific validation studies, or any research domain where the tangible cost or consequence of a false positive conclusion is substantial.

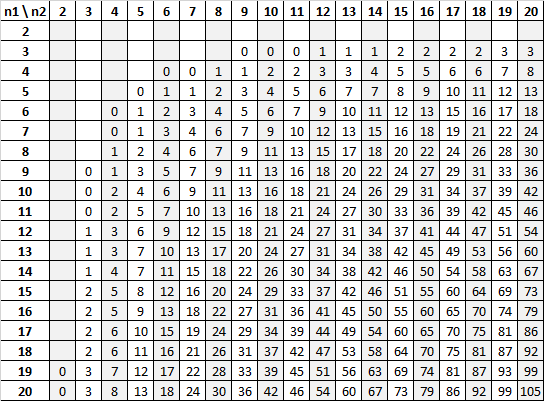

Alpha = .01 (two-tailed)

Consulting this specialized resource dramatically streamlines the essential final step of hypothesis testing, guaranteeing that the final decision is grounded in established and widely accepted statistical standards. It is important to remember that these critical values are exclusively valid for smaller sample sizes (typically when both $n_1$ and $n_2$ are 20 or less). For research involving larger samples, the normal approximation method for the U statistic must be employed instead, which involves the calculated U statistic being converted into a Z-score, which is then compared against the standard Z-distribution tables. However, for studies that involve limited numbers of participants, this critical value table remains the most accurate, precise, and direct method available for determining the statistical significance of the findings.

Critical Values for Alpha = 0.05 and 0.10

The alpha level established at 0.05 is unequivocally the most frequently adopted threshold across the spectrum of academic research, holding particular prominence within the social, behavioral, and general scientific disciplines. This standard level signifies that the researcher accepts a reasonable 5% chance of committing a Type I error. The 0.05 standard is valued because it successfully strikes a crucial balance, avoiding the excessive strictness of $alpha=0.01$ while maintaining more control than the leniency of $alpha=0.10$. This balance provides a universally accepted benchmark for sufficient statistical evidence. The critical values specifically associated with $alpha = 0.05$ inherently permit an easier, though still rigorous, rejection of the null hypothesis compared to the 0.01 level, yet they still ensure a high degree of confidence in the observed findings.

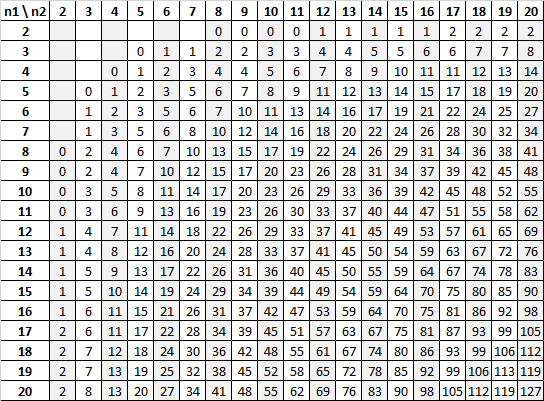

The following table meticulously presents the critical values necessary for performing the two-tailed Mann-Whitney U test at the widely accepted 0.05 significance level. Alpha = .05 (two-tailed). Careful comparative inspection will reveal that for identical pairs of sample sizes ($n_1$ and $n_2$), the critical U values listed in this table are consistently larger than those listed in the $alpha = 0.01$ table. This relationship is entirely logical and expected: a larger critical value implies that the calculated U statistic does not need to be as extremely small or unusual to be declared significant, precisely reflecting the increased willingness to risk a Type I error that is inherent in adopting a higher alpha level. Utilizing this table correctly demands the identical process applied to the previous table: locate the precise intersection of the sample sizes, identify the corresponding critical value, and perform the final comparison against the calculated U statistic.

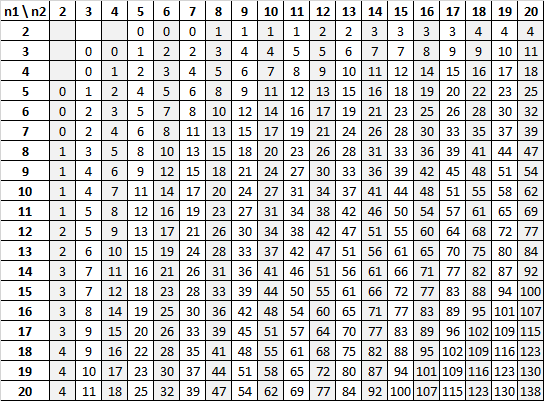

Finally, we provide the reference material for the $alpha = 0.10$ significance level. This level is periodically employed, often in the context of exploratory research, pilot studies, or initial screening processes where the primary research objective is prioritizing the detection of any potential effect, even if weak, over the stringent control of the Type I error rate. Alpha = .10 (two-tailed). As previously established, this table serves a crucial dual purpose, being the required reference for conducting one-tailed tests at the standard 0.05 level (by doubling the one-tailed alpha). Predictably, the critical values presented in this table are the largest of the three sets, accurately reflecting the most lenient requirement for achieving statistical significance and accepting the lowest bar for evidence of an effect.

Practical Application and Interpretation

To utilize these critical value tables effectively and ethically, researchers must first execute the crucial preparatory step of meticulously calculating the U statistic, which is derived directly from the collective ranks of their pooled data. The resulting calculated U value serves as a quantitative measure of the degree of separation or overlap observed between the two independent groups. Once this $U_{calc}$ is accurately determined, the subsequent step involves referencing the appropriate table based on two pre-established parameters: the desired alpha level (0.01, 0.05, or 0.10) and the nature of the hypothesis (one-tailed or two-tailed). The correct selection of the table is a decisive factor that distinguishes a statistically valid conclusion from a misleading or erroneous one. A vital procedural reminder must always be observed: when executing a one-tailed test, the researcher must consult the table that corresponds to precisely twice their intended alpha level (e.g., use the $alpha=0.10$ table if the directional test is conducted at $alpha=0.05$).

The final interpretation resulting from the comparison is fundamentally straightforward but demands absolute precision. If the calculated U value is found to be less than or equal to the critical value ($U_{calc} le U_{crit}$), the outcome is declared statistically significant. This finding means that the probability of observing such a pronounced difference purely by chance falls below the chosen alpha level. In this scenario, we decisively reject the null hypothesis and confidently conclude that the two populations differ significantly in their central tendencies. If, conversely, the calculated U value exceeds the critical value ($U_{calc} > U_{crit}$), the result is categorized as not statistically significant. In this latter case, we fail to reject the null hypothesis, maintaining the conclusion that there is insufficient empirical evidence to firmly suggest a genuine difference exists between the two populations under investigation.

For researchers who desire a more comprehensive mastery of the computational procedures involved in deriving the U statistic itself, supplementary educational materials are readily available. These resources provide step-by-step guidance on ranking and calculation. Read the Mann-Whitney U Test tutorial here. Achieving proficiency in both the precise calculation procedure and the correct interpretation and application of the critical values ensures a complete, rigorous, and defensible application of this fundamental non-parametric test. These provided critical value tables serve as essential, ready-access reference points for researchers, granting immediate access to the necessary threshold values required for drawing robust, evidence-based conclusions regarding differences between independent groups.
