Learning to Color Matplotlib Scatterplots by Value for Enhanced Data Visualization

Introduction to Enhanced Scatterplots

Effective data visualization often requires incorporating more than just two variables. A fundamental method in exploratory data analysis is introducing a third, crucial dimension by mapping its values directly to the color intensity or hue of markers within a scatterplot. This sophisticated technique significantly enhances the visual interpretation of complex relationships, enabling analysts to rapidly identify patterns, clusters, or outliers that correlate strongly with the third metric. Mastering this capability is indispensable for communicating data insights effectively, especially when analyzing large datasets where simple two-dimensional plots might conceal important underlying structures.

The primary visualization toolkit in Python, Matplotlib, provides the highly versatile function `matplotlib.pyplot.scatter()` for generating these detailed plots. Unlike the simpler `plt.plot()` function, `plt.scatter()` is specifically engineered to manage individual marker attributes, including size (through the s parameter) and, most importantly for this guide, color assignment based on external data arrays. This feature transforms a standard two-dimensional representation into a compelling, multi-variate graphic capable of simultaneously visualizing three or more variables.

To utilize this powerful functionality, we must first understand the core syntax and essential parameters of the function. The official documentation defines the structure necessary for incorporating a coloring dimension, which is driven by the c and cmap arguments:

matplotlib.pyplot.scatter(x, y, s=None, c=None, cmap=None)

Deep Dive into the plt.scatter() Parameters

While the fundamental parameters x and y establish the spatial coordinates of the markers on the plotting area, the real potential for advanced Matplotlib visualizations resides within the optional arguments: s, c, and cmap. A thorough understanding of how these parameters interoperate is essential for producing both insightful and aesthetically pleasing graphics. For example, the s parameter controls the size of each marker, and when supplied with an array of values, it facilitates the representation of a fourth dimension, commonly known as a bubble plot.

The parameter c, which stands for color, is the central mechanism for conditional coloring. It accepts an array of values—which can be either numerical or categorical—that determines the color assignment for every corresponding (x, y) coordinate pair. When c is populated with numerical data, Matplotlib automatically maps these numerical values onto a continuous color spectrum, which is explicitly defined by the cmap parameter. However, when working with categorical variables, a different strategy is required, typically involving grouping and iterative plotting, as plt.scatter() is natively optimized for continuous numerical color scaling.

These critical parameters are summarized below, detailing their specific role in constructing a multi-dimensional scatterplot:

• x: The primary array defining the horizontal coordinates for all points within the plot.
• y: The corresponding array defining the vertical coordinates for the markers.
• s: The marker size. This can be a single scalar value applied uniformly to all markers, or an array of scalar values to vary the size of each point dynamically, enabling a fourth dimension.
• c: The array of values utilized to determine marker colors. If numerical, it drives the continuous color mapping; if categorical, external logic must be applied to assign colors before they are passed to c, or an alternative plotting method must be used.
• cmap: Short for Colormap. This argument specifies the particular color scheme (e.g., ‘viridis’, ‘plasma’, ‘Greens’) that Matplotlib uses to interpret the numerical values provided via the c parameter.

The synergy between the c argument, which supplies the data used for coloring, and the cmap argument, which provides the visual spectrum, allows us to construct gradient-based scatterplots that effectively showcase the concentration or magnitude of a third variable across the two primary dimensions. The subsequent examples will provide clear demonstrations of how to apply these concepts efficiently, distinguishing between the methods necessary for numerical (continuous) data and discrete (categorical) data.

Example 1: Visualizing Numerical Data with Colormaps

The most straightforward application of conditional coloring arises when the third variable, used for shading, is numerical and continuous. This structure enables Matplotlib to automatically establish a mapping: the minimum value in the data array is mapped to one end of the chosen Colormap, and the maximum value is mapped to the other, thus creating a visually intuitive gradient. We begin this demonstration by defining a sample pandas DataFrame containing three columns: x and y (our spatial coordinates), and z (our numerical coloring variable).

import pandas as pd

#create DataFrame with numerical coloring variable 'z'
df = pd.DataFrame({'x': [25, 12, 15, 14, 19, 23, 25, 29],
                   'y': [5, 7, 7, 9, 12, 9, 9, 4],
                   'z': [3, 4, 4, 5, 7, 8, 8, 9]})

#view DataFrame
df

        x	y	z
0	25	5	3
1	12	7	4
2	15	7	4
3	14	9	5
4	19	12	7
5	23	9	8
6	25	9	8
7	29	4	9

Our objective is to generate a scatterplot where the positions are defined by x and y, but the shade or intensity of each marker is determined by the magnitude of its corresponding z value. For this initial visualization, we employ the monochromatic ‘gray’ colormap to clearly illustrate the gradient based purely on intensity. Here, lower values of z will appear lighter, and conversely, higher values will appear darker. We also fix the marker size using s=200 to ensure optimal visibility of the color variation.

import matplotlib.pyplot as plt

#create scatterplot using 'z' for color and 'gray' colormap
plt.scatter(df.x, df.y, s=200, c=df.z, cmap='gray')

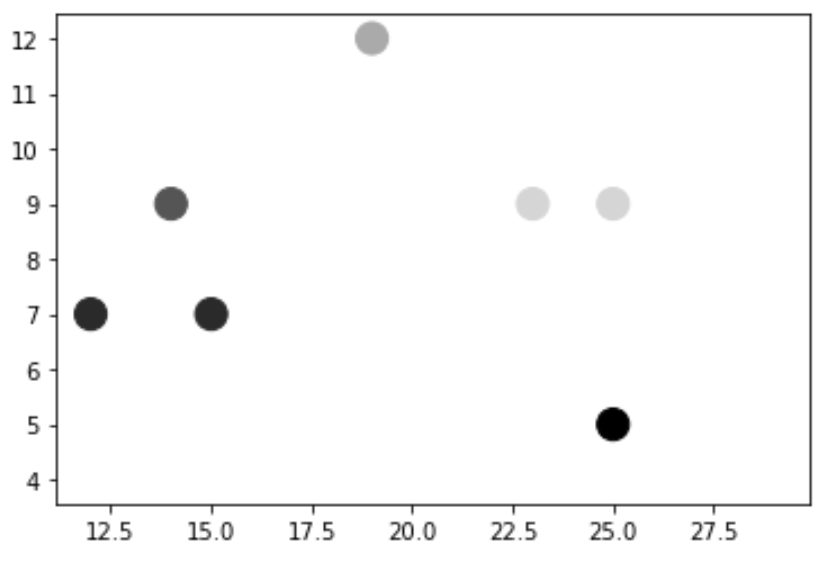

The resulting plot clearly demonstrates the direct correlation between the gray shading intensity and the magnitude of the z variable. However, limiting the visualization to a grayscale palette may not be ideal for all datasets. Matplotlib provides an extensive selection of predefined colormaps, categorized as sequential (perfect for numerical gradients), divergent (good for data centered around zero), and qualitative (for distinct categories). It is highly recommended to review the comprehensive Matplotlib colormap documentation to select the most suitable scheme for your data type and analytical goals.

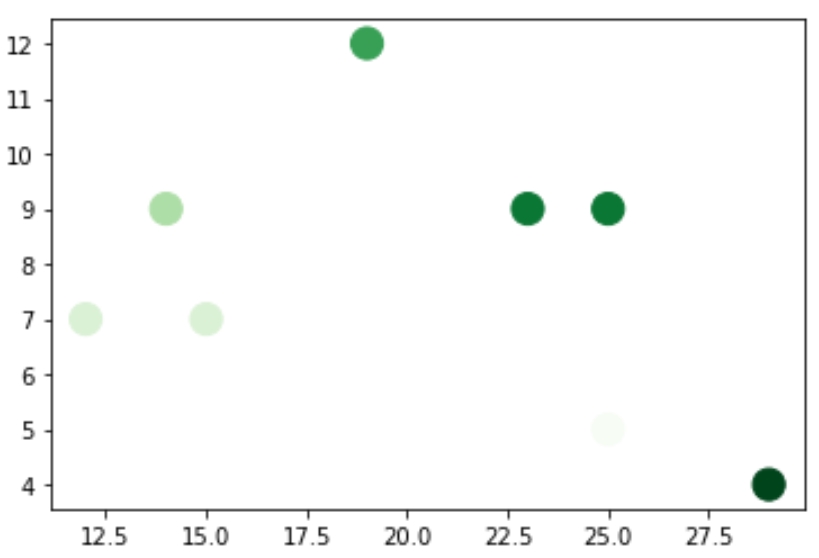

To illustrate the flexibility inherent in the cmap parameter, we can seamlessly transition to a sequential color scheme such as ‘Greens’. This modification provides a more vibrant visualization while rigorously maintaining the gradient mapping from low z values (light green) to high z values (dark green). The ability to change the entire aesthetic of the plot with a single parameter adjustment highlights the efficiency of the plt.scatter() function for rapid visualization prototyping and iterative analysis.

plt.scatter(df.x, df.y, s=200, c=df.z, cmap='Greens')

Advanced Customization: Reversing Scales and Adding Context

For sequential Colormap schemes like ‘Greens’, the default convention is to map smaller data values (min) to lighter shades and larger data values (max) to darker, more saturated shades. This standard is typically followed when representing magnitudes such as density, temperature, or frequency. However, specific scenarios require the inversion of this mapping for enhanced clarity or to align with field-specific conventions—for instance, if the variable z represents a negative metric like an error rate, where a lower value (darker, emphasized color) might be counterintuitive.

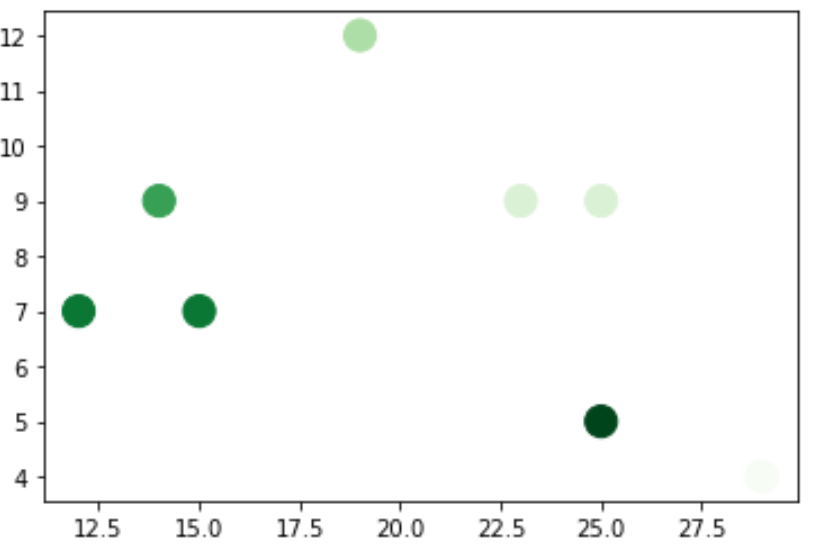

Fortunately, Matplotlib provides a remarkably simple mechanism for color scale reversal. By appending the suffix _r to any standard colormap name (e.g., changing ‘Greens’ to ‘Greens_r’), the entire mapping is inverted. Consequently, the highest values present in the c array will be assigned the lighter end of the spectrum, and the lowest values will be assigned the darker, more saturated end. This minor syntax adjustment can profoundly alter the visual narrative conveyed by the plot, ensuring the visualization aligns perfectly with the intended meaning of the data.

plt.scatter(df.x, df.y, s=200, c=df.z, cmap='Greens_r')

Beyond simple reversal, for any numerical colormap to be truly informative and quantitatively accurate, it must be accompanied by context. When utilizing the c and cmap parameters, it is considered best practice to include a colorbar adjacent to the scatterplot. The colorbar serves as the essential key, explicitly linking the observed color shades back to the original numerical values of the variable z. While the preceding examples intentionally omit the colorbar for visual simplicity, the function plt.colorbar() should always be called immediately following plt.scatter() in production code to provide this vital quantitative context to the viewer, ensuring the visualization is both appealing and precisely interpretable.

Example 2: Coloring Markers Based on Categorical Variables

When the variable used for coloring is qualitative—meaning it consists of distinct, non-ordered categories, such as names or types—the visualization approach must differ significantly from the numerical method shown previously. Matplotlib‘s plt.scatter() function does not automatically assign unique, distinct colors to string-based categorical variables. Attempting to pass a column composed of strings directly into the c parameter will typically result in an error or highly ambiguous behavior, as the function expects numerical data for continuous gradient mapping or a pre-defined color array.

Therefore, the most reliable and idiomatic method for visualizing categorical data involves leveraging the sophisticated data manipulation capabilities of the pandas DataFrame, specifically employing the groupby() method. By grouping the entire dataset based on the categorical column, we can then iterate through each unique group and plot them individually within the same figure canvas. This iterative plotting strategy allows Matplotlib to assign a distinct default color to each group automatically, resolving the challenge of categorical coloring while simultaneously enabling the creation of a clear legend.

Consider a revised pandas DataFrame where the column z now contains labels (‘A’, ‘B’, ‘C’) representing discrete groups rather than continuous numerical magnitudes:

import pandas as pd

#create DataFrame with categorical coloring variable 'z'
df = pd.DataFrame({'x': [25, 12, 15, 14, 19, 23, 25, 29],
                   'y': [5, 7, 7, 9, 12, 9, 9, 4],
                   'z': ['A', 'A', 'B', 'B', 'B', 'C', 'C', 'C']})

#view DataFrame
df

	x	y	z
0	25	5	A
1	12	7	A
2	15	7	B
3	14	9	B
4	19	12	B
5	23	9	C
6	25	9	C
7	29	4	C

To plot this categorical data effectively, we first group the DataFrame by the column z. We then iterate through the resulting groups, calling the more basic `plt.plot()` function for each subset of data. Crucially, we set linestyle='' to prevent connecting lines between the points and use the `marker=’o’` argument to ensure the data is plotted as a set of discrete circular markers, effectively resulting in a categorical scatterplot. The use of label=name within the loop ensures that each distinct group is correctly registered for automatic legend generation upon calling `plt.legend()`.

import matplotlib.pyplot as plt

groups = df.groupby('z')
for name, group in groups:
    plt.plot(group.x, group.y, marker='o', linestyle='', markersize=12, label=name)

plt.legend()

Conclusion: Summary of Coloring Techniques

The ability to control the color of a scatterplot‘s markers based on a third variable is a foundational technique that dramatically increases its informational density and interpretability. The critical choice lies between two primary methodologies: using the c and cmap parameters specifically designed for continuous numerical data, or utilizing the pandas groupby() function combined with iterative plt.plot() calls for discrete categorical data. When dealing with numerical input, selecting the appropriate Colormap is essential; sequential maps (like ‘Greens’) are ideal for ordered magnitudes, while divergent maps are better suited for variables centered around a meaningful threshold, such as zero.

For developers and analysts working within the Python ecosystem, the synergy between pandas for data preparation and Matplotlib for visualization ensures an exceptionally flexible and powerful workflow. Although data transformation techniques—such as mapping categorical strings to numerical integers—can sometimes be used to force categorical data into the plt.scatter(c=...) framework, the iterative plotting method demonstrated in Example 2 is generally recognized as cleaner and superior for automatic, unambiguous legend generation.

Ultimately, mastering the control of marker color based on underlying data values is a cornerstone skill in modern data science visualization. By fully understanding the functionality of the c and cmap parameters, and by knowing how to properly handle both continuous and categorical variables, users can transform basic two-dimensional plots into rich, compelling multi-dimensional representations that facilitate robust decision-making and clearer analytical communication.
