Understanding Cross-Sheet Cell Referencing in Excel: A Step-by-Step Tutorial

Understanding the Mechanism of Cell Mirroring

The ability to dynamically link data across different segments of a spreadsheet is a foundational skill for any advanced user of
Excel. This technique, commonly known as mirroring a cell or
cross-sheet cell referencing, ensures that the content in a target cell instantly reflects any changes made to a source cell, regardless of where they reside within the same workbook. Unlike simple copy-pasting, which captures a static snapshot of data, mirroring establishes a permanent, dynamic synchronization. This powerful feature is essential for maintaining data consistency, consolidating key performance indicators (KPIs) into a summary dashboard, or structuring complex financial models where input data must feed into multiple calculation sheets simultaneously.

The core of this mechanism relies on a precise internal
formula structure that explicitly directs Excel to retrieve data from a specific external location. To achieve this synchronization, the formula must clearly define the path to the source data. This is accomplished by specifying the name of the source
Worksheet, immediately followed by an exclamation mark (!), and then the specific cell reference (e.g., A1, B5, etc.). This standardized syntax is universally recognized by Excel and serves as the most efficient way to achieve immediate data synchronization between two sheets within the same workbook. If, for instance, you need to pull the value from the upper-left corner of your sheet titled ‘Input Data’, the formula structure makes that retrieval path unambiguous.

Establishing this dynamic link is remarkably straightforward. The most common method involves navigating to the destination cell—the cell where you want the mirrored value to appear—and inputting a simple equality statement followed by the sheet and cell coordinates of the source. This structure forms the foundation of data linkage across your entire workbook, maintaining a live connection between the primary source and its derived destination. For example, if your source data resides in Sheet1, and you wish to mirror cell A1, the entry in your destination sheet would look like this:

=Sheet1!A1

This specific
formula instructs the software to fetch and display the current value contained in cell A1 of the worksheet named Sheet1. A crucial advantage of Excel’s referencing system is its robustness; should you decide to rename the source sheet (e.g., from Sheet1 to ‘Q4 Results’), Excel automatically updates the formula reference in the destination sheet, preserving the link integrity. However, it is imperative to remember a key formatting rule: if the source sheet name contains spaces or special characters, it must be enclosed within single quotation marks to prevent syntax errors. An example of a correctly referenced sheet with spaces would be ='Data Set'!A1, ensuring the reference is properly parsed by the program.

Practical Implementation: A Step-by-Step Guide

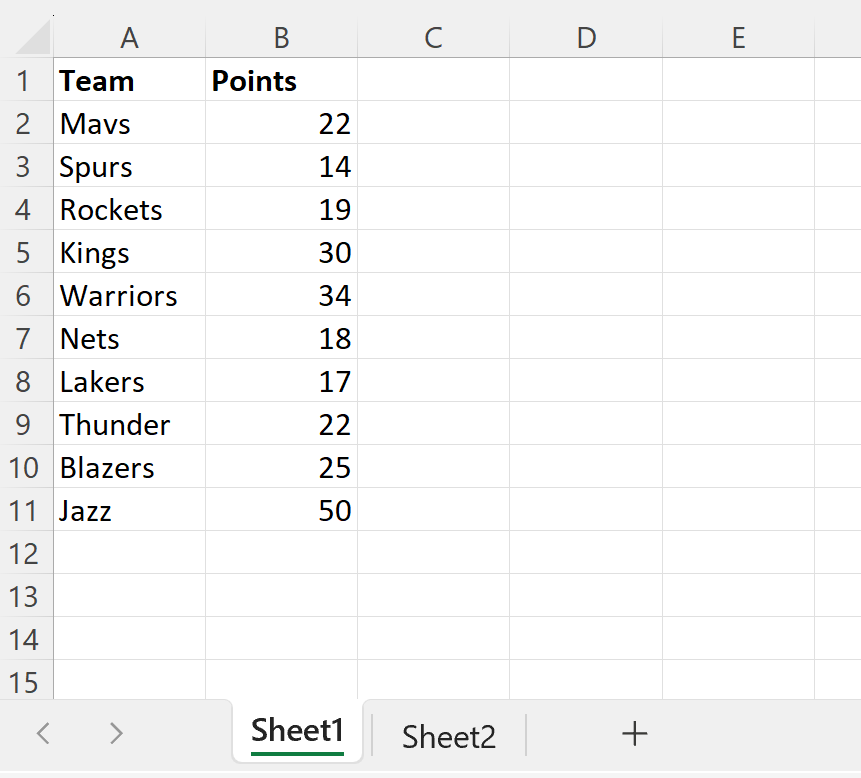

To fully grasp the practical utility of cell mirroring, let us walk through a typical scenario involving data replication. Imagine a situation where we have compiled a primary dataset on Sheet1, which functions as our master source. This sheet contains critical, up-to-date information—in this case, performance statistics for several athletes. Our objective is to replicate this entire data table onto Sheet2, creating a clean, automatically updating summary or display area without the need for manual data entry or periodic copying. This separation of source data and presentation is a pillar of effective workbook design.

The initial source data stored on Sheet1 includes headers and subsequent entries, defining the structure we intend to mirror. This layout, typically spanning a contiguous range of cells (A1 to B11 in our example), dictates the scope of the
cross-sheet cell referencing operation required for the destination sheet. The visual representation of our master data source is critical for determining the starting point and extent of the mirroring process, ensuring an exact replica is created.

Our goal is to accurately replicate this entire block of cell values, which spans the range from A1 down to B11, into Sheet2. This replication process must begin at the corresponding starting cell (A1) on the destination sheet. By strategically initiating the referencing process in cell A1 of Sheet2, we establish the very first link in our mirrored dataset, ensuring the column headers are correctly captured and serve as the anchor for the rest of the table replication.

To commence the replication, we insert the foundational
formula into cell A1 of Sheet2, mirroring the header ‘Player Name’. This initial step confirms the connection between the two sheets and prepares the destination sheet for the automatic population of the remaining data set.

=Sheet1!A1

Leveraging Relative References for Rapid Replication

Once the initial formula is entered into cell A1 of the destination sheet, the true efficiency of Excel’s referencing system comes to the forefront through the use of
Relative Reference. Since we deliberately omitted dollar signs ($) to lock the row or column coordinates, the formula is inherently dynamic. This means that when the formula is copied or dragged, Excel automatically adjusts the cell references relative to the new position. This dynamic functionality is critical for replicating large blocks of data efficiently without manually typing hundreds of individual cross-sheet formulas.

To complete the replication of the entire table (A1:B11), we utilize the fill handle feature—the small, dark square located at the bottom-right corner of the active cell. We first click and drag the formula down from cell A1 to A11 to mirror the ‘Player Name’ column. Subsequently, we drag the formula across to column B, covering the ‘Points’ data. As we perform this drag-and-fill operation, Excel intelligently shifts the underlying references, transforming =Sheet1!A1 into =Sheet1!A2, =Sheet1!B1, and so forth, ensuring that every destination cell correctly points to its corresponding source cell.

The successful completion of the drag-and-fill procedure results in Sheet2 displaying an exact, live replica of the data from Sheet1. The resulting table structure confirms that every cell within the source range has been successfully linked to its counterpart in the destination
Worksheet. This efficient process saves significant time and effort compared to manual data replication, while simultaneously guaranteeing that the data presented is always current and synchronized.

Mastering Dynamic Updates and Data Integrity

The core value proposition of mirroring cells, in contrast to simple value copying, lies in its ability to enforce data integrity through dynamic synchronization. Because the cells in the destination sheet (Sheet2) contain a live
formula linking them directly to the source cells (Sheet1), the mirrored data is inherently up-to-date. This means that any modification made to the primary source data is instantly and automatically propagated to the mirrored location. This real-time update capability is particularly crucial in complex, multi-user workbooks or when developing interconnected financial reports where source metrics are frequently adjusted.

If any value within the primary source sheet is altered, these changes are reflected immediately in the corresponding cells on the mirrored sheet. This seamless, automatic synchronization eliminates the risk of analytical errors stemming from outdated information. For example, if a financial input is corrected, or an updated metric is calculated, the derived sheets benefit from this correction without any manual intervention being required on the secondary sheets. This guarantee of consistency is indispensable for maintaining trust in the data presented across various reporting layers.

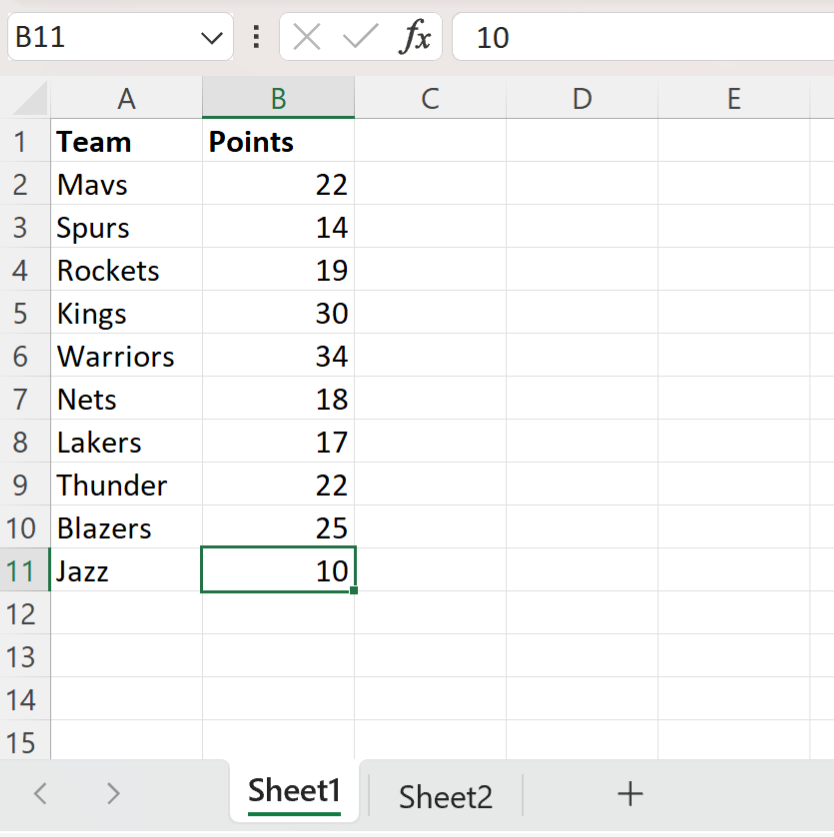

To provide a concrete illustration, consider an update scenario within our dataset. Suppose the final score entry in the Points column for Player K on Sheet1 was initially entered as 27, but upon verification, the correct statistic is determined to be 10. We make this necessary adjustment directly within the master source sheet, Sheet1, which is the designated location for all data input and modification.

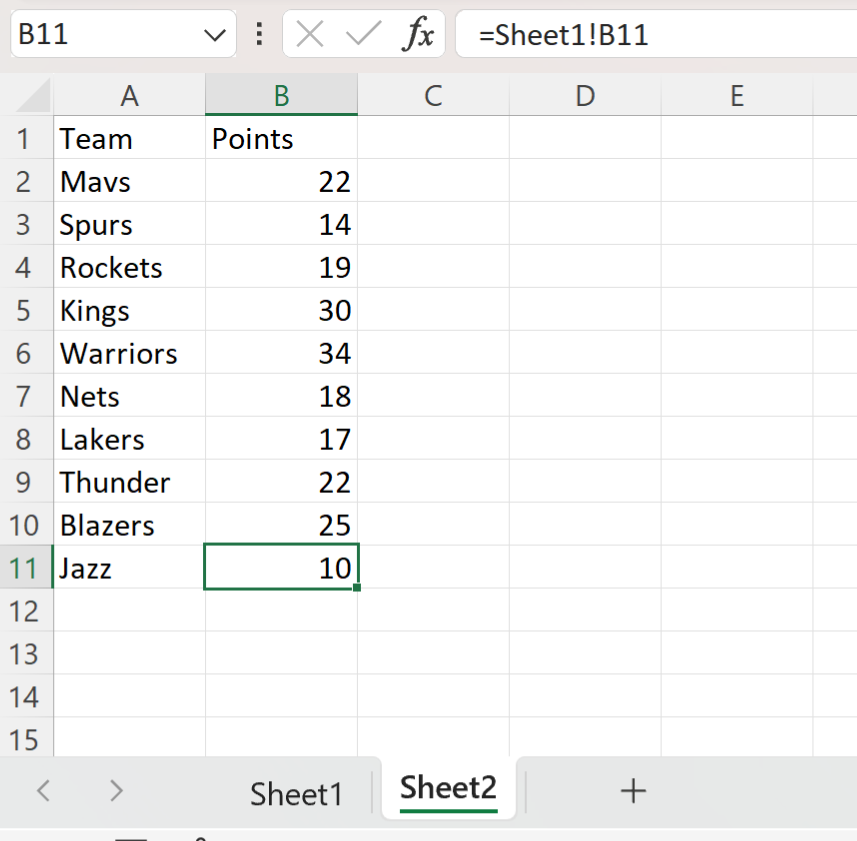

The key takeaway here is the complete lack of required action on Sheet2. The updated value of 10 is instantaneously displayed in the corresponding cell of the mirrored sheet, driven entirely by the live cross-sheet reference. This effortless transition highlights the efficiency and reliability of relying on dynamic
cell referencing for robust data management across large and interconnected workbook structures.

Advanced Referencing: Relative, Absolute, and Mixed Structures

While the block replication example relied successfully on simple
Relative Reference (e.g., Sheet1!A1), mastering the subtle yet critical distinctions between relative, absolute, and mixed referencing is essential for tackling more sophisticated mirroring requirements. A Relative Reference adjusts its coordinates automatically when the formula is copied or dragged to a new position, maintaining the relative distance from the original cell. Conversely, an Absolute Reference, clearly marked by dollar signs (e.g., Sheet1!$A$1), completely locks both the column and row. This locking mechanism ensures that no matter where the formula is copied within the workbook, it will always point precisely back to that exact, fixed source cell.

For situations requiring specialized control, Mixed Referencing structures offer flexibility. These use a partial lock, such as Sheet1!$A1, which fixes the column (A) but allows the row (1) to change when dragged vertically; or Sheet1!A$1, which locks the row (1) but allows the column (A) to shift horizontally. This granular control is vital when building models where certain columns or rows must consistently reference a singular anchor point. For instance, if you are mirroring a sales table but need an adjacent calculated column to always refer to a static tax rate located in cell Z1 of the source sheet, you would use an absolute reference (=Sheet1!$Z$1) for that critical input cell, guaranteeing calculation validity across hundreds of rows.

In the context of mirroring an entire data block, the use of a standard relative reference (=Sheet1!A1) is the preferred and correct method, as the intent is for every corresponding cell to shift sequentially. However, if the requirement was strictly to populate the first cell of Sheet2 with the value of Sheet1!A1, and then copy that identical value across an entire row (A1 to Z1) without the reference changing, the explicit use of the absolute reference =Sheet1!$A$1 would be necessary. Understanding and strategically applying these different referencing types is the cornerstone of building scalable, error-free, and robust
Excel models.

Best Practices for Maintaining Mirrored Data Integrity

The application of cell mirroring extends far beyond basic replication; it provides the structural framework for advanced data manipulation and professional reporting within
Excel. Key uses include the creation of summarized executive dashboards that only pull specific Key Performance Indicators (KPIs) or totals from highly detailed calculation sheets, producing print-ready reports based on messy input data, and effectively isolating input data from output reports to safeguard the integrity of underlying calculations. By successfully separating the source data layer from its presentation layer, mirrored cells contribute significantly to a clean, maintainable, and highly functional workbook architecture.

To maximize efficiency and minimize the potential for errors, several essential best practices must be consistently adhered to. Firstly, always use descriptive and concise names for your
Worksheet tabs (e.g., ‘Source_Inputs’ or ‘Q1_Summary’ instead of generic names like ‘Sheet1’). This simple practice drastically increases the readability of your cross-sheet formulas, making them easier to audit and debug, especially when managing workbooks containing dozens of interdependent sheets. Secondly, it is vital to recognize that mirroring creates a strong data dependency: if the source sheet is inadvertently deleted, or if the source cell is moved or modified in a way that breaks the established reference (such as deleting the entire row or column), the mirrored cell will inevitably display the critical #REF! error, indicating a broken link that must be manually repaired.

Finally, always verify that the number formatting of the mirrored cell aligns precisely with your expectations for the displayed data. While the mirroring
formula successfully transfers the numerical or text value, it does not automatically copy the formatting (such as currency symbols, date styles, or percentage signs). This formatting often needs to be manually applied or copied to the destination cell to ensure the mirrored data is presented correctly for reporting purposes. Utilizing dynamically mirrored cells effectively is crucial for building complex workbooks that remain manageable, accurate, and reliable sources of business information.

Further Resources for Advanced Excel Mastery

Developing a deep understanding of cross-sheet referencing is often the definitive entry point into mastering the more sophisticated data management capabilities offered by Microsoft Excel. Once comfortable with linking individual cells and ranges across sheets, users can move on to complex array formulas and external workbook links. The following list outlines key areas for further study that naturally complement the skills acquired through mastering cell mirroring, focusing on operations like data consolidation and advanced data manipulation.

• Understanding how to create external links to cells in different workbooks entirely, rather than just different sheets within the same workbook.

• Mastering the use of functions like VLOOKUP or INDEX/MATCH to retrieve non-contiguous data based on specific criteria, which offers an alternative to simple cell mirroring.

• Implementing data validation and conditional formatting across mirrored cells to enhance visual presentation and highlight inconsistencies or errors instantly.

By continually expanding your knowledge in these areas, you ensure that your Excel models are not only dynamic but also highly resilient and scalable, ready to handle large, interconnected datasets efficiently.
