Learning File Management with VBA: A Step-by-Step Guide to the MoveFile Method

Mastering the VBA MoveFile Method

When building robust automation solutions in VBA, the capability to programmatically relocate files is indispensable for maintaining organized data workflows. The primary mechanism for achieving this file transfer is the powerful MoveFile method, which is intrinsically linked to the FileSystemObject (FSO). This method provides a reliable, high-level interface that allows developers to seamlessly shift a file from its current source directory to an entirely new destination location.

The execution of the MoveFile method requires two mandatory arguments: a precise path identifying the source file that needs to be moved and a string defining the exact destination path where the file should land. By utilizing the FSO model, developers gain access to fundamental operating system capabilities directly within their VBA code, ensuring robust and efficient handling of complex file system interactions without resorting to external command-line tools.

The example below serves as the foundational blueprint for file relocation. This standard VBA procedure initializes the FSO and subsequently executes the file movement operation by explicitly defining the source and destination paths. Understanding this structure is crucial for implementing file relocation logic within any macro.

Sub MoveMyFile()

Dim FSO As New FileSystemObject
Set FSO = CreateObject("Scripting.FileSystemObject")

' Define the location of the source file and the target destination path
SourceFile = "C:UsersbobDesktopSome_Data_1soccer_data.txt"
DestFile = "C:UsersbobDesktopSome_Data_2soccer_data.txt"

' Execute the file movement using the FSO object
FSO.MoveFile Source:=SourceFile, Destination:=DestFile

End Sub

In this specific macro implementation, the file named soccer_data.txt is efficiently relocated from its original folder, Some_Data_1, and transferred to the new target directory, Some_Data_2. This method is exceptionally effective for maintaining clean and organized data structures across various directories. The following sections will guide you through the critical setup required and provide a practical, detailed, step-by-step implementation, ensuring you can reliably replicate this file relocation process in your own automation projects.

Essential Prerequisite: Enabling the FileSystemObject

To successfully instantiate and utilize the FileSystemObject, a crucial preliminary step is mandatory: the required library reference must be explicitly enabled within the VB Editor (VBE). The essential components that constitute the FSO reside within the Microsoft Scripting Runtime library. If this external library is not explicitly referenced in your project, VBA will be unable to recognize key data types and objects (such as FileSystemObject), invariably leading to the common “User-defined type not defined” error during compilation or immediate runtime errors during execution.

This vital setup procedure is only necessary once per project file—for example, once per Excel workbook or Access database. By linking this library, you connect your current VBA environment to the external functionality responsible for handling file system operations, thereby unlocking the ability to use powerful commands like MoveFile, CopyFile, and DeleteFile. Failing to correctly establish this linkage is recognized as the single most common stumbling block for developers initiating FSO operations.

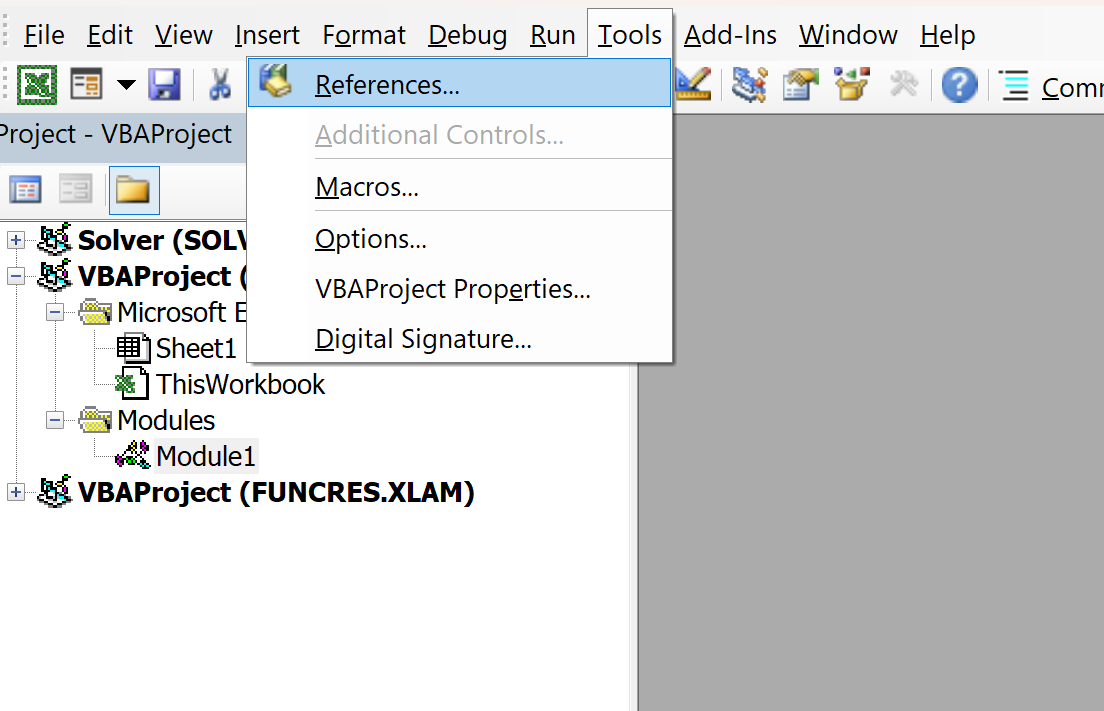

To ensure the necessary functionality is available, follow these precise instructions within the Visual Basic Editor to enable the Microsoft Scripting Runtime:

1. Open the VB Editor (VBE) interface by pressing Alt + F11 while focused on the host Microsoft Office application (e.g., Excel or Access).
2. Locate and click on the Tools option situated on the main menu bar at the top of the VBE window.
3. Select the References… option from the resulting dropdown menu to open the manager for external object models.

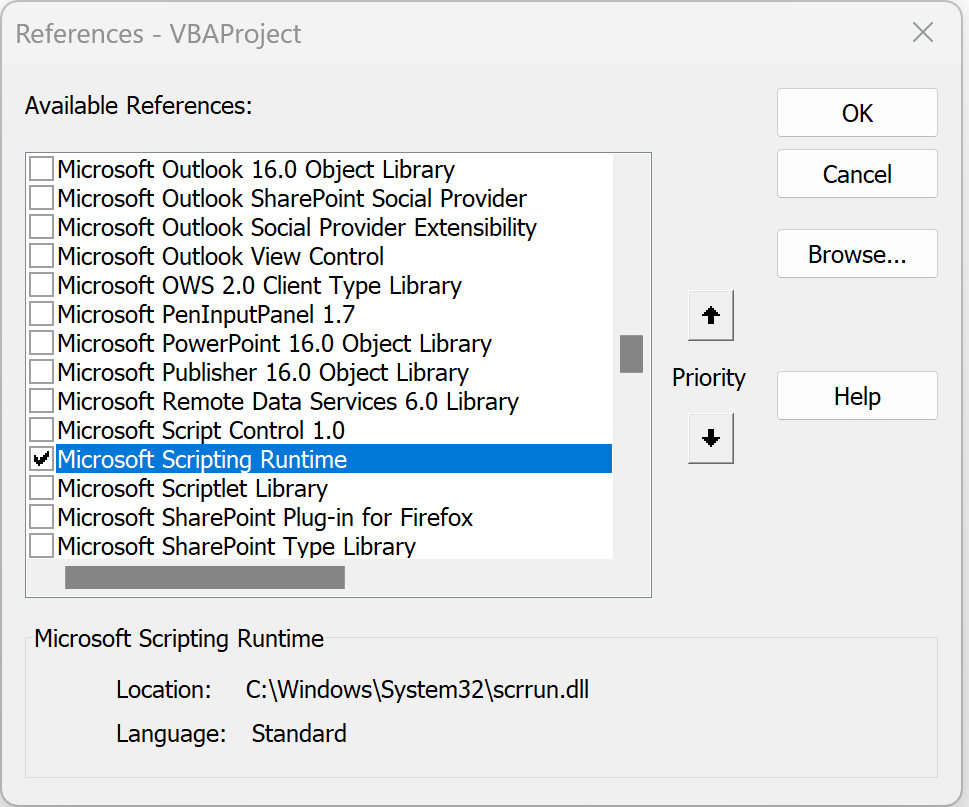

Executing this action opens the References dialog box, which serves as the central manager for all external libraries and object models linked to your project:

Within this new window, scroll down the alphabetically ordered list of available references until you locate the entry labeled Microsoft Scripting Runtime. Check the corresponding box next to this library title, and then confirm your selection by clicking OK. This crucial step successfully links the essential Scripting Runtime components to your VBA project, making the FSO available.

Once this critical reference is active, your project is fully prepared to define and execute file movement macros using the FSO object, leveraging the robust file system functionality provided by the newly linked library.

Practical Application: Moving a Single File

To clearly demonstrate the efficiency and straightforwardness of the MoveFile method, we will consider a typical organizational scenario involving local data files. Imagine we have a specific text data file named soccer_data.txt, which is currently stored within a source folder designated as Some_Data_1, located directly on the user’s Desktop.

Establishing and verifying this initial state is paramount for accurately defining the source path within the VBA code. The visual representation below confirms both the existence and the precise location of the target file within the Some_Data_1 source folder:

Our objective is to reliably move this specific file to a pre-defined destination folder, Some_Data_2, which also resides on the Desktop. This target folder may already contain various other data files, but our goal is the seamless integration of soccer_data.txt into its existing contents, thereby consolidating related data assets into a single, organized location.

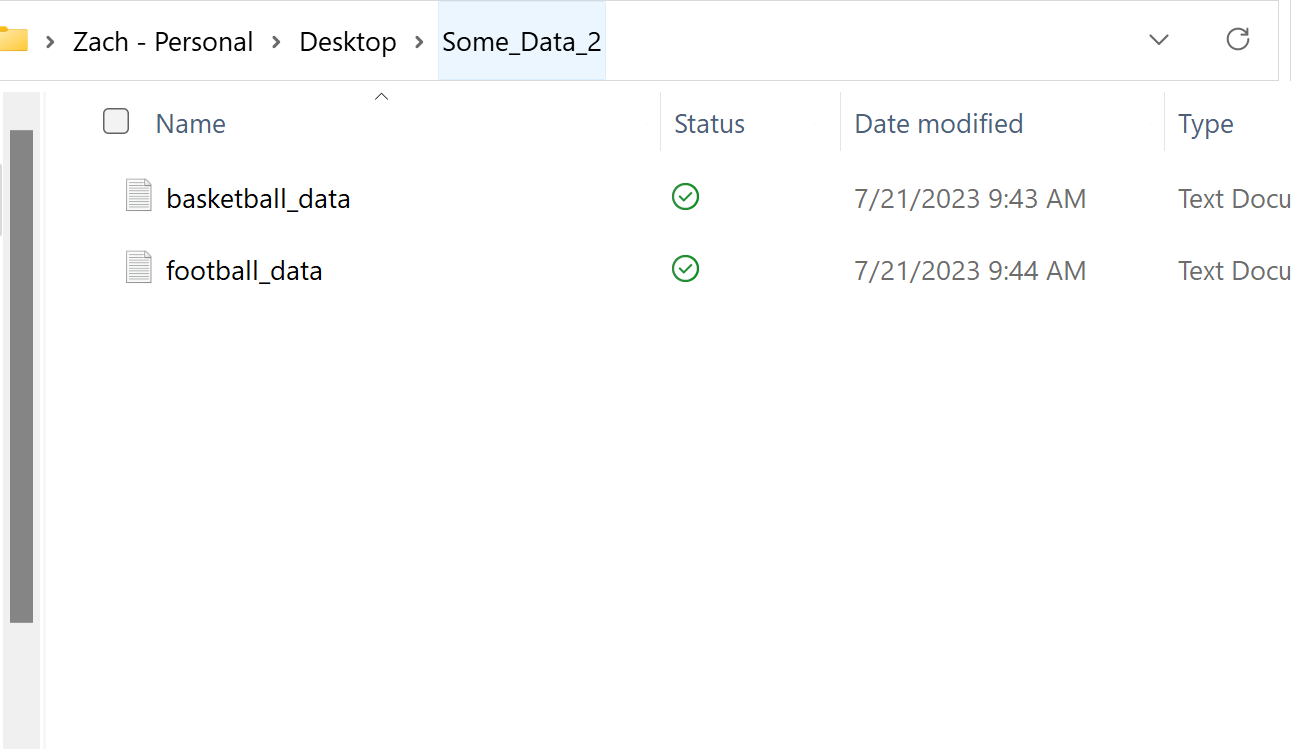

The current contents of the destination folder, Some_Data_2, are illustrated here exactly as they appear before we execute the MoveFile operation. Note that the target file, soccer_data.txt, is confirmably absent from this location at this stage:

Having successfully enabled the Microsoft Scripting Runtime, as detailed in the previous prerequisite section, we are now fully prepared to construct and execute the final VBA macro necessary to perform this precise and automated file relocation, ensuring efficient data handling without error-prone manual intervention.

Detailed Code Analysis and Execution

The following macro utilizes the initialized FileSystemObject to manage the relocation of soccer_data.txt. It is critically important that the file paths defined in the code variables precisely match the structure and locations on your local operating system. The SourceFile path must include the full file name, and the DestFile path must explicitly specify the exact location where the file will reside, including its final resulting name.

In this implementation, we begin by declaring and setting the FSO object. We then define our SourceFile and DestFile variables using strict string paths. The core command that performs the action, FSO.MoveFile, subsequently utilizes these variables as arguments for the Source and Destination parameters, instructing the FSO where to retrieve and place the file.

Sub MoveMyFile()

Dim FSO As New FileSystemObject
Set FSO = CreateObject("Scripting.FileSystemObject")

' Define the source file path (including the file name)
SourceFile = "C:UsersbobDesktopSome_Data_1soccer_data.txt"
DestFile = "C:UsersbobDesktopSome_Data_2soccer_data.txt"

' Execute the file movement command
FSO.MoveFile Source:=SourceFile, Destination:=DestFile

End Sub

When this macro is executed within the VBE, the FileSystemObject takes over, handling the low-level operating system calls required to physically move the file. Upon successful completion, soccer_data.txt is atomically removed from the Some_Data_1 folder and immediately appears within the contents of the Some_Data_2 folder.

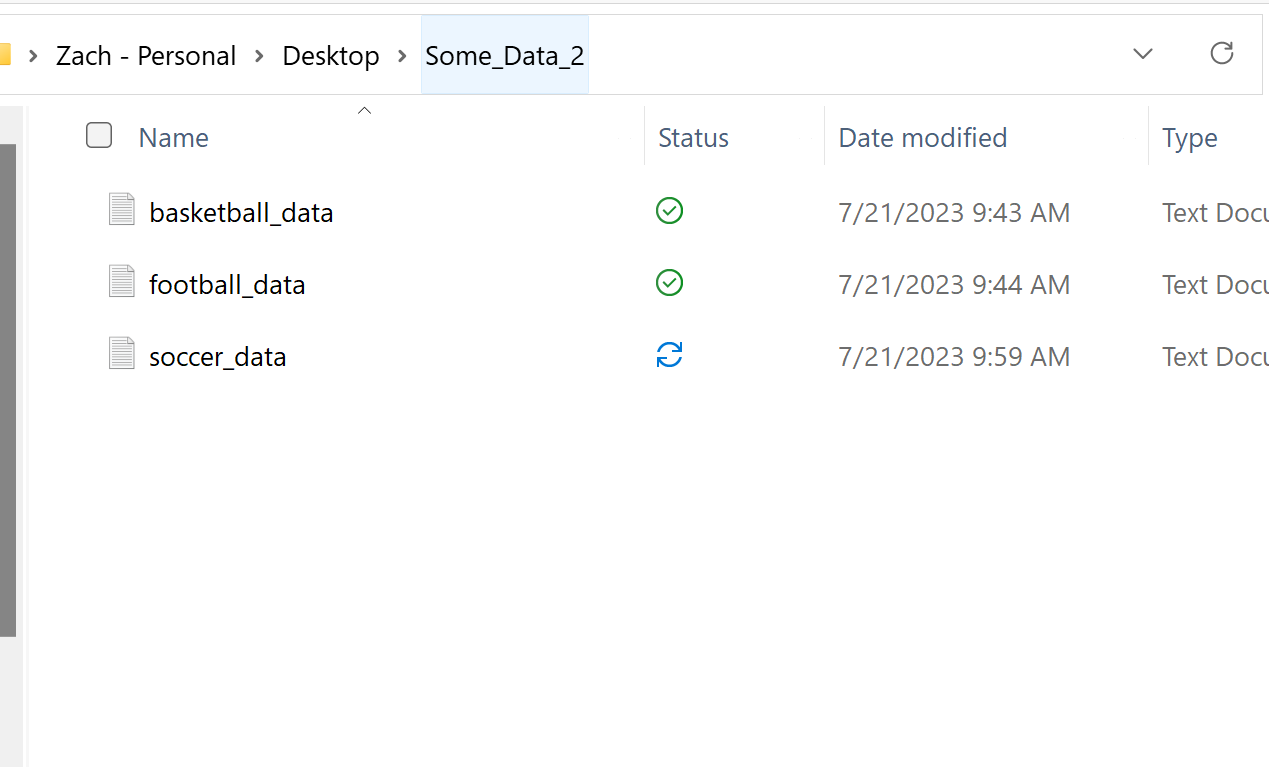

The result illustrated below, captured immediately after the macro runs, confirms that the file has been successfully relocated to the destination folder, definitively demonstrating the efficacy of the MoveFile method in achieving the desired data migration:

An important operational feature of MoveFile is its dual capability: it can simultaneously rename a file during relocation. If the destination path specified includes a filename that differs from the source filename, the file will be moved and automatically renamed. Crucially, developers must account for conflicts: if a file already exists at the destination path, the MoveFile method will typically trigger a runtime error (specifically error 58: “File already exists”), unless sophisticated error handling or prior file deletion logic is proactively implemented in the VBA script.

Automating File Batches Using Wildcards

While the previous examples focused on moving a single, explicitly named file, the MoveFile method provides substantial flexibility through its support for standard DOS wildcards. This functionality is immensely valuable when the requirement is to transfer an entire set of files, or a specific subset (e.g., all files ending in .log or .csv), from one directory to another without needing to write complex iterative loops.

To execute a batch move involving all contents of a source folder, you simply utilize the asterisk wildcard (`*`) at the termination of the source directory path. For instance, setting the source path to "C:PathToFolder*" instructs the FSO object to select every file contained within that specified folder for relocation. The destination path, in the context of this batch operation, must only specify the target folder, as the individual filenames are automatically preserved during the transfer process.

The following macro clearly demonstrates the concise syntax required to efficiently move all files residing in the Some_Data_1 folder over to the Some_Data_2 folder using this efficient wildcard approach:

Sub MoveMyFile()

Dim FSO As New FileSystemObject
Set FSO = CreateObject("Scripting.FileSystemObject")

' Define source folder path using the wildcard to select all files
SourceFile = "C:UsersbobDesktopSome_Data_1*"
DestFile = "C:UsersbobDesktopSome_Data_2"

' Execute movement of all files from source to destination folder
FSO.MoveFile Source:=SourceFile, Destination:=DestFile

End Sub

This streamlined approach significantly simplifies and accelerates batch file management operations within your automated scripts. Furthermore, this method is not restricted to the generic asterisk wildcard; you can specify file extensions, such as "C:PathToData*.csv", to move only files matching that specific extension, providing developers with granular control over complex automated data sorting and organization tasks.

Conclusion and Further Resources

The MoveFile method, accessed through the indispensable FileSystemObject, offers a robust and highly efficient mechanism for automating file relocation tasks within VBA. Whether the necessity is to move a single file with precision or to handle entire directories efficiently using wildcards, ensuring that the Microsoft Scripting Runtime is correctly enabled remains the foundational step for successful implementation.

Mastering file system control is a critical competency for any advanced VBA programmer, enabling the creation of sophisticated data pipeline automation tools that manage data flow reliably without relying on error-prone manual intervention. It is always recommended to meticulously test your defined file paths and implement proper error handling logic to gracefully manage edge cases such as non-existent source files or destination conflicts, thereby ensuring the resilience of your macros.

For comprehensive details regarding the precise syntax, parameter requirements, and potential error conditions associated with the MoveFile operation, developers should always consult the official Microsoft documentation, which provides authoritative guidance on its usage.

Note: You can find the complete documentation for the MoveFile method here.

Additional Resources for Advanced FSO Tasks

The following tutorials explain how to perform other common file and folder management tasks using the FileSystemObject in VBA, extending your control over the operating system environment:

• A detailed tutorial on creating new directories dynamically using the CreateFolder method in VBA.
• An essential guide to permanently deleting files or entire folders programmatically using the DeleteFile and DeleteFolder methods.
• Instructions on how to check definitively if a file or folder exists before attempting to interact with it, utilizing the reliable FileExists and FolderExists properties.

Expanding your knowledge of the Scripting Runtime library will dramatically increase the scope of what you can automate within your Microsoft Office applications, allowing you to move beyond simple calculation tasks towards robust system administration capabilities and data migration solutions.
