Learning Multiple Linear Regression: A Step-by-Step Guide

Multiple linear regression is a cornerstone statistical technique used across various disciplines—from economics to engineering—to model and quantify the complex relationship between multiple inputs and a single output. This robust method enables researchers to assess how two or more predictor variables collectively influence a single response variable.

While sophisticated statistical software packages efficiently automate these demanding numerical operations, achieving a deep, intuitive understanding of the model requires knowing the underlying mechanics. This comprehensive guide breaks down the manual, step-by-step process for calculating the parameters of a multiple linear regression model, providing invaluable insight into how the model estimates its coefficients.

Introduction and Theoretical Foundation

Unlike simple linear regression, which restricts the analysis to just one predictor, multiple linear regression extends this framework by allowing for the simultaneous evaluation of several independent variables (X₁, X₂, …, X_k). This capability is crucial when analyzing real-world systems where outcomes are rarely determined by a single factor, but rather by the interplay of several factors working in tandem. The model seeks to fit a hyperplane (the regression plane) through the data points in k-dimensional space.

The fundamental objective of this calculation is to identify the optimal set of regression coefficients (b₀, b₁, b₂, etc.) that adheres to the principle of the least squares method. This method ensures that the sum of the squared residuals—the vertical distances between the observed data points and the estimated regression plane—is minimized, thus generating the mathematically “best-fit” linear model for the observed data structure.

Setting Up the Manual Calculation Example

To clearly demonstrate the manual computational steps, we will employ a small, manageable dataset. Our example dataset consists of eight observations (n=8). We have one response variable, Y, and two predictor variables, X₁ and X₂. This restricted number of variables makes the calculation feasible without the aid of computational tools, allowing us to focus purely on the algebraic procedure.

The structure of our raw observational data, including the values for the response variable and the two predictors, is presented below. The initial step requires calculating the sum (Σ) of each column, which forms the basis for all subsequent variance and covariance calculations.

Step 1: Calculating Raw Sums of Squares and Products

The initial essential step toward solving the system of simultaneous equations involves transforming the raw data into a set of necessary intermediate sums. This requires expanding the original dataset significantly. We must calculate the squares of the predictor variables (X₁², X₂²), the products of each predictor with the response variable (X₁Y, X₂Y), and the interaction product of the two predictors (X₁X₂).

These extended variables allow us to compute the raw totals (Σ) for every column. These raw sums are the foundational components for calculating the covariance and variance terms necessary for correcting the data in the next step. Ensuring absolute accuracy in this raw data transformation is paramount, as mistakes here will propagate through the entire regression solution.

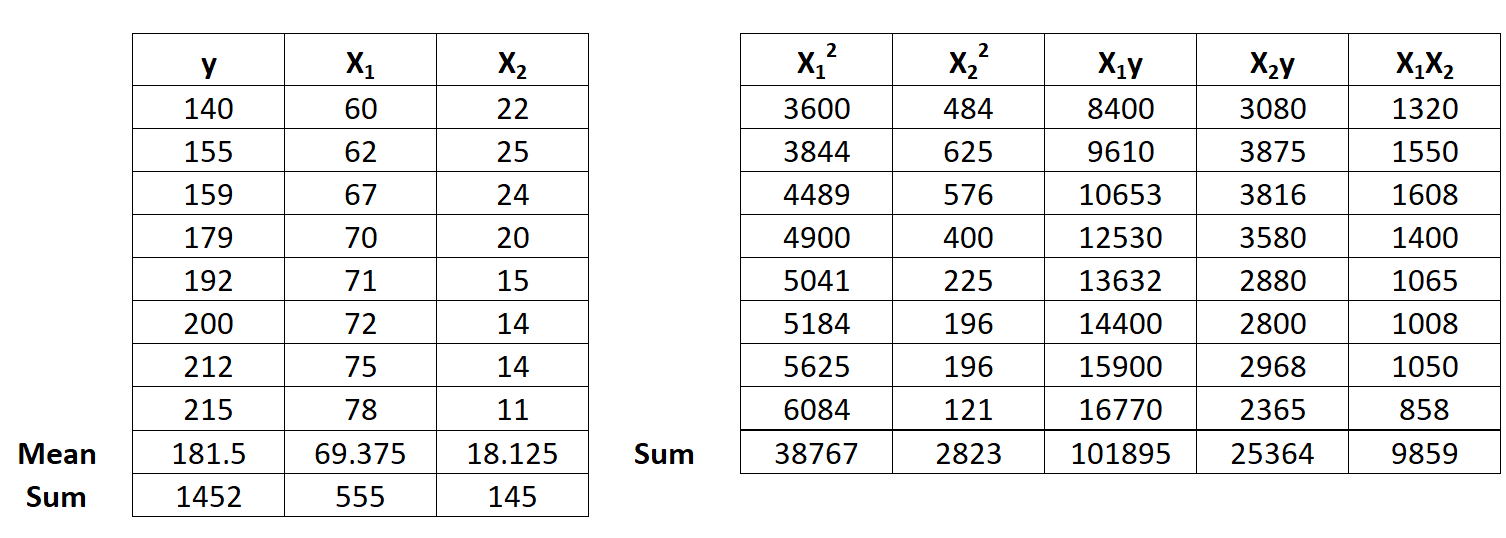

The augmented table, which includes all calculated products and squares, along with the totals (Σ) for each respective column, is shown here for reference:

Step 2: Correcting the Sums of Squares (SS) and Products (SP)

To accurately estimate the partial slopes, which measure the effect of one variable independent of the others, we must calculate the corrected Sum of Squares (SS) and Sum of Products (SP). These corrected sums effectively “center” the data by measuring the variation and covariation around the respective means, thereby removing the influence of the overall magnitude of the data points. In regression notation, these corrected sums are typically represented by lowercase variables (e.g., Σx₁²).

The general formula for correcting a raw sum is: Corrected Sum = ΣX² – (ΣX)² / n. By subtracting the correction factor (which accounts for the mean), we isolate the true variability within the dataset. We require five crucial corrected sums derived from the totals in Step 1 to solve the coefficient formulas.

The calculations below show how the corrected sums are derived. These specific numerical results will serve as the inputs for the complex formulas used to determine the partial regression coefficients (b₁ and b₂).

• Σx₁² = ΣX₁² – (ΣX₁)² / n = 38,767 – (555)² / 8 = 263.875
• Σx₂² = ΣX₂² – (ΣX₂)² / n = 2,823 – (145)² / 8 = 194.875
• Σx₁y = ΣX₁y – (ΣX₁Σy) / n = 101,895 – (555*1,452) / 8 = 1,162.5
• Σx₂y = ΣX₂y – (ΣX₂Σy) / n = 25,364 – (145*1,452) / 8 = -953.5
• Σx₁x₂ = ΣX₁X₂ – (ΣX₁ΣX₂) / n = 9,859 – (555*145) / 8 = -200.375

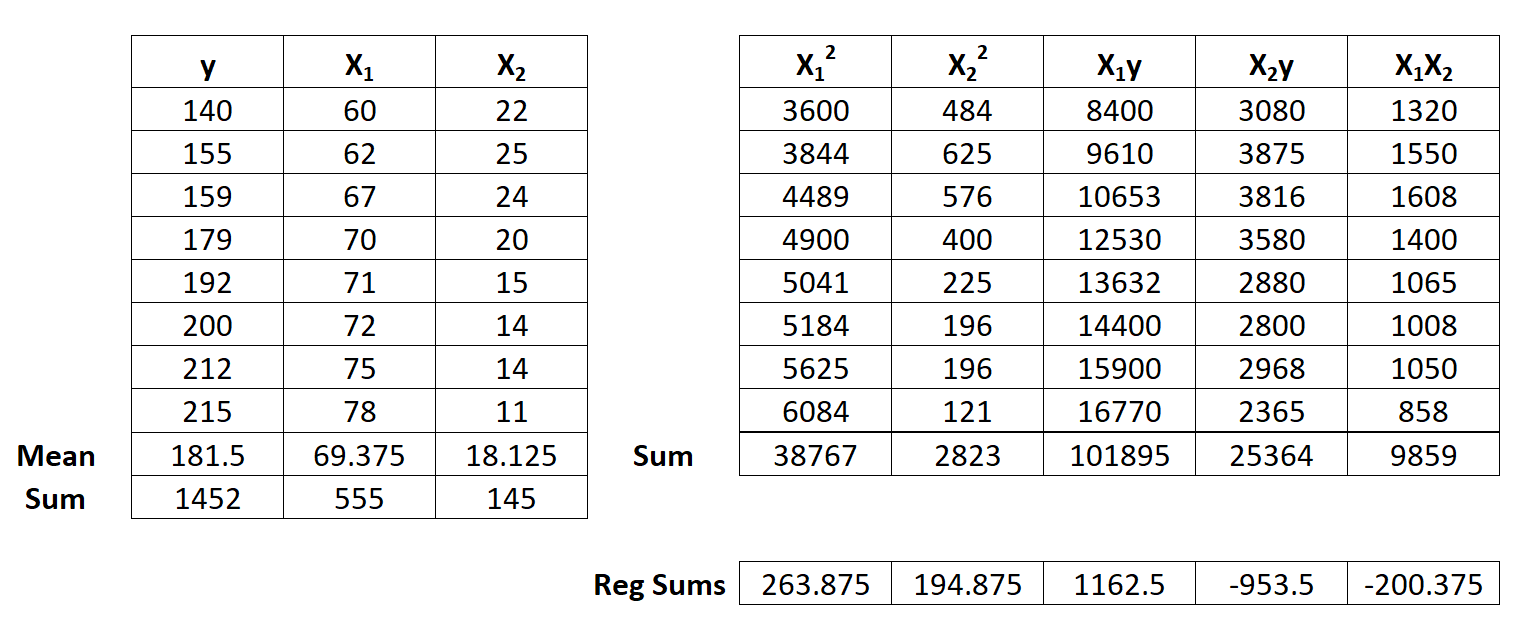

The resulting table summarizing these five critical corrected sums is provided below, serving as the definitive input matrix for the subsequent coefficient calculations:

Steps 3 & 4: Solving for the Partial Slopes and Intercept

The partial slopes, b₁ and b₂, are the core parameters of the model. They quantify the expected change in the response variable (Y) associated with a one-unit change in that specific predictor, while rigorously holding the effects of all other predictors constant (a statistical concept known as ceteris paribus). These values are typically found by solving a system of normal equations, which, when performed manually, translates into complex formulas derived from matrix algebra.

We first calculate the coefficient for X₁ (b₁). This formula utilizes a ratio of specific corrected sums, ensuring the partial effect is isolated:

b₁ = [(Σx₂²)(Σx₁y) – (Σx₁x₂)(Σx₂y)] / [(Σx₁²) (Σx₂²) – (Σx₁x₂)²]

Substituting our calculated values from Step 2 into the equation yields the numerical result: b₁ = [(194.875)(1162.5) – (-200.375)(-953.5)] / [(263.875) (194.875) – (-200.375)²] = 3.148

Next, we determine the coefficient for X₂ (b₂). The denominator remains the same for all slopes, as it represents the overall variance structure of the predictors:

b₂ = [(Σx₁²)(Σx₂y) – (Σx₁x₂)(Σx₁y)] / [(Σx₁²) (Σx₂²) – (Σx₁x₂)²]

Substituting our derived values: b₂ = [(263.875)(-953.5) – (-200.375)(1152.5)] / [(263.875) (194.875) – (-200.375)²] = -1.656

Finally, we calculate the intercept (b₀). The intercept ensures that the regression plane passes precisely through the centroid (the means) of the dataset (X̄₁, X̄₂, Ȳ). This process is vital as it guarantees that the sum of the residuals across the entire model equals zero.

The general formula for b₀ is: b₀ = Ȳ – b₁X̄₁ – b₂X̄₂. Given the means Ȳ = 181.5, X̄₁ = 69.375, and X̄₂ = 18.125, we compute the final intercept value: b₀ = 181.5 – 3.148(69.375) – (-1.656)(18.125) = -6.867

Step 5: Constructing and Interpreting the Final Model Equation

With all three regression coefficients (b₀, b₁, and b₂) successfully calculated, we can now construct the complete estimated linear regression equation. This equation provides the mathematical framework for predicting the response variable based on new values of the predictors.

The general form of the multiple linear regression model is expressed as: ŷ = b₀ + b₁x₁ + b₂x₂. Substituting our derived values into this structure yields the final estimated equation for this specific dataset: ŷ = -6.867 + 3.148x₁ – 1.656x₂.

Interpreting the individual components of this model is critical for drawing meaningful conclusions from the statistical analysis:

• The Intercept (b₀ = -6.867): This value estimates the mean value for Y when both predictor variables, X₁ and X₂, are set to zero. If zero falls outside the observed data range, the intercept may represent an abstract mathematical starting point rather than a physically meaningful prediction.
• The Partial Slope for X₁ (b₁ = 3.148): This positive coefficient signifies that, holding X₂ constant, a one-unit increase in X₁ is associated with an average increase of 3.148 units in Y.
• The Partial Slope for X₂ (b₂ = -1.656): This negative coefficient indicates an inverse relationship, suggesting that, controlling for X₁, a one-unit increase in X₂ is associated with an average decrease of 1.656 units in Y.
