Learning to Reorder Bars in ggplot2 Bar Charts

The Critical Need for Custom Bar Ordering in ggplot2

The ggplot2 visualization package, integral to the R ecosystem and founded on the principles of the grammar of graphics, is indispensable for generating sophisticated and insightful statistical plots within the R programming language. However, when an analyst constructs a bar chart using the primary layer geom_bar(), the resulting display often fails to optimize data interpretation. This inefficiency stems from ggplot2‘s default sorting mechanism, which automatically sequences the bars based solely on the inherent properties of the variable mapped to the x-axis, rarely aligning with the analytical objective or the intended narrative of the visualization.

Understanding these defaults is the foundational step toward mastering custom presentation. By default, ggplot2 applies strict rules to how categorical data is handled. If the variable defining the categories is stored as a standard character string, the bars are arranged strictly in alphabetical order (A-Z). Crucially, if the variable is defined using R’s built-in Factor variables (the standard for representing nominal and ordinal data), the order is predetermined by the variable’s specified factor levels. This distinction is vital because factors treat categories as a set domain, which, while beneficial for statistical modeling, often obscures the meaningful visual patterns when plotted without intervention.

The limitations of automatic ordering become acutely obvious when the primary goal is to maximize the interpretability of the data—for instance, ranking categories by their total count, their aggregated sum, or a crucial summary statistic. If we are visualizing sales performance across different regions, an alphabetical sort (“East,” “North,” “South,” “West”) is significantly less insightful than a ranking from the highest-performing region to the lowest. This tutorial provides a meticulous guide to the two robust methods available in the R environment for overriding this default behavior, ensuring that your visualizations communicate the data story with clarity and impact.

Preparing the R Environment and Sample Dataset

To effectively demonstrate the techniques for custom bar ordering, we must first ensure the necessary libraries are loaded and establish a representative dataset. For consistency and reproducibility across all examples, we will utilize a simple data frame designed to hold hypothetical statistics for a small set of teams. This example dataset will serve as the controlled environment for illustrating how different ordering methods manipulate the final graphical output.

Our sample data frame, named df, contains observational data relating to three distinct teams (A, B, and C), tracking metrics such as points and rebounds across multiple entries. Before proceeding with visualization, it is standard practice to inspect the structure of this data frame. Confirming the data types is crucial, particularly verifying how R has internally represented the team column. The specific type (character vs. factor) and the initial definition of the factor levels directly dictate the initial arrangement of bars in the default ggplot2 visualization.

The following R code snippet generates the sample data frame and utilizes the str() function to display its internal structure. Notice that in this specific instance, the team variable is automatically coerced into a Factor. The default levels, “A”, “B”, and “C”, are established in alphabetical order. This configuration means that, without any subsequent modification, the default ggplot2 output will present the bars in the sequence A, followed by B, and finally C.

#create data frame
df <- data.frame(team = c('B', 'B', 'B', 'A', 'A', 'C'),
                 points = c(12, 28, 19, 22, 32, 45),
                 rebounds = c(5, 7, 7, 12, 11, 4))

#view structure of data frame
str(df)

'data.frame':	6 obs. of  3 variables:
 $ team    : Factor w/ 3 levels "A","B","C": 2 2 2 1 1 3
 $ points  : num  12 28 19 22 32 45
 $ rebounds: num  5 7 7 12 11 4

Method 1: Enforcing Arbitrary Order via Factor Level Manipulation

The most robust and statistically grounded approach for controlling the sequence of categorical data within R visualizations is the explicit definition of the underlying factor levels. Given that ggplot2 strictly adheres to the order defined by the factor structure, redefining these levels grants the analyst absolute control over the arrangement of bars, independent of any numerical or alphabetical size constraints. This technique is particularly well-suited when the desired order is inherently semantic or sequential, such as defining project phases (“Planning,” “Execution,” “Review”) or fixed survey responses.

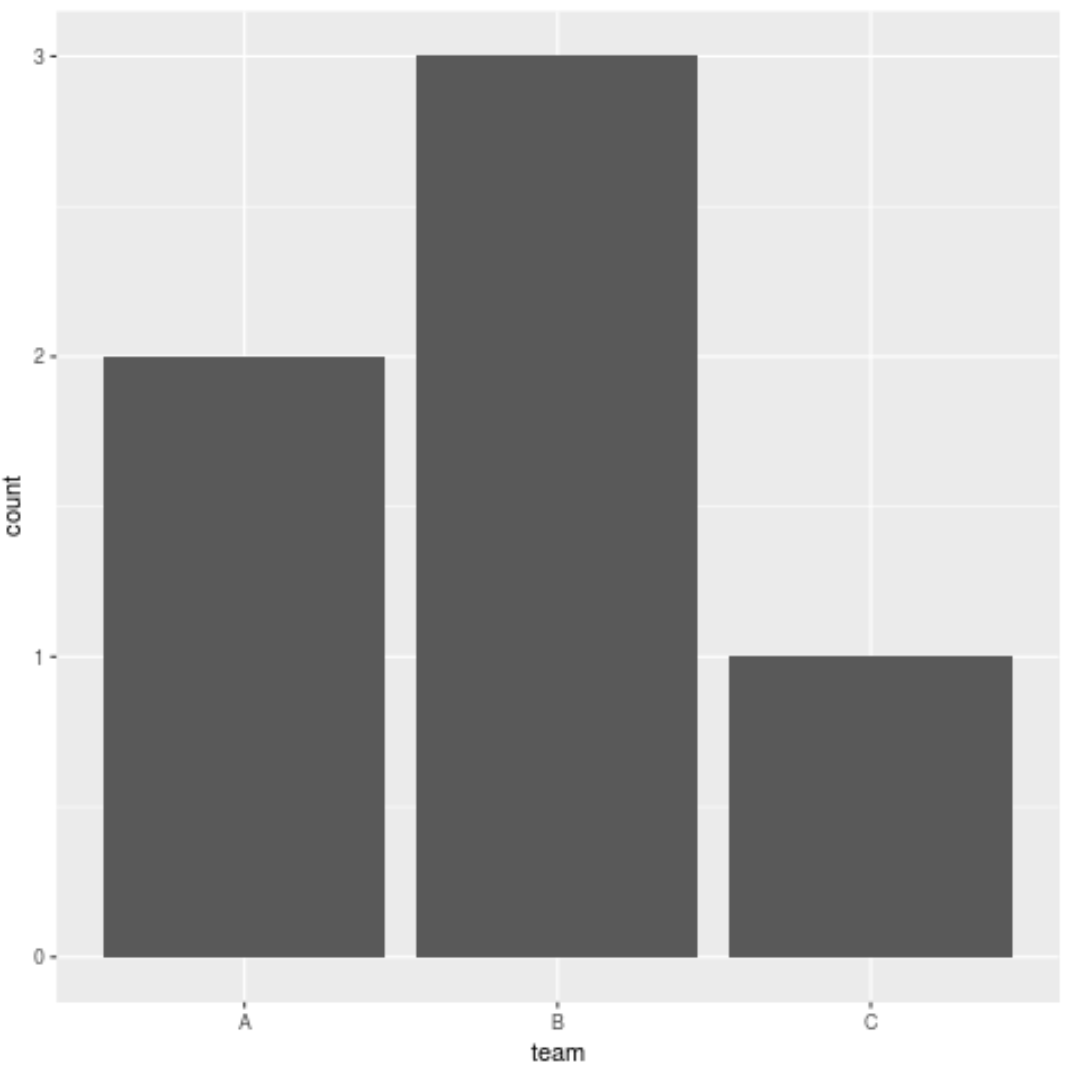

If we initially proceed to plot a simple frequency bar chart—which counts the number of observations per team—using the default factor settings, the resulting visualization will invariably follow the alphabetical order of the levels (“A,” then “B,” then “C”). This default presentation often fails to convey the most critical information, especially if the analytical intent is to visually rank the teams by frequency or highlight a specific, non-contiguous comparison.

library(ggplot2)

ggplot(df, aes(x=team)) +
  geom_bar()

To impose a custom, arbitrary order—for example, sequencing the teams C, A, then B—we must leverage the base R factor() function. By supplying a new vector containing the desired sequence of level names to the levels argument, we effectively overwrite the data frame’s existing factor structure. This operation permanently modifies the data frame object itself. Crucially, any subsequent visualization generated using the now-modified team variable will respect this newly defined sequence, providing stability and predictability in complex multi-plot analyses.

#specify factor level order
df$team = factor(df$team, levels = c('C', 'A', 'B'))

#create bar chart again
ggplot(df, aes(x=team)) +
  geom_bar()

Method 2: Dynamic Ordering Based on Calculated Metrics (Descending Rank)

While the manual definition of factor levels is perfect for non-numeric sequences, the most frequent requirement in data analysis is sorting categories based on an associated numerical metric, such as category count, aggregated sum, or mean value. Ordering bars by magnitude creates a far more intuitive visualization—often called a Pareto-like chart—where the dominance or rarity of categories is immediately visible. Implementing this requires a dynamic calculation of the sorting metric followed by the application of that result to reorder the categorical variable.

In the ggplot2 framework, this dynamic reordering is efficiently managed by invoking the base R reorder() function directly within the aesthetic mapping (the aes() layer). The reorder() function requires three key parameters: the factor (team) that needs sorting, the numerical variable used for the sort (in a frequency plot, this is often the factor itself), and the aggregation function that calculates the sorting value (e.g., length for count, mean for average, or sum for totals).

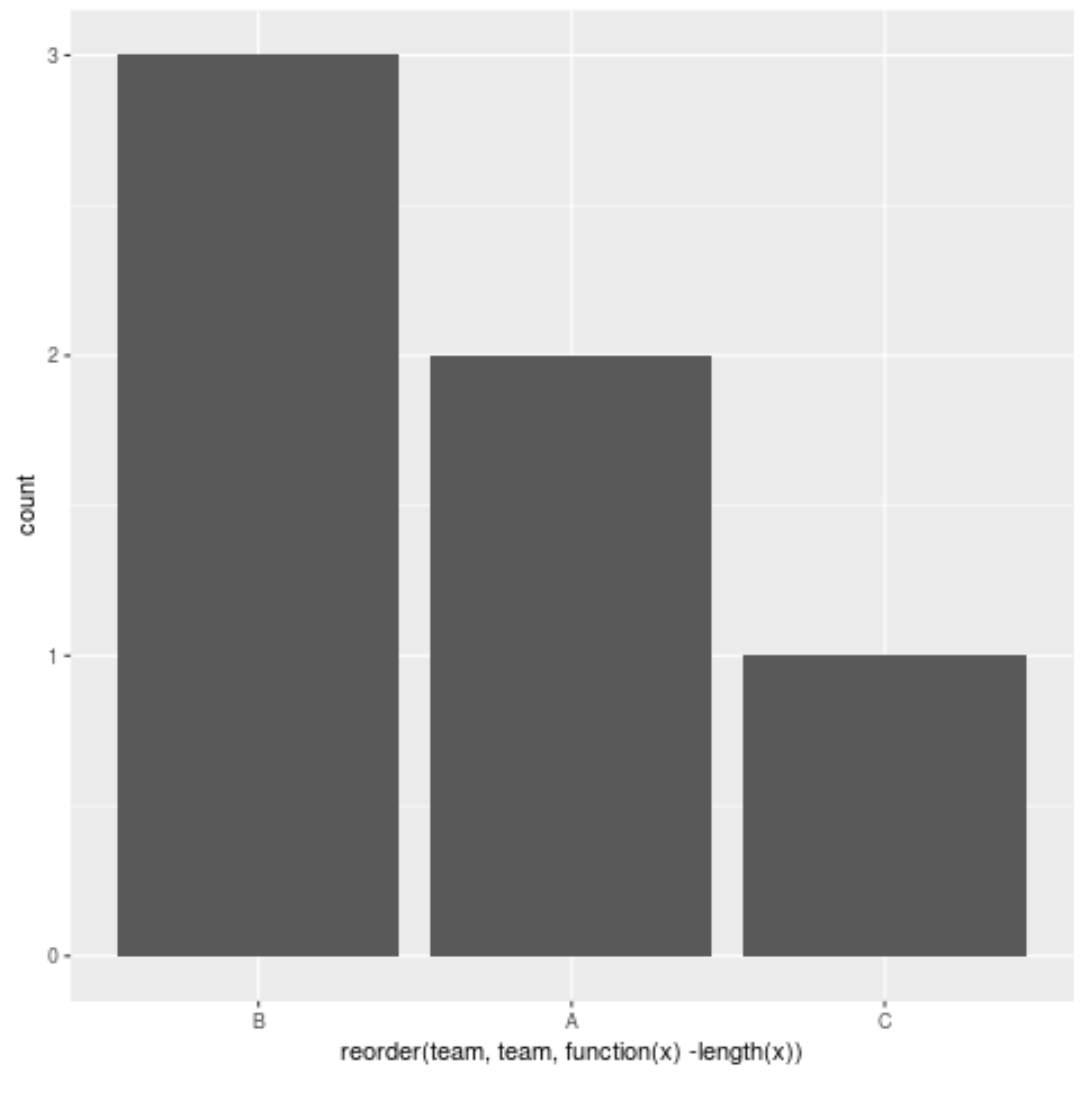

To achieve a descending order—ranking the bars from the largest frequency (most common team) down to the smallest frequency (least common team)—we employ the length(x) function to calculate the count for each factor level. Crucially, to ensure the largest counts appear first, we must negate the calculated length by preceding the function call with a minus sign (-length(x)). This clever technique instructs R to treat the highest positive counts as the numerically lowest negative values, thus forcing them to be placed first when the x-axis is sorted numerically.

library(ggplot2)

ggplot(df, aes(x=reorder(team, team, function(x)-length(x)))) +
  geom_bar()

This technique is highly flexible and scalable. For example, if the goal were to plot the total points scored per team using geom_col(), the aggregation function would be simply replaced by -sum(points). This powerful integration of aggregation and reordering directly within the plot command significantly streamlines the visualization pipeline, allowing for complex sorting logic without modifying the underlying data frame structure.

Method 3: Dynamic Ordering Based on Calculated Metrics (Ascending Rank)

While descending order is the conventional choice for magnitude comparisons, there are valid analytical scenarios where ordering bars from the smallest to the largest value is preferred. Ascending order might be utilized to emphasize the least represented categories or to provide a logical progression when linking data to subsequent visualizations. Transitioning from descending to ascending order using the reorder() function is remarkably straightforward, requiring only a small modification to the aggregation logic defined in the previous section.

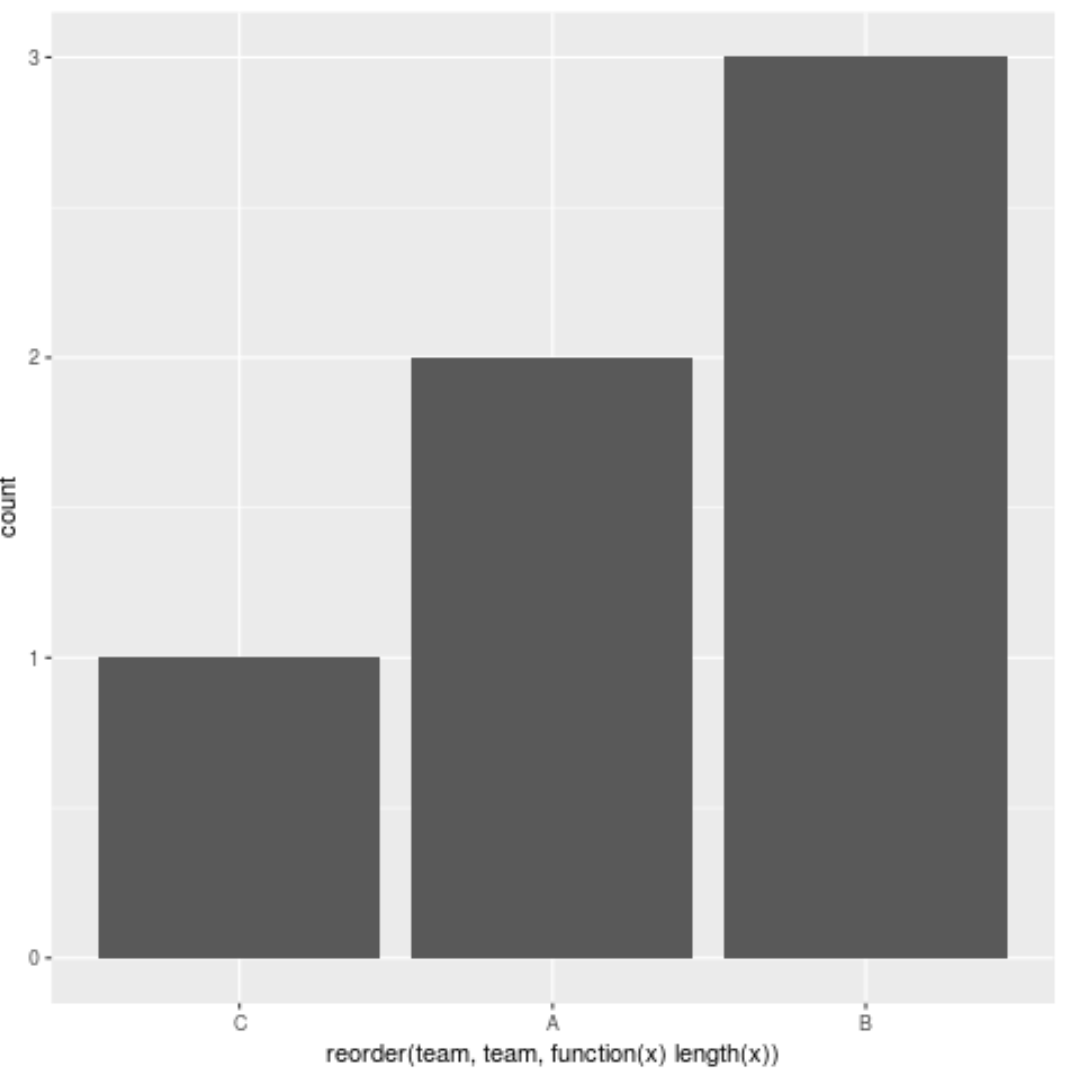

To achieve an ascending sort based on frequency, the analyst simply removes the negation (the minus sign) that was used for descending order. By utilizing length(x) without any negation, R calculates the raw frequency count for each category. When the function then sorts the categories based on this raw count, the natural result is that the smallest counts are placed first on the x-axis, progressing toward the largest counts. This preserves the full dynamic reordering capability inherent in reorder() without necessitating any manual intervention in the data’s factor definition.

library(ggplot2)

ggplot(df, aes(x=reorder(team, team, function(x) length(x)))) +
  geom_bar()

A solid grasp of the utility and syntax of reorder() is foundational for generating statistically sound and visually clear graphics. Regardless of whether the sorting metric is count, sum, or mean, the core mechanism remains consistent: map the categorical factor to the x-axis, define the numeric variable and aggregation function within reorder(), and let the aes() layer manage the sorting logic. This structured approach ensures that the visual structure accurately reflects the quantitative data hierarchy.

Guiding Principles for Effective Categorical Ordering

While the technical methods allow for arbitrary bar placement, the principles of effective data visualization demand that all ordering decisions are deliberate and intended to enhance reader comprehension. Relying on default alphabetical ordering, as often seen in unadjusted ggplot2 output, is typically the least effective method for analytical purposes. Alphabetical sorting forces the reader to expend cognitive effort mentally mapping category names to bar lengths, significantly impeding rapid comparison and pattern recognition.

The generally accepted best practice, particularly when visualizing frequency, totals, or magnitude, is to consistently apply a descending order (from largest magnitude to smallest). This strategy instantly directs the viewer’s attention to the most significant categories and establishes a clear, immediate visual hierarchy. When categories are ranked by size, the relative differences between adjacent bars become easier to perceive, and the overall distribution—or the “shape” of the data—is instantly conveyed. This ranking principle is absolutely fundamental to constructing highly effective bar chart visualizations.

However, exceptions to this magnitude rule exist. If the categorical variable possesses an inherent, natural, or non-numeric order—such as chronological periods, standardized survey response scales (e.g., “Poor,” “Fair,” “Good,” “Excellent”), or predefined age cohorts—this natural sequence must always take precedence over simple magnitude sorting. In these specific scenarios, the explicit definition of factor levels using the factor(levels = ...) function (Method 1) is the correct mechanism, as it preserves the logical structure and semantic meaning of the data rather than optimizing purely for statistical size.

Summary of Techniques and Essential Resources

Mastering the control of bar ordering is an essential skill for any analyst using ggplot2 to create accurate and persuasive visualizations. The selection between the two core techniques—explicit factor definition and dynamic reordering—is fundamentally determined by the nature of the desired sequence: is it arbitrary/semantic, or is it based on quantitative magnitude? For fixed, non-numeric orders, the necessary step is modifying the underlying R factor variable structure using the factor() function. Conversely, for dynamic sorting driven by calculated values (such as count, sum, or mean), the reorder() function provides a powerful, concise solution embedded directly within the plot command.

These methods allow your visualizations to transcend the limitations of default alphabetical constraints, enabling the construction of data narratives that are both statistically verifiable and highly accessible. By applying these advanced ordering techniques, analysts can effectively transform basic visual counts into insightful, ranked comparisons, thereby maximizing the communicative power of the ggplot2 visualization framework.

For further technical exploration and detailed parameter specifications regarding the R functions discussed, we recommend consulting the official documentation:

• Documentation for the geom_bar() function.
• Documentation for the reorder() function.
• A complete list of R tutorials on Statology.
