Learning to Create Overlay Density Plots with ggplot2

In the realm of statistical graphics, the density plot stands out as an indispensable tool for understanding the underlying shape of a continuous variable’s distribution. Unlike traditional histograms, which rely on discrete binning, density plots employ techniques like Kernel Density Estimation (KDE) to produce a smooth, continuous curve that accurately estimates the probability density function (PDF). This smoothing effect significantly improves the identification of key distributional features, such as modality, skewness, and the overall spread of the data.

While visualizing a single distribution is straightforward, advanced data analysis frequently demands a comparative perspective, requiring the simultaneous examination of multiple variable distributions. Attempting to interpret numerous individual plots side-by-side can quickly become inefficient and challenging to synthesize. The most robust and visually effective solution is the creation of overlaying density plots. By plotting several distributions on a single coordinate system, analysts gain immediate, direct visual insight into critical differences across groups, including shifts in central tendency (means), variations in dispersion (variance), and fundamental changes in distributional shape.

The Comparative Advantage of Overlay Density Plots

The fundamental objective when employing a density plot is to model the likelihood of observing a specific value within a dataset. When multiple variables are under consideration, overlaying their estimated density functions is vital for hypothesis generation and comparative statistics. This method allows researchers to quickly address complex questions: Are the observed variables likely generated from the same population distribution? Which group exhibits a tighter clustering of values? How do the respective distributions of these variables interact or diverge across the measurement scale?

Effectively achieving this multi-variable visualization within the R ecosystem relies almost entirely on the capabilities of the premier data visualization package, ggplot2. This package operates based on the influential principles of the grammar of graphics, which dictates that plots are constructed by mapping data variables to specific aesthetic elements. For overlay plots, ggplot2 requires not only a specific data structure but also a deliberate mapping strategy to ensure each distribution is correctly isolated and rendered.

The power of ggplot2 for creating these layered visualizations lies in its ability to treat a categorical variable as a grouping factor for a visual aesthetic, specifically the fill color. Once the data is properly organized, the process of generating the composite plot becomes a highly systematic and reproducible task, translating complex comparative analysis into clear visual evidence.

The ggplot2 Framework and Data Structure Mandates

To successfully plot multiple density distributions using ggplot2, the data must strictly adhere to the long format. This format contrasts sharply with the common “wide format” where each variable occupies its own column. In the long format, all variable names are collapsed into a single identification column (e.g., variable or group), and all corresponding measurements are stacked into a single value column (e.g., value). This restructuring is non-negotiable for grouped visualization in ggplot2.

Once the dataset is structured correctly, the syntax for producing the overlaid density plot is remarkably concise and powerful. The core command relies on the ggplot() function to establish the data and aesthetic mappings, followed by the geom_density() layer to calculate and render the smooth density estimates for each subgroup identified by the mapping.

The primary syntax structure that facilitates the creation of multiple overlaid density plots is as follows:

ggplot(data, aes(x=value, fill=variable)) +
  geom_density(alpha=.25)

A critical consideration here is the use of the fill aesthetic. By mapping the group identifier (variable) to fill, we instruct ggplot2 to perform independent density estimations for every unique level within that column and assign a distinct color to the resulting filled area. This step is the core mechanism enabling the visual differentiation of the overlaid distributions.

Step 1: Establishing the Foundation with Synthetic Data

To provide a clear, reproducible example, we will begin by generating a synthetic dataset within the R environment. This dataset will comprise three continuous variables, each deliberately drawn from a normal distribution but with parameters (mean and standard deviation) chosen to ensure they exhibit distinct distributions. This variation is key to producing visually separable density curves, thereby demonstrating the efficacy of the overlay technique.

A fundamental best practice in R programming, especially when dealing with stochastic processes like random number generation, is to set a random seed. Setting the seed ensures that the exact same sequence of random values is generated every time the code is executed. This guarantees that the visualizations generated by the reader will precisely match the examples provided, ensuring complete reproducibility.

Our initial data frame is created in the standard wide format, where the three distinct variables occupy three separate columns. As noted previously, this structure is incompatible with ggplot2’s requirements for grouped aesthetics, necessitating a transformation in the subsequent step.

#make this example reproducible
set.seed(1)

#create data: var1 (standard normal), var2 (wider spread), var3 (shifted mean)
df <- data.frame(var1=rnorm(1000, mean=0, sd=1),
                 var2=rnorm(1000, mean=0, sd=3),
                 var3=rnorm(1000, mean=3, sd=2))

#view first six rows of data
head(df)

        var1       var2       var3
1 -0.6264538  3.4048953  1.2277008
2  0.1836433  3.3357955 -0.8445098
3 -0.8356286 -2.6123329  6.2394015
4  1.5952808  0.6321948  4.0385398
5  0.3295078  0.2081869  2.8883001
6 -0.8204684 -4.9879466  4.3928352

Step 2: Transforming Data into the Required Long Format

The transformation from the wide format established in Step 1 to the required long format is essential for integration with the ggplot2 framework. This reshaping process involves gathering the column headers (var1, var2, var3) into a single categorical column and stacking all the numerical observations into a separate column. This structure, often referred to as tidy data for visualization purposes, ensures that every observation has a corresponding variable identifier that can be mapped to an aesthetic property.

We utilize the versatile melt() function—conventionally part of the reshape package—to execute this pivot operation with efficiency. The melt() function systematically identifies the measurement variables (in this case, var1, var2, and var3) and transforms them, resulting in a data frame where the original variable names are recorded under a new column labeled variable, and the corresponding numeric values are stored under the column value.

library(reshape)

#convert from wide format to long format using the melt function
data <- melt(df)

#view first six rows of the newly transformed data
head(data)

  variable      value
1     var1 -0.6264538
2     var1  0.1836433
3     var1 -0.8356286
4     var1  1.5952808
5     var1  0.3295078
6     var1 -0.8204684

The resulting data frame, now named data, is perfectly aligned with the requirements of ggplot2. The variable column serves as the categorical grouping factor, and the value column provides the continuous numerical data necessary for the density estimation. This structure allows us to proceed directly to the visualization step, where we link the group identity (variable) to the visual differentiation (fill color).

Step 3: Constructing and Fine-Tuning the Overlaid Visualization

With the data successfully prepared in the long format, the final step involves invoking the ggplot2 library and defining the necessary aesthetic mappings. The process begins by passing the prepared data frame to the main plotting function. Within the aes() function, we specify that the continuous measurements (value) should define the x-axis, and the grouping column (variable) should dictate the fill color.

The subsequent addition of the geom_density() layer instructs the package to calculate and draw the density estimates. It is within this layer that we introduce the essential alpha argument. By setting alpha to a fractional value, such as 0.25, we control the transparency of the filled density areas. This transparency is crucial because it ensures that when multiple density curves overlap—which is the goal of an overlay plot—the contours and colored areas of the underlying distributions remain visible, preventing visual occlusion and maintaining clarity.

library(ggplot2)

#create overlaying density plots using the long format data frame
ggplot(data, aes(x=value, fill=variable)) +
  geom_density(alpha=.25)

The resulting visualization provides immediate confirmation of the deliberate differences built into the synthetic data. We can visually confirm that var1 and var2 share a similar central tendency around zero, but var2 displays a significantly greater spread, resulting in a much wider and flatter density curve. In contrast, var3 is distinctly separated, being centered around a positive mean (approximately 3), clearly isolating its distribution from the other two variables.

Optimizing Clarity with the Alpha Transparency Parameter

While the initial plot successfully displays the overlapping distributions, the overall visual effectiveness of any overlaid chart is fundamentally dependent on the careful selection of the alpha argument. This parameter, which controls opacity, operates on a scale from 0 (completely invisible) to 1 (fully saturated/opaque). The initial setting of 0.25 is often a good starting point, providing excellent balance between color visibility and the necessary transparency for overlap regions.

However, the optimal alpha level is not universal; it is highly context-dependent, varying based on factors such as the total number of distributions being plotted and the degree to which they intersect. If the distributions are highly separated with minimal overlap, increasing the alpha value slightly (e.g., 0.4) can result in bolder, more aesthetically pleasing colors. Conversely, when plotting numerous variables that exhibit extensive overlap, a very small alpha value (e.g., 0.1 or 0.15) might be required to prevent excessive visual saturation, which can otherwise make the underlying structure indecipherable.

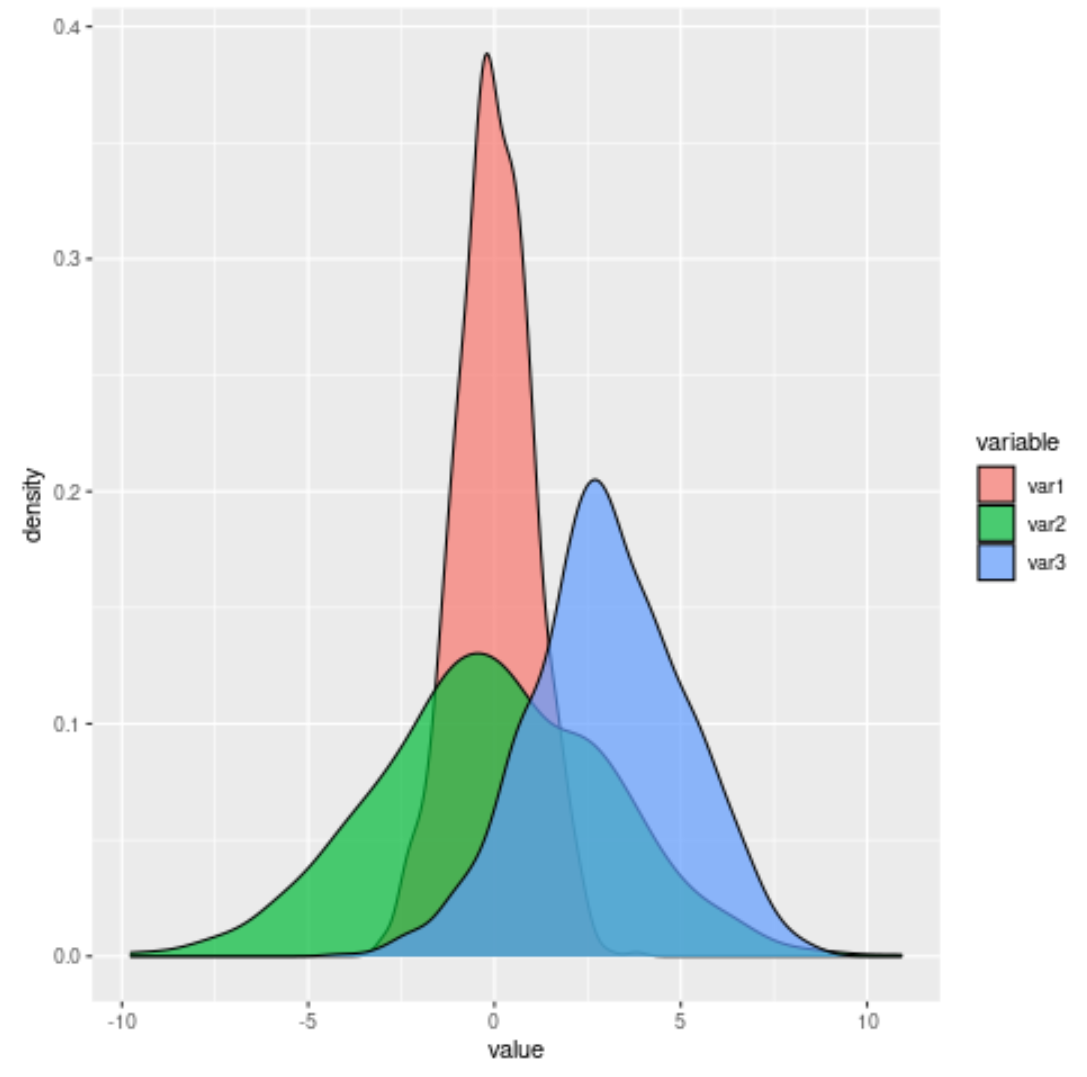

To illustrate the dramatic impact of this fine-tuning, consider increasing the alpha value significantly to 0.7. As demonstrated in the code and the resulting image below, the colors become much deeper, and the areas where two or more plots intersect appear substantially darker. While this increase in opacity enhances the visual weight of each individual curve, it can sometimes obscure subtle details in the dense overlap zones, potentially hindering rapid interpretation of the comparative structure.

library(ggplot2)

#create overlaying density plots with increased opacity
ggplot(data, aes(x=value, fill=variable)) +
  geom_density(alpha=.7)

Experimenting with the alpha value is a non-trivial step in ensuring optimal visual communication. Analysts should always test several values, typically remaining between 0.1 and 0.5 when dealing with complex overlaps, to maximize the clarity and readability of the final graphic.

Conclusion and Further Exploration

The creation of effective overlay density plots using ggplot2 represents a fundamental skill in modern comparative data visualization. This powerful technique rests upon two foundational technical requirements: the compulsory transformation of data into the long format and the skillful application of the fill aesthetic, coupled with the critical transparency control provided by the alpha argument.

By mastering this structured, multi-step process—from data preparation in R to aesthetic mapping in ggplot2—data analysts are equipped to quickly generate insightful visual artifacts that summarize complex distributional characteristics across multiple groups within a single, coherent graphic. These charts are invaluable for exploratory data analysis, simplifying the comparison of means, variances, and overall distribution shapes for diverse datasets.

For those interested in extending these skills and exploring related visualization strategies or more advanced plotting techniques, the following resources provide guidance:
