Overlay Normal Curve on Histogram in R (2 Examples)

Visualizing the distribution of your quantitative data is perhaps the most fundamental step in robust statistical analysis. A crucial assessment often required by researchers is determining whether the data approximates a normal distribution (or Gaussian distribution). This assessment is vital because the assumption of normality underpins the validity of many powerful parametric statistical tests.

Overlaying a theoretical normal curve directly onto a histogram offers a quick, intuitive, and highly effective visual assessment of this assumption. This technique allows data scientists to compare the empirical distribution of observed frequencies—represented by the histogram bars—against the perfectly smooth, theoretical shape of a normal distribution calculated using the dataset’s observed mean and standard deviation. This guide provides a detailed walkthrough of how to generate this essential visualization using two distinct and popular methods within the R programming environment: utilizing the built-in functionality of Base R graphics and leveraging the powerful capabilities of the ggplot2 package.

By exploring both methodologies, you will gain proficiency in creating informative and publication-ready plots. Understanding these techniques is indispensable for anyone performing data exploration and preparing datasets for inferential statistics in R.

Understanding Histograms and the Normal Distribution

Before implementing the code, it is essential to establish a clear understanding of the components involved in this visualization. A histogram serves as a graphical representation of the distribution of numerical data. It provides an estimate of the probability distribution of a continuous variable. The construction involves dividing the entire range of data values into a series of intervals, known as bins. The height of each bar corresponds to the frequency or count of data points falling into that specific bin.

The normal distribution, universally recognized as the bell curve, is arguably the most critical distribution in statistics. It is characterized by its perfect symmetry, where observations cluster densely around the central peak (the mean), and probabilities decrease symmetrically as values move farther away from the center. This distribution is uniquely defined by just two parameters: the population mean (μ), which locates the center, and the population standard deviation (σ), which controls the spread or variability of the data.

The act of overlaying a normal curve onto a histogram facilitates a direct, visual comparison between the observed frequencies of your dataset and the theoretical frequencies predicted by a normal model. If the histogram’s empirical shape closely follows the smooth contour of the fitted normal curve, it strongly suggests that the data may be approximately normally distributed. This visual inspection is often the first and most critical step before applying statistical procedures that assume normality, such as the t-tests or ANOVA.

Method 1: Overlaying a Normal Curve using Base R Graphics

The standard Base R graphics system provides a minimalist and efficient way to generate histograms and superimpose the normal probability density function without relying on external packages. This approach is highly valued for its speed and simplicity, especially for rapid data exploration. Our process involves calculating the sample mean and standard deviation from the data, which are then used to define the specific normal curve that best fits the observed data.

The following code block demonstrates the necessary steps: first, generating a sample dataset of 1,000 random numbers derived from a normal distribution using the rnorm() function; second, creating the initial histogram using hist(); and finally, calculating and plotting the corresponding theoretical density curve. The core functions for the curve are dnorm(), which computes the density, and lines(), which draws the curve onto the existing plot. We use set.seed() to ensure the random data generation is fully reproducible, guaranteeing identical results upon subsequent executions.

# Ensure reproducibility
set.seed(0)

# Define sample data (1,000 observations)
data <- rnorm(1000)

# Create histogram object (stores bin details)
hist_data <- hist(data)

# Define x and y values for the theoretical normal curve
x_values <- seq(min(data), max(data), length = 100)
y_values <- dnorm(x_values, mean = mean(data), sd = sd(data))
y_values <- y_values * diff(hist_data$mids[1:2]) * length(data)

# Overlay the normal curve using lines()
lines(x_values, y_values, lwd = 2)

The most crucial technical detail in the Base R method is the necessary scaling of the density output from dnorm(). Since dnorm() returns the probability density, and the standard histogram plots frequencies or counts, the density values must be converted to align visually with the height of the bars. This conversion is achieved by multiplying the density values (y_values) by both the histogram bin width (calculated using diff(hist_data$mids[1:2])) and the total number of observations (length(data)). The resulting curve, represented by the black line in the plot, accurately depicts the normal distribution fitted to the empirical data.

The appearance of the normal curve can be easily customized using various aesthetic arguments within the lines() function. Parameters such as col control the line color, lwd sets the line width for better visibility, and lty allows you to specify the line type (e.g., solid, dashed, or dotted). Employing these aesthetic adjustments is highly recommended to improve the contrast and clarity of the visualization, ensuring the curve stands out clearly against the histogram bars for effective communication of your findings.

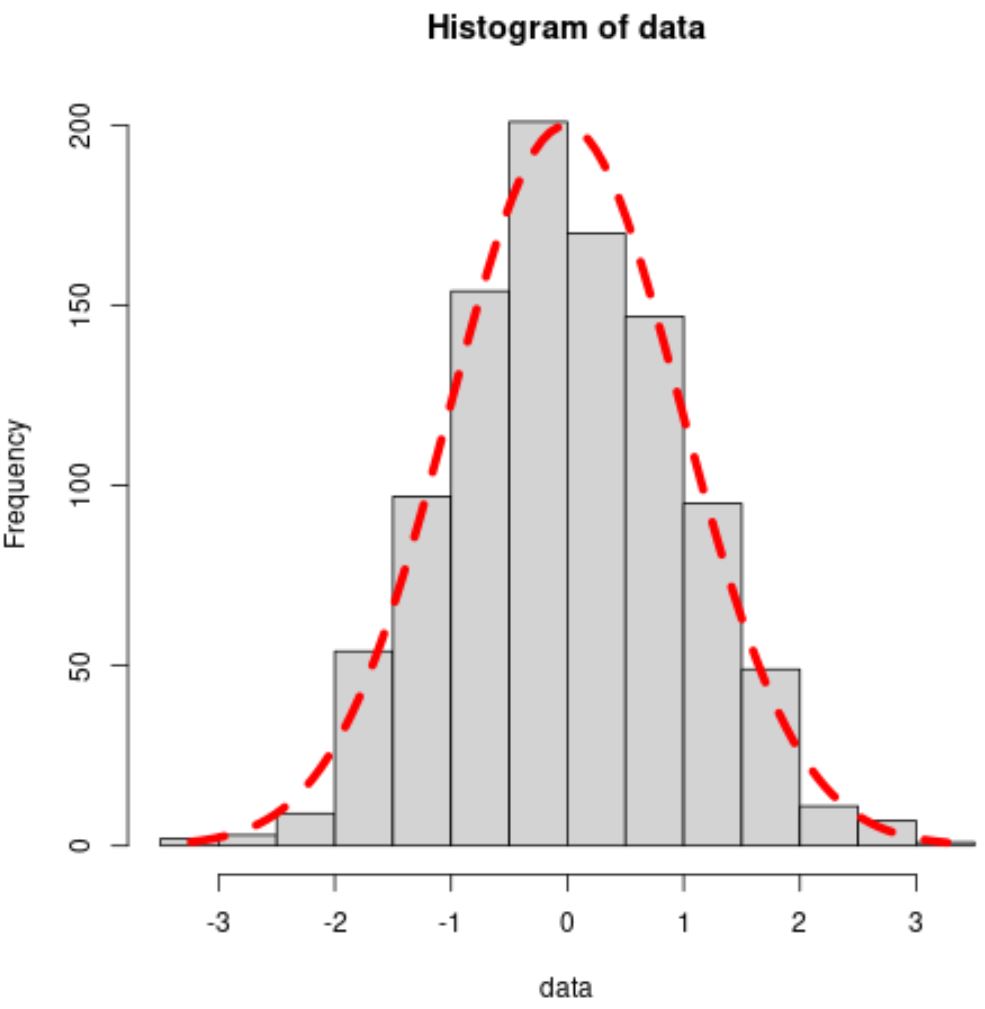

# Overlay normal curve with custom aesthetics
lines(x_values, y_values, col='red', lwd=5, lty='dashed')

Method 2: Overlaying the Curve using the ggplot2 Package

For users prioritizing high-quality aesthetics and a structured, declarative approach to data visualization, the ggplot2 package is the industry standard in R. Based on Leland Wilkinson’s “Grammar of Graphics,” ggplot2 enables the construction of complex plots through the systematic layering of graphical components. Overlaying a normal curve on a histogram is significantly streamlined in ggplot2, primarily due to its support for mapping data to density scales.

To begin, the ggplot2 library must be loaded. Unlike the Base R approach, ggplot2 prefers data to be structured within a data frame. The implementation relies on two primary layers: geom_histogram() for the histogram bars and stat_function() for drawing the theoretical curve. Crucially, we map the y-axis of the histogram to density using aes(y = ..density..), which eliminates the need for manual scaling.

library(ggplot2)

# Ensure reproducibility
set.seed(0)

# Define data within a data frame
data <- data.frame(x=rnorm(1000))

# Create histogram using density scale and overlay normal curve

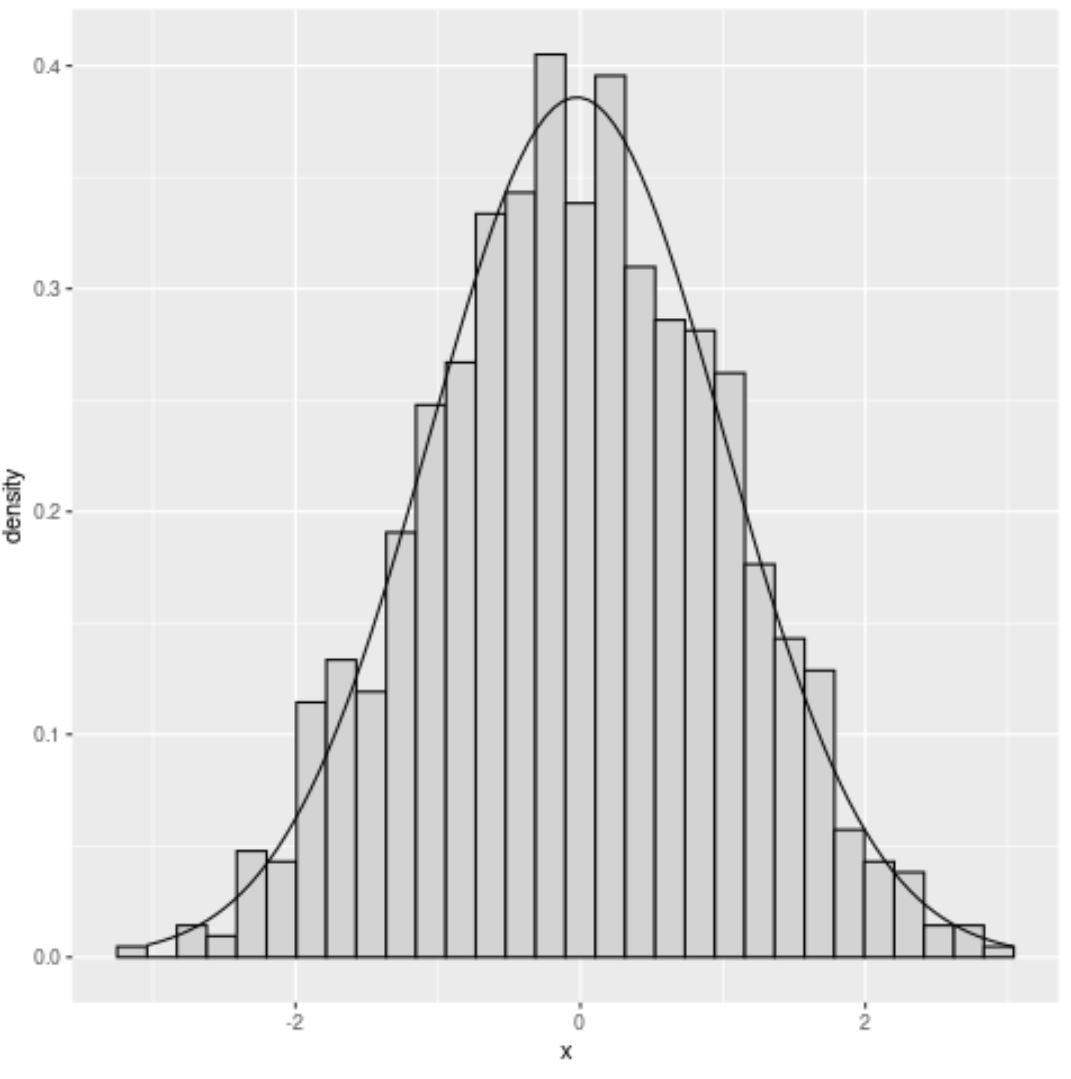

ggplot(data, aes(x)) +
  geom_histogram(aes(y = ..density..), fill='lightgray', col='black') +
  stat_function(fun = dnorm, args = list(mean=mean(data$x), sd=sd(data$x)))

The success of the ggplot2 method hinges on specifying aes(y = ..density..) within the geom_histogram() call. This forces the histogram’s y-axis to plot probability density rather than raw counts. Since the dnorm() function inherently outputs probability densities, matching the y-axis scale ensures the normal curve aligns perfectly with the histogram bars without any manual rescaling, a significant advantage over Base R. The stat_function() layer seamlessly integrates the curve, requiring only the function name (dnorm) and the parameters (the dataset’s sample mean and standard deviation) as arguments.

Customization is achieved by passing aesthetic parameters directly into the stat_function() layer. Similar to Base R, the col, lwd, and lty arguments control the color, width, and line type of the curve, respectively. This integrated approach is characteristic of ggplot2, allowing for precise and aesthetic control to produce highly sophisticated and visually effective graphics for reports and publications. The clear, fitted curve illustrates the theoretical normal distribution.

# Overlay normal curve with custom aesthetics
ggplot(data, aes(x)) +
  geom_histogram(aes(y = ..density..), fill='lightgray', col='black') +
  stat_function(fun = dnorm, args = list(mean=mean(data$x), sd=sd(data$x)),
                col='red', lwd=2, lty='dashed')

Interpreting the Visual Fit and Next Steps

Successfully overlaying the normal curve is only the first step; effective interpretation is paramount. This graphical representation is an invaluable exploratory tool, offering immediate insights into how closely your data’s empirical distribution matches the characteristics of the theoretical normal distribution defined by the data’s sample mean and standard deviation. When assessing the fit, pay close attention to several critical aspects of the visualization:

• Central Symmetry: The ideal normal curve is perfectly symmetrical around its center. Visually inspect the histogram bars to determine if they mirror each other on both sides of the central peak, aligning with the symmetry of the overlaid curve.
• Peak Alignment and Tapering: Ensure the peak (mode) of the histogram coincides approximately with the peak of the normal curve. Furthermore, observe the tails: the histogram bars representing extreme values should gradually diminish, closely following the smooth decline of the normal curve’s tails. Significant differences in the peak’s height or unexpected heaviness in the tails might signal non-normality.
• Overall Shape: Look for general agreement between the bell-shaped curve and the shape formed by the histogram bars. Deviations such as obvious skewness (a longer tail on one side) or pronounced kurtosis (a distribution that is too peaked or too flat relative to the normal curve) indicate that the assumption of normality may be violated.

It is crucial to recognize that while visual inspection is a powerful exploratory technique, it provides only a qualitative assessment. It is not a substitute for definitive statistical verification, especially when dealing with smaller datasets or when the assumption of normality is critical to subsequent inferential conclusions. For rigorous verification, particularly in research settings, it is highly recommended to complement these visualizations with formal normality tests. These objective statistical methods, such as the Shapiro-Wilk test, the Kolmogorov-Smirnov test, or the Anderson-Darling test, provide a calculated p-value that quantifies the probability of the data originating from a normal distribution, offering an objective measure beyond simple visual judgment.

Conclusion

Overlaying a normal curve on a histogram is an essential skill for any data analyst working in R. This technique provides immediate and intuitive visual confirmation regarding the distribution of your data. Regardless of whether you opt for the direct coding approach offered by Base R graphics, which excels in simplicity and speed, or the layered, high-quality visualization capabilities of the ggplot2 package, both methods are indispensable for data exploration.

Mastering this visualization technique not only helps in understanding inherent data characteristics but also plays a crucial role in identifying potential issues related to normality early in the analysis pipeline. This informed approach leads to more robust statistical decision-making and, ultimately, more reliable interpretations of your findings.

We strongly encourage readers to apply these examples to their own empirical datasets and explore the rich customization options available in both R systems to create compelling and highly informative data visualizations tailored to their specific analytical needs.
