Learning to Overlay Histograms in Excel: A Step-by-Step Guide

A histogram serves as an indispensable graphical tool in statistical analysis, providing a rapid and clear visualization of the underlying frequency distribution within a given dataset. By organizing continuous data into predefined intervals, or bins, and displaying the count of observations falling into each interval, histograms offer critical insights into data patterns, central tendency, variability, and the overall shape of the distribution.

While a single histogram effectively describes one variable, comparing the characteristics of two different groups or conditions requires a direct visual overlay. This comprehensive tutorial provides a rigorous, step-by-step methodology for effectively overlaying two histograms within a single chart in Microsoft Excel. This technique, which leverages the power of PivotTables and PivotCharts, enables analysts to conduct a side-by-side comparison of distributions, leading to more direct and intuitive conclusions about group differences.

The Power of Comparative Frequency Distributions

In many analytical scenarios, the goal is not merely to describe a dataset but to understand how two distinct subsets of that data behave relative to each other. For instance, comparing test scores between male and female students, or analyzing sales volume before and after a marketing campaign, demands a visual comparison of their respective distributions. Overlaying two histograms transforms two separate frequency counts into a single, highly comparative visual narrative.

The process we outline relies heavily on Excel’s advanced features, specifically the PivotTable, which is essential for transforming raw, continuous data into the grouped frequency counts required for histogram construction. Without this aggregation step, plotting comparative distributions efficiently would be significantly more challenging and time-consuming. Understanding this foundational step is key to mastering advanced data visualization in Excel.

Step 1: Organizing Raw Data for Statistical Analysis

The foundation of any robust data analysis project is meticulously prepared and organized raw information. For this demonstration, we will analyze a sample dataset containing the gender and corresponding exam scores for twenty students. Our objective is to generate a visual comparison of the score distributions between the male and female student groups.

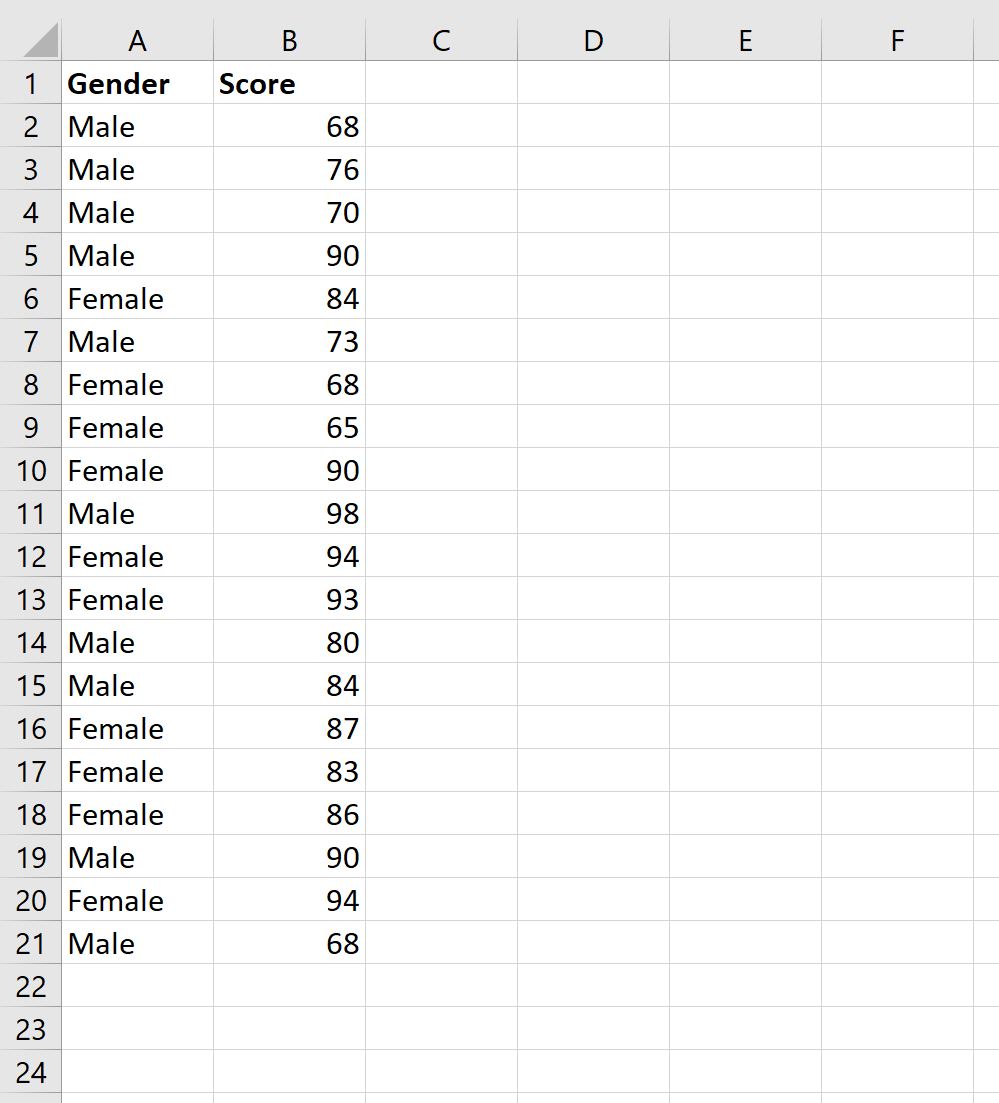

To begin, accurately enter the following sample data into your Excel worksheet. It is critical to ensure that each column is clearly and consistently labeled (e.g., Student ID, Gender, Score) to facilitate seamless manipulation in subsequent PivotTable steps. Accuracy in data entry is fundamental to guaranteeing the reliability and integrity of your final visualization.

Once the raw data has been entered, take a moment to review it for any potential errors, inconsistencies, or missing values. Clean and verified data forms the bedrock of meaningful statistical insights, and investing time in data validation now will prevent significant errors or misleading interpretations later in the analytical process.

Step 2: Utilizing the PivotTable for Frequency Aggregation

A PivotTable is a powerful aggregation tool in Excel, designed to summarize, explore, and present summary data efficiently. For generating histograms, the PivotTable is essential because it allows us to group our continuous score data and automatically calculate the frequency of occurrences within specified ranges. This functionality transforms our detailed individual records into the structured format required for visualization.

Initiating PivotTable Creation

To initiate the process, select the entire range of your dataset, which typically includes the column headers and all corresponding data rows (e.g., cells A1 to C21 in our example). With the data selected, navigate to the Insert tab located on the Excel ribbon. Within this tab, locate and click the PivotTable icon. This action immediately launches the “Create PivotTable” dialog box, prompting you to define the source data and the placement of the new table.

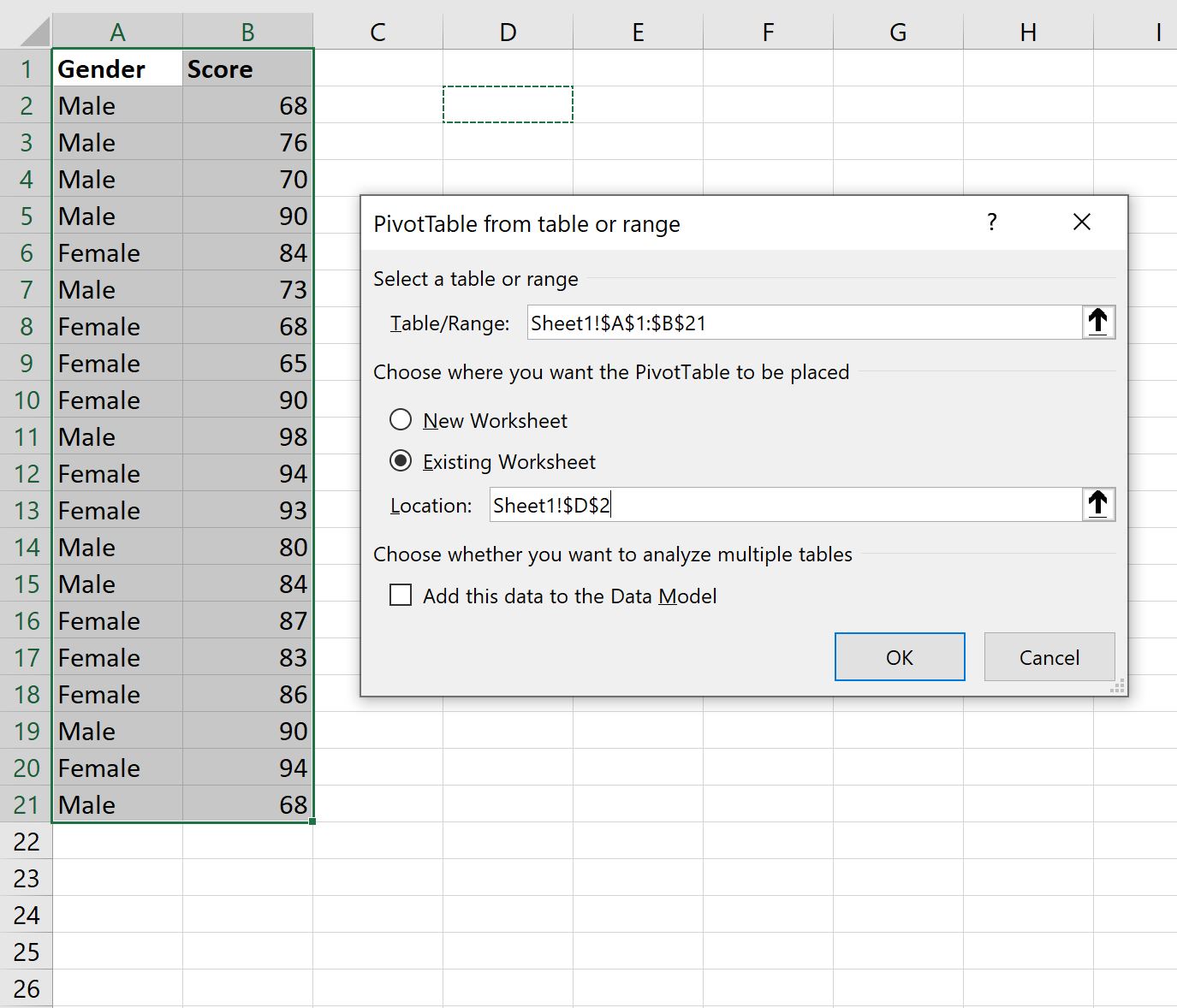

In the “Create PivotTable” window, verify that the “Table/Range” field accurately reflects your selected data. For optimal organization and clarity, it is highly recommended to choose the option to place your new PivotTable on a New Worksheet. This separation keeps your original raw data intact and provides a clean, dedicated workspace for the aggregated results. Confirm these settings by clicking OK.

Configuring PivotTable Fields for Frequencies

Once the new worksheet opens, you will see the empty PivotTable area and the PivotTable Fields panel on the right. This panel is where we define the rows and calculated values. To prepare for the histogram, drag the Score variable from the field list to two different areas: first, to the Rows area, and second, to the Values area. Placing “Score” in Rows lists every unique score, while placing it in Values initiates a calculation for those scores.

By default, Excel often calculates the “Sum of Score” in the Values area, but for a histogram, we specifically require the frequency, or count, of how many times each score appears. To adjust this calculation method, click the dropdown arrow next to “Sum of Score” in the Values area, and then select Value Field Settings… from the resulting context menu.

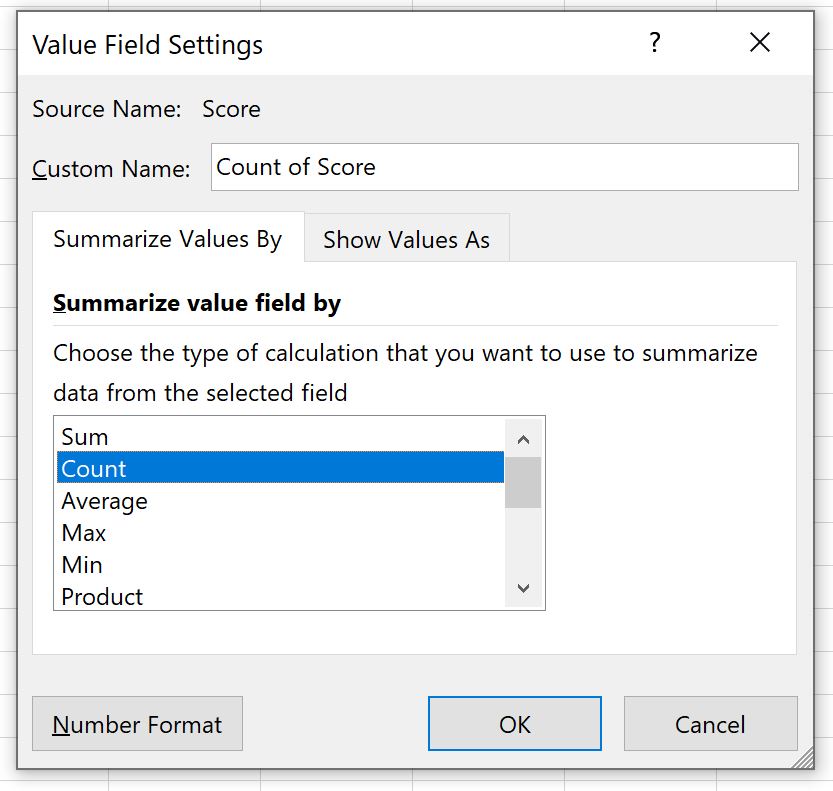

Within the “Value Field Settings” dialog box, change the aggregation function from “Sum” to Count. This instructs the PivotTable to count the occurrences of each score value, generating the necessary frequency data for our visualization. Click OK to apply this crucial change and update your PivotTable to display the score frequencies.

Step 3: Defining Bins and Introducing the Comparison Variable

A true histogram requires that continuous data be organized into contiguous intervals, known technically as bins. Excel’s PivotTable functionality offers a convenient way to define these grouping intervals directly from the calculated frequencies. This step transforms the discrete list of scores into the continuous ranges needed for visual representation.

Grouping Data into Bins for the Histogram

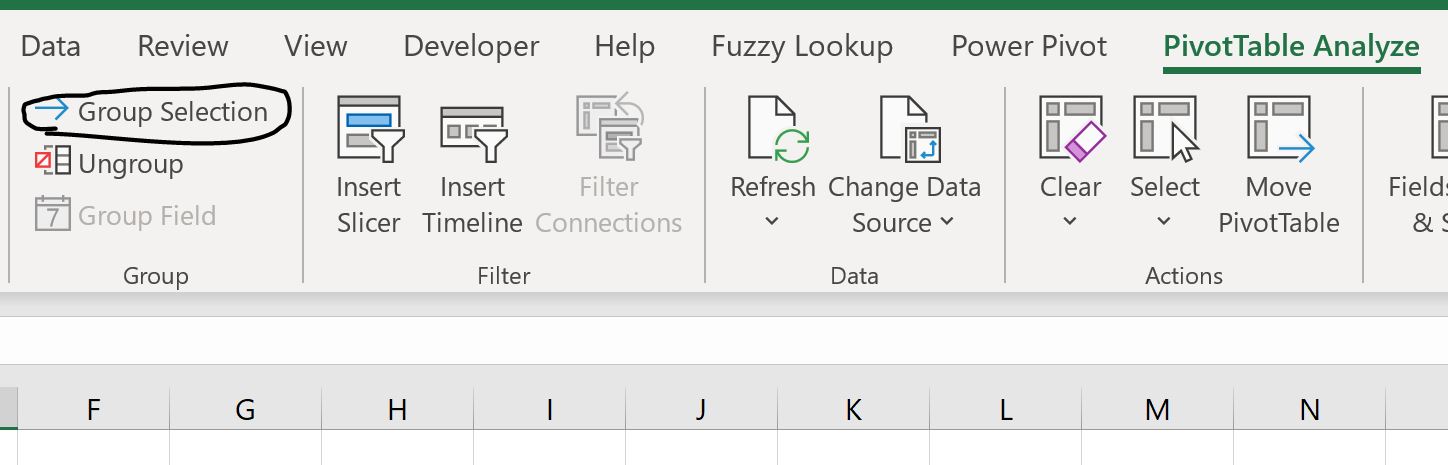

To define the score bins, click on any numerical value within the “Row Labels” column (which currently lists the individual scores) of your PivotTable. Next, navigate to the PivotTable Analyze tab on the Excel ribbon and click the Group Selection icon. This action will open the essential “Grouping” dialog box, where you define the histogram parameters.

In the “Grouping” window, specify the desired parameters for your score ranges. For our exam scores, we will set the distribution to begin at 65, end at 100, with a bin size, or interval width, of 5. This configuration ensures that scores are grouped logically (e.g., 65-69, 70-74, and so on). Carefully enter these values into the “Starting at:”, “Ending at:”, and “By:” fields. Applying these settings by clicking OK will restructure your PivotTable rows from individual scores to defined bins, completing the preparation of your primary frequency data.

Introducing the Comparison Variable

To achieve the overlay effect, we must introduce the categorical variable, Gender, which segments our data. Return to the PivotTable Fields panel. Locate the Gender variable in the field list and drag it specifically to the Columns area. This action is pivotal: it instructs the PivotTable to calculate the frequency counts for each score bin, but now separated into distinct columns for “Female” and “Male.”

The resulting PivotTable now displays the grouped exam scores in the rows and the corresponding frequency counts for each gender in adjacent columns. This organized, segmented structure is the exact prerequisite for generating our comparative visualization, providing a clear breakdown of how many students of each gender fall into every defined score range.

Step 4: Creating the Dynamic PivotChart

With the PivotTable meticulously structured to contain grouped frequencies segmented by gender, the final technical step is to visualize this information using a PivotChart. A PivotChart is dynamically linked to its data source; therefore, any future adjustments to the bin sizes or data filters in the PivotTable will be automatically reflected in the chart, making it an ideal tool for iterative data exploration and presentation.

Generating the Initial Chart

To generate the visualization, ensure that any single cell within your PivotTable is currently selected. Then, navigate to the PivotTable Analyze tab on the Excel ribbon. Within this tab, locate and click the PivotChart icon. This action immediately prompts the “Insert Chart” dialog box, presenting a variety of chart type options suited for different analytical objectives.

In the “Insert Chart” dialog box, select Column from the category pane. Among the standard column chart options, choose the Clustered Column type. The clustered column chart is specifically selected here because it facilitates the side-by-side display of two different data series (Female and Male frequencies) within the same category (the score bin), effectively creating the visual overlay necessary for comparative histogram analysis. Click OK to generate your dynamic PivotChart.

Interpreting and Applying the Overlayed Histogram

Upon generation, the clustered column chart will appear, visually overlaying the frequency distributions of exam scores for both females and males, ready for immediate comparison. The horizontal axis represents the score bins (e.g., 65-69, 70-74), and the vertical axis indicates the count (frequency) of students who fall into that bin. Typically, Excel assigns distinct colors, such as blue for female counts and orange for male counts, enhancing visual differentiation.

This overlaid visualization allows analysts to quickly identify shifts, tendencies, and discrepancies in performance between the two groups. By comparing the height of the adjacent bars within the same bin, one can immediately discern where one group excels or struggles relative to the other. This powerful visual comparison provides far deeper insights than analyzing numerical summaries alone.

We can draw several specific, valuable observations from our example chart based on the clustered column heights across the score bins:

• In the lowest performance bin, 65-69, the bars are of equal height, indicating that two female students and two male students achieved scores in this range. This suggests parity in the lowest quartile of performance.
• Moving to the 70-74 score range, the chart clearly demonstrates a difference: zero females and two males are recorded. This highlights a noticeable gap, with males having a measurable presence in this mid-to-lower range where females do not.
• Similarly, in the 75-79 range, zero females and one male are recorded. Such granular, bin-by-bin comparisons are invaluable for understanding specific differences in the score distributions, particularly around the central tendency.
• Conversely, higher score ranges may show different trends. For example, if the female bar is significantly taller in the 90-94 bin, it indicates a greater concentration of high performers among females. Analysts must continue this detailed comparison across all bins to form a comprehensive understanding of how the two groups’ exam scores are distributed relative to each other.

Summary and Next Steps in Data Visualization

Successfully overlaying two histograms in Excel provides an elegant, effective, and highly accessible method for comparing two distinct frequency distributions within a single visual framework. This technique, built upon the foundation of data organization and the dynamic capabilities of the PivotTable, is invaluable for educators, researchers, and business analysts who need to quickly identify similarities, differences, and key trends between categorical groups. By diligently following the steps outlined in this tutorial—from raw data input to bin definition and final chart generation—you can transform complex numerical data into insightful, professional-grade visualizations, significantly enhancing your data analysis and presentation capabilities.

To further enhance your data visualization and Excel proficiency, we recommend exploring related analytical techniques and customization options. Mastery of these tools will allow you to handle increasingly complex datasets and generate more nuanced reports.

• Advanced PivotTable Functionality: Learn how to use calculated fields and items within a PivotTable for more complex data aggregation and customized metrics.
• Chart Customization: Explore formatting options to remove the gaps between histogram bars (making them truly contiguous) and learn how to add dynamic titles and data labels for professional presentations.
• Statistical Functions: Delve into Excel’s built-in statistical functions (e.g., standard deviation, variance, percentiles) to complement the visual analysis provided by the overlaid histogram.
• Alternative Chart Types: Understand the appropriate application of other distribution visualizations, such as box plots or cumulative frequency curves, for different analytical goals.

We strongly encourage you to practice these steps using your own real-world datasets to solidify your understanding and truly master the art of comparative data visualization in Excel.
