Learning Pandas: How to Annotate Bar Plots for Enhanced Data Visualization

When preparing data visualizations, maximizing clarity is paramount. Visualizing data derived from a Pandas structure, particularly through the use of bar plots, often requires more than just displaying the bar height. Adding annotations directly onto the bars themselves is a technique that dramatically improves both readability and immediate data interpretation. These numerical labels, which typically represent the exact measure or count associated with each category, serve a critical purpose: they eliminate the need for the viewer to constantly cross-reference the bar height against the y-axis scale. This process transforms a standard chart into a precise, intuitive, and highly impactful visualization. A well-annotated chart ensures that your data story is conveyed with maximum precision and minimal cognitive effort from the audience. This comprehensive guide details the most effective, modern methods for annotating bars within both simple, single-series and complex, grouped Pandas bar plots, leveraging the power of its integrated visualization backend.

Understanding Bar Annotations in Pandas

Bar annotations are fundamental components of high-quality data reporting, involving the strategic placement of numerical labels either directly on top of or slightly above the corresponding bars in a chart. This technique is indispensable in analytical contexts, such as financial reviews or scientific presentations, where conveying precise values is non-negotiable. While Pandas handles the initial plotting, it relies heavily on Matplotlib, its underlying plotting engine, to manage the intricate details of visualization rendering and customization. Historically, manually positioning text labels in Matplotlib could be cumbersome, demanding complex calculations based on bar coordinates and sizes. However, the introduction of the dedicated ax.bar_label() function has revolutionized this workflow, simplifying the process into a single, elegant command.

The core functionality of the bar_label() method is its ability to automatically calculate and manage the precise positioning of labels for every bar in a given set. This automation allows developers and analysts to focus on data preparation and interpretation rather than tedious graphic logic. The function operates specifically on containers. In the context of Matplotlib, a container is essentially a specialized collection object that holds multiple “artists”—in this case, the individual bar rectangles—that are generated by plotting functions like ax.bar() or df.plot.bar(). By understanding how to retrieve these containers from the plot object, you gain the ability to apply flawless annotations to virtually any type of bar chart, whether it involves a single series or multiple comparison groups.

Method 1: Annotating Bars in a Simple Bar Plot

When dealing with univariate data—that is, a single set of measurements across different categories—a simple vertical or horizontal bar plot is the standard visualization choice. Annotating such a plot is highly efficient, thanks to the streamlined capabilities provided by ax.bar_label(). The process begins after generating the plot using Pandas’ integrated plotting API (which internally calls Matplotlib). The crucial first step is to capture the output of the plotting function, which is the Axes object.

The plot generation method, such as df.plot.bar(), returns an Axes object, conventionally named ax. This object serves as the canvas and repository for all visual elements within that specific subplot. The bars themselves are organized and stored within the ax.containers attribute. For a basic bar chart representing only one data series, all drawn bars are typically grouped together into the first, and often only, container available, which is accessed using the index 0 (i.e., ax.containers[0]). Once this specific collection of bar artists is identified, it is passed directly to the annotation function.

The following code snippet encapsulates the straightforward procedure required to generate a simple bar chart and apply annotations to its single series of data. This methodology ensures that the numerical values are correctly extracted from the bar heights and positioned appropriately on the visualization, maximizing the informative value of the plot without requiring any manual label placement or iteration logic.

ax = df.plot.bar()

ax.bar_label(ax.containers[0])

Method 2: Annotating Bars in a Grouped Bar Plot

Grouped bar plots are essential analytical tools when the objective is to compare multiple distinct data categories across different groups or indices simultaneously. This comparison introduces a slight complexity compared to simple bar plots: the plot now contains multiple sets of bars, often color-coded, where each set represents a unique data series (e.g., ‘Product A’ vs. ‘Product B’). When annotating these complex visualizations, the primary challenge is to ensure that the correct numerical label is associated with its corresponding bar, regardless of which group or series it belongs to.

In a grouped bar plot generated by Pandas (via Matplotlib), the bars belonging to each separate data series are stored in their own distinct container. For instance, if you plot sales for three different products, the resulting Axes object will hold three separate containers within its ax.containers attribute—one container for Product 1, one for Product 2, and one for Product 3. Attempting to apply ax.bar_label() only to the first container would leave the bars of the other series unlabeled, resulting in an incomplete and misleading visualization.

The most robust and elegant solution involves iterating through the entire collection of containers attached to the Axes object. By using a simple for loop, we can systematically retrieve each container and apply the bar_label() function to it. This ensures that whether you have two groups or several, all bars will be accurately labeled, guaranteeing that every bar in the plot receives an accurate and correctly positioned numerical annotation.

The following concise code block demonstrates the iteration logic required for comprehensive annotation of a grouped bar chart, ensuring all data points are explicitly labeled for maximum clarity:

ax = df.plot.bar()

for container in ax.containers:
    ax.bar_label(container)

With a solid theoretical foundation established regarding the use of containers and the bar_label() function, we can now transition to practical, executable examples. These scenarios will demonstrate how to apply these techniques in real-world data visualization contexts, allowing you to see the annotation process unfold step-by-step.

Example 1: Annotating a Simple Bar Plot

Imagine an analyst working with sales data across five distinct product lines (A through E). The goal is to create a visualization that immediately showcases the sales volume for each product without relying on the y-axis grid lines. This is a perfect use case for a simple annotated bar plot. The implementation requires setting up the data structure, generating the plot, and then applying the annotation logic specifically targeting the single collection of bars. We begin by leveraging the robust data handling capabilities of Python and the DataFrame structure provided by Pandas.

The code below outlines the complete procedure. First, we import the necessary Pandas library and define a simple DataFrame that maps product names to their respective sales figures. Next, we use the Pandas built-in plotting method, ensuring we capture the resulting Axes object (ax). Finally, we call ax.bar_label(), explicitly passing the first and only container of bars (ax.containers[0]) to initiate the automatic labeling process. This targeted approach is highly efficient for single-series plots.

import pandas as pd

#create DataFrame
df = pd.DataFrame({'product': ['A', 'B', 'C', 'D', 'E'],
                   'sales': [4, 7, 8, 15, 12]})

#view DataFrame
print(df)

  product  sales
0       A      4
1       B      7
2       C      8
3       D     15
4       E     12

#create bar plot to visualize sales by product
ax = df.plot.bar(x='product', y='sales', legend=False)

#annotate bars
ax.bar_label(ax.containers[0])

Upon reviewing the output visualization, it is evident that the execution of ax.bar_label(ax.containers[0]) successfully applied the sales values (4, 7, 8, 15, 12) directly above their corresponding bars. This immediate, numerical display bypasses the need for the viewer to interpolate values from the axis, which is particularly beneficial when dealing with large datasets or values that fall between major tick marks. The inclusion of the exact sales figures on the visualization significantly enhances clarity and interpretability, supporting rapid consumption of the data insights. This simple but powerful step transforms a standard plot into a high-utility analytical graphic.

Example 2: Annotating a Grouped Bar Plot

When analyzing multivariate data, such as comparing the performance of two different products (A and B) across various geographical locations or stores, a grouped bar plot becomes necessary. In this scenario, ensuring every segment is clearly labeled is even more critical, as the visual complexity increases due to the side-by-side arrangement of bars. We need a method that can dynamically recognize and label each series independently. The solution hinges on the iterative approach we previously discussed, utilizing the list of containers.

In this practical demonstration, we construct a DataFrame where the index represents the stores (‘store 1’ and ‘store 2’), and the columns represent the respective sales figures for ‘productA’ and ‘productB’. When df.plot.bar() is executed, Matplotlib generates two distinct collections of bars—one for product A and one for product B—and stores them as separate container objects within the ax.containers list. The key to successful annotation here is accessing all elements of this list.

The following code block demonstrates how to structure the data and execute the plotting command, followed immediately by the crucial iterative annotation loop. This process ensures that both ‘productA’ and ‘productB’ bars receive their accurate numerical labels, maintaining the plot’s informational integrity even as complexity increases.

#create DataFrame
df = pd.DataFrame({'productA': [14, 10],
                   'productB': [17, 19]},
                    index=['store 1', 'store 2'])

#view DataFrame
print(df)

         productA  productB
store 1        14        17
store 2        10        19

#create grouped bar plot
ax = df.plot.bar()

#annotate bars in bar plot
for container in ax.containers:
    ax.bar_label(container)

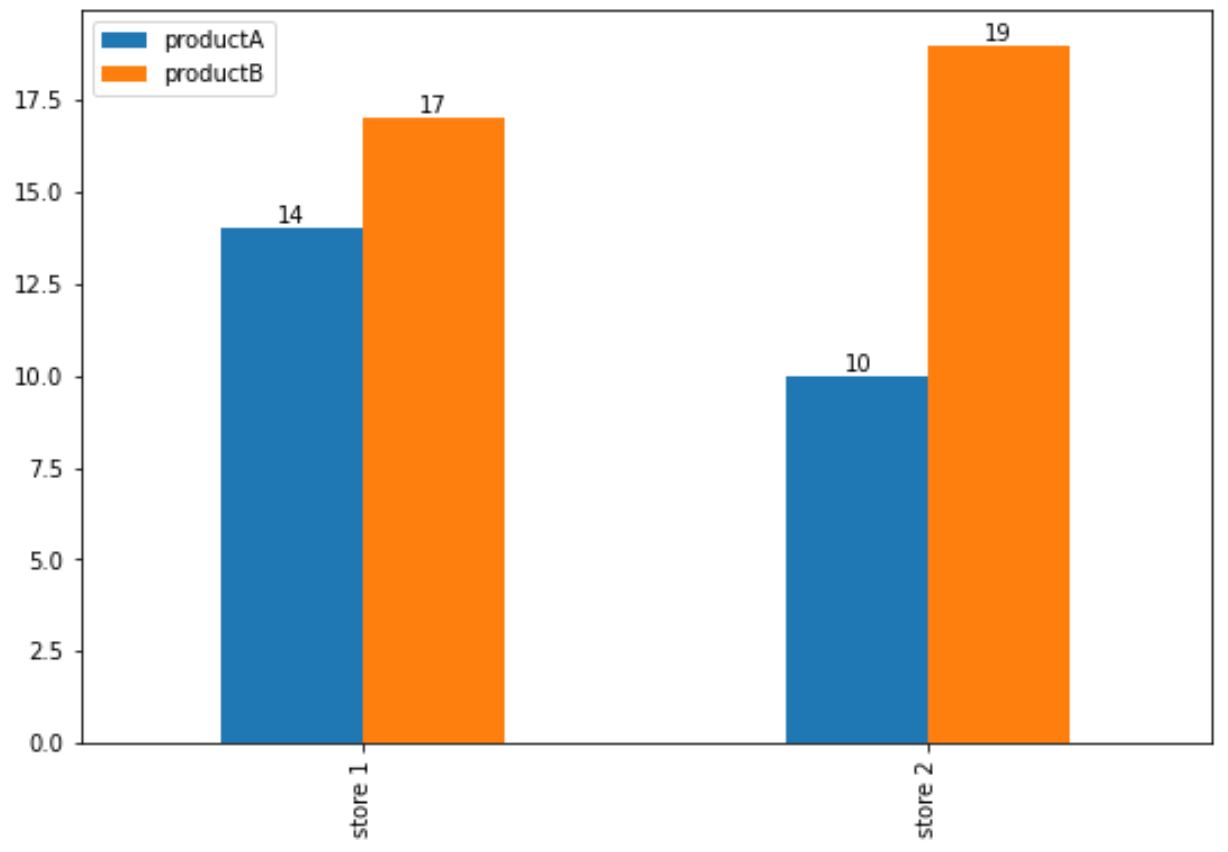

As illustrated by the resulting grouped visualization, the loop structure—specifically for container in ax.containers: ax.bar_label(container)—successfully navigated the plot structure. It ensured that the sales data for Product A (14 and 10) and Product B (17 and 19) were accurately labeled on their respective bars within both ‘store 1’ and ‘store 2’ groups. This iterative application of the annotation function is paramount for maintaining clarity and avoiding ambiguity in visualizations that involve comparisons across multiple variables. By adopting this approach, analysts can reliably produce complex charts where every data point is explicitly identified, facilitating deep and accurate analytical review by any stakeholder.

Conclusion: Elevating Data Communication

Annotating bars in Pandas bar plots represents a significant yet simple technique for fundamentally improving the overall quality and effectiveness of your data visualizations. By ensuring numerical values are displayed directly on the visual elements, you effectively bridge the gap between graphical representation and precise quantitative data. This eliminates ambiguity, reduces the reliance on the y-axis, and allows the audience to immediately extract key quantitative insights from the chart. Whether the visualization is a simple representation of a single variable or a complex, grouped comparison, the principle remains the same: clarity is power.

The modern plotting ecosystem, driven by ax.bar_label() and the concept of plot containers, offers an efficient and elegant solution to what was once a complex manual task. Understanding how to access and iterate through these containers is the key to mastering high-fidelity annotations in any Pandas-based bar chart.

We encourage data professionals to integrate these annotation methods into their standard visualization workflow. Mastering these techniques will empower you to create more professional, informative, and persuasive charts, transforming raw data into compelling and instantly understandable visual narratives. Effective data communication relies on accuracy and immediacy, both of which are significantly enhanced by well-placed numerical annotations.
