Learning Pandas: Visualizing Grouped Data with Bar Plots

In the realm of modern data science and analysis, the ability to efficiently summarize large datasets is paramount. Raw data is often too granular to yield immediate insights; it requires aggregation before meaningful patterns can be observed. This is where the powerful capabilities of the Pandas library come into play, particularly its essential groupby method. This function serves as the cornerstone for performing complex, categorical summaries, allowing analysts to segment data based on specified criteria and apply aggregate calculations. Once data has been grouped and summarized, visualization is the natural next step.

For comparing totals or frequencies across different categories, the bar plot stands out as an exceptionally effective tool. It translates quantitative data into easily comparable visual lengths, offering immediate clarity regarding the distribution of metrics across various groups. This comprehensive guide is dedicated to mastering the seamless integration between Pandas aggregation and its built-in visualization tools, demonstrating how to generate polished and informative bar plots directly from groupby outputs. We will cover the core mechanics, walk through a detailed, real-world example, and explore techniques to enhance the aesthetic quality of your final visualizations.

Understanding the Pandas GroupBy Paradigm

At its core, the groupby operation adheres to the fundamental principle of split-apply-combine. This paradigm involves three distinct phases: first, the data is split into groups based on the values of one or more keys (columns); second, a function (e.g., sum, mean, count) is applied independently to each group; and finally, the results from these applications are combined into a single, cohesive result object, typically a Pandas Series or a new DataFrame.

When working with a DataFrame, calling the groupby method returns a GroupBy object, which is essentially an intermediate structure. It is crucial to remember that this object itself doesn’t contain the summarized data yet; it simply holds the information needed to perform the grouping. The actual computation only occurs when an aggregation function, such as .sum() or .mean(), is called upon this GroupBy object.

The resulting object after aggregation is perfectly structured for immediate visualization. If you group by a single categorical column and aggregate a single value column, the output will be a Pandas Series where the index consists of the unique group labels, and the values are the calculated aggregates. It is this structure—where the index defines the categories (x-axis labels) and the values define the heights (y-axis data)—that allows Pandas to generate a bar plot with minimal additional effort. Understanding this input-output flow is key to efficient data plotting.

Basic Syntax for Grouped Bar Plots

The most appealing aspect of generating visualizations in Pandas is the ability to chain operations seamlessly. Instead of separating the aggregation, data reshaping, and plotting steps, Pandas allows you to execute the entire process in a single, highly readable line of code. The fundamental approach involves aggregating the data first using groupby and an aggregation function, and then calling the .plot() method directly on the resulting aggregated Series or DataFrame.

This efficiency is achieved because the .plot() method, when called on aggregated data, automatically infers the plotting style and necessary labels based on the structure of the resulting object. For categorical summaries, setting the kind='bar' argument tells Pandas to use the index of the aggregated data as the categories for the x-axis and the associated values as the bar heights, simplifying the transition from numerical summary to graphical representation significantly.

The general syntax below demonstrates this streamlined process. It is a highly versatile template that can be quickly adapted to calculate means, counts, or other metrics simply by substituting the .sum() function. This pattern forms the bedrock of categorical data visualization in Pandas.

# Calculate sum of values by group
df_groups = df.groupby(['group_var'])['values_var'].sum()

# Create bar plot by group
df_groups.plot(kind='bar')

In this structure, 'group_var' designates the column containing the categorical labels you are interested in (e.g., ‘country’, ‘department’, or ‘team’). Conversely, 'values_var' specifies the numerical column that holds the values you wish to aggregate (e.g., ‘sales’, ‘clicks’, or ‘points’). The elegance of this approach lies in its declarative nature: you state what you want to group by, what you want to aggregate, and how you want to visualize the result, all in a sequence that closely mirrors the analytical thought process.

Practical Example: Summarizing Sports Statistics

To solidify our understanding, let us apply this technique to a concrete scenario. Imagine we are analyzing basketball statistics, and we have a detailed DataFrame containing individual player performance records, including the points scored by each player and their corresponding team affiliation. Our objective is clear: to determine the overall strength of each team by calculating the total accumulated points and then presenting this comparison visually using a bar plot.

Before aggregation, we must establish our initial dataset. The following code snippet demonstrates how to construct a simple DataFrame that represents individual scores for three distinct teams (A, B, and C). This setup mimics the kind of transactional or event-based data commonly encountered in analytical tasks, where summary statistics are required to draw high-level conclusions.

import pandas as pd

# Create DataFrame
df = pd.DataFrame({'team': ['A', 'A', 'A', 'A', 'A',
                            'B', 'B', 'B', 'B', 'B',
                            'C', 'C', 'C', 'C', 'C'],
                   'points': [12, 29, 34, 14, 10, 11, 7, 36,
                              34, 22, 41, 40, 45, 36, 38]})

# View first five rows of DataFrame
df.head()

	team	points
0	A	12
1	A	29
2	A	34
3	A	14
4	A	10

As shown in the output, the df DataFrame is structured such that multiple rows contribute to the score of a single team. Our immediate analytical need is to transition from this row-level detail to a summary metric for each category (team). The next step involves applying the groupby operation, which is the mechanism that will facilitate this transformation and prepare the data for visualization.

Execution: Aggregation, Plotting, and Initial Results

The core of our task lies in applying the aggregation function immediately after grouping. We use df.groupby('team') to split the data by team, select the column we want to summarize (['points']), and then apply the desired function (.sum()). This operation yields a Pandas Series where the indices are the unique team names and the values represent the total points scored by that team throughout all records. This resulting Series, named df_groups, is the perfect input for direct plotting.

The plotting function in Pandas is essentially a high-level wrapper around the extensive capabilities of the Matplotlib library. By simply calling .plot(kind='bar') on the aggregated Series, Pandas handles all the necessary backend setup, importing Matplotlib implicitly and drawing the chart based on the Series index and values.

import matplotlib.pyplot as plt

# Calculate sum of points for each team and store in df_groups
df_groups = df.groupby('team')['points'].sum()

# Create bar plot from the aggregated data
df_groups.plot(kind='bar')

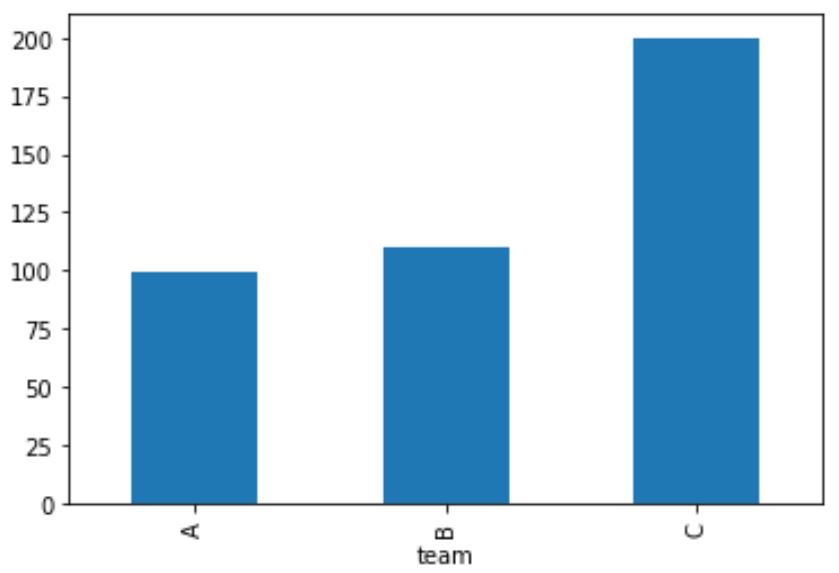

Executing this code produces a basic but informative visual summary. The resulting graph immediately highlights the quantitative differences in total scoring among the teams. We can instantly discern which team has the highest cumulative score and which team lags behind.

The default visualization provides an initial framework: the x-axis, derived from the Series index, displays the categorical variables (Team A, B, C), and the y-axis, representing the Series values, quantifies the aggregated metric (Total Points). While this plot is functionally correct and conveys the data accurately, it lacks the necessary context and polish often required for professional reporting or presentations. The next section focuses on how to refine this basic output into a publication-ready chart.

Enhancing Visual Communication and Aesthetics

While the default Pandas plot is functional, enhancing its aesthetic qualities is essential for effective data communication. A professional visualization requires more than just bars; it needs a meaningful title, descriptive axis labels, and an appropriate size to ensure clarity and impact. Since Pandas plotting is built on Matplotlib, we can leverage Matplotlib‘s extensive customization capabilities by passing relevant arguments directly into the .plot() method, or by using subsequent Matplotlib functions.

We can refine the plot by providing crucial metadata. The title argument specifies the overall description of the chart, offering immediate context to the viewer. Using xlabel and ylabel ensures that both the categorical variable and the metric being measured are unambiguously identified. Furthermore, the figsize parameter allows us to control the dimensions of the resulting figure, preventing bars from appearing too thin or labels from becoming cramped, thereby significantly improving overall readability.

Incorporating these parameters elevates the basic chart into a comprehensive visual narrative. For instance, clearly labeling the y-axis as “Total Points” removes any ambiguity about the quantitative measure, while a specific title like “Total Points by Team” sets the stage for the comparison.

import matplotlib.pyplot as plt

# Calculate sum of points for each team (re-run if df_groups is not defined)
df_groups = df.groupby(['team'])['points'].sum()

# Create bar plot with custom aesthetics
df_groups.plot(kind='bar', title='Total Points by Team',
               ylabel='Total Points', xlabel='Team', figsize=(10, 6))

# Rotate x-axis ticks vertically for better readability (if needed)
plt.xticks(rotation=0)

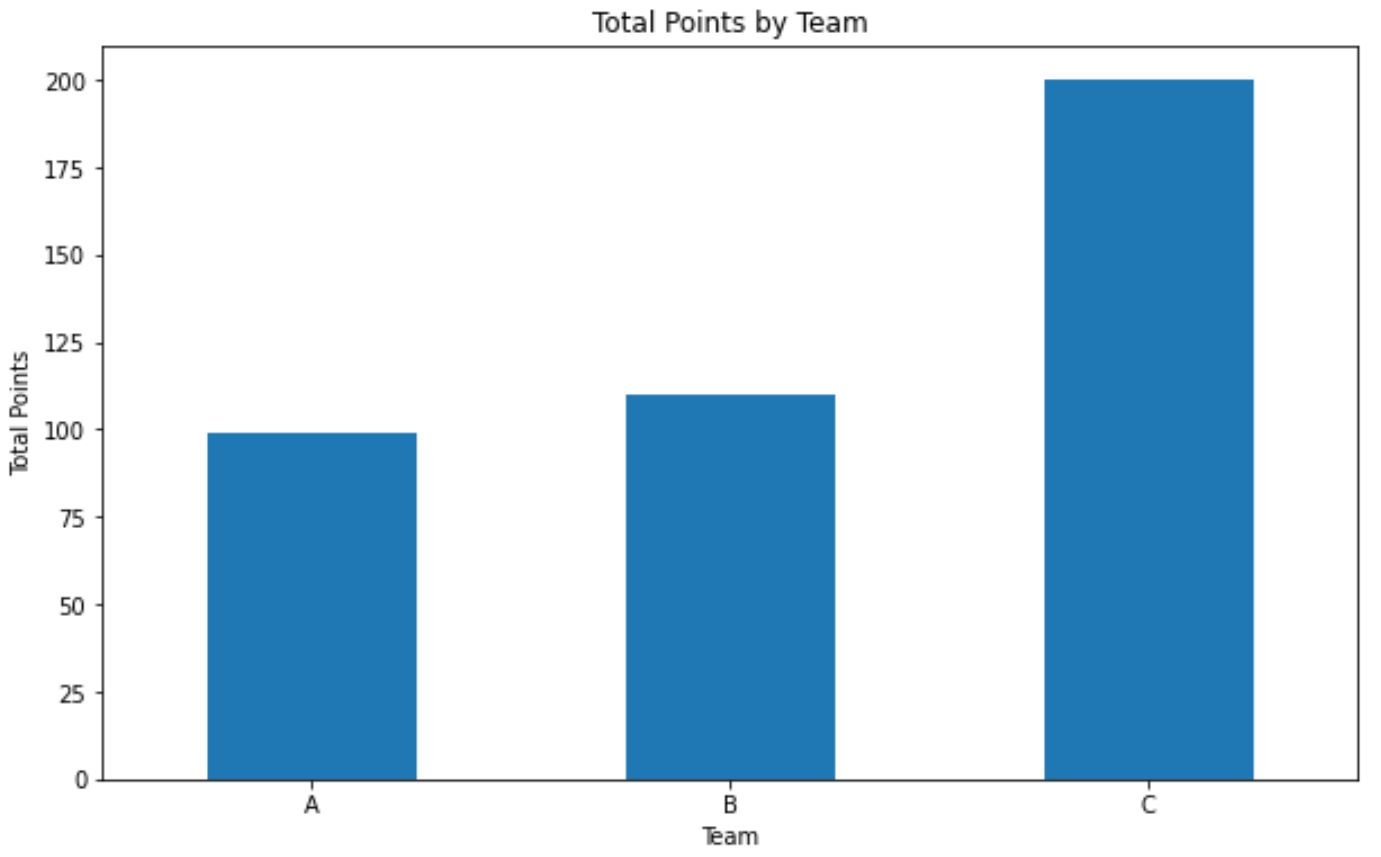

The final touch is often ensuring label readability. While our example has short category names (A, B, C), datasets with longer category names might require rotating the x-axis labels to prevent overlap. The command plt.xticks(rotation=0) ensures horizontal alignment, which is generally preferred when categories are few and short, contributing to a cleaner visual field. The resulting plot is not only accurate but also visually appealing and immediately interpretable.

Beyond Summation: Advanced Grouping Techniques

The power of the groupby method extends far beyond simple summation. Depending on the insights required, analysts frequently substitute .sum() with other crucial aggregation functions that are equally compatible with direct bar plotting. For instance, using .mean() allows you to visualize the average points per team, which might be a more robust measure of team efficiency than total points if the number of players or games varies widely. Similarly, .count() is essential for visualizing the frequency of observations within each group, while .median() and .max() offer different perspectives on central tendency and outliers.

When your analysis requires applying multiple aggregation functions simultaneously or applying different functions to different columns, the .agg() method becomes indispensable. This method accepts a list or dictionary of aggregation functions, providing fine-grained control over the output. For example, you might want to visualize both the total points and the average points per team side-by-side. While plotting a resulting DataFrame with multiple columns using .plot(kind='bar') will automatically generate a clustered bar chart, illustrating the flexibility Pandas offers for multivariate visualization.

It is important to always match the aggregation metric to the question being asked. A bar plot is excellent for absolute comparisons (like totals or counts), but when dealing with proportional data (like market share), a stacked bar plot or a pie chart might be more appropriate. If the data involves continuous variables or trends over time, different visualization types, such as line plots or histograms, should be considered. The choice of plot type should be a deliberate decision aimed at maximizing the clarity of the communicated insight.

Mastering the integration of .groupby() and .plot() not only streamlines your coding process but also ensures that the visualizations you create are directly derived from the aggregated truth of your data. This seamless workflow is a cornerstone of efficient data analysis in Python.

Conclusion and Next Steps

The ability to create compelling bar plots directly from groupby results is a foundational skill for anyone utilizing Pandas for data analysis. We have demonstrated how this powerful combination facilitates the transformation of complex, granular data into clear, comparative visual summaries. By internalizing the split-apply-combine logic and leveraging the efficiency of chained plotting methods, you can significantly accelerate your data exploration and reporting cycles.

We covered the basic syntax for aggregation, applied this knowledge to a practical example involving sports statistics, and detailed the crucial steps necessary for plot enhancement—namely, utilizing Matplotlib arguments for improved aesthetics and context. By continuously practicing these techniques and experimenting with different aggregation functions, you will transform raw data into persuasive visual evidence that supports informed decision-making. Continue to explore the nuances of the groupby method to unlock its full potential in your analytical work.
