Learning Pandas: A Step-by-Step Guide to Creating Scatter Plots from Multiple Columns

Introduction: Visualizing Relationships with Pandas Scatter Plots

In the contemporary landscape of scientific computing and data analysis, the Pandas library for Python is universally recognized as the cornerstone for robust data manipulation and preparation tasks. When the core objective is to uncover hidden connections and quantify the interdependencies between variables within a complex dataset, the scatter plot stands out as an exceptionally versatile and powerful data visualization instrument. This graphical representation empowers analysts to immediately detect crucial patterns, identify data clusters, pinpoint statistical outliers, and accurately assess correlations that might otherwise remain obscured within vast tables of raw numerical data.

While mastering the generation of a basic scatter plot that compares just two variables is fundamental, real-world data analysis often necessitates visualizing the relationships among multiple pairs of columns simultaneously. These sophisticated scenarios require plotting several distinct data series onto a single, unified graphical canvas. This advanced technique is indispensable for conducting powerful comparative analysis, allowing practitioners to juxtapose key trends observed across different experimental groups, varying time periods, or distinct categories within the exact same visual context, thereby streamlining interpretation.

This comprehensive expert guide is specifically designed to detail the efficient methodology required to generate and seamlessly overlay multiple scatter plots sourced from different columns within a single Pandas DataFrame. We will systematically explore the foundational plotting syntax, walk through a highly detailed, practical implementation example, and ultimately cover essential customization parameters necessary for producing professional, clear, and highly insightful comparative visualizations.

The Core Mechanism: Utilizing Matplotlib Axes for Overlaying Plots

The inherent capability of Pandas to produce complex, publication-quality visualizations is directly attributable to its high-level, seamless integration with the foundational Matplotlib plotting library. All visualization functionalities accessible through the streamlined .plot() method function as an efficient wrapper around underlying Matplotlib commands. To specifically generate a scatter plot, the user must explicitly set the argument kind='scatter'. However, the most critical feature enabling the successful overlay of multiple visualizations is the strategic and precise application of the ax parameter.

The ax parameter grants the user explicit control, allowing them to define exactly which existing Matplotlib Axes object the new plot should be drawn upon. By default, every independent call to df.plot() initializes and renders a brand new plot instance. Conversely, by passing a previously generated and stored Axes object—for instance, using ax=ax1—we instruct the subsequent plot call to effectively share the coordinate system, visual space, and scale established by the initial plot. This technique is not merely convenient; it is absolutely fundamental for conducting rigorous comparative analysis, as it guarantees that all data series are presented and evaluated within an identical graphical context.

The following foundational syntax demonstrates the necessary steps to initialize the plotting environment and subsequently overlay a second scatter plot derived from a distinct pair of columns within a single Pandas DataFrame. Observe carefully how the first plotting call establishes the initial canvas and returns the Axes object, and how the second call deliberately directs its output to that existing canvas using the crucial ax argument.

import pandas as pd

#create scatter plot of A vs. B (Initializes the Axes object ax1)
ax1 = df.plot(kind='scatter', x='A', y='B', color='r')

#add scatter plot on same graph of C vs. D (Uses the existing Axes object ax1)
ax2 = df.plot(kind='scatter', x='C', y='D', color='g', ax=ax1)

In this standard and efficient procedure, the initial df.plot() call generates the first data series, utilizing columns A and B, and stores the resulting Axes object in the variable ax1. The subsequent plotting call uses columns C and D. Critically, the inclusion of the ax=ax1 argument ensures that this second plot is not rendered independently but is instead drawn directly onto the same set of axes established by the first plot. Employing the distinct color parameter for each plotted series is strongly recommended, as it immediately provides the visual distinction necessary between the plotted groups, thereby significantly enhancing the plot’s overall clarity and interpretability for the viewer.

Practical Application: Comparing Basketball Player Statistics

To fully illustrate the practical utility and precise implementation of these multi-column scatter plots, we will employ a relatable, hypothetical dataset focusing on basketball player performance statistics. Consider an analytical scenario where we possess a Pandas DataFrame containing aggregated performance data for players categorized into two distinct groups, designated as Team A and Team B. This simulated data includes critical metrics such as assists and the total points scored over the course of a competitive season.

Our primary analytical goal is to simultaneously visualize and directly compare the underlying correlation between assists and points for both teams on a single, shared graph. This comparative data visualization will facilitate the rapid identification of differing performance patterns—for instance, determining whether Team A consistently achieves higher points relative to their number of assists compared to the distribution observed in Team B. Before initiating the plotting process, the first crucial and necessary step is the preparation and generation of this sample DataFrame structure:

import pandas as pd

#create DataFrame with statistics for two teams
df = pd.DataFrame({'A_assists': [3, 4, 5, 6, 7, 7, 8, 9],
                   'A_points': [6, 8, 8, 10, 13, 13, 15, 16],
                   'B_assists': [3, 4, 4, 5, 5, 6, 7, 7],
                   'B_points': [7, 9, 9, 13, 10, 11, 12, 13]})
#view DataFrame structure
print(df)

   A_assists  A_points  B_assists  B_points
0          3         6          3         7
1          4         8          4         9
2          5         8          4         9
3          6        10          5        13
4          7        13          5        10
5          7        13          6        11
6          8        15          7        12
7          9        16          7        13

The resulting DataFrame, which we have named df, is clearly structured with four distinct columns: A_assists and A_points quantify the observed performance of players belonging to Team A, while B_assists and B_points represent Team B’s corresponding statistics. Each row within this organizational structure accurately corresponds to a single player’s accumulated performance metrics. With our data successfully prepared, organized, and confirmed, we are now fully ready to apply the multi-plot syntax to visualize these crucial comparative relationships.

Implementing and Customizing the Comparative Scatter Plot

With the preparatory data manipulation complete, we can now proceed to implement the core Pandas plotting methodology. The strategic approach involves two precise primary steps: first, initializing the plot by rendering the data for Team A, which simultaneously establishes and stores the shared Axes object; and second, overlaying the data for Team B onto those exact same axes, ensuring both data series are visually distinct and clearly labeled for immediate and unambiguous comparison.

#create scatter plot of A_assists vs. A_points, storing the Axes object
ax1=df.plot(kind='scatter', x='A_assists', y='A_points', color='r', label='A')

#add scatter plot for Team B onto the existing axes (ax=ax1)
ax2=df.plot(kind='scatter', x='B_assists', y='B_points', color='g', label='B', ax=ax1)

#specify x-axis and y-axis labels for clarity
ax1.set_xlabel('Assists')
ax1.set_ylabel('Points')

Within this crucial code block, the variable ax1 is initially defined by plotting the data for Team A (comparing A_assists against A_points), which is visually represented using the color red. A vital component here is the inclusion of the argument label='A', which provides the necessary descriptive metadata for the automatic generation of the plot’s legend. Subsequently, the data for Team B (comparing B_assists against B_points) is drawn using the color green. The explicit use of the ax=ax1 argument is what directs this second series to be plotted precisely onto the same coordinate plane, ensuring an accurate visual overlap.

To ensure the resulting visualization is immediately comprehensible and professional, we finalize the process by applying descriptive labels to both the x-axis and y-axis. This is achieved using the Axes object methods: ax1.set_xlabel() and ax1.set_ylabel(). This meticulous attention to comprehensive labeling transforms the raw data points into a polished and professional data visualization, allowing viewers to rapidly and accurately compare the assist-point distributions of the two basketball teams.

Interpretation, Scalability, and the Role of the Legend

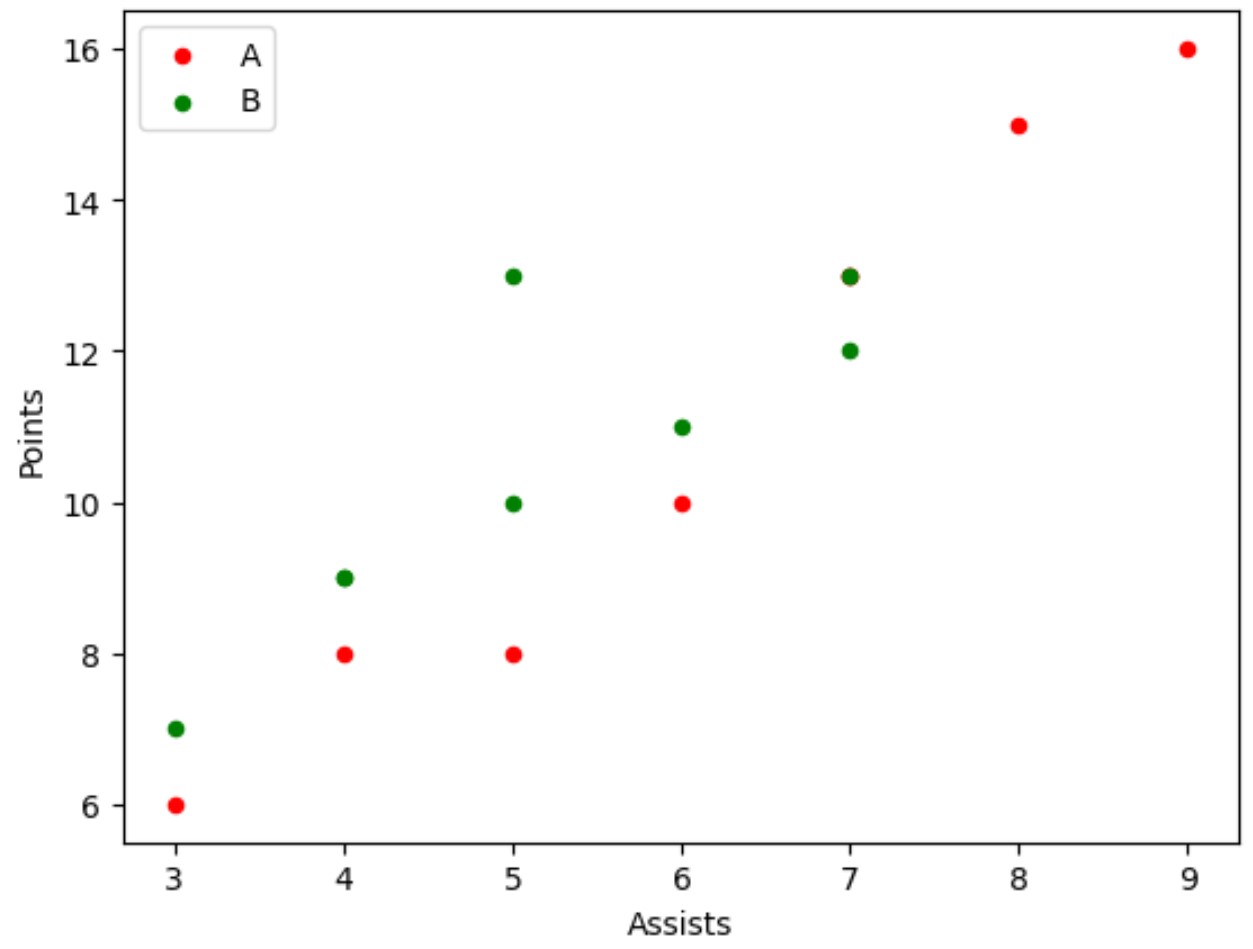

The resulting multi-column scatter plot successfully accomplishes the complex goal of simultaneously displaying the relationship between two performance metrics (assists and points) for two distinct groups (Team A and Team B) on a single, clean canvas. The data points corresponding to Team A are explicitly identified in red, while those associated with Team B are clearly shown in green. This immediate visual contrast facilitates a rapid comparative assessment of the two teams’ performance profiles, which could potentially reveal important insights regarding differing offensive strategies or varying efficiencies in translating assists into points scored.

A critical and non-negotiable component of any informative and professional plot is the effective utilization of a legend. As rigorously demonstrated in the implementation code, the inclusion of the label argument within each respective .plot() function call is absolutely essential for automating this feature. This label assigns a concise, descriptive name to the corresponding data series, which the underlying Matplotlib library then automatically compiles into a visual key. This legend serves as the key to accurate interpretation, clearly explaining what each distinct color or marker style represents, thereby significantly elevating the visualization’s overall interpretability and eliminating visual ambiguity.

The core methodology detailed here is highly scalable and is not limited to comparisons involving just two series. An analyst can seamlessly layer three, four, or even more additional scatter plots onto the same visual framework by consistently maintaining the pattern of directing subsequent plot calls to the original Axes object (e.g., repeating the pattern df.plot(..., ax=ax1)). This flexibility enables sophisticated multi-variate comparisons, provided that careful and deliberate attention is paid to aesthetic considerations to prevent the plot from becoming overly dense, cluttered, or confusing to the viewer.

Best Practices for Effective Multi-Column Visualization Design

The successful outcome of creating informative multi-column scatter plots extends far beyond simply mastering the underlying syntax; it fundamentally demands deliberate and thoughtful design choices focused on maximizing clarity and analytical impact. Adherence to established best practices ensures that the valuable insights derived from your Pandas DataFrame are communicated accurately, efficiently, and without misinterpretation.

• Choosing Distinct Colors and Markers: When effectively overlaying multiple data series, it is paramount to select a palette of colors that are easily distinguishable from one another, paying special consideration to users with common color vision deficiencies. Furthermore, augmenting color differentiation with varied marker styles (e.g., strategically combining circles, squares, and triangles) can introduce an additional crucial layer of clarity, which is especially important when the final plot is destined to be viewed in grayscale or printed on paper.
• Clear Labeling and Contextual Titles: Analysts must always prioritize providing descriptive x-axis and y-axis labels that explicitly state the precise units or variables being measured. Additionally, a concise, highly informative plot title and verbose, descriptive labels within the legend (for example, using “Team A Performance” rather than the minimalist “A”) are critical requirements for establishing the necessary context required for accurate interpretation by any audience.
• Strategic Legend Placement and Overlap Management: The legend must be positioned strategically within the visual space so that it never obscures critical data points or visual trends. Matplotlib offers extensive configuration options for optimizing legend placement (e.g., using loc='upper right' or leveraging Matplotlib to choose the loc='best' location) to maximize readability. For addressing exceptionally dense datasets where points overlap heavily, consider adjusting the alpha (transparency) value of the markers. In cases of extreme data density, alternative visualization techniques such as hexbin plots or 2D histograms may ultimately prove more appropriate.

By rigorously applying these foundational design guidelines and principles, developers can effectively transition from generating rudimentary plots to creating compelling, easily interpretable multi-column data visualizations that powerfully communicate complex analytical findings and drive data-driven decision-making.

Conclusion and Next Steps for Enhanced Visualization

This guide has provided a comprehensive, step-by-step overview of the necessary methodology required to generate powerful and insightful scatter plots that effectively juxtapose key relationships across multiple column pairs within a single Pandas DataFrame structure. We began by establishing the foundational concepts, placing strong emphasis on the role of the Pandas .plot() method and the critical, symbiotic interaction between the kind='scatter' and ax parameters necessary for successfully achieving plot overlay.

Through the hands-on, practical example utilizing simulated basketball statistics, we clearly demonstrated the precise, step-by-step process: starting from the initial DataFrame creation, applying the multi-series plotting syntax, and ultimately achieving a successful visual comparison of the performance metrics of Team A and Team B. Furthermore, we underscored the non-trivial importance of the label argument for automatic legend generation and highlighted the intrinsic scalability of this method, which is vital for managing sophisticated comparisons involving more than two data series.

Mastering these advanced data plotting techniques is essential for significantly enhancing your overall data visualization capabilities and analytical output. We strongly encourage all readers to immediately apply these core principles to their own datasets, actively experimenting with the extensive customization options available through the underlying, powerful Matplotlib library. This dedicated exploration will allow you to precisely tailor your visual outputs to match your specific analytical needs, thereby facilitating more effective pattern recognition and superior data-driven decision-making in your work.
