Learning to Visualize Data: Plotting Multiple Columns on a Pandas Bar Chart

In the realm of data analysis, visualizing complex datasets is paramount for extracting meaningful insights and effectively communicating underlying patterns. The Pandas library in Python stands as the definitive standard for data manipulation, offering robust capabilities for structuring, cleaning, and transforming raw data. A cornerstone of its utility is its seamless integration with industry-leading visualization tools, particularly Matplotlib, which empowers analysts to generate sophisticated plots directly from a DataFrame object.

A frequent analytical requirement involves comparing several quantitative variables against a single categorical or time-based dimension. While line plots are optimally suited for continuous time series data, the bar chart remains the superior choice for clearly displaying discrete comparisons and distributions across distinct categories. This comprehensive guide details the precise methodology for plotting multiple quantitative columns from a Pandas DataFrame onto a single bar chart, ensuring accurate and comparative representation of all variables along the primary and secondary axes.

The technique explored here leverages the highly convenient, built-in plotting functionality of the Pandas DataFrame. This function acts as an abstraction layer over Matplotlib, significantly reducing the required boilerplate code. By correctly specifying key parameters—specifically the independent variable for the x-axis and defining the visualization type—we can swiftly produce highly informative multi-column visualizations. This approach dramatically enhances the data analysis workflow, making the generation of complex comparative charts efficient and accessible, even when managing substantial datasets.

To plot multiple dependent columns of a Pandas DataFrame against a single independent variable on a bar chart, the following fundamental syntax is utilized:

df[['x', 'var1', 'var2', 'var3']].plot(x='x', kind='bar')

In this structure, the column designated by the argument x (in this example, ‘x’) serves as the independent variable, establishing the categories along the x-axis. Conversely, the columns listed within the double brackets (‘var1’, ‘var2’, and ‘var3’) are treated as the dependent variables. Their corresponding numerical values dictate the height of the bars along the y-axis, facilitating direct visual comparison between them. The subsequent examples demonstrate the practical application and efficacy of this powerful plotting function.

Prerequisites and Setup: Importing Libraries and Preparing Data

The successful execution of any plotting command necessitates the preparatory step of importing the required Python libraries and ensuring the data is correctly housed within a Pandas DataFrame structure. For this specific task, two primary libraries are indispensable: Pandas (essential for high-level data handling and manipulation) and matplotlib.pyplot (the core library responsible for rendering the visualization engine).

Following conventional Python practices, these tools are imported using the standardized aliases: pd for Pandas and plt for matplotlib.pyplot. Although Pandas provides the convenient .plot() wrapper for initiating the chart creation directly from the DataFrame, Matplotlib remains the underlying graphical engine that executes the drawing process. It is highly recommended to import both, as functions from plt (such as plt.show() for display or methods for fine-tuning titles, labels, and axes) are often required to finalize the graph after the initial Pandas rendering call.

To provide a clear and replicable demonstration, we will commence by generating a synthetic dataset. This simulated data is designed to mirror common real-world observational data, incorporating a categorical or ordinal grouping variable (designated ‘period’) alongside multiple quantitative metrics (labeled ‘A’, ‘B’, and ‘C’). This specific data structure is ideally suited for demonstrating how to generate comparative, multi-column bar charts effectively.

Example 1: Plotting Multiple Columns on a Grouped Bar Chart

To fully grasp the basic implementation, we first generate our sample data and immediately apply the multi-column plotting methodology. The fundamental requirement for plotting multiple data series is the initial data selection via the Pandas DataFrame’s indexing mechanism. This involves using the double bracket notation, df[['col1', 'col2', ...]], to select the desired columns, followed by invoking the .plot() method and explicitly setting the parameter kind='bar'.

The following code snippet defines a representative DataFrame containing data across eight distinct ‘periods’ and three separate metric columns (A, B, and C). We then instruct Pandas to visualize the values of A, B, and C, using the ‘period’ column as the categorical index for the x-axis. This precise command structure yields a grouped bar chart, where each period is represented by three adjacent bars, allowing for simultaneous comparison of the A, B, and C metric values.

The subsequent code demonstrates how to visualize three dependent columns by explicitly designating the column named period as the variable defining the x-axis categories:

import pandas as pd
import matplotlib.pyplot as plt

#create fake data
df = pd.DataFrame({'period': [1, 2, 3, 4, 5, 6, 7, 8],
                   'A': [9, 12, 15, 14, 19, 23, 25, 29],
                   'B': [5, 7, 7, 9, 12, 9, 9, 14],
                   'C': [5, 4, 7, 13, 15, 15, 18, 31]})

#plot columns on bar chart
df[['period', 'A', 'B', 'C']].plot(x='period', kind='bar')

The resulting visual output clearly presents the values of metrics A, B, and C positioned side-by-side for every observed period, enabling straightforward comparison of performance trends across these three variables over time. Pandas automatically assigns distinct colors to each metric (A, B, and C), ensuring immediate differentiation of the data series. The standard grouped bar chart generated by this command is visually represented below.

Customizing the Standard Bar Plot: Selecting Specific Subsets

One of the most valuable aspects of utilizing the Pandas plotting wrapper is the inherent flexibility it offers in dynamically selecting which data series to visualize, all without requiring any modification to the underlying DataFrame object. When working with DataFrames that contain numerous columns, but the current analytical focus is restricted to only a specific subset, analysts can easily filter the data by simply adjusting the list of column names provided during the initial slicing operation.

For example, if the analysis requires focusing exclusively on the comparison between metric A and metric B, temporarily excluding metric C from the visualization, the adjustment is minimal. We merely refine the list of columns passed to the DataFrame indexing step, always ensuring that the designated x-axis variable (‘period’) remains included to anchor the visualization correctly. This targeted and streamlined approach is highly efficient, particularly during intensive exploratory data analysis phases.

This capability proves invaluable when preparing presentations or reports where extraneous data might introduce visual clutter or dilute the core message intended for the audience. Crucially, the structure of the primary plotting command remains consistent; only the input selection changes. We can choose to plot only a specific pair of columns, such as A and B, against the period variable:

df[['period', 'A', 'B']].plot(x='period', kind='bar')

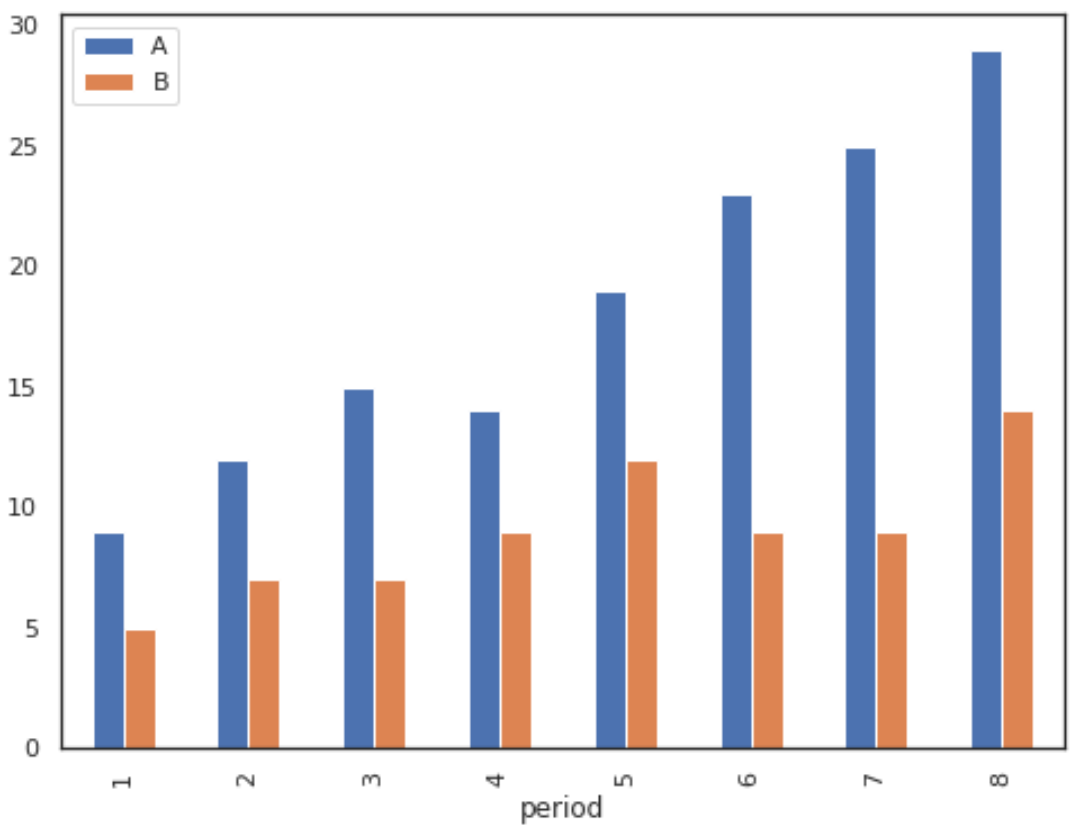

As clearly illustrated by the resulting graph below, only the bars corresponding to metrics A and B are rendered for each period. This simplification enhances the visual focus, allowing data analysts to rapidly iterate through various combinations of variables to test specific hypotheses or pinpoint relationships without distraction.

Example 2: Creating Stacked Bar Charts for Compositional Analysis

While grouped bar charts excel at direct, side-by-side comparison of individual values across categories, the stacked bar chart is the optimal visualization when the analytical objective shifts to demonstrating the composition of a total magnitude across different segments. A stacked bar chart visually layers the data segments (our columns A, B, and C) one upon the other, ensuring that the cumulative height of the bar accurately represents the sum of all metrics recorded for that specific period.

The process of transitioning from a standard grouped bar chart configuration to a compositional stacked bar chart within Pandas is remarkably straightforward, requiring only the addition of a single, simple parameter: setting stacked=True within the primary .plot() function call. This minor modification instantly communicates to the underlying Matplotlib rendering engine precisely how the multiple data series should be visually aggregated and displayed.

This visualization format proves particularly useful in diverse business and scientific contexts, such as illustrating resource allocation, tracking market share contributions, or analyzing product contribution to total sales revenue over time. It allows stakeholders to quickly assimilate both the contribution of each individual metric and the overall collective magnitude associated with each category (period).

To generate a stacked bar chart, we simply need to append the argument stacked=True to the plot function, reapplying our original selection of the three columns (A, B, and C) against the period variable:

import pandas as pd
import matplotlib.pyplot as plt

#create fake data
df = pd.DataFrame({'period': [1, 2, 3, 4, 5, 6, 7, 8],
                   'A': [9, 12, 15, 14, 19, 23, 25, 29],
                   'B': [5, 7, 7, 9, 12, 9, 9, 14],
                   'C': [5, 4, 7, 13, 15, 15, 18, 31]})

#create stacked bar chart
df[['period', 'A', 'B', 'C']].plot(x='period', kind='bar', stacked=True)

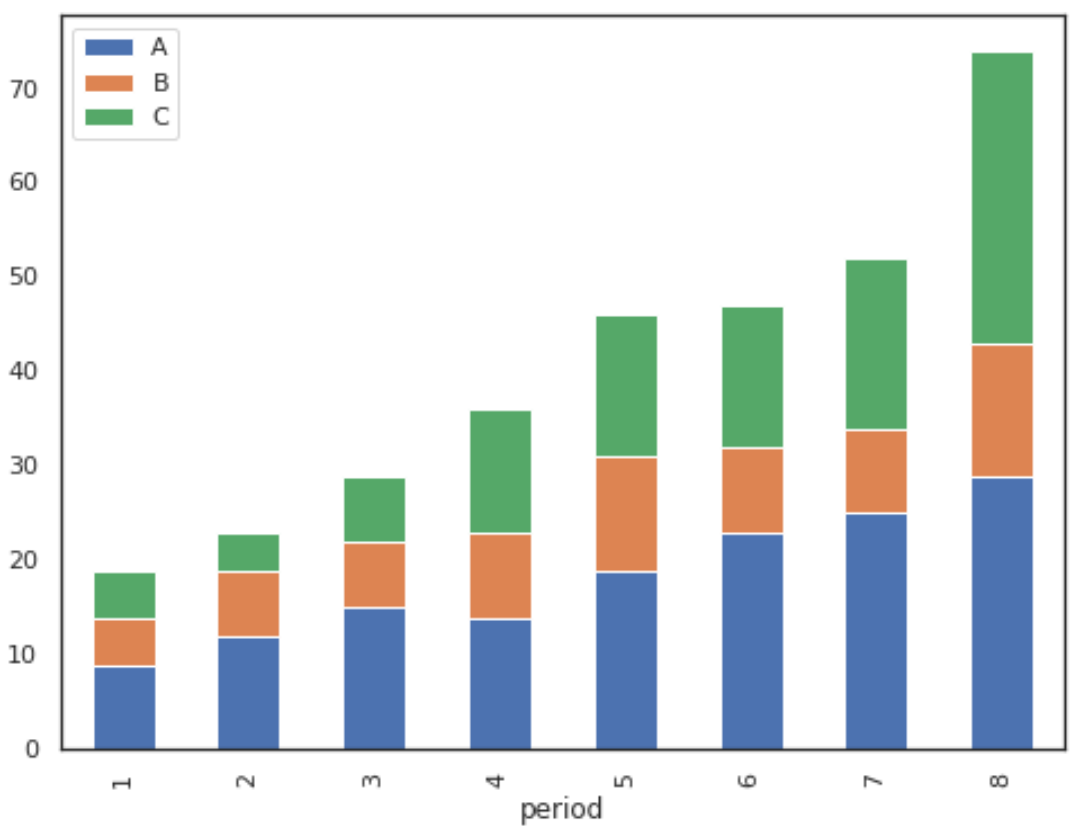

The resultant chart vividly illustrates the cumulative total achieved in each period, with the segments corresponding to A, B, and C layered vertically. This compelling visual representation clearly accentuates how the internal composition of the total metric evolves across the observed periods, thereby offering simultaneous perspectives on both the overall trend magnitude and its underlying structural breakdown.

Enhancing Aesthetics: Customizing Colors for Visual Clarity

While the default color palette supplied by Pandas, inherited from Matplotlib, is generally functional, advanced visualization often requires color customization to meet specific thematic requirements, adhere to corporate branding, or enhance visual contrast for improved accessibility. Pandas facilitates this level of control through the dedicated color argument within the .plot() function.

The color argument accepts an ordered list of color identifiers, which may be standard HTML color names, hexadecimal codes, or RGB tuples. It is absolutely crucial for the list of colors to correspond precisely to the sequence of columns being plotted (excluding the x-axis variable). Maintaining this strict alignment allows the data storyteller to associate deliberate meanings or predefined categories with specific hues, significantly improving the interpretability and professional quality of the final visualization.

Implementing custom colors is an essential step in transforming a basic, functional plot into a professional, publication-ready asset. By overriding the default palette and defining specific colors for each metric, analysts ensure that the visual output perfectly conforms to the intended presentation style and maximizes the impact of the data narrative.

To modify the colors of the bars, analysts simply pass the desired color sequence using the color argument. This example demonstrates the application of custom colors to the stacked bar chart generated in the previous section:

df[['period', 'A', 'B', 'C']].plot(x='period', kind='bar', stacked=True,
                                   color=['red', 'pink', 'gold'])

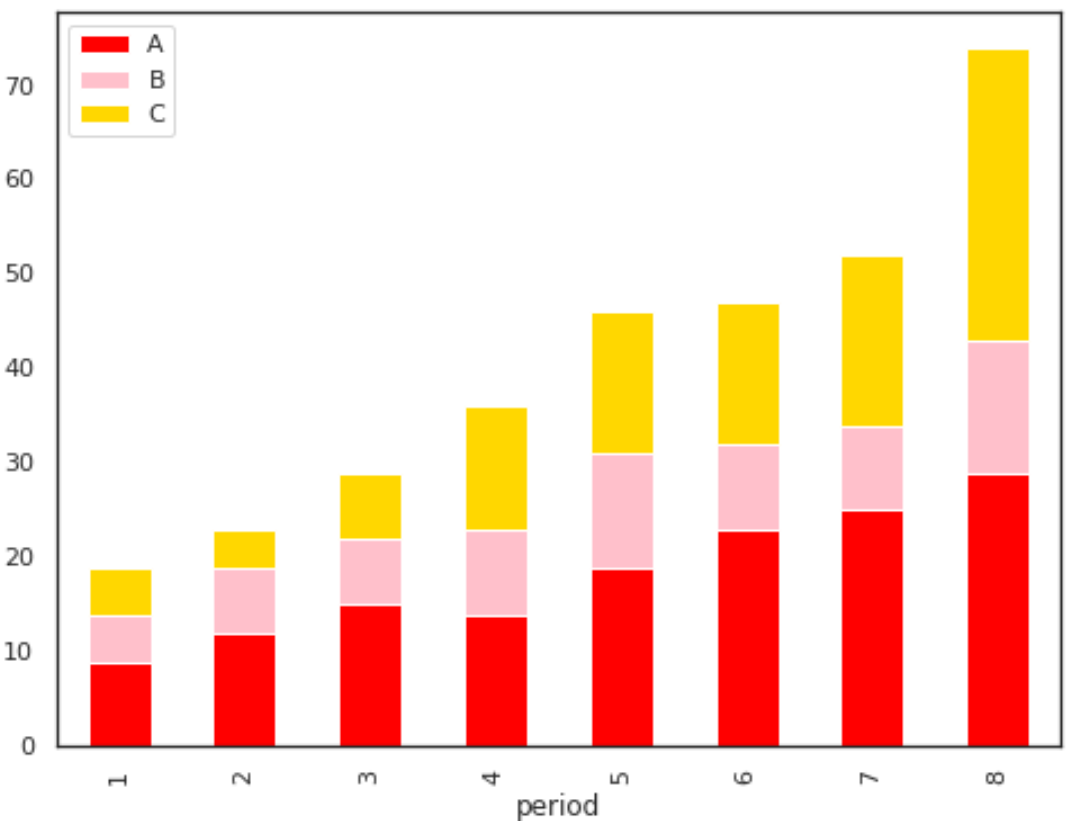

As depicted below, the color ‘red’ is consistently applied to metric ‘A’, ‘pink’ to ‘B’, and ‘gold’ to ‘C’, successfully matching the order of variables selected for plotting. This results in a visually striking chart that precisely adheres to the customized aesthetic specifications provided by the user.

Summary and Further Visualization Options

The capability to plot multiple data columns concurrently using the Pandas .plot(kind='bar') function significantly streamlines and simplifies the execution of complex data visualization tasks within the Python ecosystem. Regardless of whether the requirement is a straightforward grouped comparison of metrics or a sophisticated layered stacked composition, the foundational syntax remains highly intuitive, demanding only the specification of the x-axis variable and the desired chart type.

Acquiring mastery of this specific technique is fundamental for any data scientist or analyst who relies on the Pandas library for rigorous data exploration and communication. It is important to recall that the inherent flexibility of DataFrame indexing allows for instantaneous switching between visualizing all available metrics or targeting specific subsets, a feature that dramatically elevates analytical speed and efficiency.

For users seeking to extend their visualization capabilities beyond standard bar charts, the Pandas plotting wrapper robustly supports numerous other chart types simply by modifying the kind parameter (e.g., specifying kind='line' for time series, kind='hist' for distributions, or kind='box' for statistical summaries). Furthermore, for advanced aesthetic refinement and fine-tuning elements not directly accessible through the Pandas wrapper (such as precise axis label rotation, complex annotation placement, or manual legend manipulation), the underlying Matplotlib objects can always be accessed and manipulated directly, providing ultimate control over the final output.

Additional Resources

To further solidify your expertise in data visualization and advanced DataFrame manipulation techniques, the following authoritative resources are highly recommended for continued study:

• Official Pandas Documentation on Visualization, with a specific focus on mastering the extensive parameters of the .plot() method.
• The Comprehensive Matplotlib Documentation for in-depth guidance on plot customization and manipulation beyond the convenient Pandas wrapper defaults.
• Specialized tutorials dedicated to the creation of highly effective grouped and stacked bar charts optimized for clear and unambiguous data communication.
• Guides focusing on best practices for selecting appropriate color palettes, often utilizing external tools, to enhance both the visual appeal and accessibility of data visualizations.
