Learning Pandas: A Step-by-Step Guide to Plotting Multiple DataFrames in Subplots

Introduction to Comparative Visualization using Subplots

In the realm of modern data analysis, the ability to compare multiple datasets simultaneously is paramount for drawing accurate conclusions and identifying nuanced relationships. When working with tabular data managed by the Pandas library, a highly effective method for this comparative visualization is leveraging the power of Matplotlib’s Pyplot module to generate complex figures containing multiple plots. This technique, fundamentally built around the concept of subplots, allows analysts to display distinct results from various Pandas DataFrames within a single, coherent graphic. By consolidating visualizations, we significantly enhance the efficiency of data interpretation, making it easier to spot subtle differences, common trends, and outliers across several data streams at a single glance.

A subplot is essentially an independent plotting area situated within a larger canvas known as the figure. This structured arrangement is critical when dealing with sets of related data—for instance, comparing sales performance across four different geographic regions or visualizing the results of several experimental conditions. Instead of generating four separate graphical windows, which can quickly become unwieldy and difficult to synchronize, subplots provide a disciplined grid structure. This consolidation is not merely aesthetic; it is a fundamental requirement for enhancing the readability and interpretability of complex analytical findings, ensuring that visual comparisons are immediate and intuitive, which is vital in fast-paced data science environments.

The core mechanism for constructing these multi-panel visualizations in Matplotlib is the indispensable plt.subplots() function. This function is elegantly designed to handle the creation of both the overarching canvas and the individual plotting areas in one streamlined operation. When called, plt.subplots() requires the specification of the desired grid dimensions—specifically, the number of rows and columns. In return, it provides two key objects: the main Figure object, which represents the entire drawing surface, and an array of Axes objects. Each Axes object is an independent instance of a subplot, ready to receive and render a specific DataFrame visualization, thereby giving the user precise programmatic control over every element of the visual output.

Mastering the Fundamental Syntax for Defining Subplot Grids

To successfully integrate multiple DataFrames into a structured subplot configuration, the first step involves establishing the grid layout using the Matplotlib library. This process begins with the necessary library imports and a call to the plt.subplots() function, where the essential parameters, nrows and ncols, are defined to specify the geometry of the desired grid. As mentioned previously, this crucial function returns a tuple containing the Figure object (conventionally named fig) and an array of Axes objects (conventionally named axes). Understanding the distinction between these two components is crucial: the Figure is the container, while the Axes objects are the actual plot environments where data is rendered and manipulated.

The array of Axes objects returned by plt.subplots() is typically a multidimensional NumPy array when both rows and columns are greater than one, meaning the individual subplots can be accessed using standard two-dimensional array indexing. For example, in a 2×2 grid, the top-left subplot is located at index [0, 0], and the bottom-right subplot is at [1, 1]. This indexing scheme provides a deterministic way to assign specific plots to specific locations. Once the grid is established, the actual plotting is achieved by calling the powerful .plot() method directly on the DataFrame itself, but critically, passing the corresponding Axes object to the ax argument. This argument is the mechanism by which Pandas knows exactly which subplot within the figure should display its data.

The following fundamental Python code demonstrates how this initial setup is executed for a 2×2 layout. This configuration results in four distinct, equally sized subplots, providing ample space for comparing four different datasets side-by-side. Notice how the array indexing is used to target each quadrant precisely, directing the plotting output of each respective DataFrame—df1 through df4—to its unique location within the collective figure. This pattern forms the backbone of all advanced multi-panel plotting operations in the Pandas and Matplotlib ecosystem.

import matplotlib.pyplot as plt

#define subplot layout
fig, axes = plt.subplots(nrows=2, ncols=2)

#add DataFrames to subplots
df1.plot(ax=axes[0,0])
df2.plot(ax=axes[0,1])
df3.plot(ax=axes[1,0])
df4.plot(ax=axes[1,1])

In this snippet, fig is the container for the final graphical output, capable of saving, displaying, and managing the overall canvas properties. In contrast, axes serves as the gateway to manipulating each individual subplot. Using the structured access provided by axes[row, column], we explicitly tell the DataFrame’s plotting method where to render its lines, bars, or points. This explicit mapping ensures that complex visualizations remain manageable and highly organized, allowing the analyst to focus on interpreting the visual trends rather than struggling with plot placement or configuration. This direct control is why Matplotlib remains the standard for high-quality, customizable data visualization in the Python environment.

Practical Example: Generating Comparative Retail Data

To solidify the theoretical understanding of subplots, let us consider a practical application common in business intelligence and retail analytics. Imagine a scenario where a data scientist is tasked with assessing the performance metrics of four geographically distinct retail locations. For each store, we have a separate DataFrame containing essential time-series metrics, such as daily total sales figures and corresponding merchandise returns over a ten-day period. Visualizing these four separate sets of trends side-by-side is necessary to identify which stores are performing optimally, which are struggling, or which exhibit unusual patterns in their return rates relative to sales volume.

The subsequent Python code block demonstrates the setup required to generate these four necessary sample Pandas DataFrames. Each DataFrame, labeled df1 through df4, is intentionally populated with data that reflects differing performance characteristics. For instance, df1 shows steady sales growth, while df4 might represent a declining trend. This intentional diversity in the underlying data makes the subsequent comparative visualization particularly insightful. Careful observation of the code shows that each DataFrame is structured identically, containing columns labeled ‘sales’ and ‘returns’, ensuring consistency when plotting them against each other in the multi-panel figure.

import pandas as pd

#create four DataFrames
df1 = pd.DataFrame({'sales': [2, 5, 5, 7, 9, 13, 15, 17, 22, 24],
                    'returns': [1, 2, 3, 4, 5, 6, 7, 8, 7, 5]})

df2 = pd.DataFrame({'sales': [2, 5, 11, 18, 15, 15, 14, 9, 6, 7],
                    'returns': [1, 2, 0, 2, 2, 4, 5, 4, 2, 1]})

df3 = pd.DataFrame({'sales': [6, 8, 8, 7, 8, 9, 10, 7, 8, 12],
                    'returns': [1,0, 1, 1, 1, 2, 3, 2, 1, 3]})

df4 = pd.DataFrame({'sales': [10, 7, 7, 6, 7, 6, 4, 3, 3, 2],
                    'returns': [4, 4, 3, 3, 2, 3, 2, 1, 1, 0]})

These four synthetic datasets provide the perfect foundation for demonstrating the power of multi-panel plotting. By plotting them together, we are not just visualizing four individual time series; we are creating a comparative analytical tool. For instance, we can immediately see that Store 1 (df1) has the highest overall sales volume, but also a rising trend in returns, whereas Store 4 (df4) shows low and declining performance in both metrics. This preparatory step of data creation is essential, as the subsequent visualization phase relies entirely on these DataFrames to generate the comprehensive, organized 2×2 grid necessary for effective comparative data analysis.

Implementing and Visualizing the 2×2 Subplot Layout

With the four sample Pandas DataFrames successfully generated, the next logical step is to render them into a structured visual format. The 2×2 subplot layout is the most intuitive choice for this specific scenario, as it allocates one distinct panel to each of the four retail stores. This symmetrical arrangement is exceptionally effective for side-by-side comparison of the relative performance metrics, specifically the daily sales and returns trends across the different stores, enabling rapid identification of inter-store variations.

The implementation requires calling plt.subplots(nrows=2, ncols=2) to define the desired dimensions of the grid. Following the creation of the Figure and the array of Axes objects, the process involves iteratively calling the DataFrame’s .plot() method on each of the four DataFrames. Crucially, we must pass the specific subplot destination, such as ax=axes[0, 0], to the method call. This explicit direction ensures that df1 is plotted in the top-left corner, df2 in the top-right, and so on, maintaining a clear organizational structure that directly correlates to the analyst’s mental model of the data.

import matplotlib.pyplot as plt

#define subplot layout
fig, axes = plt.subplots(nrows=2, ncols=2)

#add DataFrames to subplots
df1.plot(ax=axes[0,0])
df2.plot(ax=axes[0,1])
df3.plot(ax=axes[1,0])
df4.plot(ax=axes[1,1])

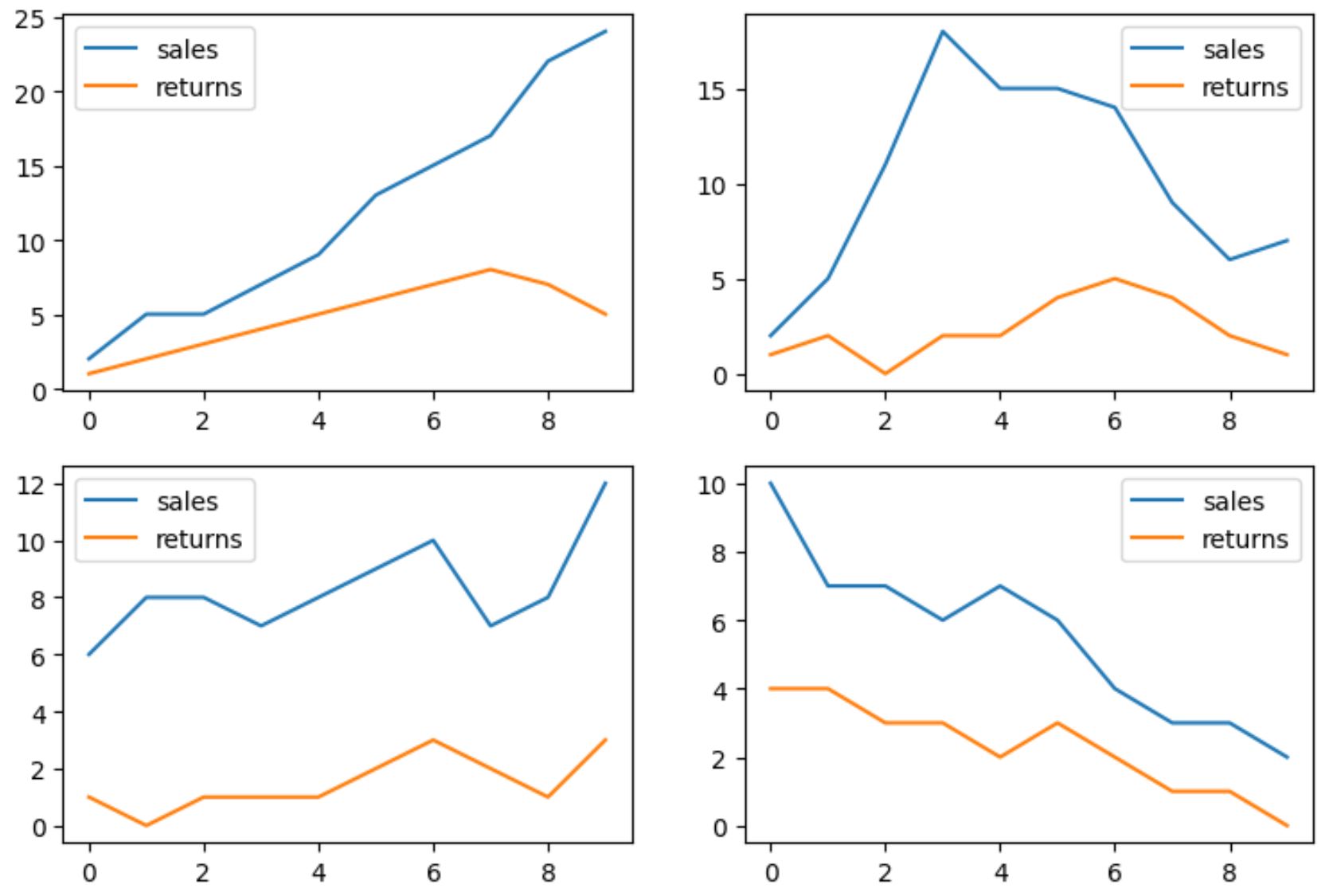

As the resulting graphical output below confirms, each of the four DataFrames now occupies a distinct, dedicated panel within the collective 2×2 grid. The strategic use of the ax argument is the pivotal element here, as it precisely manages the spatial organization of the plots. For instance, the command df1.plot(ax=axes[0,0]) ensures that the data for the first store is correctly positioned in the upper-left quadrant (row 0, column 0). This granular level of control over subplot placement is fundamental for creating professional, clear, and highly organized data visualization, preventing visual clutter and maximizing comparative efficiency.

Customizing Layouts: Transitioning to the 4×1 Vertical Stack

One of the greatest advantages of using plt.subplots() is its profound flexibility in defining the layout geometry, extending well beyond simple square grids. By dynamically adjusting the nrows and ncols parameters, data analysts can tailor the visualization arrangement to best suit the presentation needs or the inherent structure of the data. For situations where a vertical sequence or a long scrollable presentation is preferred—perhaps to emphasize a time progression or category separation—a layout featuring many rows and few columns offers superior readability compared to a tightly packed horizontal arrangement.

To demonstrate this customization, we can reconfigure our four retail store DataFrames into a single column structure. This is accomplished by setting nrows to 4 and ncols to 1. This new arrangement forces the plots to stack vertically, which is highly beneficial when the plots share a common time axis or when sequential comparison is prioritized. A key conceptual difference arises in this configuration: when either nrows or ncols is set to 1, the axes object returned by plt.subplots() automatically simplifies into a 1D array, rather than a 2D array. This simplifies the indexing scheme, requiring only a single index (e.g., axes[0], axes[1], etc.) to address each subplot sequentially.

import matplotlib.pyplot as plt

#define subplot layout
fig, axes = plt.subplots(nrows=4, ncols=1)

#add DataFrames to subplots
df1.plot(ax=axes[0])
df2.plot(ax=axes[1])
df3.plot(ax=axes[2])
df4.plot(ax=axes[3])

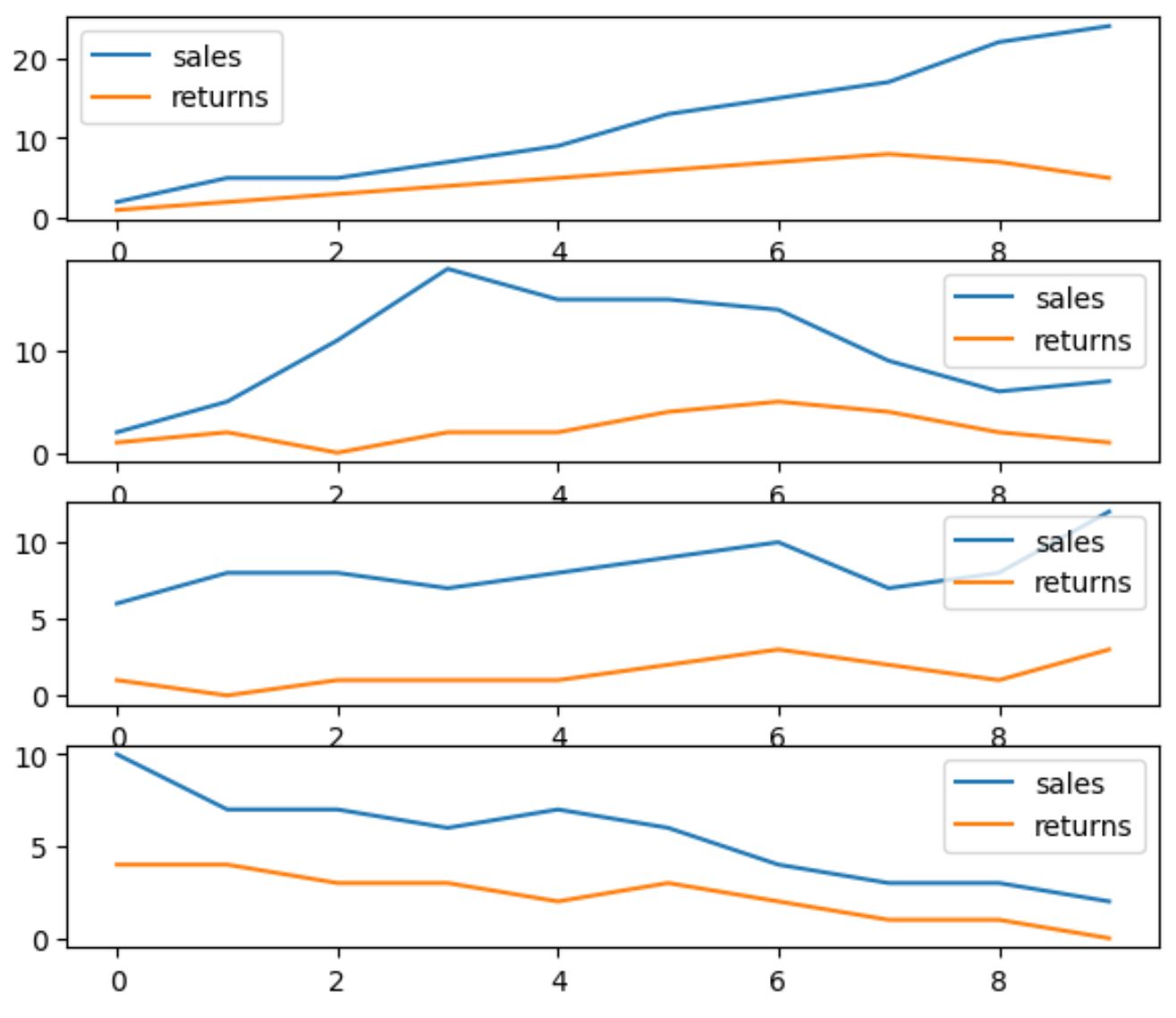

The resulting image below clearly illustrates the effect of this rearrangement: the subplots are now vertically stacked in a 4×1 configuration. This particular layout is often preferred in formal reports or dashboards where screen real estate is vertically oriented, allowing the viewer to scan down the page to compare trends without the visual distraction of adjacent plots. By mastering the adjustment of nrows and ncols, analysts gain a powerful tool for controlling the narrative and flow of their data visualization, ensuring the presentation format optimally supports the analytical message.

Advanced Enhancement: Synchronizing Axes with `sharey`

When the primary objective of a subplot visualization is direct quantitative comparison—such as comparing the total magnitude of sales or the volume of merchandise returns across different stores—it is absolutely essential that all subplots utilize an identical scale for their primary measurement axis. If each subplot were allowed to auto-scale independently, minor variations might appear exaggerated in one panel while major differences are minimized in another, leading to severe misinterpretation of the data. To enforce this critical uniformity, Matplotlib provides the sharey argument within the plt.subplots() function, allowing seamless synchronization of the y-axis across the entire figure.

By simply setting sharey=True during the creation of the figure and its Axes objects, Matplotlib automatically calculates the global minimum and maximum values across all data intended for those subplots. It then applies this single, unified y-axis range to every panel, guaranteeing that the visual height of a plotted line segment or bar represents the exact same magnitude in all four store visualizations. This feature is invaluable for accurate quantitative comparisons, transforming the collection of individual plots into a truly cohesive analytical instrument. It is a best practice in professional data visualization, ensuring that visual evidence is presented consistently and truthfully.

import matplotlib.pyplot as plt

#define subplot layout, force subplots to have same y-axis scale
fig, axes = plt.subplots(nrows=4, ncols=1, sharey=True)

#add DataFrames to subplots
df1.plot(ax=axes[0])
df2.plot(ax=axes[1])
df3.plot(ax=axes[2])
df4.plot(ax=axes[3])

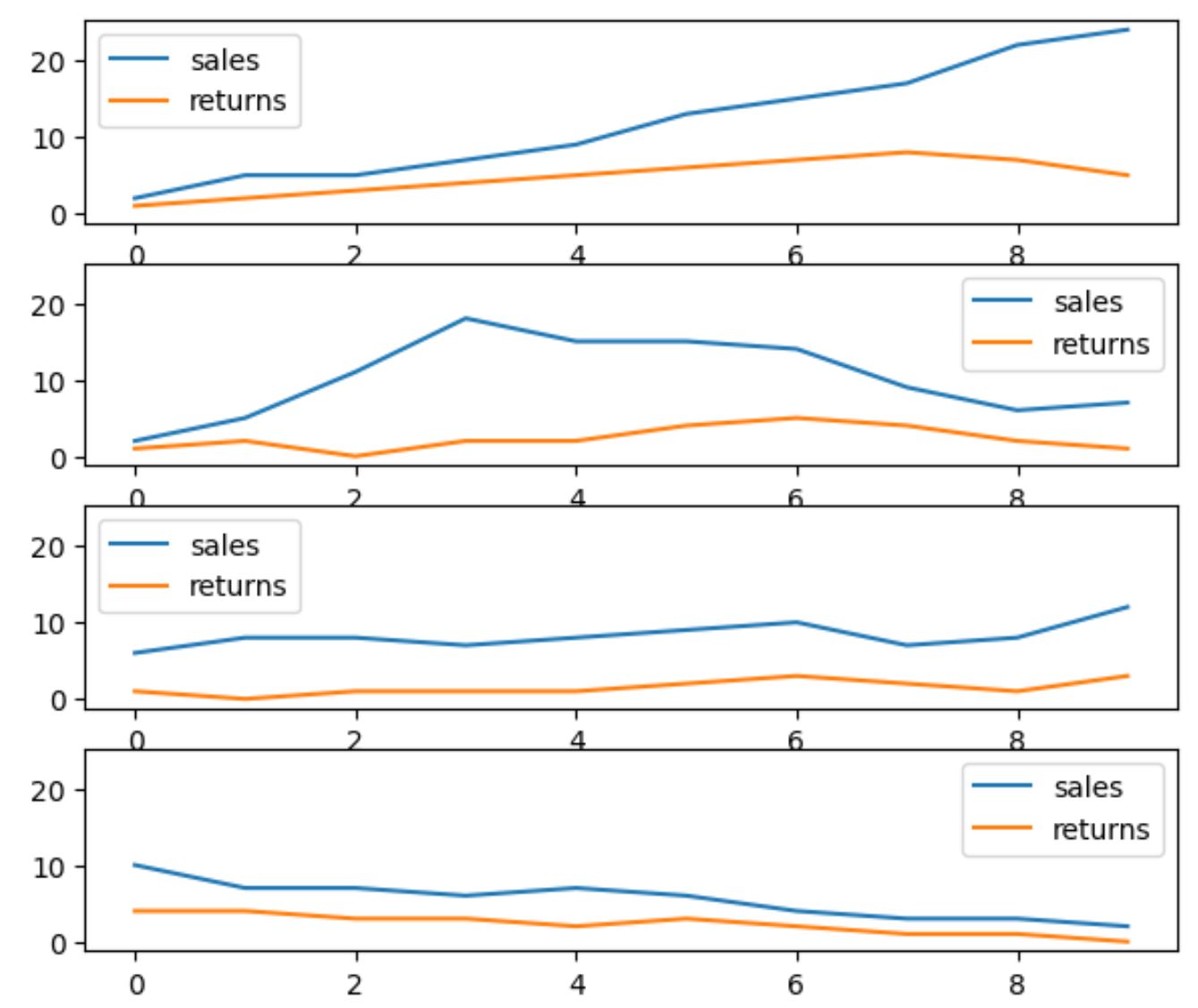

Observing the resulting output image, the impact of the sharey=True parameter is immediate and evident: the y-axis across all four subplots is now unified, spanning consistently from 0 to 25. This uniform scaling immediately highlights that, despite having lower sales, the magnitude of returns in stores 3 and 4 is proportionally small compared to the scale of sales in store 1. Conversely, if this parameter were omitted, the individual y-axes would stretch to fit local data, potentially obscuring the true comparative magnitude. Furthermore, the sharex argument offers identical functionality for synchronizing the x-axis, which is often crucial when dealing with time-series data or other instances where the independent variable range must be identical for valid comparison.

Conclusion and Pathways for Further Exploration

The technique of plotting multiple Pandas DataFrames within subplots using Matplotlib Pyplot constitutes a fundamental skill for any data professional seeking to produce effective comparative data analysis. The central function, plt.subplots(), offers an exceptionally robust and flexible framework, allowing for the organized display of complex data across multiple panels. By achieving proficiency in manipulating the core arguments—specifically nrows, ncols, and the synchronization parameter sharey—you gain precise control over the layout, clarity, and analytical power of your visualizations.

We have systematically covered the essential steps, from defining the basic grid structure and utilizing array indexing to assign specific DataFrames to individual subplots, to customizing the layout to suit specific visual narratives, such as the vertical 4×1 stack. The implementation of shared axes, as demonstrated with sharey=True, is particularly vital for ensuring the quantitative integrity of comparisons across related datasets, preventing visual distortion and promoting accurate interpretation of relative magnitudes. These methods represent the cornerstone of generating high-quality, presentation-ready graphics in the Python data science stack.

We highly recommend that you continue to experiment with the extensive customization options available within Matplotlib. These include adding unique titles and descriptive labels to individual Axes objects, incorporating legends within each subplot, and adjusting spacing between panels using fig.tight_layout() or plt.subplots_adjust(). Integrating these organizational and aesthetic enhancements into your daily data exploration workflows will dramatically increase the compelling nature of your data storytelling and the precision of your analytical insights.
