Mastering Data Aggregation and Visualization in Pandas

When conducting thorough data analysis, especially with time-series or categorical metrics, two procedural steps are consistently required: effective data aggregation and subsequent meaningful visualization. The Pandas library, recognized globally as the foundational tool for data manipulation in Python, offers exceptionally robust and efficient methods to streamline these operations. A particularly powerful combination involves chaining the groupby() function with the inherent plotting features of a DataFrame. This synergy allows analysts to move fluidly from raw, detailed data to insightful graphical representations derived directly from aggregated results, dramatically accelerating the time-to-insight.

This comprehensive tutorial delves into two distinct yet highly practical methodologies for executing a group-by operation and instantly generating plots from the results. The selection between these two techniques is primarily dictated by the desired visual outcome: whether the goal is to overlay all resulting series onto a single chart for direct comparative analysis, or to separate each grouped series into its own individual subplot (a technique known as faceting) for clearer, isolated trend inspection. Understanding the implications of each method is vital for accurate interpretation and presentation.

Before implementing the practical code examples, it is crucial to establish a solid understanding of the structural prerequisites and operational mechanics involved. Both visualization techniques fundamentally depend on correctly preparing the data so that the plotting function can accurately map the designated index (typically a time or sequence variable) to the x-axis, and the grouped categorical variable to separate line traces. Achieving proficiency in these methods is a cornerstone of effective data visualization and professional data reporting.

We will examine the following two essential strategies for visualizing data that has been grouped by a specific category:

• Method 1: Aggregating data series to display all groups as distinct lines within a single, comparative chart.
• Method 2: Restructuring the data into a wide format to plot each grouped series in individual subplots, enabling clearer trend isolation.

The following preview illustrates the core syntax required for each approach, highlighting the elegant chainability offered by the Pandas DataFrame:

Method 1: Group By & Plot Multiple Lines in One Plot

# Set the index column for the x-axis
df.set_index('day', inplace=True)

# Group data by product and plot sales as a line chart with legend
df.groupby('product')['sales'].plot(legend=True)

Method 2: Group By & Plot Lines in Individual Subplots (Faceting)

pd.pivot_table(df.reset_index(),
               index='day', columns='product', values='sales'
              ).plot(subplots=True)

Establishing the Sample Pandas DataFrame Environment

To effectively illustrate these powerful visualization techniques, we begin by constructing a clean, small-scale DataFrame. This sample dataset is designed to simulate a common business scenario: tracking daily sales performance across multiple distinct categories, in this case, two products labeled ‘A’ and ‘B’, recorded over a five-day interval. This data structure mirrors many real-world applications where performance metrics (such as sales figures, resource usage, or user activity) must be compared across different categorical variables (like products, regions, or demographics) over a continuous timeline.

The resulting dataset comprises three critical columns: the day column, which serves as the continuous time-series index; the product column, which represents the categorical variable we intend to group and separate for visualization; and the sales column, containing the numerical metric that will be plotted. We utilize the standard pandas.DataFrame() constructor to rapidly initialize this structure in Python. It is important to remember that, while the data is initially in a “long” format, effective time-series plotting often requires the time variable to be explicitly set as the index, a step we will detail in Method 1.

import pandas as pd

# Create the sample DataFrame structure
df = pd.DataFrame({'day': [1, 2, 3, 4, 5, 1, 2, 3, 4, 5],
                   'product': ['A', 'A', 'A', 'A', 'A', 'B', 'B', 'B', 'B', 'B'],
                   'sales': [4, 7, 8, 12, 15, 8, 11, 14, 19, 20]})

# Display the created DataFrame
df

	day	product	sales
0	1	A	4
1	2	A	7
2	3	A	8
3	4	A	12
4	5	A	15
5	1	B	8
6	2	B	11
7	3	B	14
8	4	B	19
9	5	B	20

Method 1: Combining Grouped Data into a Single Comparative Chart

The most suitable visualization approach when the primary analytical goal is the direct comparison of trends, volumes, or magnitudes across categories is consolidating the data into a single, unified plot. This technique leverages the inherent power of the Pandas groupby() method, utilizing its ability to partition data streams before feeding them into the built-in plotting API. This results in a highly efficient method for generating comparative line charts.

Executing this method involves two indispensable steps that structure the data for plotting. First, we must designate the time variable, day, as the index of our DataFrame using df.set_index('day', inplace=True). This action explicitly defines the x-axis coordinates for all subsequent graphical output. Second, we apply the crucial groupby('product') operation. Crucially, when .plot(legend=True) is invoked immediately after selecting the ‘sales’ column, the Pandas plotting engine intelligently recognizes the preceding grouping. It automatically interprets each unique group (‘A’ and ‘B’) as a separate, distinct line series, using the previously set index (‘day’) for the x-coordinates and the corresponding ‘sales’ values for the y-coordinates. This concise syntax allows for the rapid generation of meaningful comparative visualizations.

The following code snippet demonstrates how to group the DataFrame by the ‘product’ variable and visualize the ‘sales’ trend for each product on a single shared set of axes:

# Define 'day' as the index column for the x-axis
df.set_index('day', inplace=True)

# Group data by product and display sales as a comparative line chart
df.groupby('product')['sales'].plot(legend=True)

The resulting visualization clearly utilizes the x-axis for the day variable, the y-axis for the sales metric, and presents two distinct lines corresponding to Product A and Product B. This side-by-side presentation immediately facilitates critical analysis, showing that Product B maintained a consistently higher daily sales volume than Product A throughout the five-day observation period. This powerful visual comparison is the key advantage of Method 1.

Method 2: Utilizing Pivot Tables for Faceted Subplots

While a single plot excels at comparison, highly dense datasets or situations requiring minute analysis of individual trend shapes often benefit from separating each series into its own plot, a practice known as faceting. The native groupby().plot() chain is not optimized for generating subplots directly from groups. Instead, this objective requires an intermediate step: restructuring the data from its long format into a wide format, where each category (group) is transformed into its own column. This restructuring is efficiently handled by the Pandas pivot_table() function.

The pivot_table() function is utilized to reshape the data, effectively rotating the categorical variable (product) from vertical rows into horizontal columns. We define the pivoting operation using specific parameters to dictate the output structure:

• index='day': Specifies that the ‘day’ column will serve as the index, defining the shared x-axis across all new plots.
• columns='product': Designates the ‘product’ column’s unique values (‘A’ and ‘B’) as the new column headers.
• values='sales': Identifies the numerical data point used to populate the cells under the newly created ‘A’ and ‘B’ columns.

After the data is successfully pivoted, the resulting DataFrame now features ‘day’ as the index and ‘A’ and ‘B’ as separate columns containing sales data. When the command .plot(subplots=True) is executed on this wide-format structure, Pandas automatically generates a dedicated plot for every column. This results in two separate, non-overlapping charts, one for each product’s sales trend, maximizing visual clarity.

The following concise code demonstrates the necessary data restructuring using the pivot_table() function and the subsequent generation of individual subplots:

pd.pivot_table(df.reset_index(),
               index='day', columns='product', values='sales'
              ).plot(subplots=True)

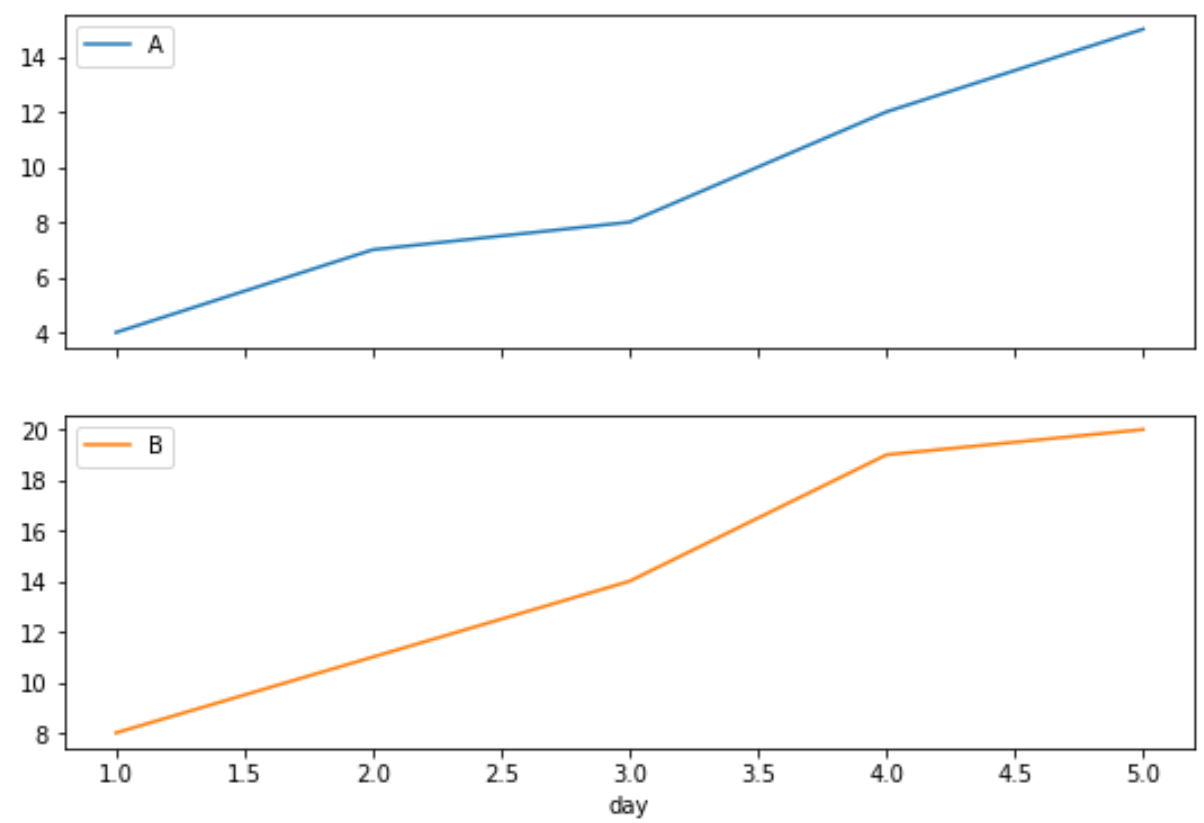

The resulting image displays two visually separated plots: the upper chart illustrates the sales progression for product A, while the lower chart details the trend for product B. This distinct separation is invaluable for inspecting the volatility, smoothness, or specific growth patterns of each product without the potential visual interference caused by overlapping lines on a shared axis.

Enhancing Readability Through Custom Subplot Layouts

While the default vertical stacking of subplots generated by Method 2 is functional, optimizing the arrangement of these facets is critical for improving readability, especially when preparing reports or visualizing numerous groups. Since Pandas plotting is built upon the Matplotlib library, it natively supports the layout parameter, enabling precise control over the grid dimensions (rows and columns) of the resulting visualization.

In scenarios with a small number of plots, the default output often arranges them vertically. However, for time-series data, a horizontal arrangement generally proves more intuitive. By passing layout=(1, 2) to the plotting function, we explicitly instruct the engine to organize the charts into a single row and two columns. This deliberate horizontal presentation maximizes screen utilization, aligns with standard left-to-right reading flow, and enhances the ease with which users can visually compare the adjacent trends.

Implementing the layout parameter transforms the visual presentation from a simple stack to a controlled grid, significantly boosting the aesthetic quality and professional feel of the output, making it highly suitable for executive dashboards and detailed data exploration interfaces.

For instance, we can configure the subplots to display side-by-side in a grid defined by one row and two columns:

pd.pivot_table(df.reset_index(),
               index='day', columns='product', values='sales'
              ).plot(subplots=True, layout=(1,2))

This customized horizontal layout delivers a more concise and immediately comparative view, representing a professional standard for reporting aggregated time-series data.

Strategic Summary of Grouping and Plotting Techniques

The decision between these two robust methods for visualizing grouped data must be guided by the specific analytical objective. If the intention is to compare absolute magnitudes, identify overlaps, or locate crossover points between different groups, Method 1, which utilizes a single, shared plot, is the optimal choice. Conversely, if the primary goal is to meticulously analyze the unique shape, specific volatility, or underlying growth rate of each individual group—where large differences in magnitude might otherwise obscure subtle variations—Method 2, employing subplots generated via the pivot_table() function, offers the necessary isolation and clarity.

The core difference between these two strategies lies in how the data is transformed and presented to the visualization engine:

• Method 1 relies on preserving the long-format data structure, using set_index() followed by the groupby() operation. The plotting function then interprets the grouped object as multiple series intended to share the same coordinate system.
• Method 2 mandates the use of pivot_table() to convert the data into a wide format. In this structure, the unique groups are separated into distinct columns. The subsequent plotting function recognizes these separate columns and, when subplots=True is applied, allocates a dedicated set of axes for each column.

Both techniques beautifully showcase the seamless integration between data manipulation and data visualization inherent in the Pandas ecosystem, ensuring a smooth and powerful workflow from initial data processing to the final, actionable graphical insight.

Further Resources for Advanced Pandas Visualization

To continue developing expertise in data exploration and graphical presentation using the powerful Python data stack, it is highly beneficial to explore how to generate other common chart types and to deepen your knowledge of the extensive customization capabilities provided by the underlying Matplotlib library.

The following topics represent excellent next steps for mastering visualization within Pandas:

• Techniques for creating advanced scatter plots, including the addition of regression or trend lines.
• Methods for generating histograms and kernel density estimates for comprehensive distribution analysis.
• Best practices for utilizing box plots to identify outliers and compare statistical summaries across multiple groups.

By consistently combining robust data aggregation techniques—such as groupby() and pivot_table()—with the flexible plotting tools available, you can ensure that your data storytelling is consistently precise, trustworthy, and visually compelling.
